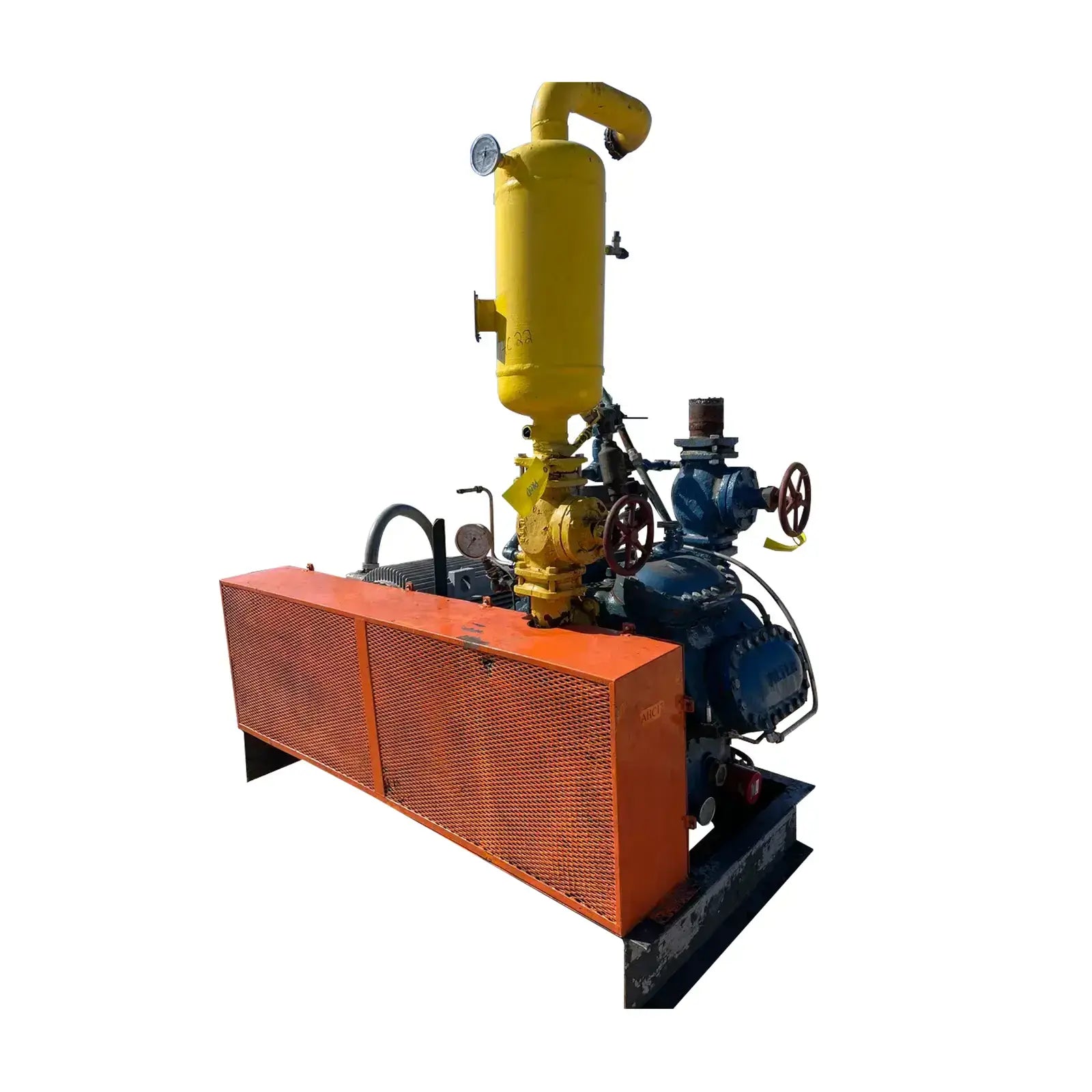

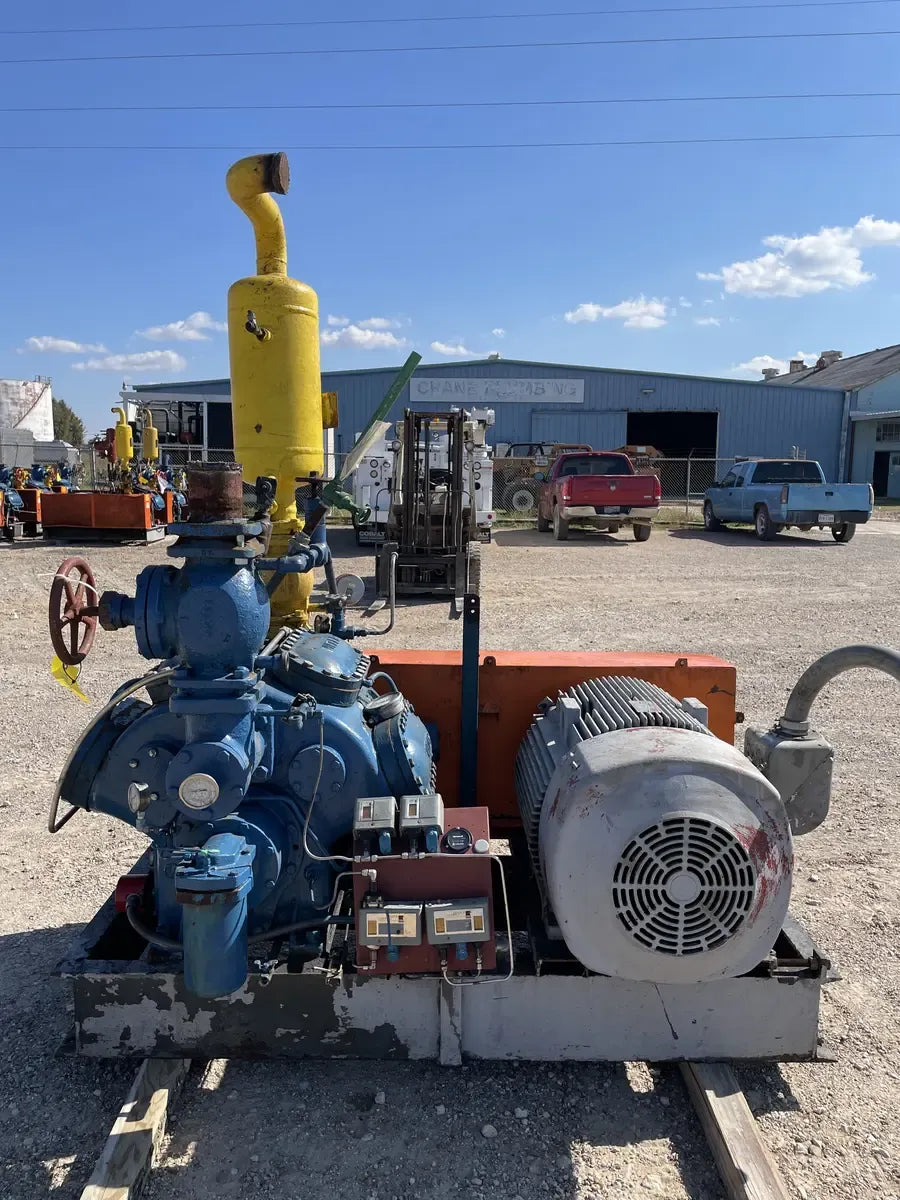

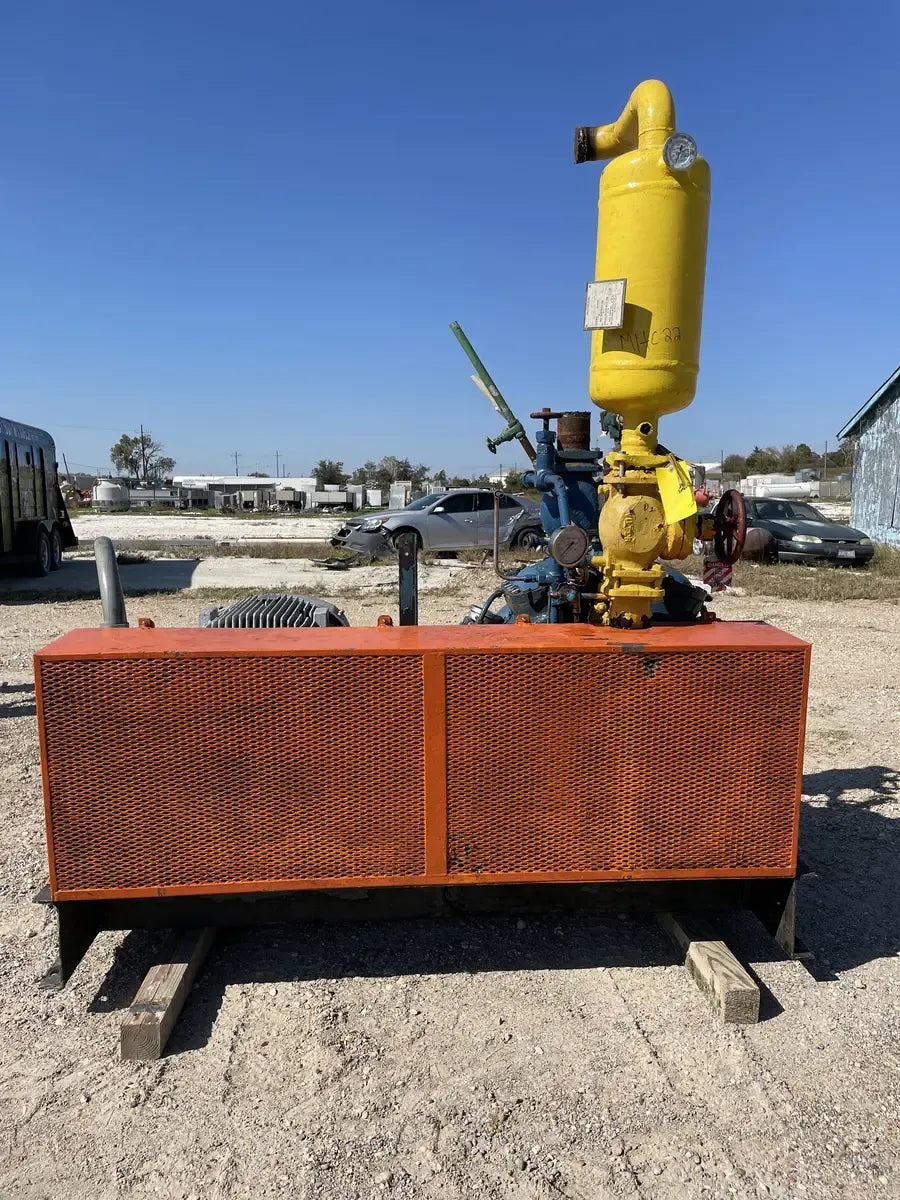

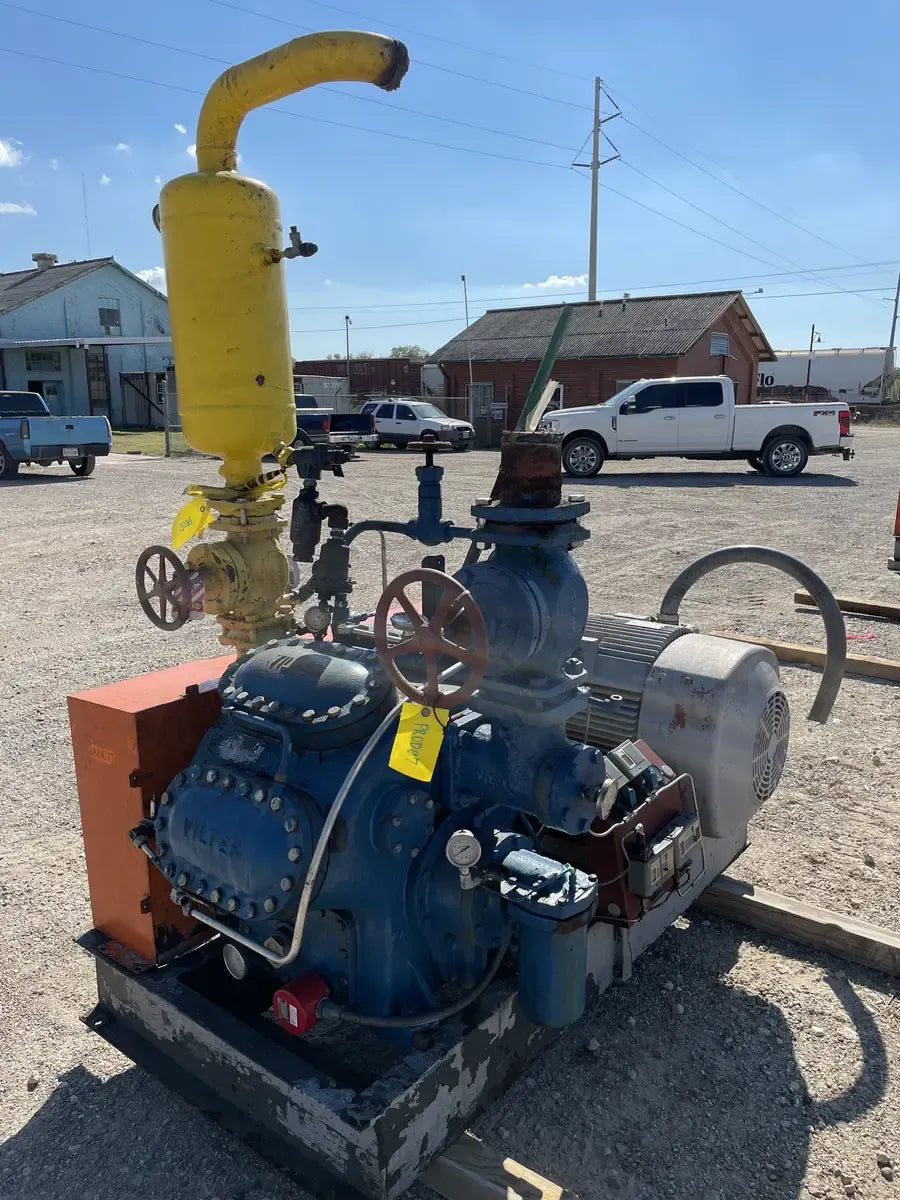

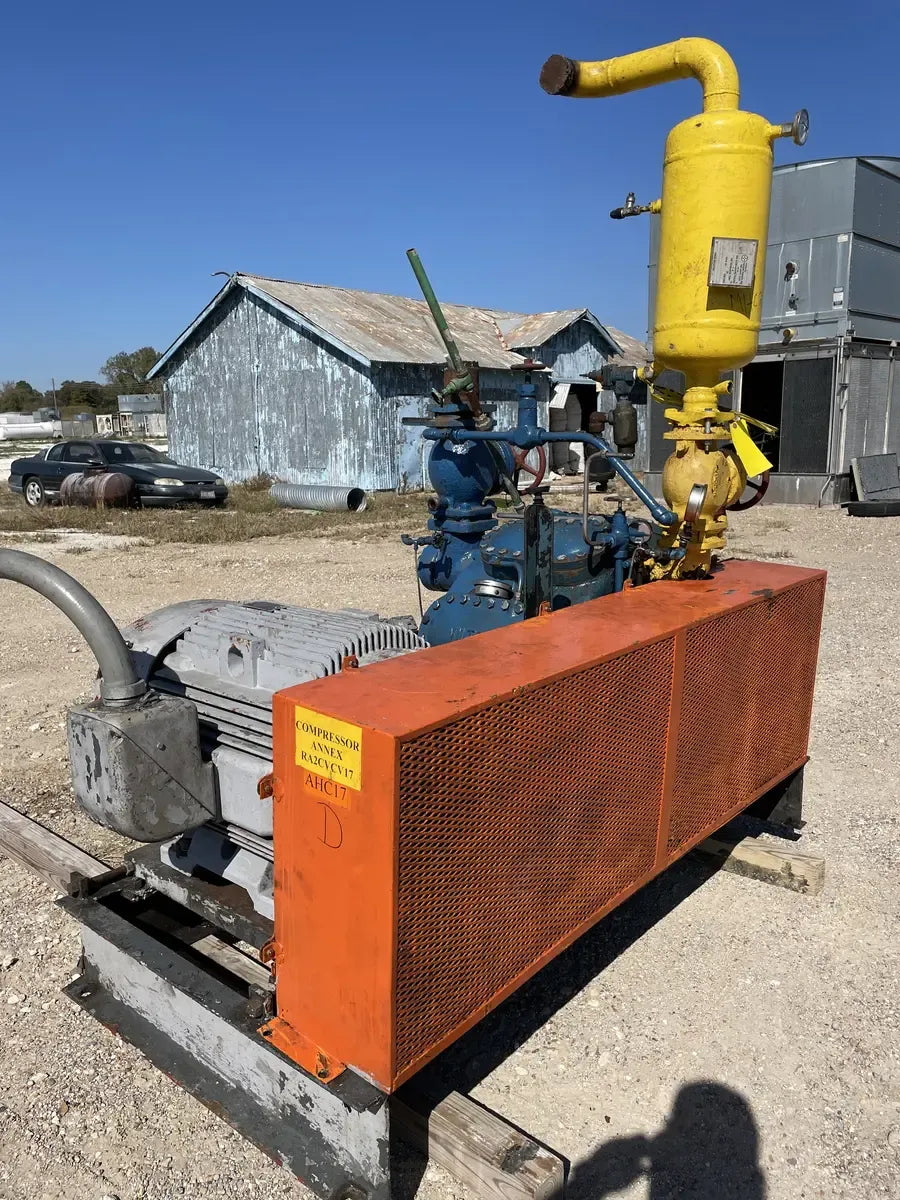

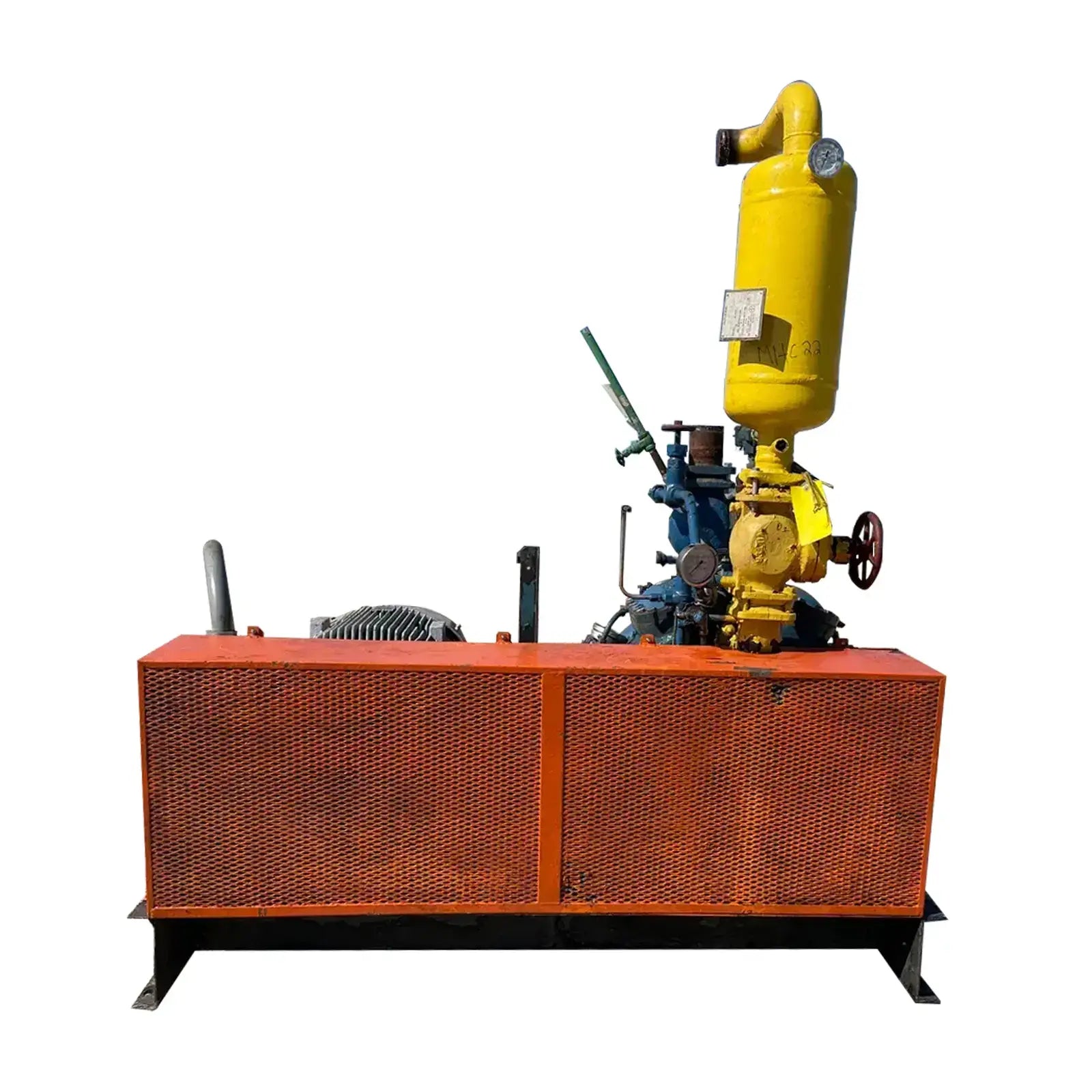

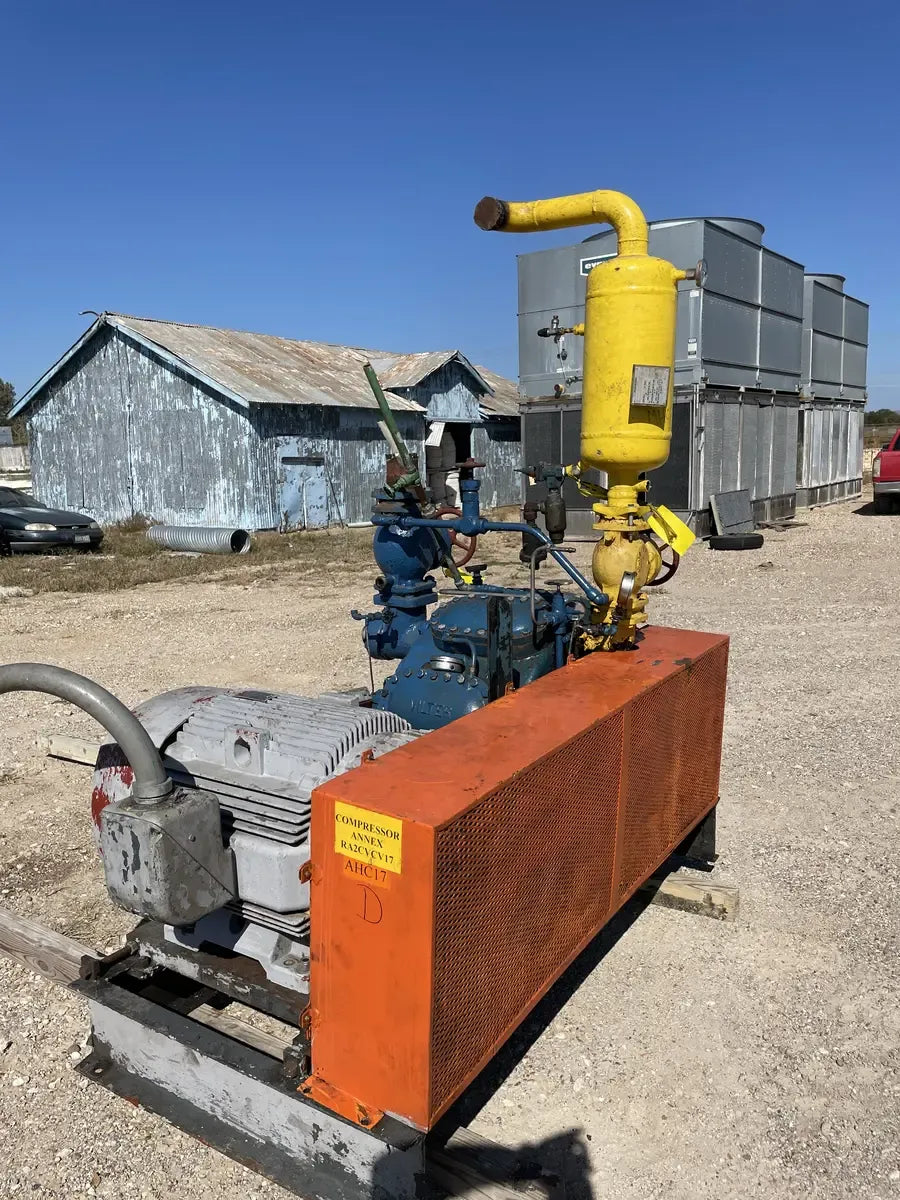

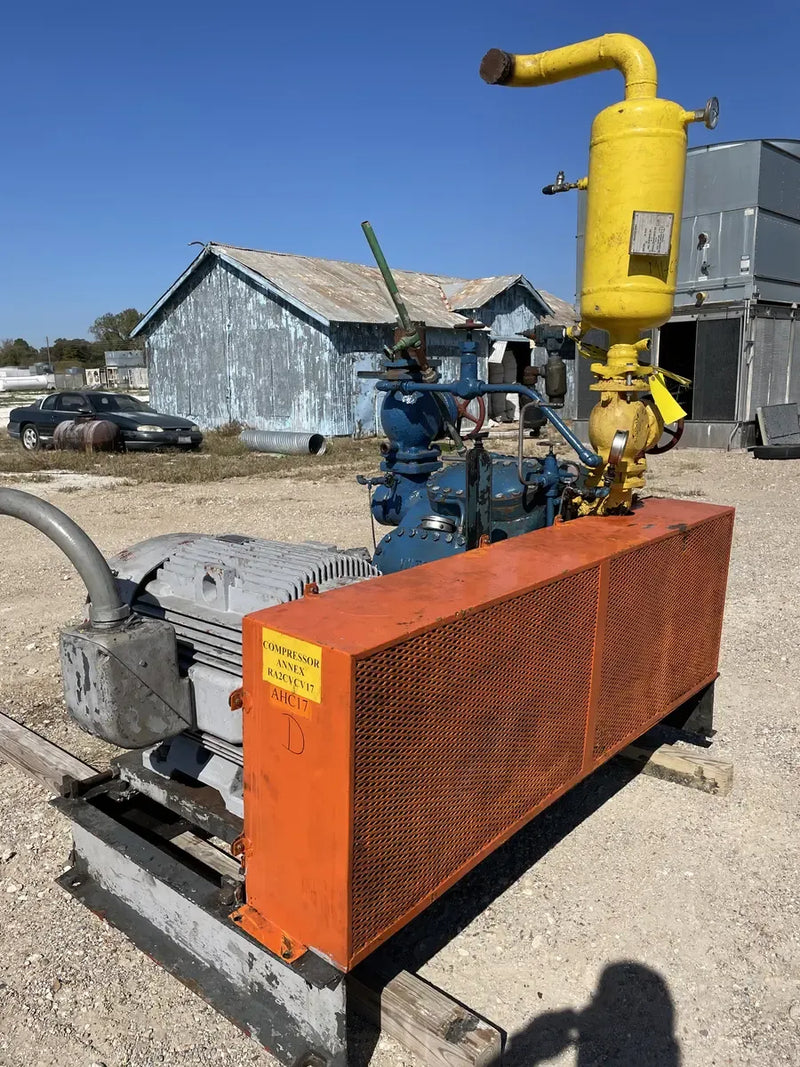

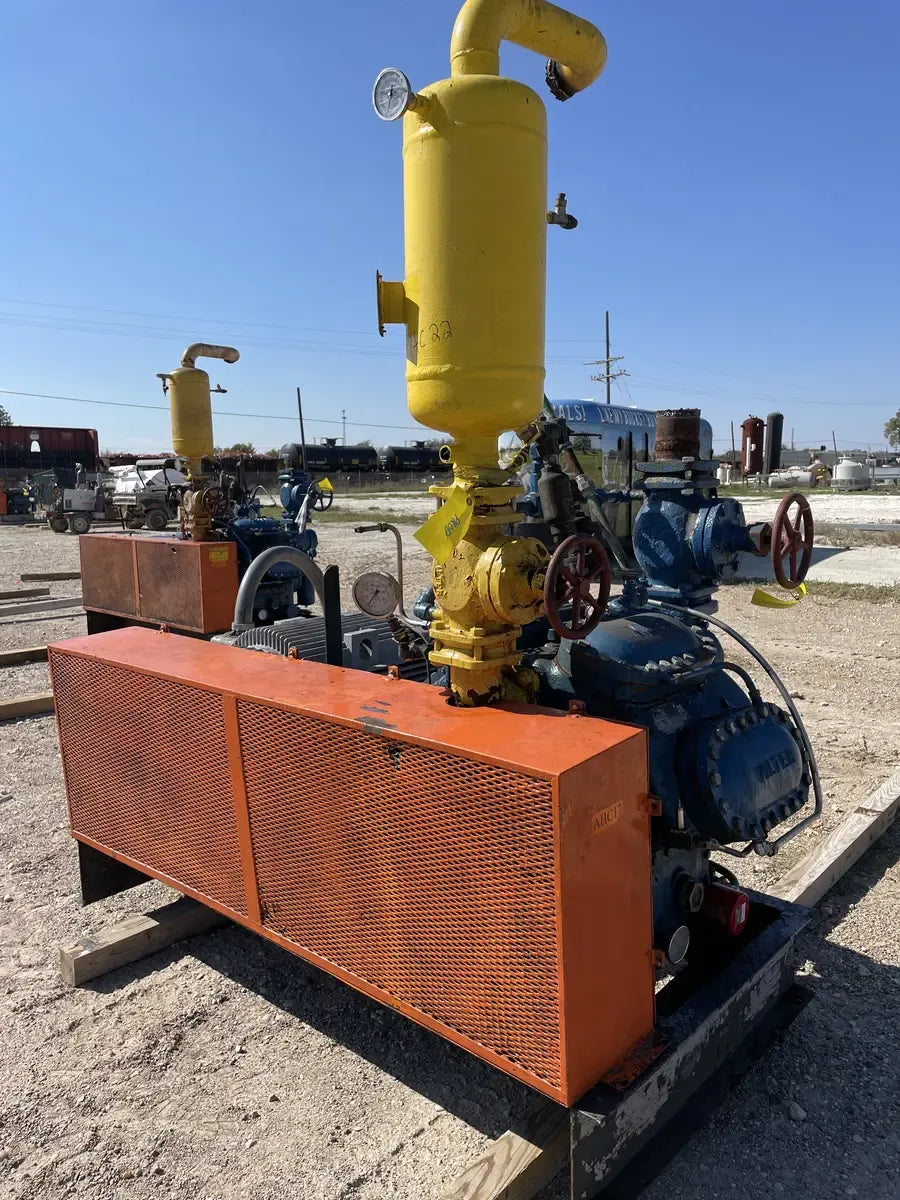

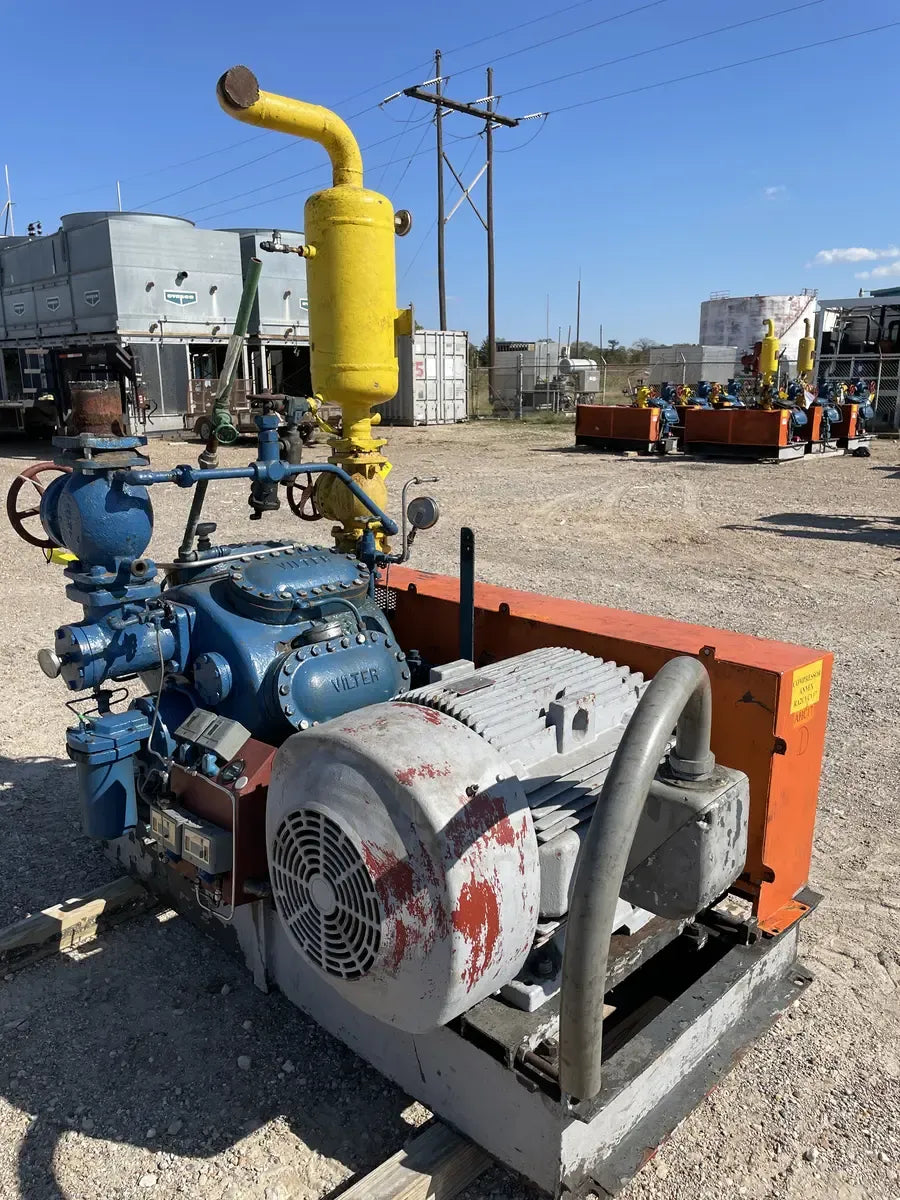

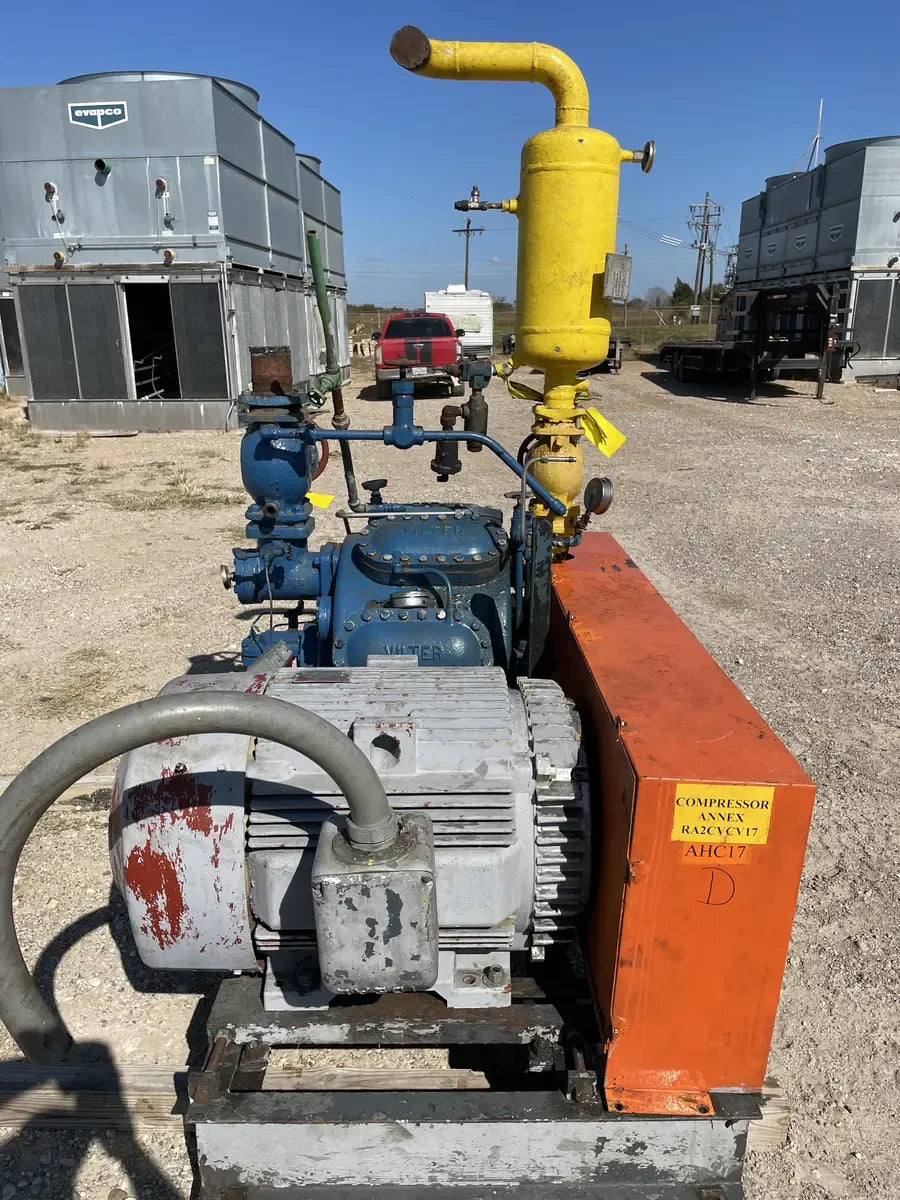

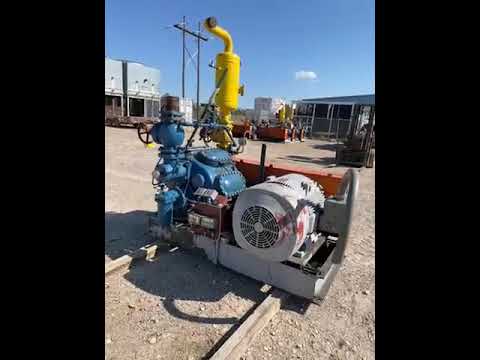

Vilter 448 8-Cylinder Reciprocating Compressor Package (100 HP 460 V, Belt Driven)

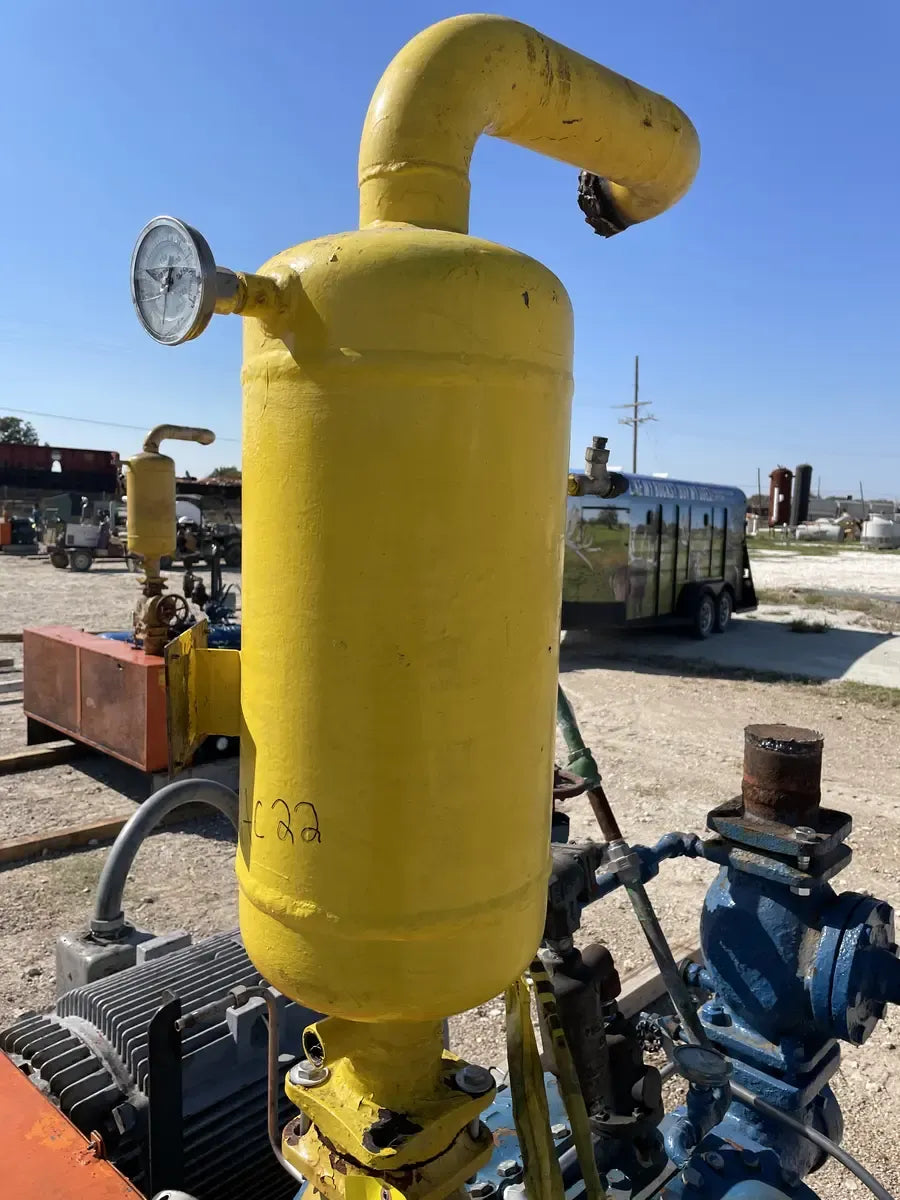

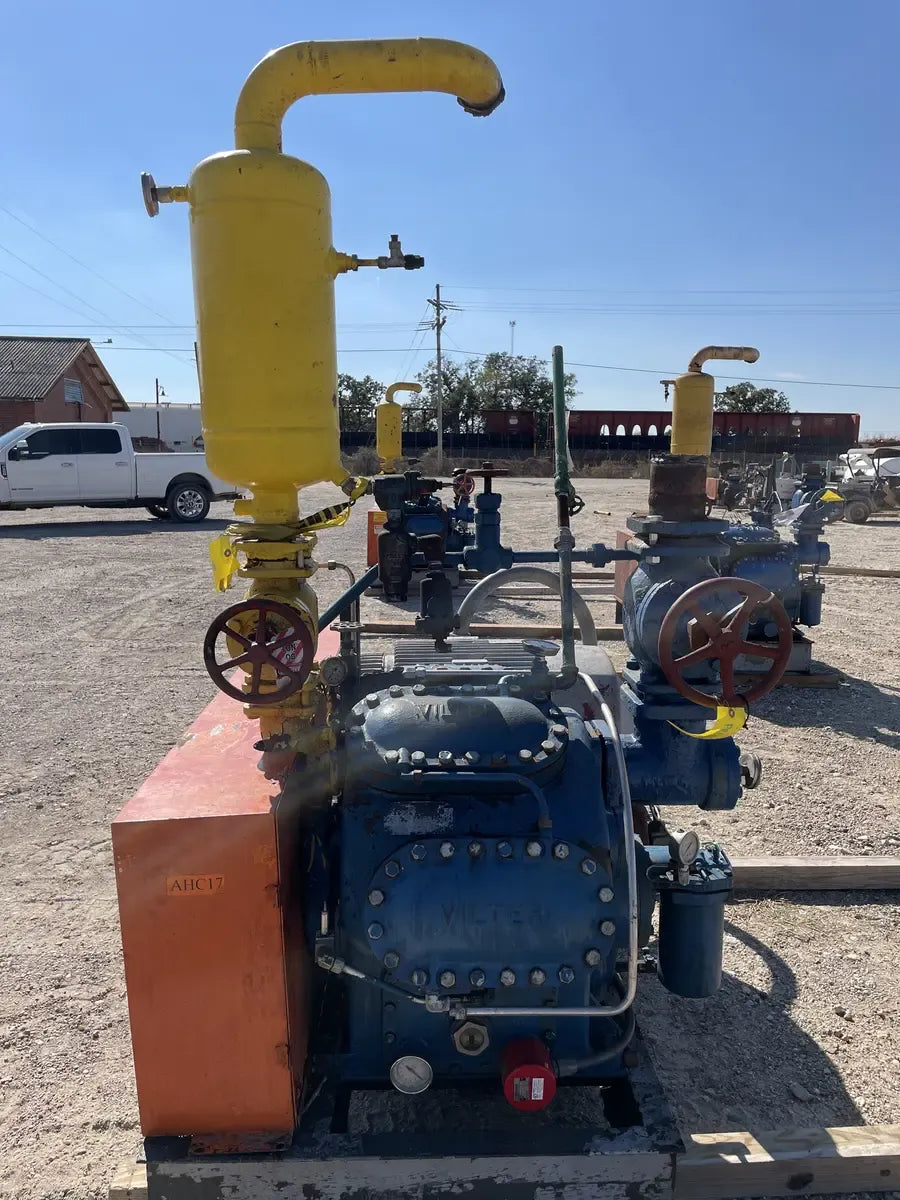

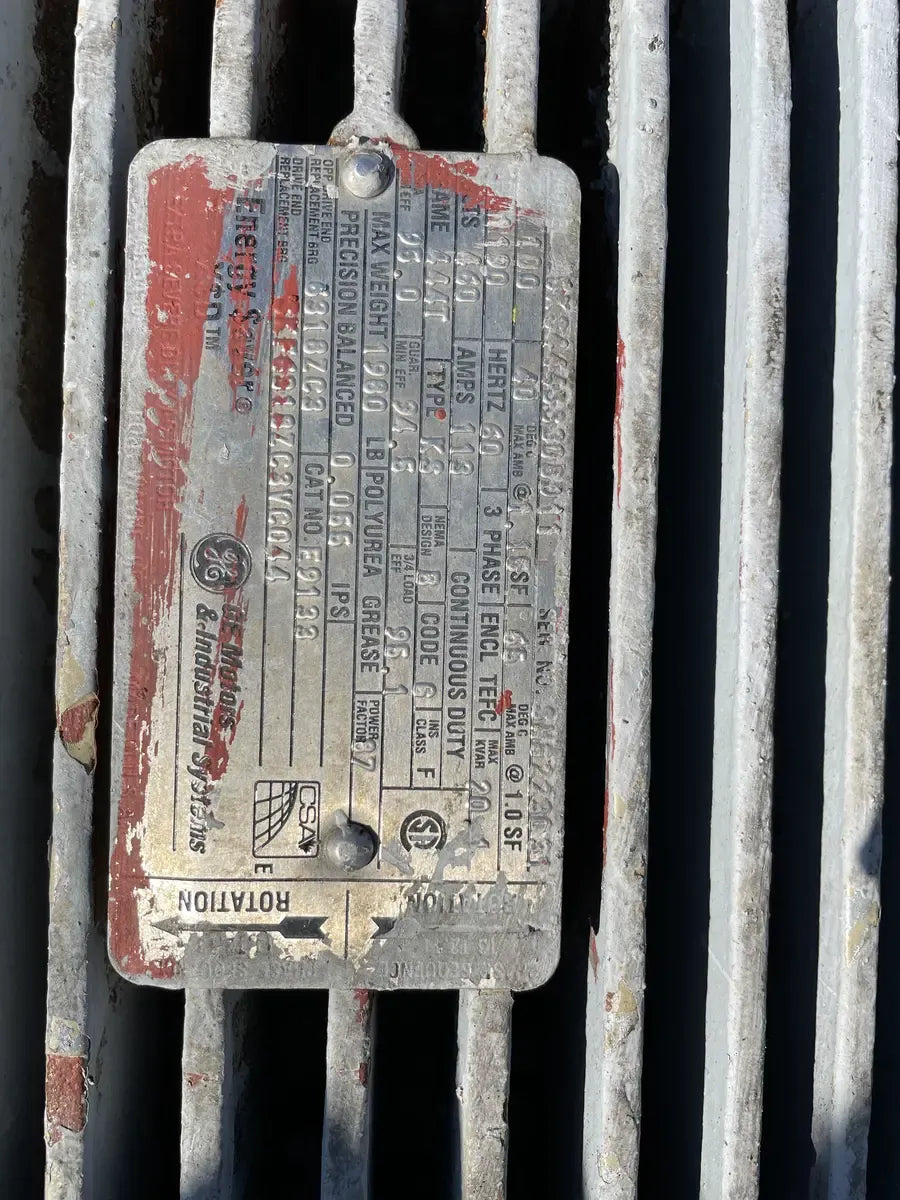

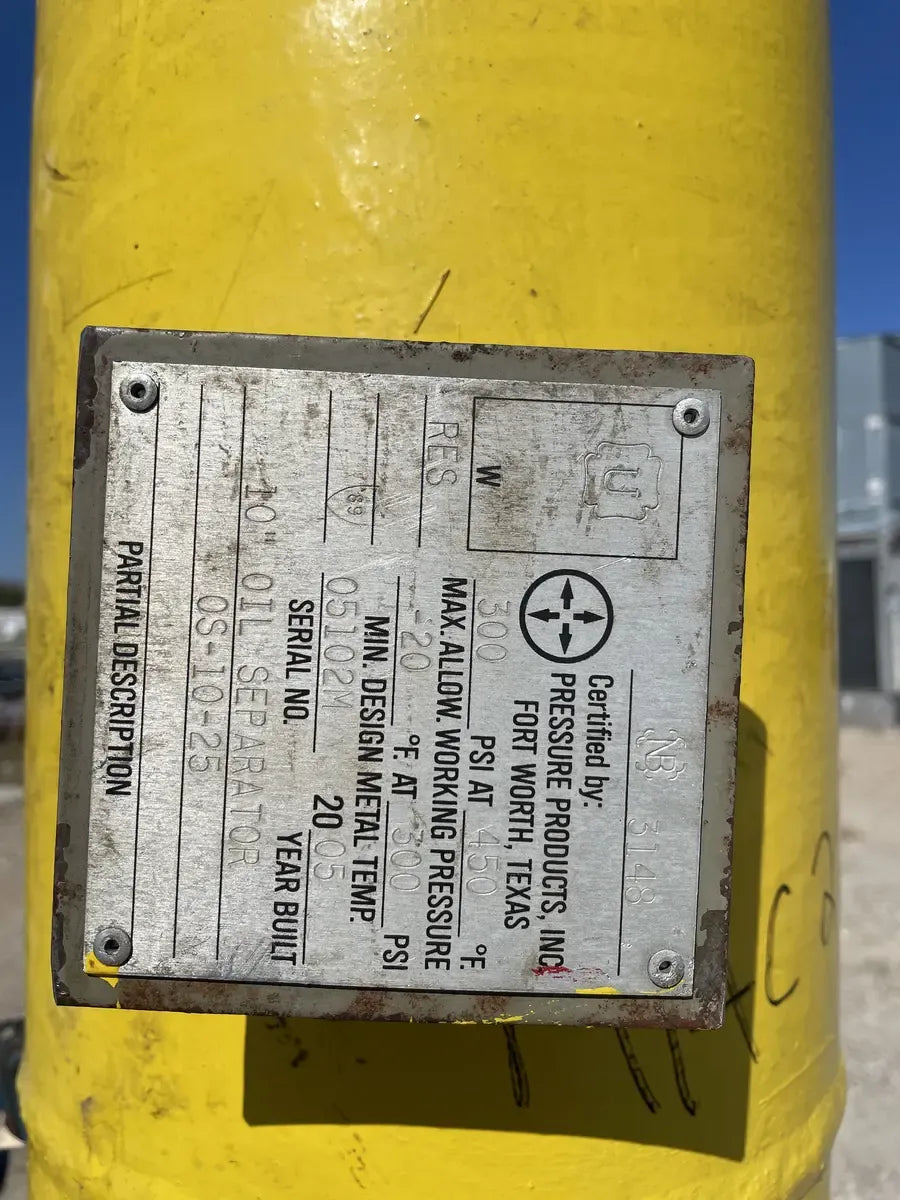

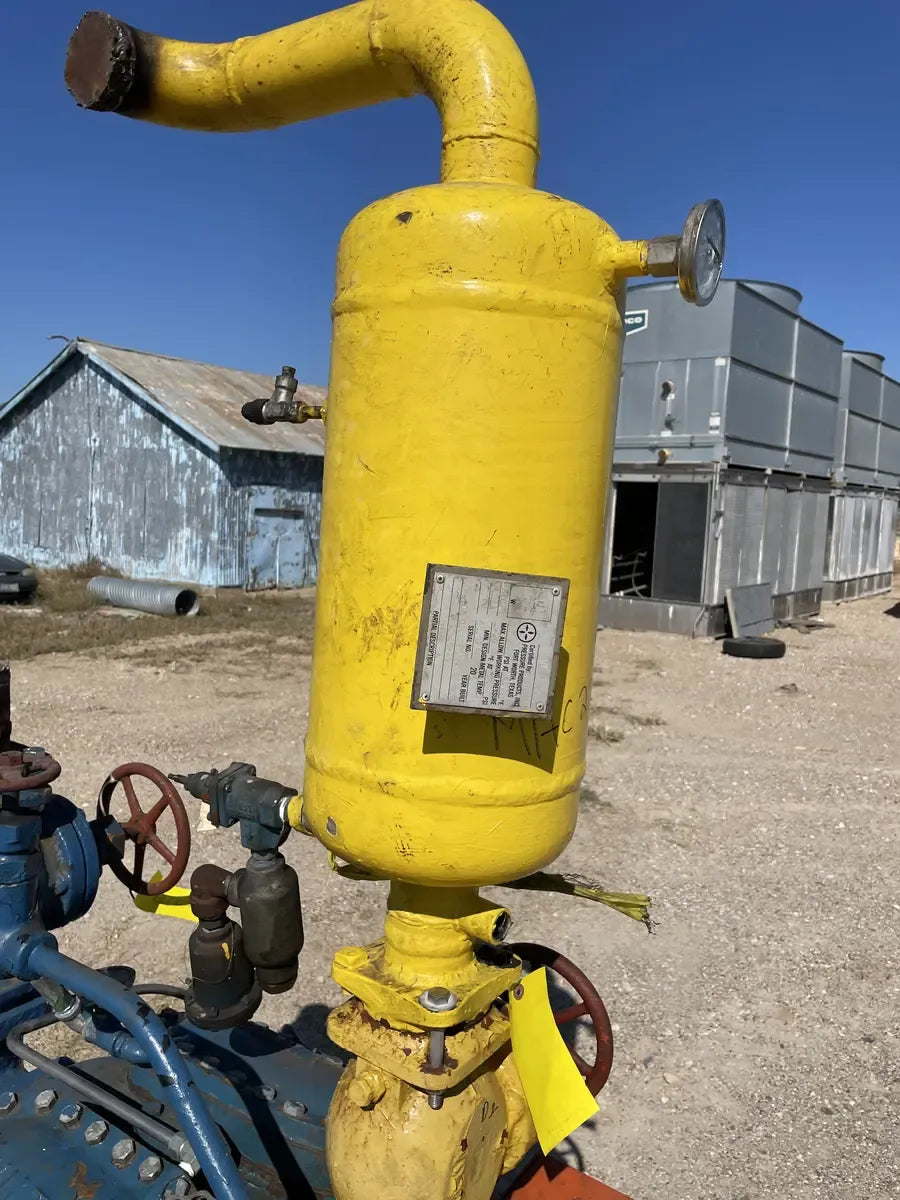

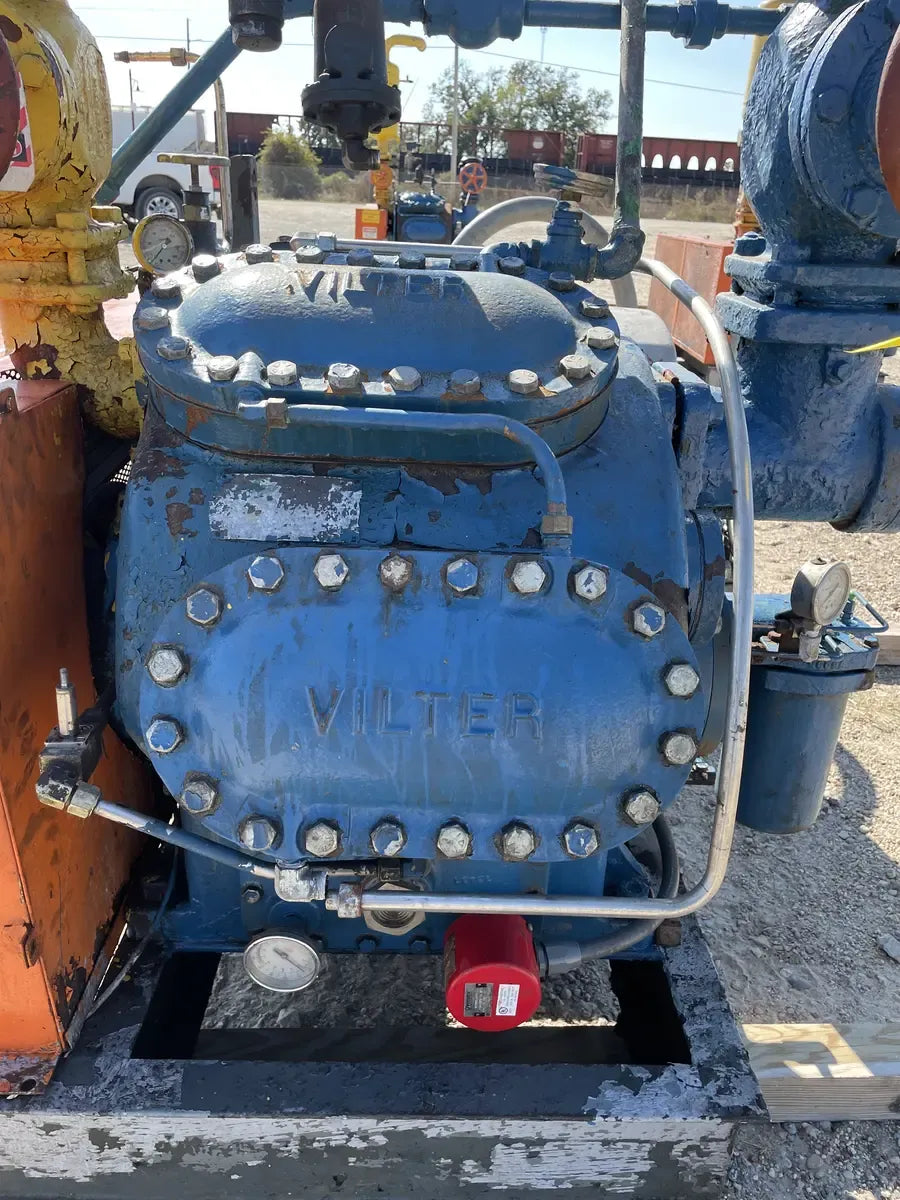

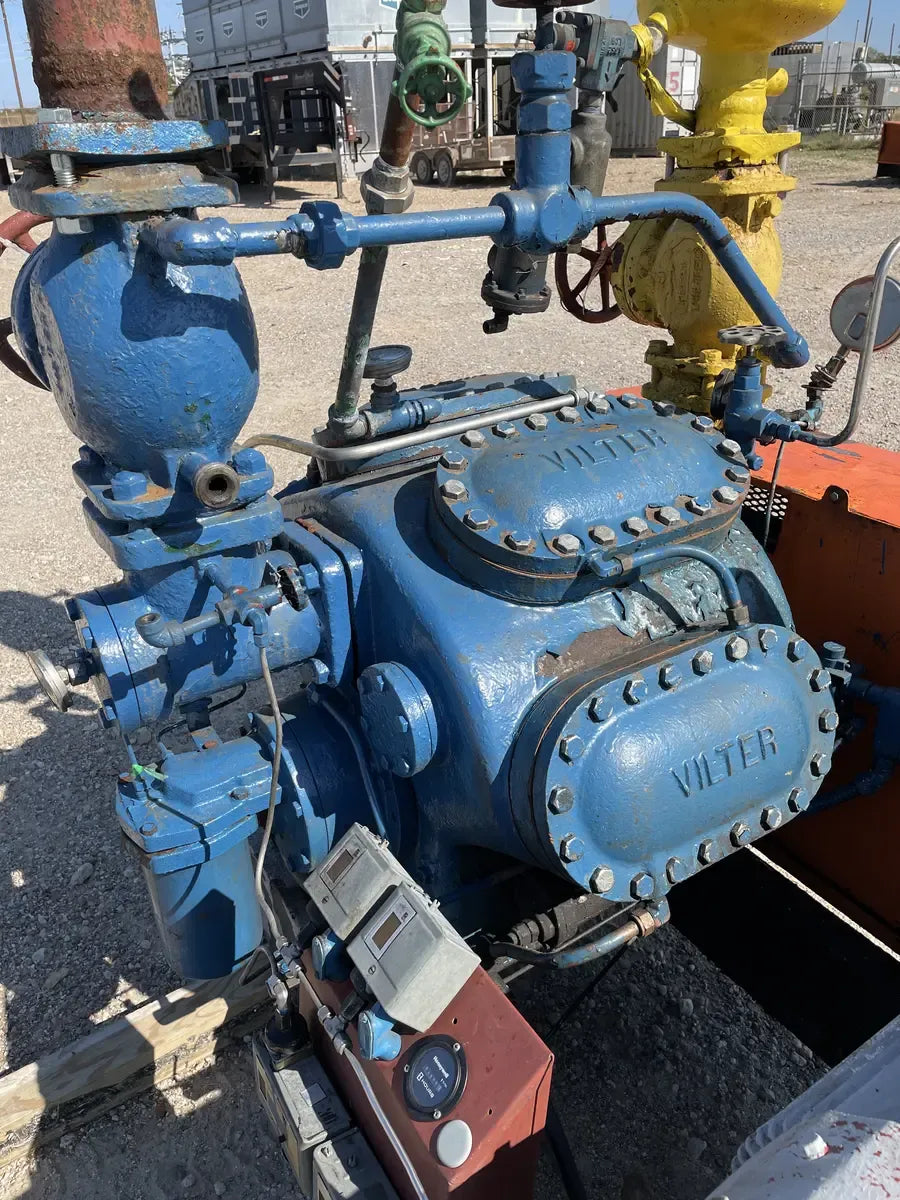

Vilter 448 8-Cylinder Reciprocating Compressor - Model: 448, Cylinders: 8, Serial No: B985941B, Displacement at Max RPM (CFM): 209. Compressor Connections (Line Size-Inches) - Suction(in): 4 ( 101.6 mm), Discharge(in): 3 (76.2 mm). Nominal capacity: 73.8 Tons of R-717 at 32.6 BHP with a 61.1°F condensing temperature and a 30°F suction temperature. Displacement: 155 CFM (at maximum rpm). Maximum RPM: 1200. Maximum discharge pressure: 300 PSIG. Maximum discharge temperature: 300°F. Maximum BHP with V-belt drive: 100 BHP. Maximum suction pressure: 150 PSI. GE Motors & Industrial Electric Motor - Serial No: 3N0223D31, HP: 100, RPM: 1190, Volts: 460, Frame: 444T, Hz: 60, AMPS: 113, Type: KS, Nema Nom EFF: 95.0, PH: 3, Power Factor: 87. Oil Separator - Certified by: Pressure Products, Inc, Max Allow Working Pressure 300 PSI @ 450F, Min Design Metal Temperature: -20 F @300 PSI, Serial No: 05102M, Year Built: 2005. National Board: 3148. Overall Dia(in): 10.
Product Details
- Stock No: PROD07
- Manufacturer: Vilter
- Model: 448

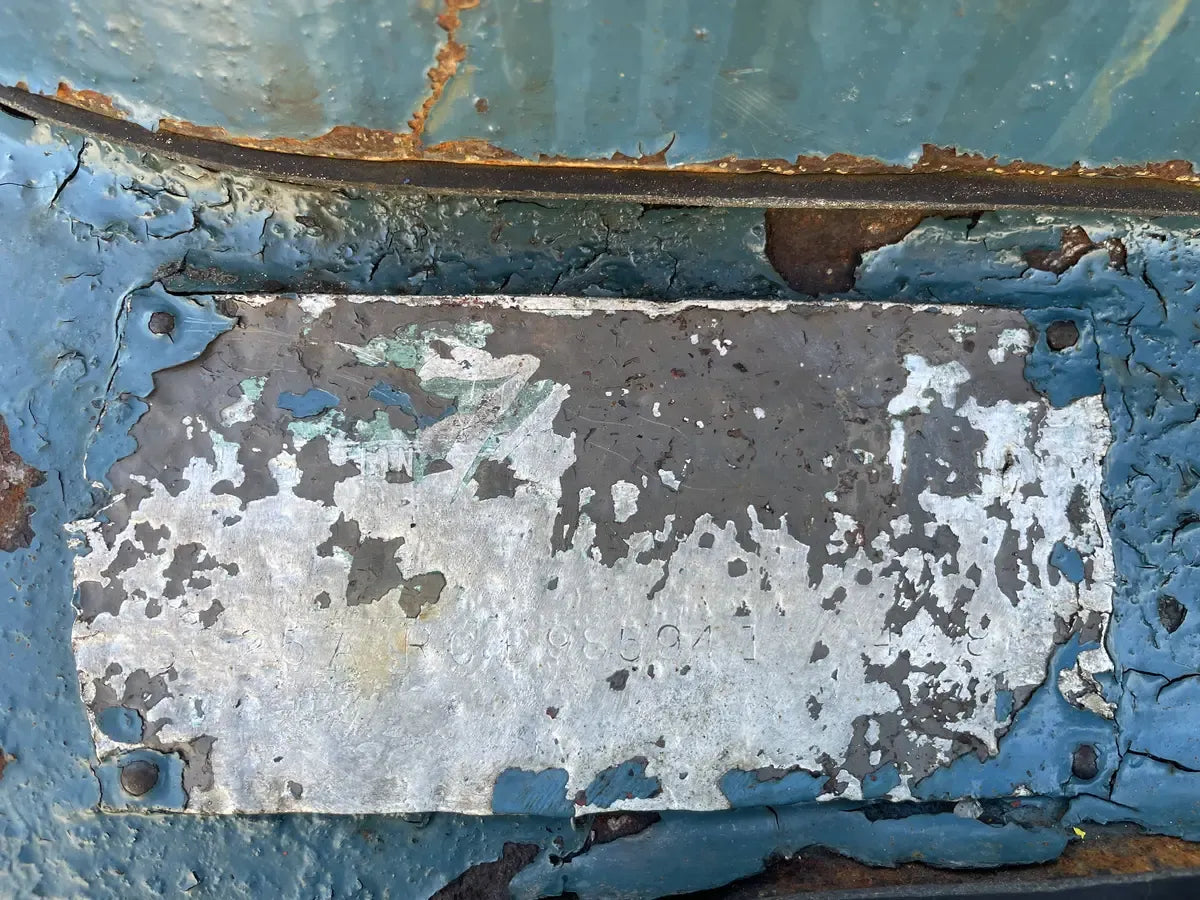

- Serial Number: B985941B
- Compressor Type: Reciprocating
- Package Included? Yes

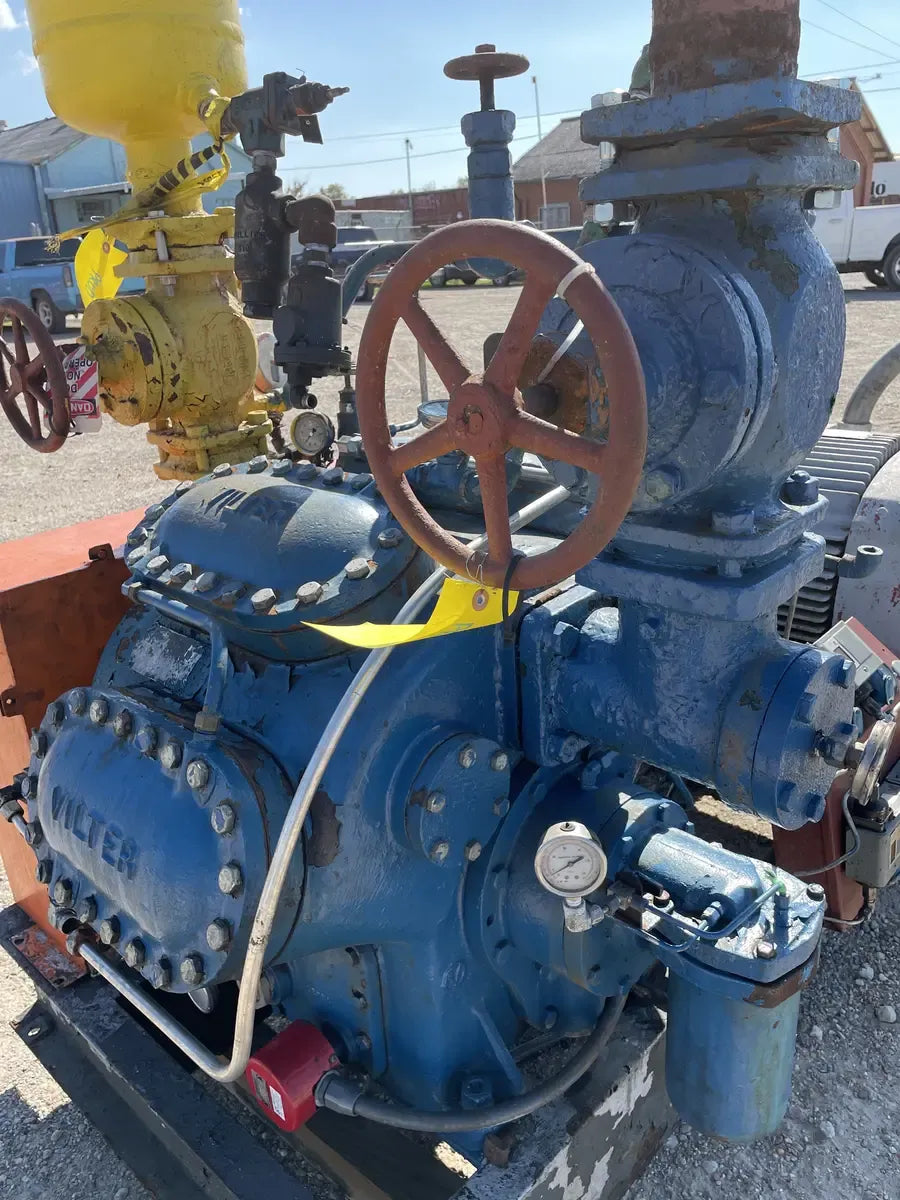

Reciprocating Compressor Details
- Compressor Manufacturer: Vilter
- # Of Reciprocating Cylinders: 8
- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: 448
- Compressor SN: B985941B
- Compressor Max Speed (RPM): 1,200
- Compressor Design Pressure (PSIG): 309

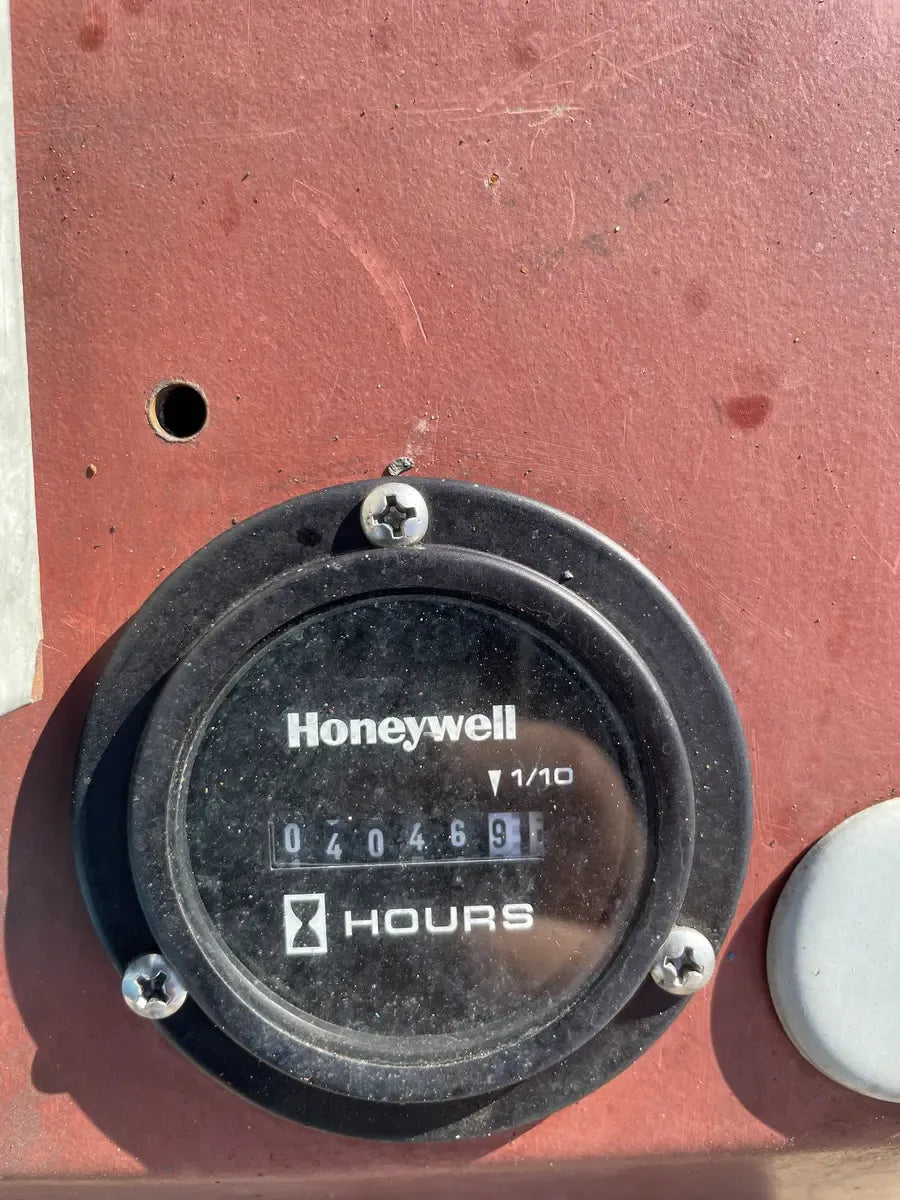

- Compressor Run Time Hours: 4,046.9
- Compressor Volume Ratio: 12:1
- Oil Separator Included? 3148
- Oil Separator National Board #: Yes
- Oil Cooling Type: Liquid Injection
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: No

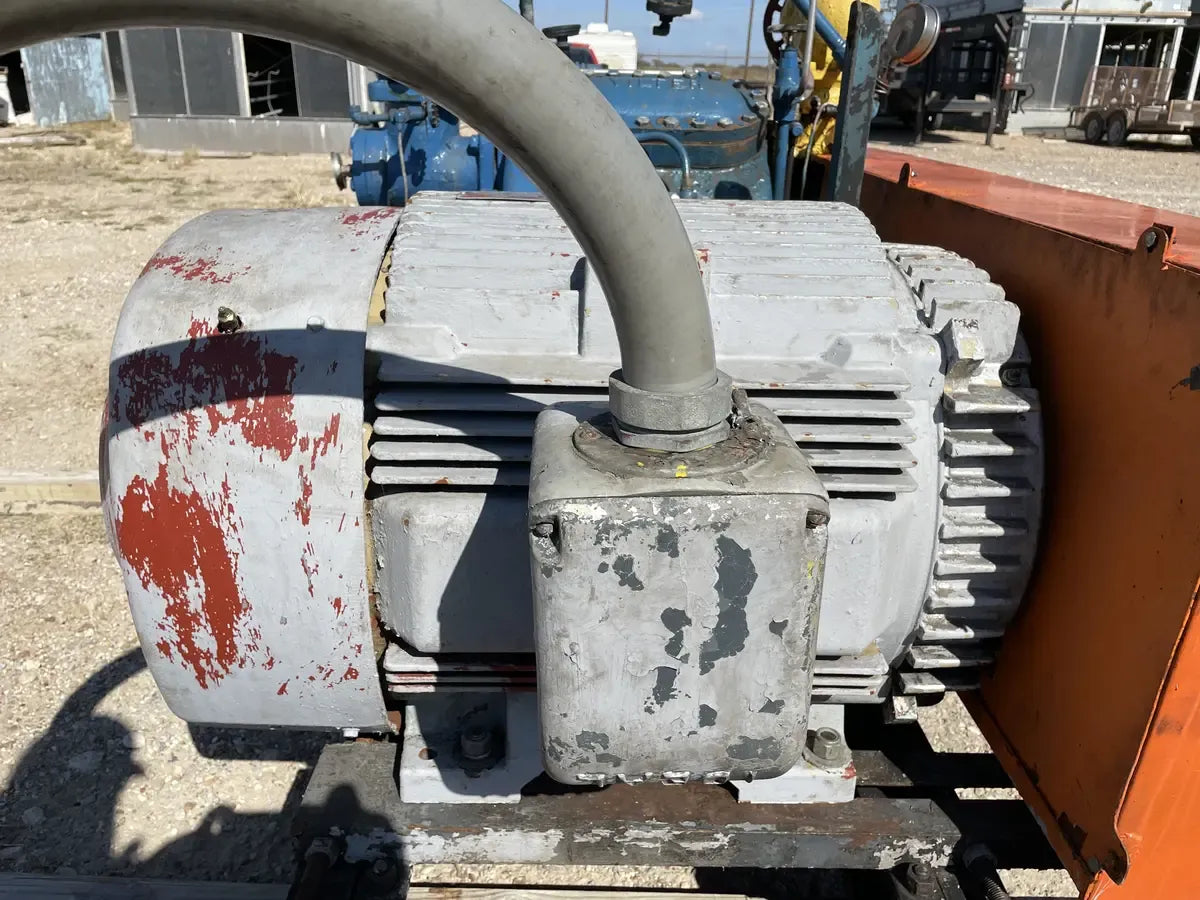

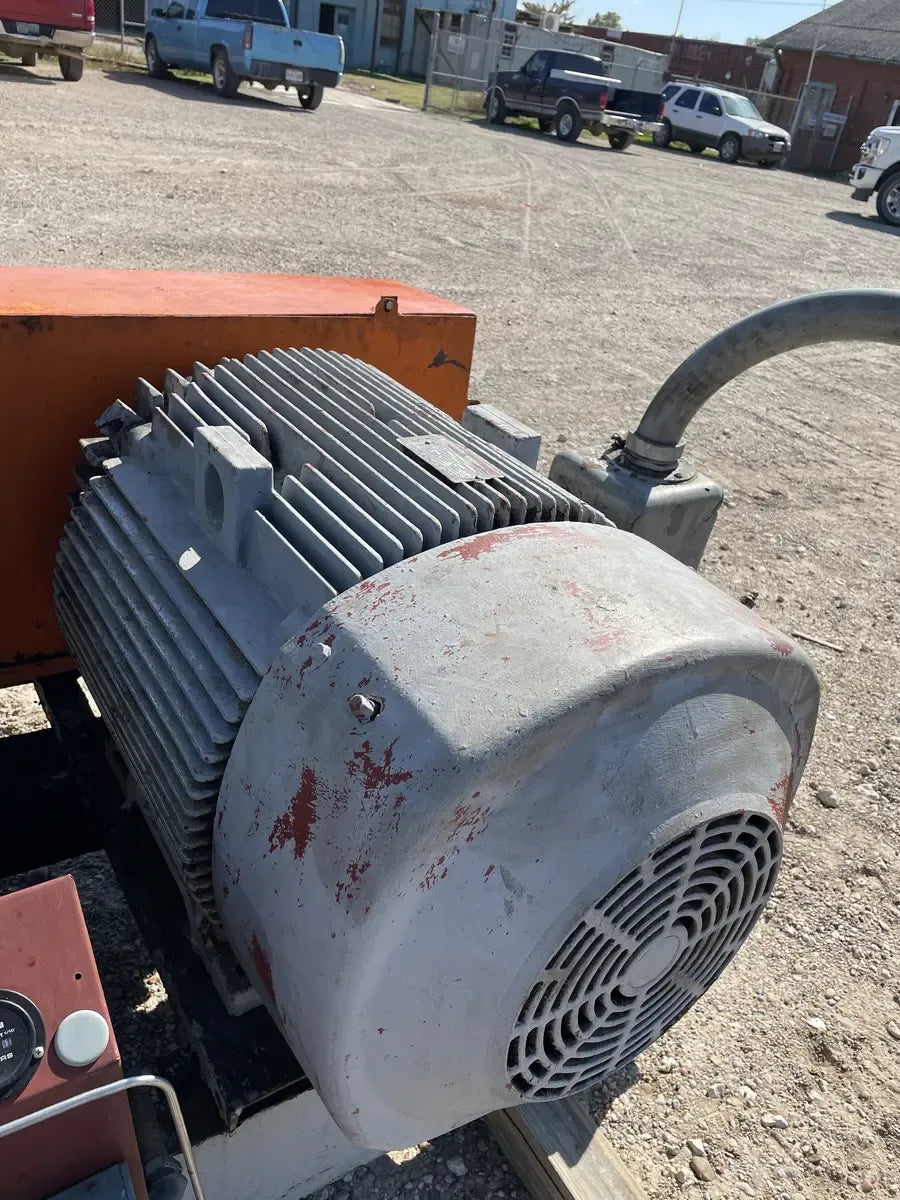

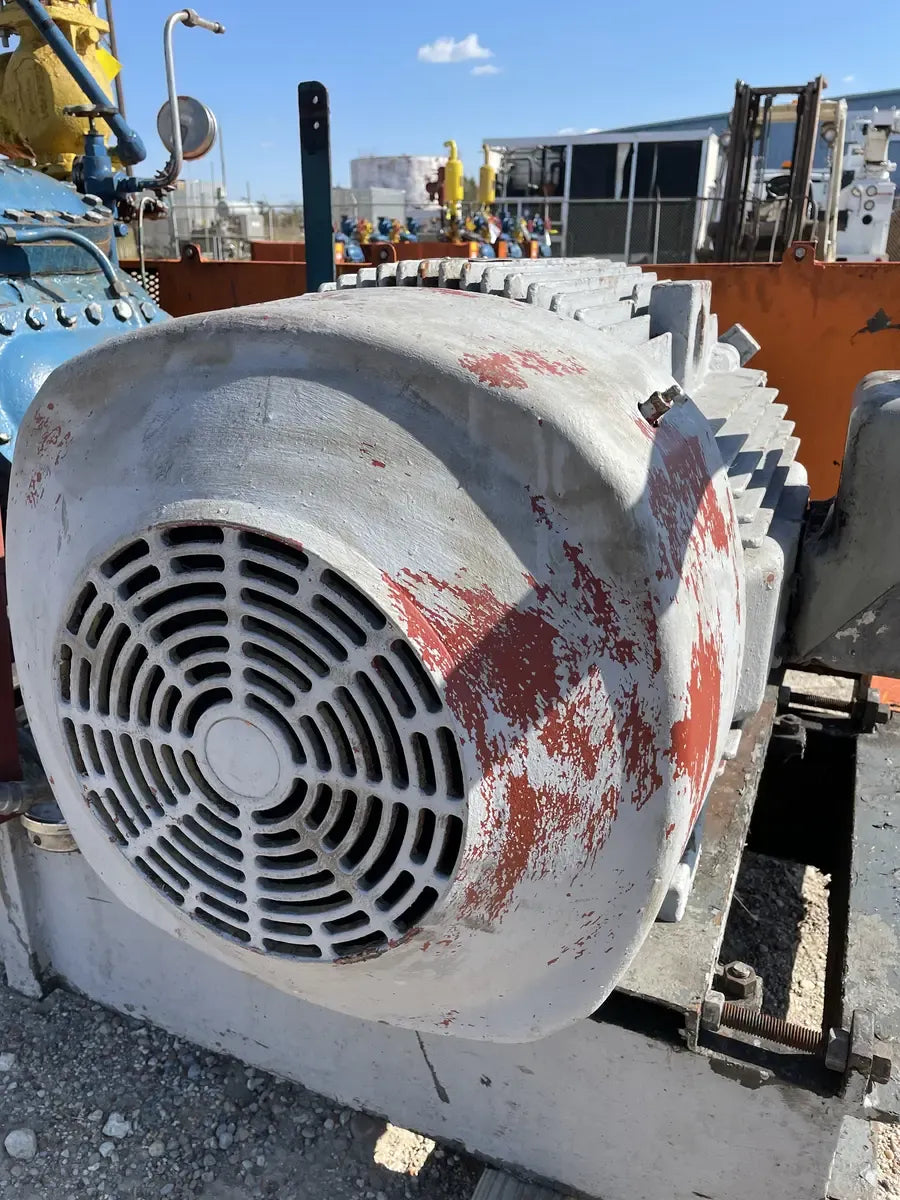

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: GE
- Motor Horsepower(HP): 100
- Motor RPM: 1,190
- Motor Voltage: 460
- Motor Amps: 113
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 444T
Dimensions:
- Length (Inches): 81
- Width (Inches): 52
- Height (Inches): 59
- Weight (LBS): 3,400
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
