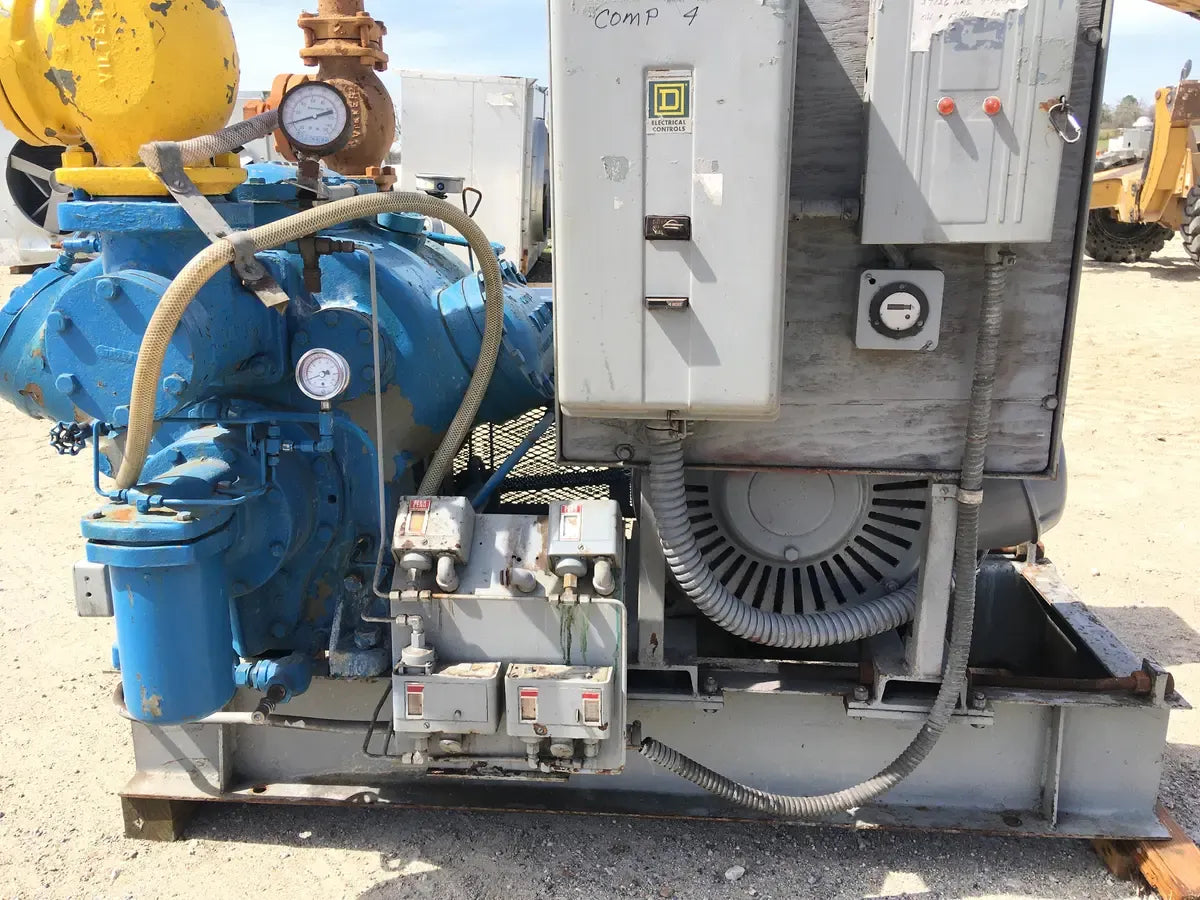

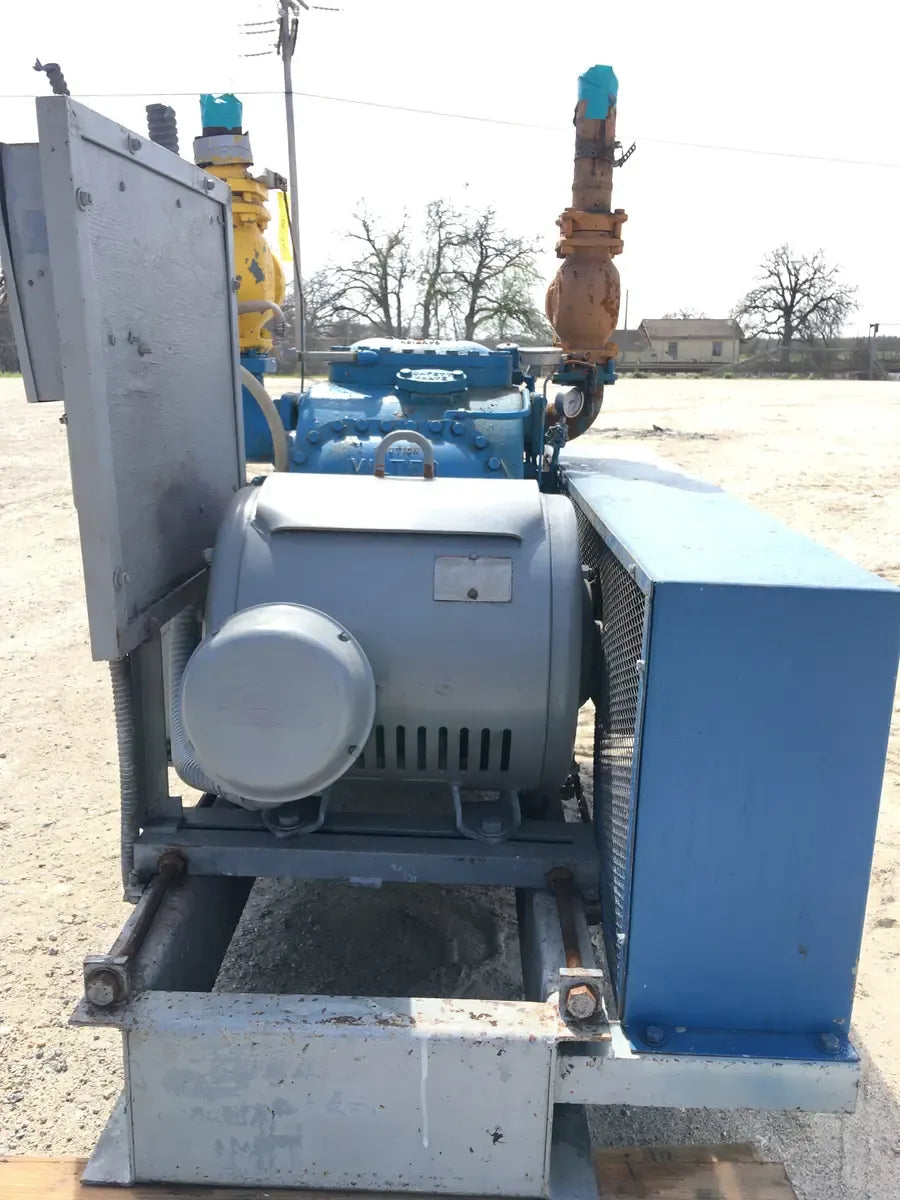

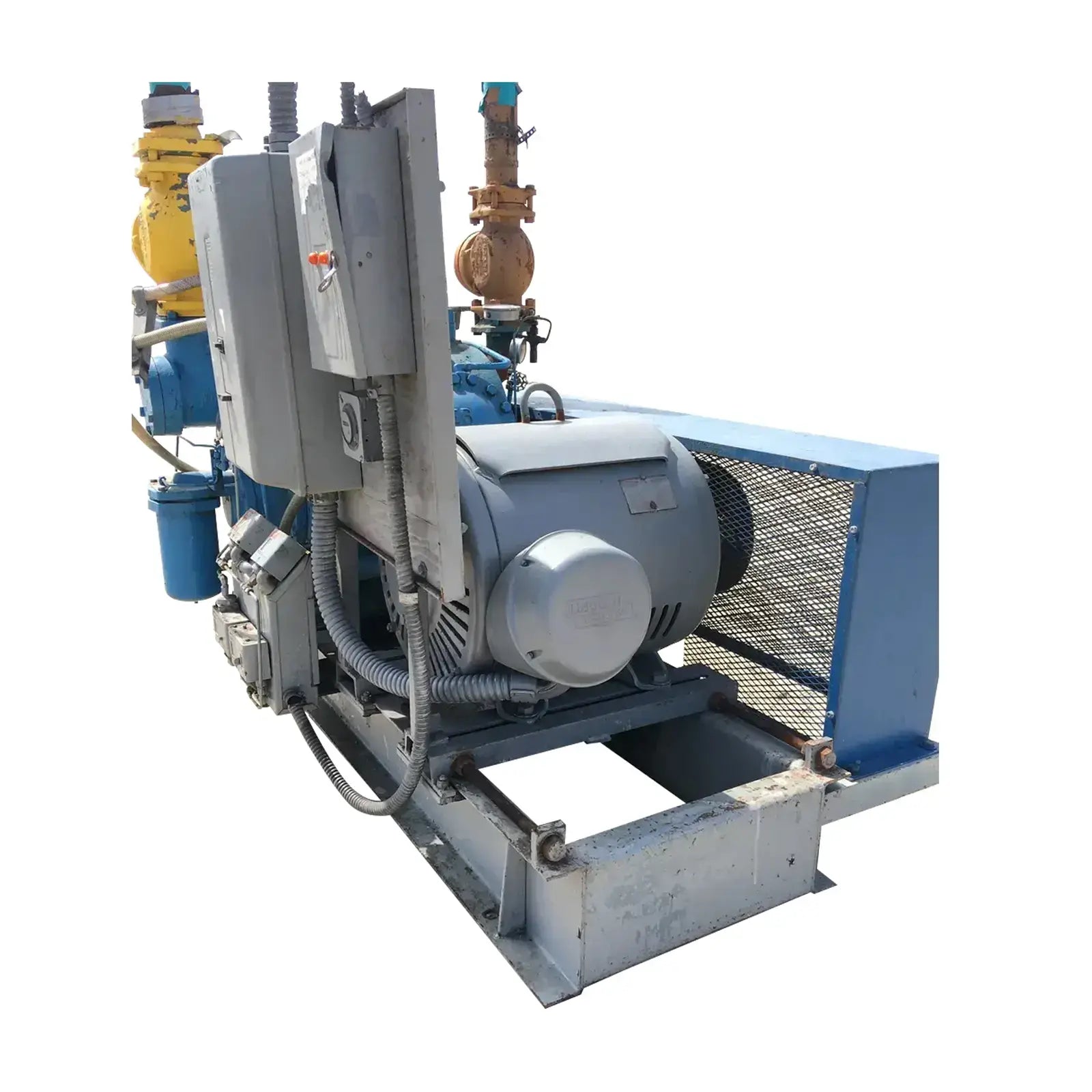

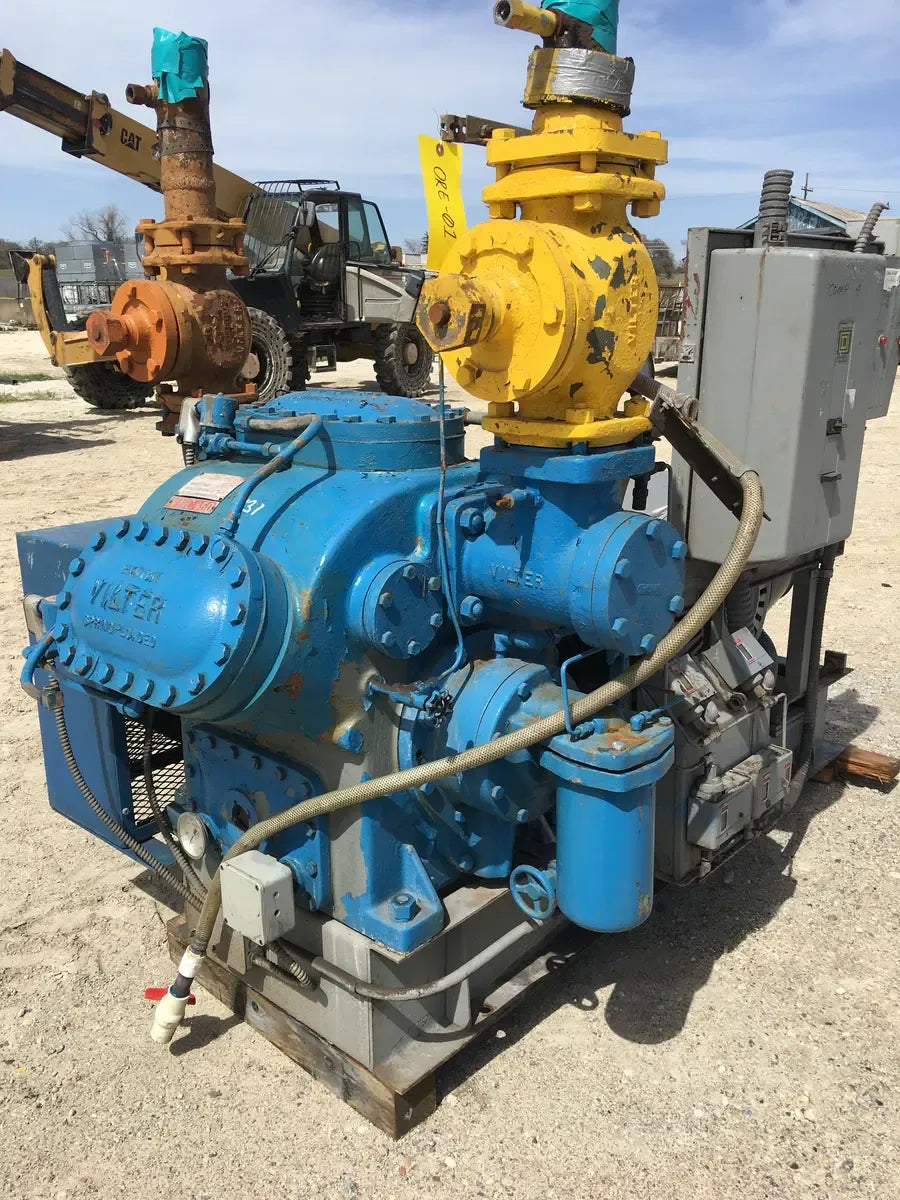

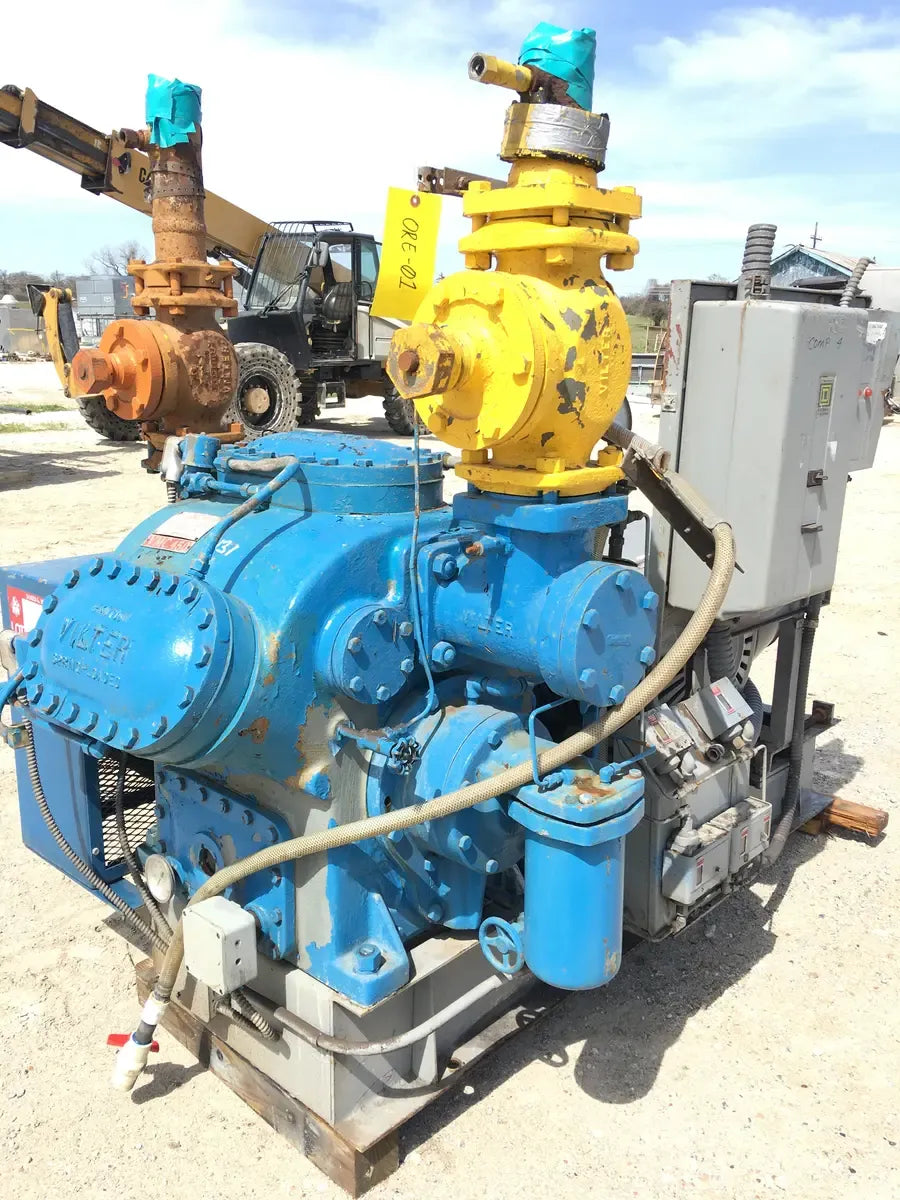

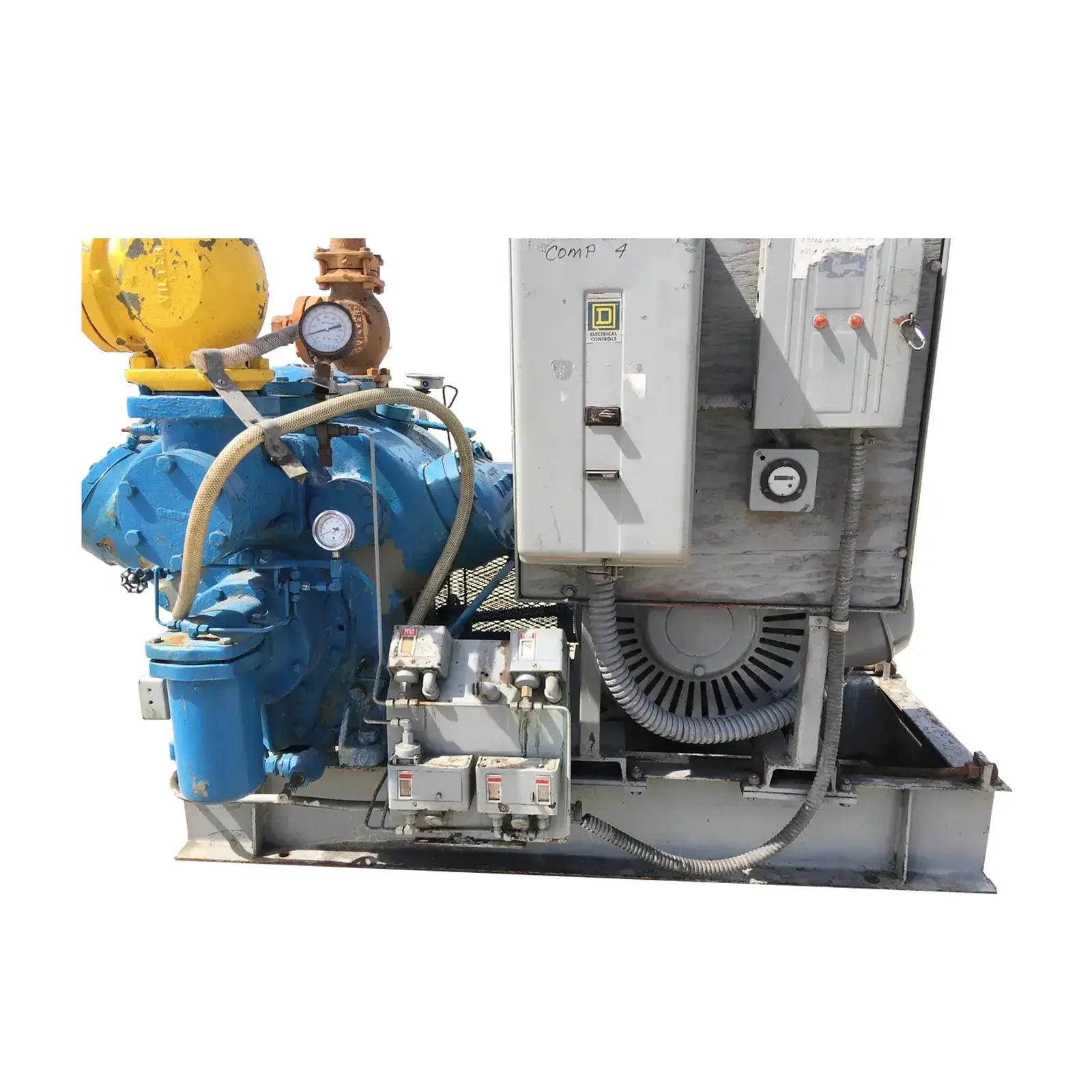

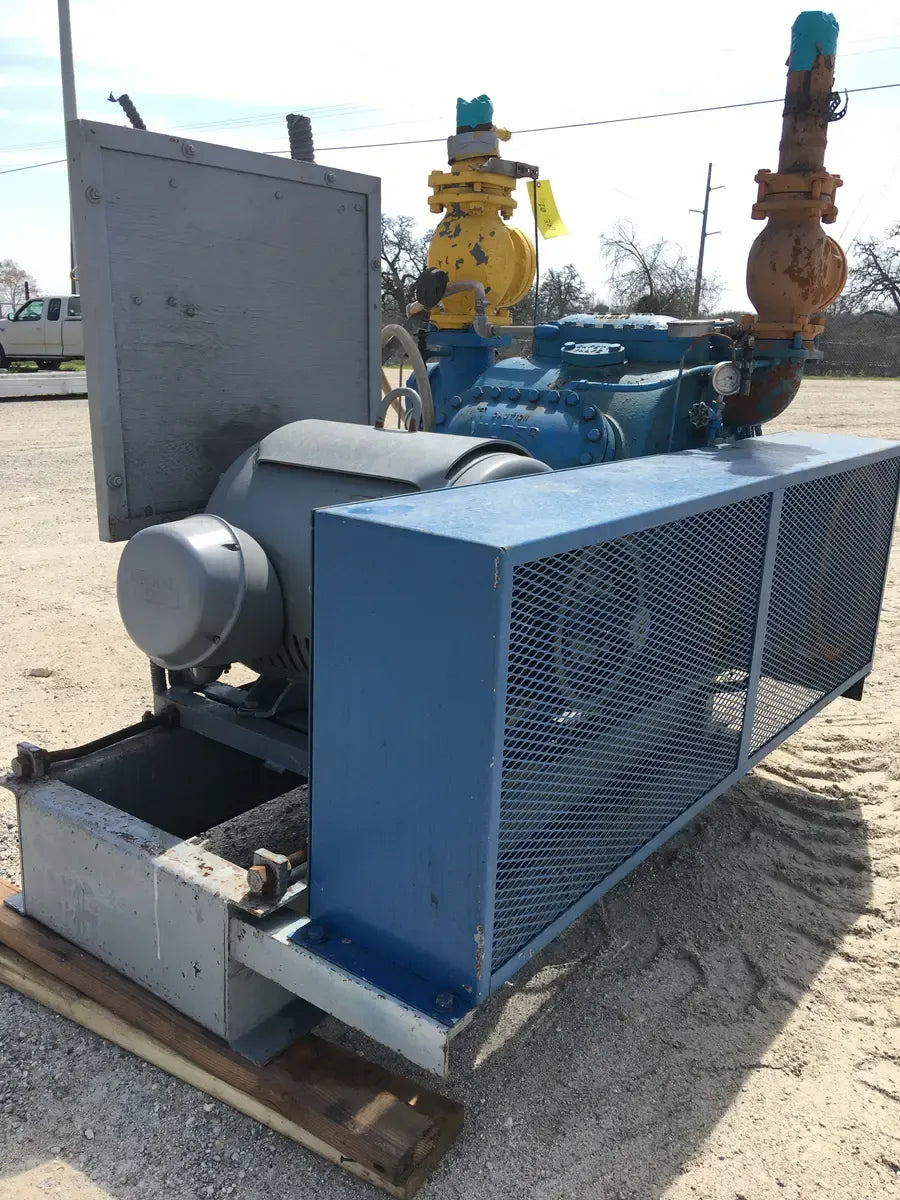

Vilter 456 6-Cylinder Reciprocating Compressor Package (100 HP 230/460 V, Belt Driven)

Vilter 456 6-Cylinder Reciprocating Compressor Package (100 HP 230/460 V, Belt Driven)

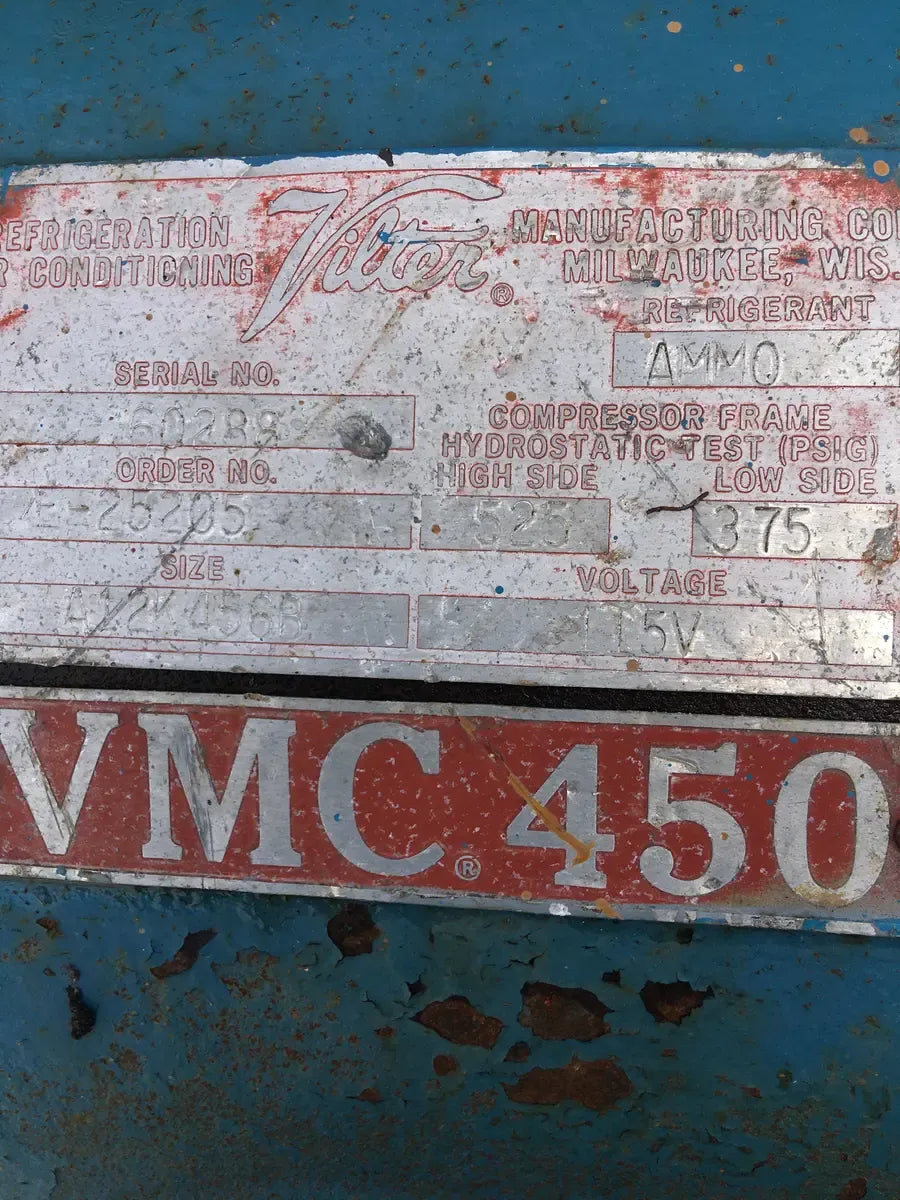

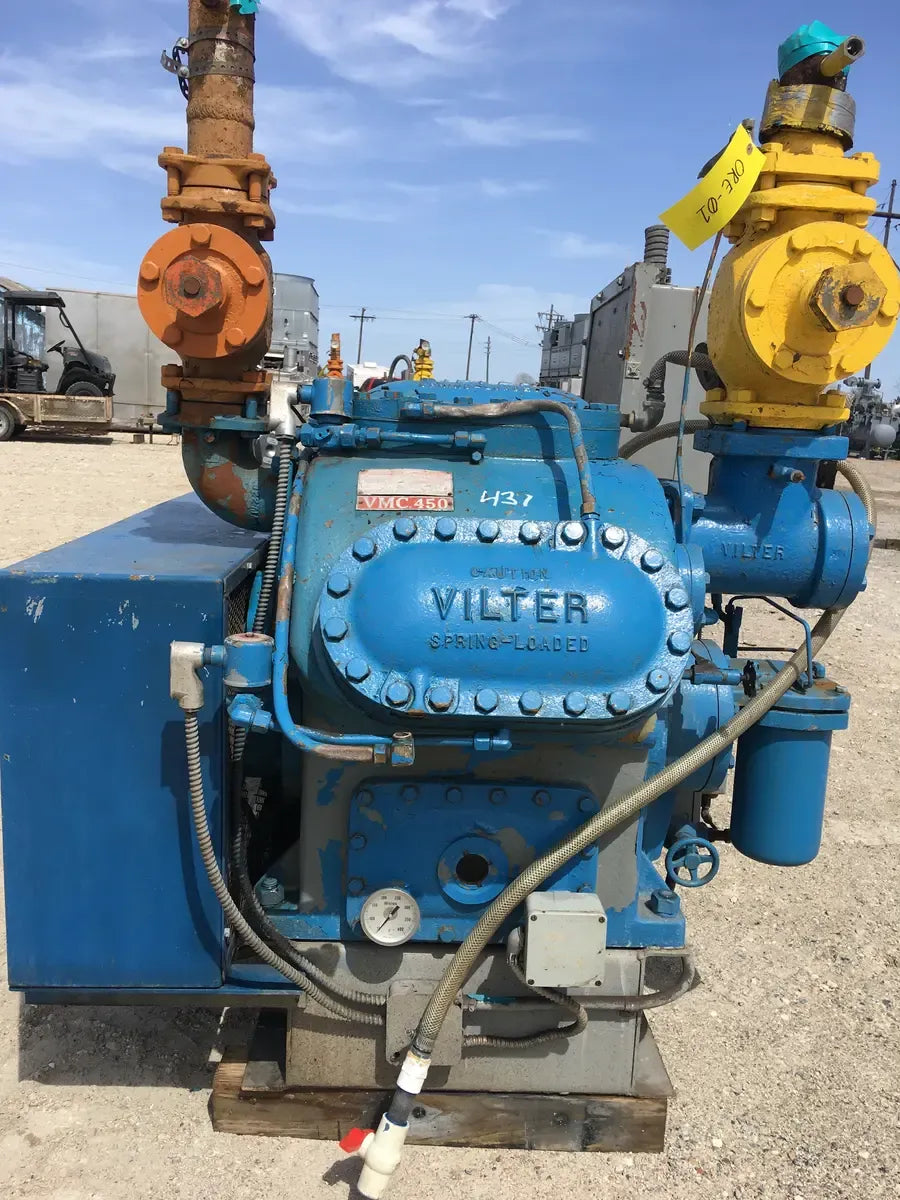

Vilter 456 6-Cylinder Reciprocating Compressor. Serial No: 60288, Order No: 25205, Size: A12K456B, Voltage: 115V. Compressor Frame Hydrostatic Test (PSIG): High Side: 525 Low Side: 375, Refrigerant: Ammonia. Number of Cylinders: 6. Lincoln Motor - Frame:1404T, HP: 100, Volts: 230/460, HZ: 60, Lincoln Code: TV 3420-A1, RPM: 1770, PH: 3, Ins: B, Max Amb: 40.

Product Details

  • Stock No: ORE01
  • Manufacturer: Vilter
  • Model: 456
  • Serial Number: 60288
  • Compressor Type: Reciprocating
  • Package Included? Yes
  • Stage Type: High Stage

Reciprocating Compressor Details

  • Compressor Manufacturer: Vilter
  • # Of Reciprocating Cylinders: 6
  • Reciprocating Type: Belt
  • # Compressors in Package: 1
  • Compressor Model: A12K456B
  • Compressor SN: 60288
  • Compressor Max Speed (RPM): 1,200
  • Compressor Design Pressure (PSIG): 525,375
  • Compressor Volume Ratio: 8:1
  • Oil Separator Included? No

Motor Starter Details

  • Motor Starter Included? Yes
  • Motor Starter Manufacturer: Square D
  • Motor Starter Type: Hard Starter

Previous Refrigerant

  • Previous Refrigerant: Ammonia (R-717)
  • Ammonia (R-717) Compatiable: Yes
  • Halocarbon (Freon) Compatible: Yes

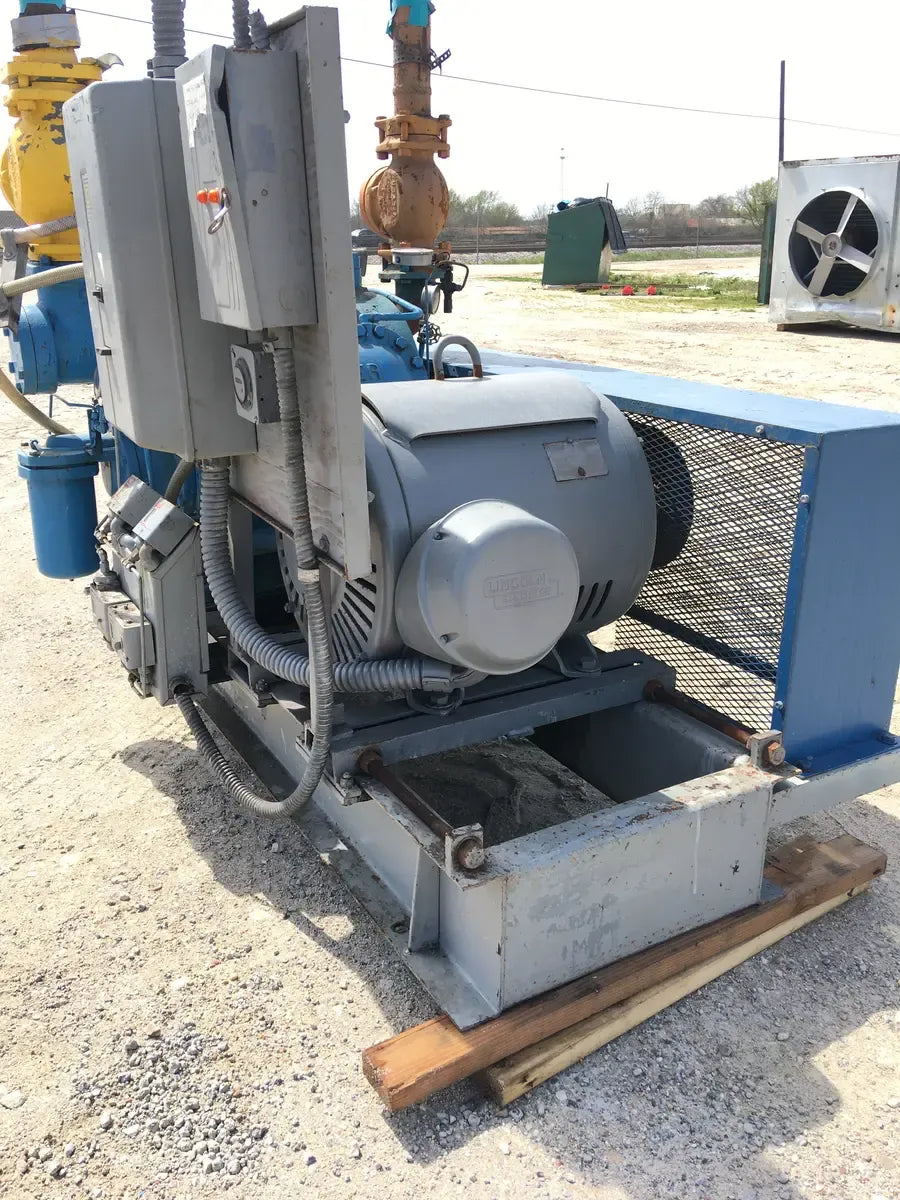

Motor Details

  • Motor Included? Yes
  • # Motors: 1

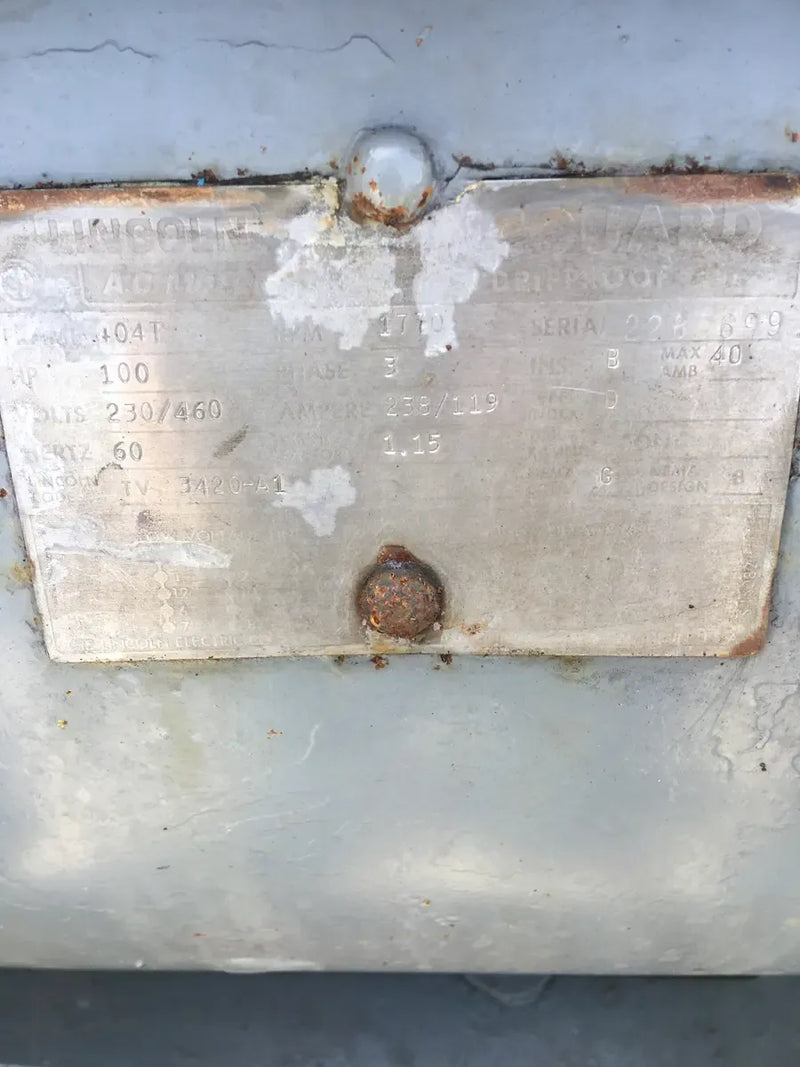

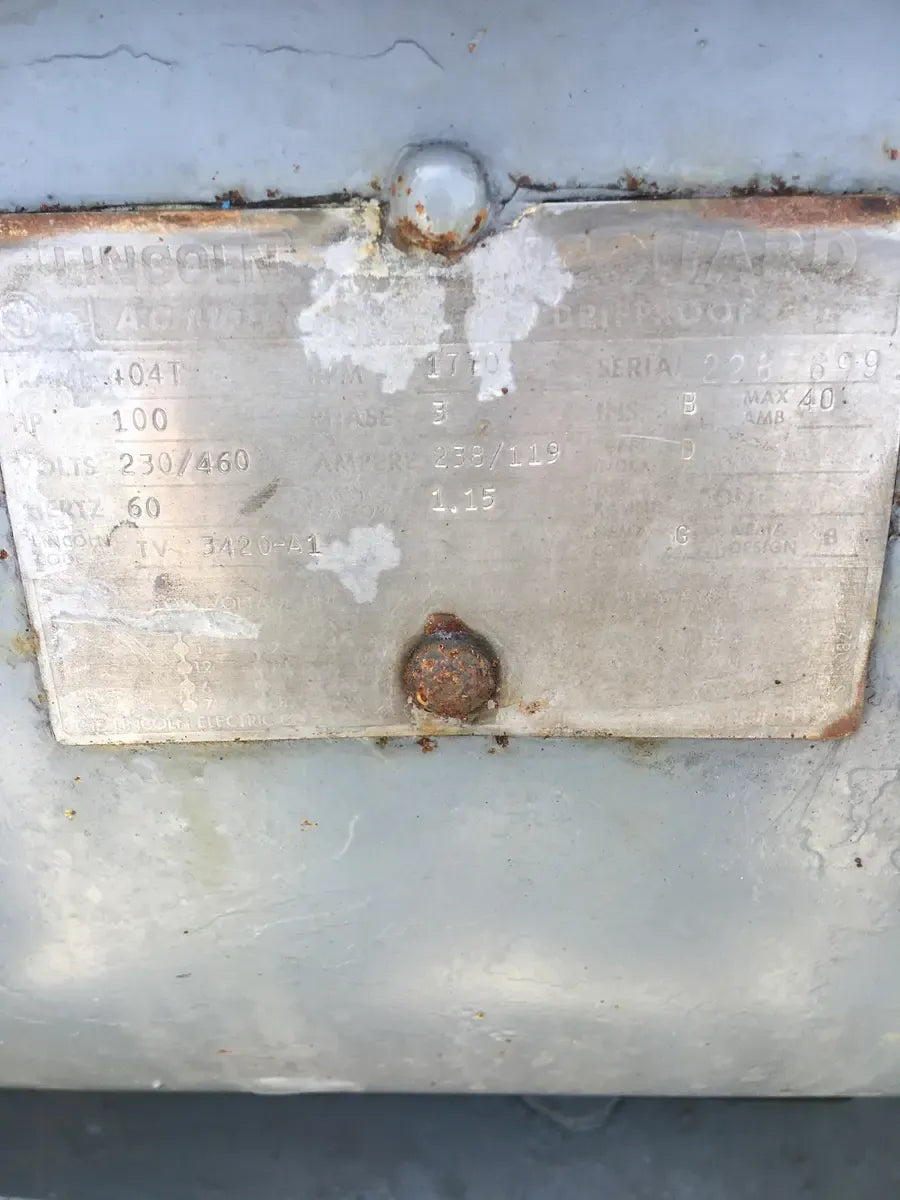

  • Motor Manufacturer: Lincoln
  • Motor Horsepower(HP): 100
  • Motor RPM: 1,770
  • Motor Voltage: 230/460
  • Motor Amps: 238/119
  • Motor Hertz (Hz): 60
  • Motor Phases: 3
  • Motor Frame Size: 1404T

Dimensions:

  • Length (Inches): 77
  • Width (Inches): 48
  • Height (Inches): 63
  • Weight (LBS): 2,700
  • # of Pieces for Shipping: 1

Additional Product Details

  • Spec Sheet Available: Yes

Vilter 456 6-Cylinder Reciprocating Compressor Package (100 HP 230/460 V, Belt Driven)


Price:
$0
