Product Details

• Stock No: NMD03
• Manufacturer: Vilter
• Model: 751 A025228BNAAAN
• Serial Number: 1032

• Compressor Type: Screw
• Package Included? Yes
• Stage Type: High Stage

Package Details

• Package Manufacturer: Vilter
• Package Model: 751 A025228BNAAN
• Package SN: 1032
• Package Order: H58388-1
• Package Max Speed (RPM): 3,600
• Package Max Design Pressure (PSIG): 450

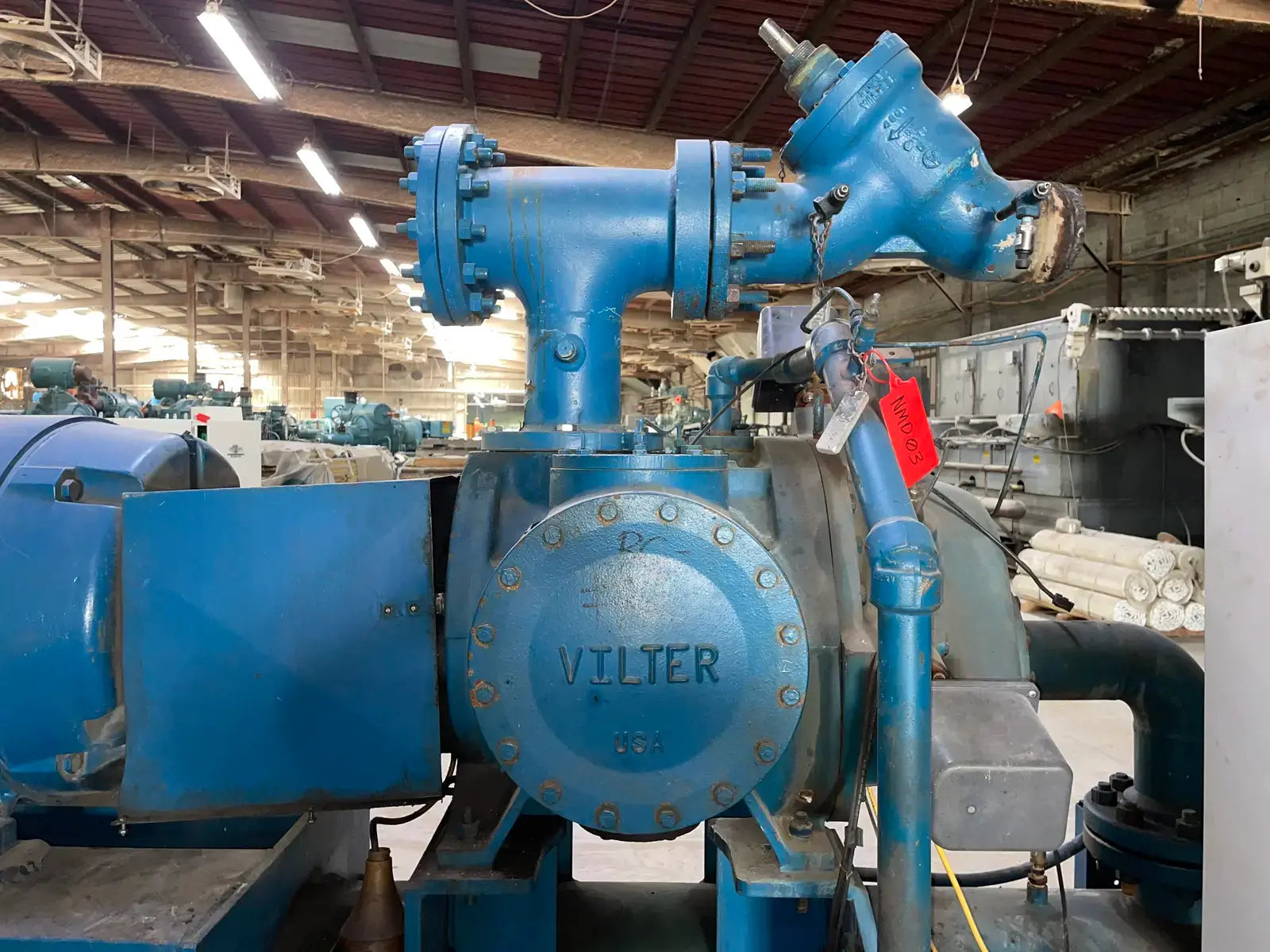

Screw Compressor Details

• Compressor Included? Yes
• Compressor Manufacturer: Vilter
• # Compressors in Package: 1
• Compressor Model: VSS-751
• Compressor SN: 1032
• Compressor Max Speed (RPM): 3,600
• Compressor Design Pressure (PSIG): 450
• Compressor Run Time Hours: 30,028.4
• Oil Separator Included? Yes
• Oil Separator National Board #: 42571
• Oil Cooler National Board #: 42640

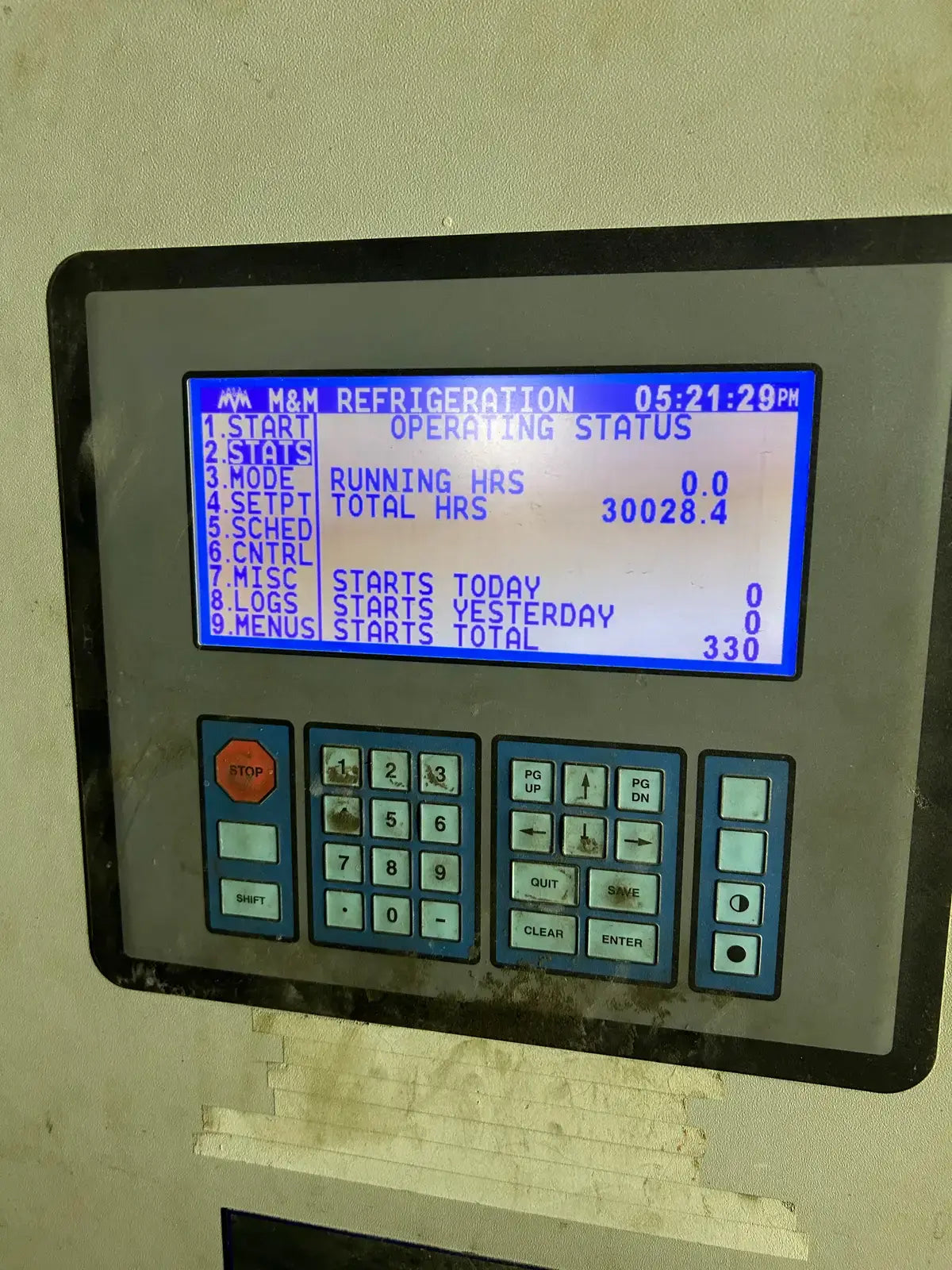

Micro Panel Details

• Micro Control Panel Included? Yes
• Micro Control Panel Manufacturer: M&M
• Micro Control Panel Description: M&M Refrigeration Model M100199G2 Control Panel.

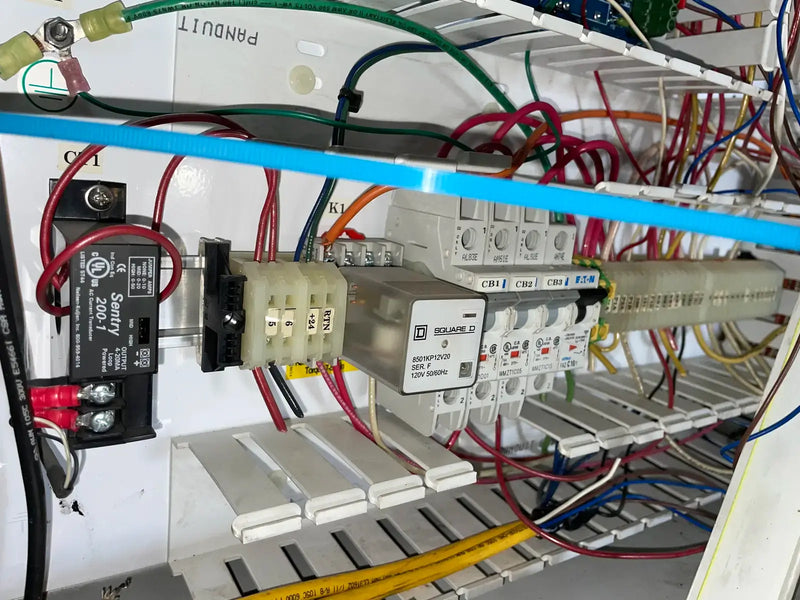

Motor Starter Details

• Motor Starter Included? Yes

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes
• Halocarbon (Freon) Compatible: Yes

Motor Details

• Motor Included? Yes
• # Motors: 1
• Motor Manufacturer: Allis-Chalmers
• Motor Horsepower(HP): 350
• Motor RPM: 3,560
• Motor Voltage: 460
• Motor Amps: 396
• Motor Hertz (Hz): 60
• Motor Phases: 3
• Motor Frame Size: 447TS

Dimensions:

• Length (Inches): 168
• Width (Inches): 60
• Height (Inches): 96
• Weight (LBS): 9,500
• # of Pieces for Shipping: 1

Additional Product Details

• Spec Sheet Available: Yes
