Warren Rupp S05B2P2TPNS000 Diaphragm Pump (14 GPM Max)

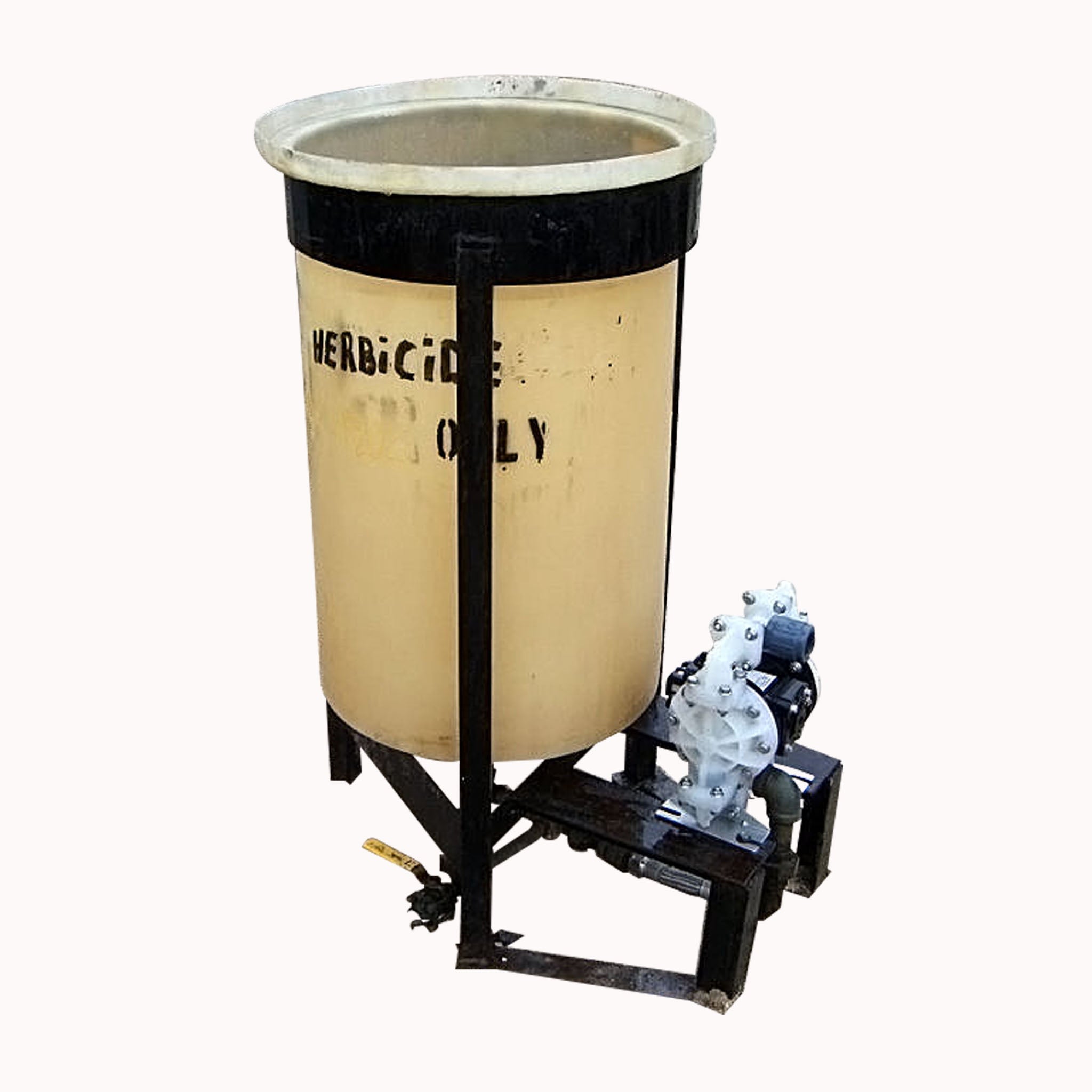

2007 Warren Rupp Sandpiper Double Diaphragm Pump Model: S05B2P2TPNS000. Approximate pumping capacity: 14 gpm. Pump handles solids up to 0.125 in. (3mm) in size. Operating temperature ranges: 180°F to 32°F. Maximum recommended air pressure: 100 psi. Features a solid ball check valve powered by compressed air and of a 1:1 ratio design. Wetted material: polypropylene. Diaphragm / check valve materials of construction: Virgin PTFE-Santoprene / Backup Virgin PTFE check valve seat: Virgin PTFE. (1) ¾ in. MNPT inlet. (1) ¾ in. MNPT outlet. (1) ½ in. FNPT airline inlet. Overall pump dimensions: 10-1/8 in. L. x 7-1/8 in. W. x 11-3/4 in. H. (ACN7)
Product Details
- Stock No: MRSP202
- Manufacturer: Warren Rupp
- Model: S05B2P2TPNS000
- Serial Number: 1573280
Pump Details
- Pump Type: Diaphragm
- Max Gallons Per Minute GPM: 14
- Drive Ratio: 1
- Minimum Temperature (F): 32
- Maximum Temperature (F): 180
- Maximum Pressure MAWP (PSI): 100
- # Inlets: 2
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 0.75
- Inlet/Outlet Type 1: MNPT
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 0.75
- Inlet/Outlet Type 2: MNPT
- Inlet/Outlet 3: Inlet
- Inlet/Outlet Size (Inches) 3: 0.5
- Inlet/Outlet Type 3: FNPT
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 10.125
- Width (Inches): 7.125
- Height (Inches): 11.75
- ACN: 7
