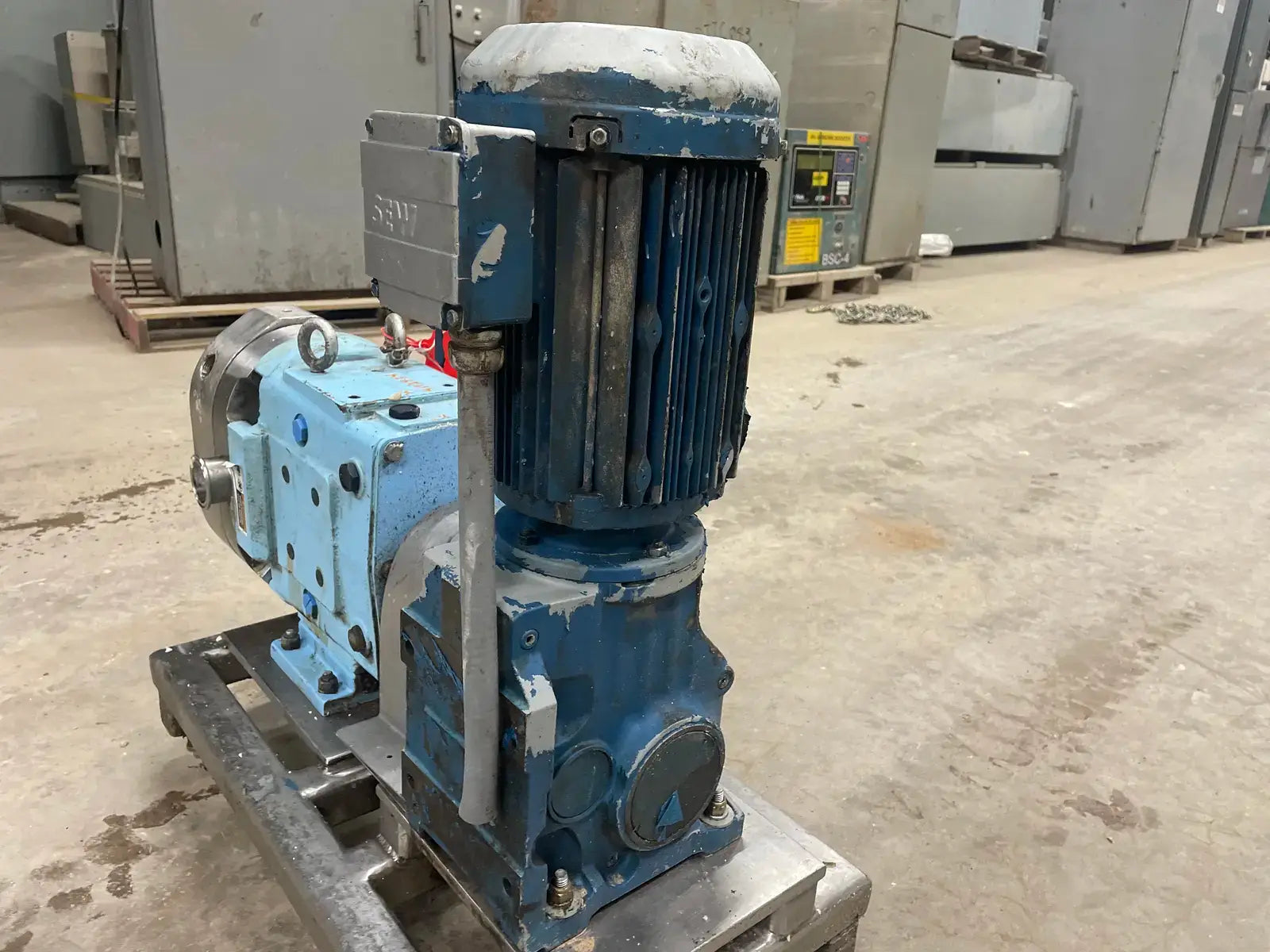

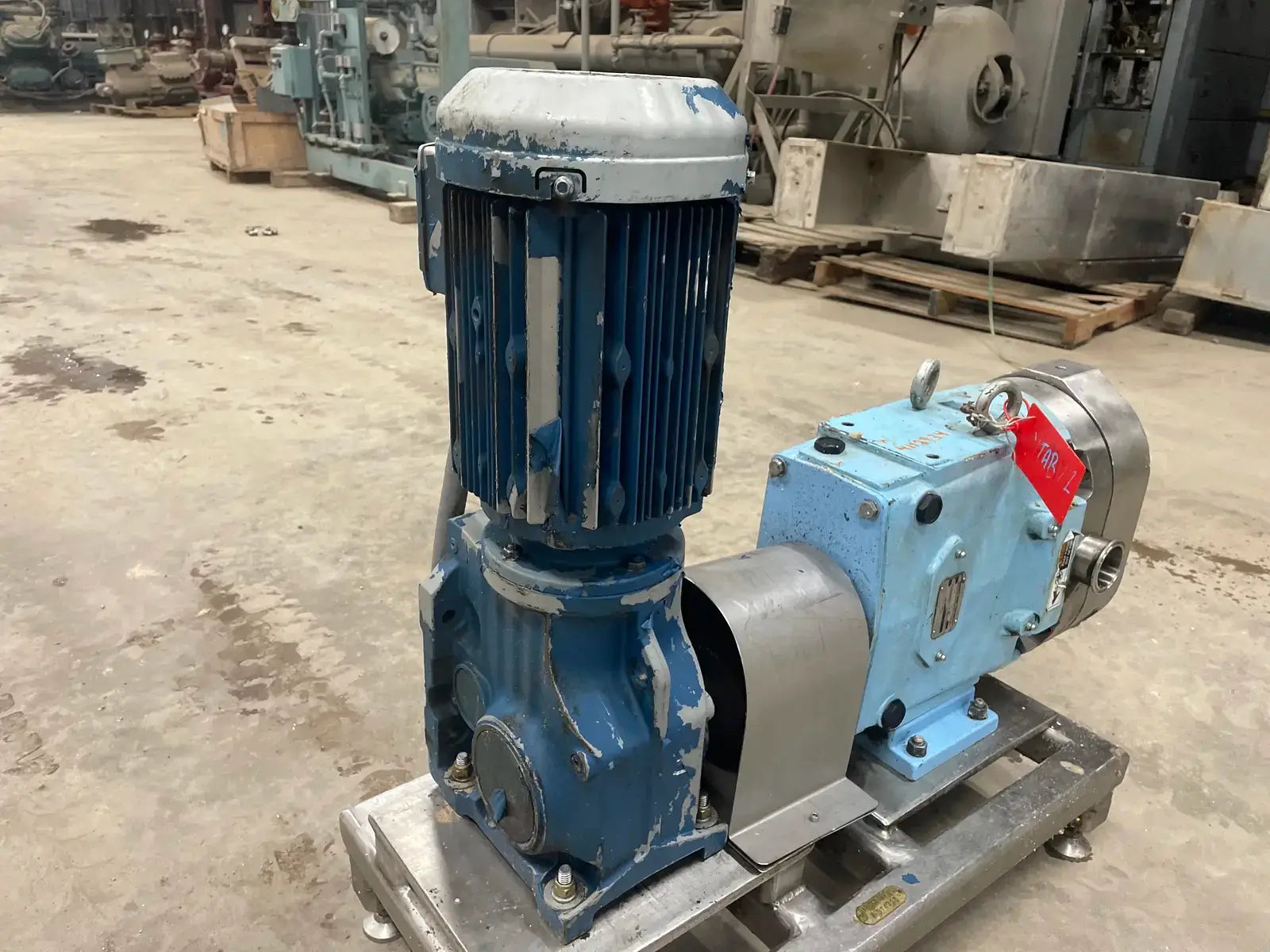

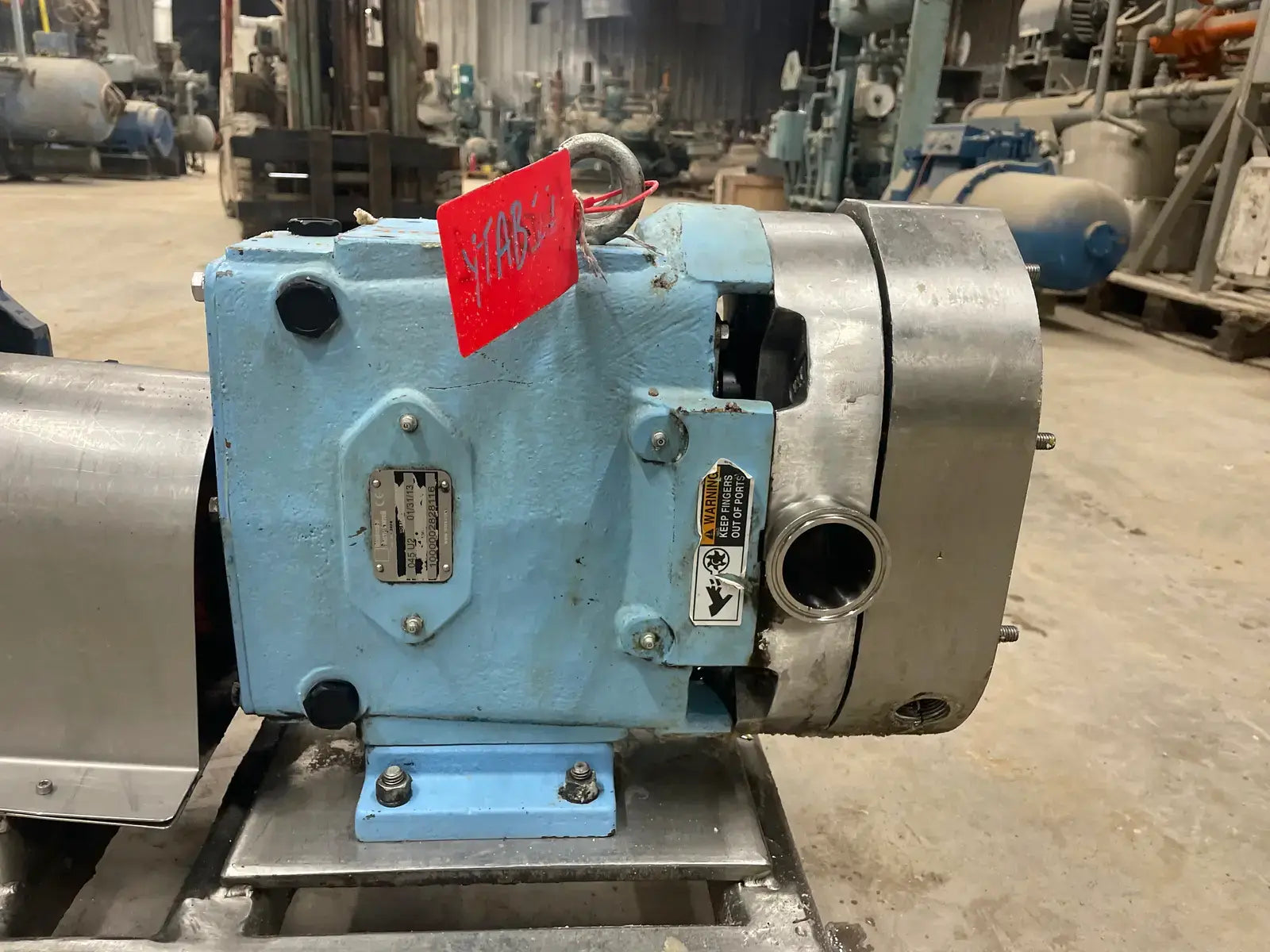

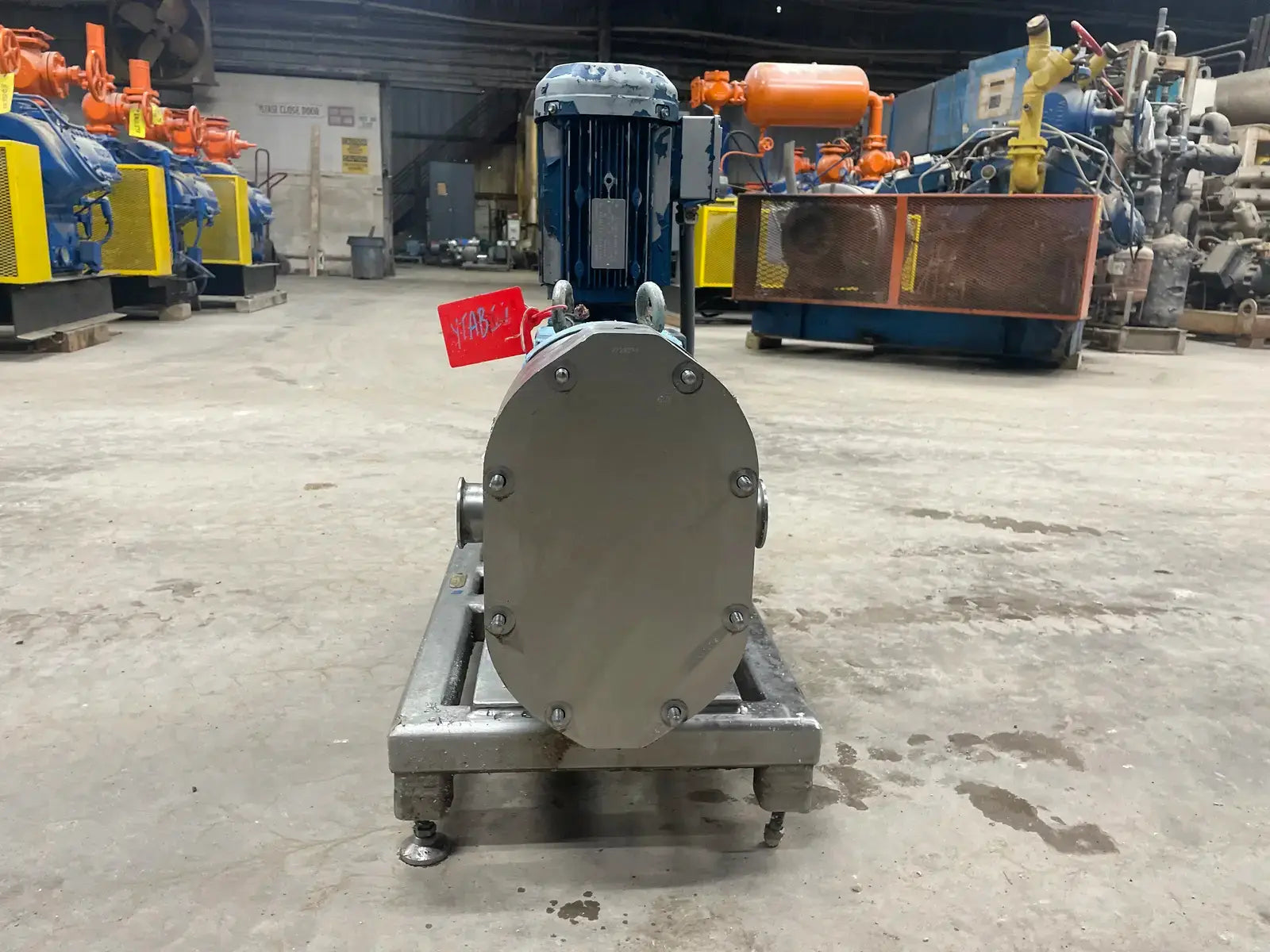

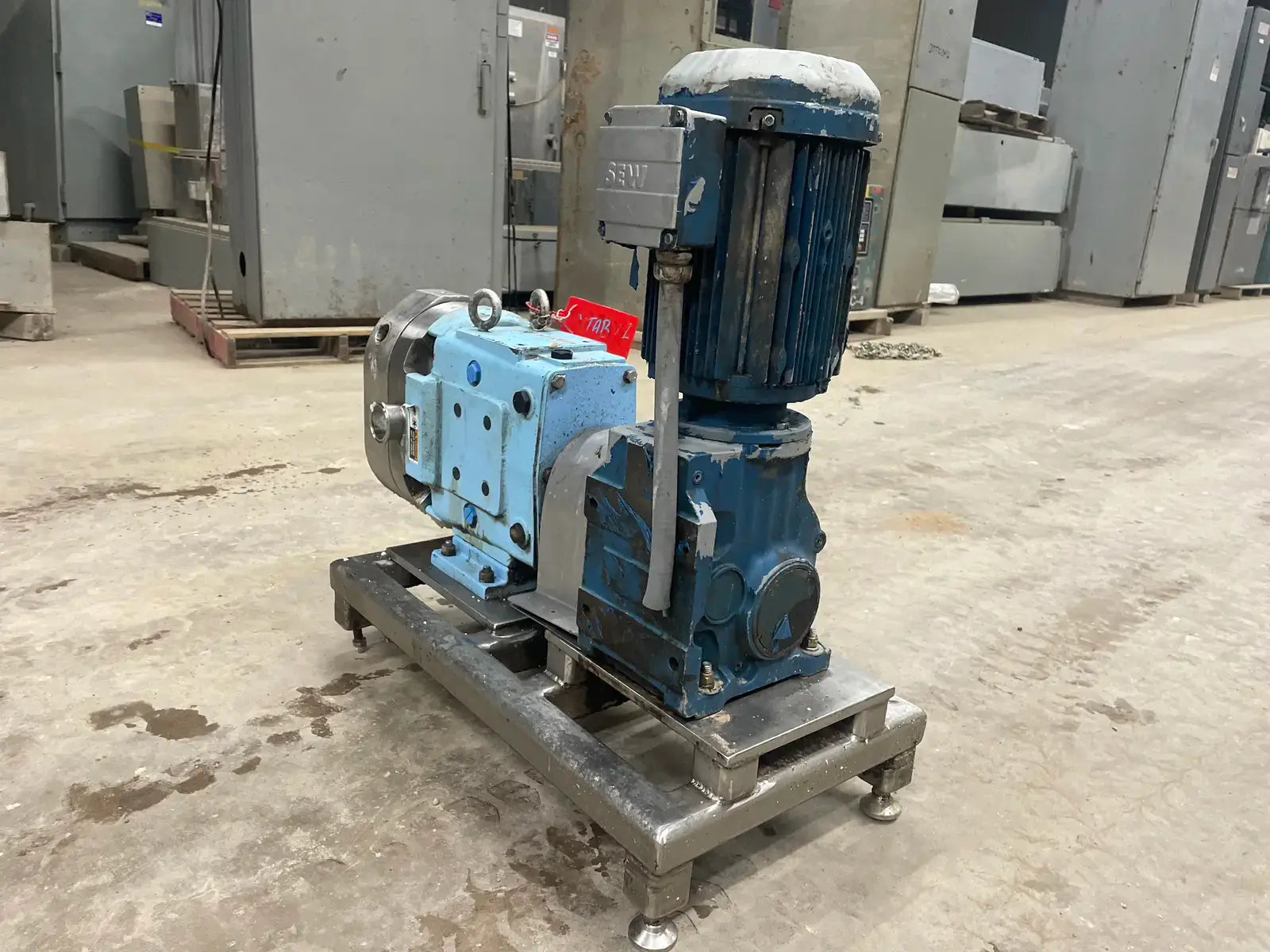

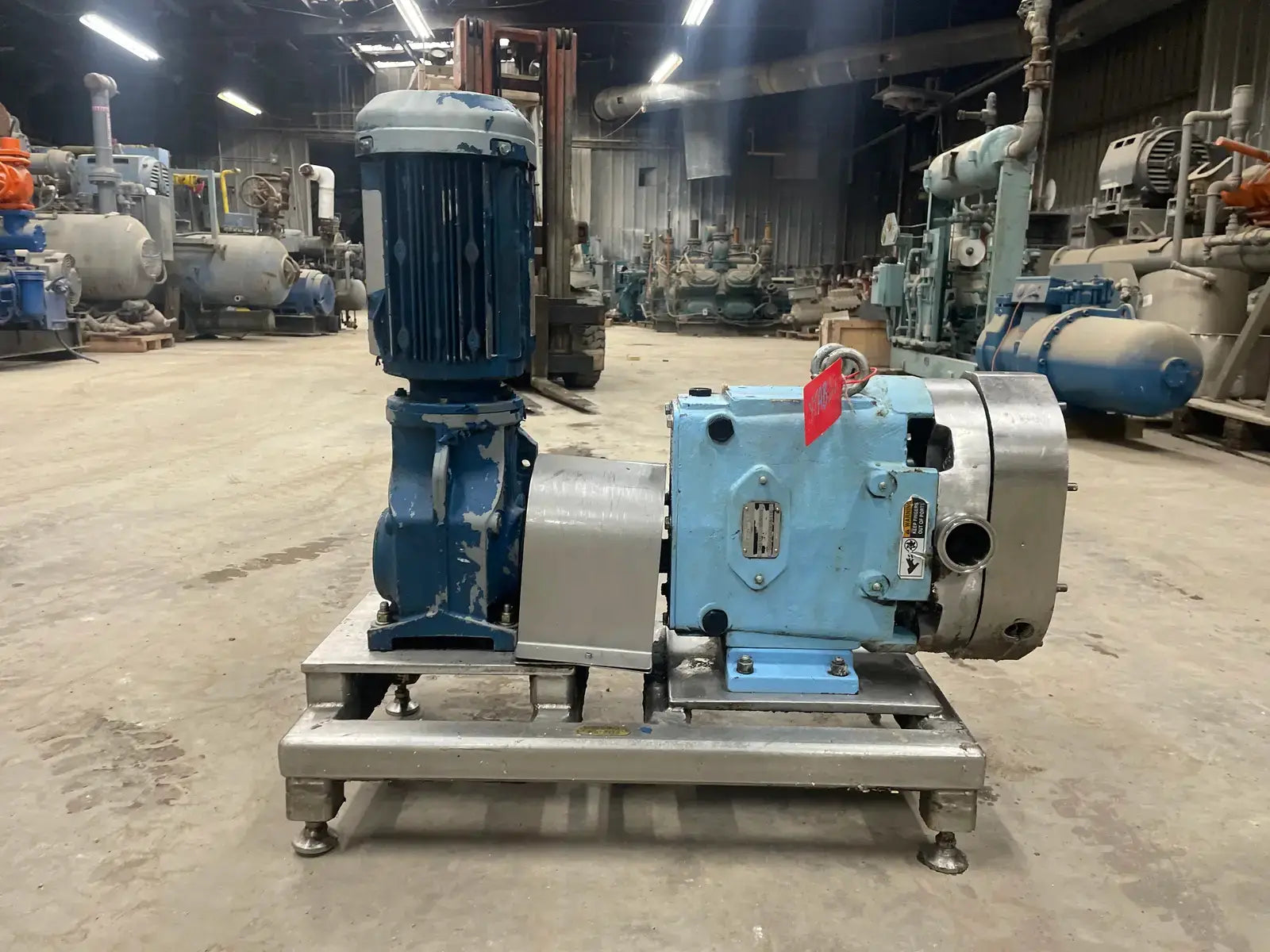

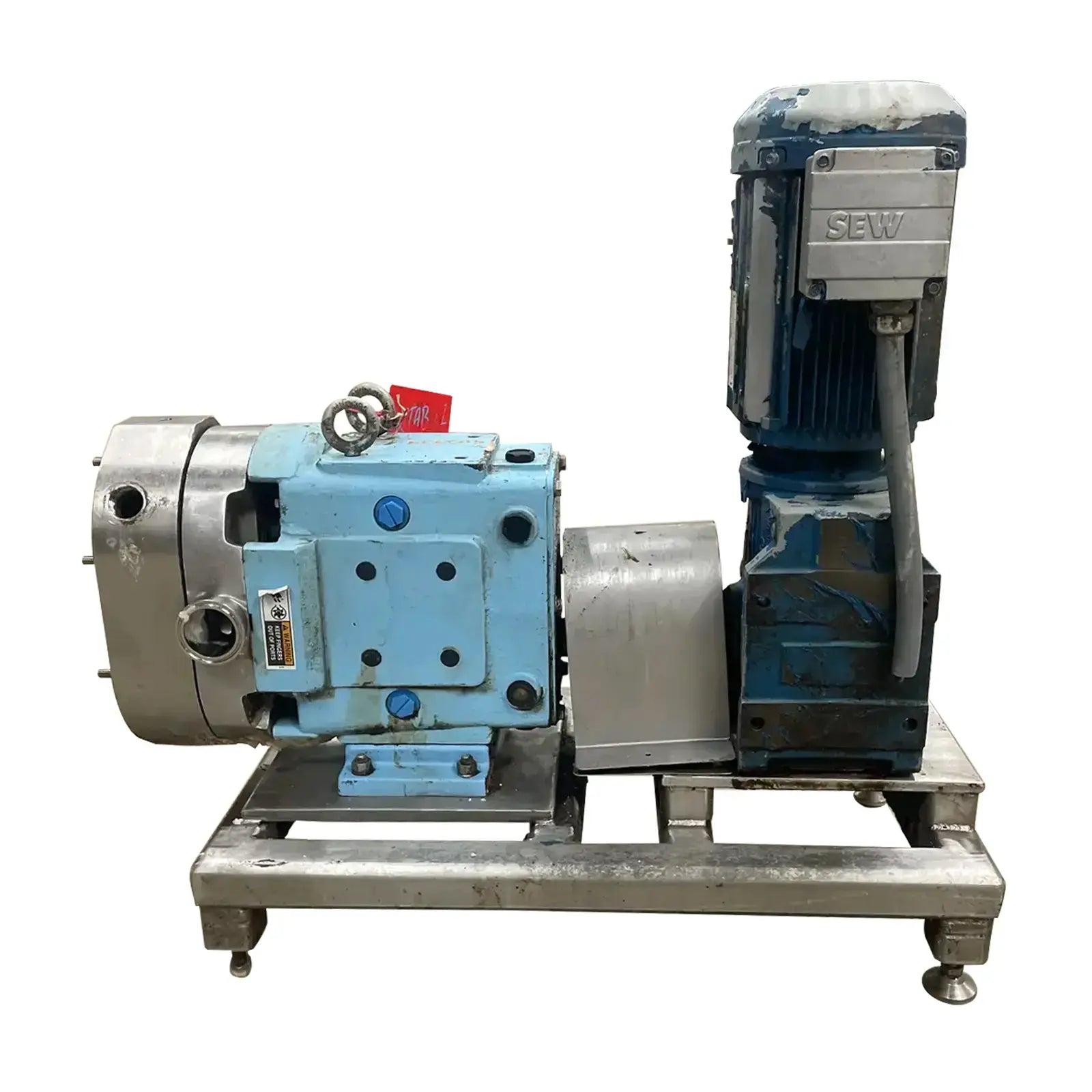

Waukesha 045 U2 01/31/13 Positive Displacement Pump (3 HP, 56 GPM Max)

Waukesha 045 U2 01/31/13 Positive Displacement Pump (3 HP, 56 GPM Max)

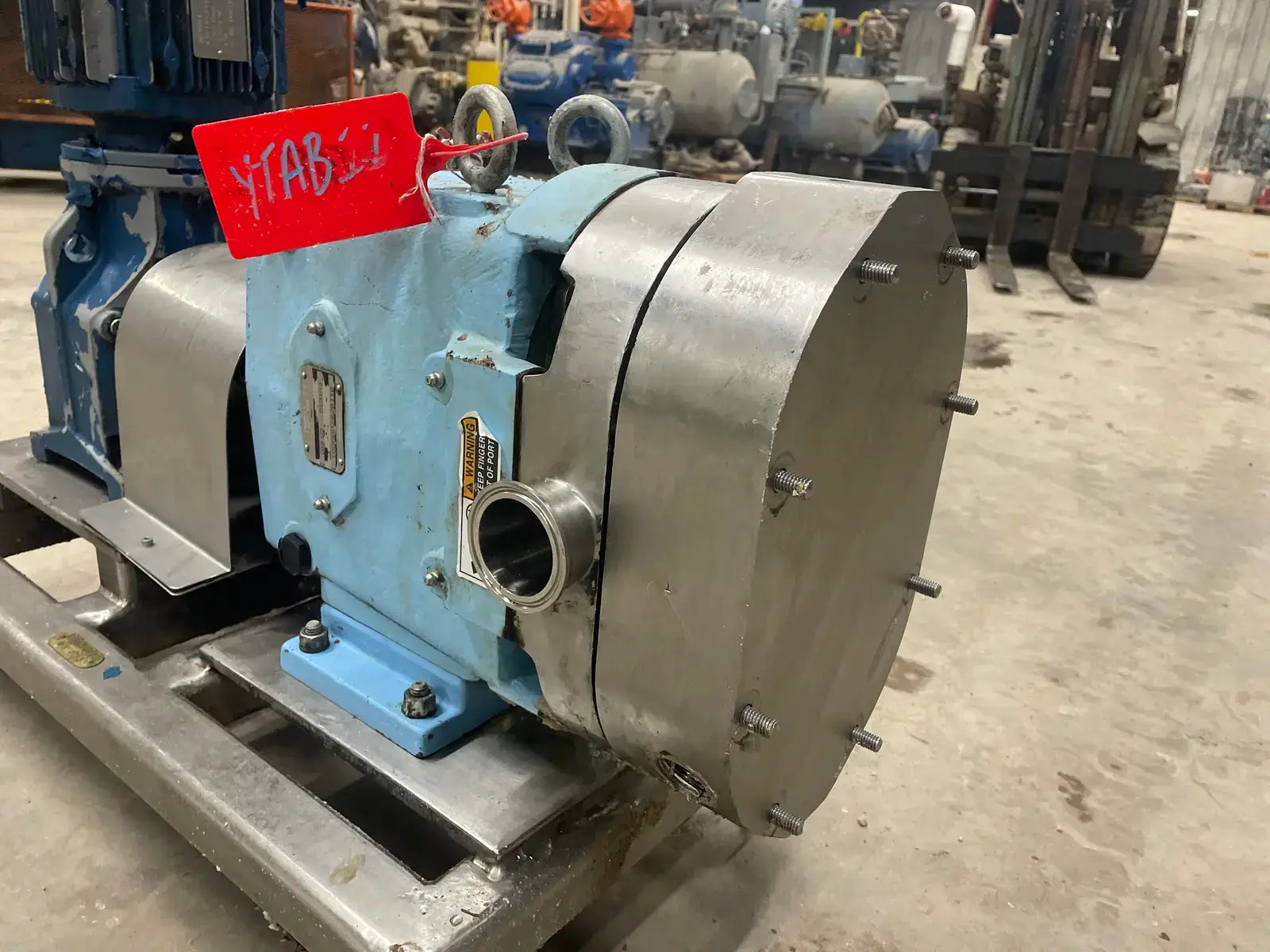

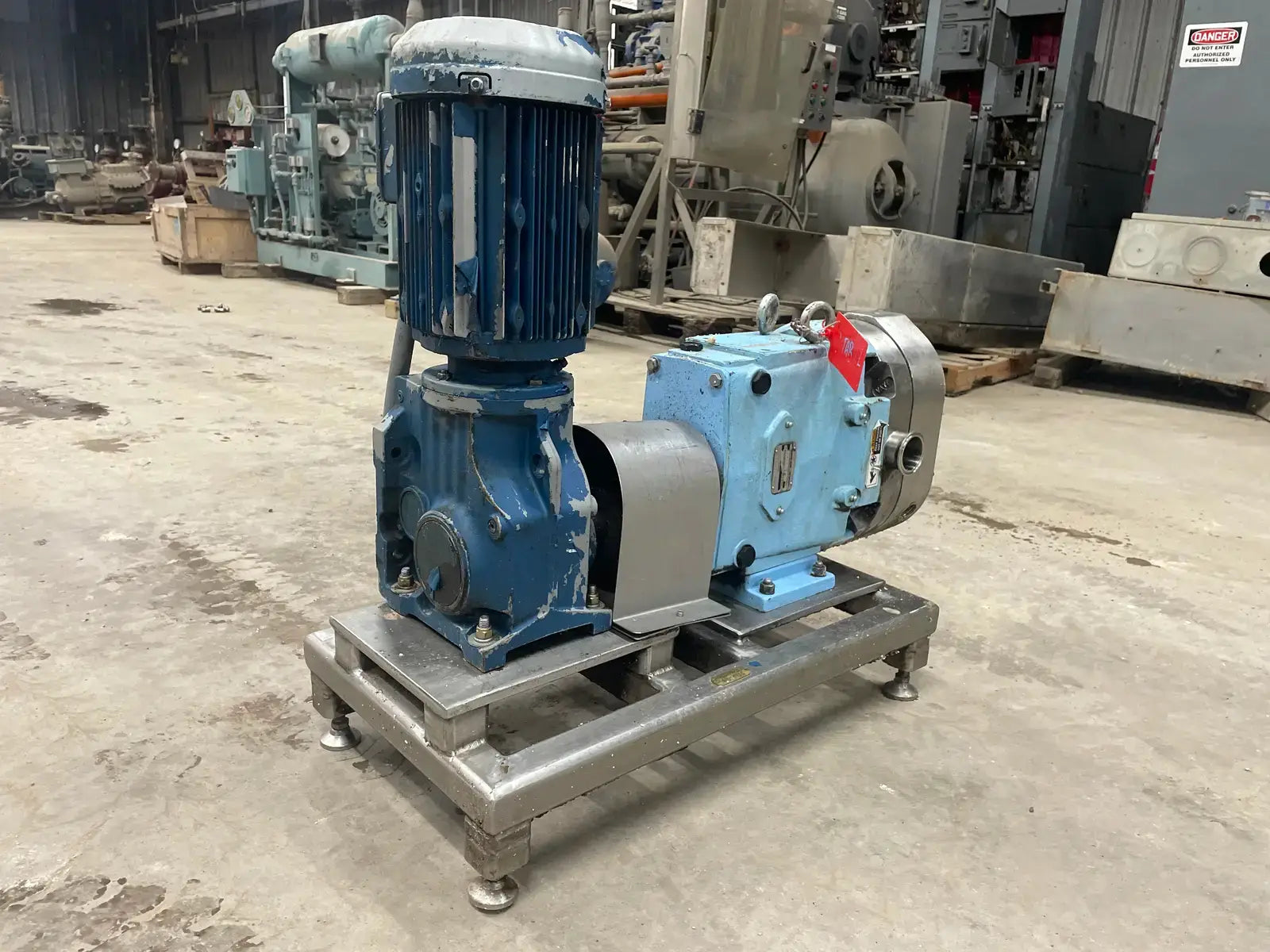

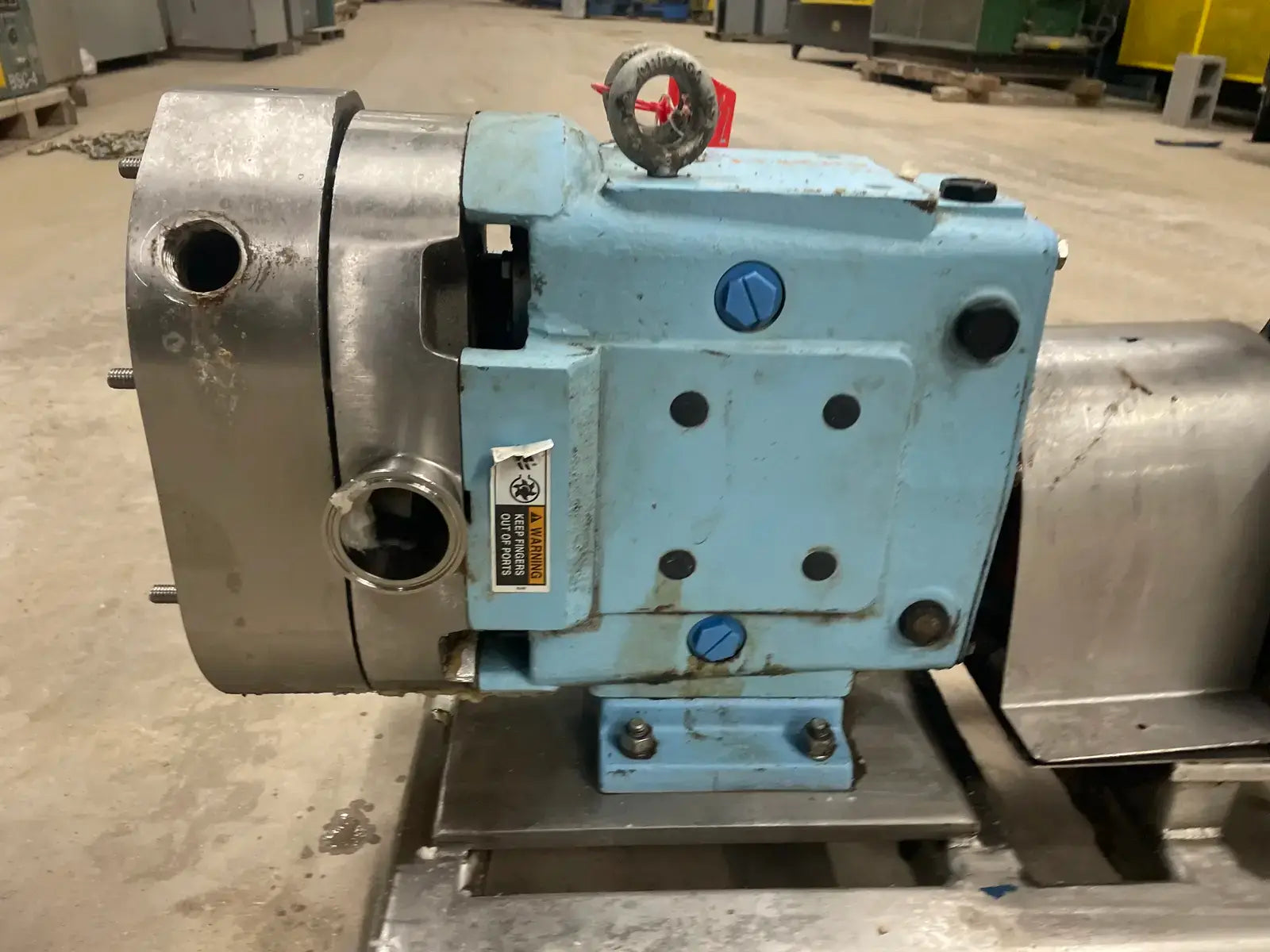

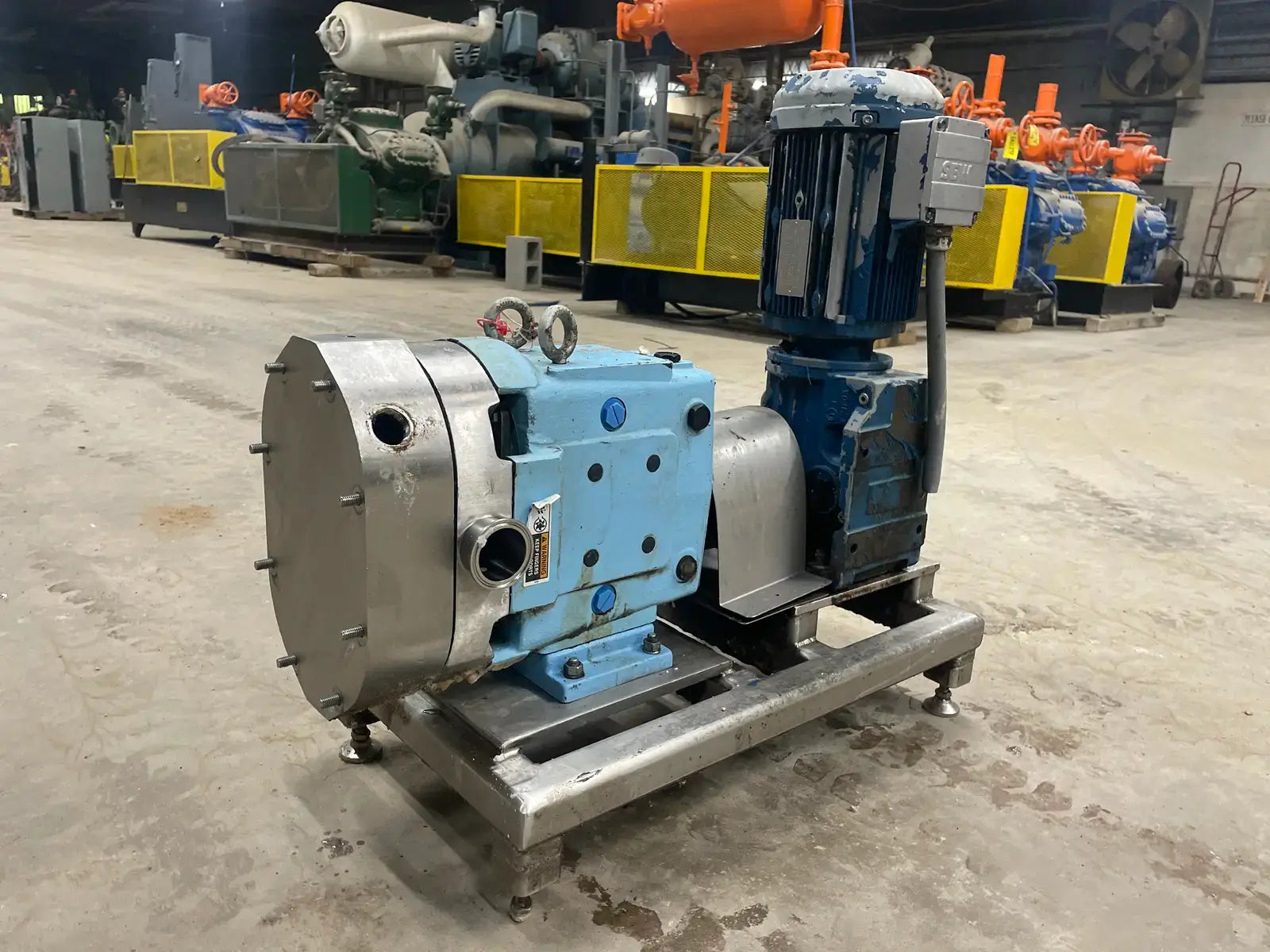

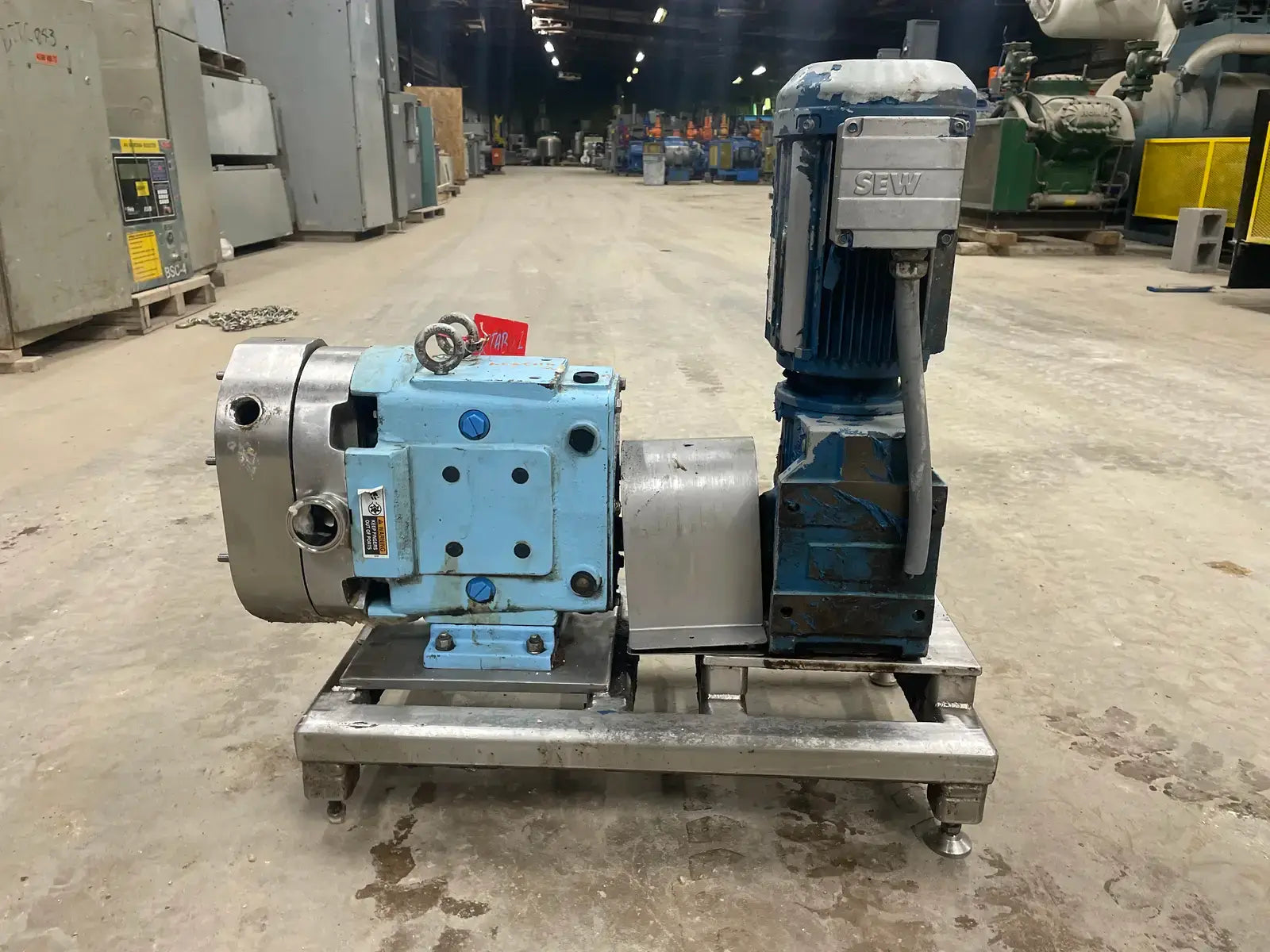

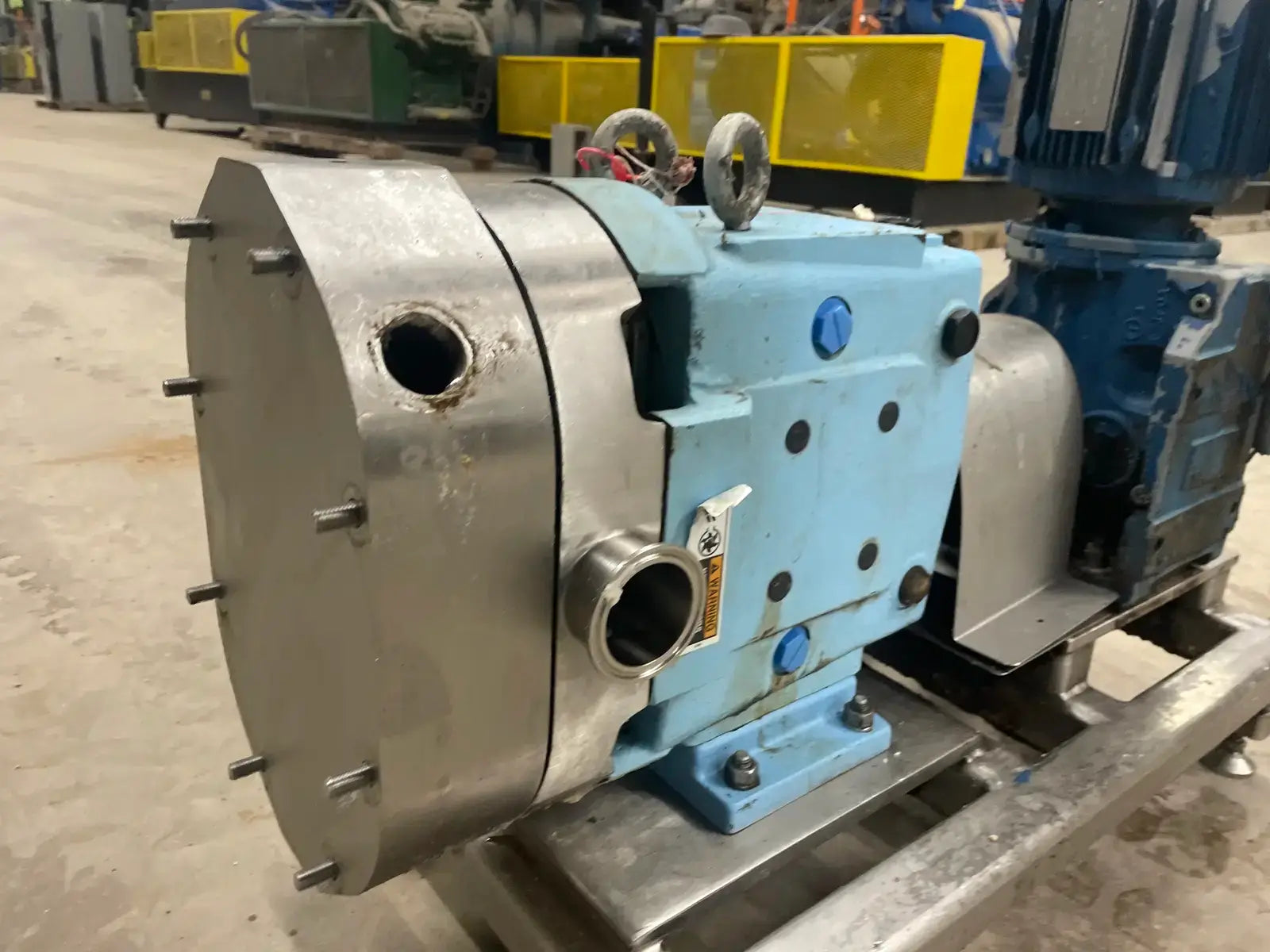

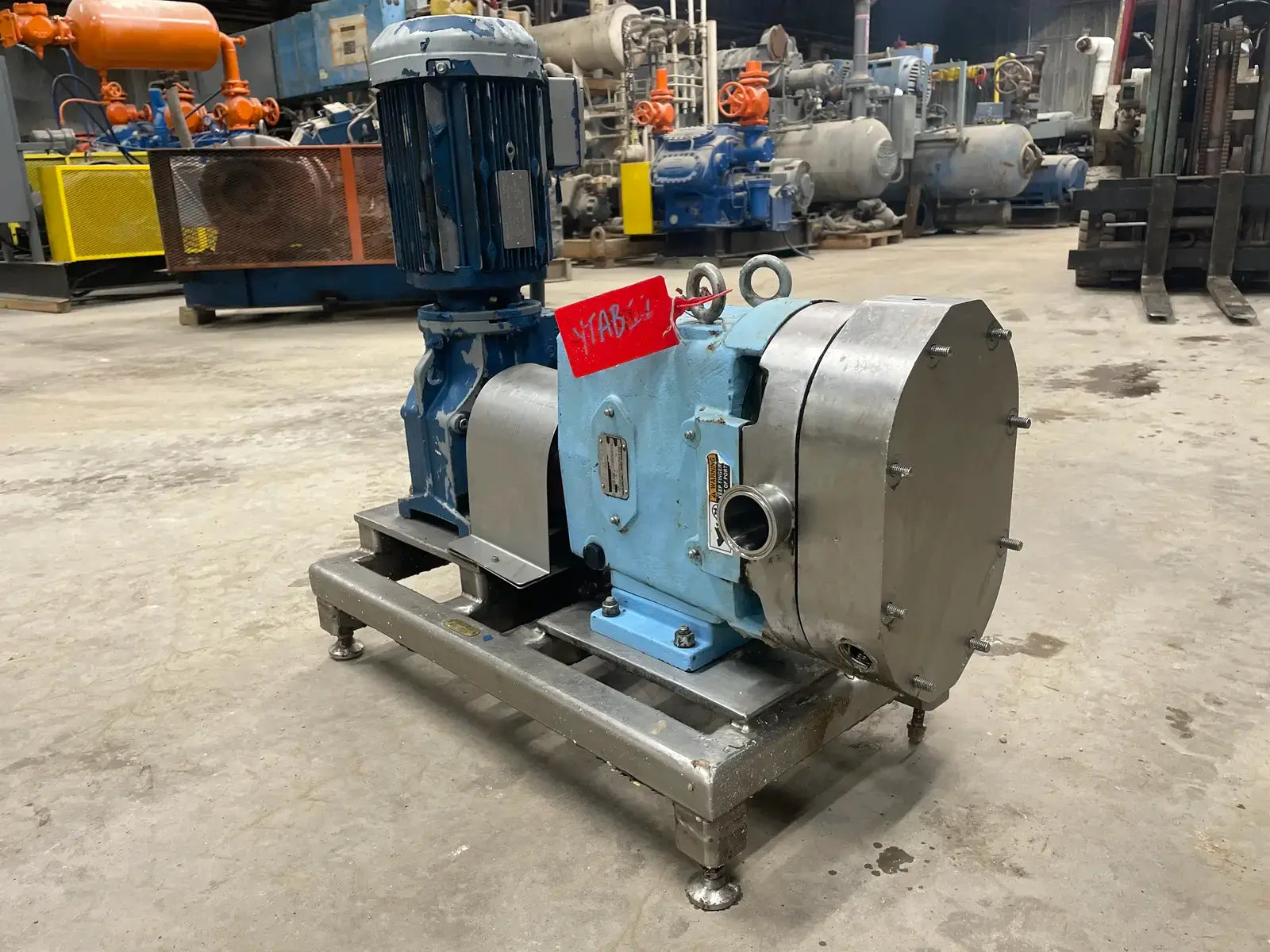

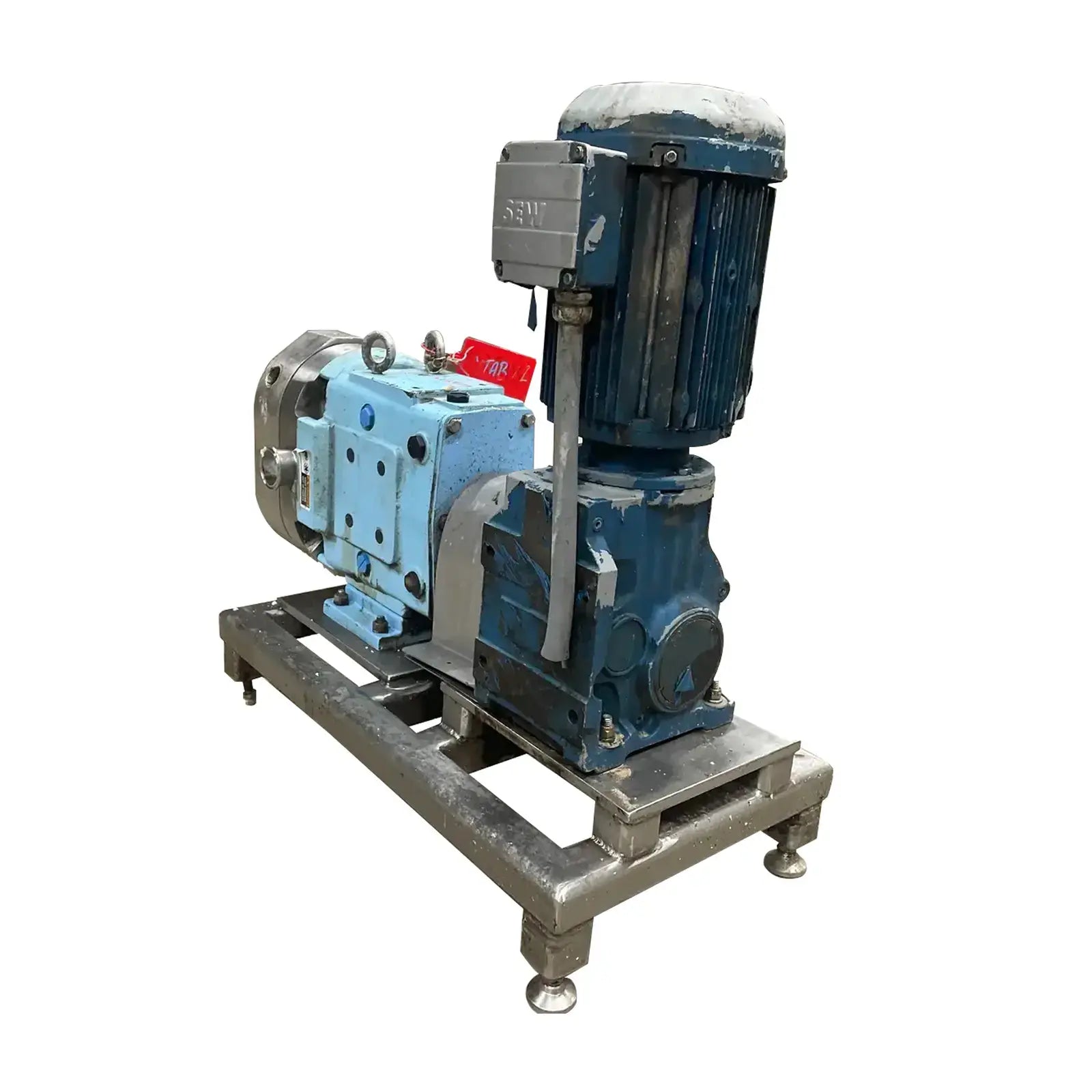

Waukesha Positive Displacement Pump. Model: 045-U2, Serial No: 1000002828116. Displacement Per Revolution: 0.098 Gal (0.371 Liter). Nominal Capacity: 58 GPM (13.2 M3/hr). Tri-Clamp Inlet/Outlet: 2 in. Pressure Rating up to 450 PSI (31.0 bar).

Product Details

  • Stock No: YTAB11
  • Manufacturer: Waukesha Cherry-Burrell
  • Model: 045 U2 01/31/13

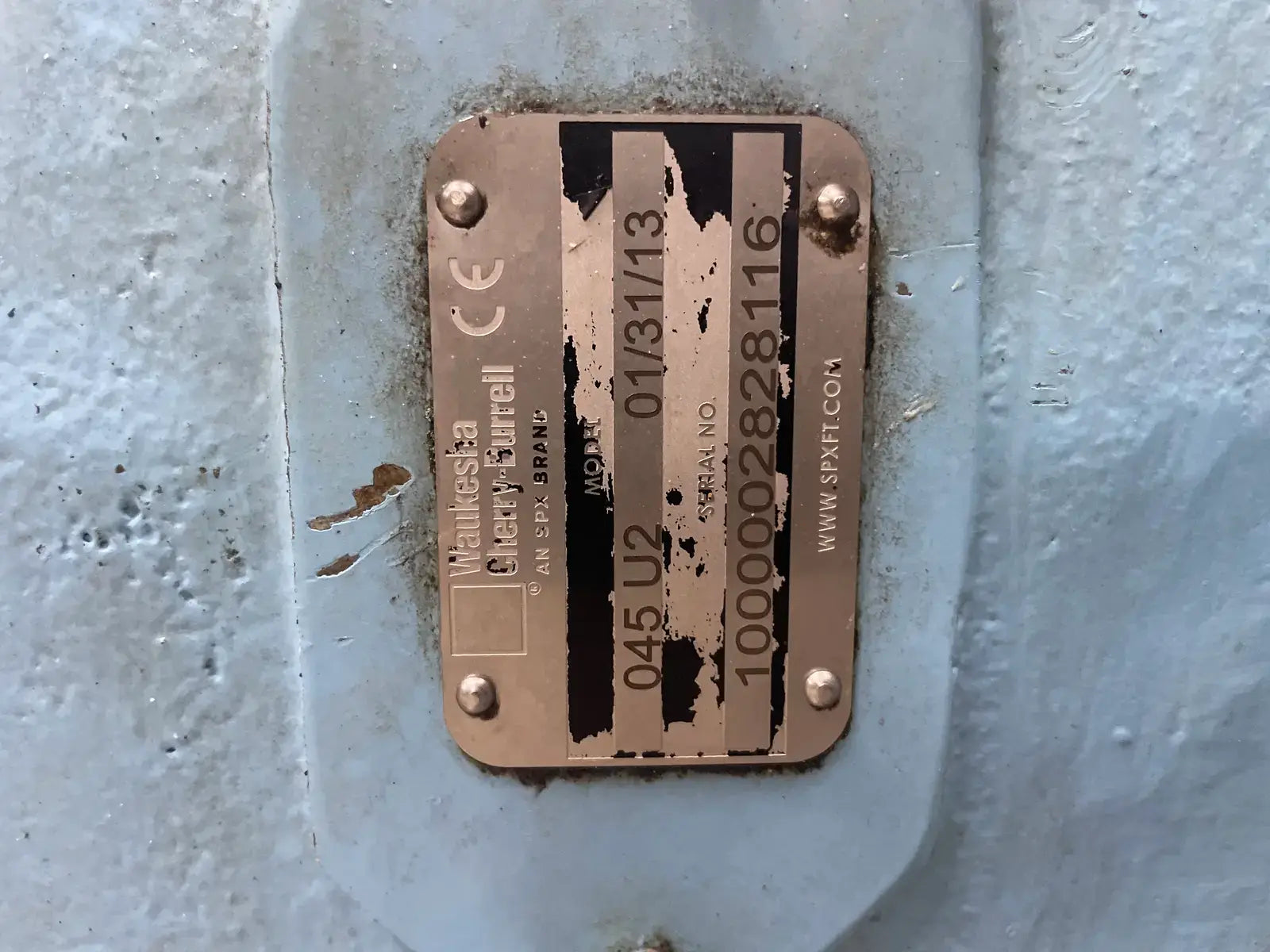

  • Serial Number: 1000002828116

Pump Details

  • Pump Type: Positive Displacement
  • Max Gallons Per Minute GPM: 56
  • Displacement per Revolution (Gallons): 0.098

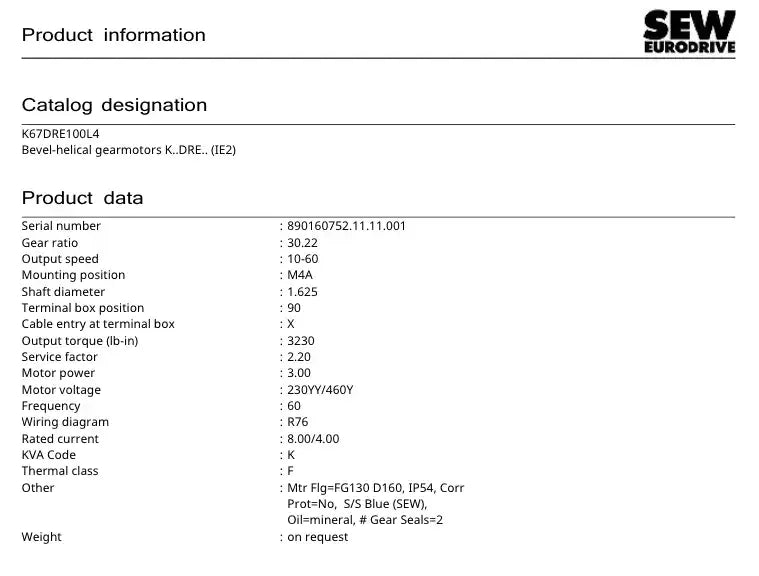

  • Drive Ratio: 30.22
  • Est. Actual Gallons Per Minute (GPM): 5.830708140304434
  • Minimum Temperature (F): -40
  • Maximum Temperature (F): 300
  • Maximum Pressure MAWP (PSI): 450

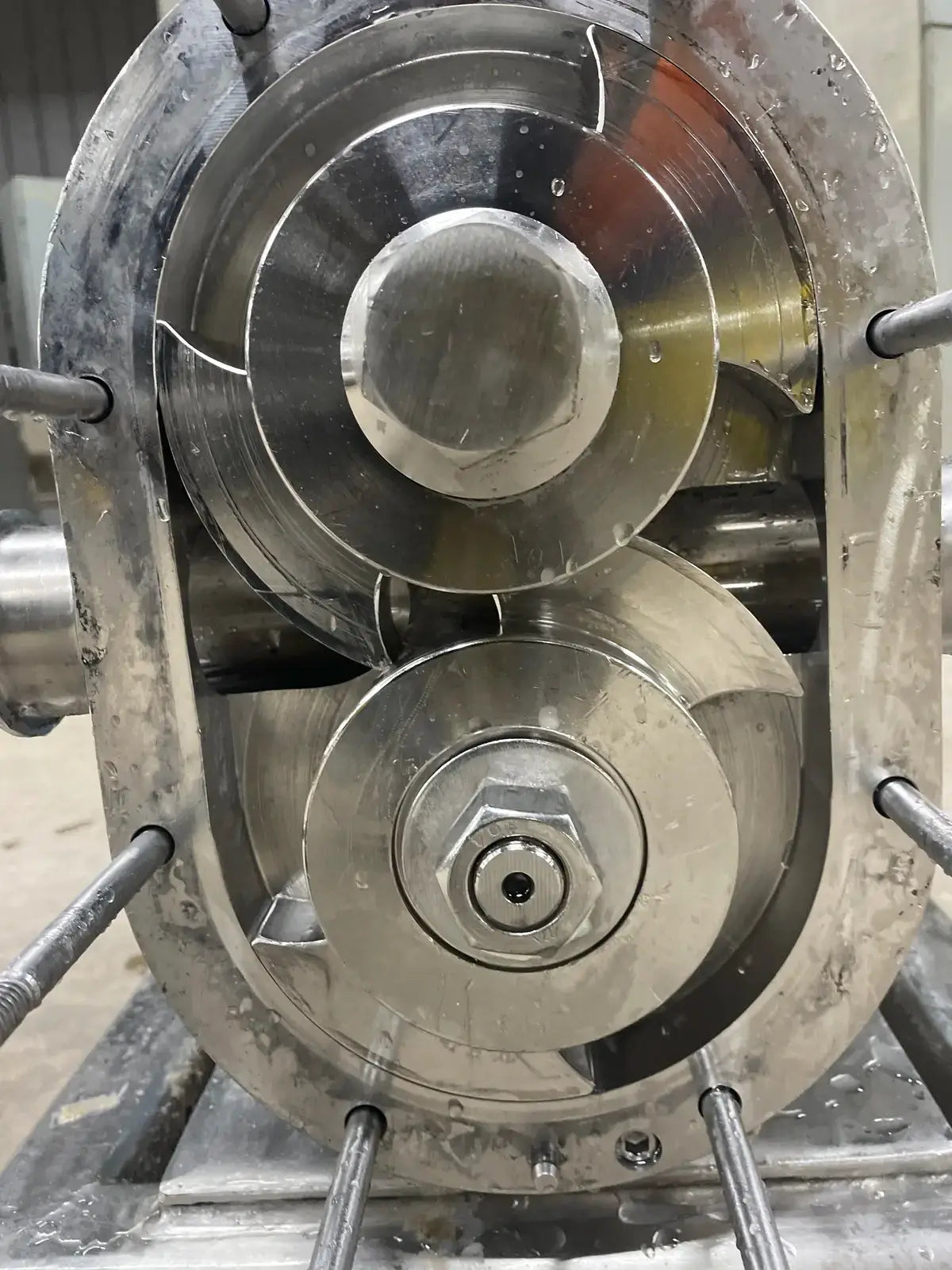

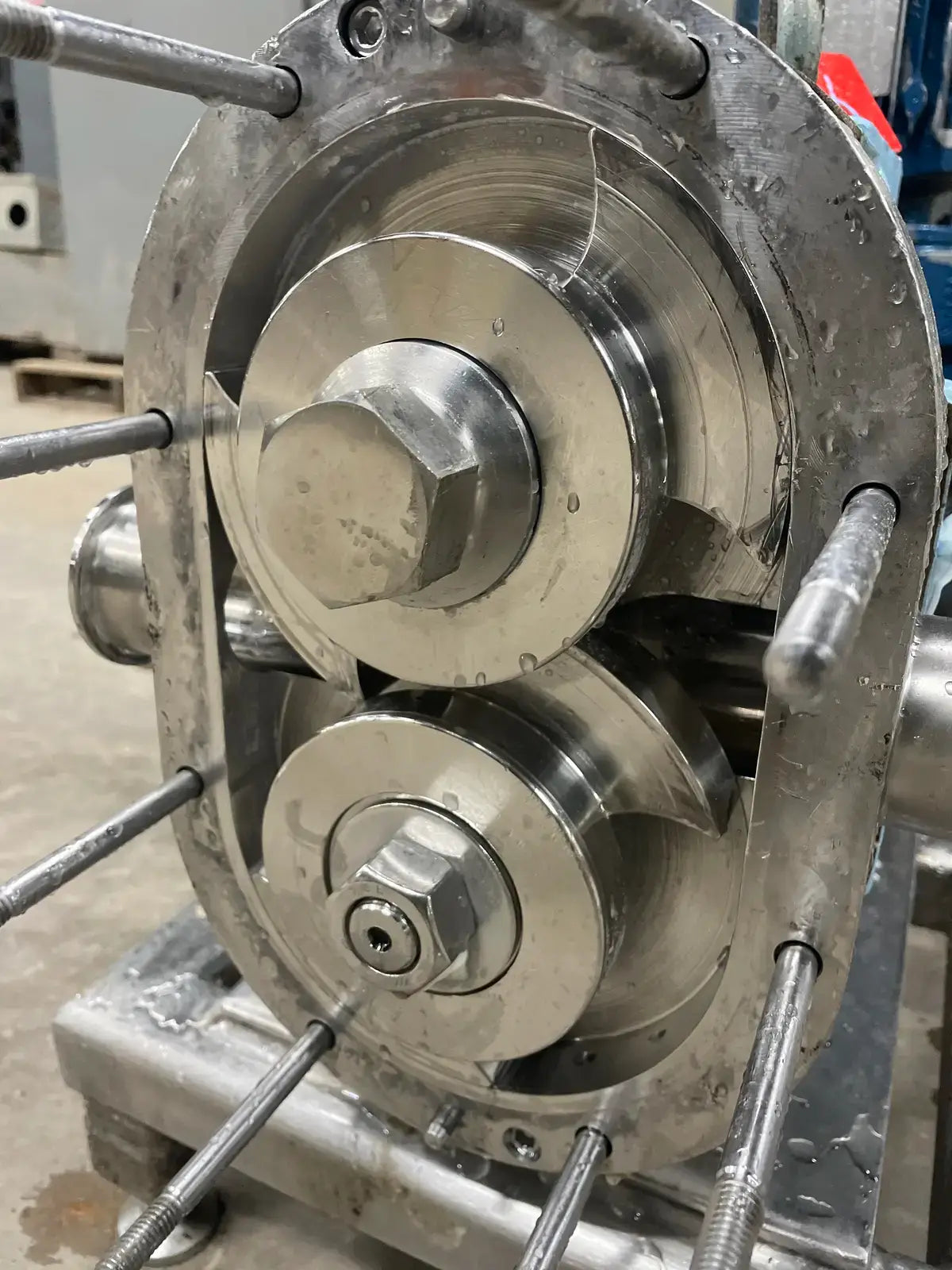

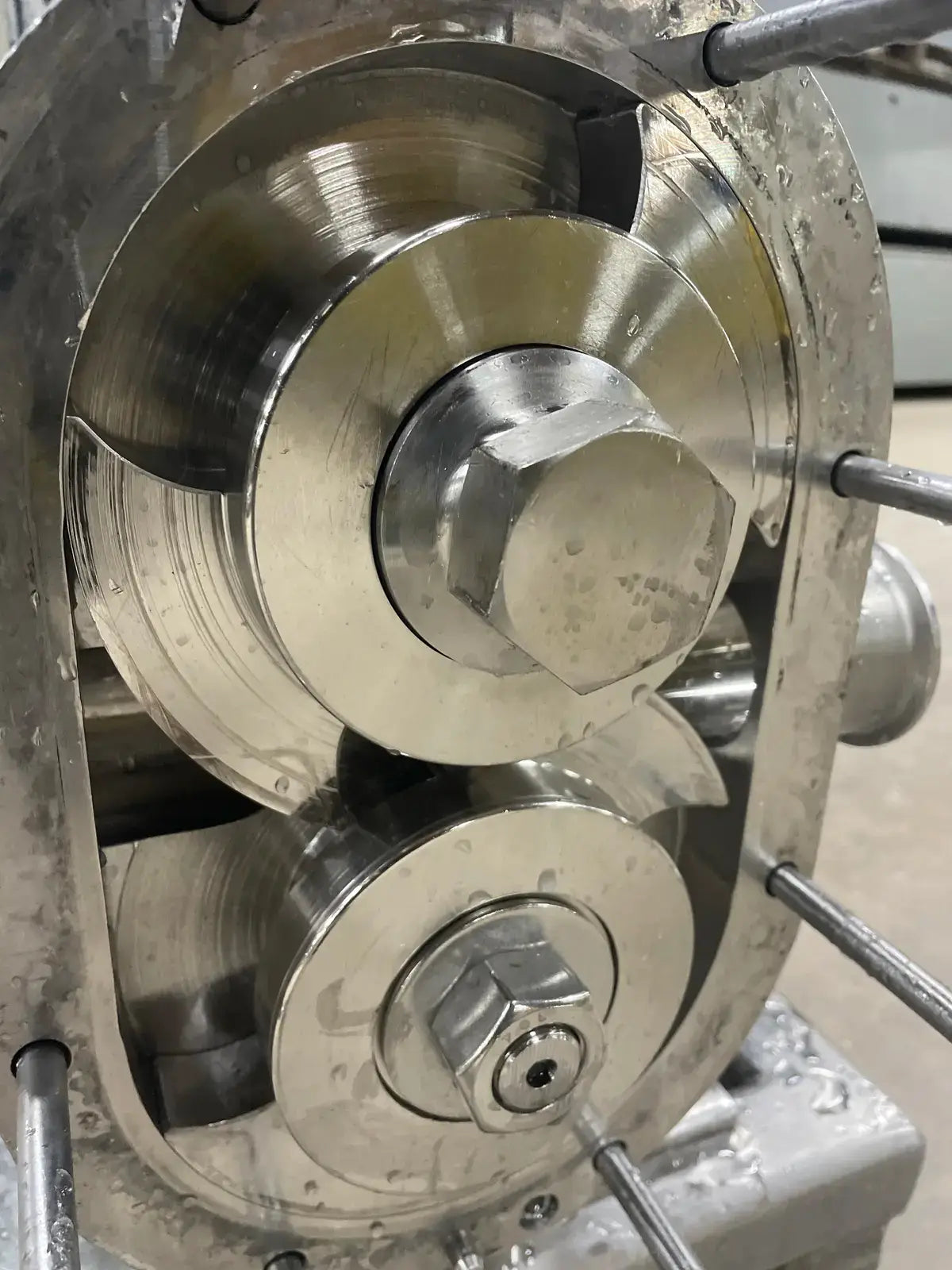

  • # Rotors: 2
  • # Inlets: 1
  • # Outlets: 1
  • # Inlets/Outlets: 2
  • Inlet/Outlet 1: Inlet
  • Inlet/Outlet 1 Size (Inches): 2
  • Inlet/Outlet 1 Type: Tri-Clamp
  • Inlet/Outlet 2: Outlet
  • Inlet/Outlet 2 Size (inches): 2
  • Inlet/Outlet 2 Type: Tri-Clamp

Previous Refrigerant

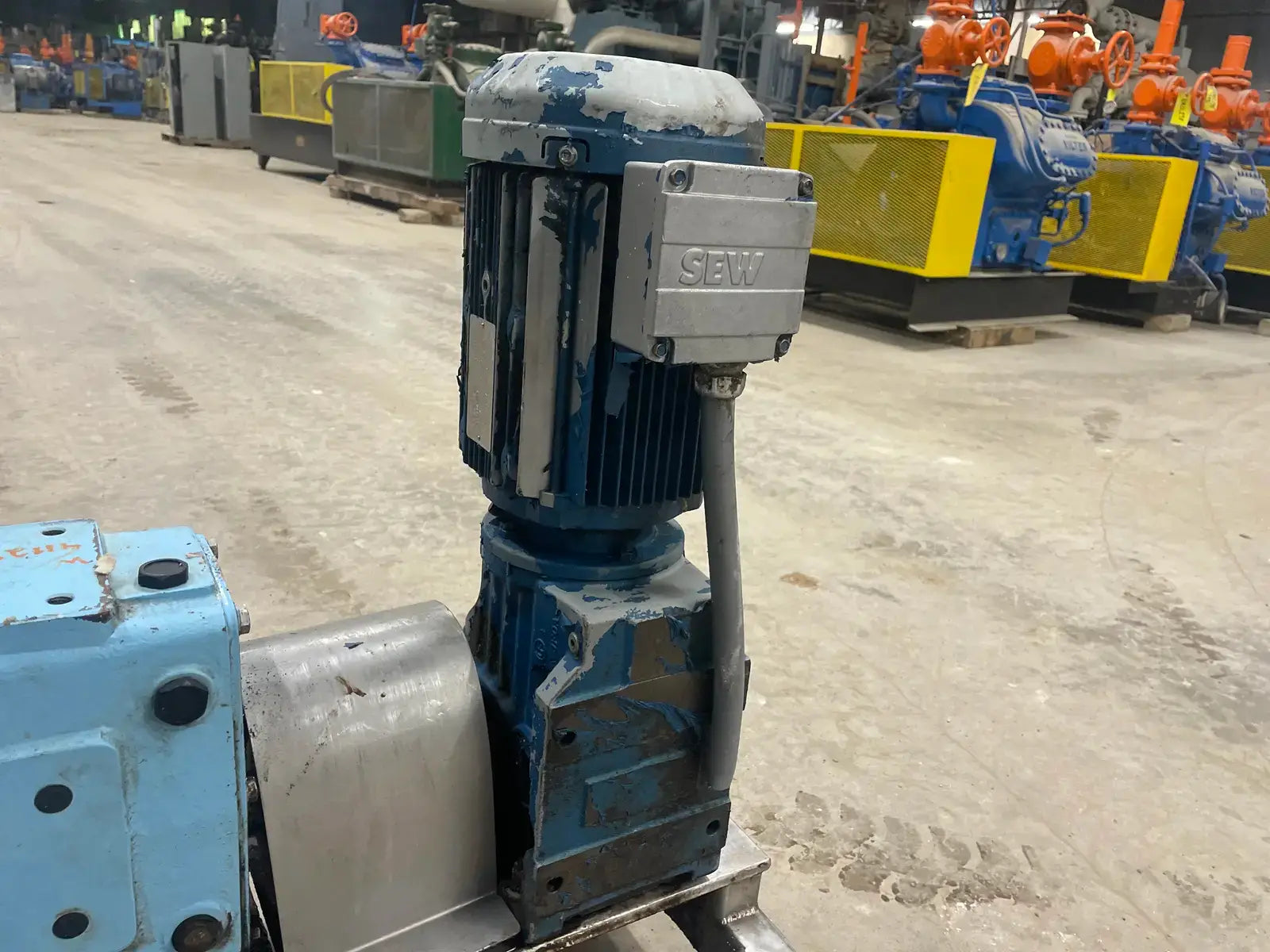

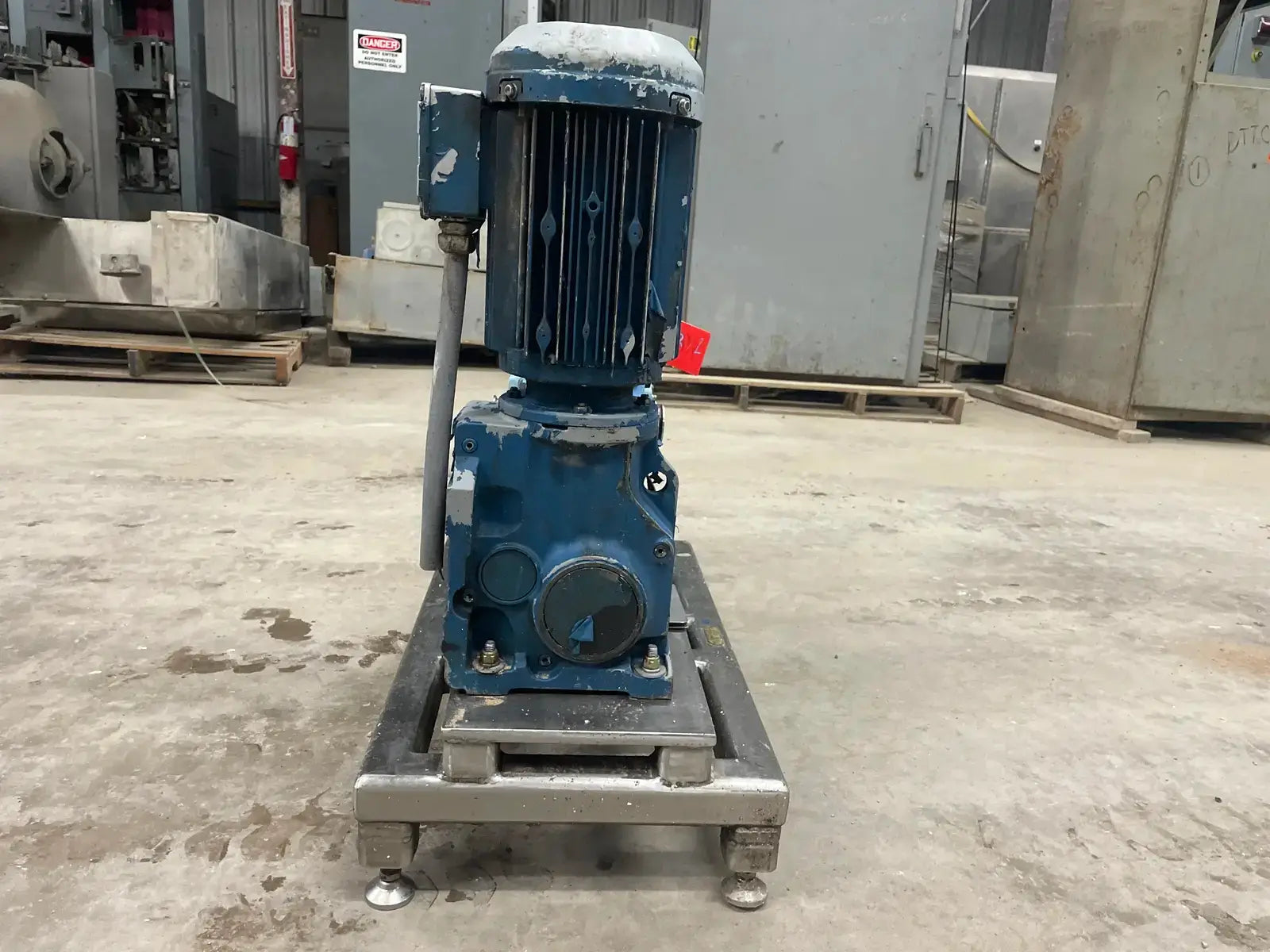

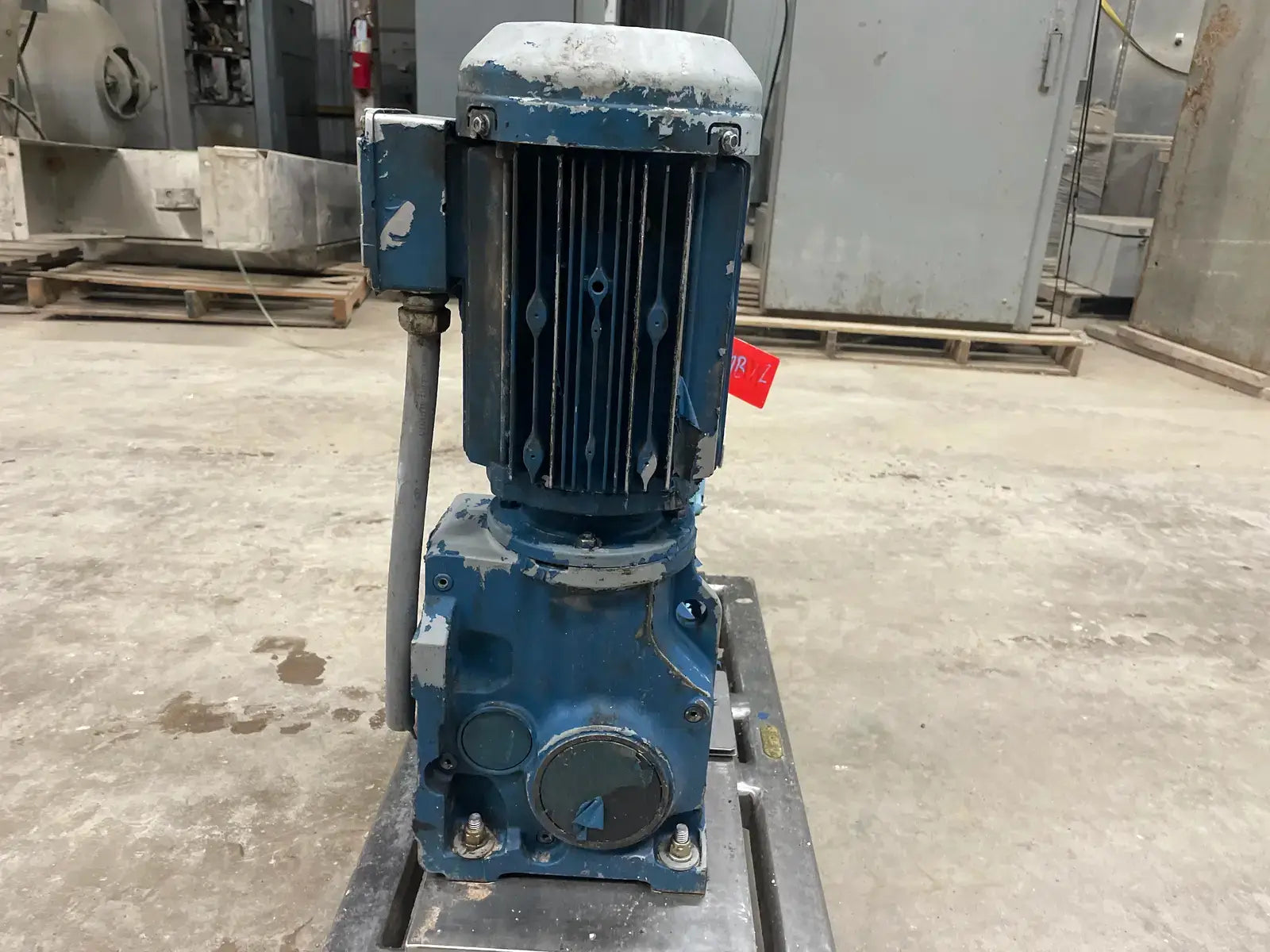

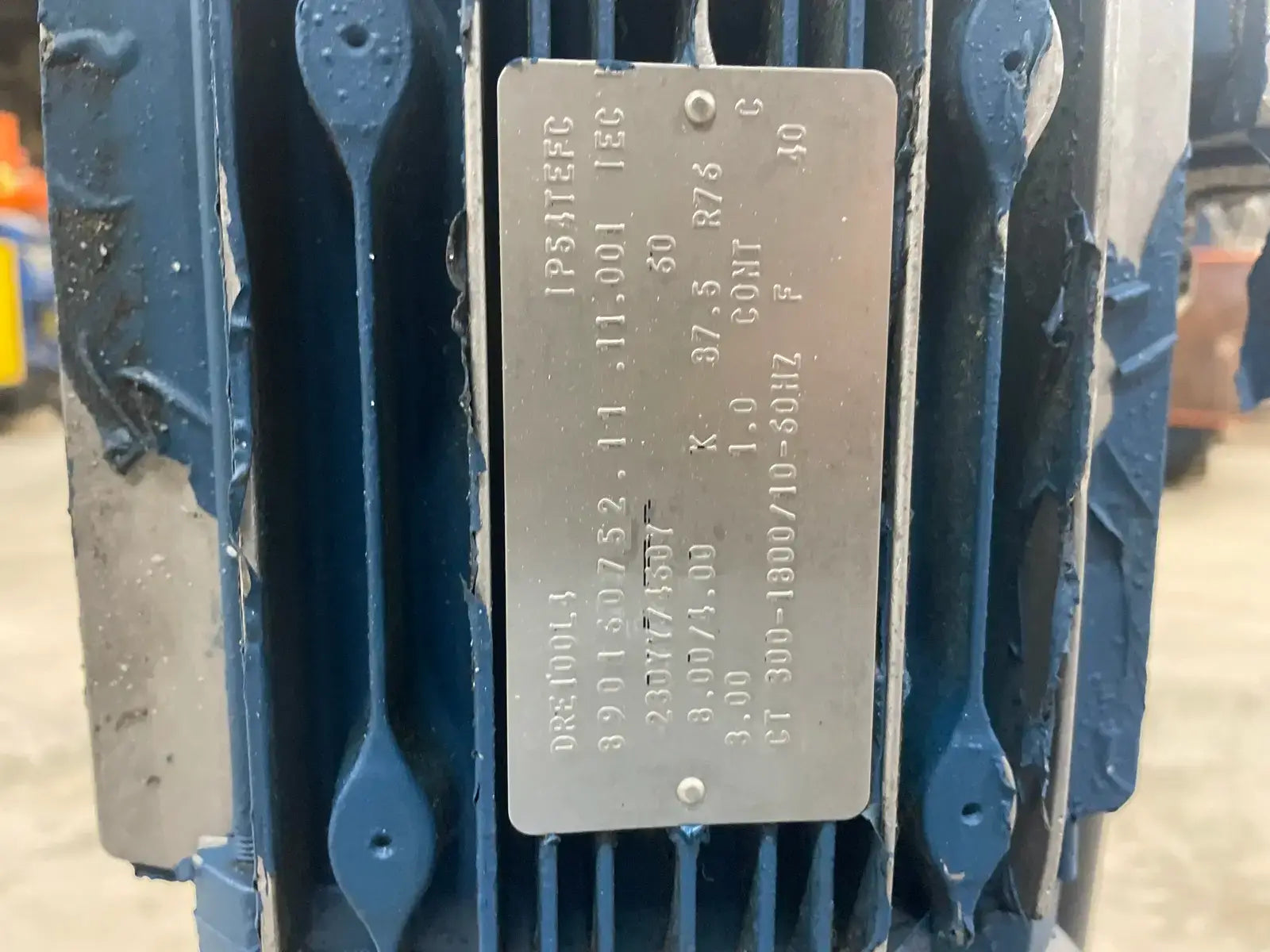

Motor Details

  • Motor Included? Yes
  • # Motors: 1
  • Motor Manufacturer: SEW-Eurodrive
  • Motor Horsepower(HP): 3
  • Motor RPM: 1,798
  • Motor Voltage: 230/460
  • Motor Hertz (Hz): 60
  • Motor Phases: 3

Dimensions:

  • Length (Inches): 48
  • Width (Inches): 23
  • Height (Inches): 36
  • Weight (LBS): 550
  • # of Pieces for Shipping: 1

Additional Product Details

  • Year of Manufacture: 2013

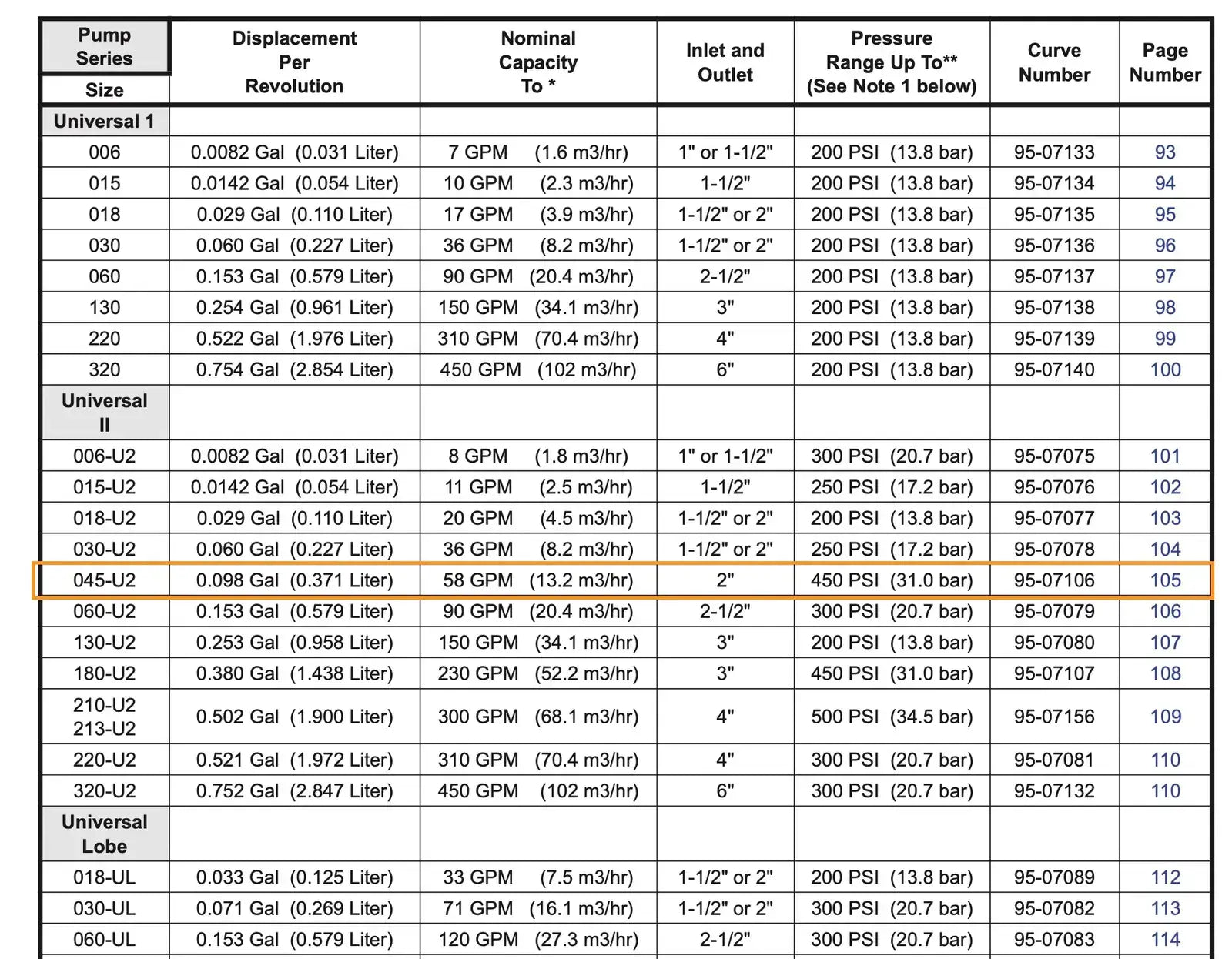

  • Spec Sheet Available: Yes
