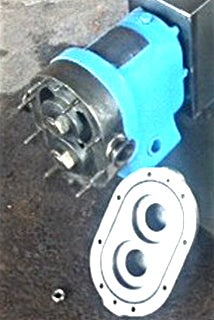

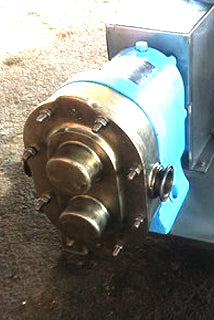

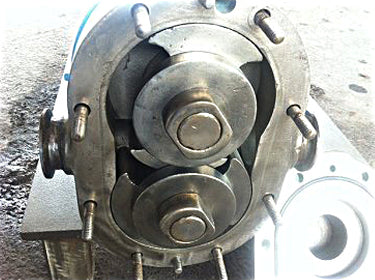

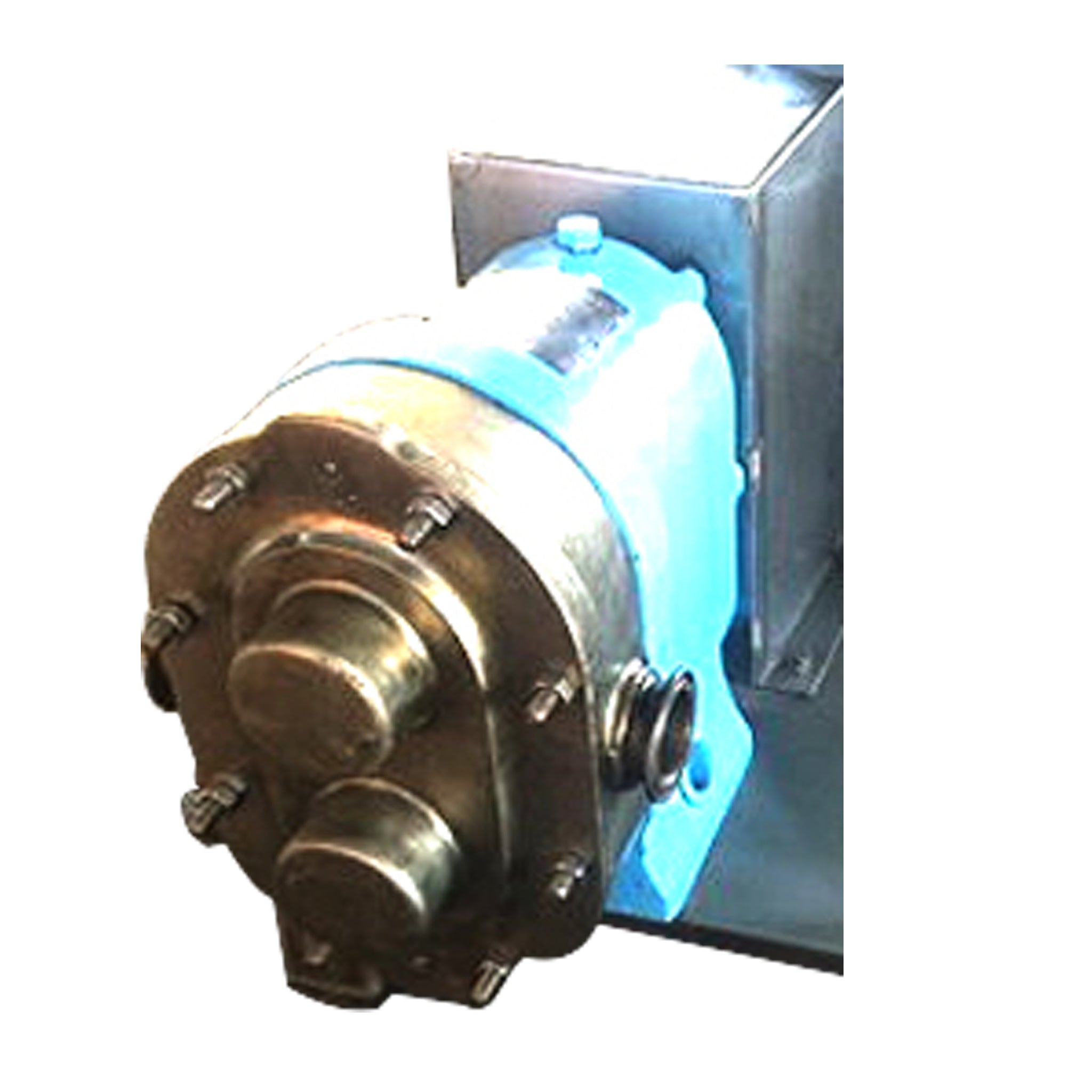

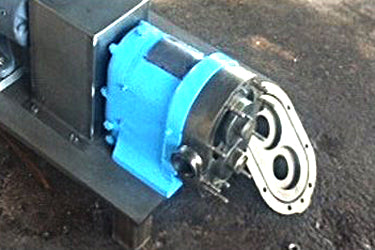

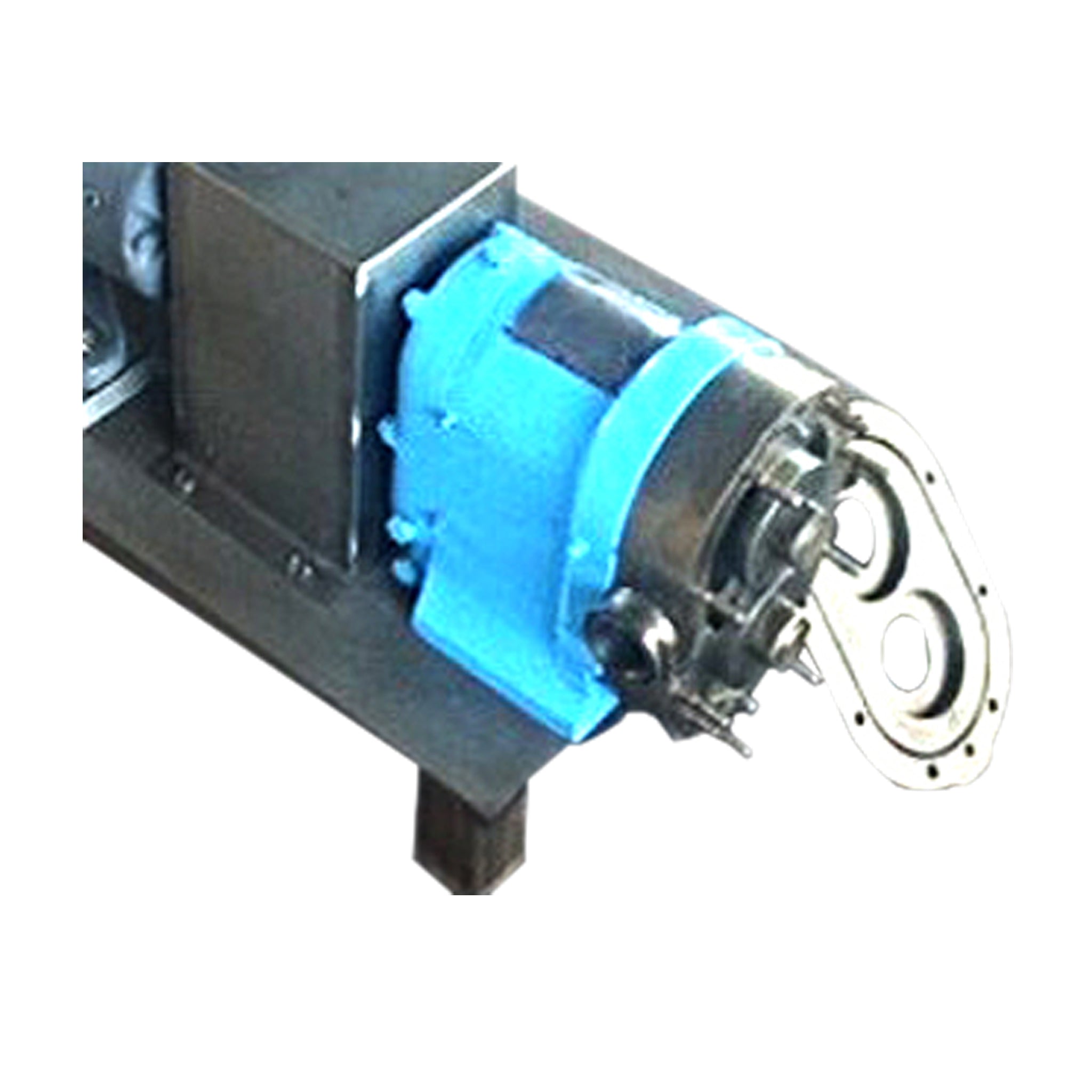

Waukesha Cherry-Burrell 25 Positive Displacement Pump (36 GPM Max)
Waukesha Positive Displacement Pump. Model: 25. S/N: DO48047. Flow rate for new pump is 36 gpm with required horsepower and pressure. Seal option: O-ring. Inlets/outlets: (2) 1-1/2 in. dia. fittings. Overall dimensions: 3 ft. 8 in. L x 1 ft. 6 in. W x 2 ft. 8 in. H.
Product Details
- Stock No: ATE017
- Manufacturer: Waukesha Cherry-Burrell
- Model: 25
- Serial Number: DO48047
Pump Details
- Pump Type: Positive Displacement
- Max Gallons Per Minute GPM: 36
- Maximum Pressure MAWP (PSI): 200
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet/Outlet
- Inlet/Outlet Size (Inches) 1: 1.5
- Inlet/Outlet 2: Inlet/Outlet
- Inlet/Outlet Size (Inches) 2: 1.5
Previous Refrigerant
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 44
- Width (Inches): 18
- Height (Inches): 32
- ACN: 48
