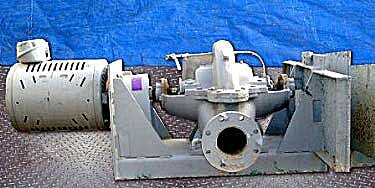

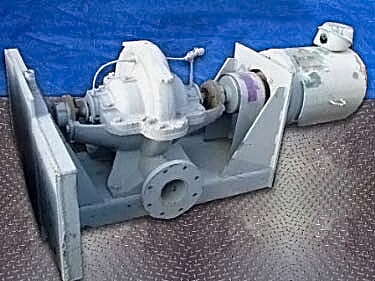

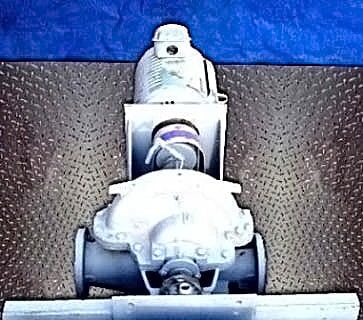

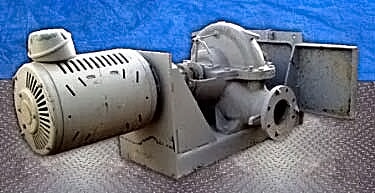

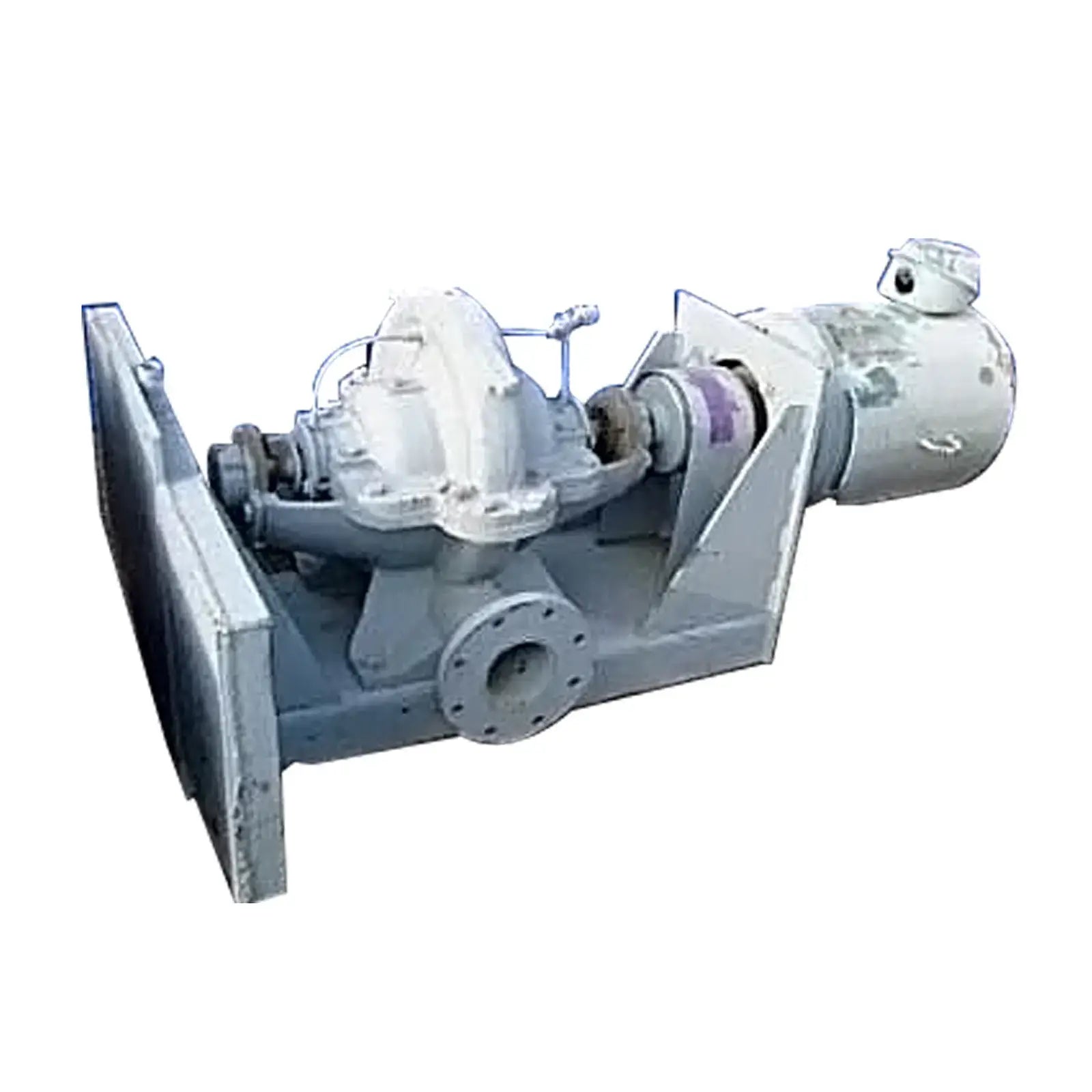

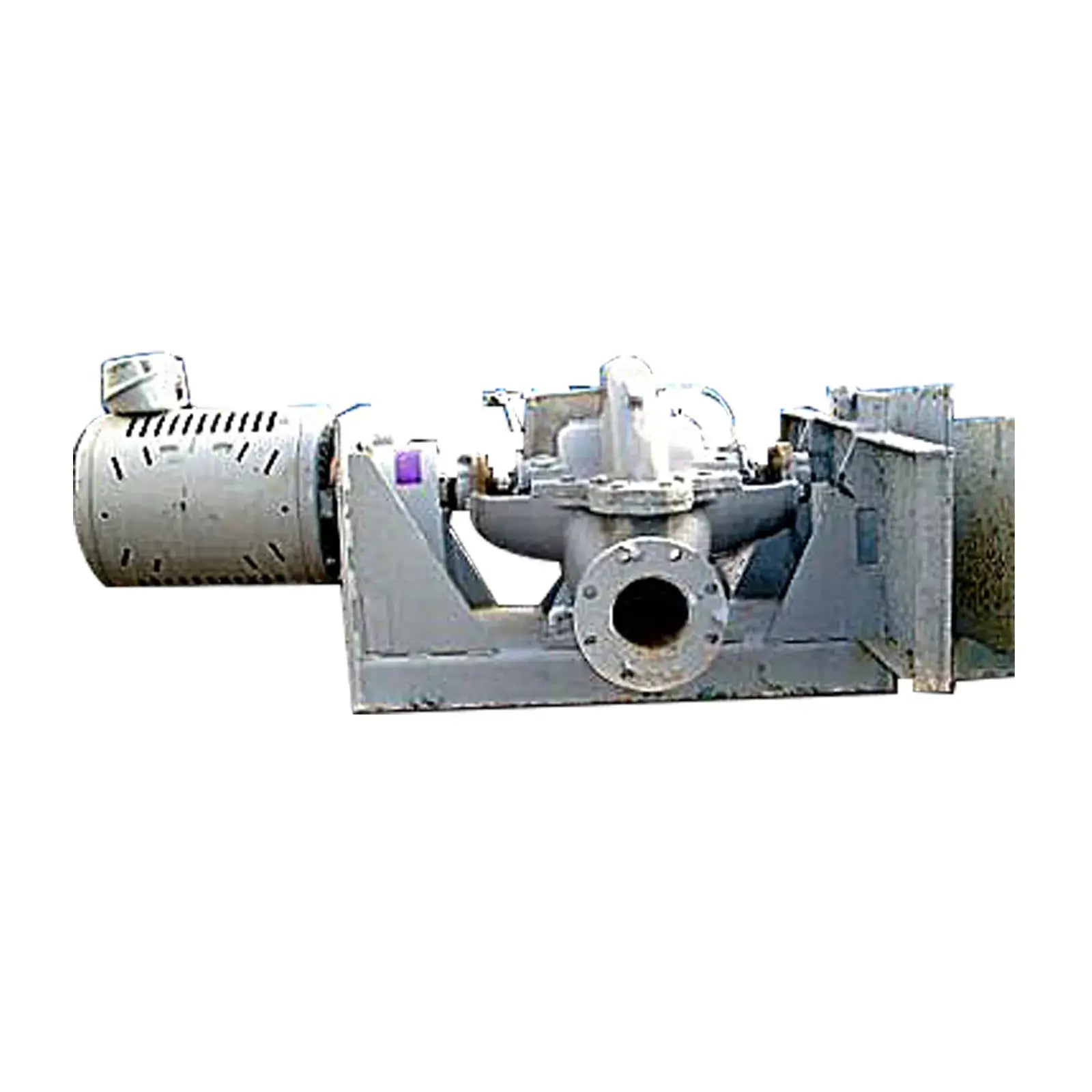

Weinman 4L1-410 Centrifugal Pump (30 HP)
Weinman Horizontal Split Case Centrifugal Pump. Model 4L1-410. S/N: 730649. Impeller diameter: 10.5 inches. Lincoln Motor, 30 hp, 1,750 rpm, 230/460 V, 74/37 amps, 60 Hz, 3 phase. Inlets: (1) 5 in. Inlet flanged port. Outlet (1) 4 in. outlet flanged port. Overall dimensions: 58-1/2 in. L x 42 in. W x 25 in. H. (H)
Product Details
- Stock No: OIP015.
- Manufacturer: Weinman
- Model: 4L1-410
- Serial Number: 730649
Pump Details
- Pump Type: Centrifugal
- Max Speed RPM: 1750
- Impeller Diameter (inches): 10.5
- # Inlets: 1
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 5
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 4
- Inlet/Outlet Type 2: Flange
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: Lincoln
- Motor Horsepower(HP): 30
- Motor RPM: 1750
- Motor Voltage: 230/460
- Motor Amps: 74/37
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 58.5
- Width (Inches): 42
- Height (Inches): 25
