Plate heat exchangers (PHEs) are widely used in various industrial applications for their efficiency in transferring heat between two fluids. Proper operation and maintenance are crucial to ensure safety, reliability, and longevity of these systems. This article outlines the key steps and considerations for the safe operation of an industrial plate heat exchanger.
Understanding the Plate Heat Exchanger

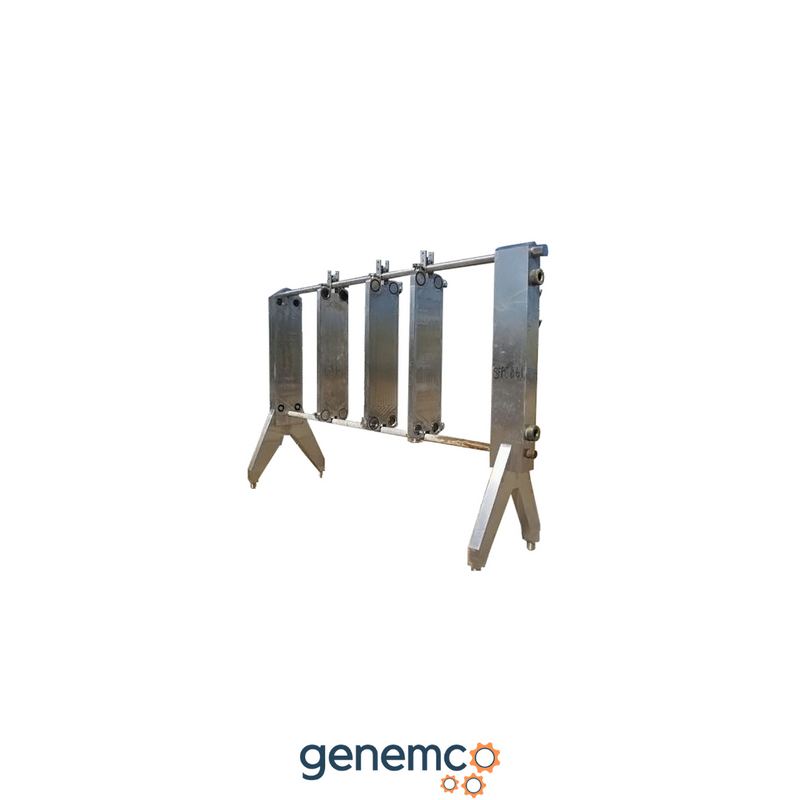

A plate heat exchanger consists of a series of thin, corrugated plates that are assembled in a frame. The plates create a complex flow pattern that maximizes heat transfer efficiency. Fluids flow through alternating channels between the plates, exchanging heat while being kept separate by gaskets or brazed joints.
Safety Precautions Before Operation
-
Training and Competence: Ensure all operators are properly trained and familiar with the specific model of the PHE. They should understand the flow paths, control systems, and emergency procedures.
-
Personal Protective Equipment (PPE): Always wear appropriate PPE, such as gloves, safety glasses, and protective clothing, to guard against exposure to hazardous fluids and high temperatures.
-
Inspection: Conduct a thorough inspection of the heat exchanger before use. Check for any signs of damage, corrosion, or leaks in the plates, gaskets, and connections.
-
Documentation: Review the manufacturer’s operating manual and safety guidelines. Ensure all safety and operational protocols are clearly documented and accessible to the operators.
Startup Procedure
-
System Check: Verify that all valves and connections are correctly installed and secure. Ensure that the correct fluids are connected to their respective inlets and outlets.
-
Pressure and Temperature Settings: Confirm that the system’s pressure and temperature settings are within the manufacturer's recommended limits. Overpressure or excessive temperature can damage the plates and gaskets.
-
Gradual Introduction of Fluids: Gradually introduce the fluids into the system to prevent thermal shock. Sudden changes in temperature can cause expansion or contraction of the plates, leading to leaks or damage.
-
Ventilation: Ensure proper ventilation in the area to dissipate any heat and to handle any potential release of hazardous fumes.
Monitoring During Operation
-
Regular Inspections: Frequently check for leaks or any unusual noises that may indicate a problem. Use sensors and alarms to monitor temperature, pressure, and flow rates in real time.
-
Fluid Quality: Maintain the quality of the fluids by filtering out any particulates and preventing contamination. Impurities can cause fouling, reducing efficiency and potentially damaging the plates.
-
Balance Flow Rates: Ensure that the flow rates of both fluids are balanced as per design specifications. Imbalanced flow rates can lead to uneven heat distribution and reduce the efficiency of the heat exchanger.
-
Gasket Integrity: Periodically inspect gaskets for wear and tear. Replace any gaskets that show signs of deterioration to prevent leaks and maintain system integrity.
Shutdown Procedure
-
Gradual Shutdown: Slowly reduce the flow of fluids to prevent thermal shock. Sudden temperature changes during shutdown can cause similar issues as during startup.
-
Pressure Release: Carefully release any built-up pressure in the system. Ensure that all fluids are safely drained or diverted to appropriate containment.
-
Cleaning and Maintenance: After shutdown, clean the heat exchanger to remove any buildup of scale or contaminants. Regular cleaning extends the life of the plates and maintains efficiency.
-
Documentation and Reporting: Document any issues encountered during operation and report them to the maintenance team. Keeping detailed records helps in diagnosing recurring problems and planning preventive maintenance.
Maintenance Tips
-
Scheduled Maintenance: Adhere to a regular maintenance schedule as recommended by the manufacturer. This includes checking for corrosion, cleaning plates, and inspecting gaskets.
-
Spare Parts: Keep an inventory of critical spare parts, such as gaskets and plates, to minimize downtime during maintenance or emergency repairs.
-
Professional Servicing: Engage professional services for major maintenance tasks. Experienced technicians can perform thorough inspections and repairs that ensure the system's safe and efficient operation.
Operating an industrial plate heat exchanger safely requires a combination of proper training, vigilant monitoring, and regular maintenance. By adhering to these guidelines, operators can ensure the heat exchanger performs efficiently, with minimal risk of accidents or system failures. Always consult the manufacturer's manual for specific instructions related to your particular model and adhere to industry safety standards to protect personnel and equipment.
