Types of Industrial Heat Exchangers

Industrial heat exchangers are pivotal components in various industries, facilitating the transfer of heat between two or more fluids. These devices are crucial in processes ranging from power generation to chemical processing, refrigeration, and beyond. The efficiency and effectiveness of heat exchangers directly impact energy consumption and operational costs, making their selection and design critical. This article explores the fundamentals of industrial heat exchangers and delves into the specifics of several types, including plated heat exchangers, shell & tube heat exchangers, votators & scraped surface heat exchangers, tube in tube heat exchangers, plate-fin heat exchangers, and falling film plate chillers.

How Industrial Heat Exchangers Work

At their core, heat exchangers transfer thermal energy between fluids without mixing them. This process can occur through direct contact or, more commonly, via a solid barrier that separates the fluids while allowing heat to pass through. The efficiency of this transfer depends on several factors, including the type of heat exchanger, the properties of the fluids, the temperature difference, and the flow arrangement.

Types of Industrial Heat Exchangers

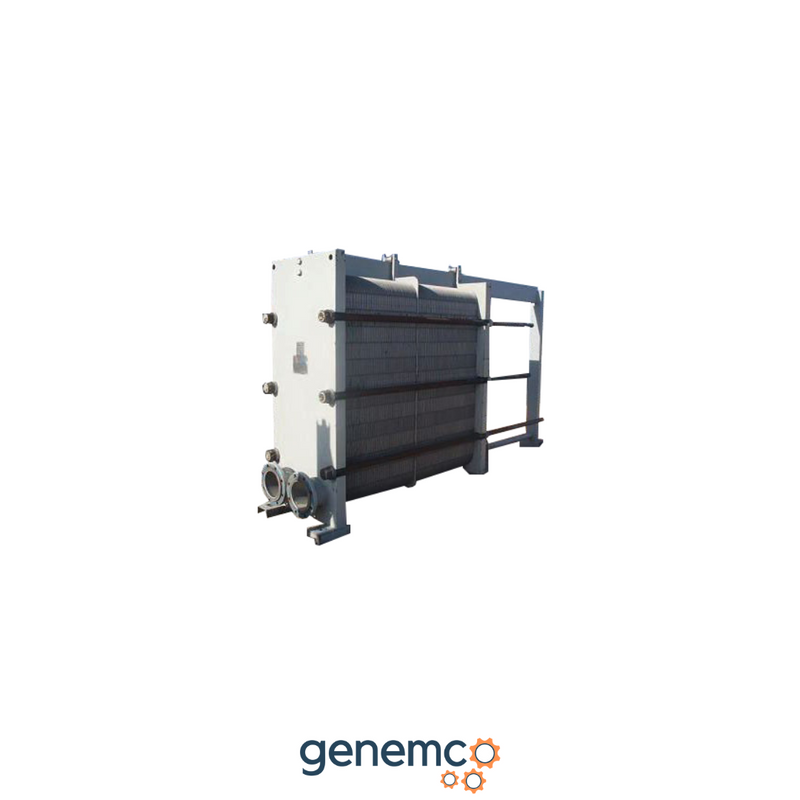

Plated Heat Exchangers

Plated heat exchangers consist of multiple thin, corrugated metal plates stacked together. These plates create channels through which the fluids flow, enabling efficient heat transfer due to the large surface area. The corrugated design promotes turbulence, enhancing the heat exchange rate. Plated heat exchangers are compact and can be easily dismantled for cleaning, making them ideal for applications where hygiene is crucial, such as in the food and beverage industry.

Image from Genemco.com

Shell & Tube Heat Exchangers

Shell & tube heat exchangers are among the most common and versatile types. They consist of a series of tubes (the tube bundle) enclosed within a cylindrical shell. One fluid flows through the tubes, while the other fluid flows over the tubes within the shell. This design allows for high-pressure applications and can accommodate a wide range of temperatures. Shell & tube heat exchangers are widely used in power plants, oil refineries, and chemical processing facilities.

Image from Genemco.com

Votators & Scraped Surface Heat Exchangers

Votators, or scraped surface heat exchangers, feature a rotating shaft with scraper blades inside a cylindrical heat transfer surface. This design ensures continuous mixing and prevents the build-up of deposits on the heat transfer surface, which is particularly useful for viscous or sticky fluids. Votators are commonly used in the food industry for products like margarine, chocolate, and ice cream, where maintaining consistent texture and quality is essential.

Image from Genemco.com

Tube in Tube Heat Exchangers

Tube in tube heat exchangers consist of a smaller tube placed inside a larger one. One fluid flows through the inner tube, while the other flows through the annular space between the two tubes. This design is simple yet effective for applications requiring high thermal efficiency and minimal maintenance. Tube in tube heat exchangers are often used in processes involving high-viscosity fluids or those that require stringent sanitary standards.

Image from Genemco.com


Plate-Fin Heat Exchangers

Plate-fin heat exchangers are constructed using a series of parallel plates and finned surfaces. The fins increase the surface area, enhancing heat transfer efficiency. These exchangers are highly compact and can handle multiple fluid streams simultaneously. Plate-fin heat exchangers are used in aerospace, cryogenics, and other applications where space and weight are critical considerations.

Image from Genemco.com


Falling Film Plate Chillers

Falling film plate chillers utilize gravity to facilitate heat transfer. A thin film of liquid flows over vertically oriented plates, creating a large surface area for efficient heat exchange. These chillers are particularly effective for cooling applications where rapid temperature reduction is required, such as in dairy processing and beverage production. The design minimizes thermal resistance and allows for easy cleaning, making it suitable for industries with stringent hygiene requirements.

Image from Genemco.com


All in all industrial heat exchangers are integral to numerous processes across various industries, providing efficient thermal management solutions. The choice of heat exchanger depends on factors such as fluid properties, temperature requirements, pressure conditions, and maintenance considerations. Understanding the different types of heat exchangers and their specific applications can help industries optimize their thermal systems, enhancing productivity and reducing energy consumption.
