Product Details

• Stock No: RWF06
• Manufacturer: GEA
• Model: NR-N26S-28
• Serial Number: N1374

• Compressor Type: Screw
• Package Included? Yes
• Stage Type: High Stage

Package Details

• Package Manufacturer: GEA
• Package SN: N1374
• Package Max Speed (RPM): 3,550
• Package Max Design Pressure (PSIG): 406

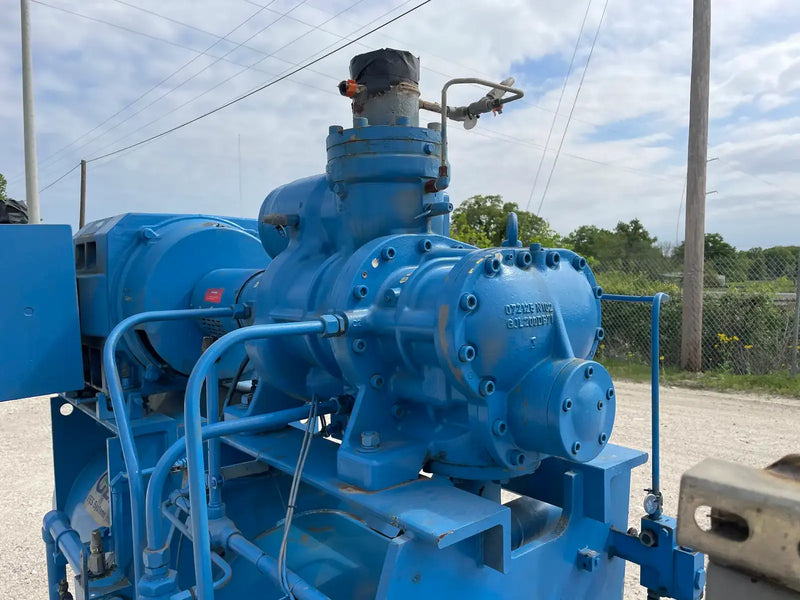

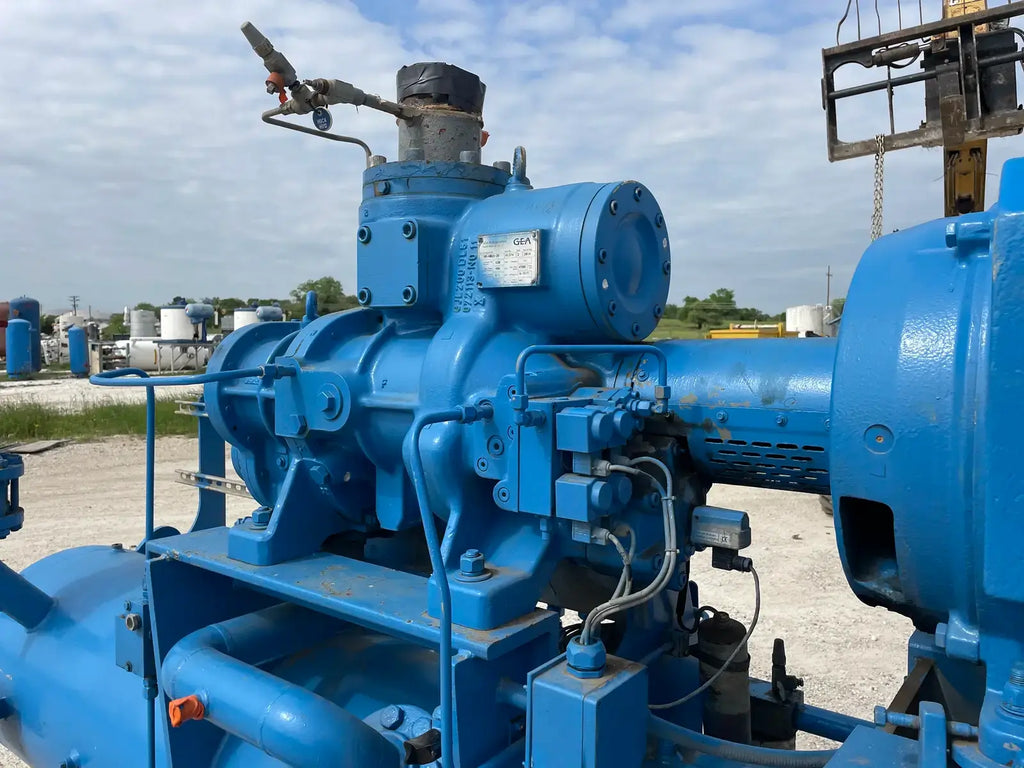

Screw Compressor Details

• Compressor Included? Yes
• Compressor Manufacturer: GEA
• # Compressors in Package: 0
• Compressor Model: NR-N266-28
• Compressor SN: N1374
• Compressor Max Speed (RPM): 4,500
• Compressor Design Pressure (PSIG): 406
• Compressor Year Manufactured: 2014

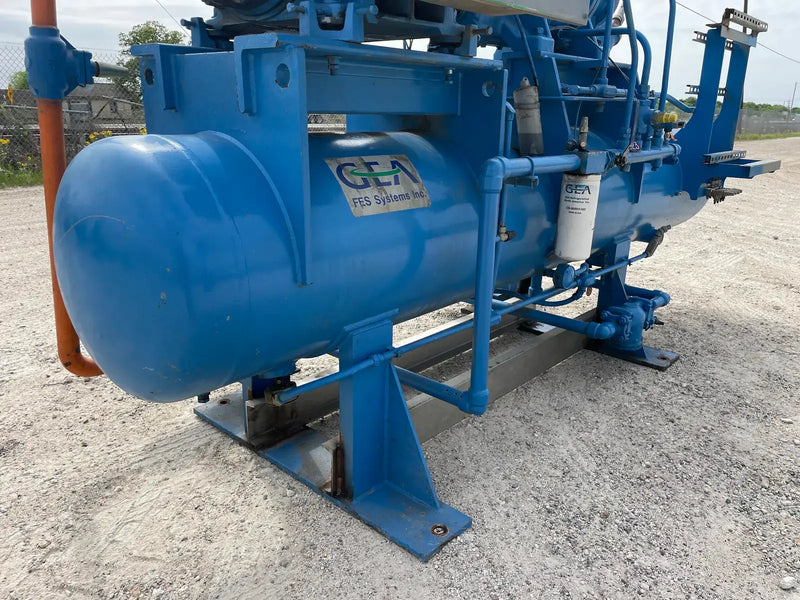

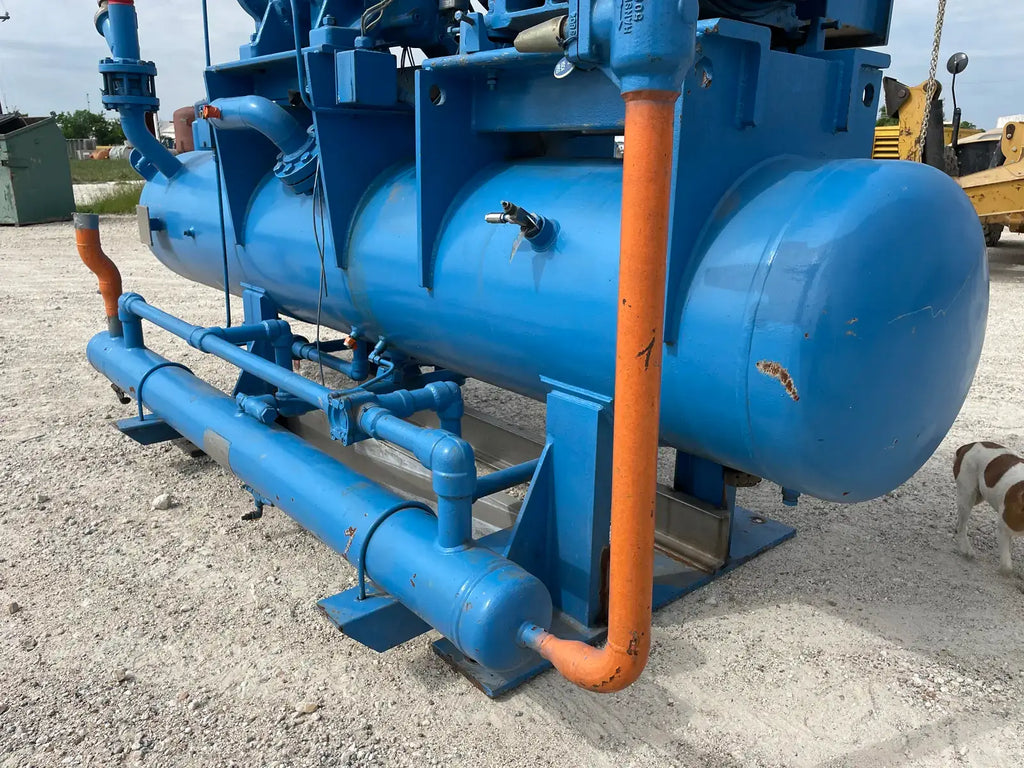

• Oil Separator Included? Yes
• Oil Separator National Board #: 14024

Micro Panel Details

• Micro Control Panel Included? No

Motor Starter Details

• Motor Starter Included? Yes

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes
• Halocarbon (Freon) Compatible: Yes

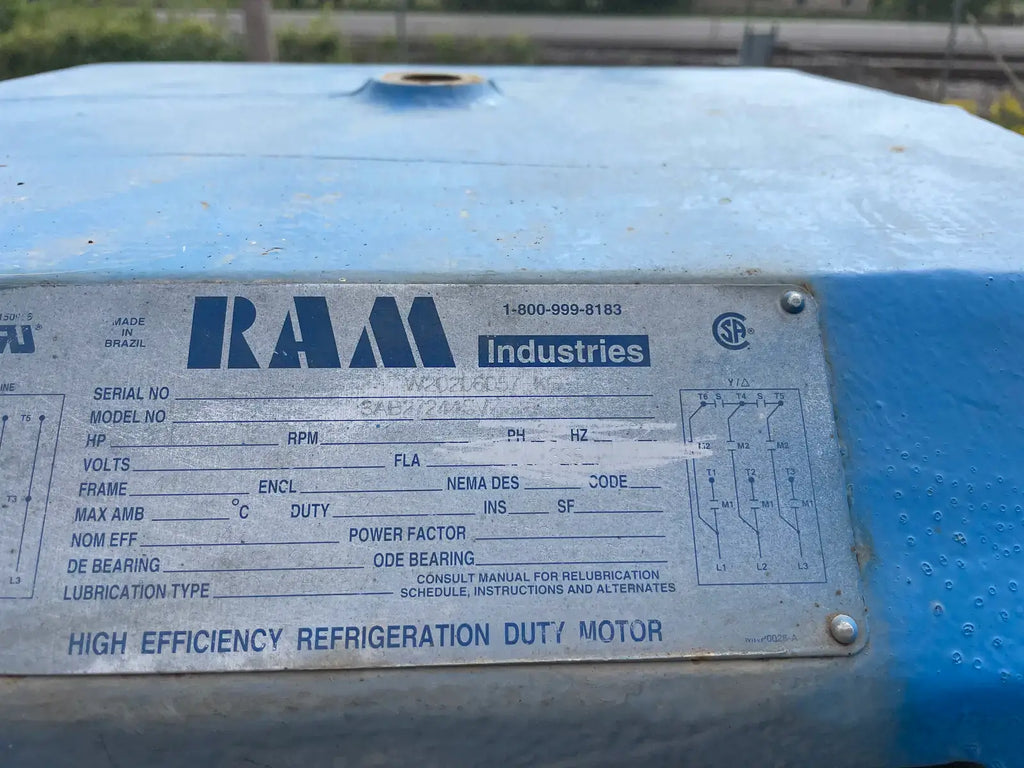

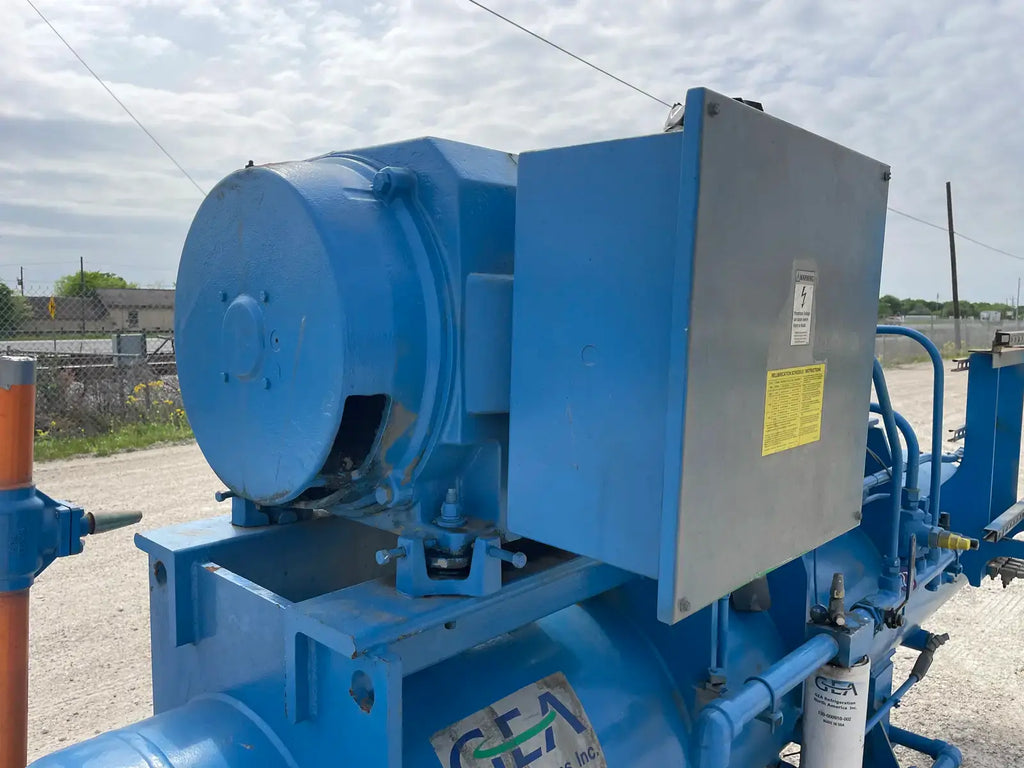

Motor Details

• Motor Included? Yes
• # Motors: 1
• Motor Manufacturer: RAM Industries
• Motor Horsepower(HP): 300
• Motor RPM: 3,570
• Motor Voltage: 460
• Motor Amps: 335
• Motor Hertz (Hz): 60
• Motor Phases: 3
• Motor Frame Size: 445TS

Dimensions:

• Length (Inches): 140
• Width (Inches): 55
• Height (Inches): 88
• Weight (LBS): 7,500
• # of Pieces for Shipping: 1

Additional Product Details

• Year of Manufacture: 2014
• Spec Sheet Available: Yes
• Known Issues or Problems: Missing Control Panel.
