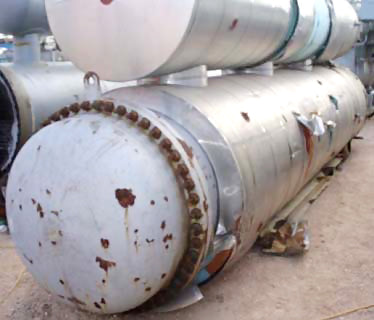

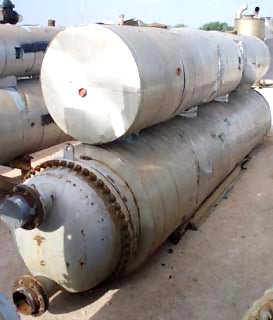

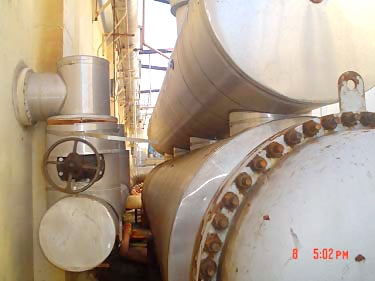

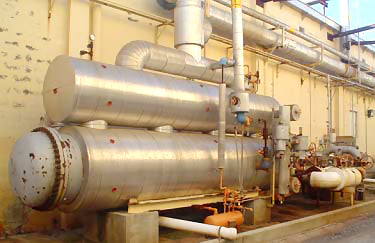

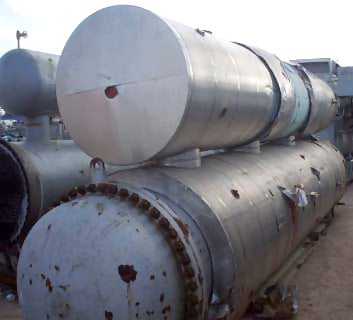

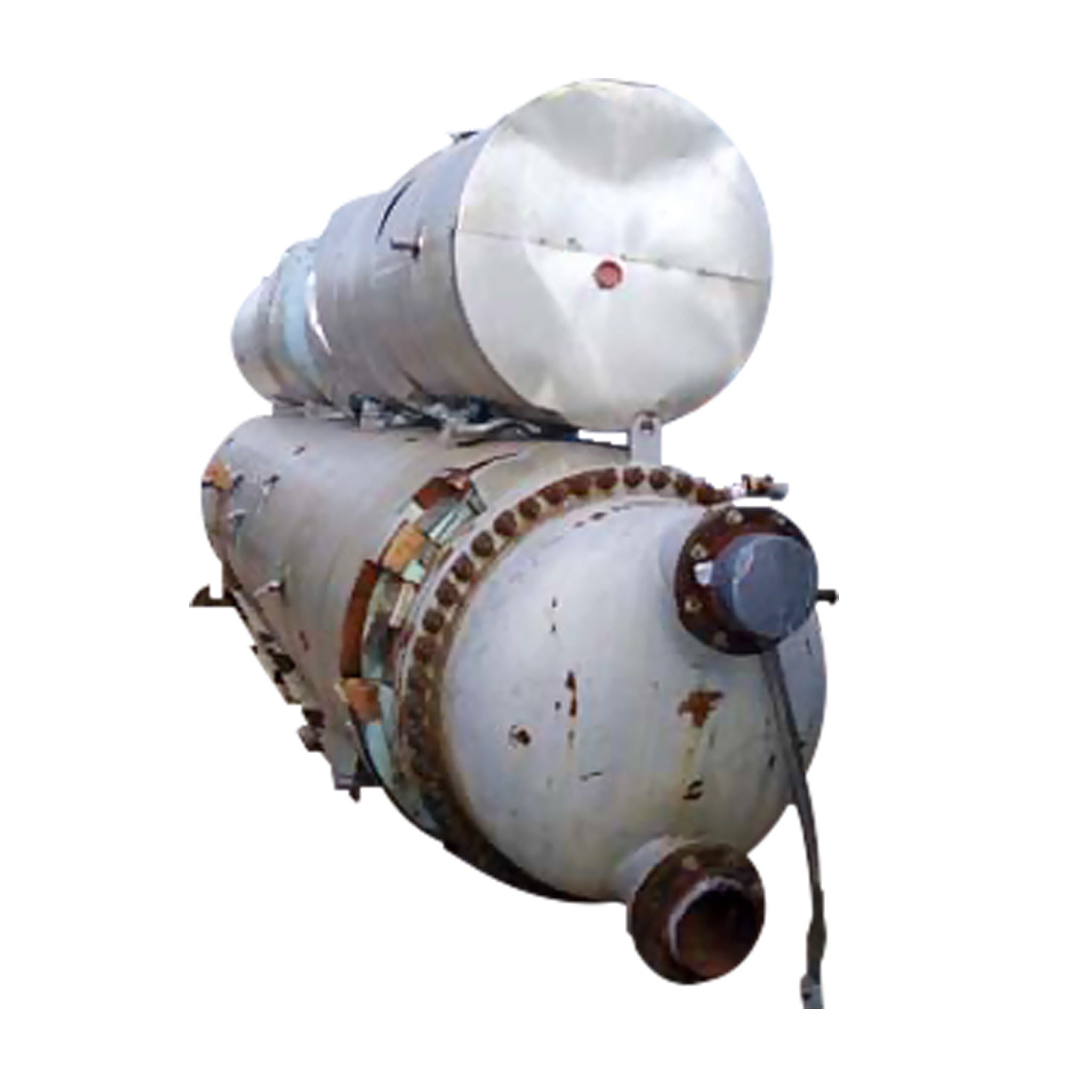

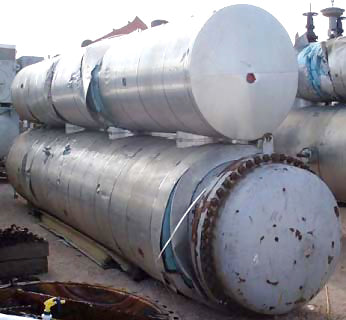

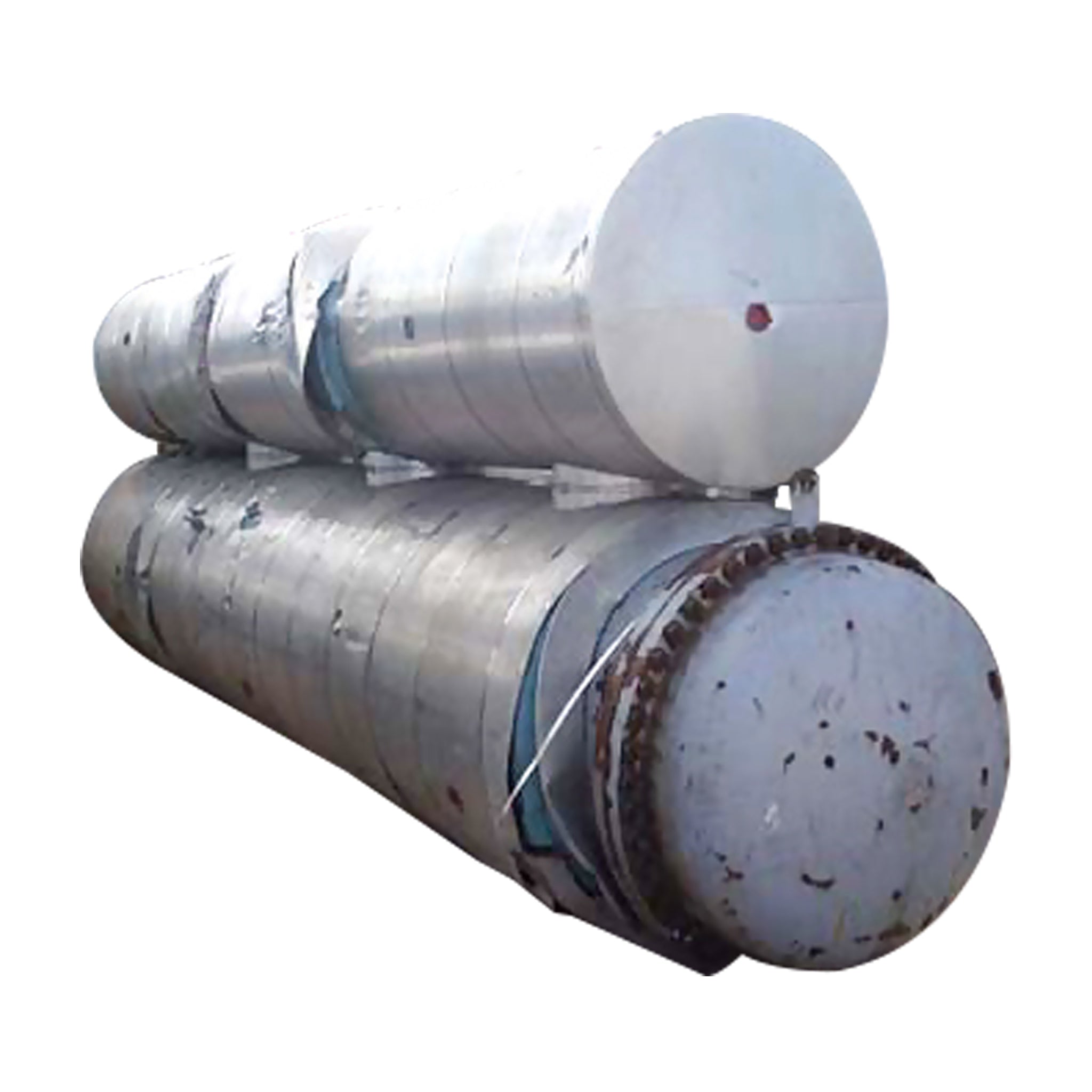

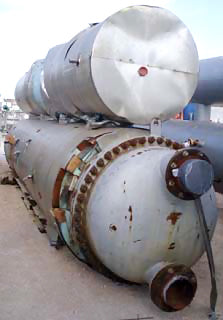

Precision Heat Exchanger Co Shell and Tube Chiller with Surge Drum

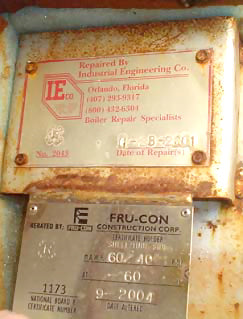

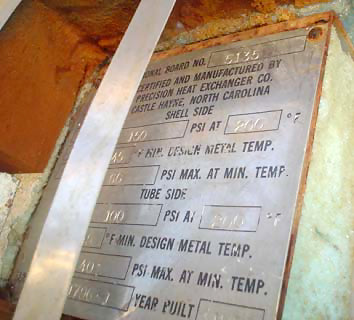

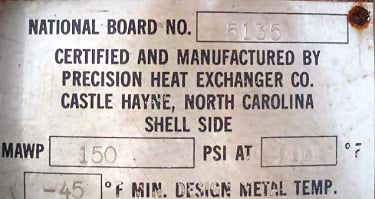

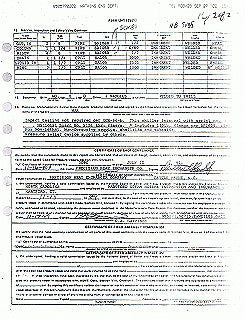

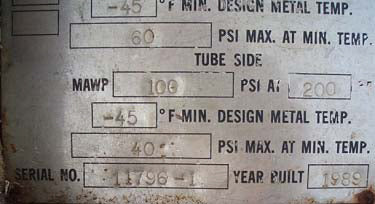

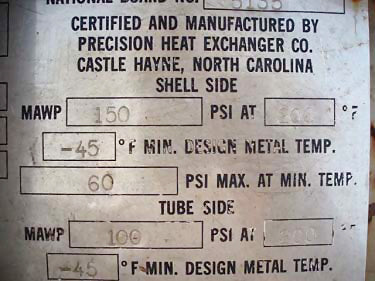

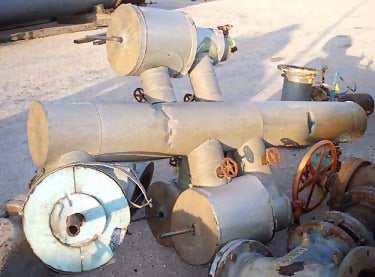

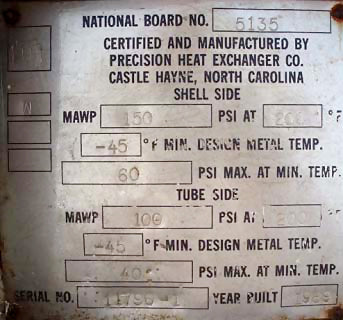

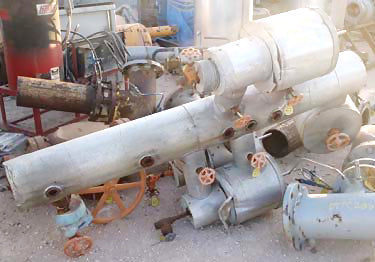

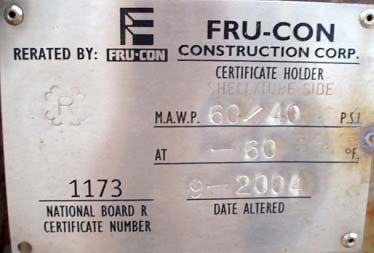

Precision Heat Exchanger Co Shell and Tube Chiller with Surge Drum. S/N: 11796-1. Nat'l Bd: 5135. Tube material: SA214. Number of tubes: 636. Tube dimensions: 1-1/4 in. dia. x 20 ft. L. Heat transfer surface area: approx. 4,162 sq. ft. Tube volume: 518 gal. MAWP shell side: 150 psi @ 200 °F. MDMT shell side: -45 °F @ 60 psi. MAWP tube side: 100 psi @ 200 °F. MDMT tube side: -45°F @ 40 psi. Re-rated by Fru-Con Construction Corp., Nat'l Bd: 1173, Date altered: 9/2004, MAWP shell side: 60/40 psi @ -60°F. Surge Drum. Inlets: (1) 8 in. dia. flanged fitting, (2) 8 in. dia. ports, (1) 1-1/2 in. dia. port. Outlets: (1) 8 in. dia. flanged fitting, (2) 1-1/2 in. dia. ports. Overall dimensions: 23 ft. 11-1/2 in. L x 4 ft. 7 in. W x 8 ft. H.(HB2).
Product Details
- Stock No: DTTC2059.
- Manufacturer: Precision Heat Exchanger Co
- Serial Number: 11796-1
Chiller Details
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 287.5
- Width (Inches): 55
- Height (Inches): 96
