Cloudy & Brittons IQF Freezer Tunnel - 12,000 lbs/hour

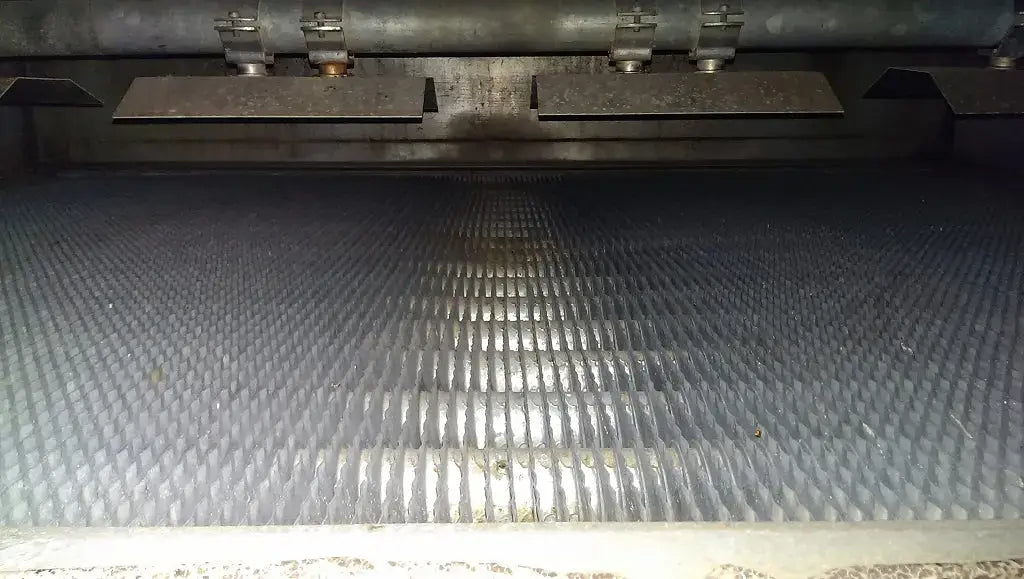

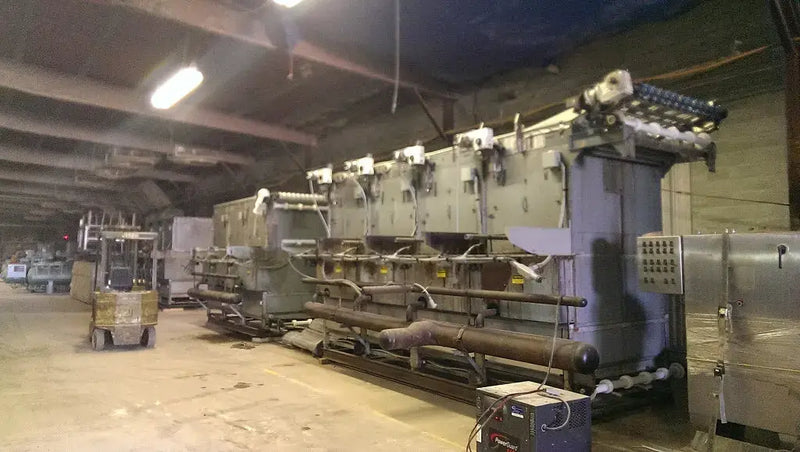

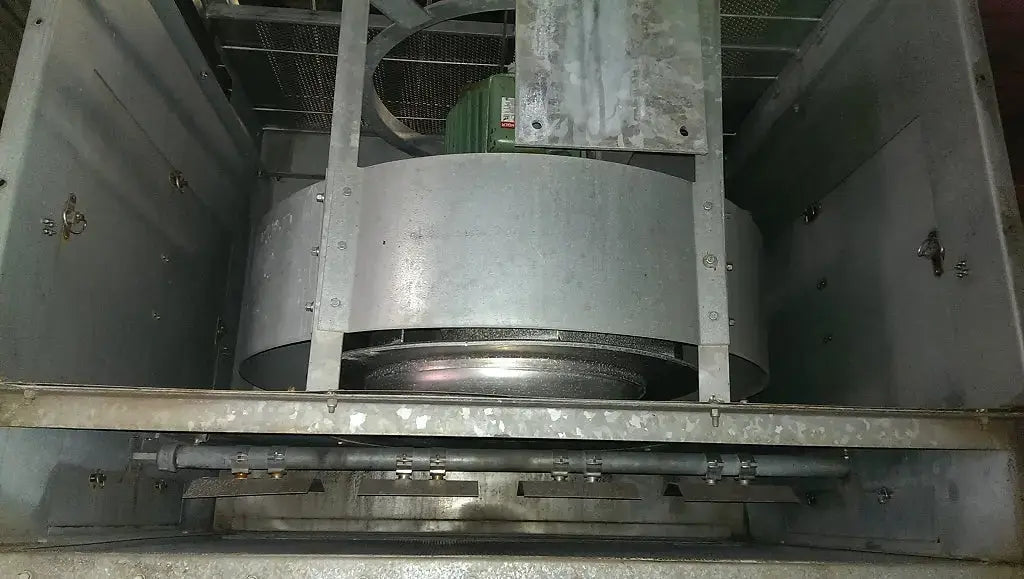

Cloudy & Britton, Inc. IQF Freezer Tunnel. Freezer model 48N10. Installed 2001 and was operated only 3 months each year. Previous applications were 10,000 to 12,000 lbs/hr raspberries and 9,000 lbs/hr blueberries. Berries were pre-chilled to 30-33F with nitrogen prior to entering this IQF tunnel (pre-crusted). Refrigerant: R-22 freon / R-71 Ammonia, 140TR . The previous owner used R-22 refrigerant; however, the Evapco TFC galvanized steel evaporator coils are also rated for ammonia R-717 use. Belt width: 48 inches. Initial plastic belt: 30 feet long with (5) thumpers. Stainless steel belt length: 40 feet. Unit operates with high velocity low-temp air circulated with (10) evaporator coil fan units. Evaporator coils are galvanized steel arranged for top-feed pump recirculated. Fan motors: 7.5 HP. Variable stage defrost. Belt thumpers on first belt to prevent clumping. Belt washer-dryer. Insulated box has seven access doors. Spare plastic belt available. Control panel for the tunnel/fan controls. Overall tunnel dimensions: 45 ft. L x 11 ft. W x 11 ft. H.
Product Details
- Stock No: MBWA01.500
- Manufacturer: Cloudy & Britton
- Model: 48N10
IQF Details
- IQF Type: Tunnel
- Pounds (LBS) per Hour of Freezing Capacity: 12000
- Evaporator Coil Full Description: Evaporator coils manufactured by Evapco, Inc. USA. Model: TFC-2012VF-3, serial T010359, design pressure: 250 PSIG.
- Unit Nominal Tons (TR): 140
- Included Refrigeration Equipment Description: Evapco TFC galvanized steel evaporator coils
Belt Details
- Total Belt Length (Feet): 70
- Total Active Belt Length (Feet): 70
- Total Belt Width (Inches): 48
- Number of Belts: 2
- 1st Belt Active Length (Feet): 30
- 1st Belt Material: Plastic
- 2nd Belt Active Length (Feet): 40
- 2nd Belt Material: Stainless Steel
Control Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Description: Control panel for the tunnel/fan controls
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- Motor Horsepower(HP): 25
Dimensions:
- Length (Inches): 540
- Width (Inches): 132
- Height (Inches): 132
- Weight (LBS): 14,000
Additional Product Details
- Year of Installation: 2001
- Spec Sheet Available: No
- Previously Used With: Previous applications were 10,000 to 12,000 lbs/hr raspberries and 9,000 lb/hr blueberries.
