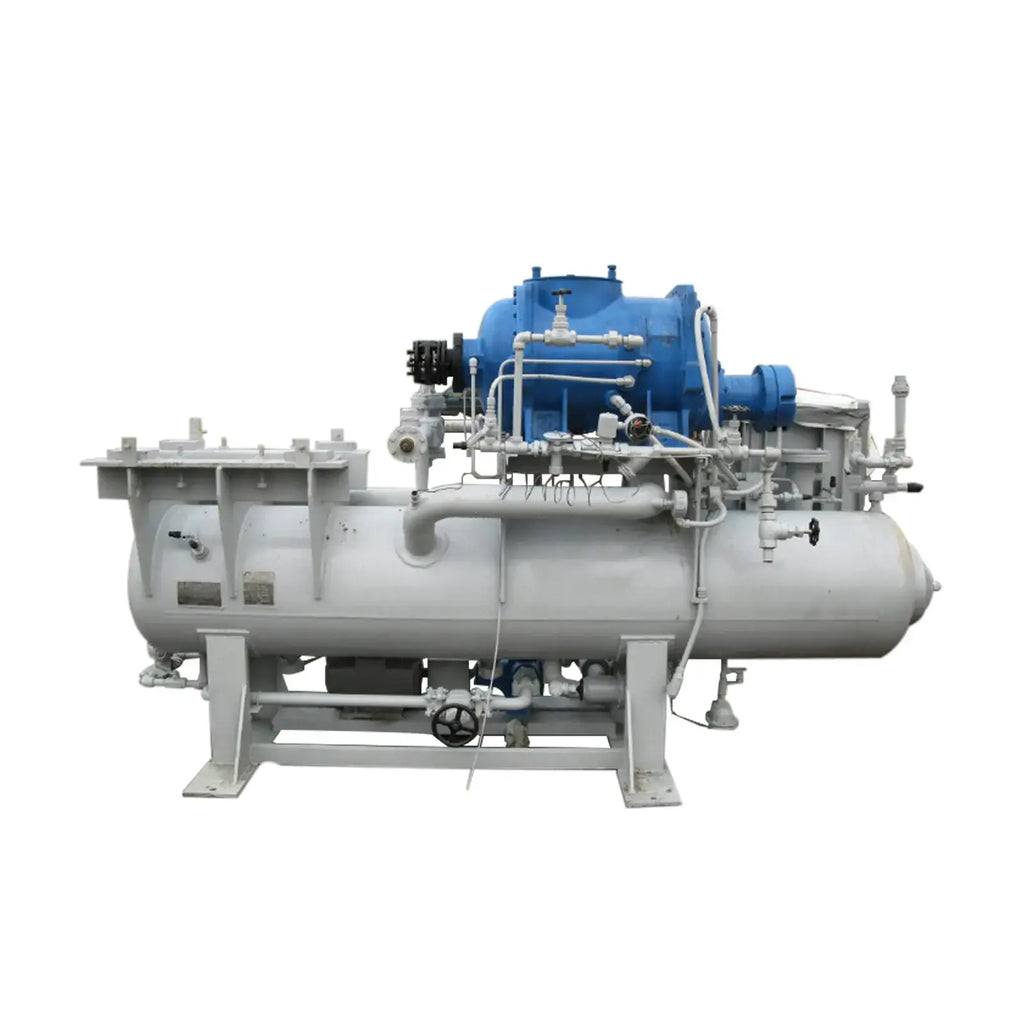

FES 315 Rotary Screw Compressor Package (Howden WRV204/193, 7.5 HP 230/460 V, MISSING MICRO PANEL)
FES 315 / Howden 204/1.93 Rotary Screw Compressor Package. Model: 315. S/N: WRV204-19336-081. Control Panel: Model: FES315E. S/N: 88-0219-0301. Refrigerant: R-717. Fixed Vi setting: 3.6. Displaces 488 CFM at 1800 rpm or 950 CFM at 3000 RPM. Leak test pressure: 313. Hydrostatic test pressure: 470. Oil Separator: FES, S/N: 88261. Nat’l Bd: 3643. MAWP: 250 psi @ 200ºF. MDMT: -20ºF @ 250 psi. Radius: elliptical ends. Pump: Viking Pump: Model: AV428AL. S/N: 5019514. Motor: 7.5 hp, 1175 rpm, 230/460 V, 20.4/10.2 amps, 60 Hz, 3 phase. Inlets/Outlets: (2) 1 in. dia. port. (1) 2 in. dia. port. Overall dimensions: 10 ft. 10 in. L x 4 ft. 3 in. W x 6 ft. 5 in H. Compressor runtime: 8291 hrs.(ACN328a-BC/Motor-88).
Product Details
- Stock No: RCJF1524.12a
- Manufacturer: FES
- Model: 315
- Serial Number: WRV204-19336-081
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: FES
- Package Model: 315
- Package Max Speed (RPM): 1800
- Package Max Design Pressure (PSIG): 250
Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Howden
- # Compressors in Package: 1
- Compressor Model: WRV204/193
- Compressor SN: WRV204-19336-081
- Compressor Max Speed (RPM): 1800
- Compressor Design Pressure (PSIG): 250
- Compressor Run Time Hours: 8291
- Fixed/Variable VI: 3.6
- Oil Separator Included? Yes

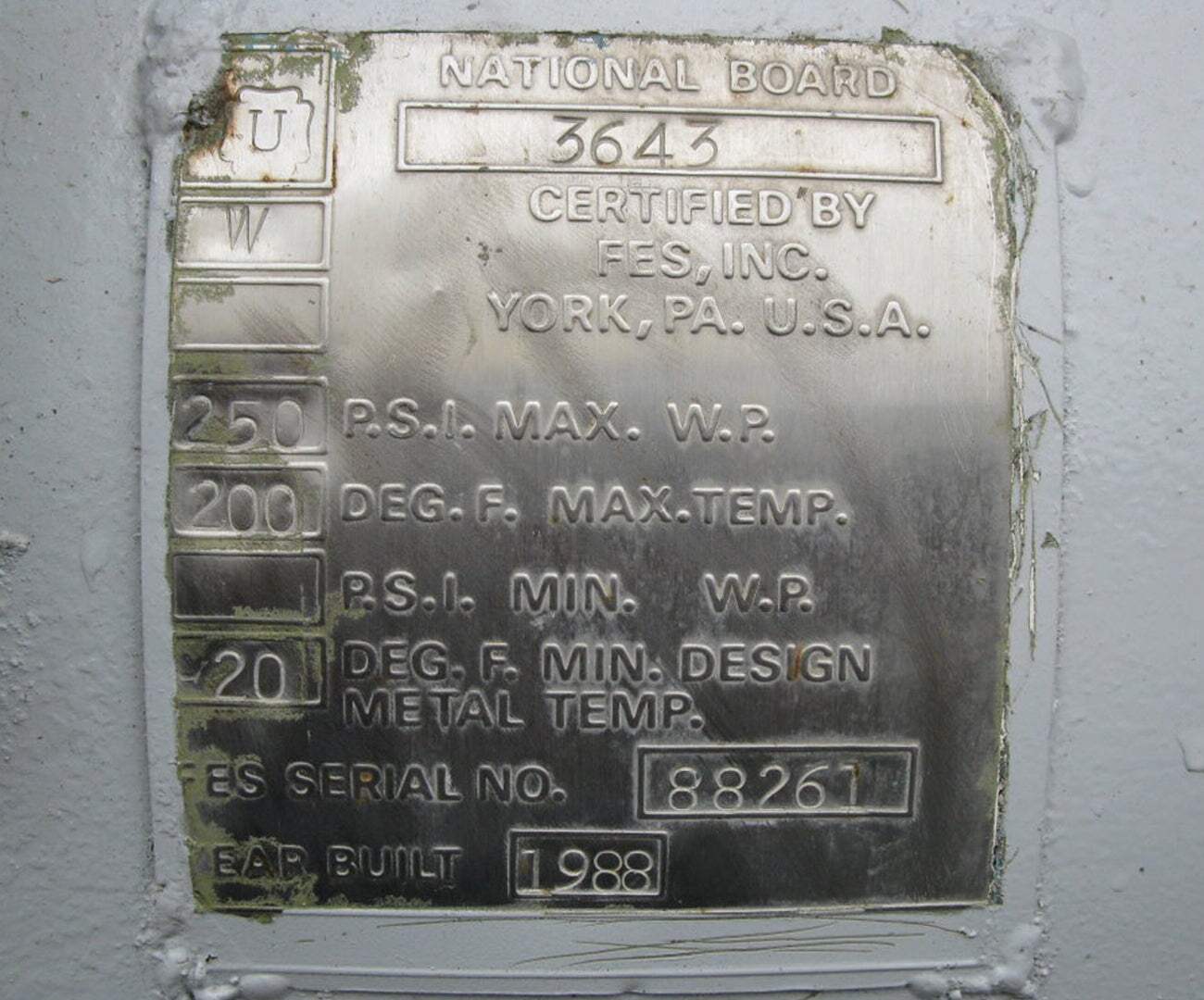

- Oil Separator National Board #: 3643
Micro Panel Details
- Micro Control Panel Included? No
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- Motor Horsepower(HP): 7.5
- Motor RPM: 1175
- Motor Voltage: 230/460
- Motor Amps: 20.4/10.2
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 130
- Width (Inches): 51
- Height (Inches): 77
- ACN: 328a-BC
Additional Product Details
- Year of Manufacture: 1988

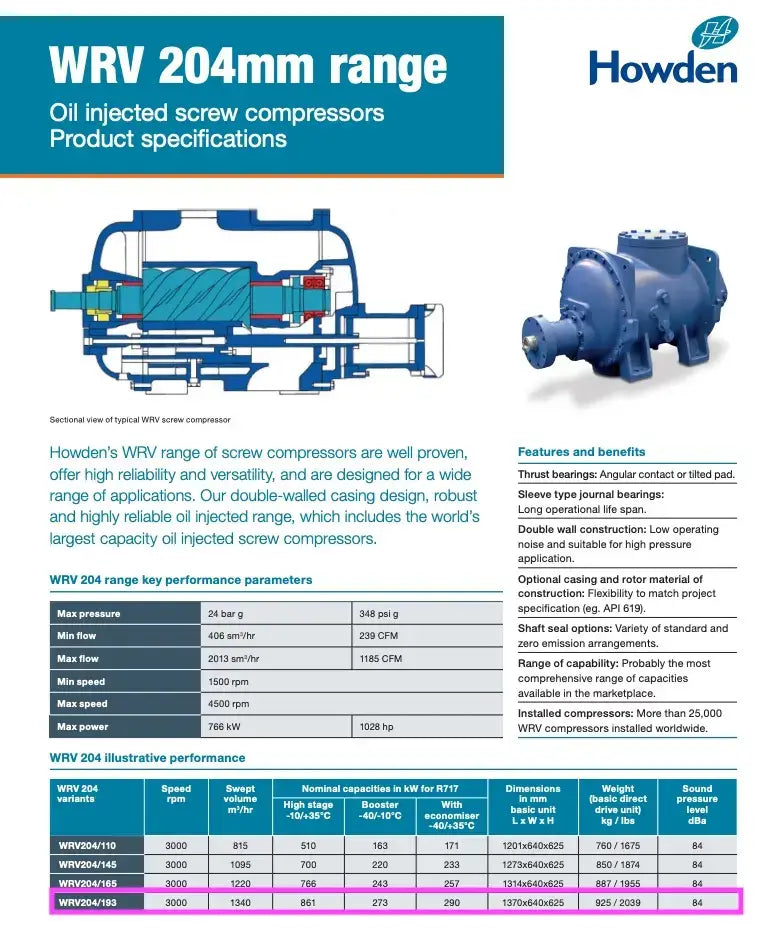

- Spec Sheet Available: Yes
