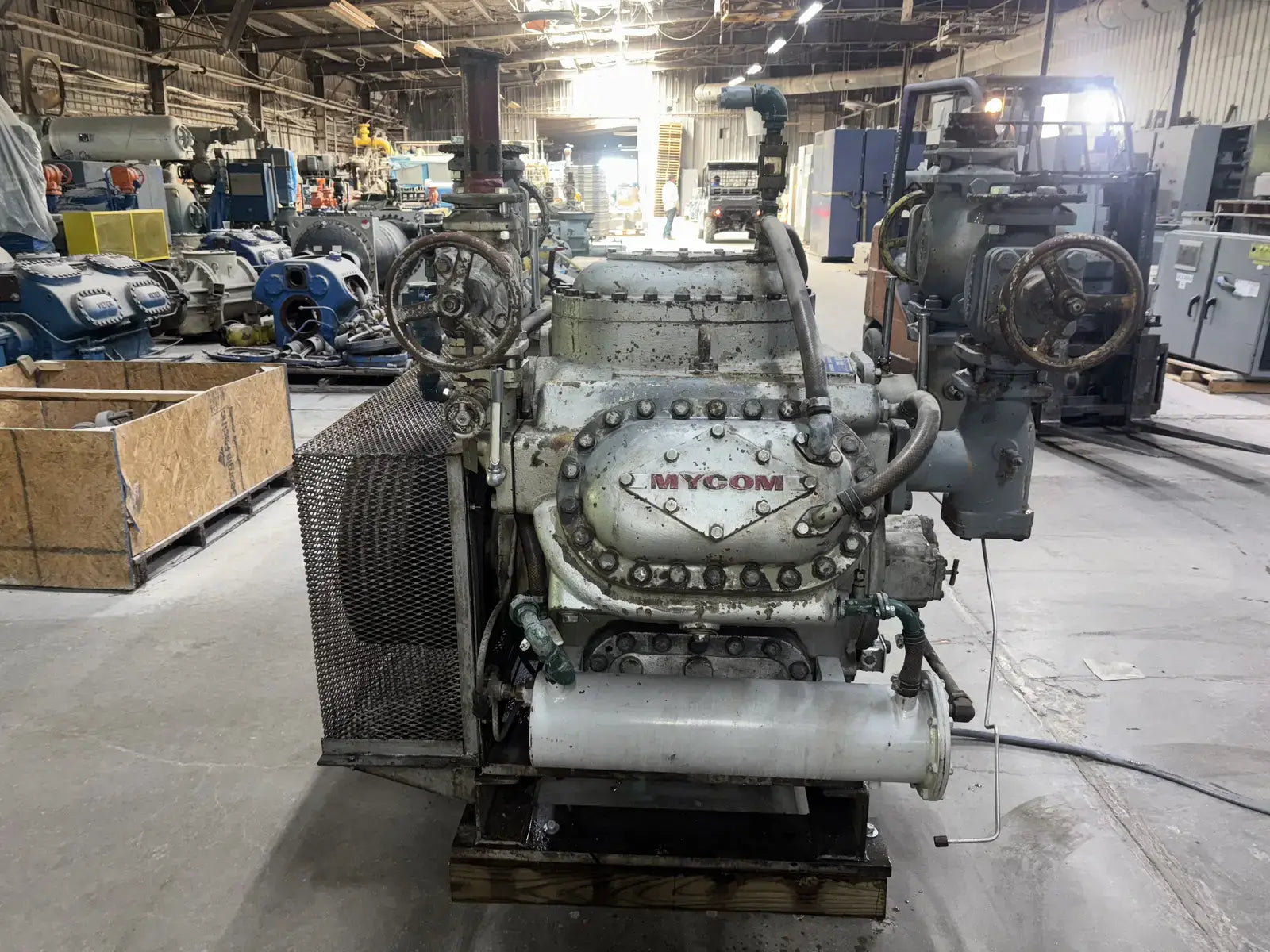

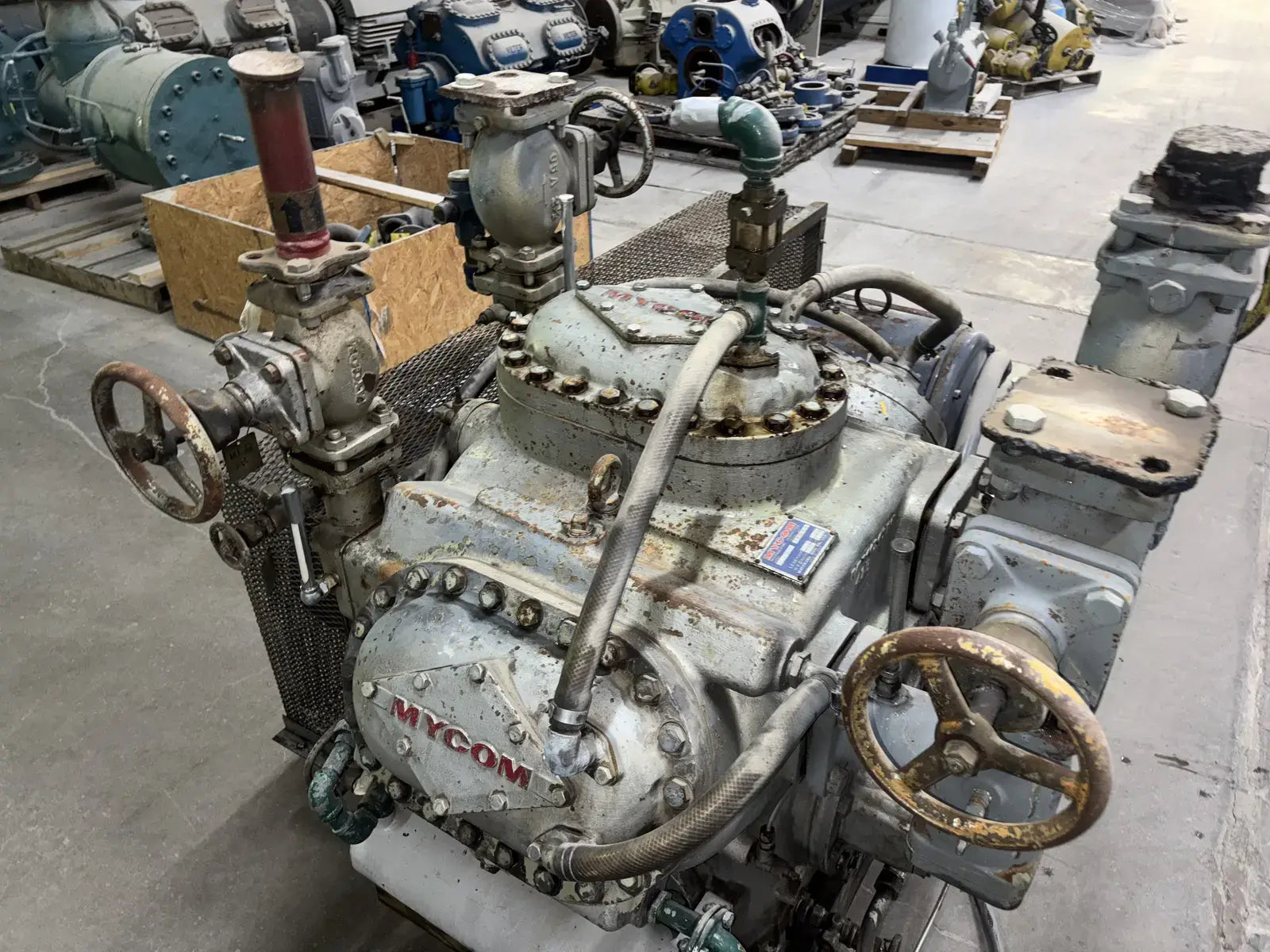

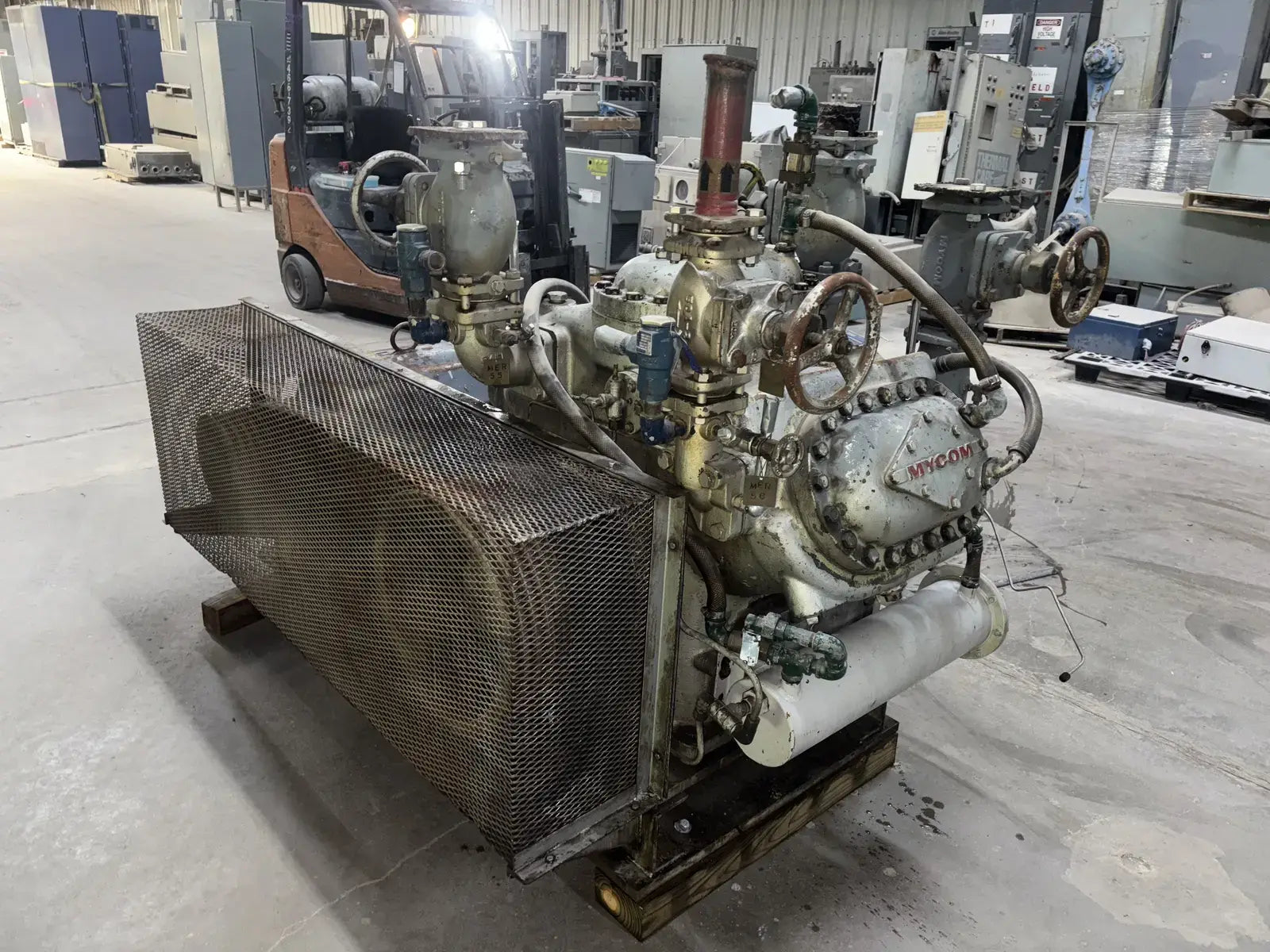

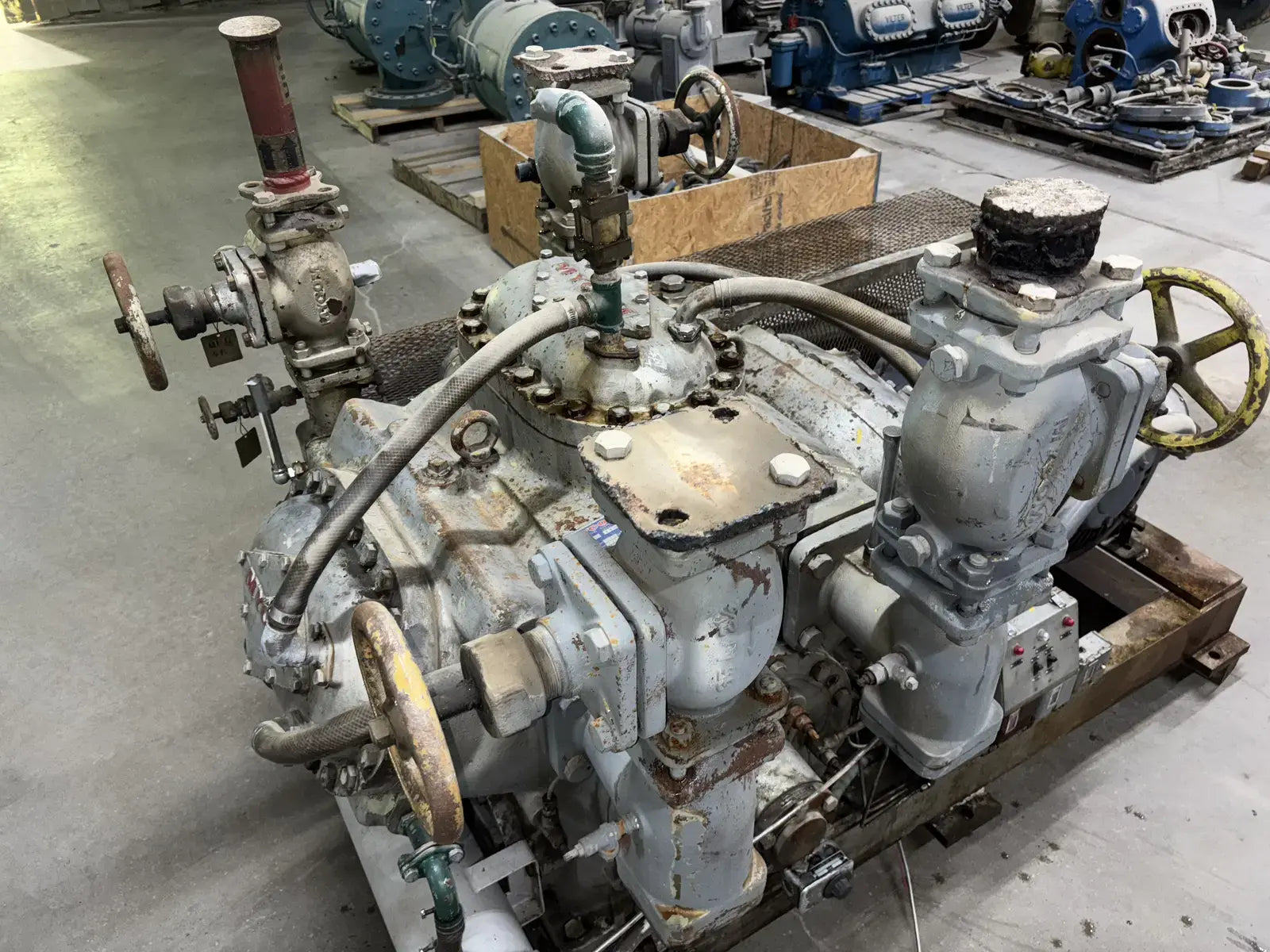

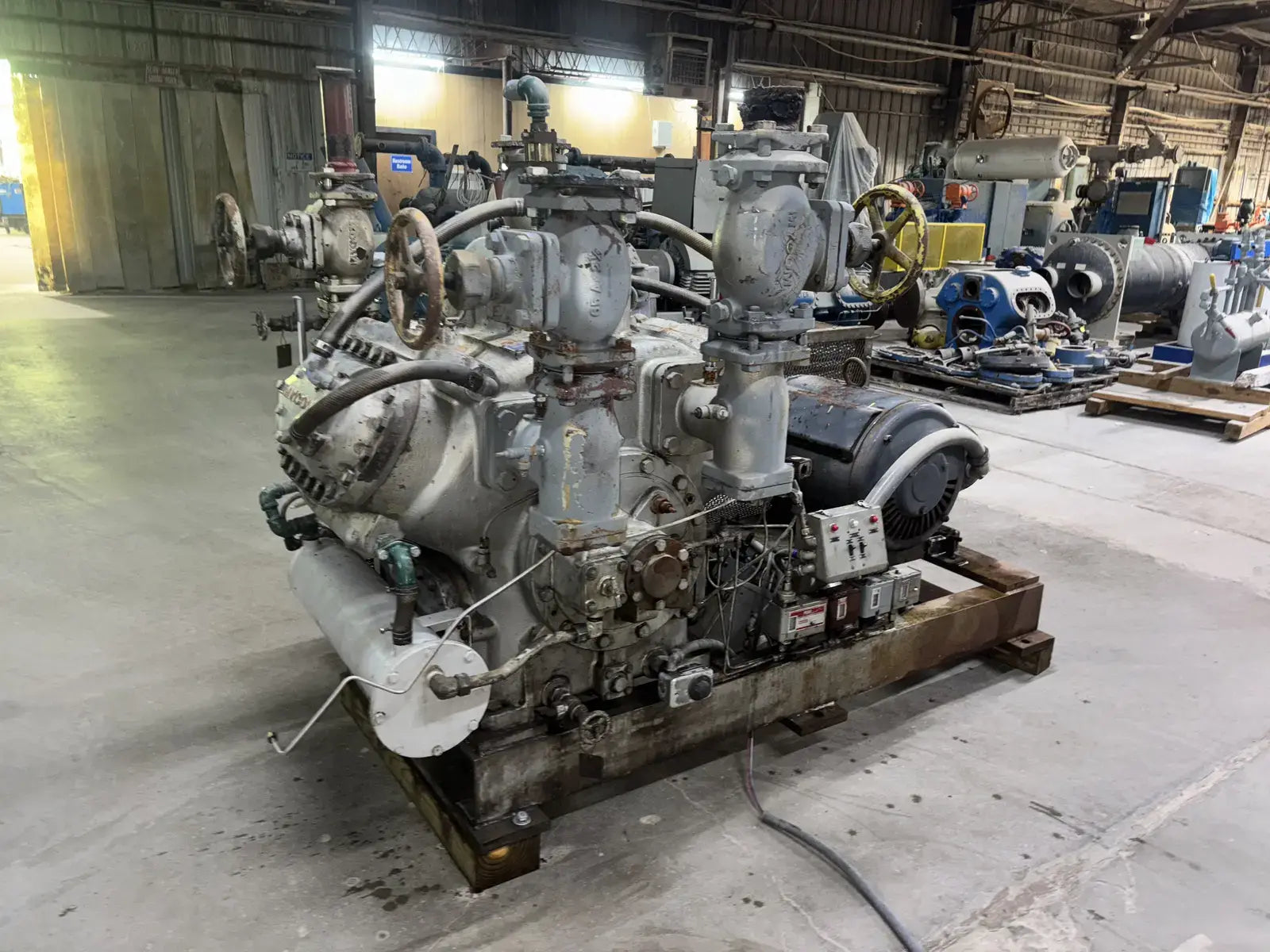

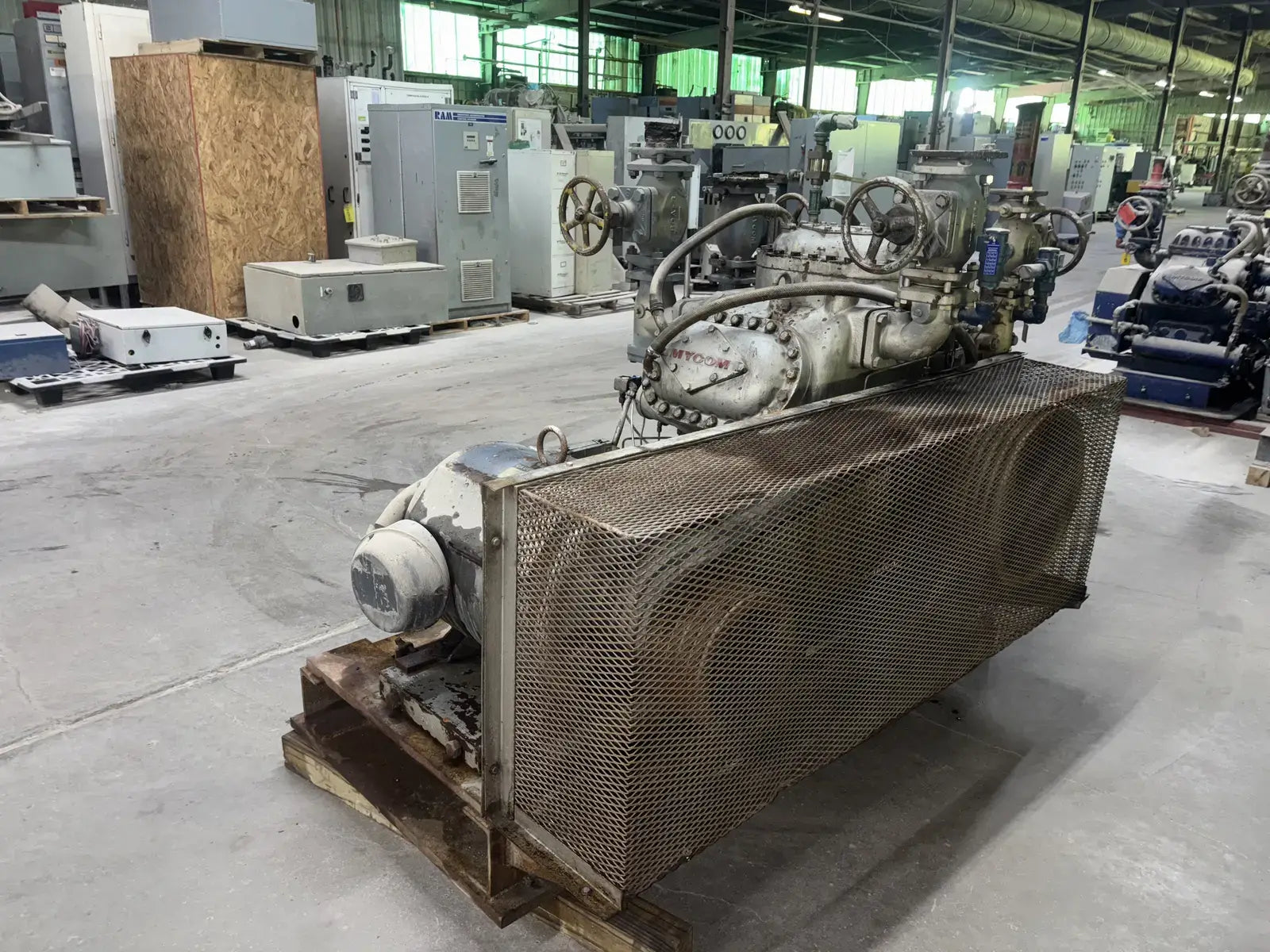

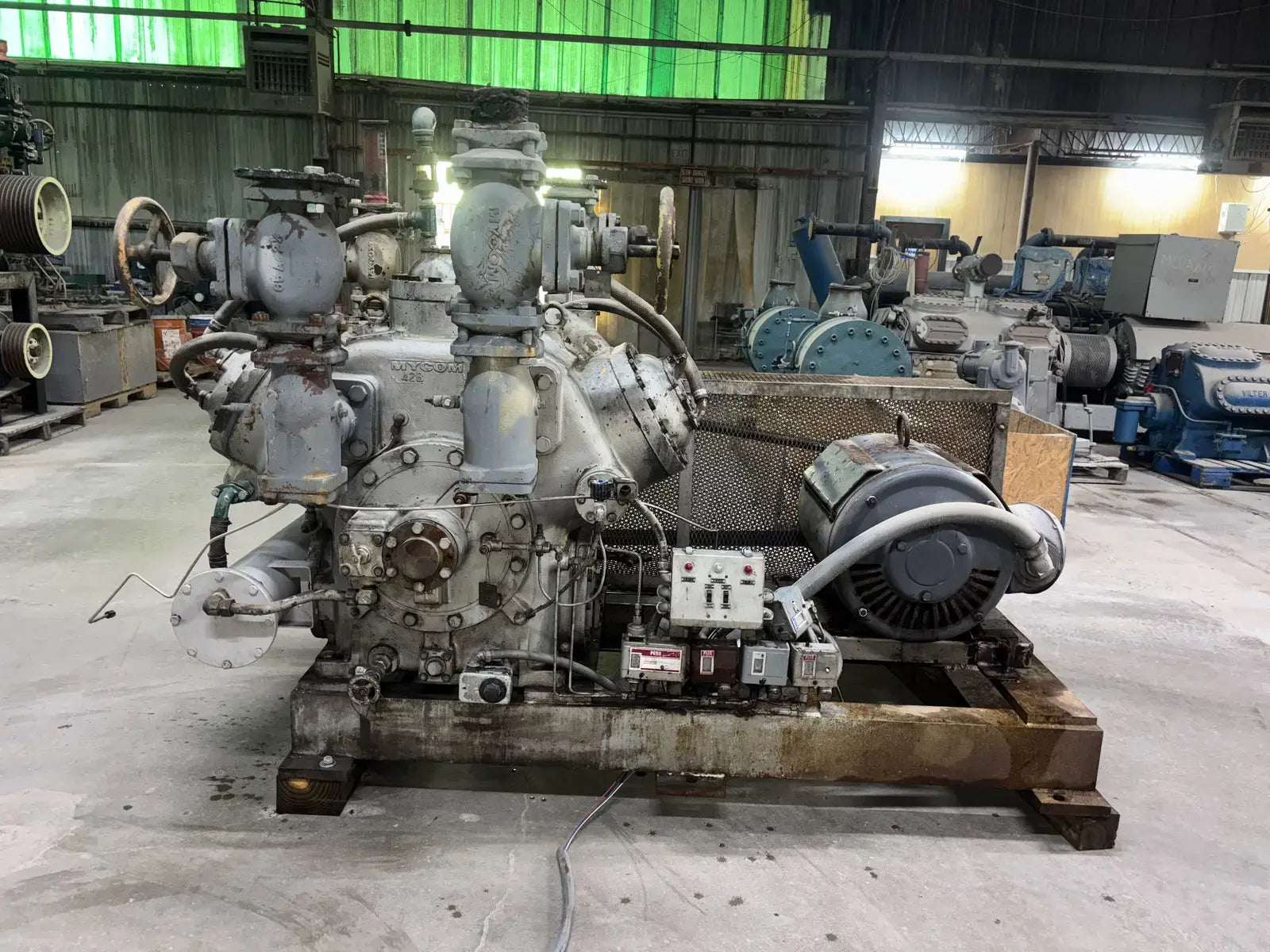

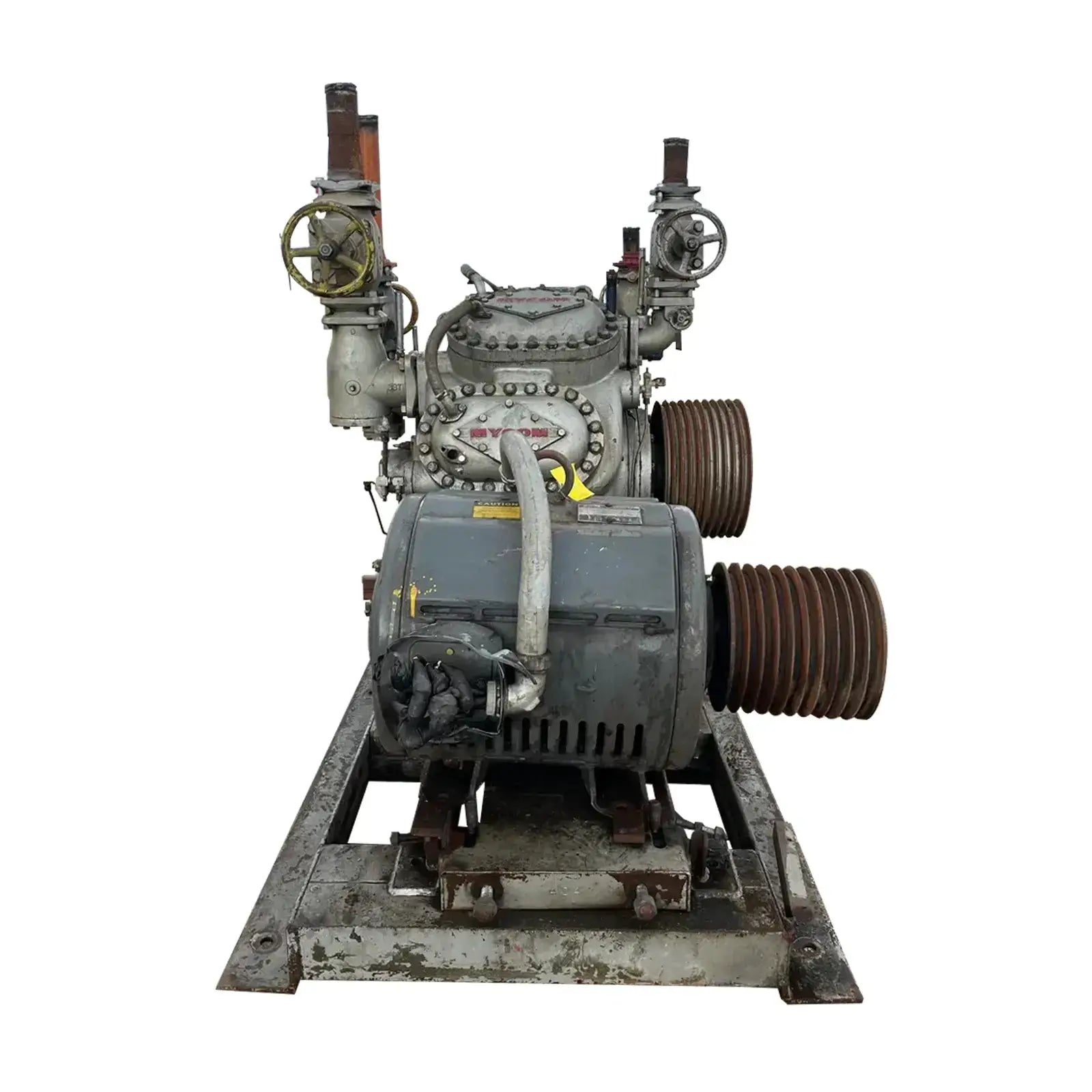

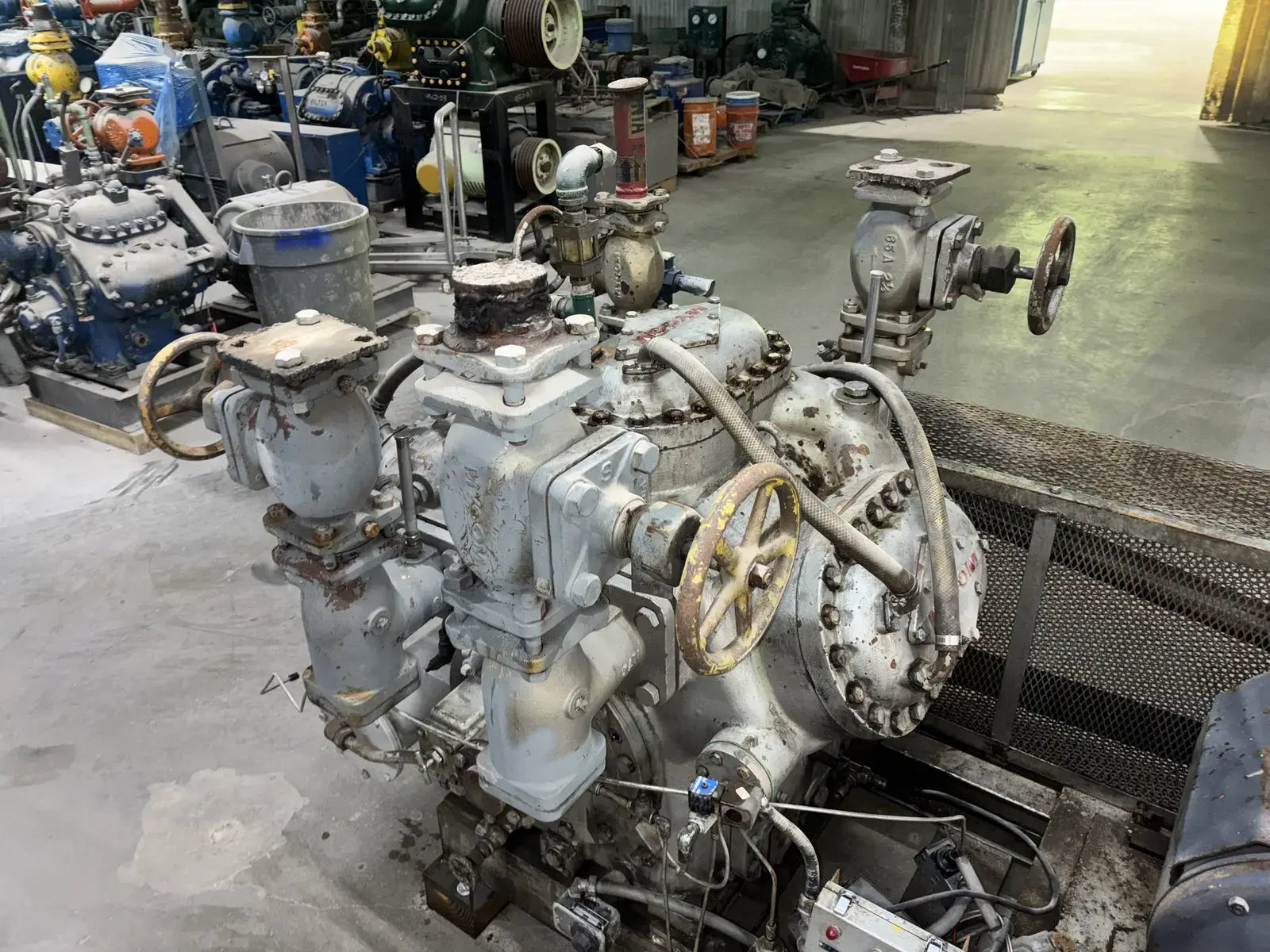

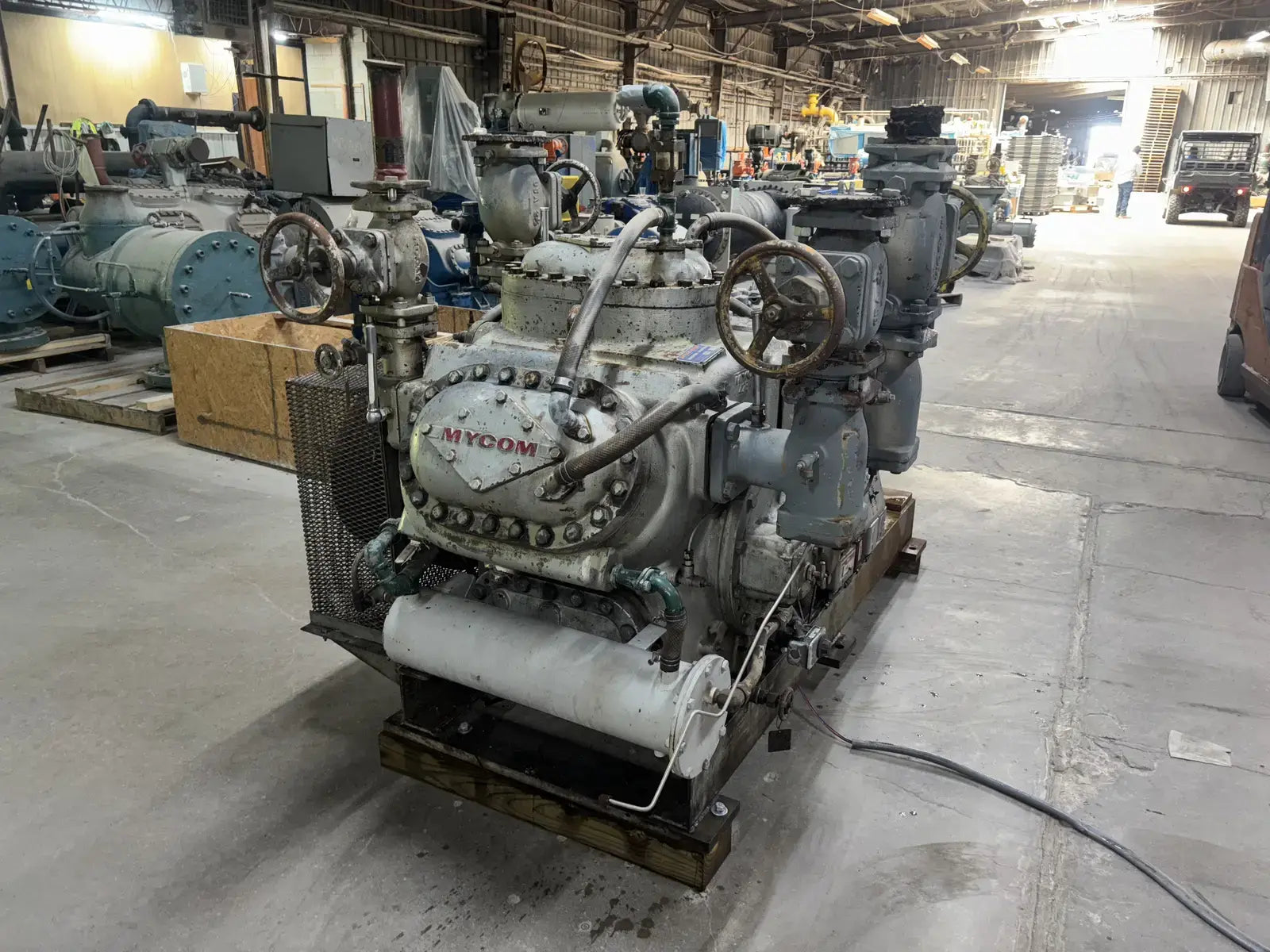

Mycom N62B 8-Cylinder Reciprocating Compressor Package (100 HP 230/460 V, Belt Driven)
Mycom 8-Cylinder Reciprocating Compressor - Model: N62B, Serial No: 10378.Leak (Psig): HP 313/LP 157, HYD (Psig): HP: 470/ LP 470. Mayekawa Mfg. Co Ltd. Number of Cylinders - Low-Stage: 6, High-Stage: 2. Total Number of Cylinders: 8. Bore x Stroke (mm): 130x100, Number of Revolutions: 800 to 1200. Displacement: 337 CFM Low Stage. 112 CFM High Stage. Lincoln A.C Motor - Frame: 404T, HP: 100, RPM: 1775, Serial No: 1689156, Volts: 230/460, Hertz: 60, Ph: 3, AMPS: 240/120, Service Factor: 1.0, Max AMB: 40, Time Rating: CONT.
Product Details
- Stock No: OBI01A
- Manufacturer: Mycom
- Model: N62B
- Serial Number: 10378
- Compressor Type: Reciprocating
- Package Included? Yes
- Stage Type: Compound
Reciprocating Compressor Details
- Compressor Manufacturer: Mycom
- # Of Reciprocating Cylinders: 8
- Reciprocating Type: Belt
- # Compressors in Package: 1
- Compressor Model: N62B
- Compressor SN: 10378
- Compressor Max Speed (RPM): 1,200
- Compressor Design Pressure (PSIG): 470
- Oil Separator Included? No
- Oil Cooling Type: Liquid Injection
Motor Starter Details
- Motor Starter Included? Yes
- Motor Starter Manufacturer: Allen-Bradley
- Motor Starter Type: Hard Starter
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Lincoln
- Motor Horsepower(HP): 100
- Motor RPM: 1,775
- Motor Voltage: 230/460
- Motor Amps: 240/120
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 404T
Dimensions:
- Length (Inches): 83
- Width (Inches): 56
- Height (Inches): 64
- Weight (LBS): 4,500
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
- Product Purchased From: Seafood Supplier
