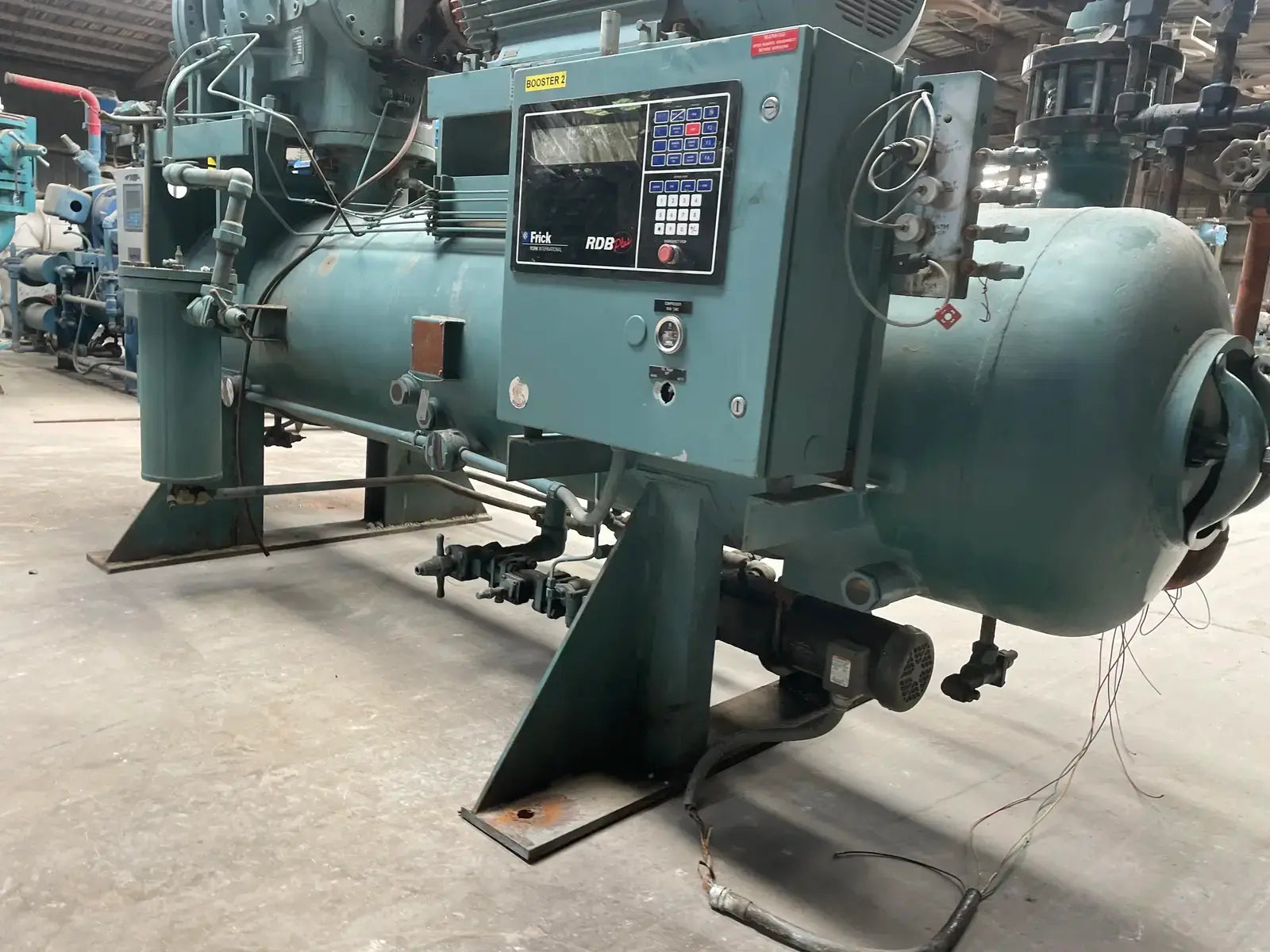

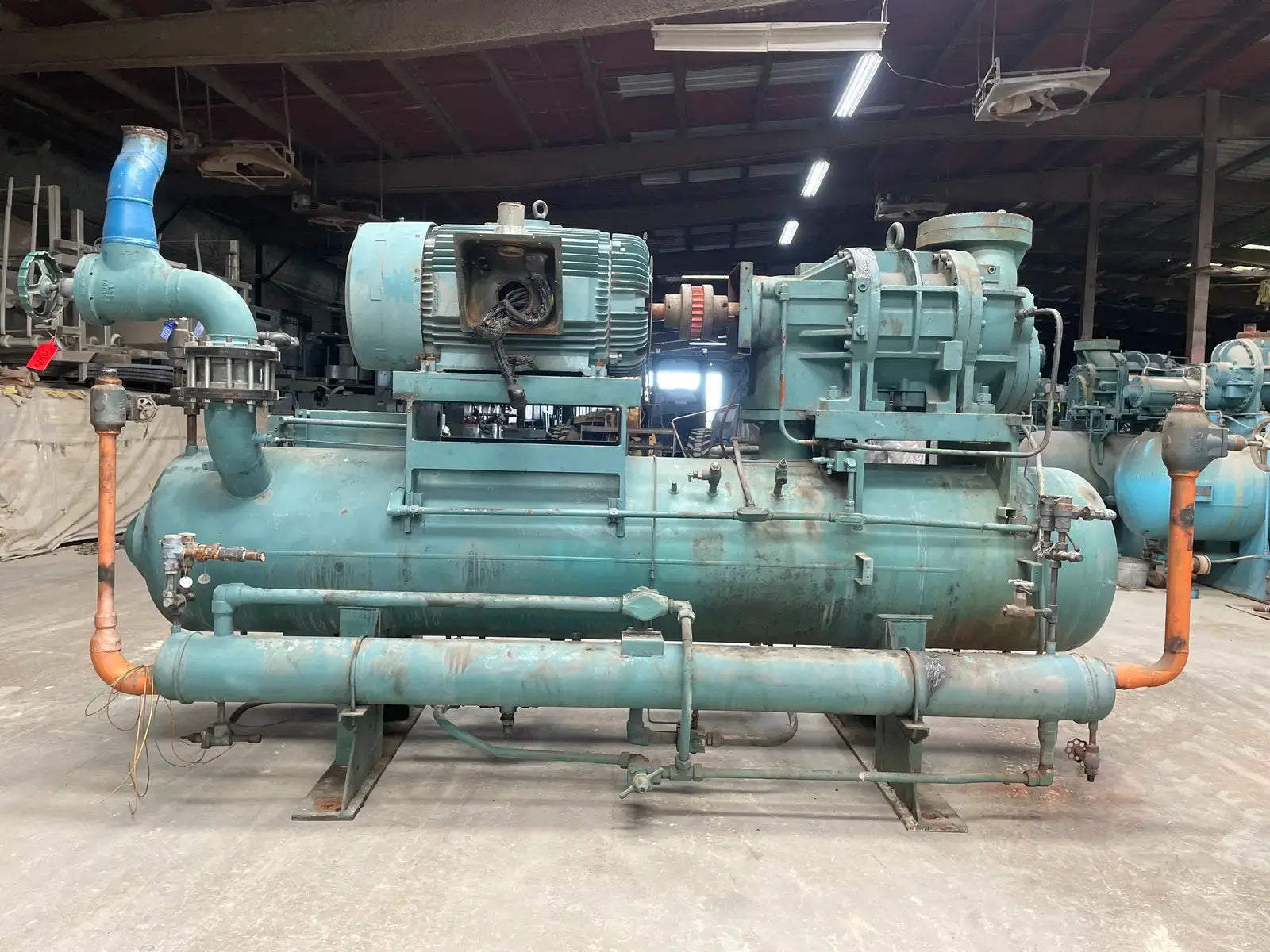

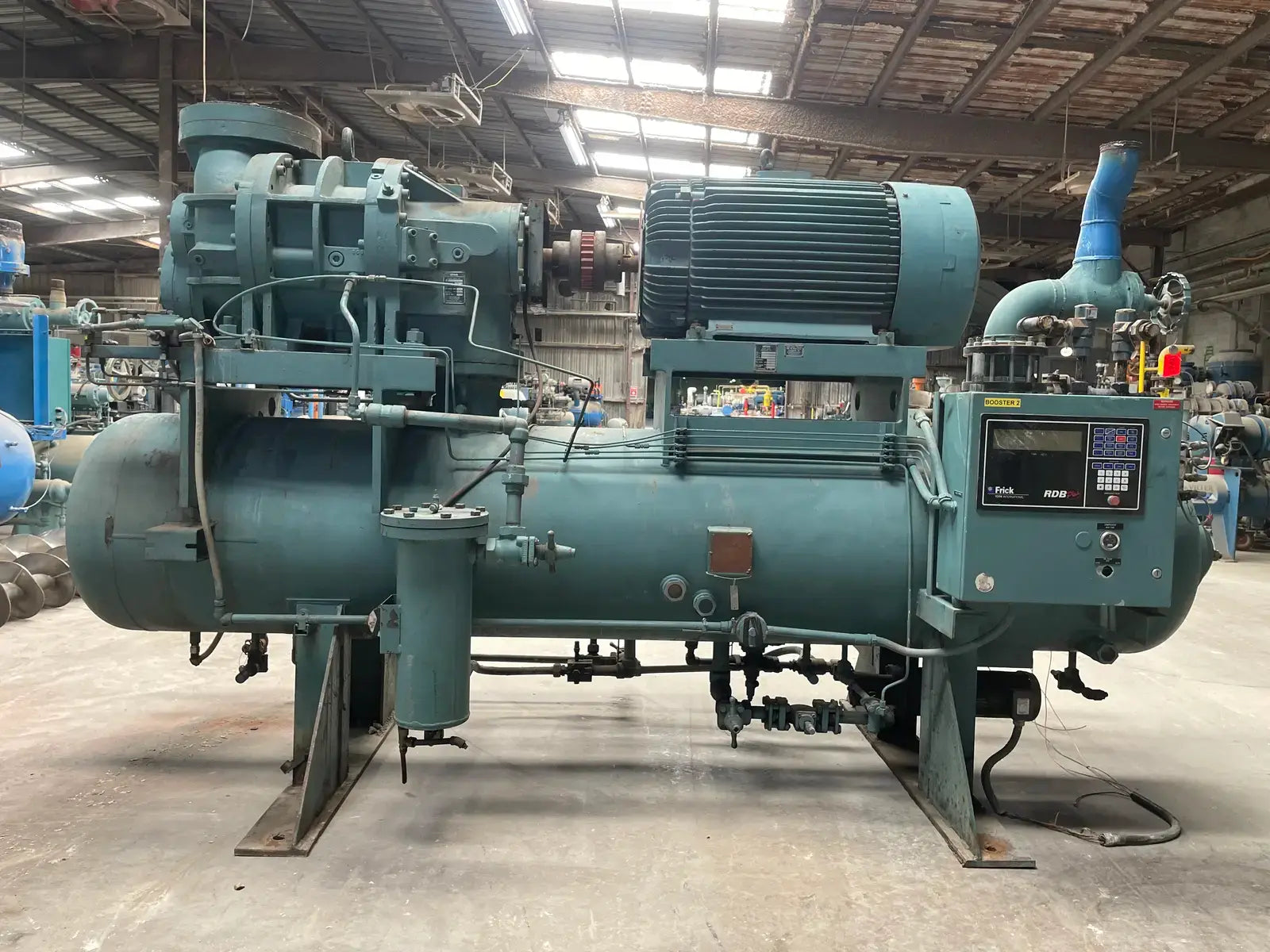

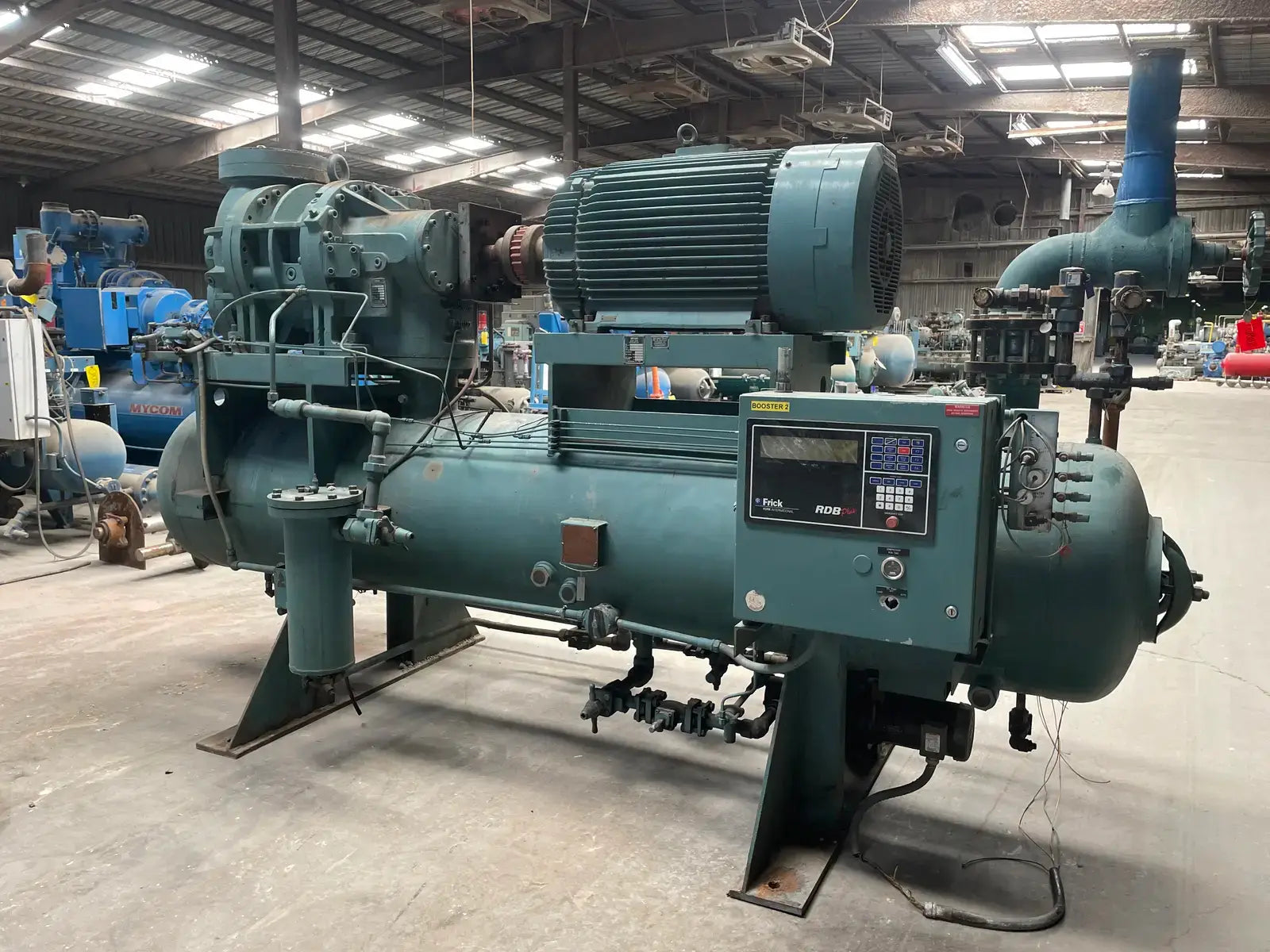

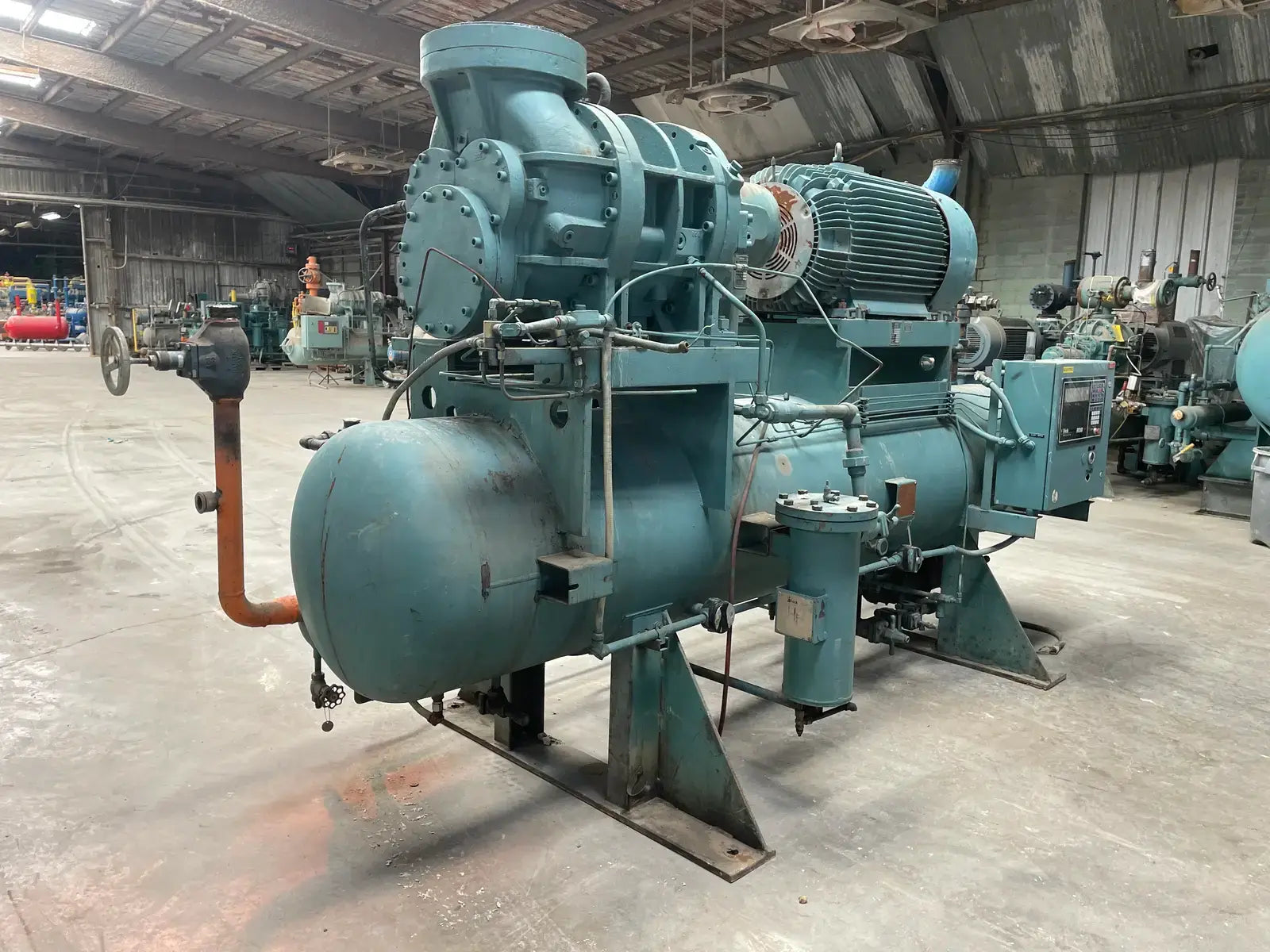

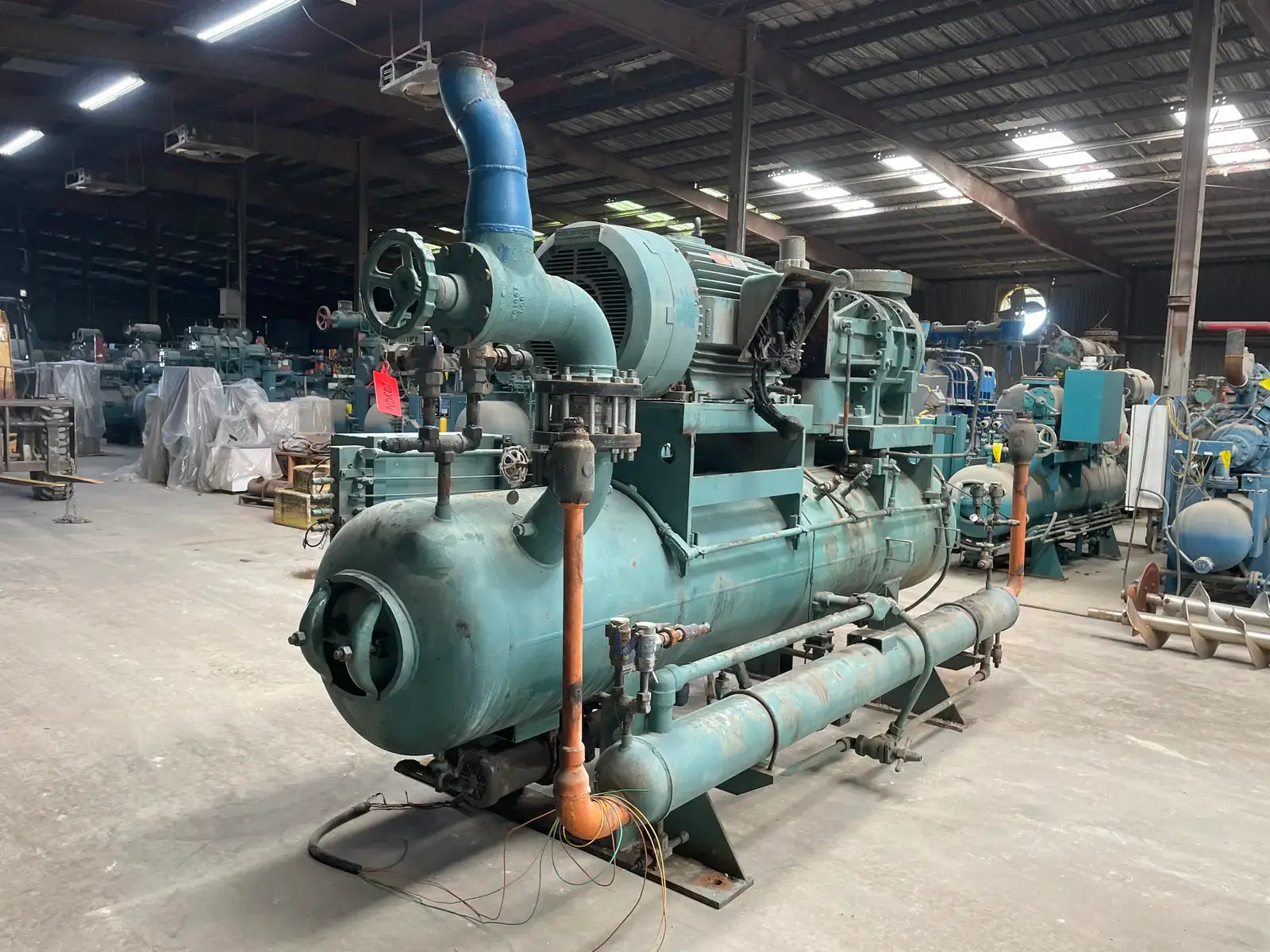

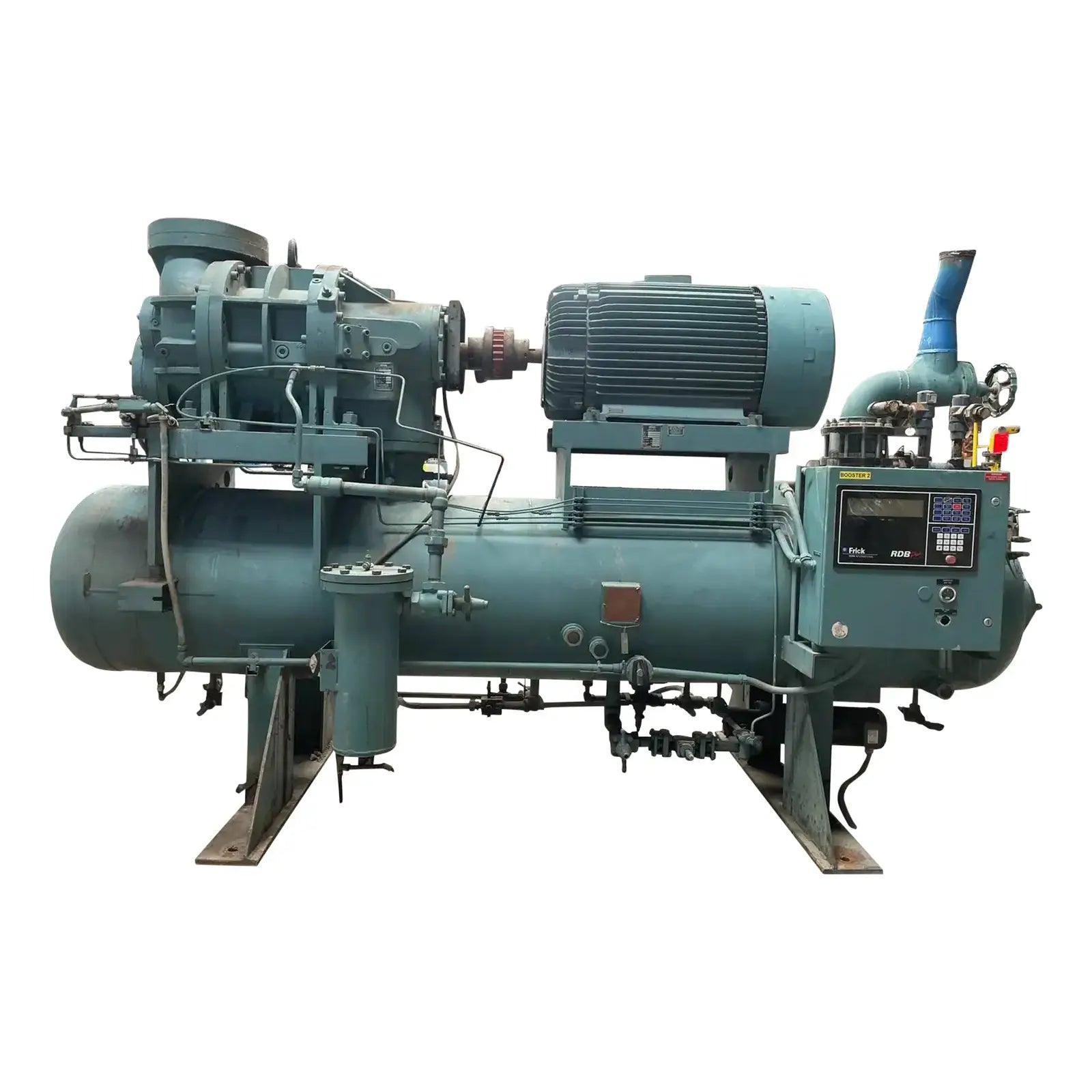

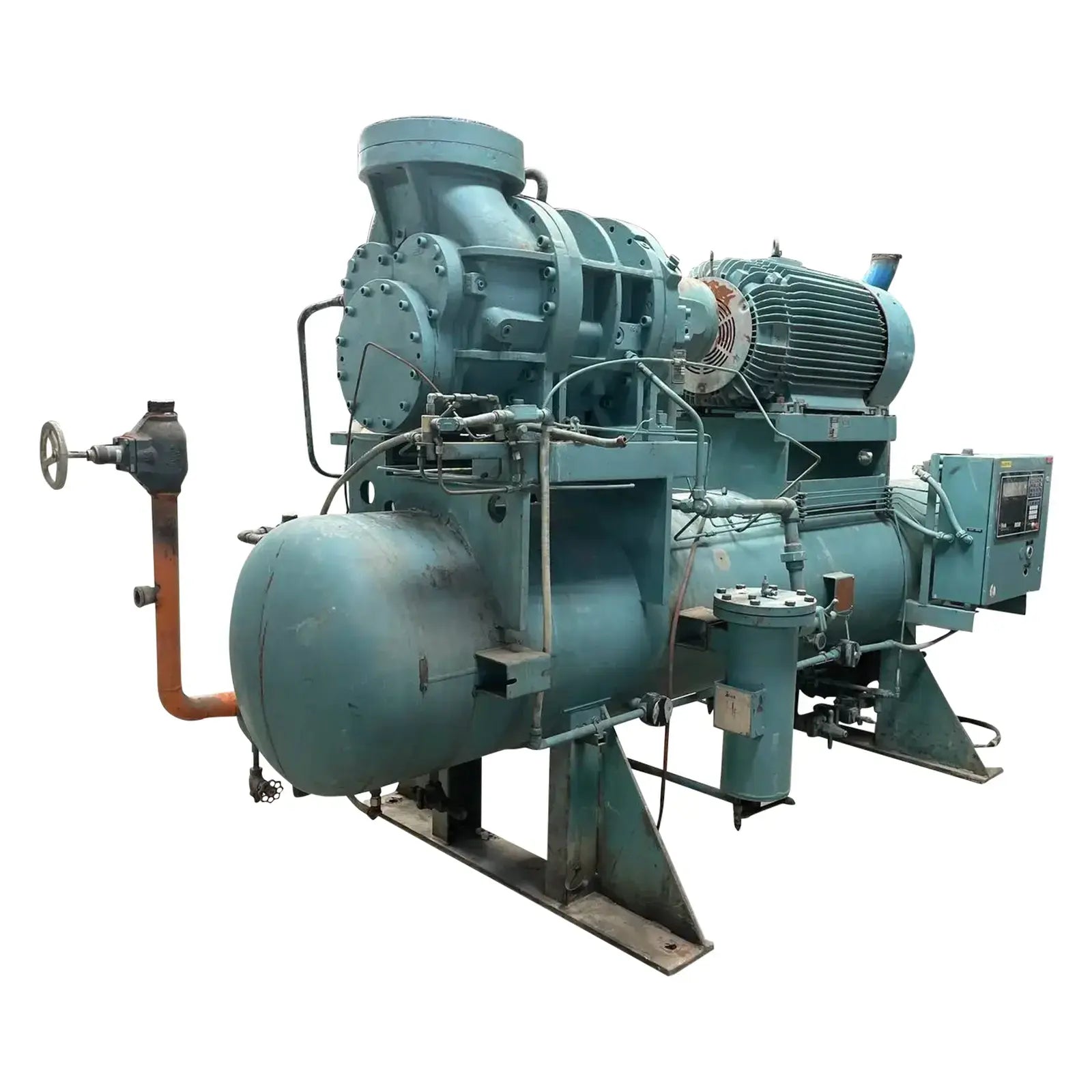

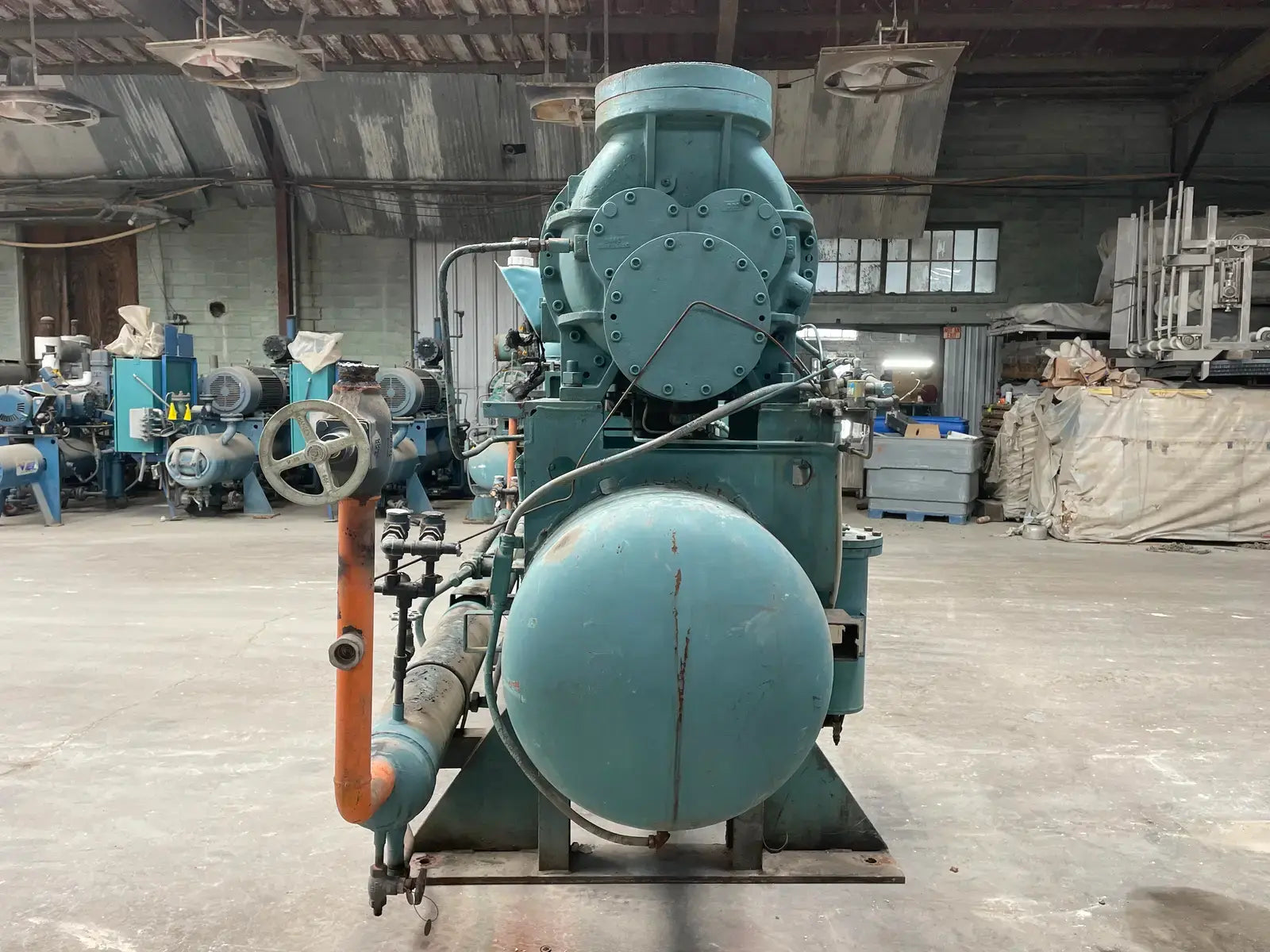

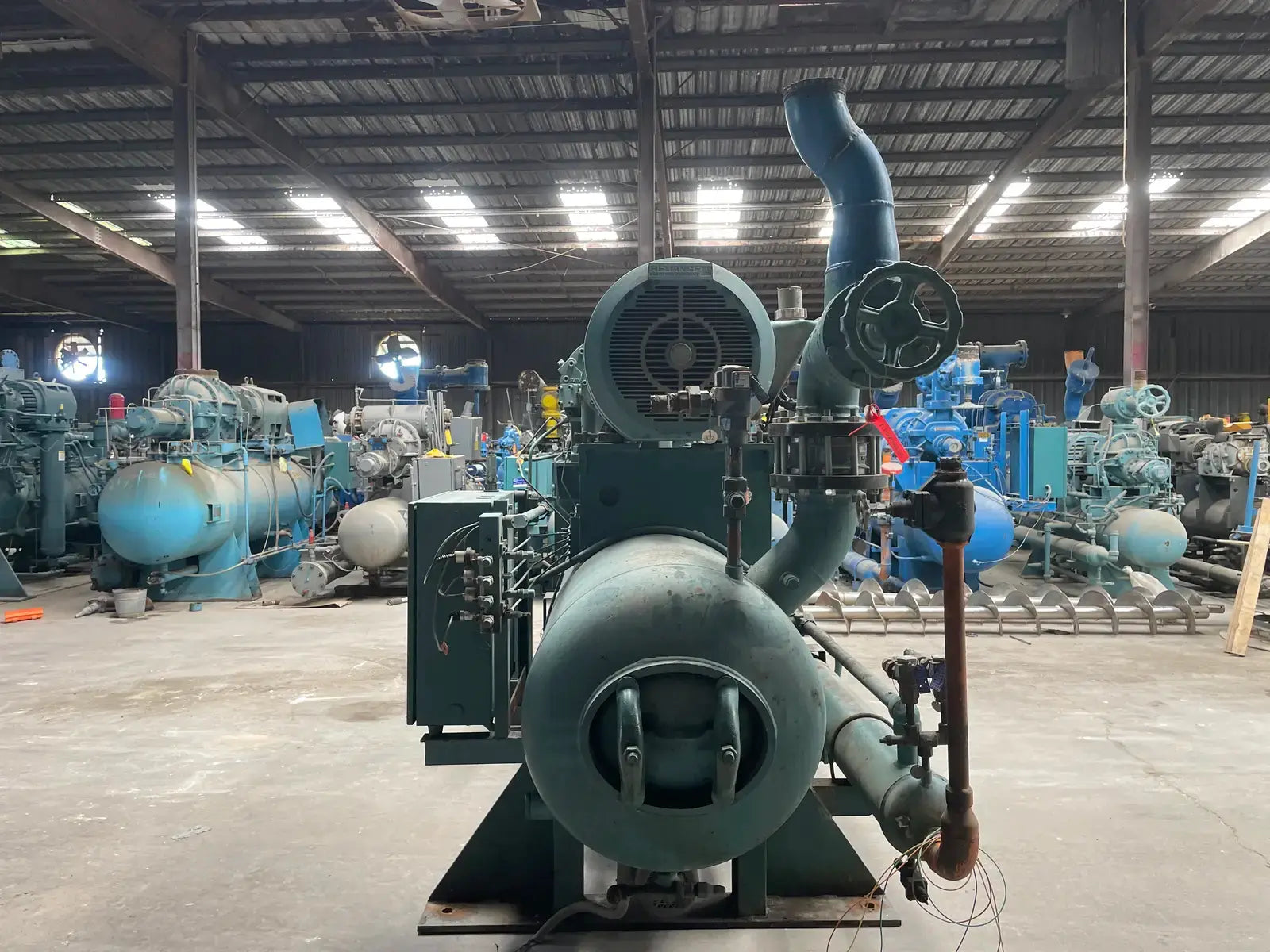

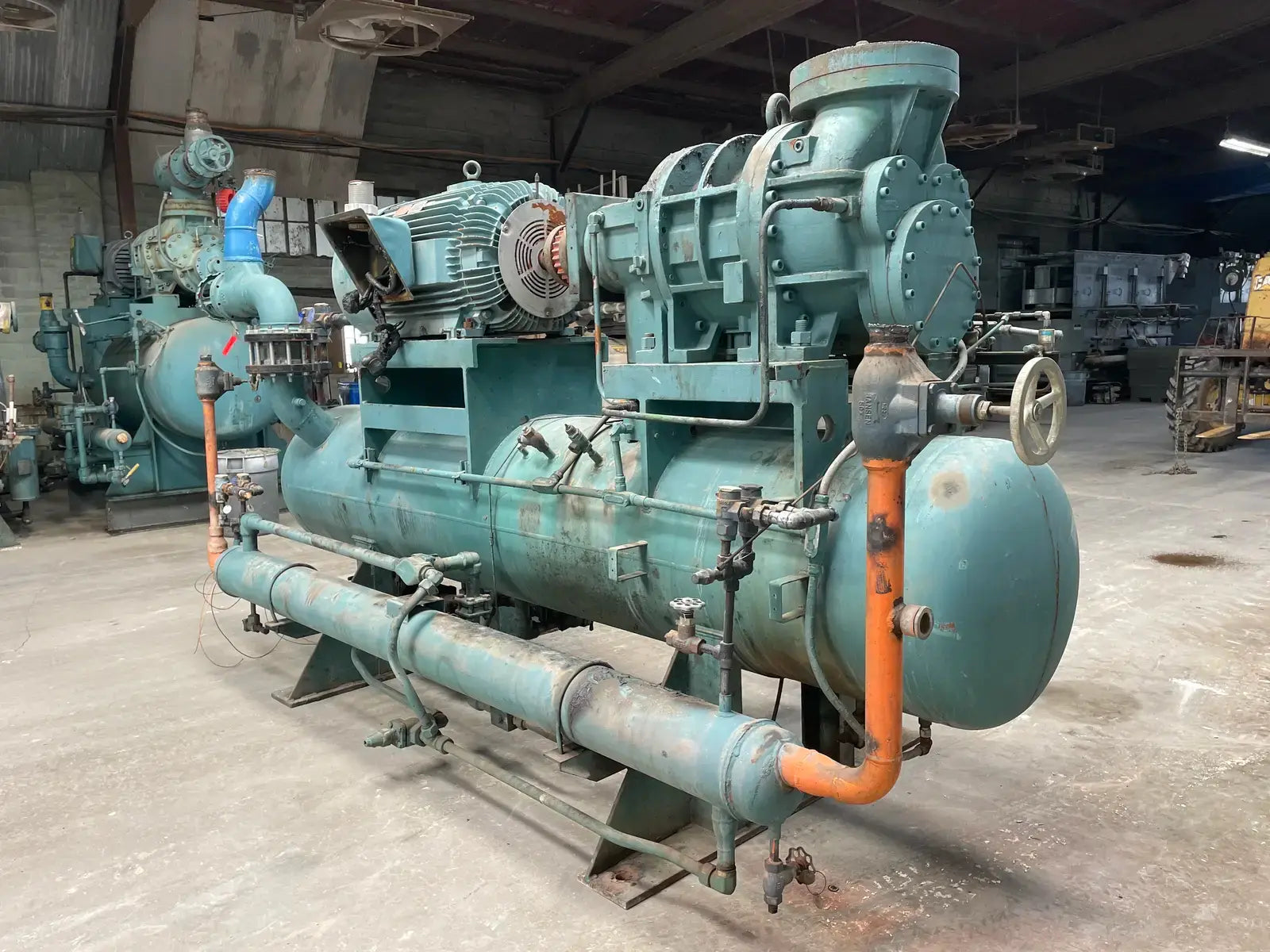

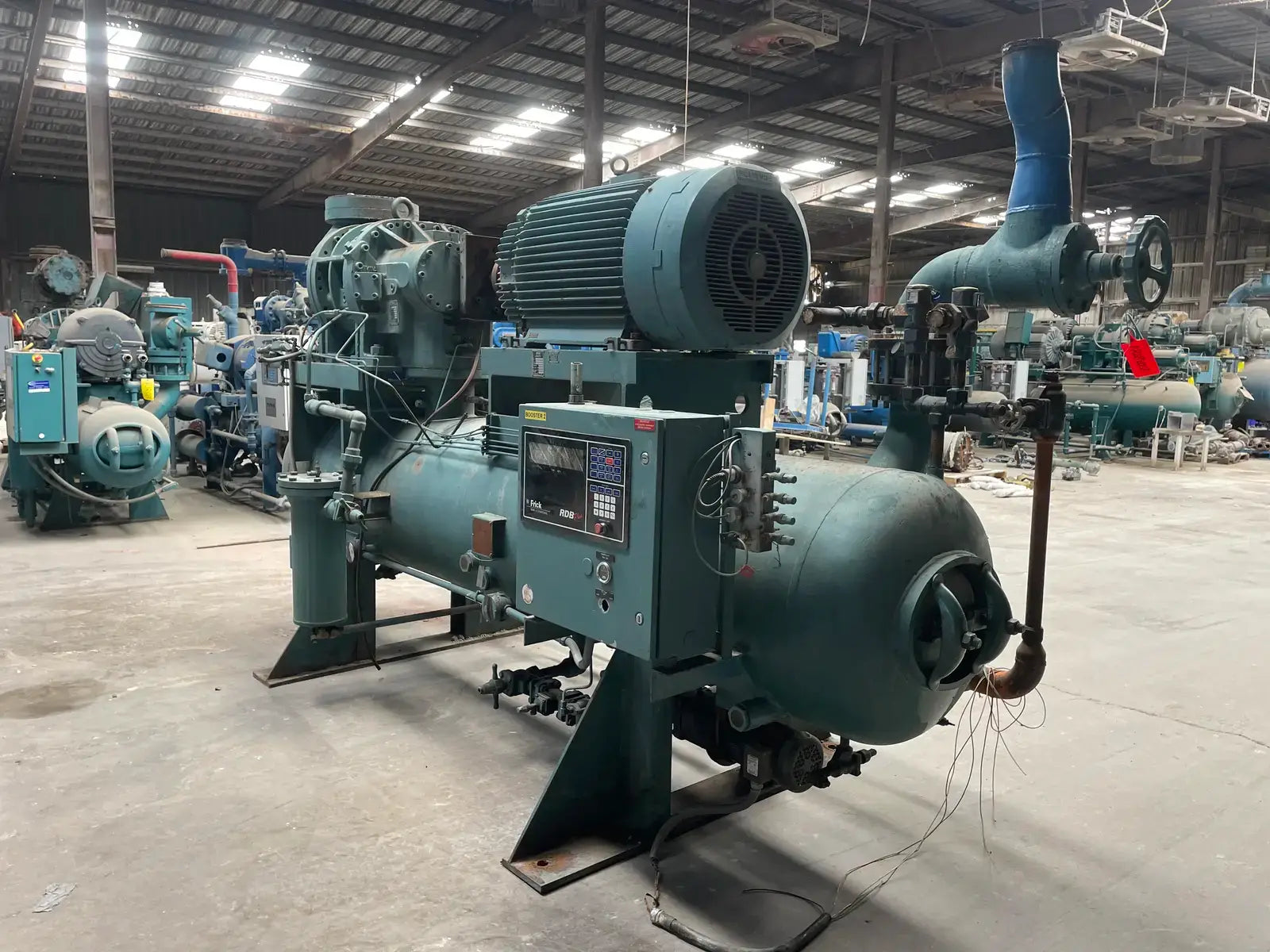

Frick RDB-316 Rotary Screw Compressor Package (Frick TDSL283S, 250 HP 460 V, Frick Micro Control Panel)

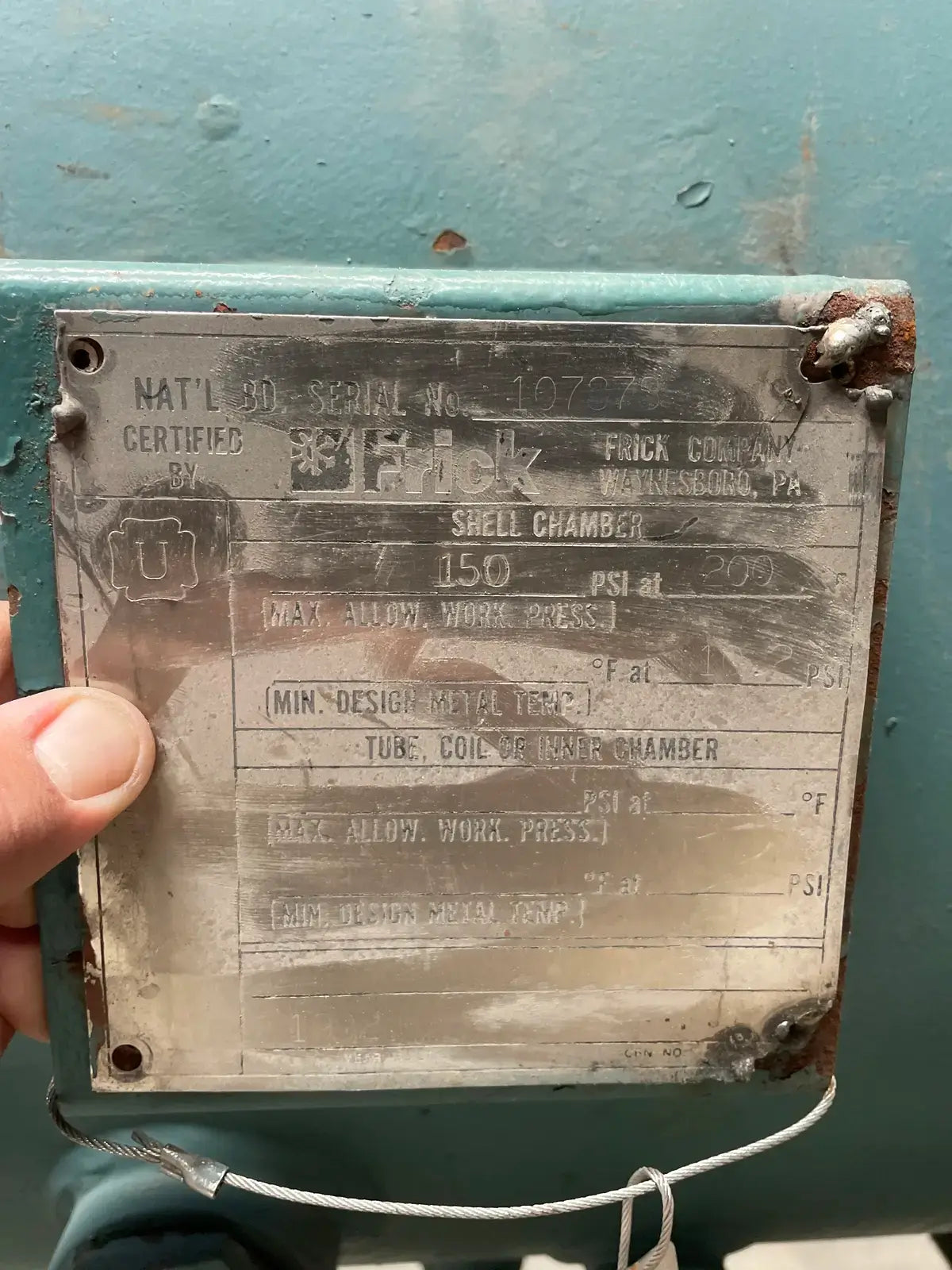

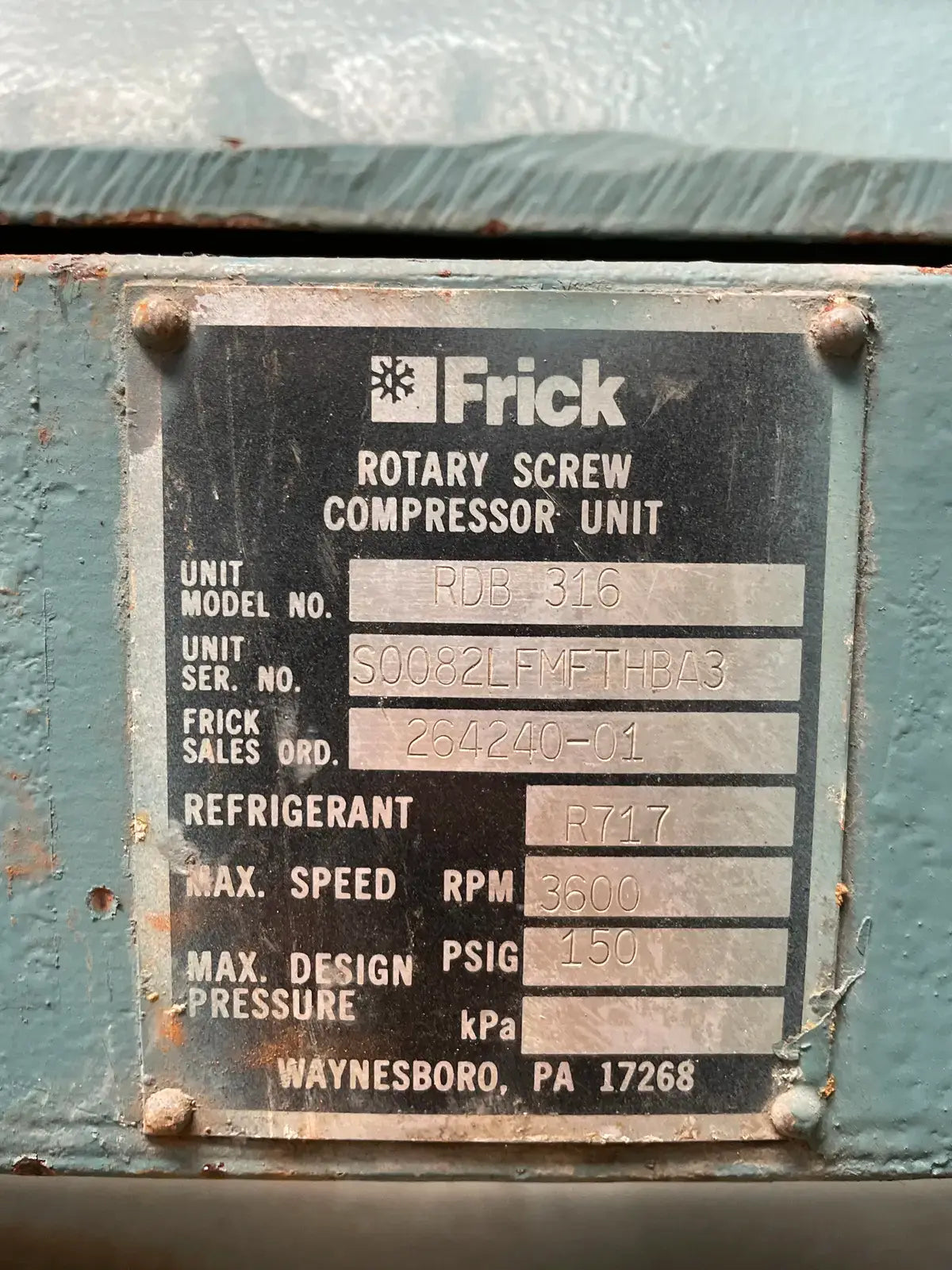

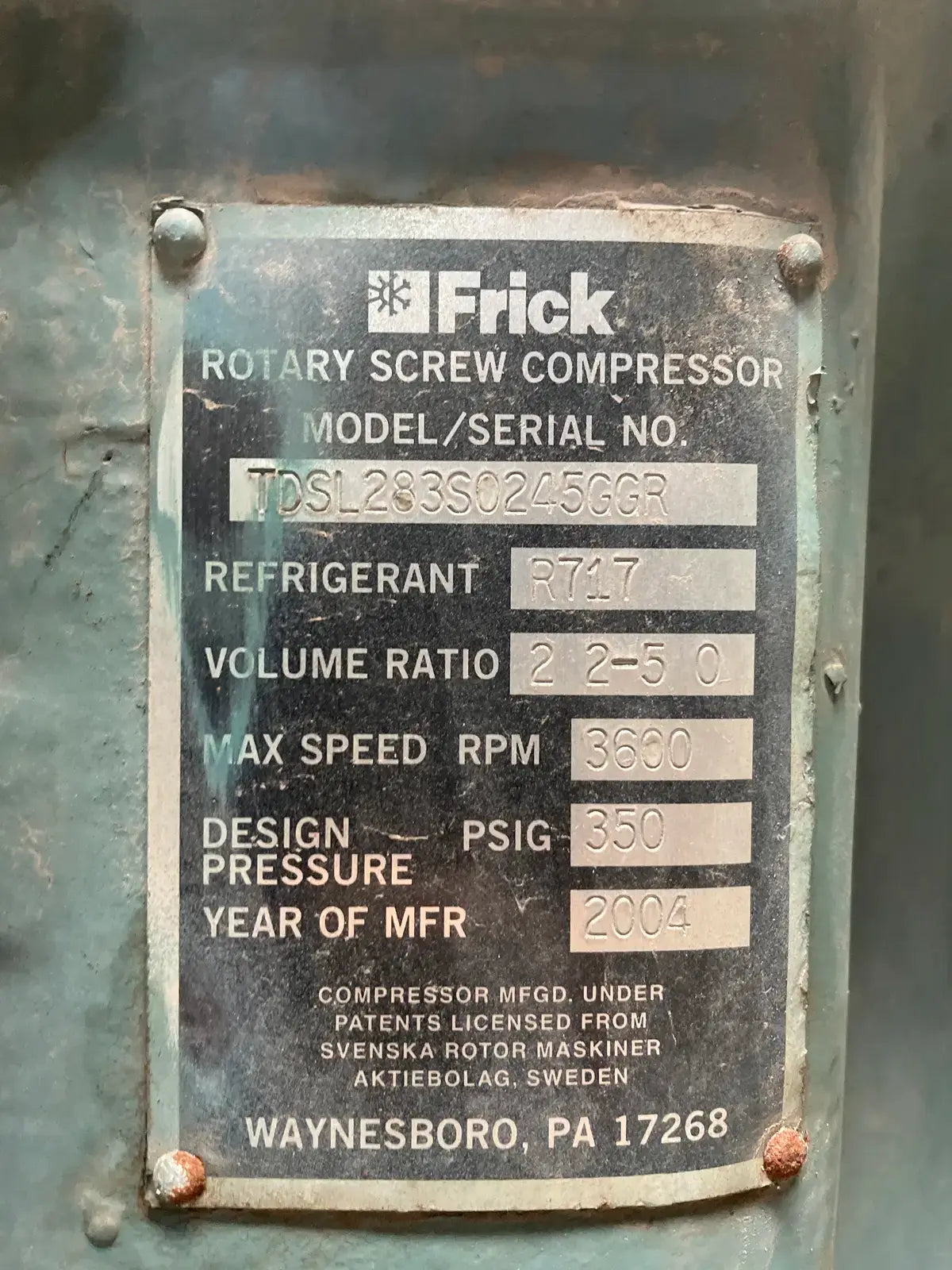

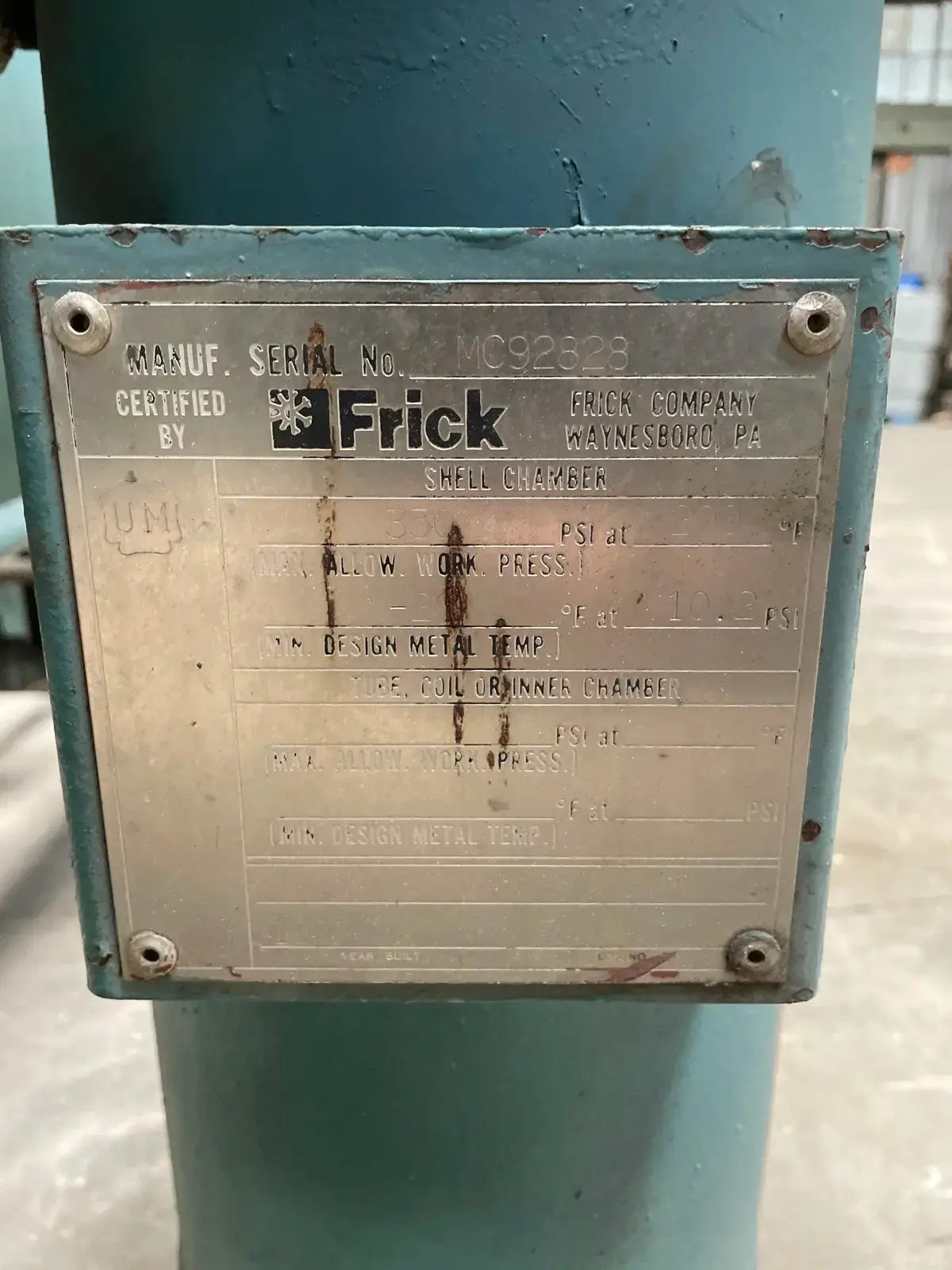

Frick RDB Rotary Screw Compressor Package. Model: RDB-316. Serial No: S0082LFMFTHBA3. Frick Sales Order: 264240-01. Refrigerant: R717. Max Speed: 3600 RPM. Max Design Pressure: 150 PSIG. Frick Bare Screw Compressor: Model: TDSL283S, Serial No: 0245GGR, Refrigerant: R717, Volume Ratio: 2.2-5.0, Max Speed: 3600 RPM, Design Pressure: 350 PSIG, Year of Mfr: 2004. Certified by Frick Oil Separator: National Board: 107878, MAWP: 150 PSI @ 200 F. MDMT: -20 F @ 10.2 PSI. Frick RDB Plus Control Panel.
Product Details
- Stock No: NOR01
- Manufacturer: Frick
- Model: RDB-316
- Serial Number: S0082LFMFTHBA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: Low Stage (Booster)
Package Details
- Package Manufacturer: Frick
- Package Model: RDB-316
- Package SN: S0082LFMFTHBA3
- Package Order: 264240-01
- Package Max Speed (RPM): 3,600
- Package Max Design Pressure (PSIG): 150

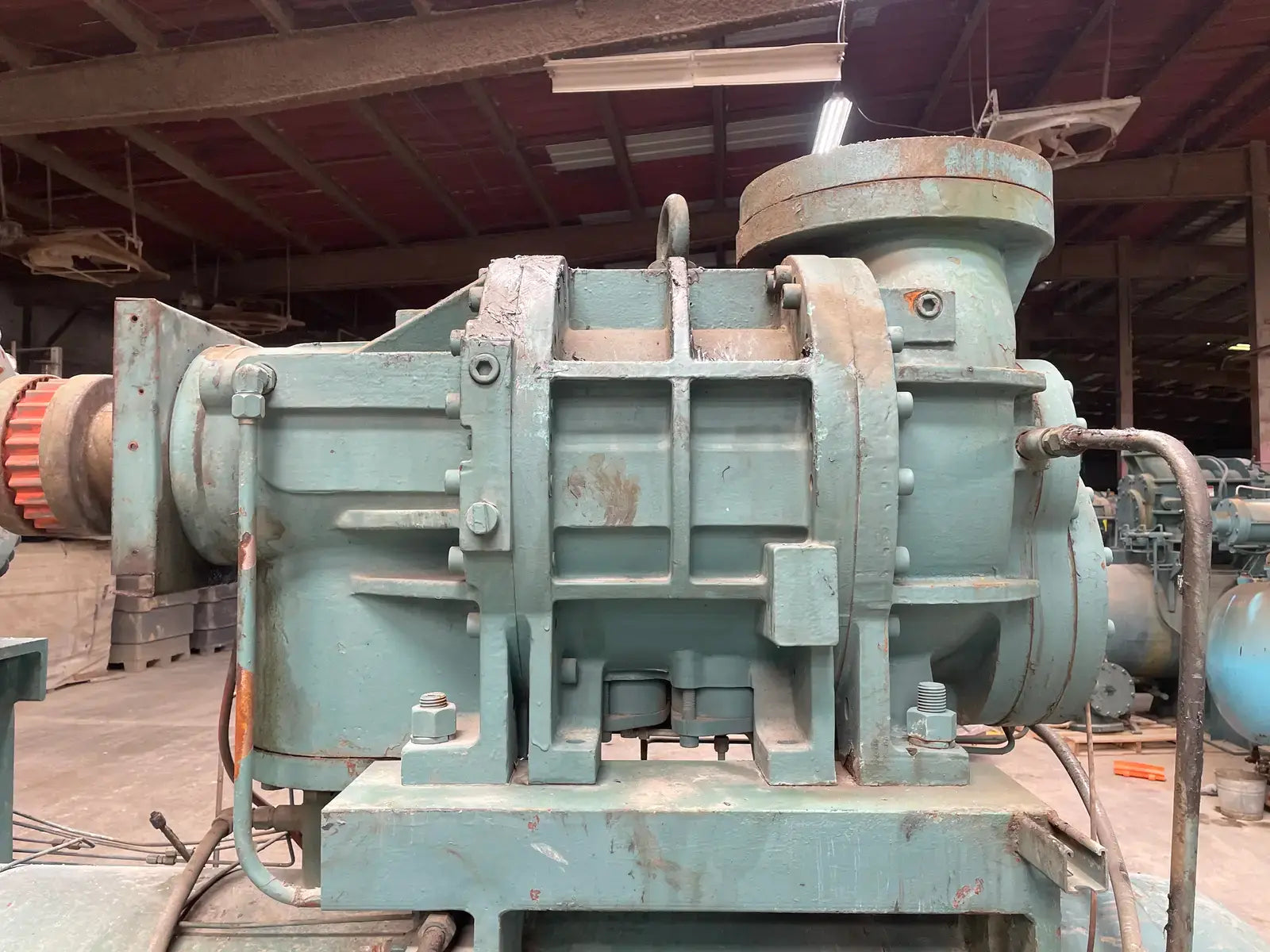

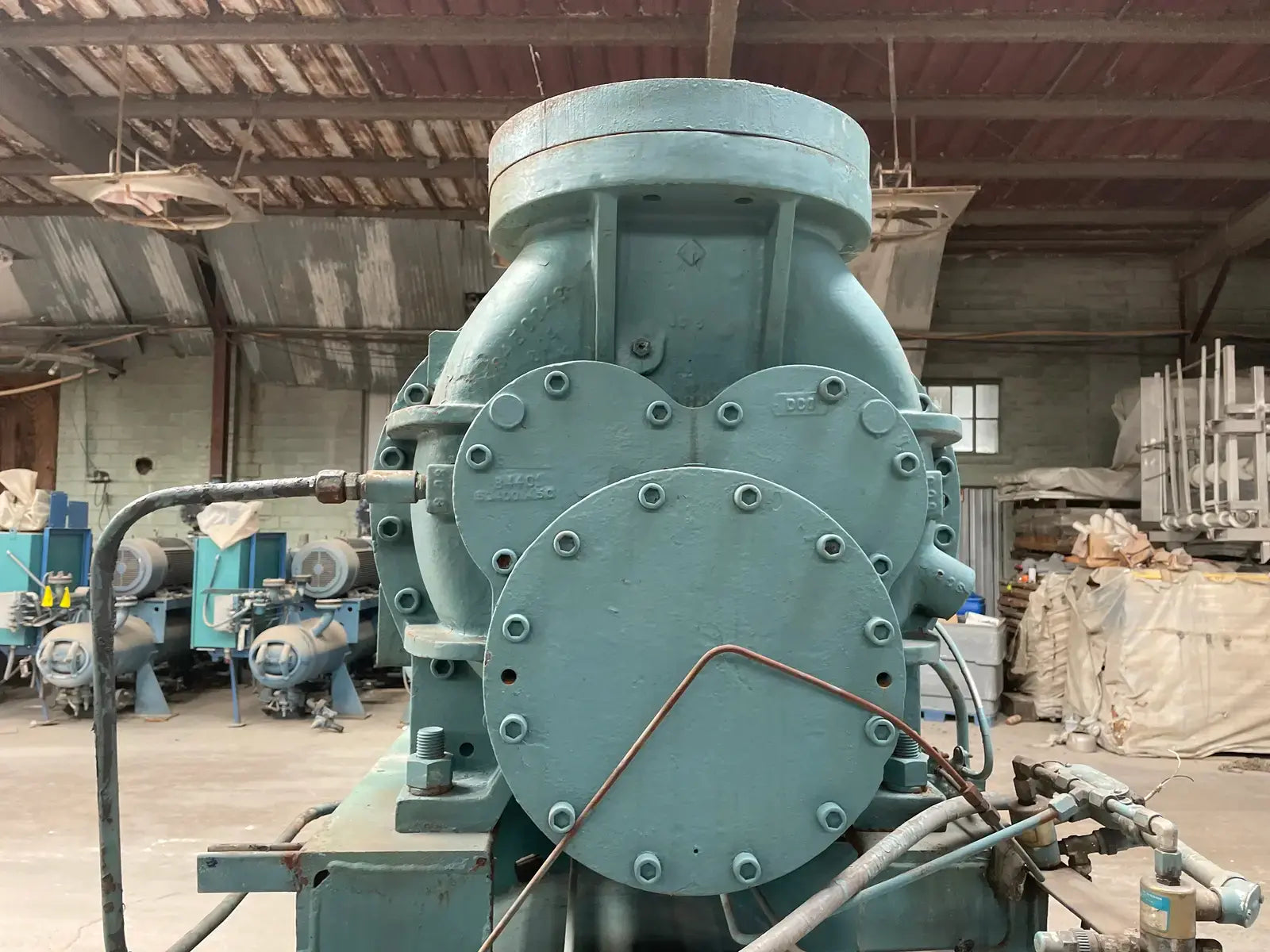

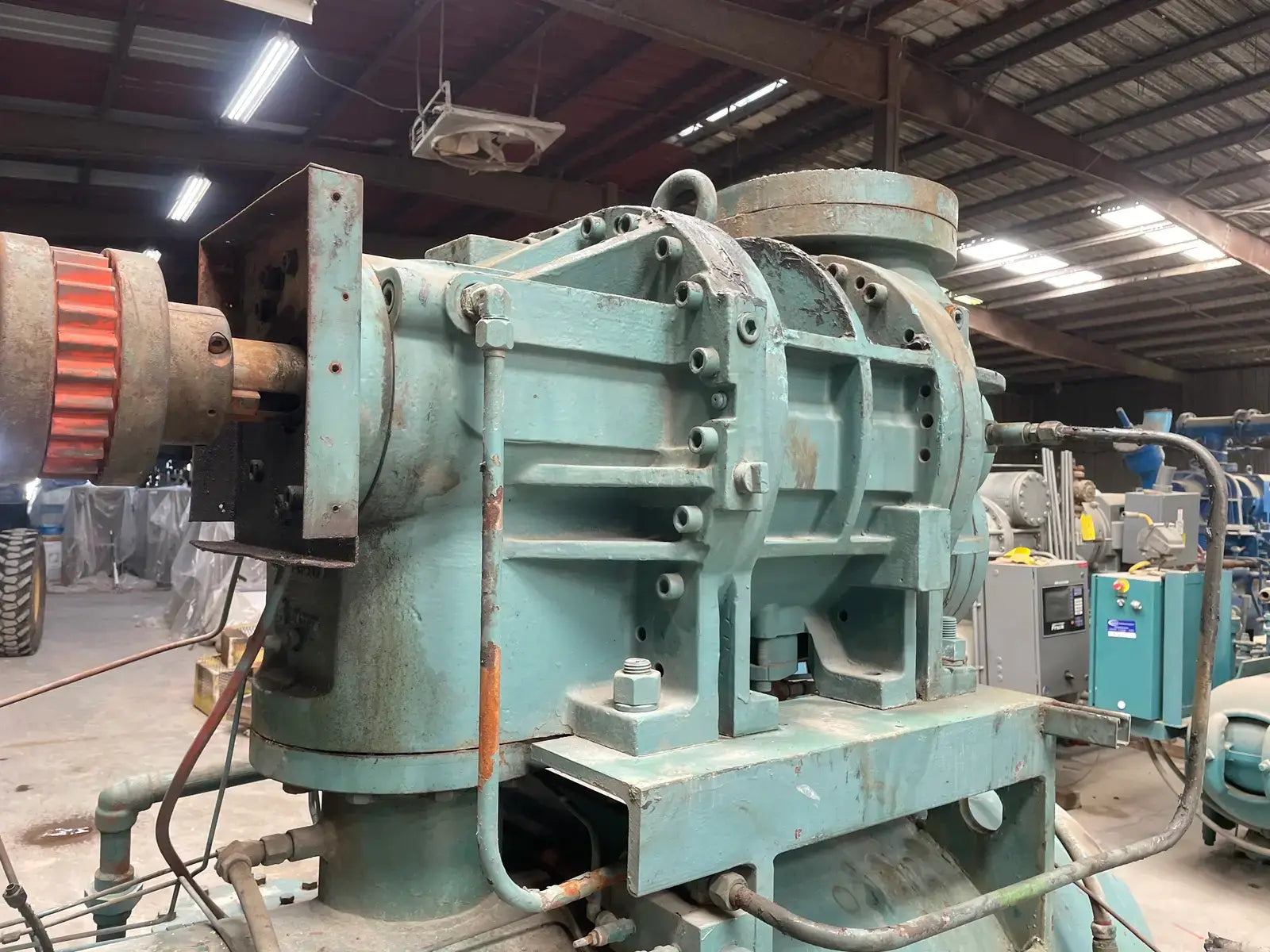

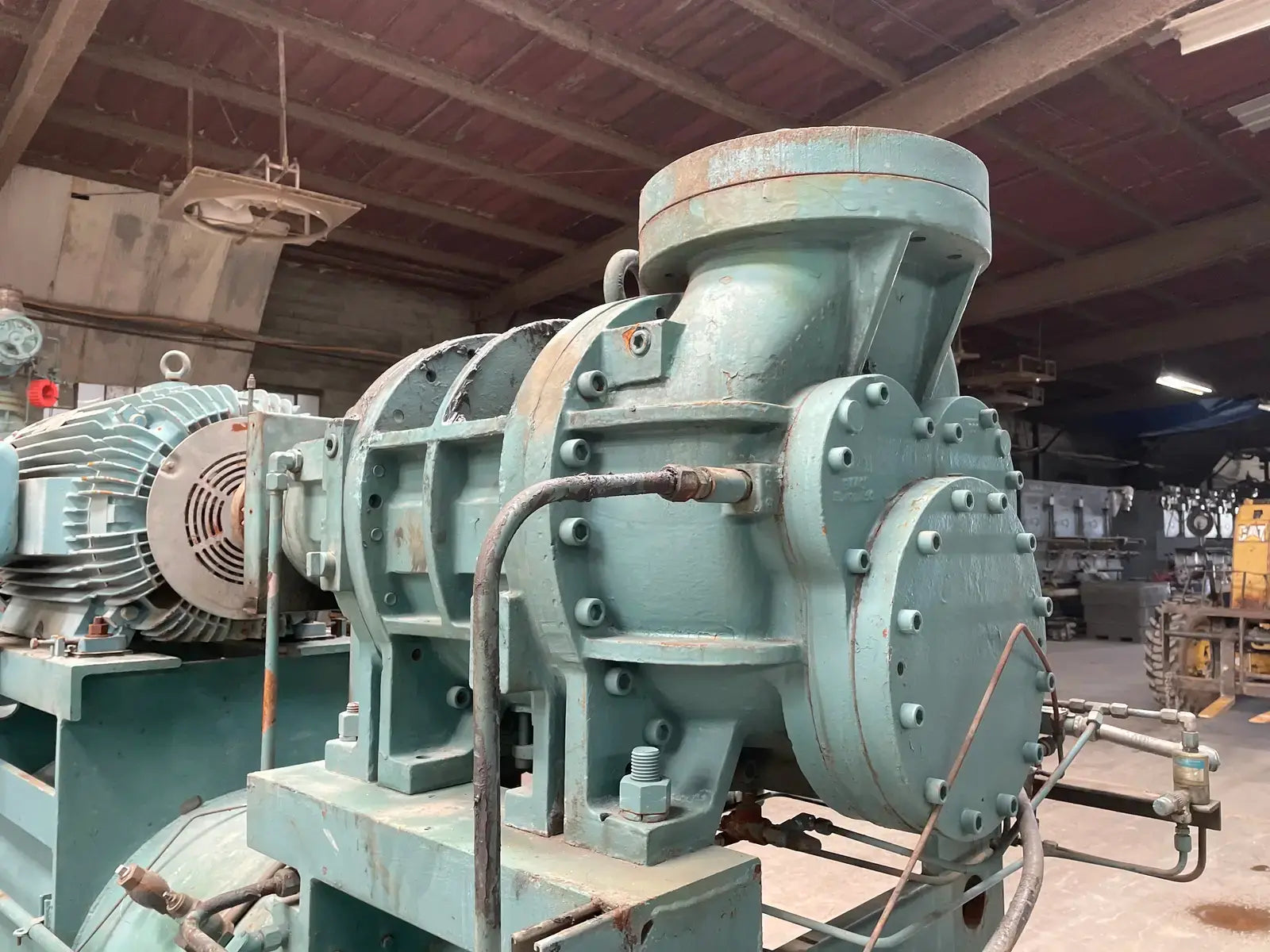

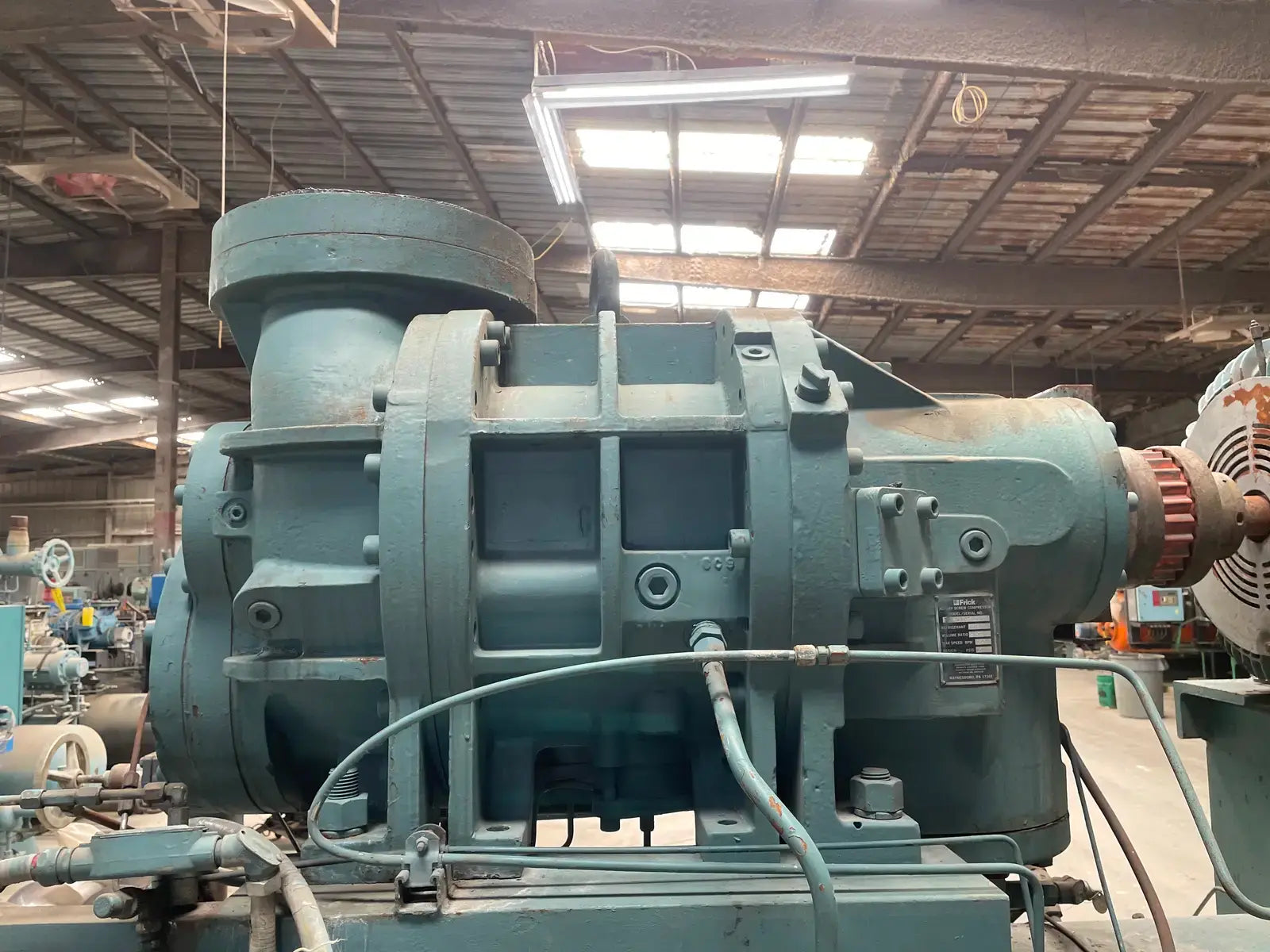

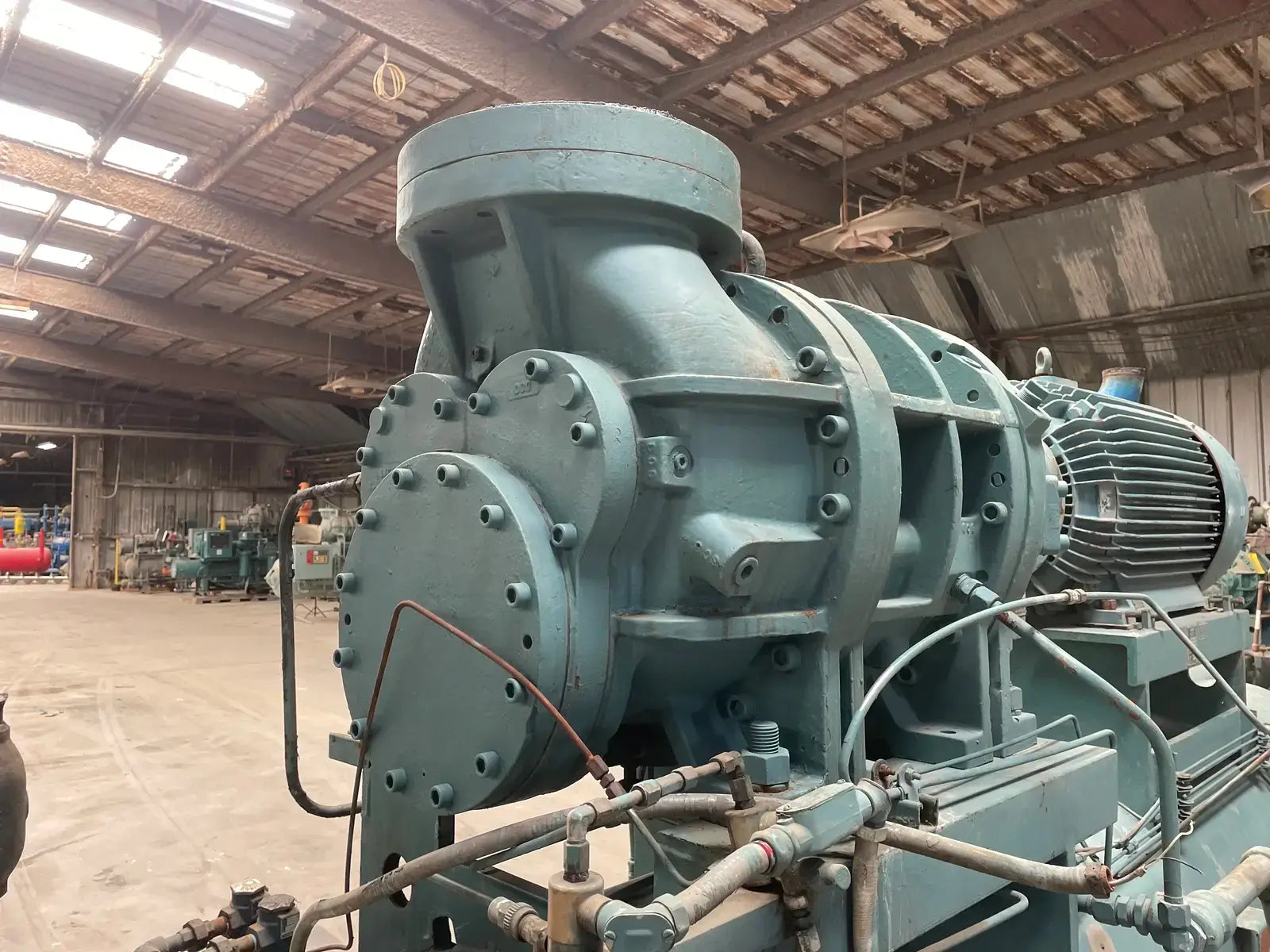

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: TDSL283S
- Compressor SN: 0245GGR
- Compressor Max Speed (RPM): 3,600
- Compressor Design Pressure (PSIG): 350
- Compressor Year Manufactured: 2004

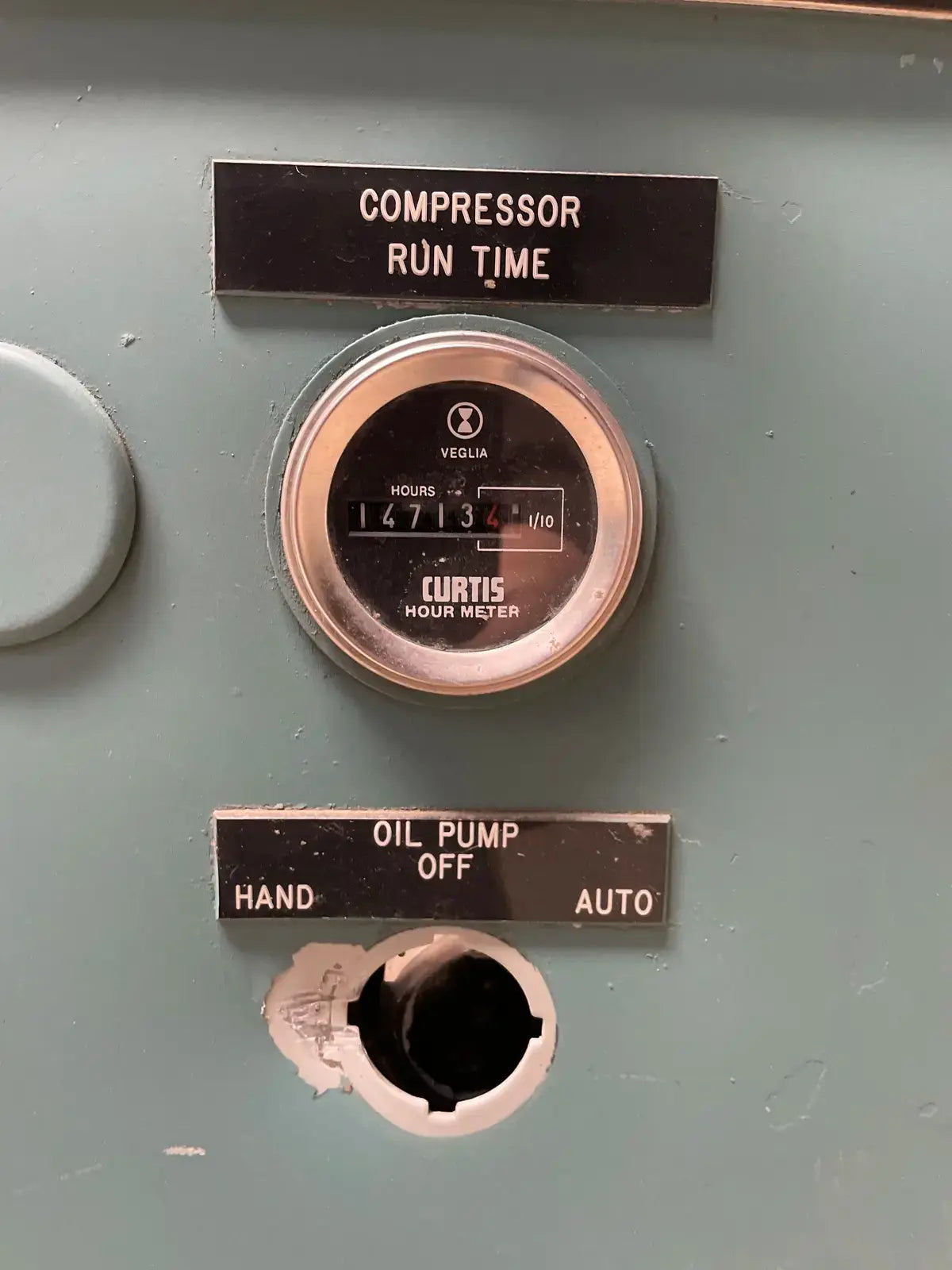

- Compressor Run Time Hours: 147,134
- Compressor Volume Ratio: 2.2-5.0

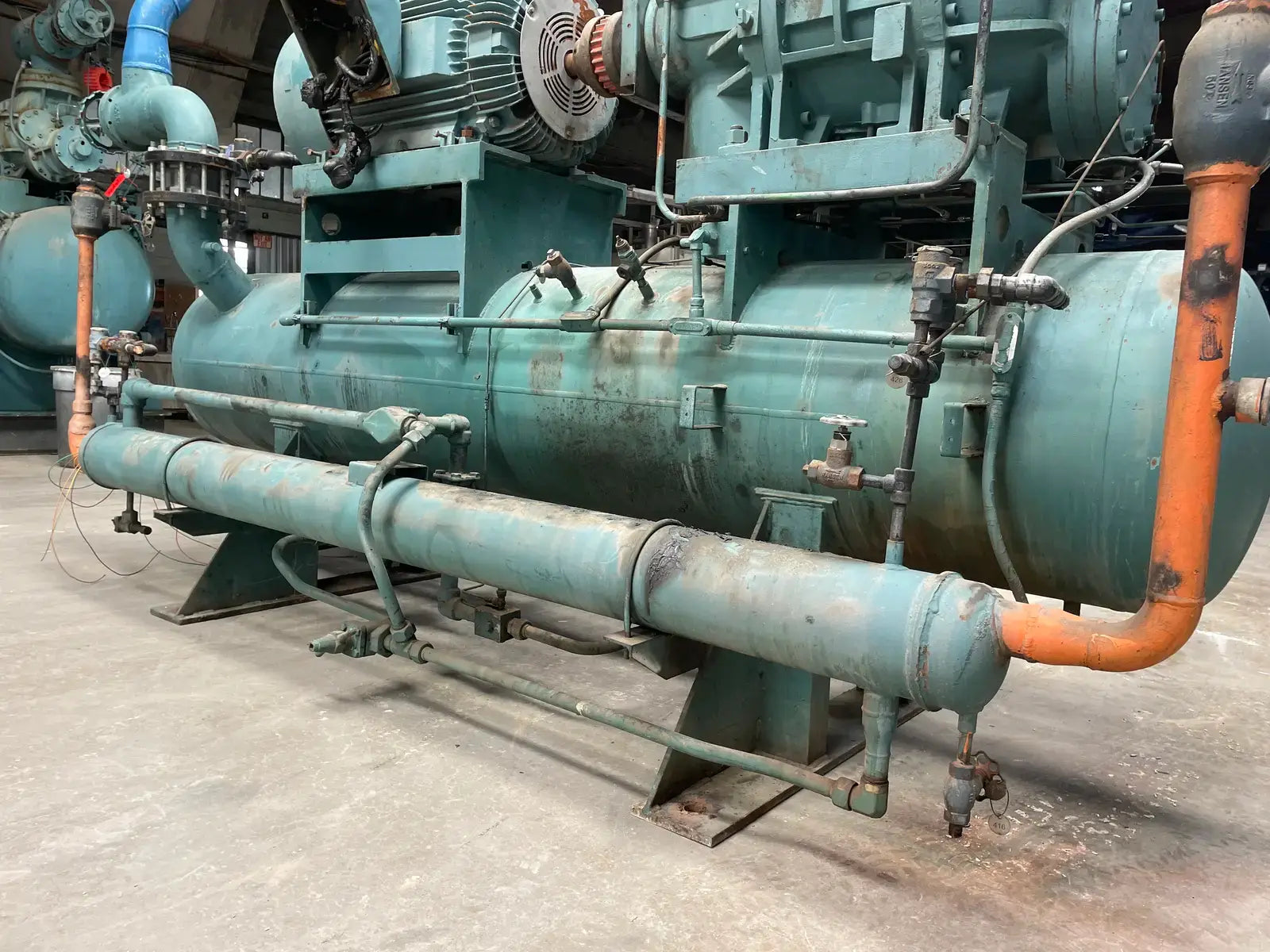

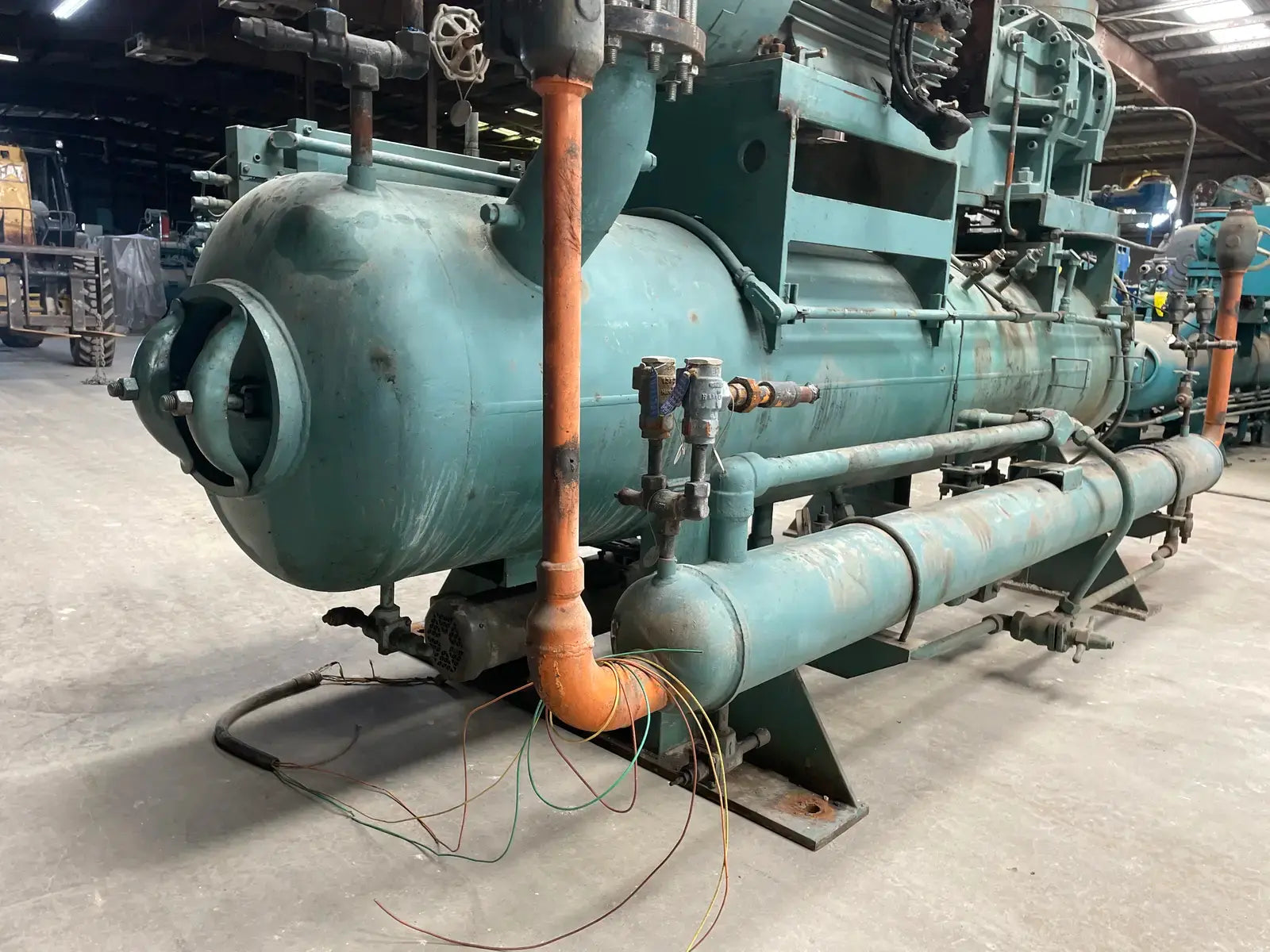

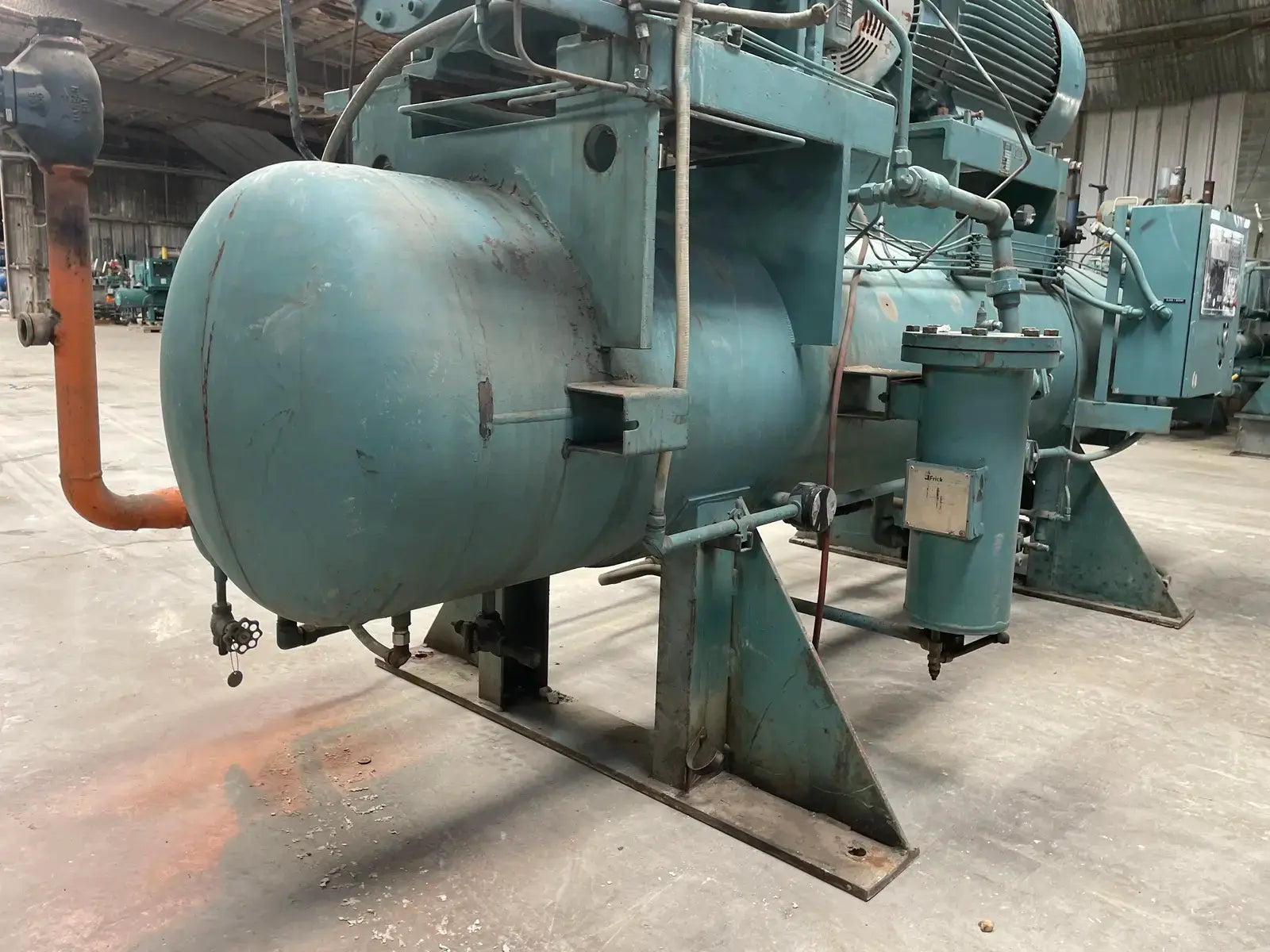

- Oil Separator Included? Yes
- Oil Separator National Board #: 107878

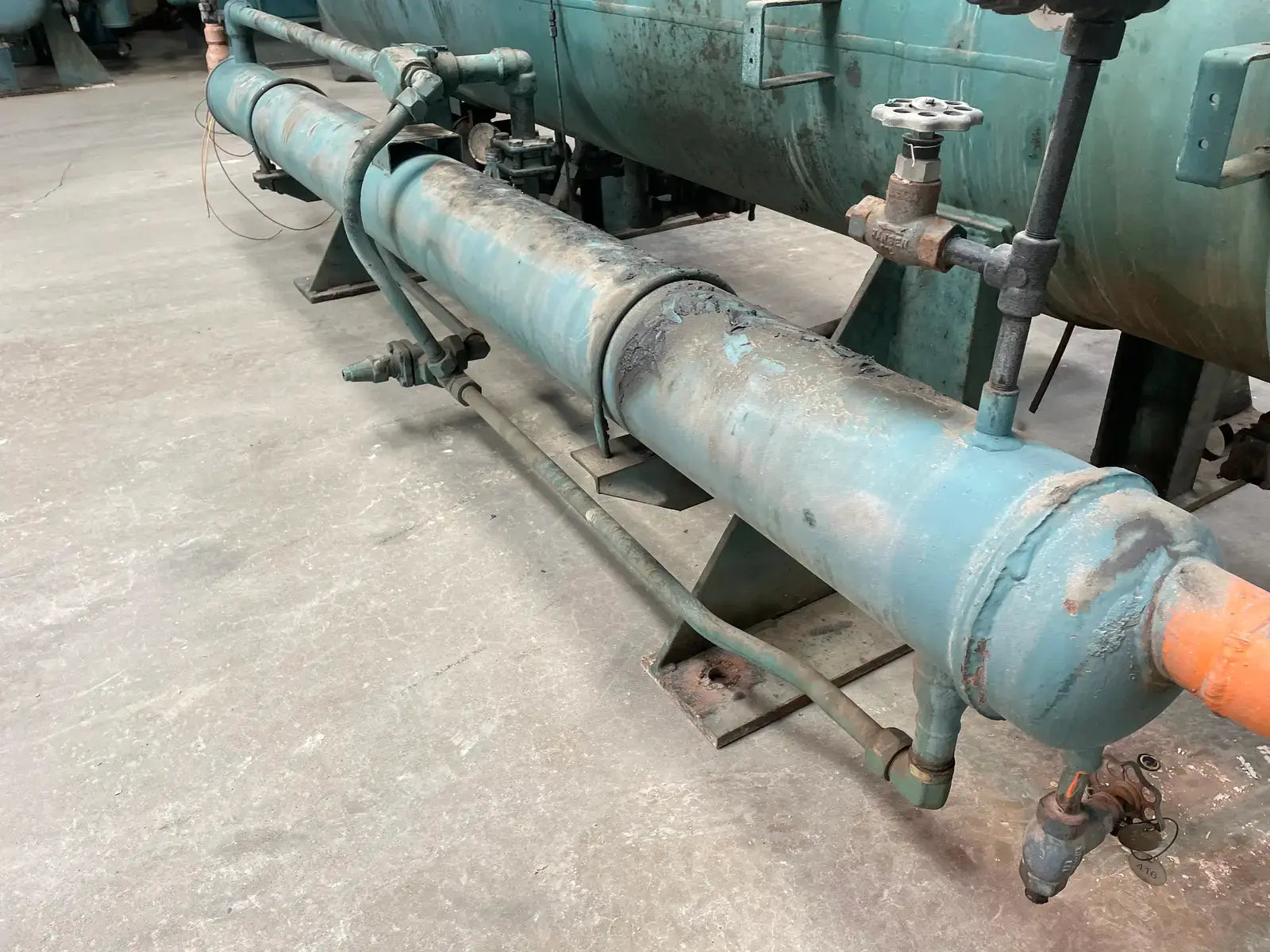

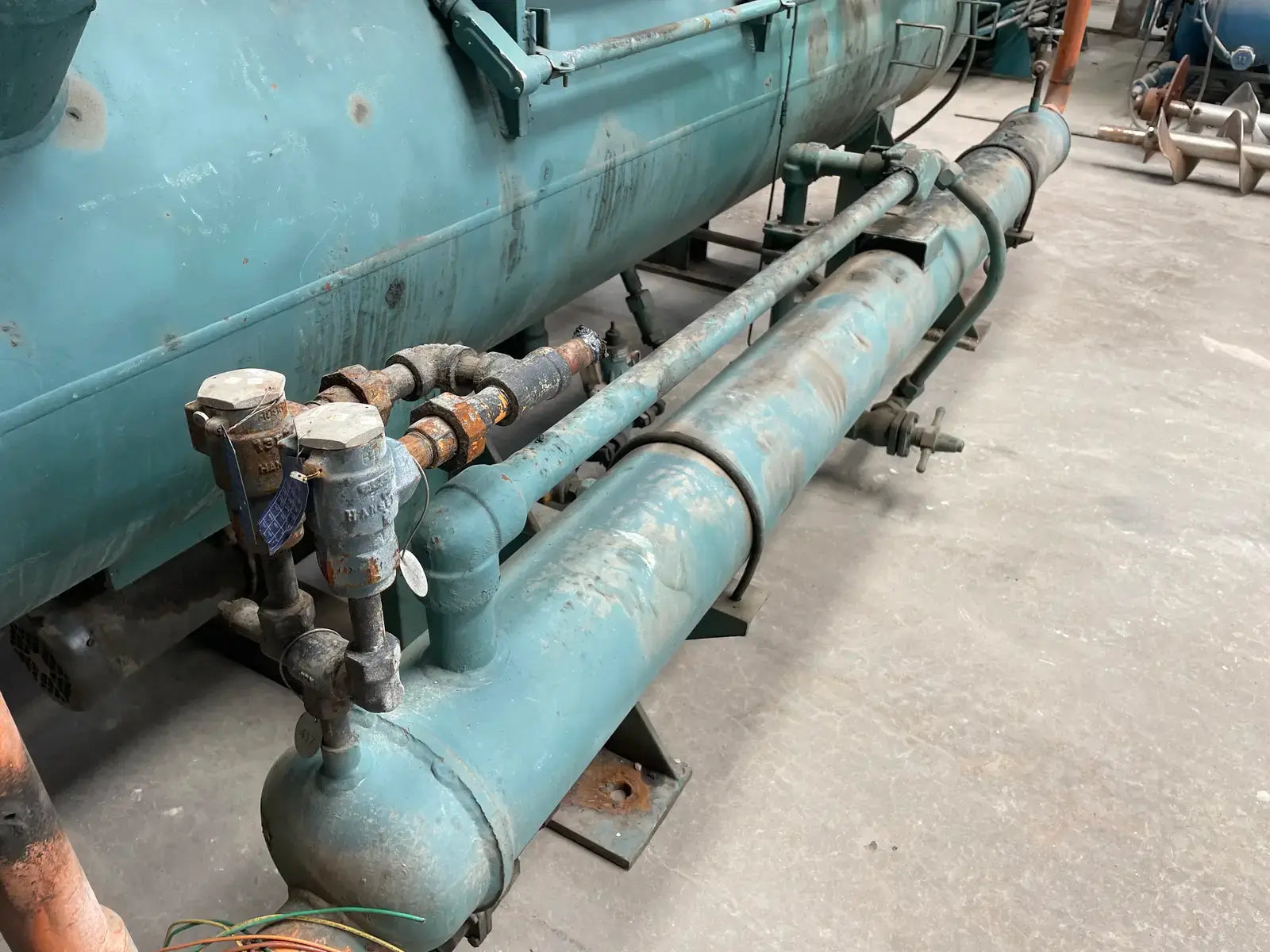

- Oil Cooling Type: Thermosiphon
- Oil Cooler National Board #: 106422

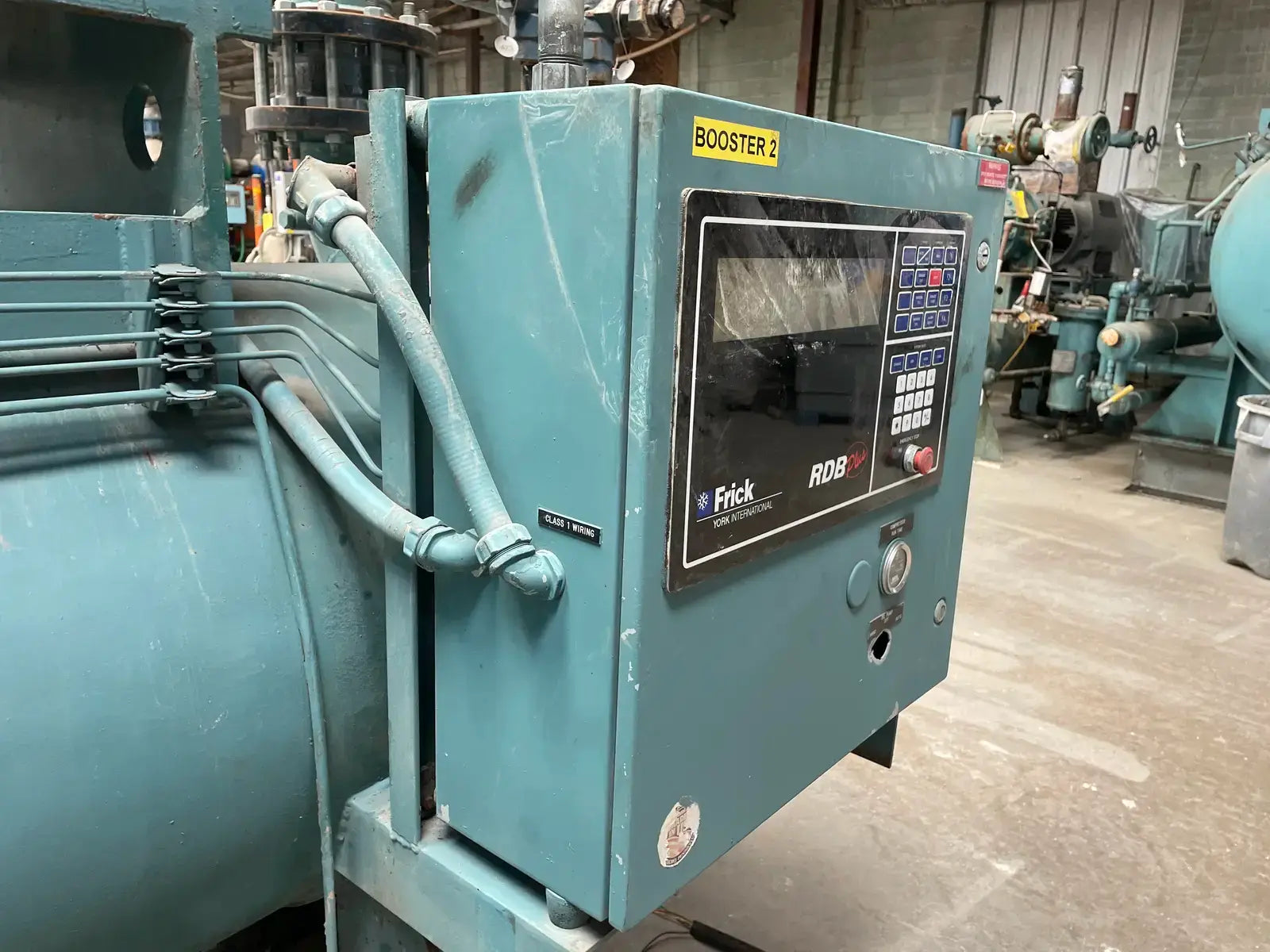

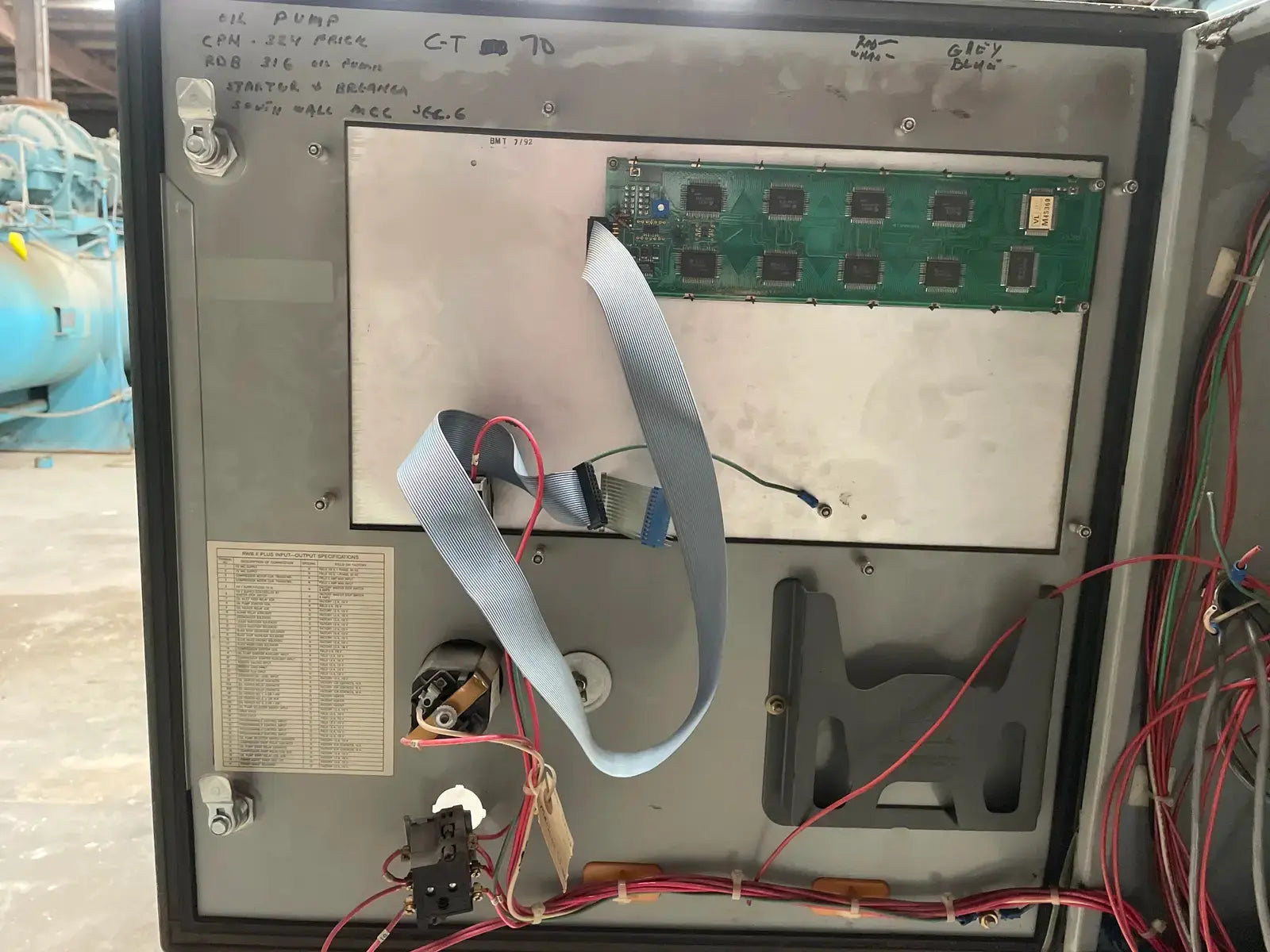

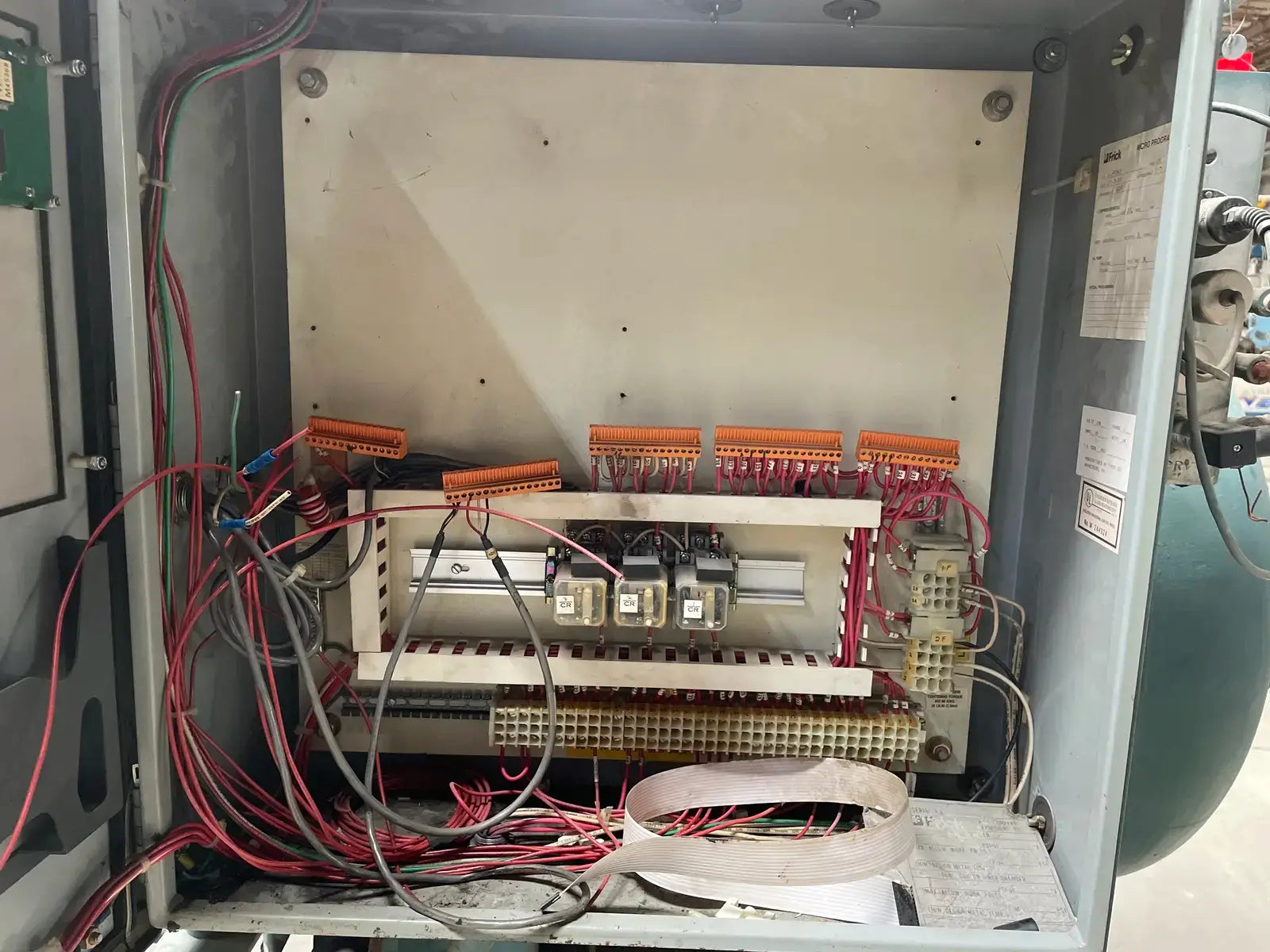

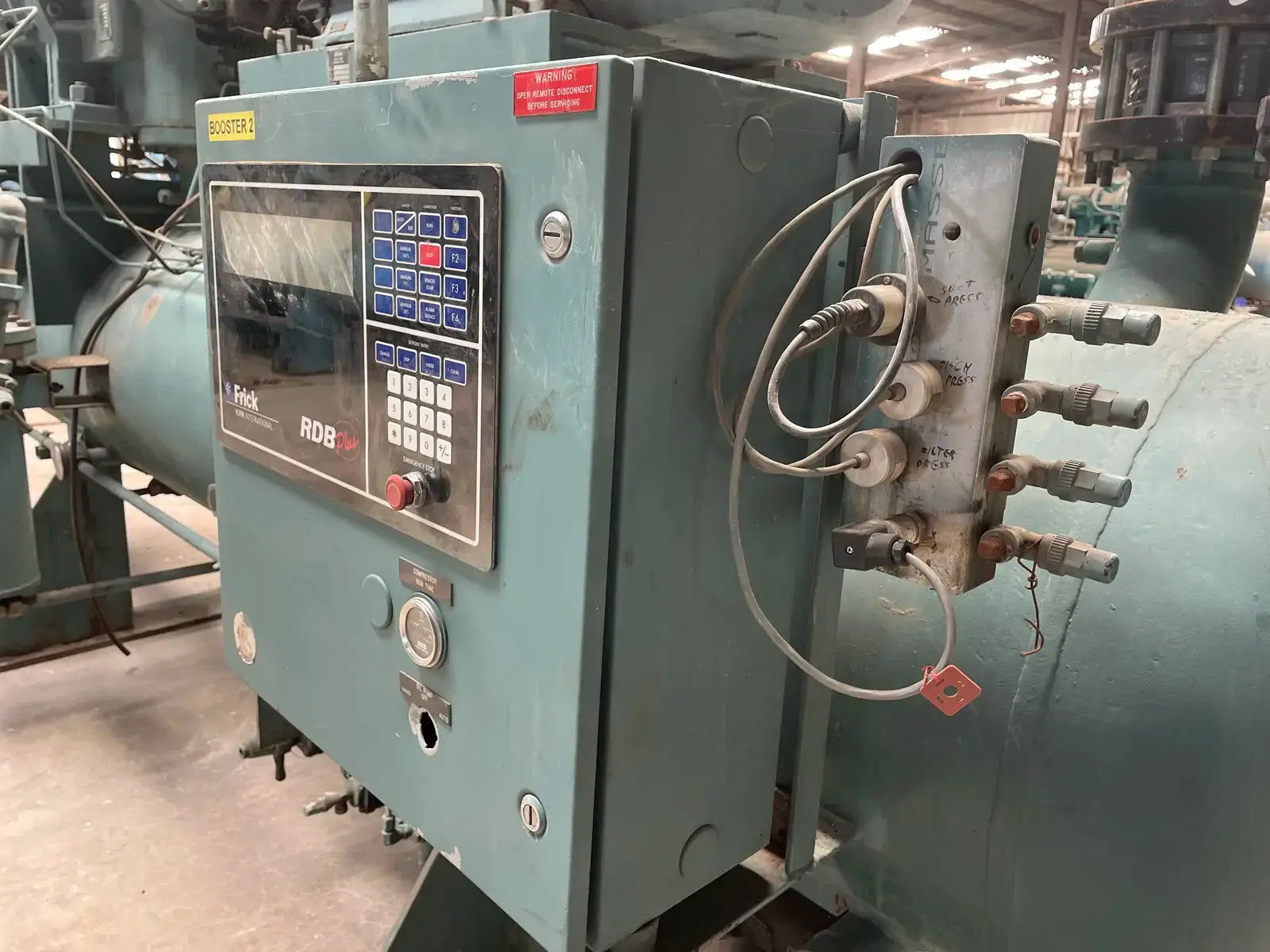

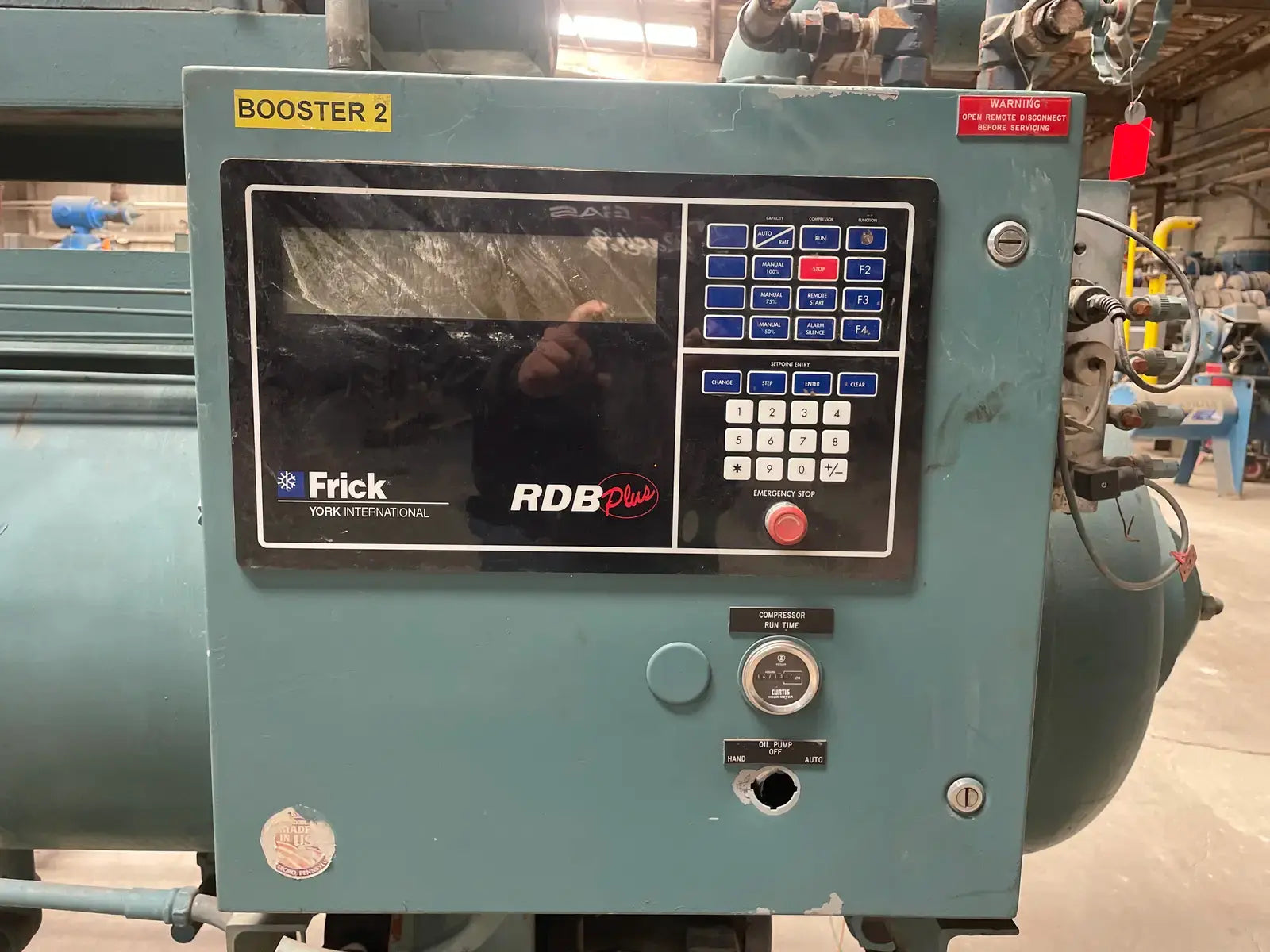

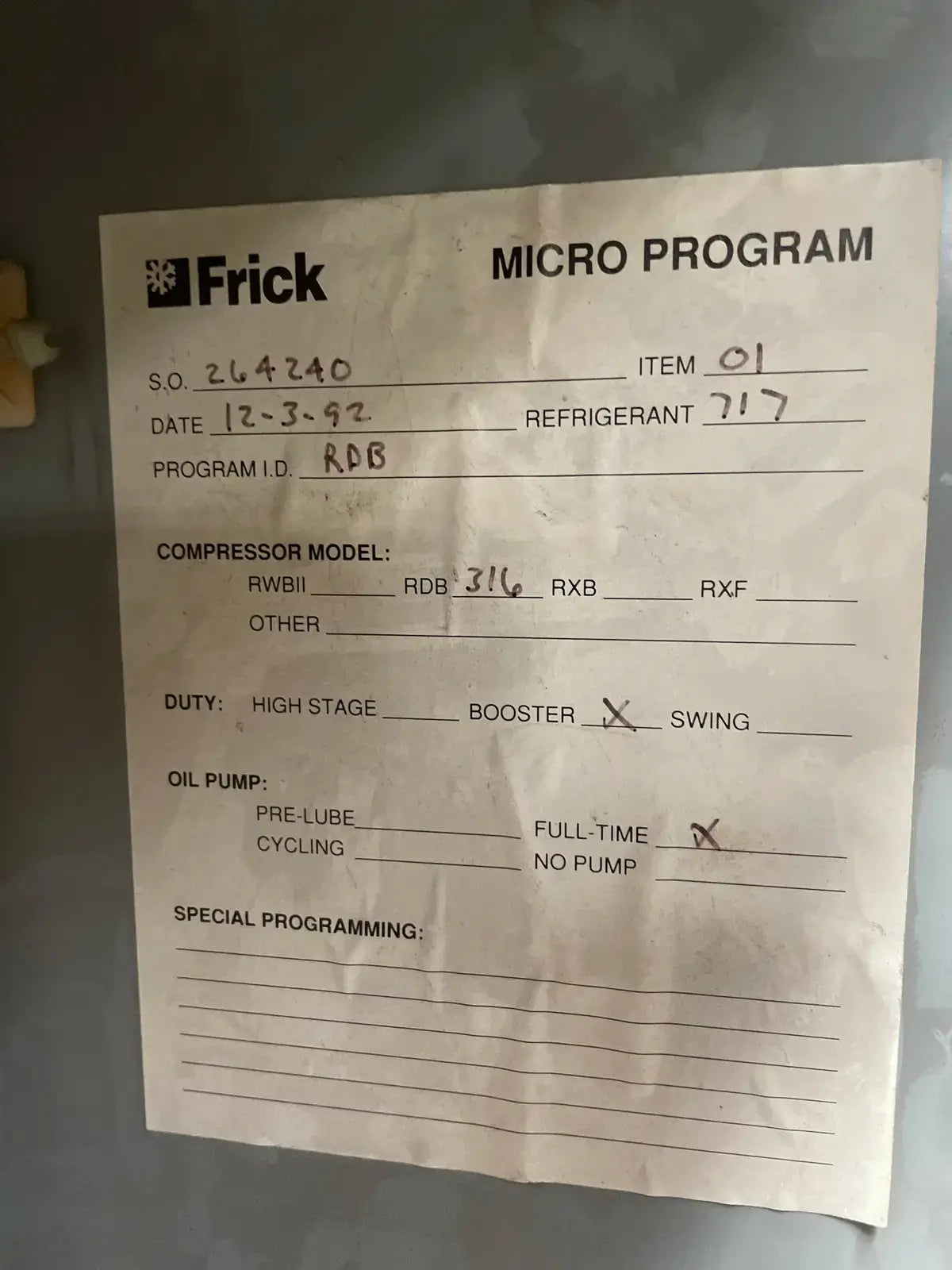

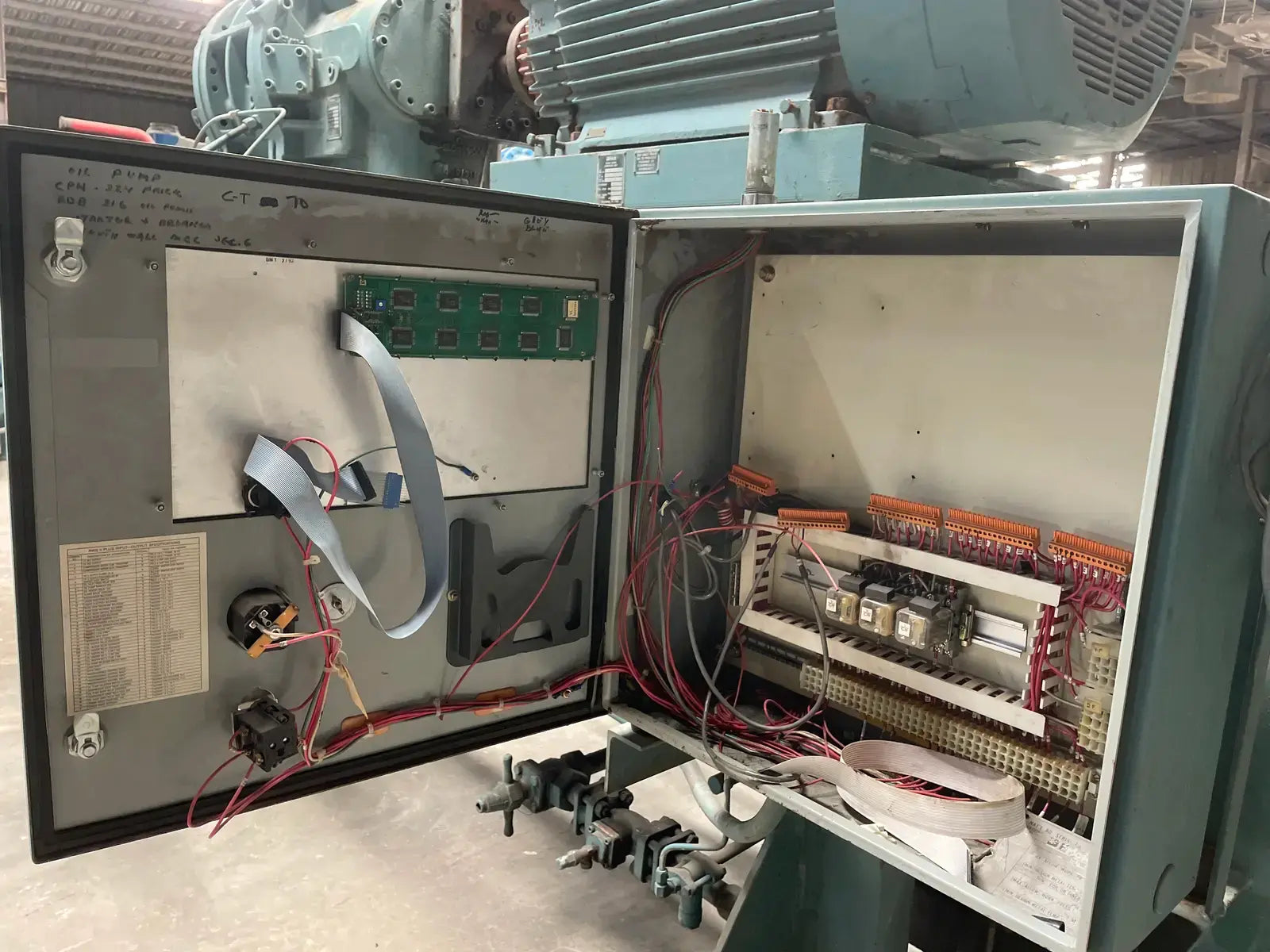

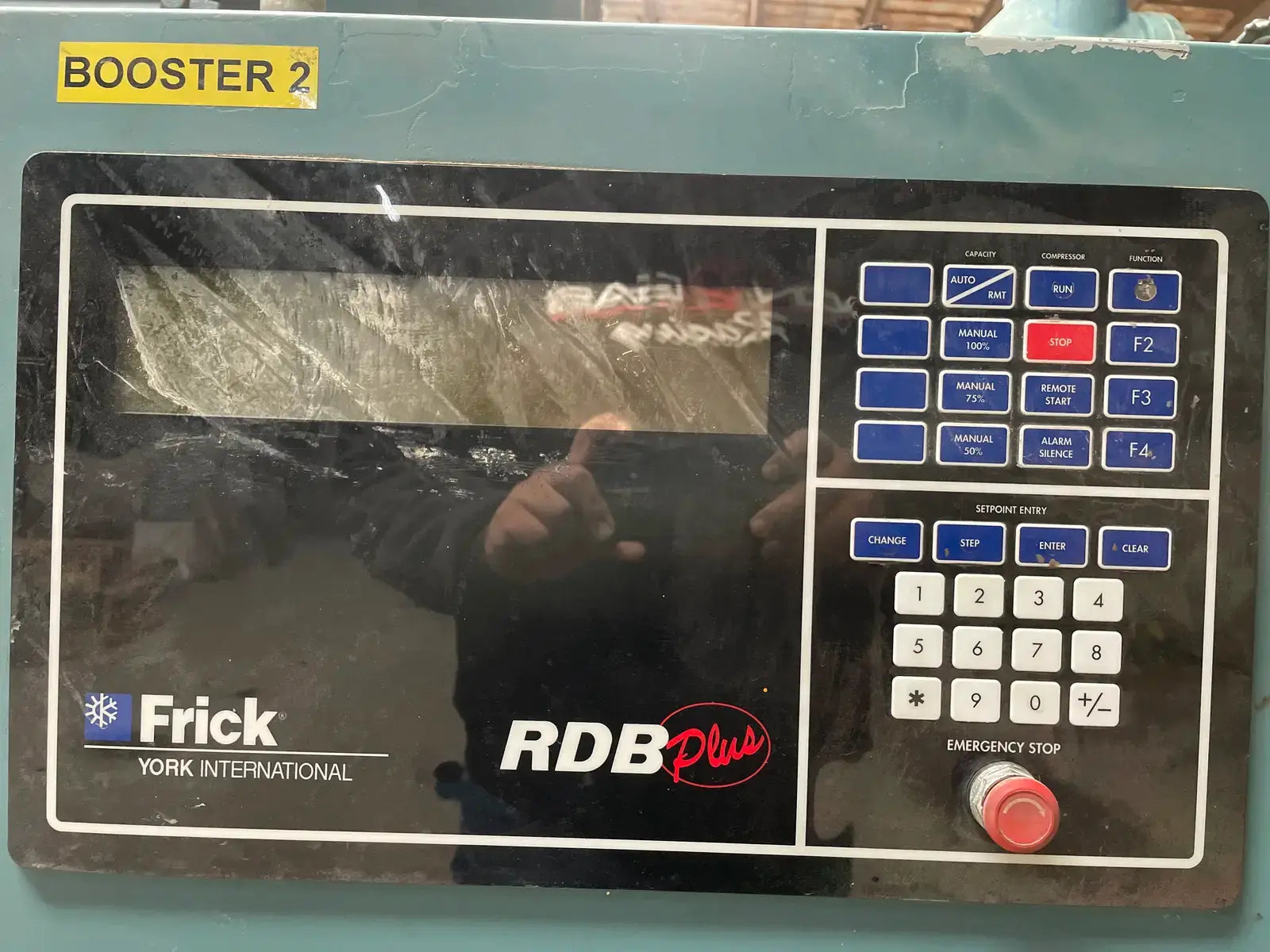

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

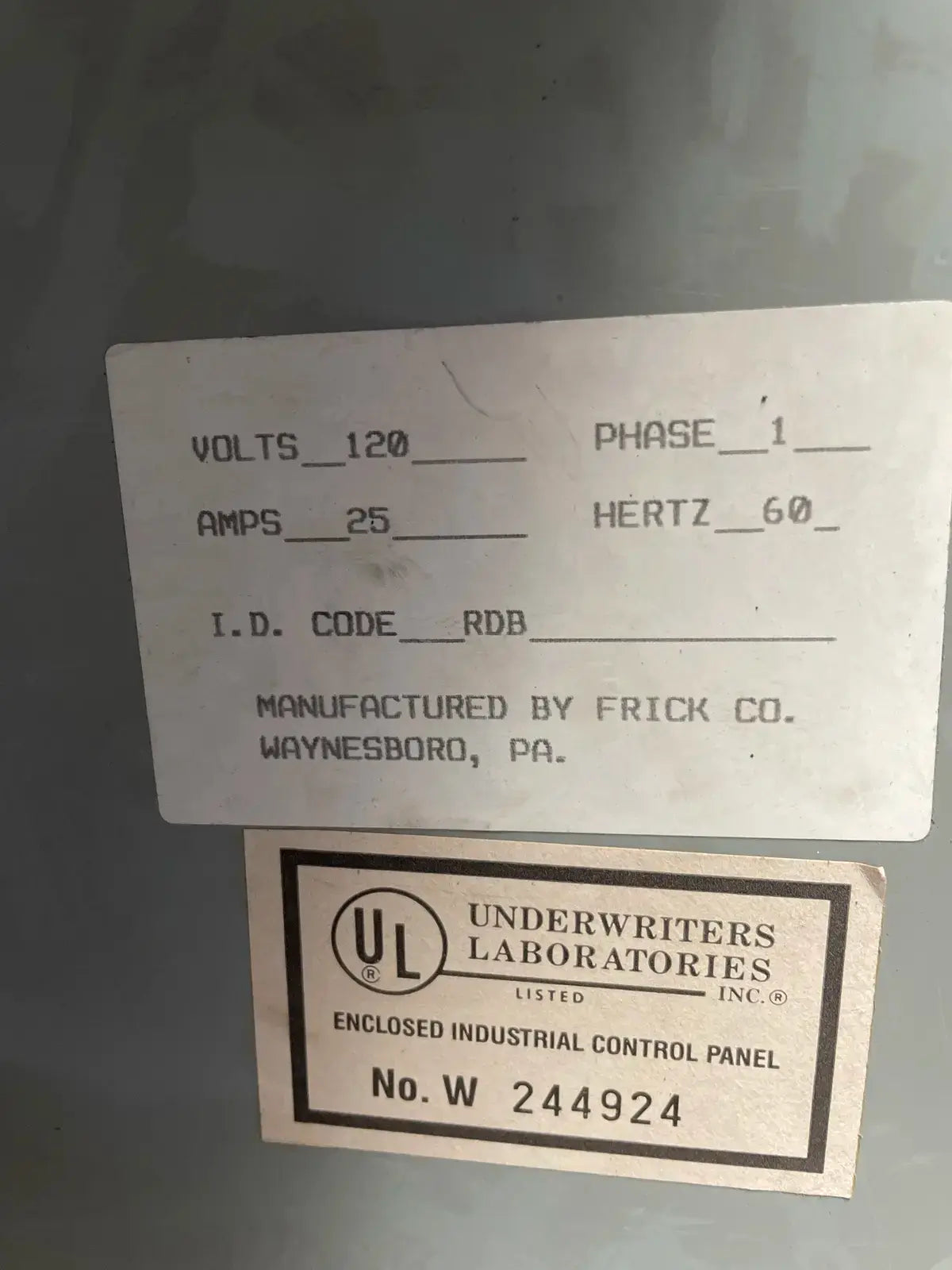

- Micro Control Panel Description: Frick RDB Plus Control Panel.
Motor Starter Details
- Motor Starter Included? Yes
- Motor Starter Manufacturer: RAM
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

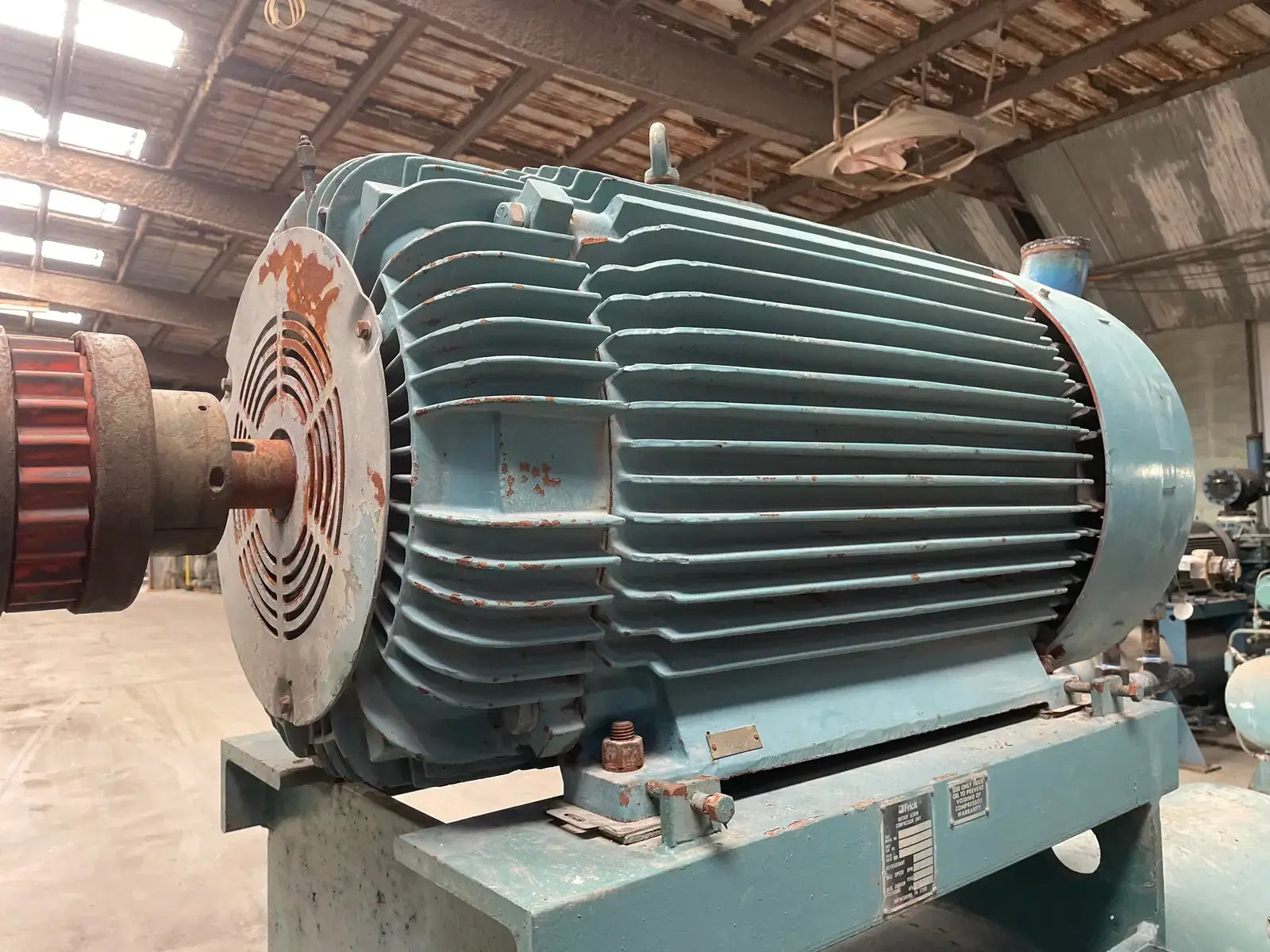

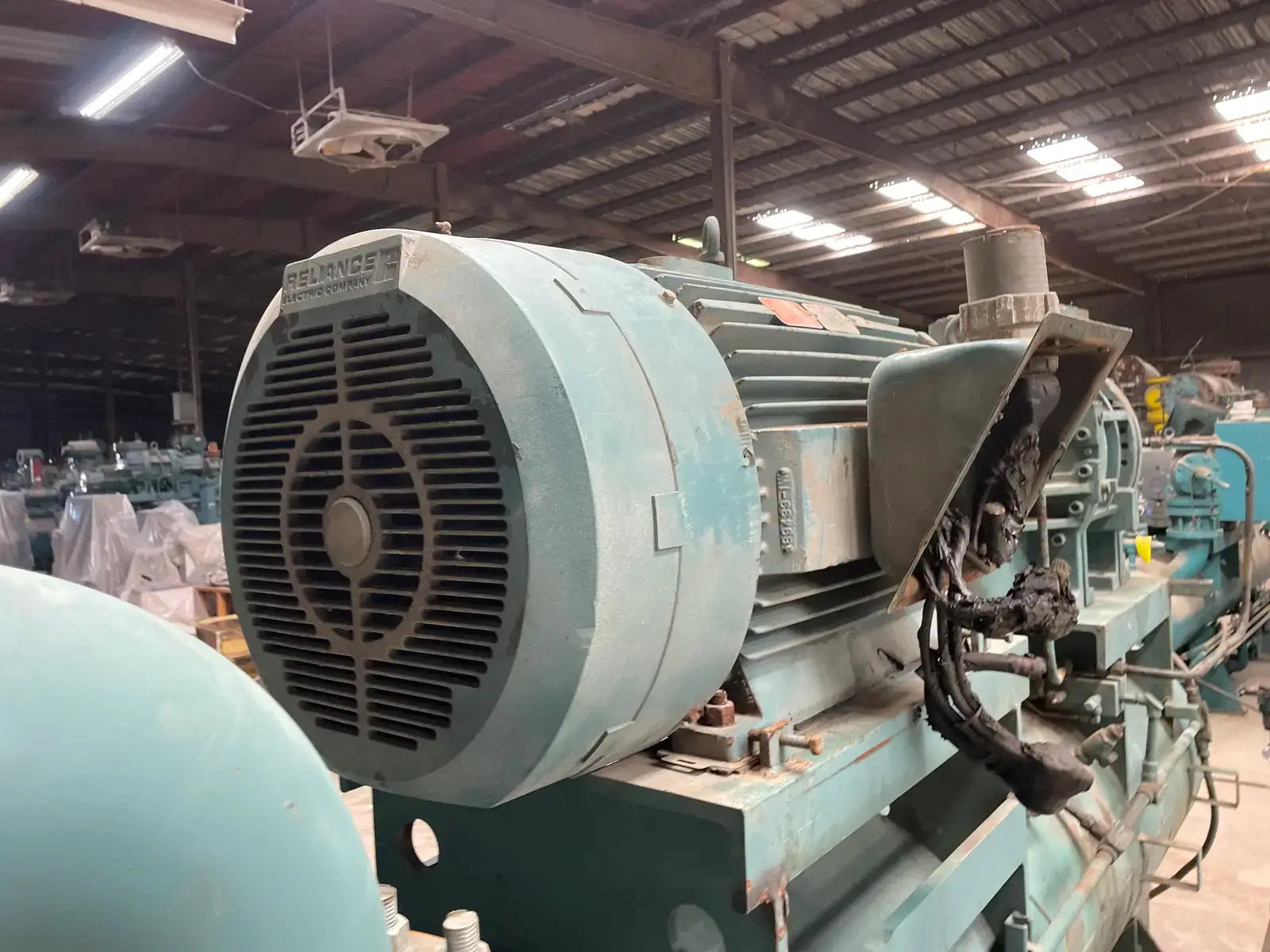

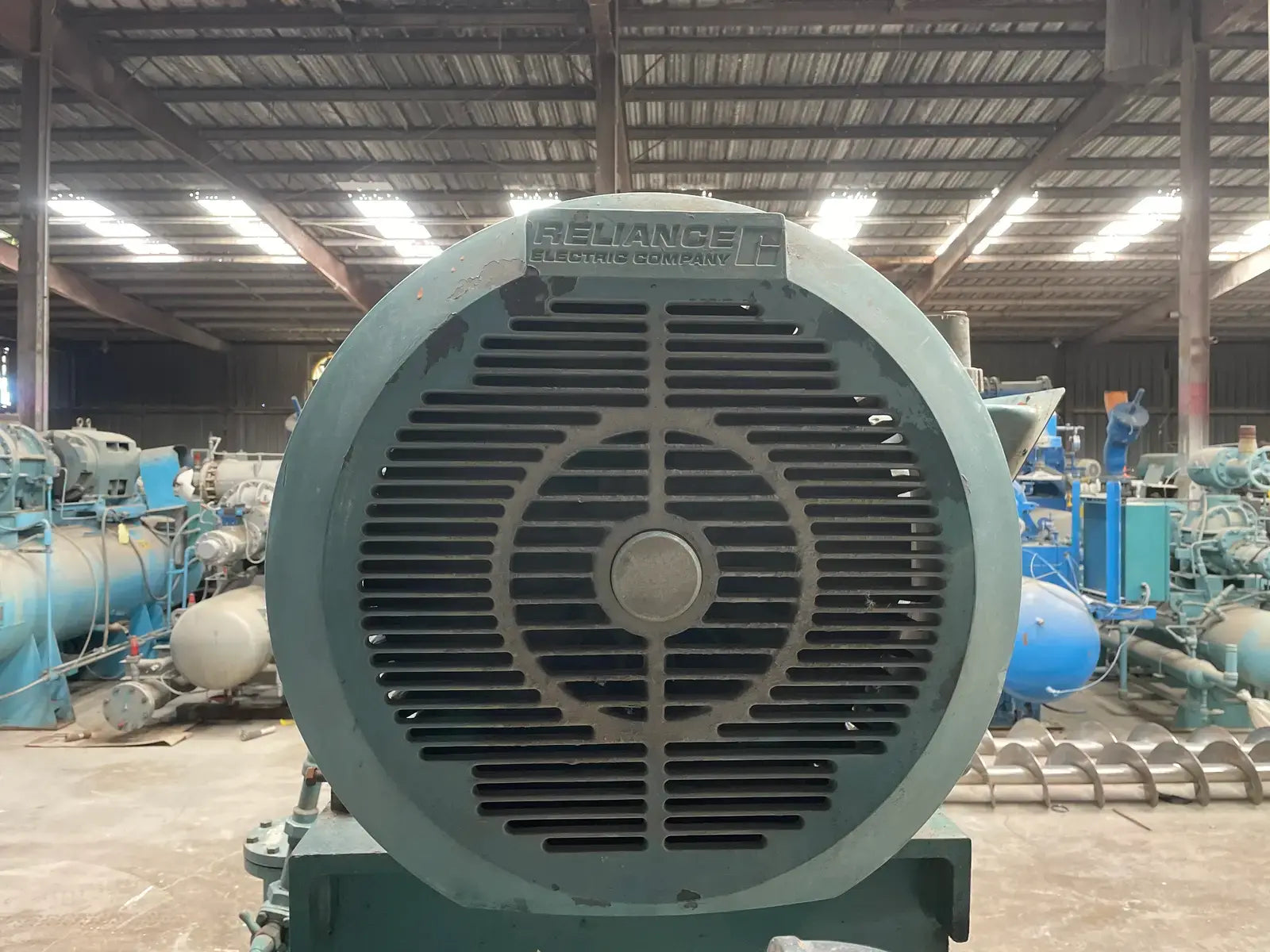

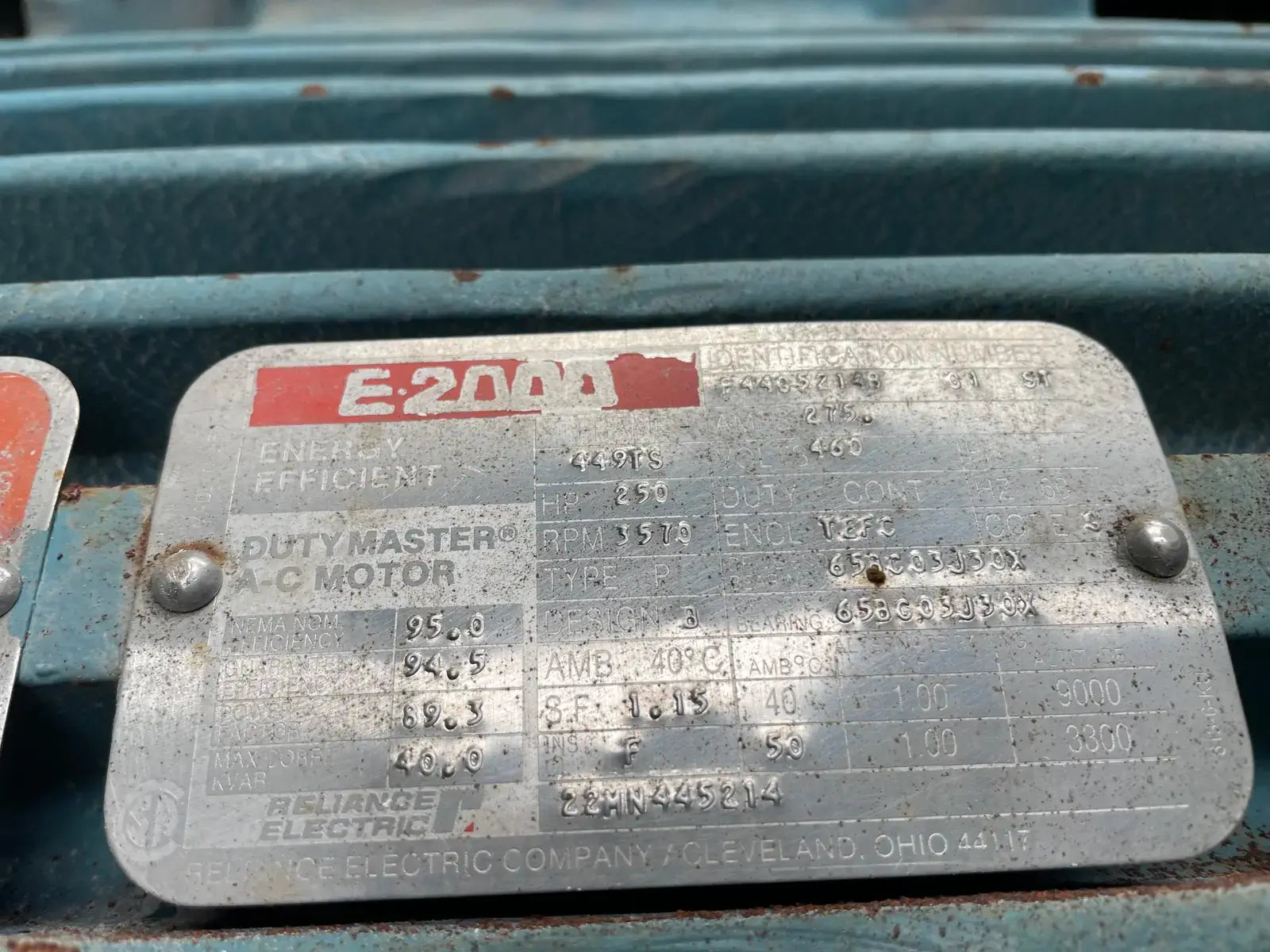

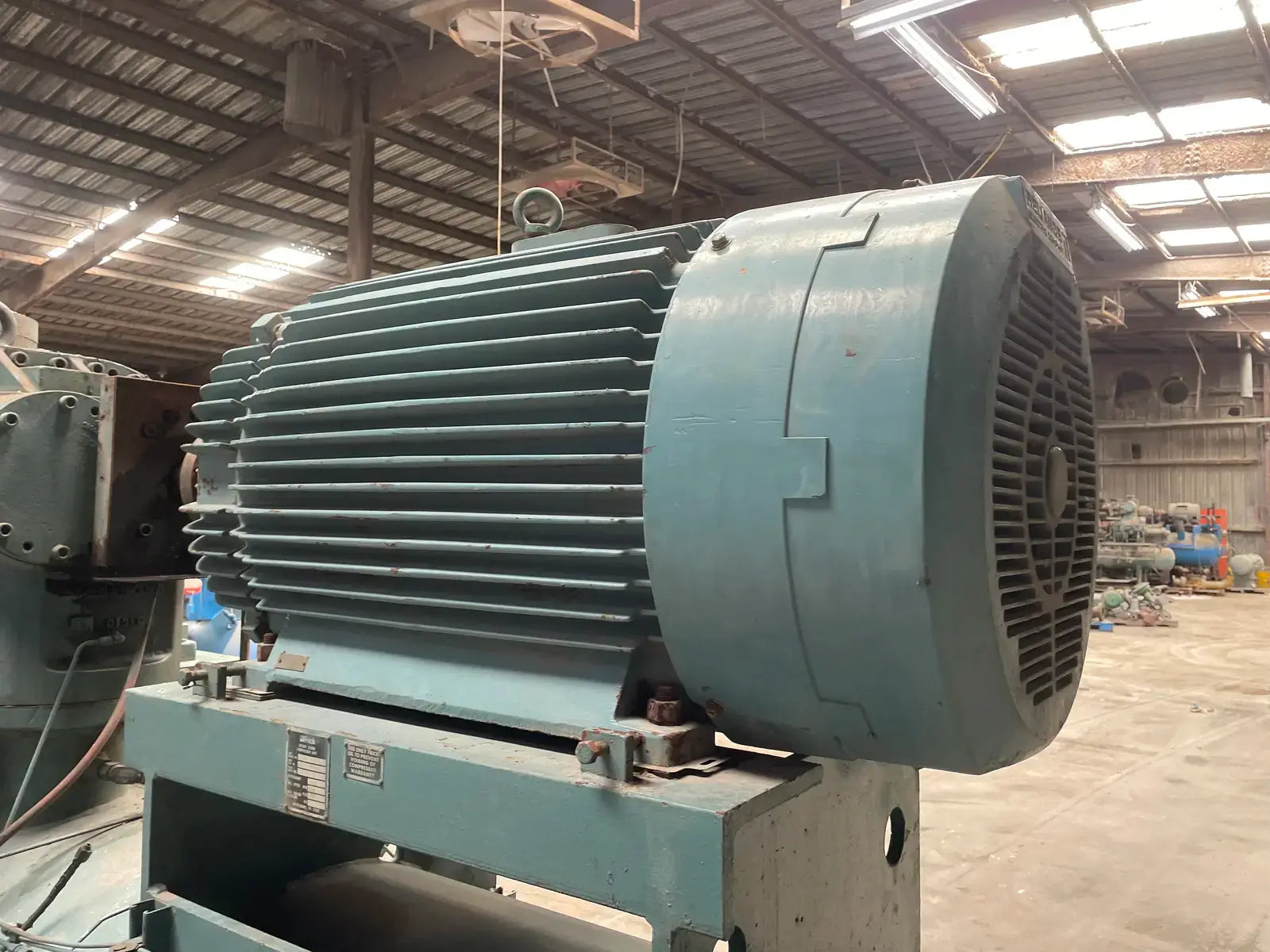

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Reliance
- Motor Horsepower(HP): 250
- Motor RPM: 3,575
- Motor Voltage: 460
- Motor Amps: 275
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 444TS
Dimensions:
- Length (Inches): 158
- Width (Inches): 62
- Height (Inches): 96
- Weight (LBS): 10,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 1992
- Year Removed from Production: 2023

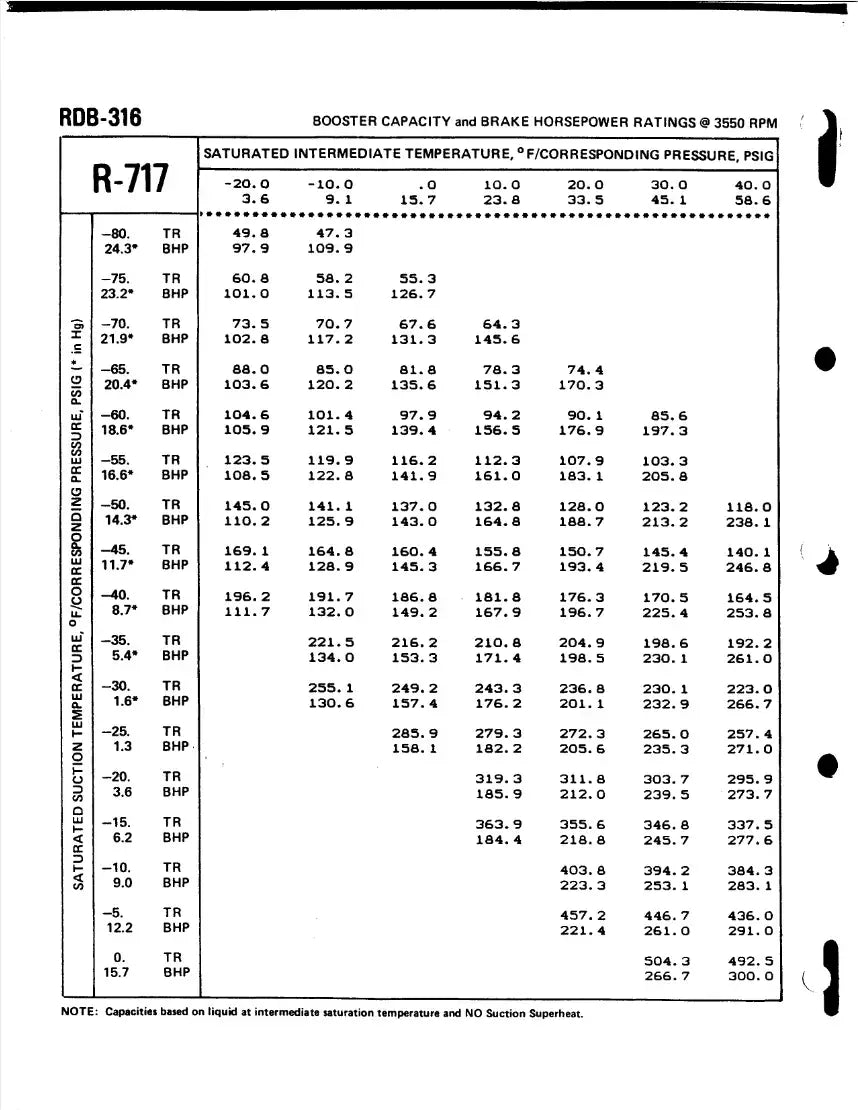

- Spec Sheet Available: Yes
