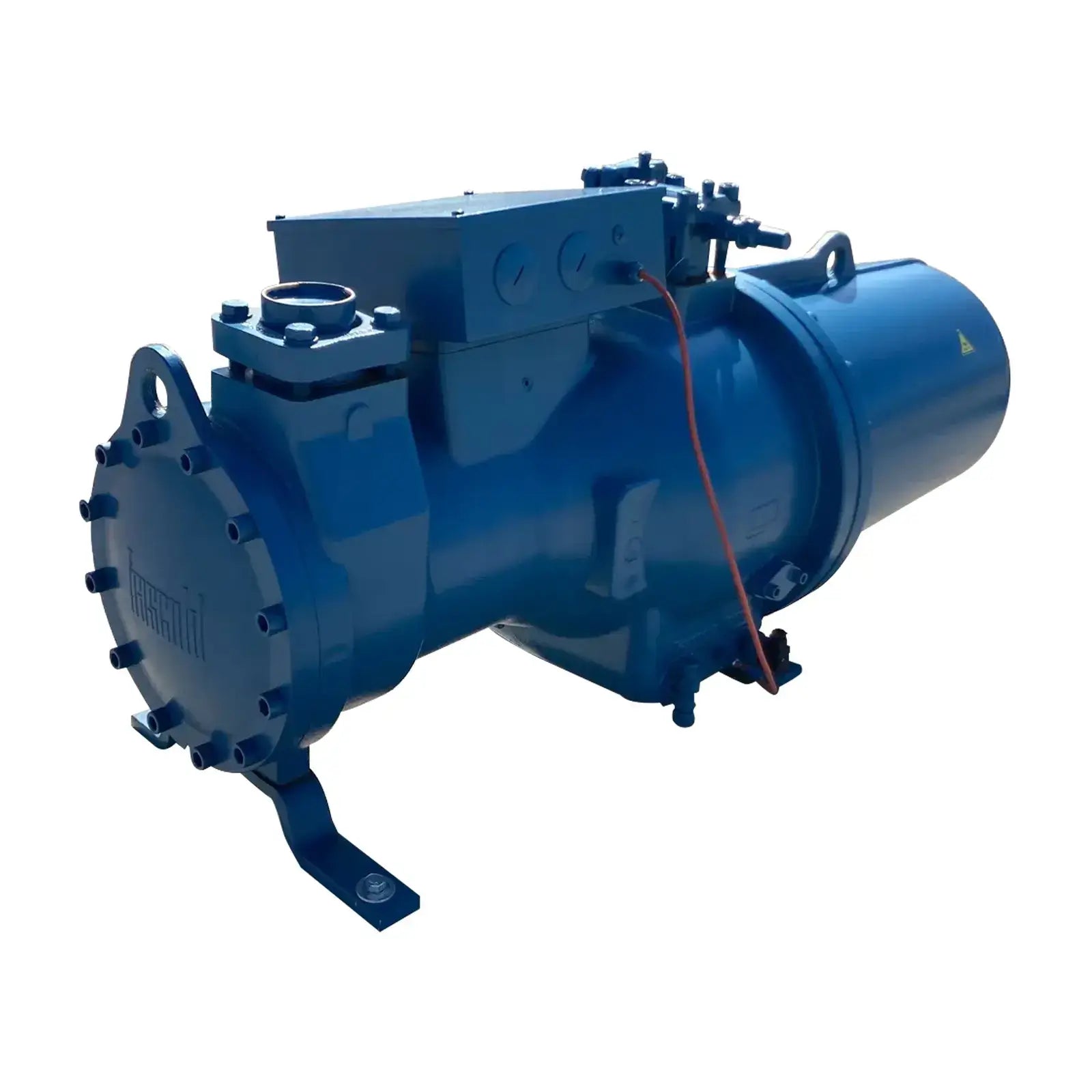

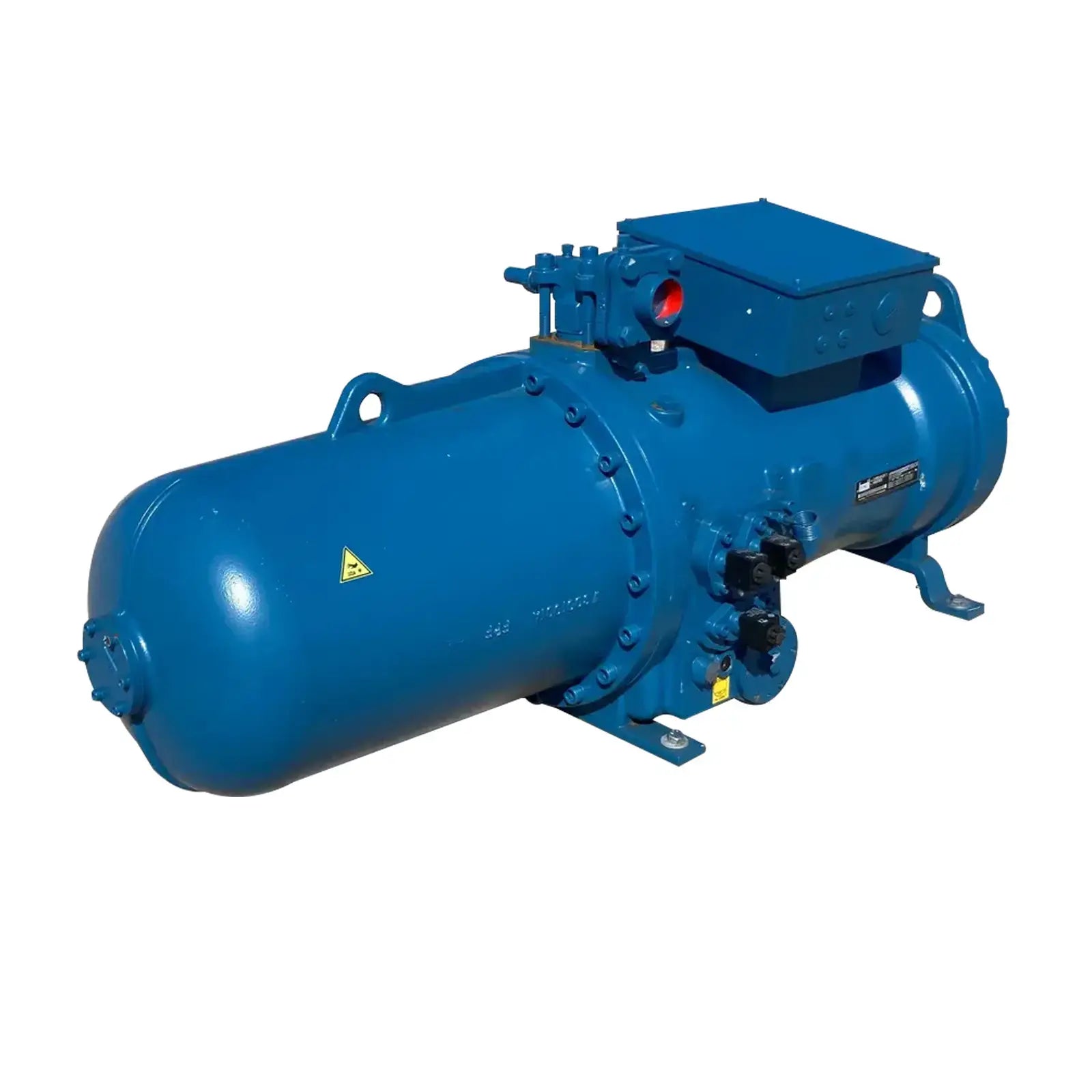

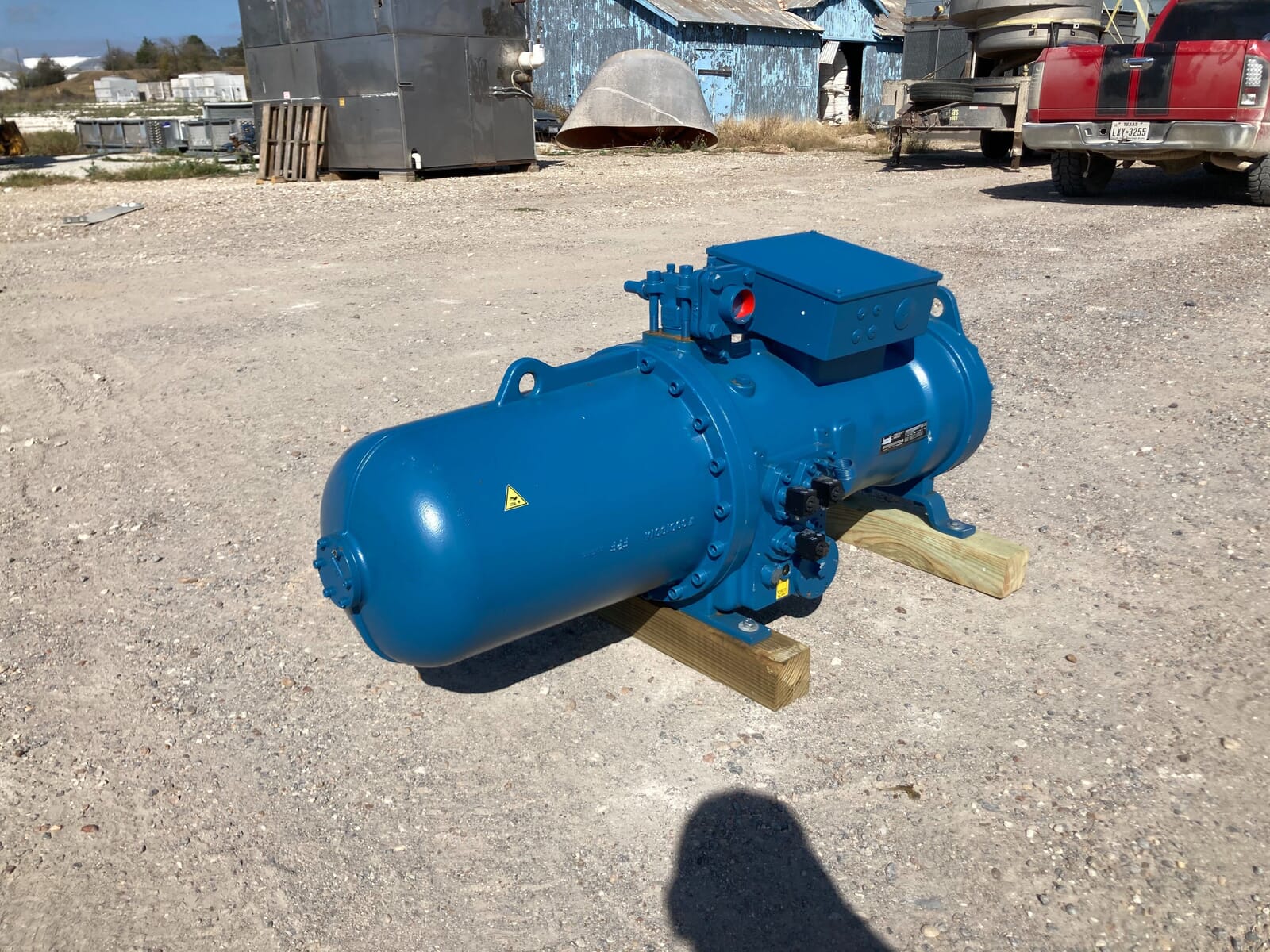

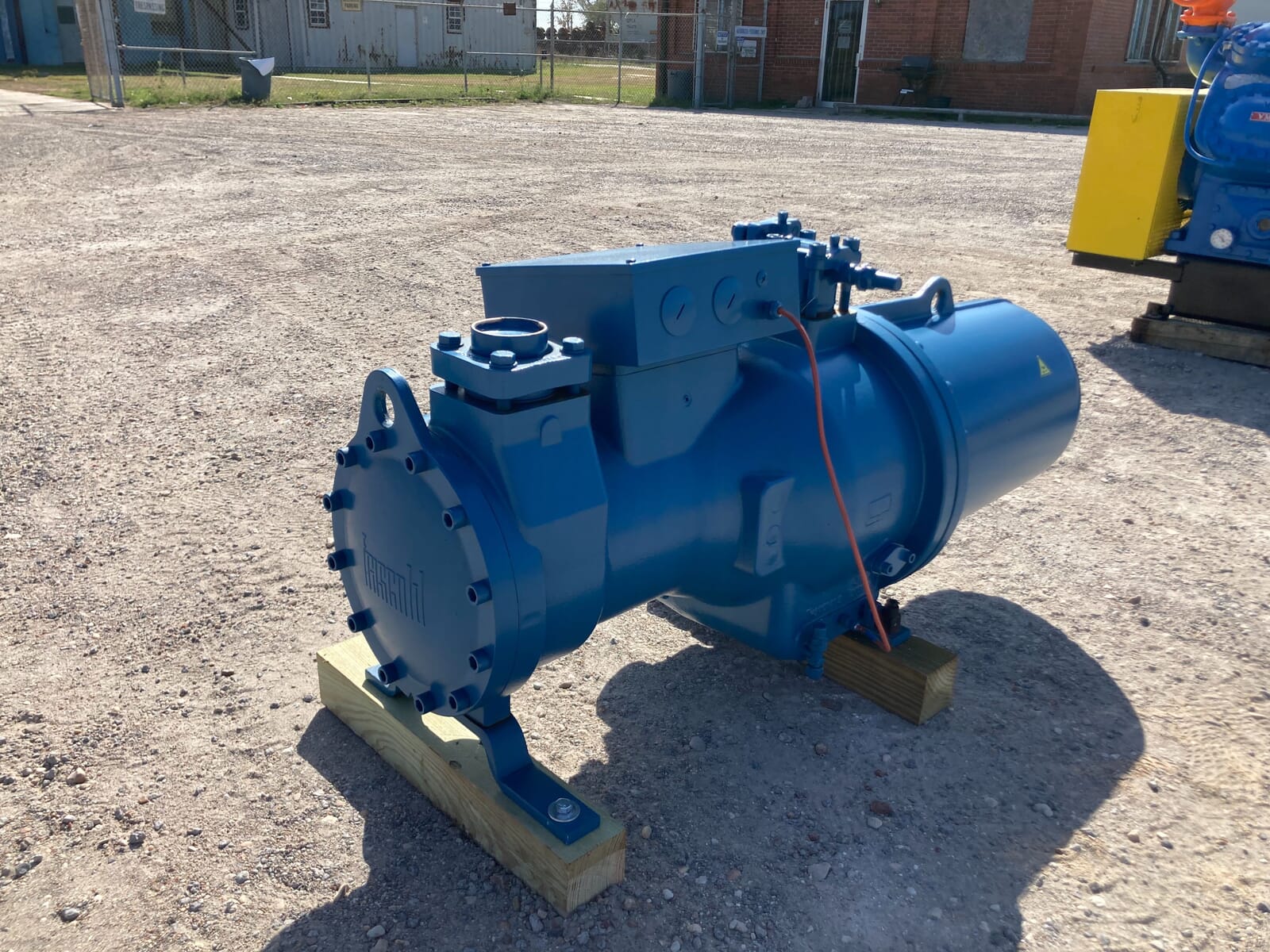

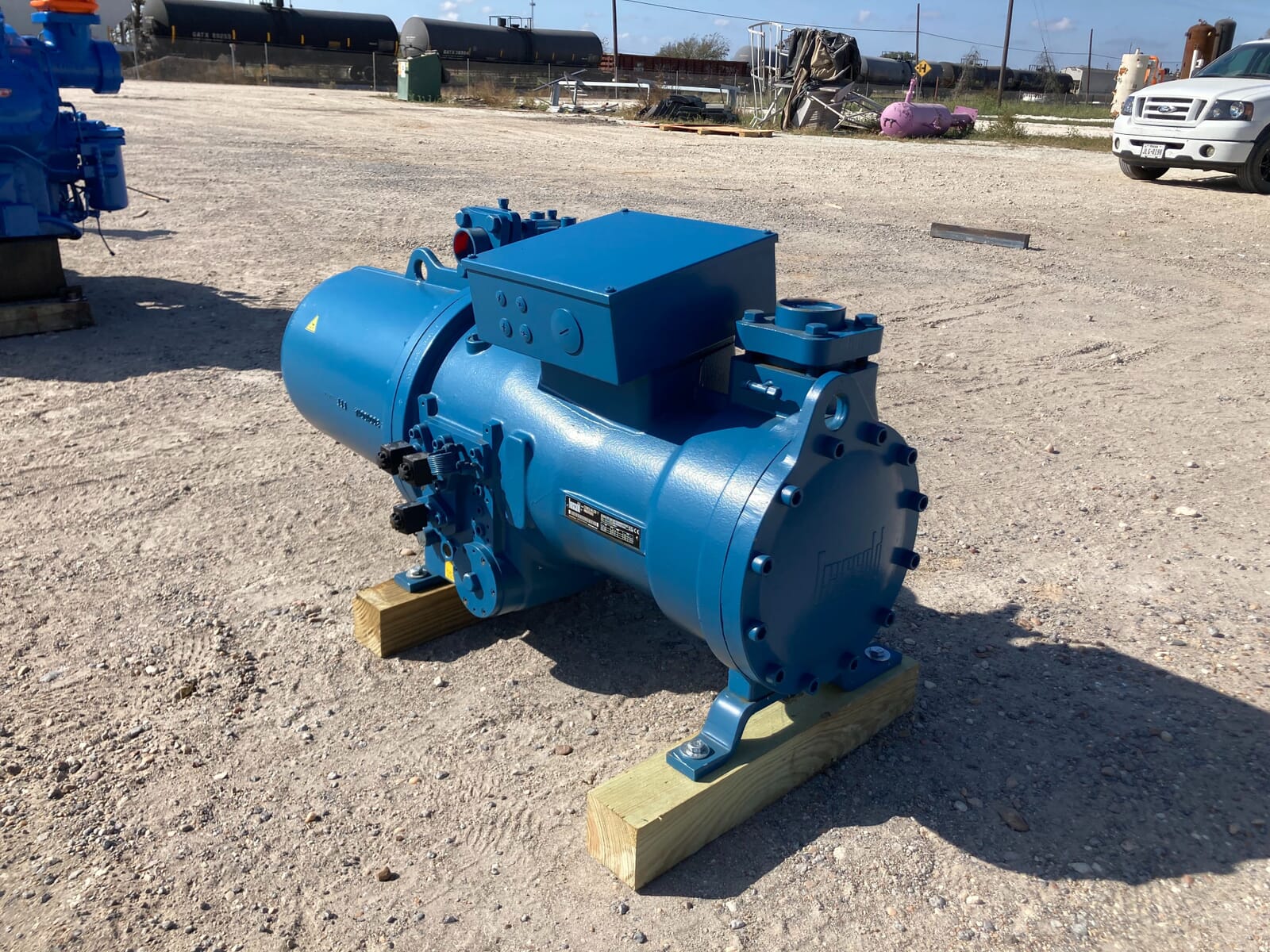

Frascold CXW02-60-230Y Semi-Hermetic Compact Compressor (60HP 400-460V)
Frascold Screw Semi-Hermetic Compressor - Model: CXW02-60-239Y, Serial: HN001003. Built-in part-winding starting (PWS) Electric Motor and Thermal protection probes connected to the electronic control module. Suitable for low compression ratios (typically water-cooled units. (PWS (Y/YY) = 50Hz, 380-420 V, (60 Hz, 440-480 V, 3PH) DOL (YY) = 50 Hz, 380-420 V, 3Ph (60 Hz, 440-480 V, 3PH)
Product Details
- Stock No: WSC02
- Manufacturer: Frascold
- Model: CXW02-60-230 Y
- Serial Number: HN001003
- Compressor Type: Semi-Hermetic
- Package Included? No
- Stage Type: High Stage
Package Details
Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frascold
- # Compressors in Package: 1
- Compressor Model: CXW02-60-230Y
- Compressor SN: HN001003
- Compressor Volume Ratio: 2.3
Micro Panel Details
- Micro Control Panel Included? No
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Horsepower(HP): 60
- Motor Voltage: 400- 460
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 55
- Width (Inches): 24
- Height (Inches): 22
- Weight (LBS): 1,178
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
