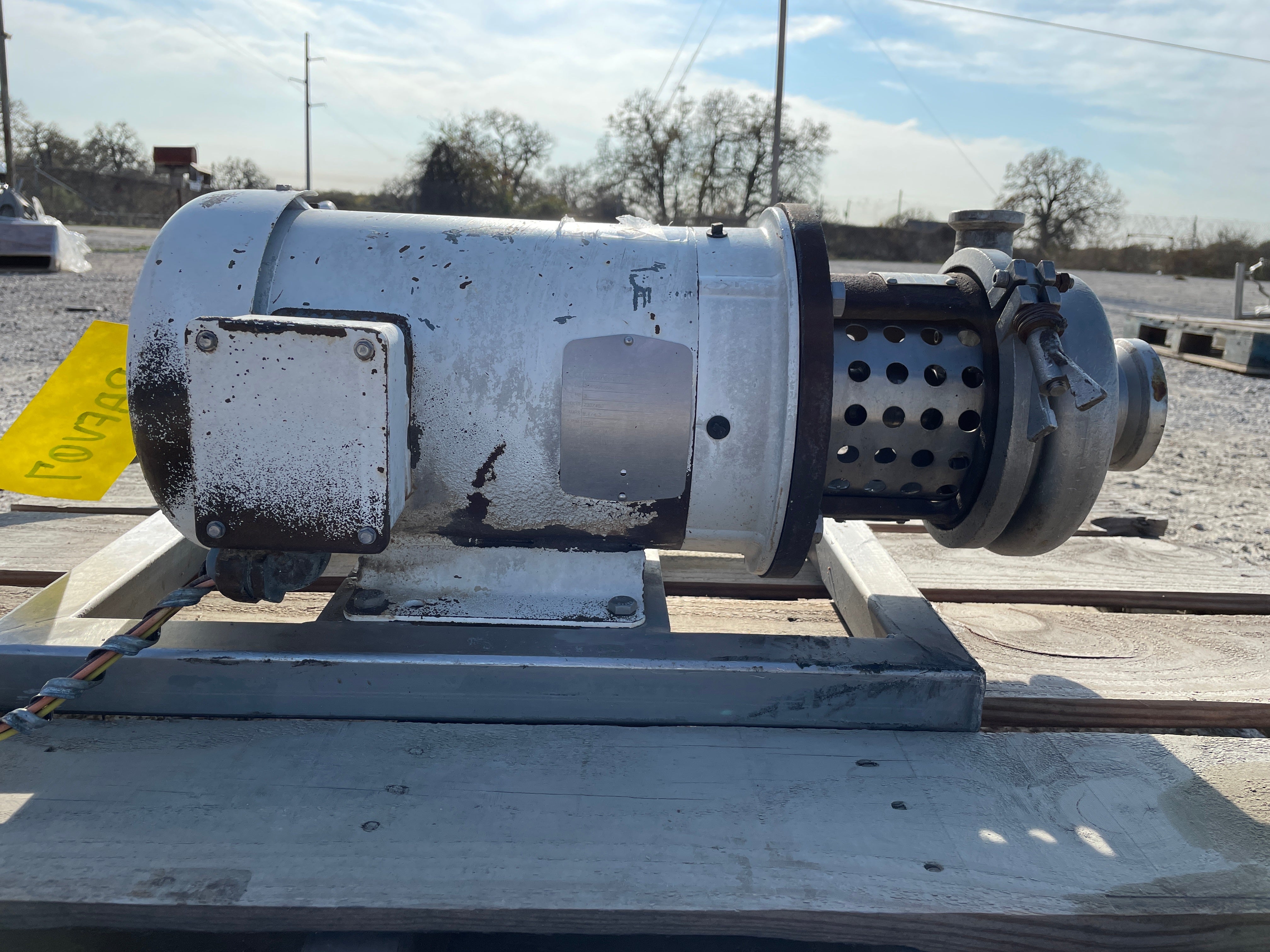

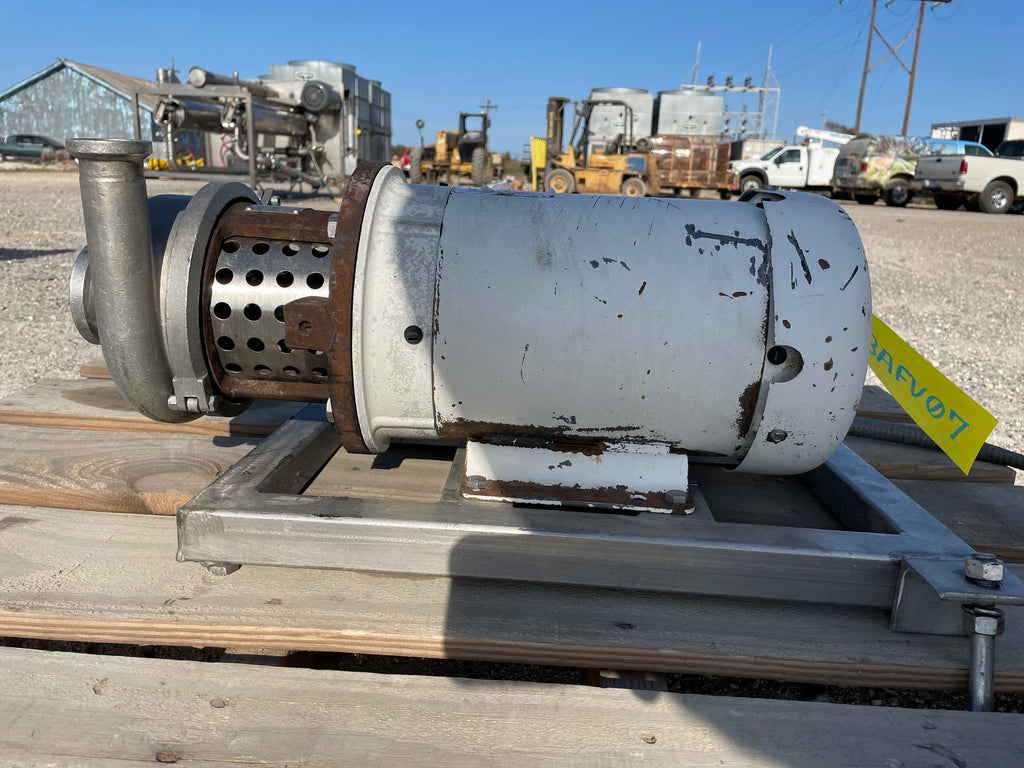

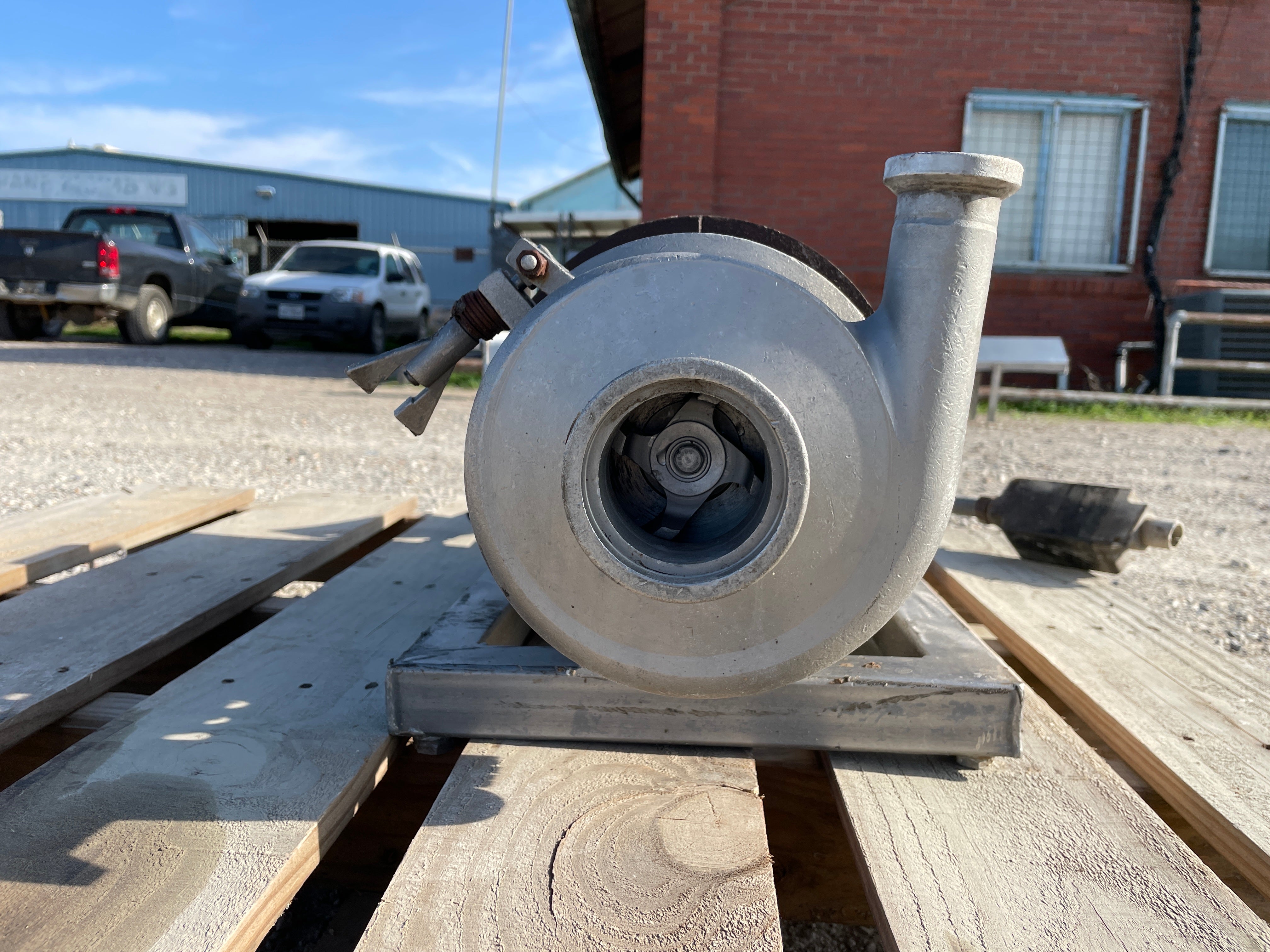

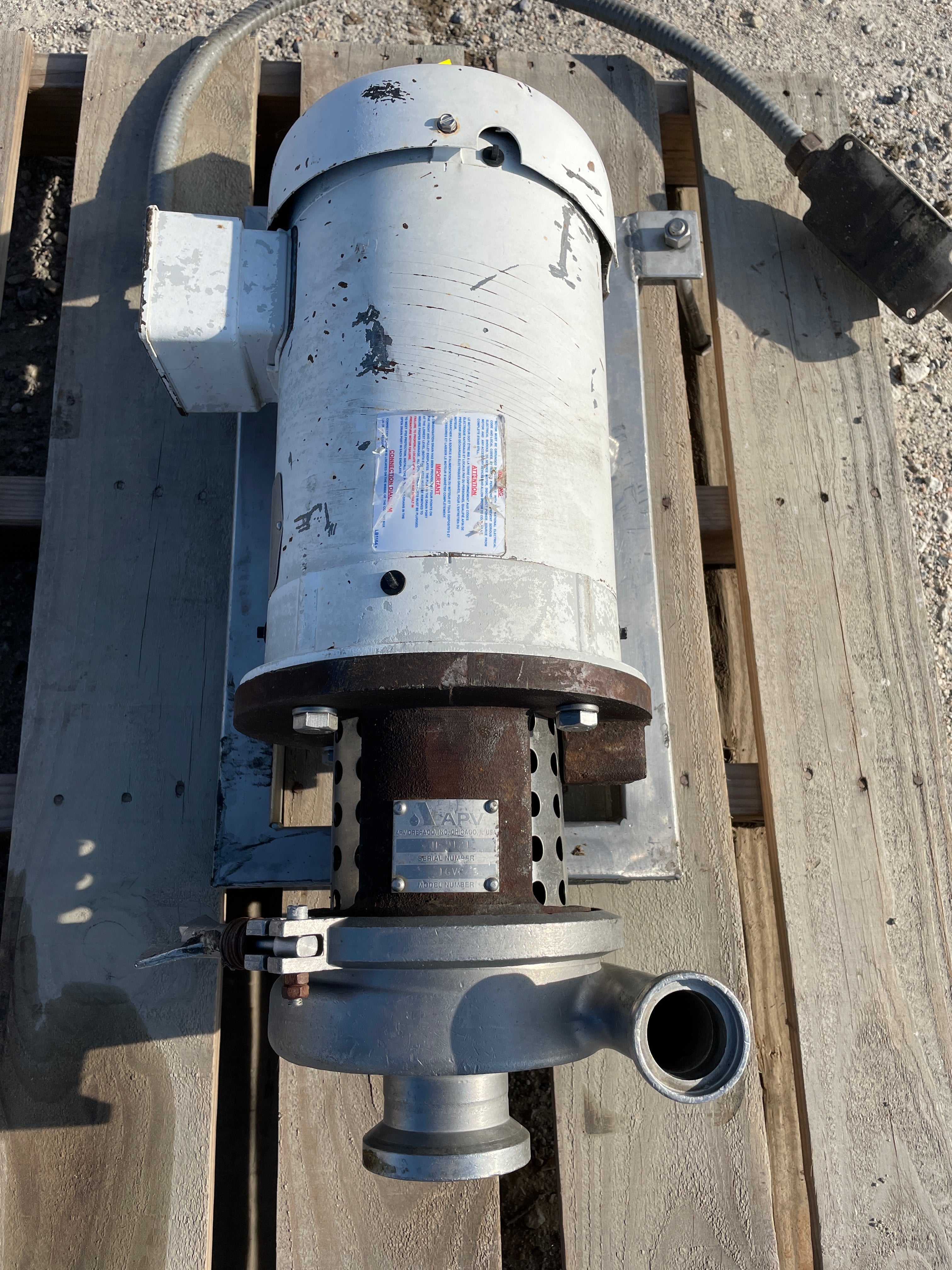

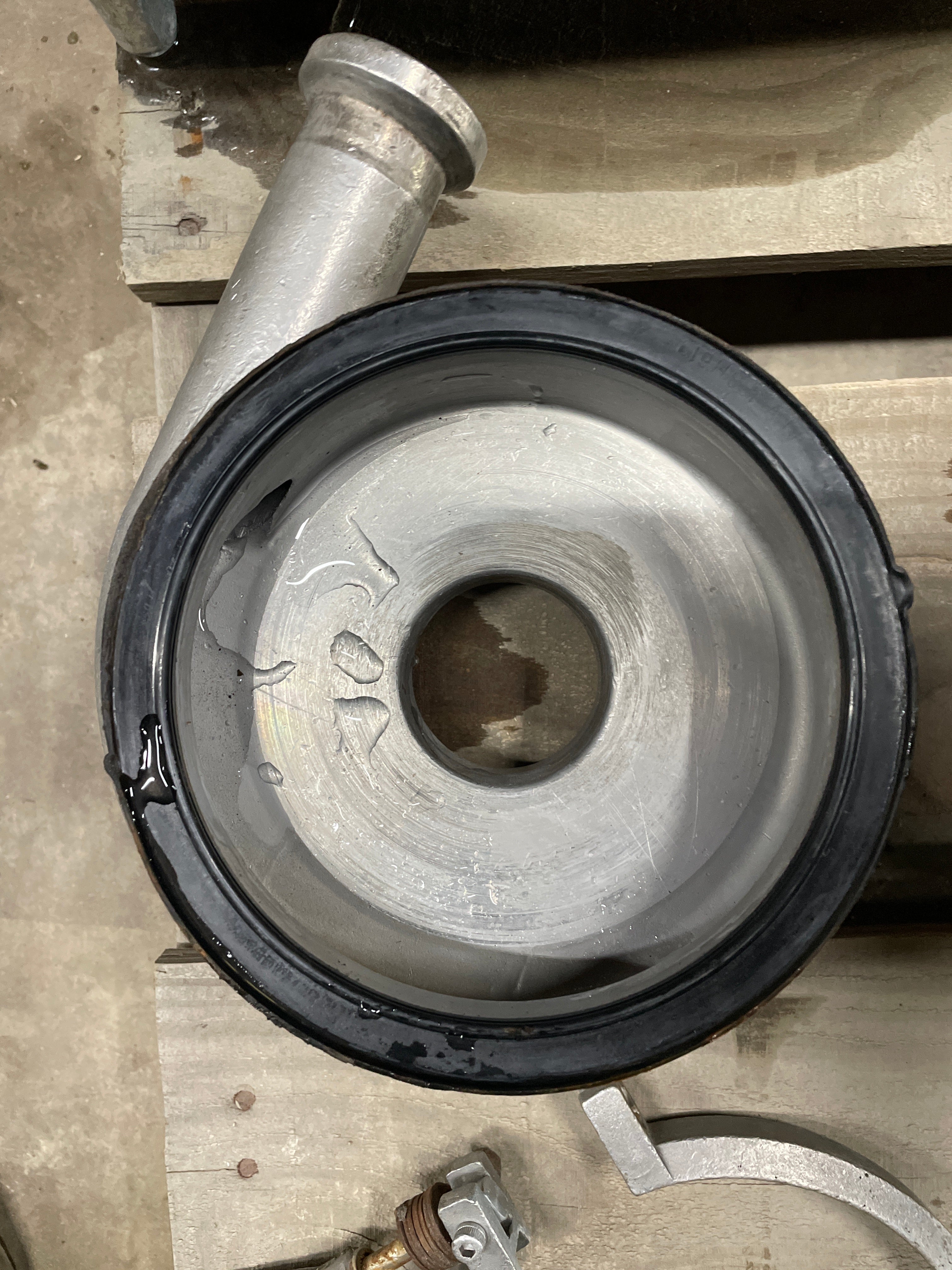

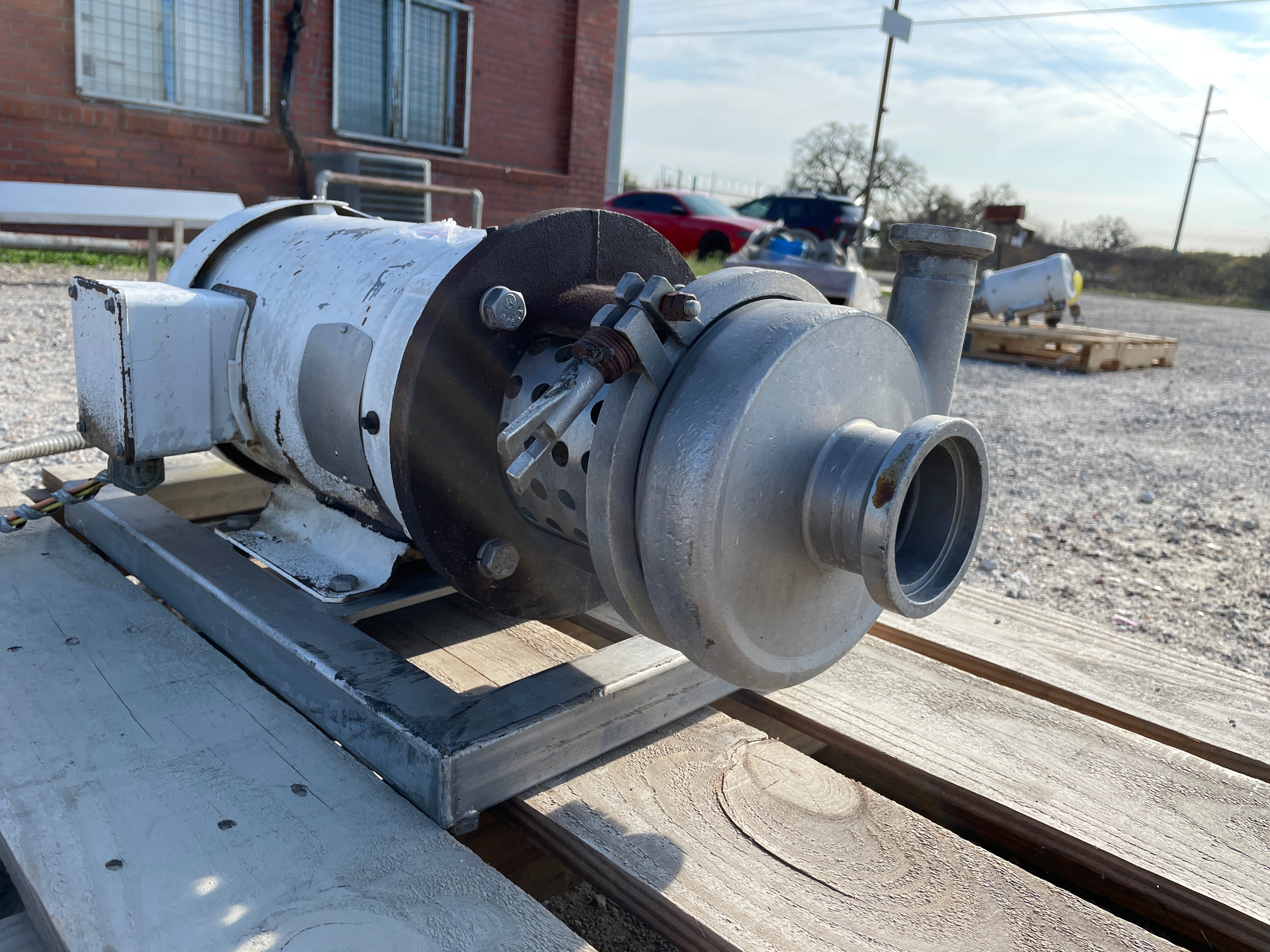

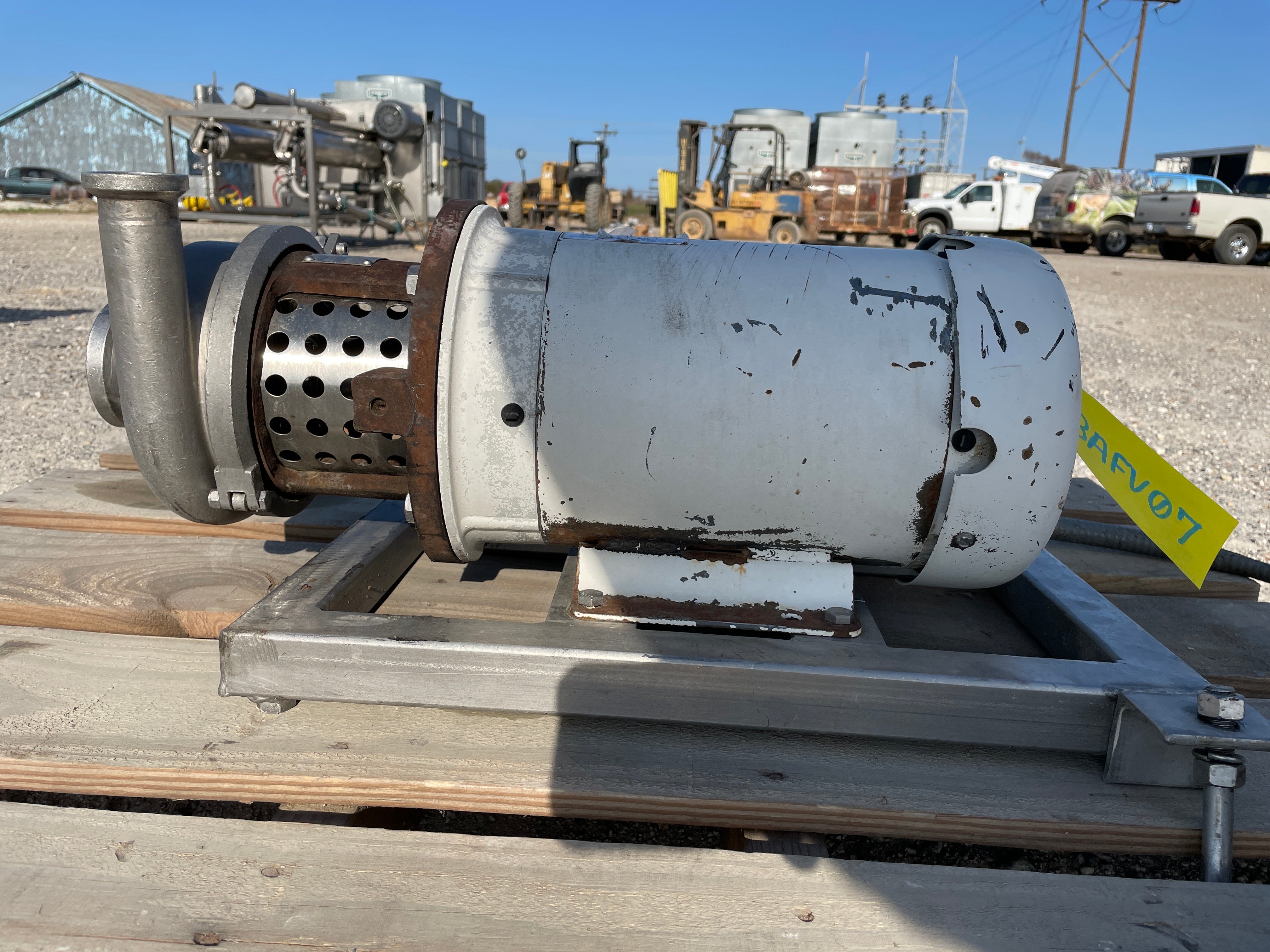

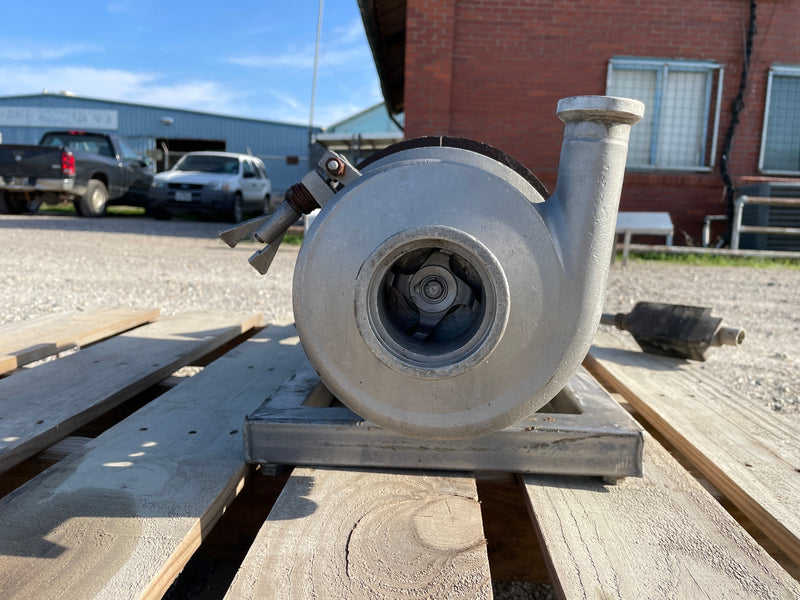

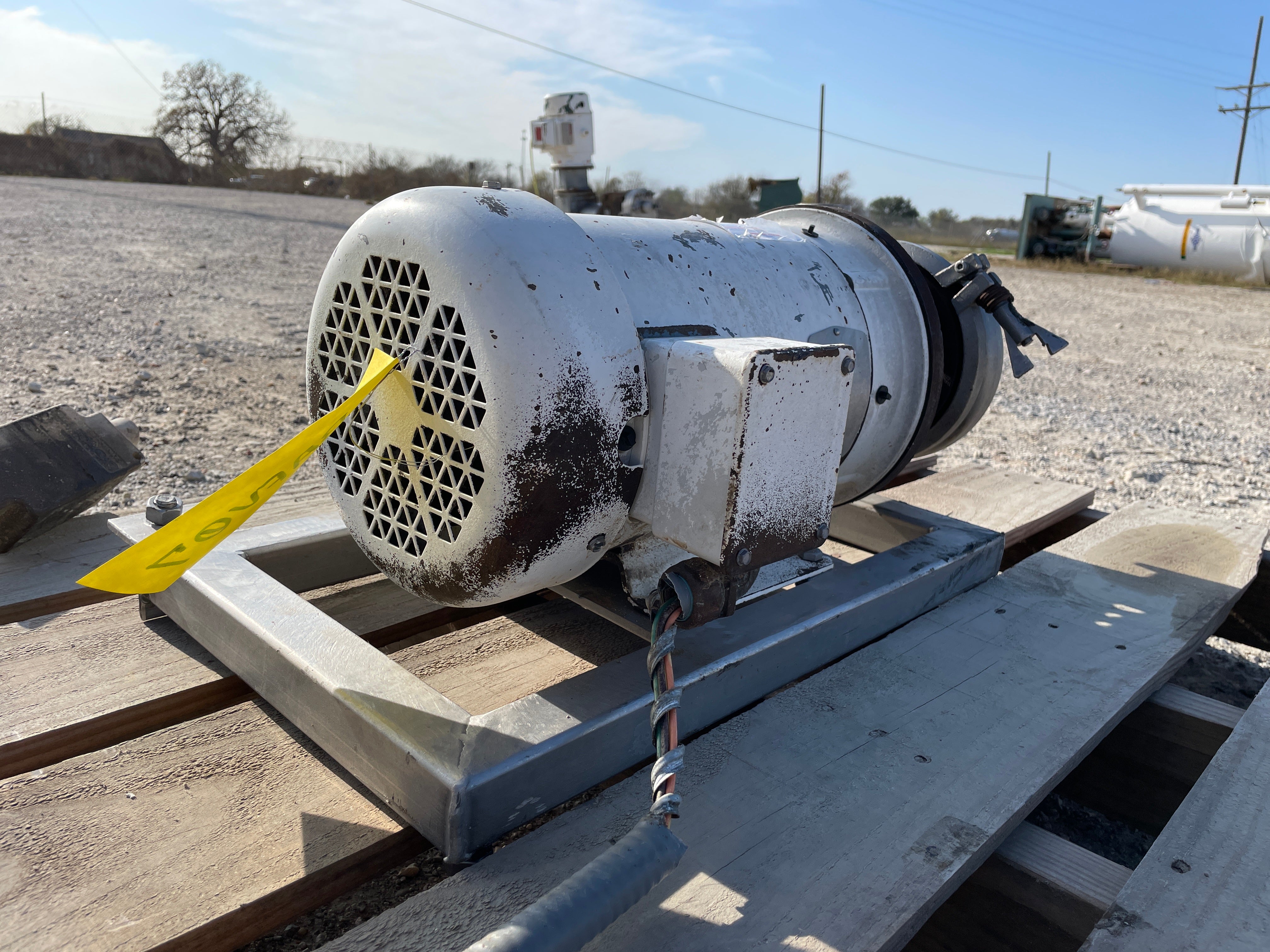

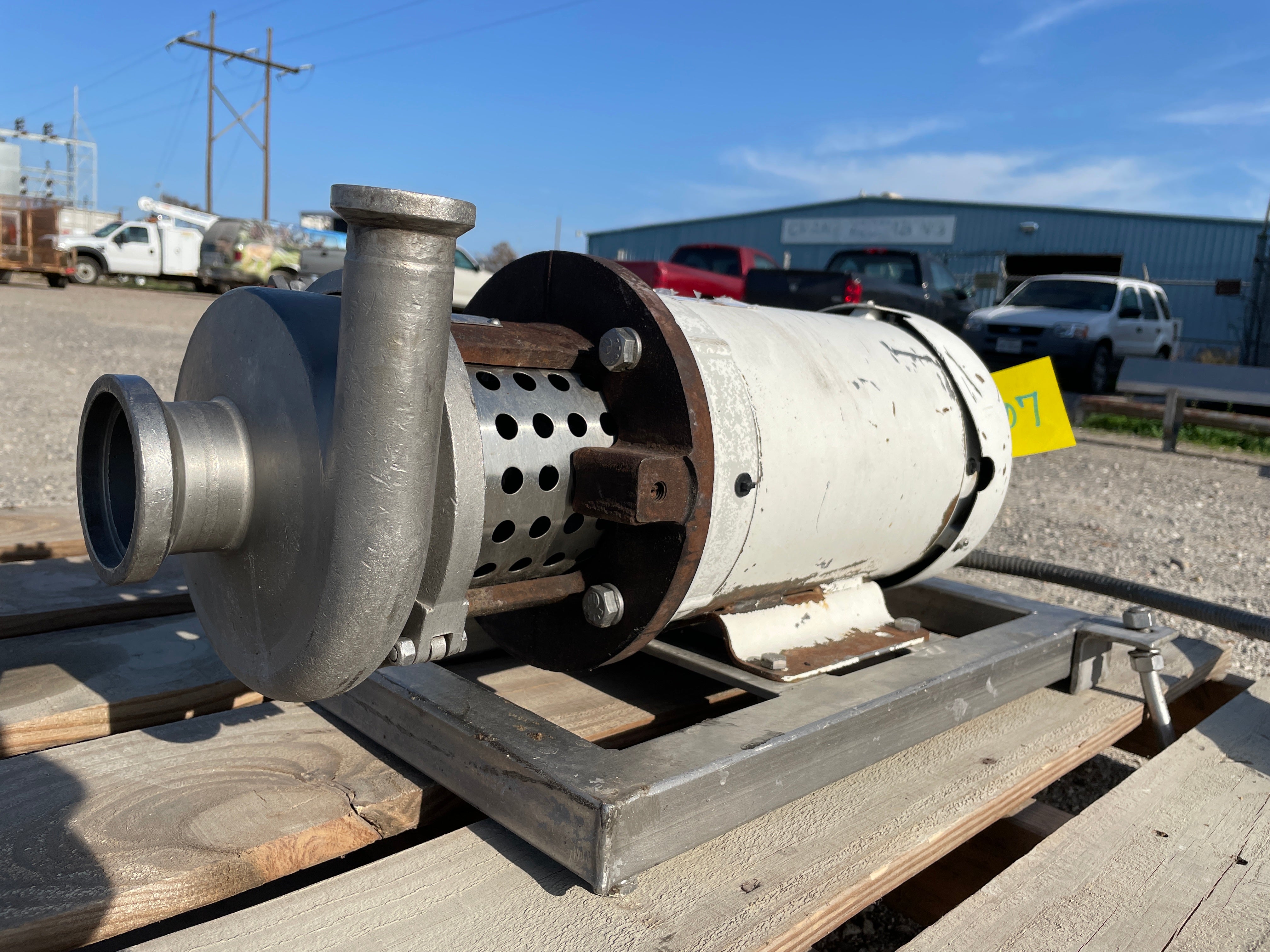

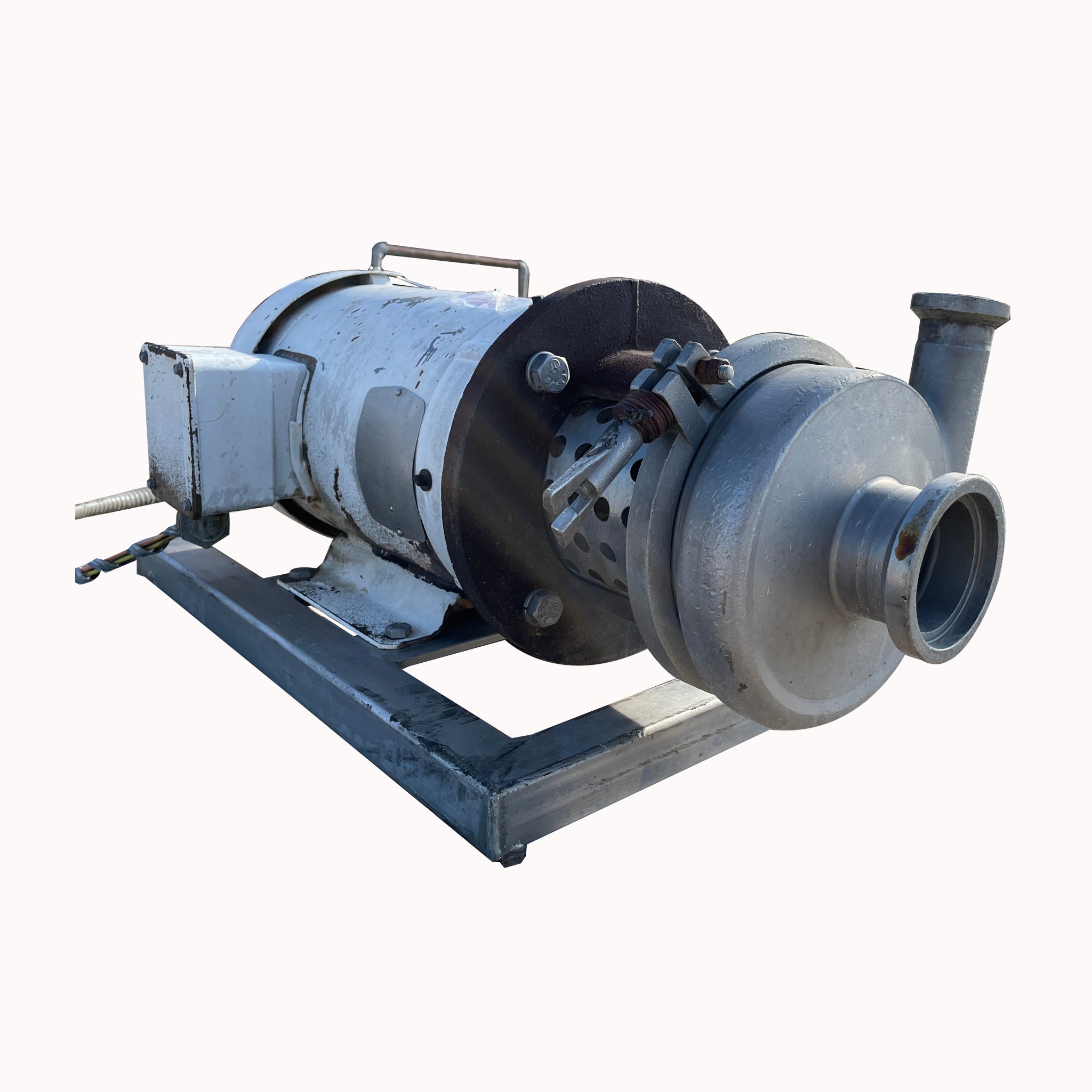

APV 16V2 Centrifugal Pump (3 HP, 280 GPM Max)

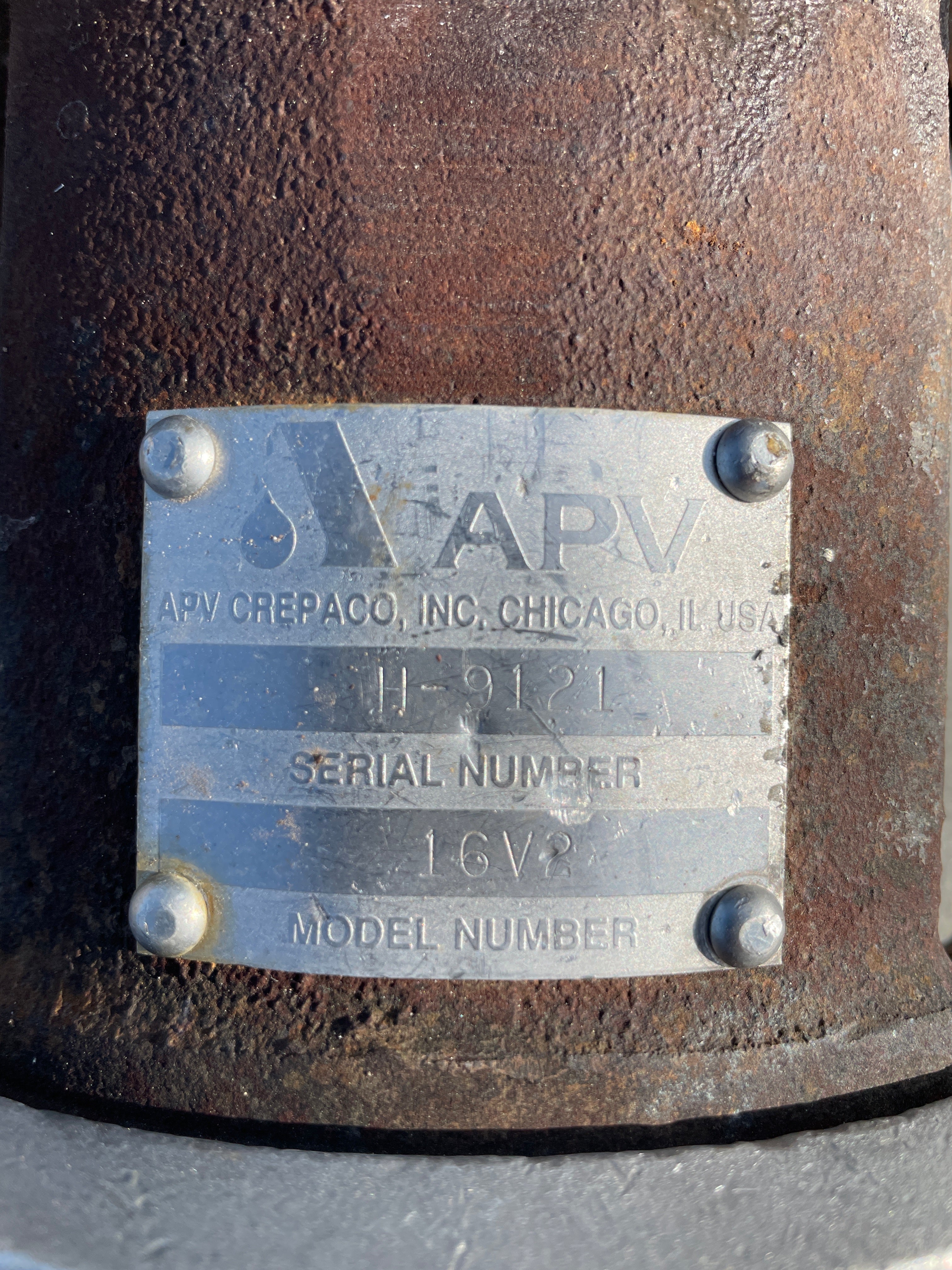

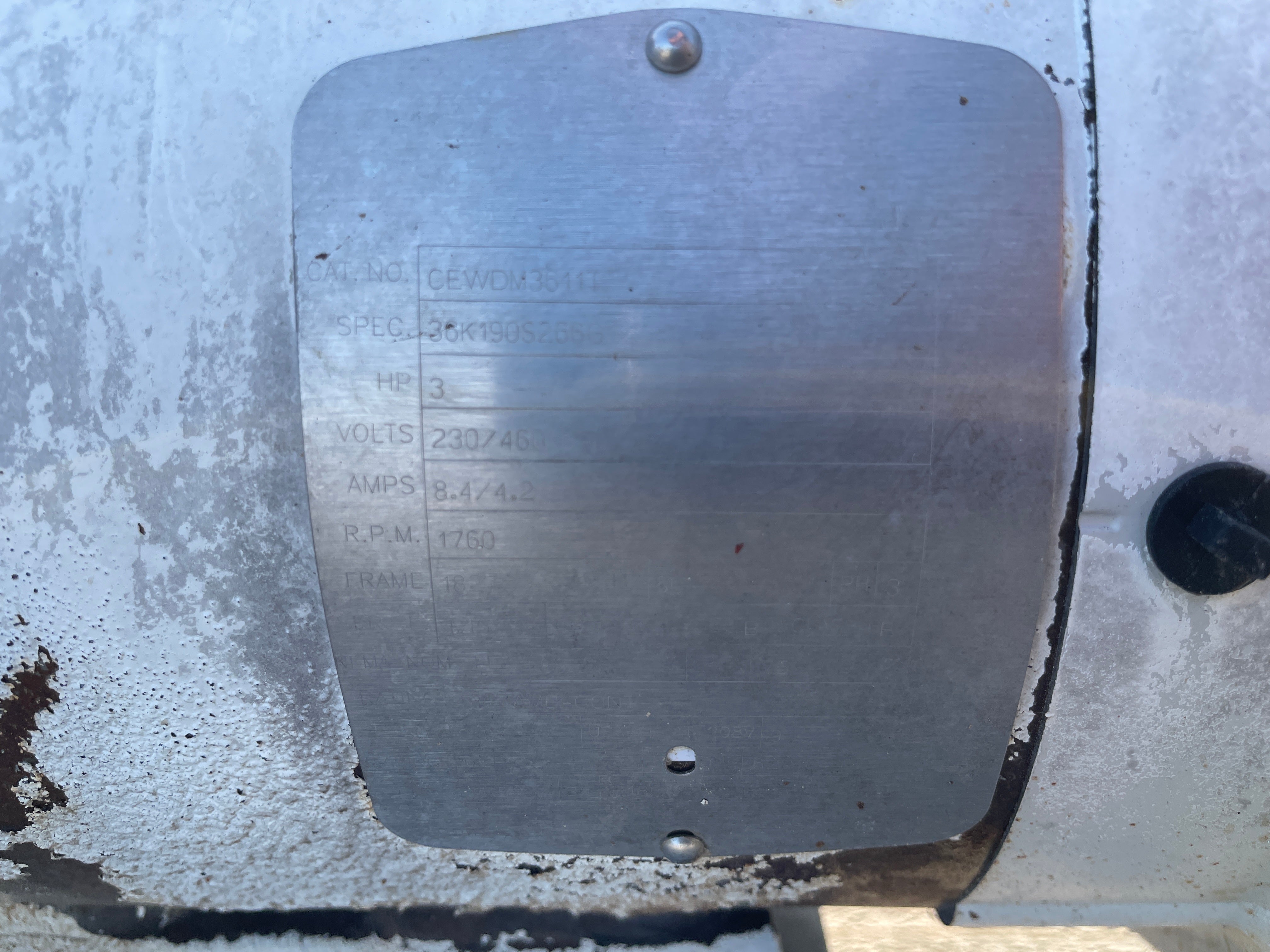

APV Crepaco Pump - Serial No: H-9121, Model 16V2. Connections - Inlet Size(in): 3, Outlet Size (in): 2. Impeller - Max Dia.(in): 5-13/16. Maximum Performance at 1750 RPM - Capacity GPM: 135, Head ft: 23, Shut-Off Head (ft.): 41. Range of Motor Frame Sizes: 58C Through 215TC. Maximum RPM: 3500 Producing 280 GPM. Baldor Motor: CAT No: CEWDM3611T, SPEC: 36K190S2666, HP: 3, Volts: 230/460, Amps: 8.4/4.2, RPM: 1760, Frame: 182TC, Ph: 3.
Product Details

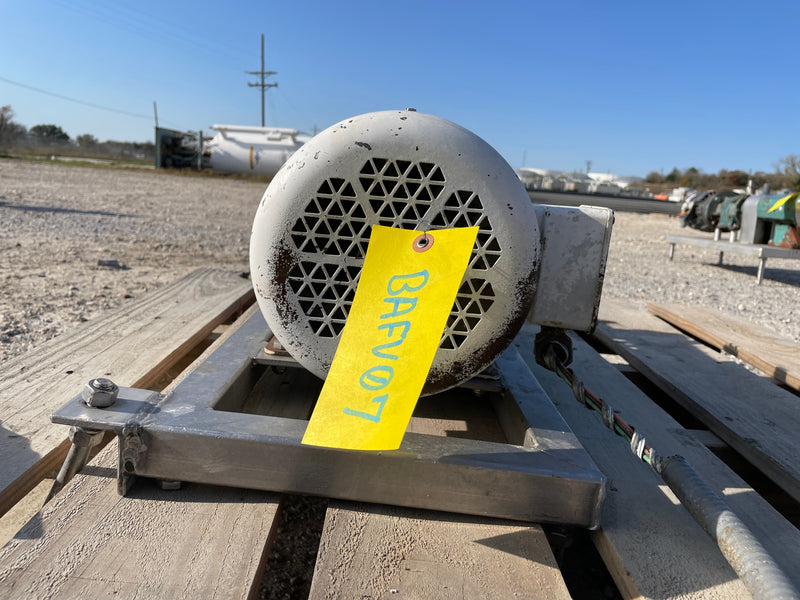

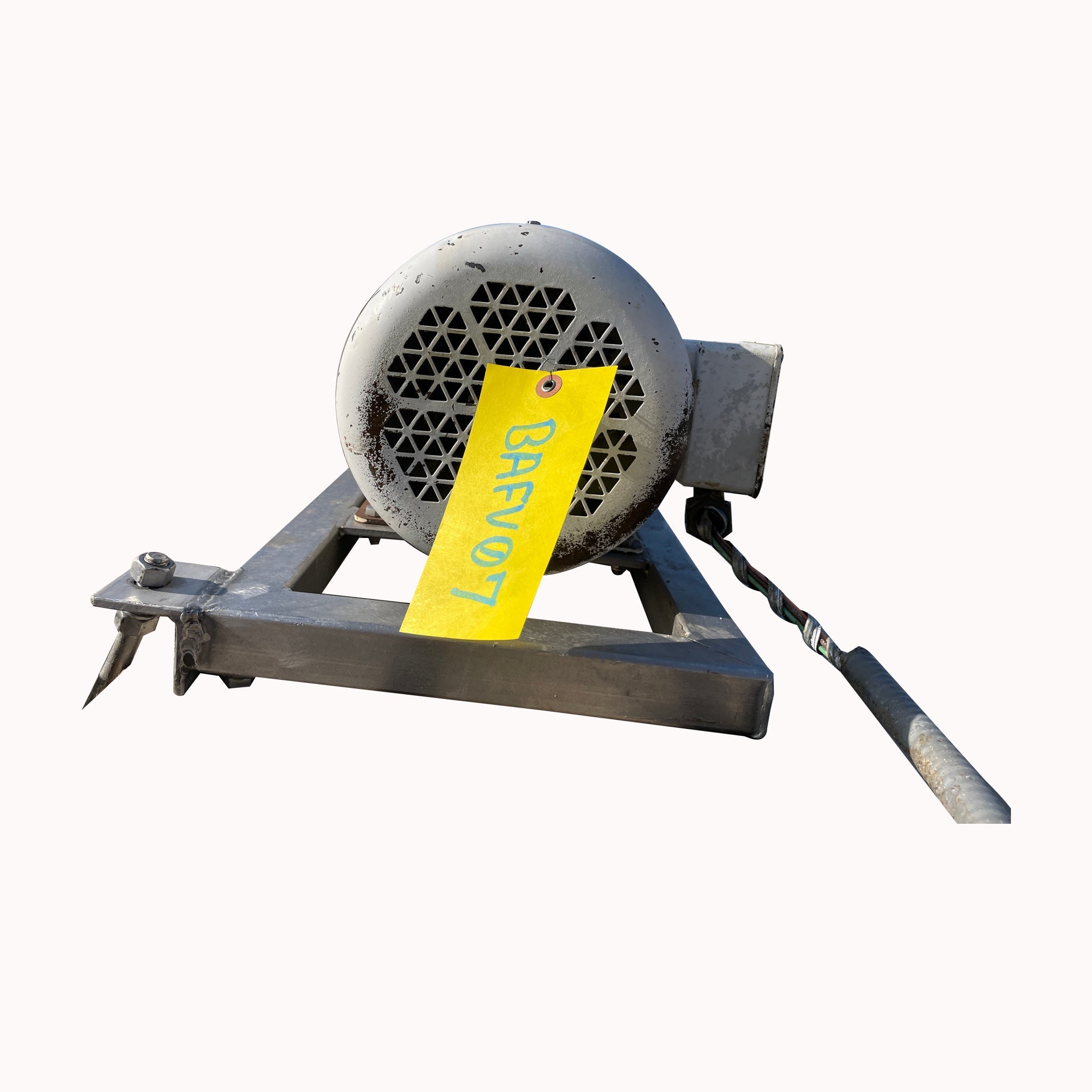

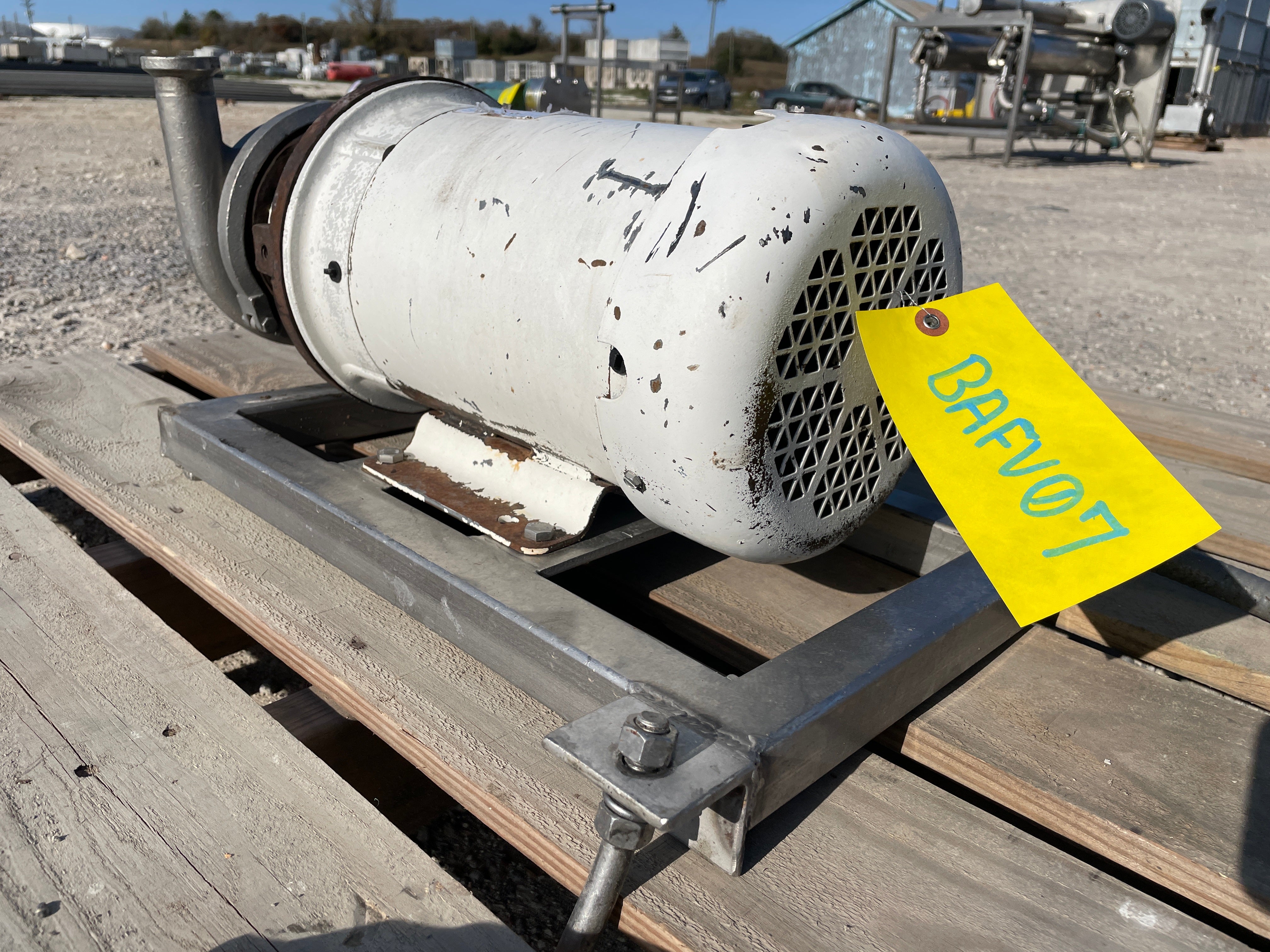

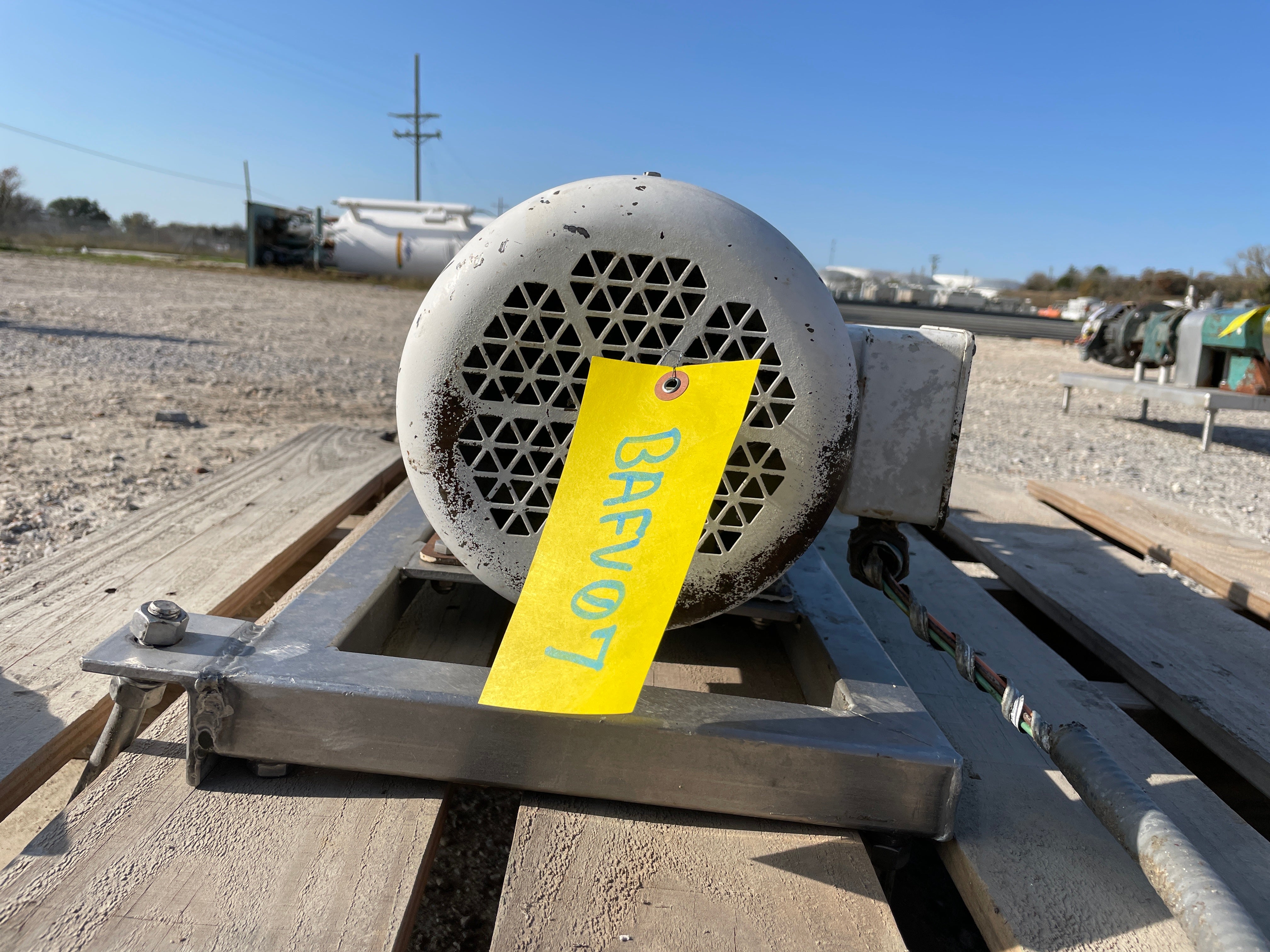

- Stock No: BAFV07
- Manufacturer: APV
- Model: 16V2
- Serial Number: H-9121
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 280
- Max Speed RPM: 3500

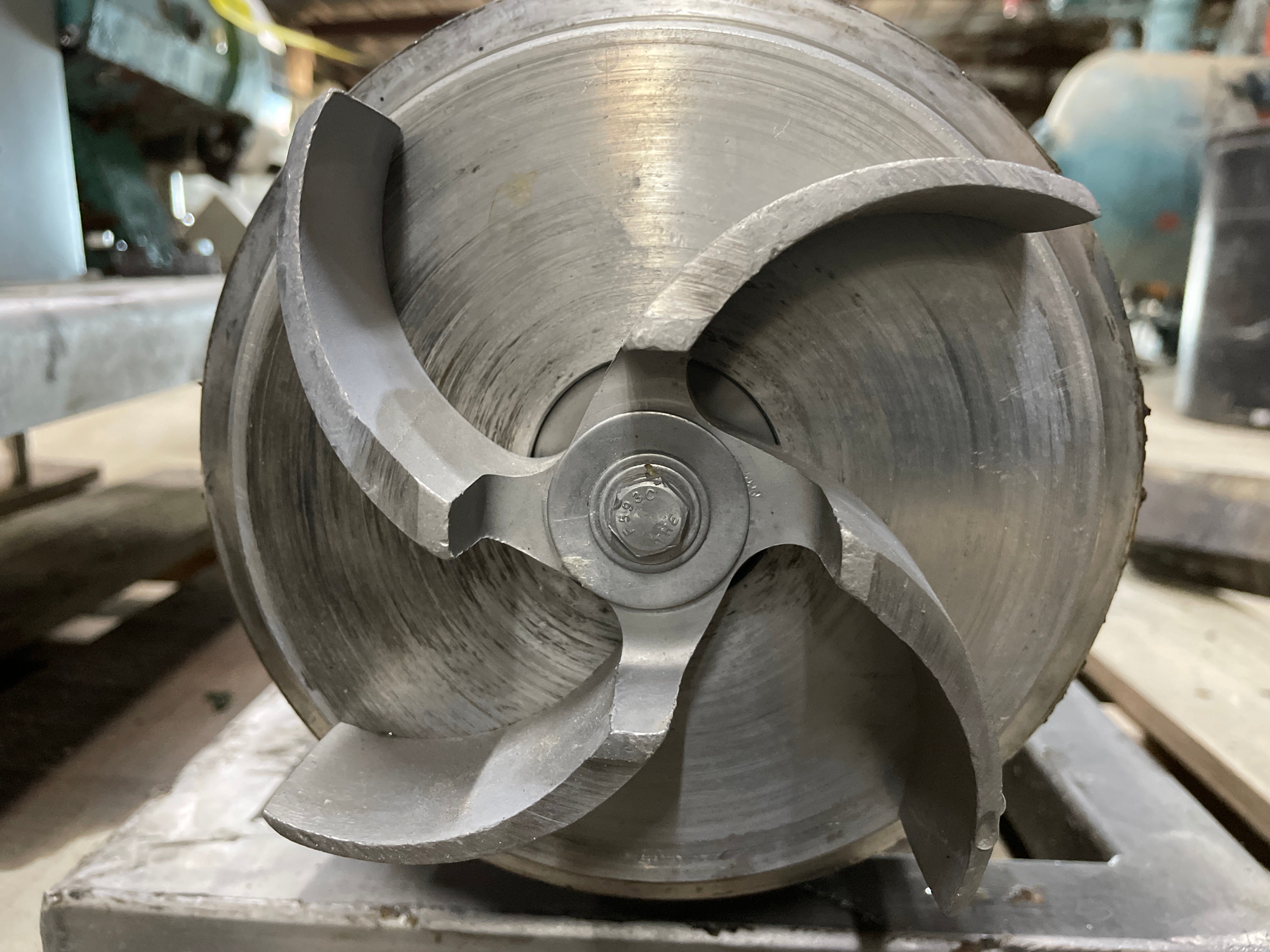

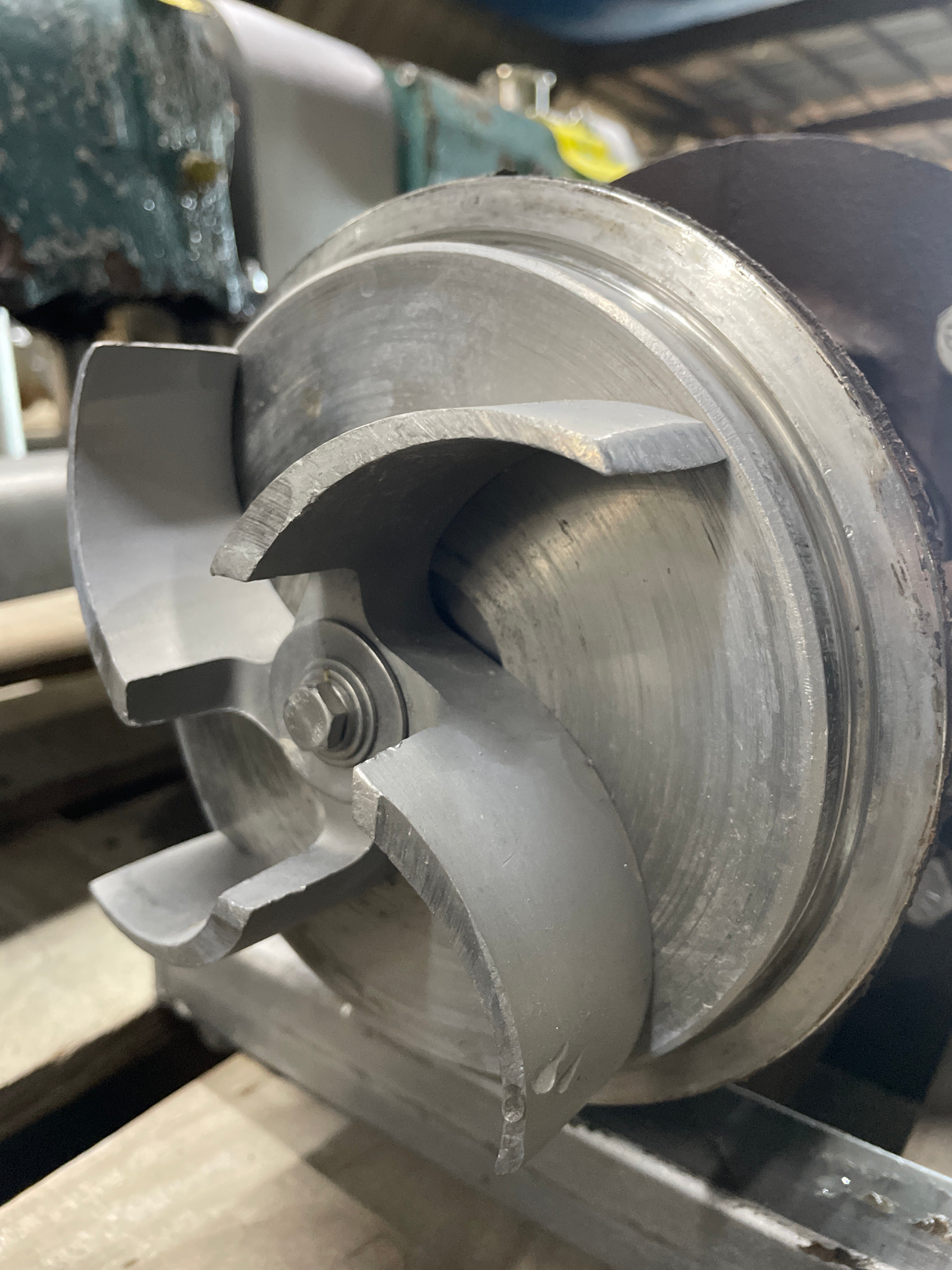

- Impeller Diameter (inches): 4.18
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 3

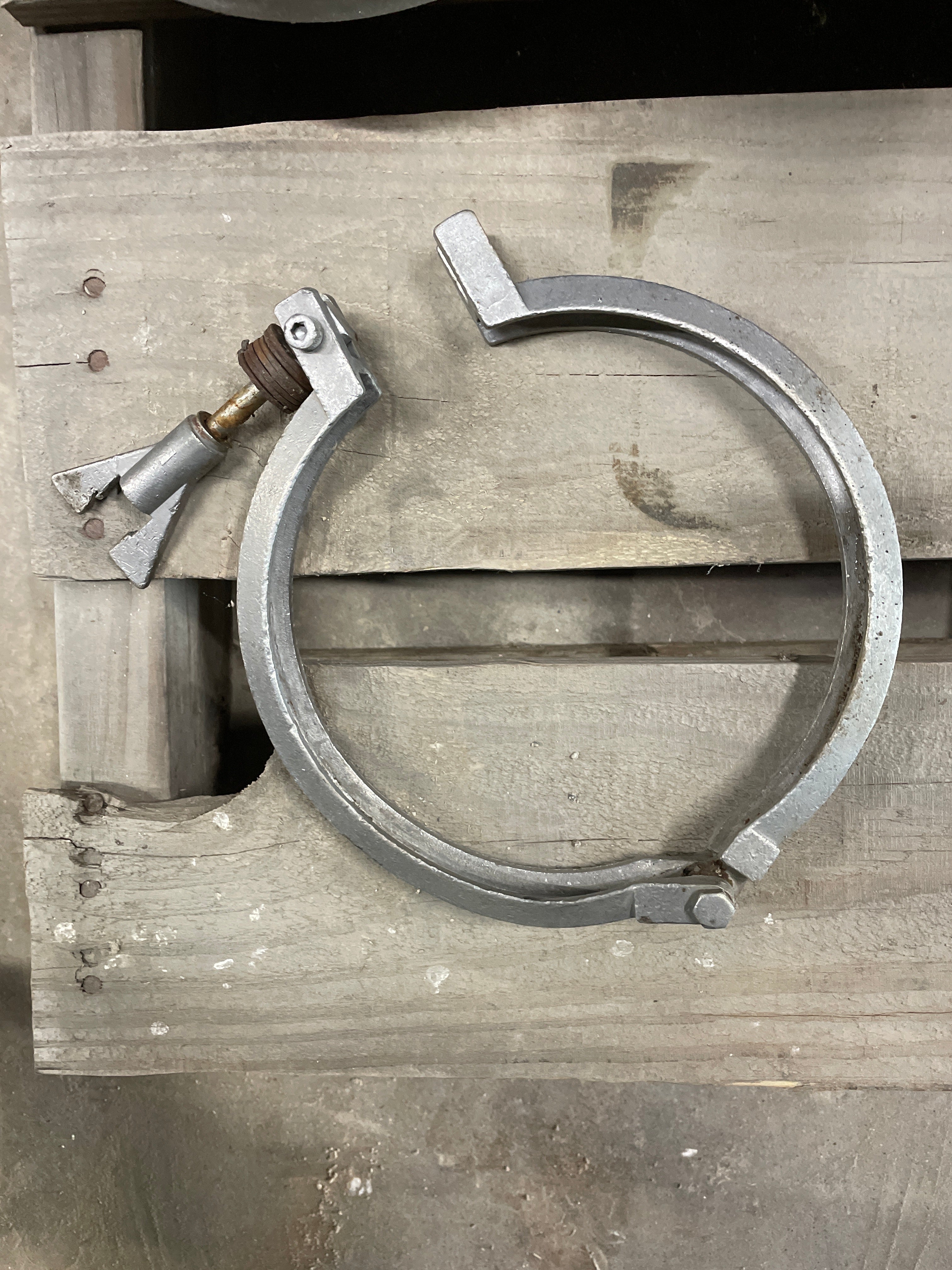

- Inlet/Outlet Type 1: Tri-Clamp
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 2
- Inlet/Outlet Type 2: Tri-Clamp
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1

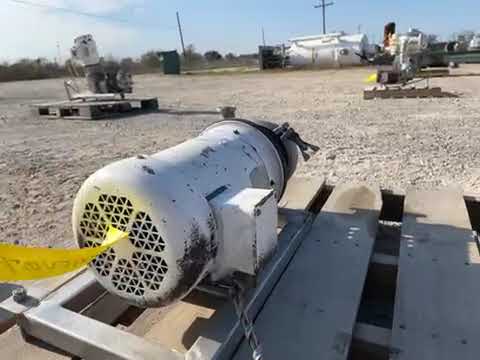

- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 3
- Motor RPM: 1760
- Motor Voltage: 230/460
- Motor Amps: 8.4/4.2
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 182TC
Dimensions:
- Length (Inches): 29
- Width (Inches): 15
- Height (Inches): 12
- Weight (LBS): 150
- # of Pieces for Shipping: 1
