APV 4 Effect Six Stage Evaporator

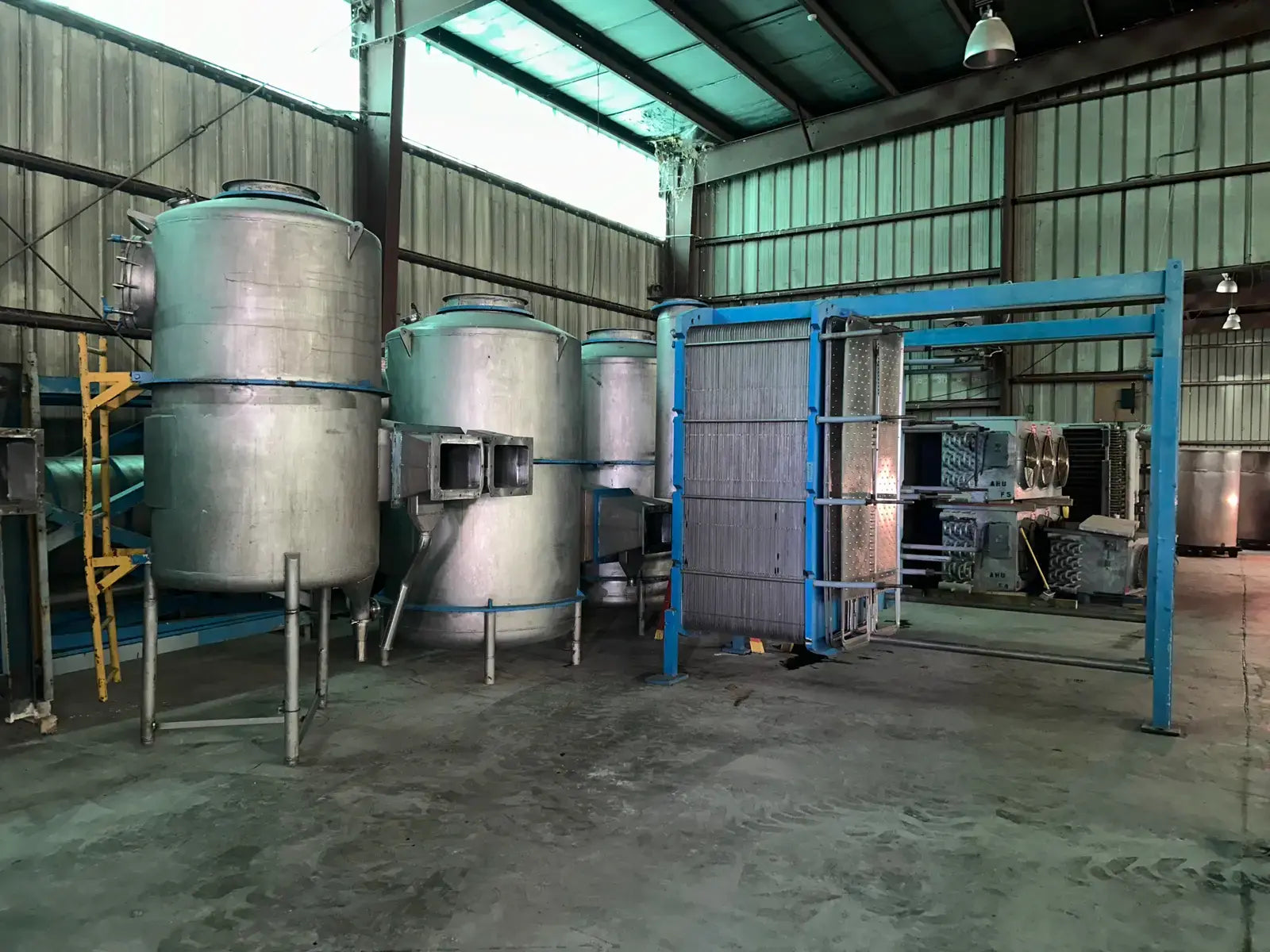

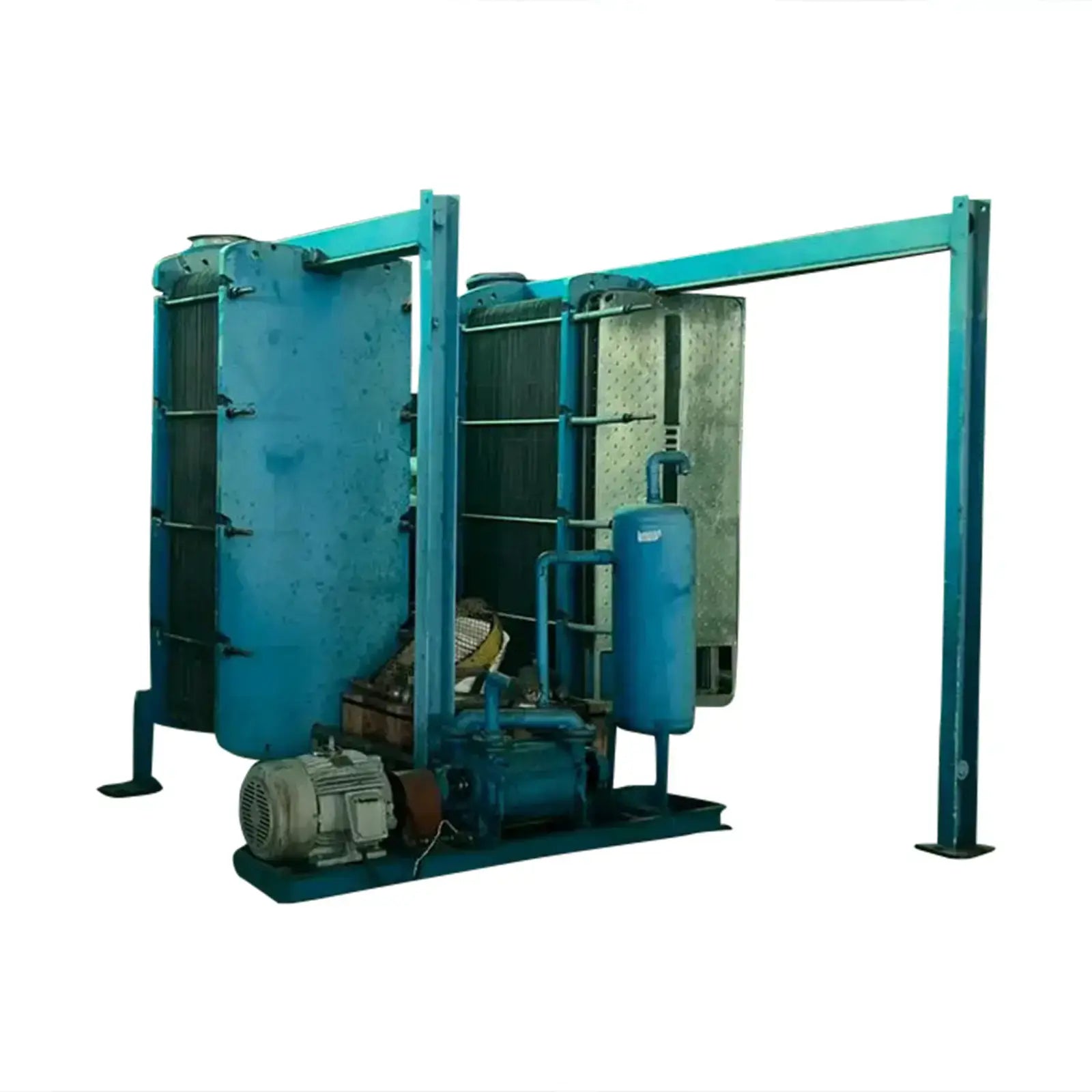

APV Quadruple Effect, Six Stage Evaporator with Related Controls. Originally designed for Citrus Pectin. Feed Rate 48,000 LBS/HR, Feed Concentration 0.6% Total Solids, Feed Temperature: 130°F/54.4°F, Feed Temperature to Evaporator 190°F/ 88°F, Product Rate 12,000 lbs/hr, Product Concentration 2.4%, Product Temperature 82°F/26.7°F, Evaporation Rate 36,000 lbs/hr.
Product Details
- Stock No: CITR01

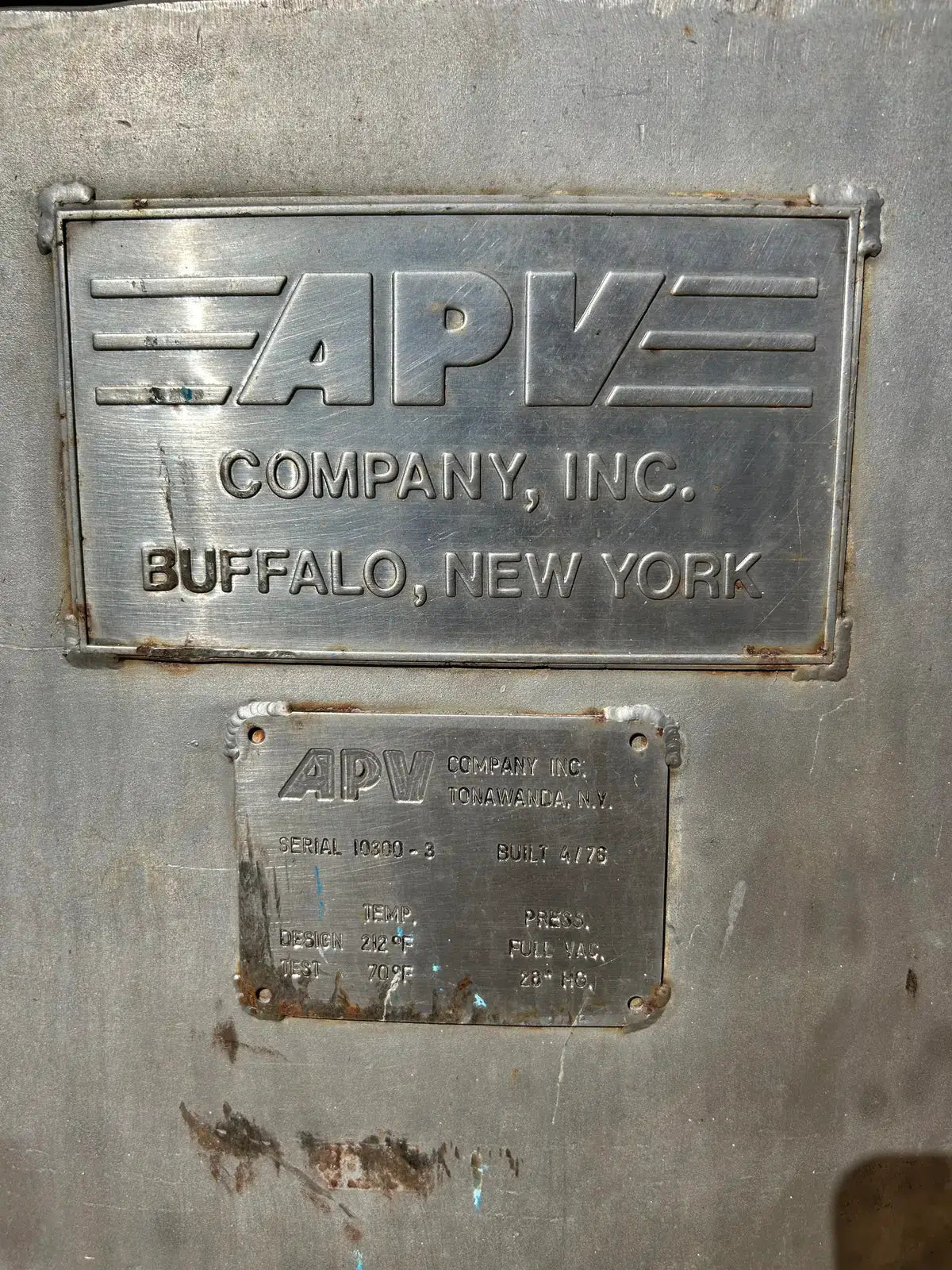

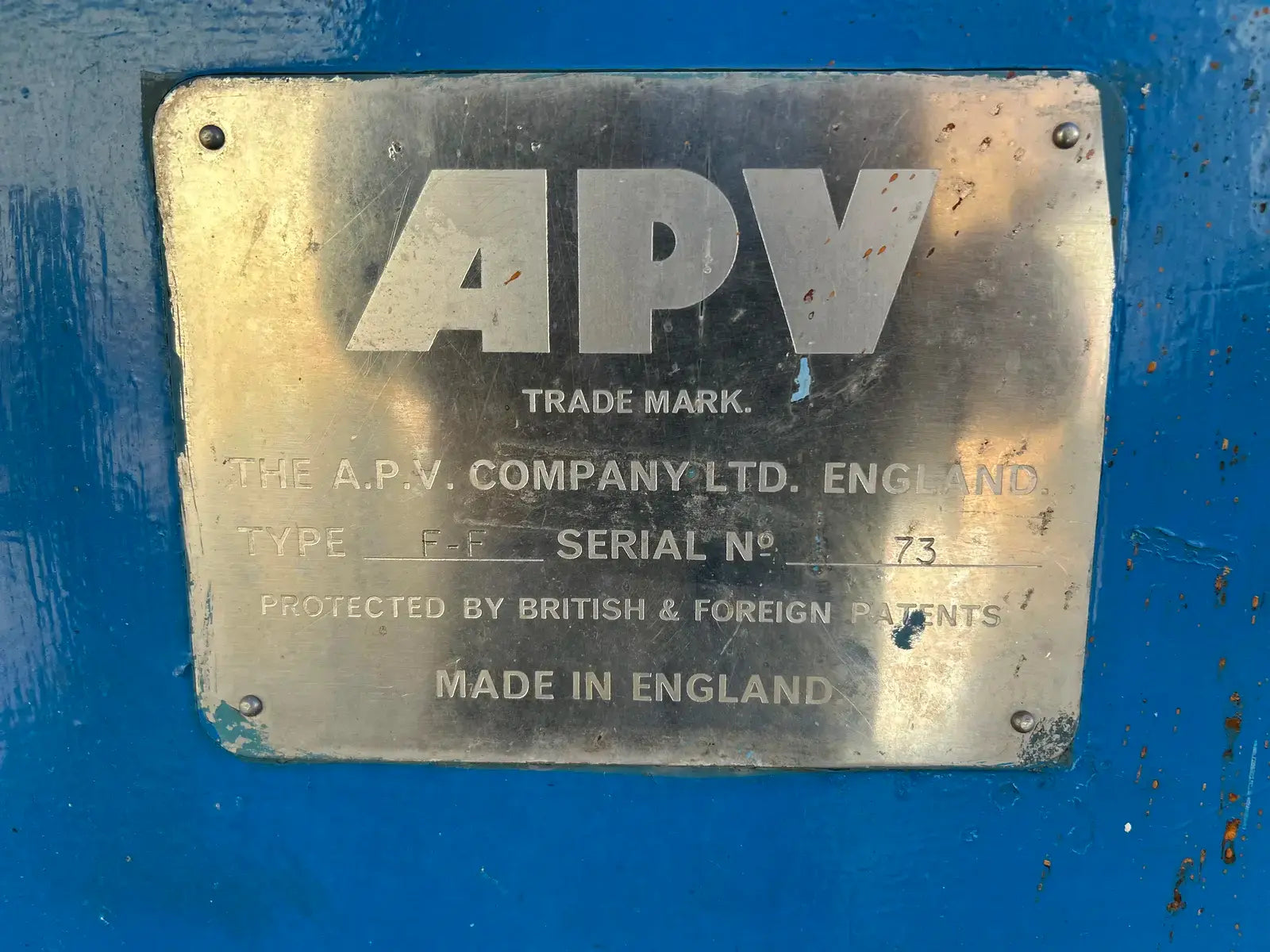

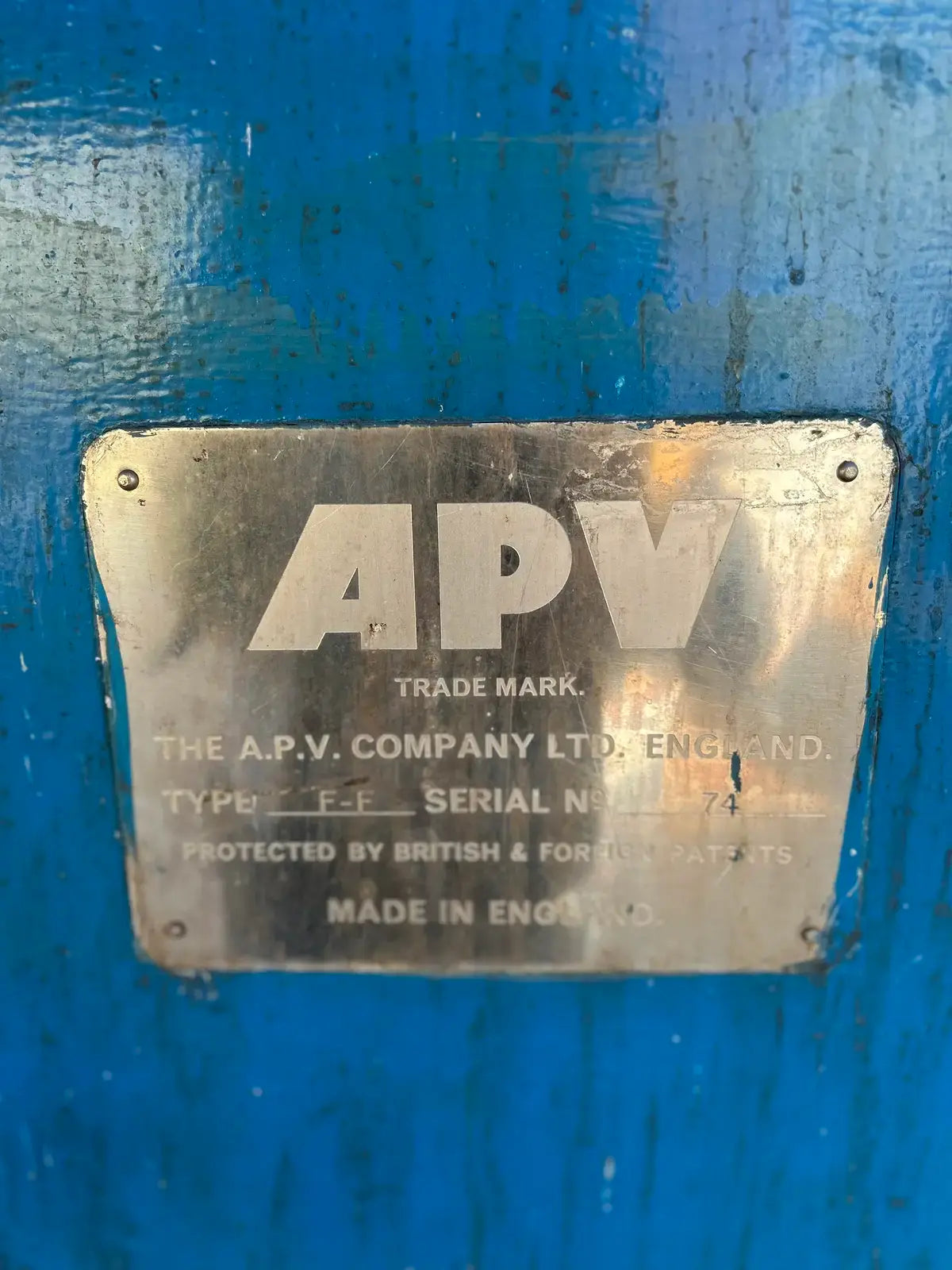

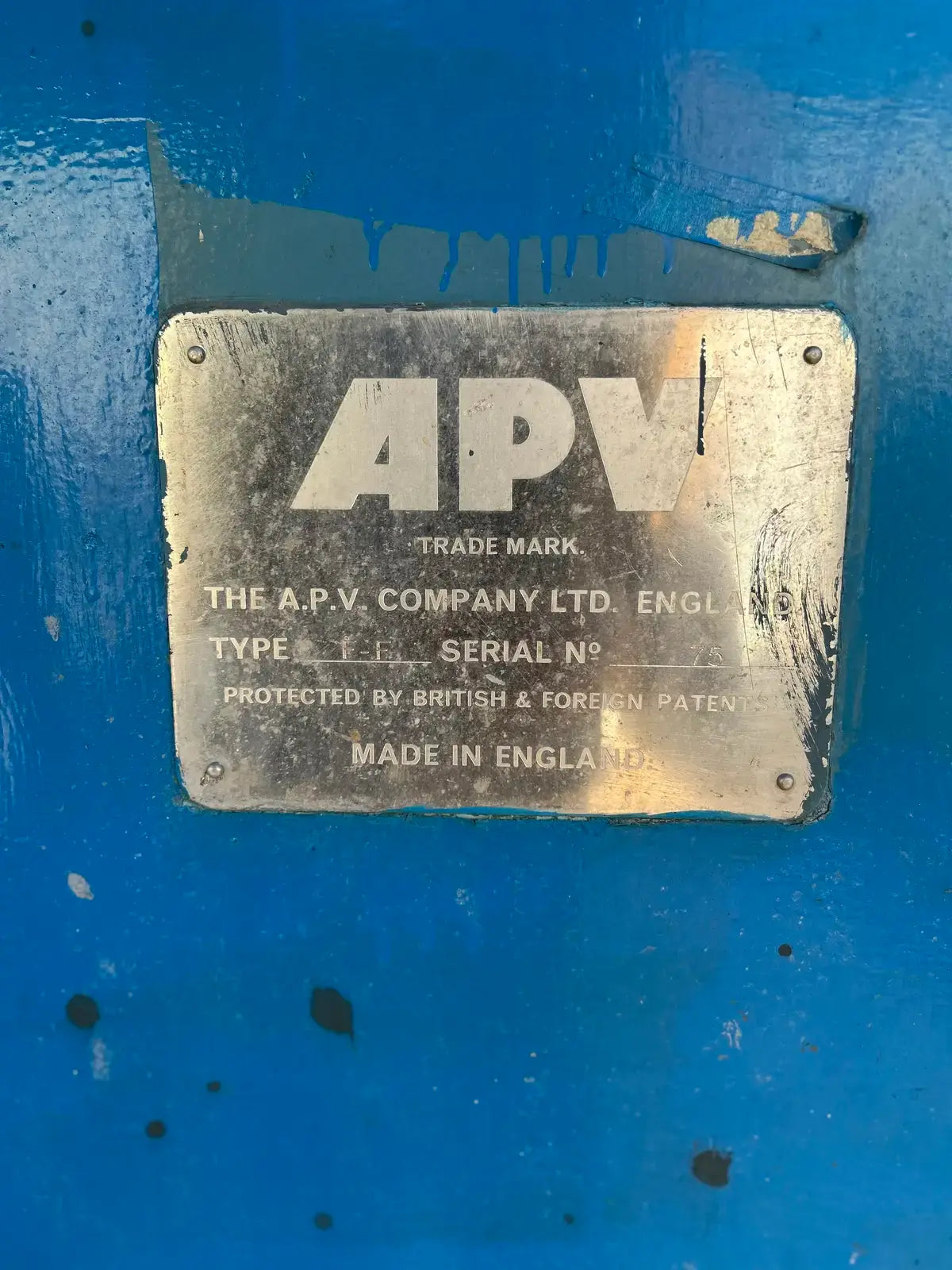

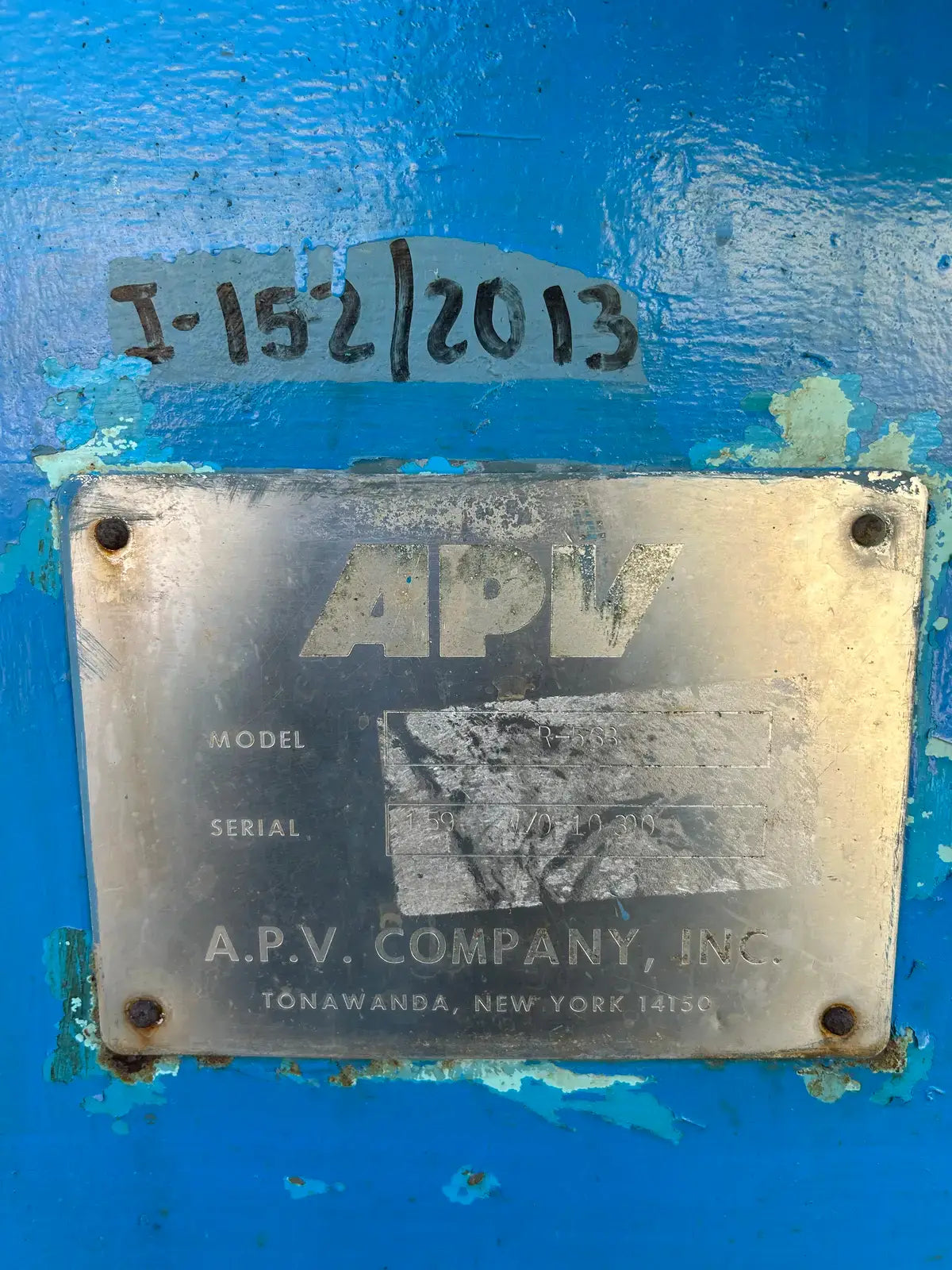

- Manufacturer: APV
Evaporator Details
- Evaporator Type: Rising/Falling Film
- # of Effects: 4
- LBS per HR of Evaporation Removal: 36,000
- Metal Types: Stainless Steel
- Skid Mounted: No

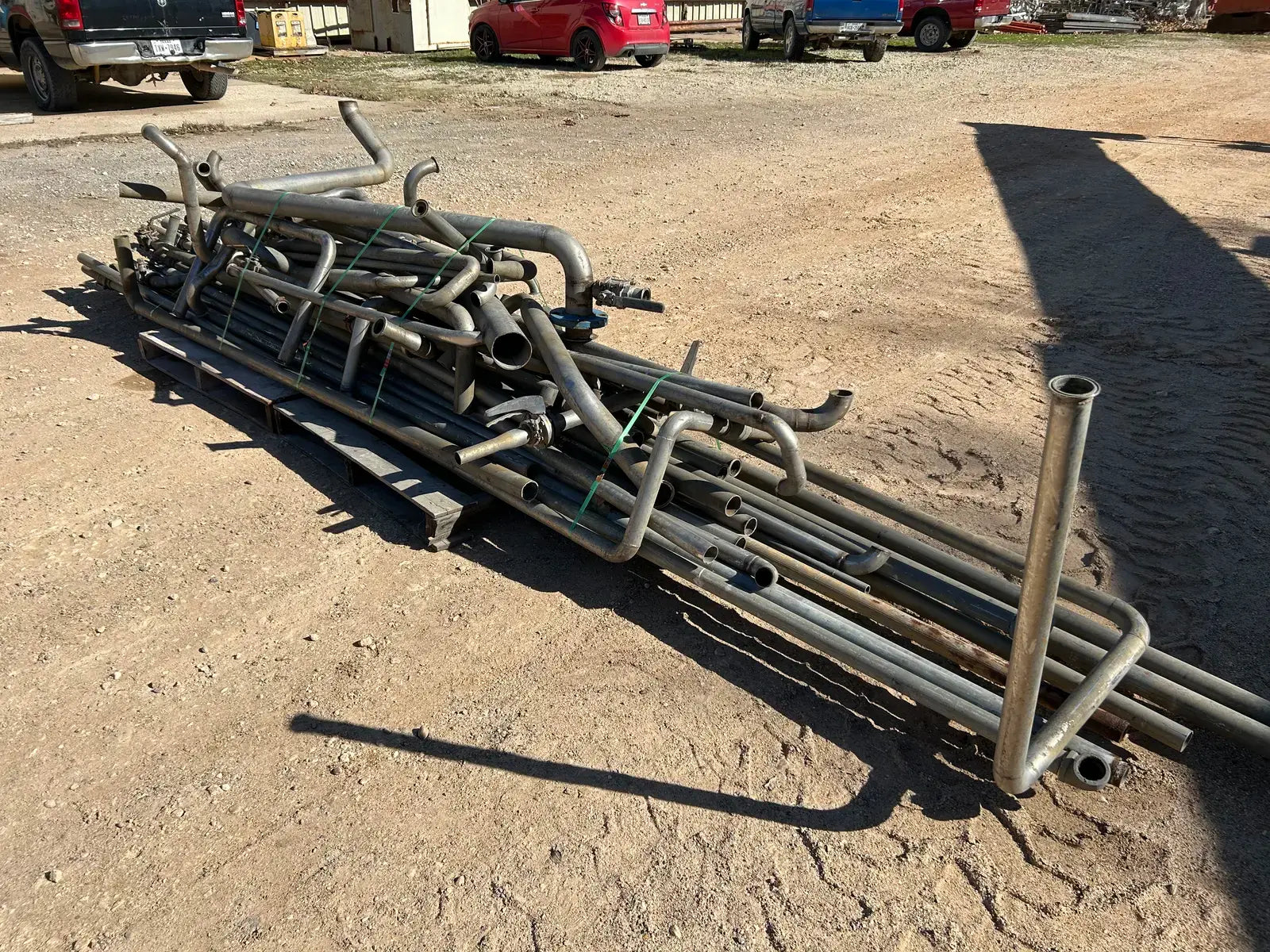

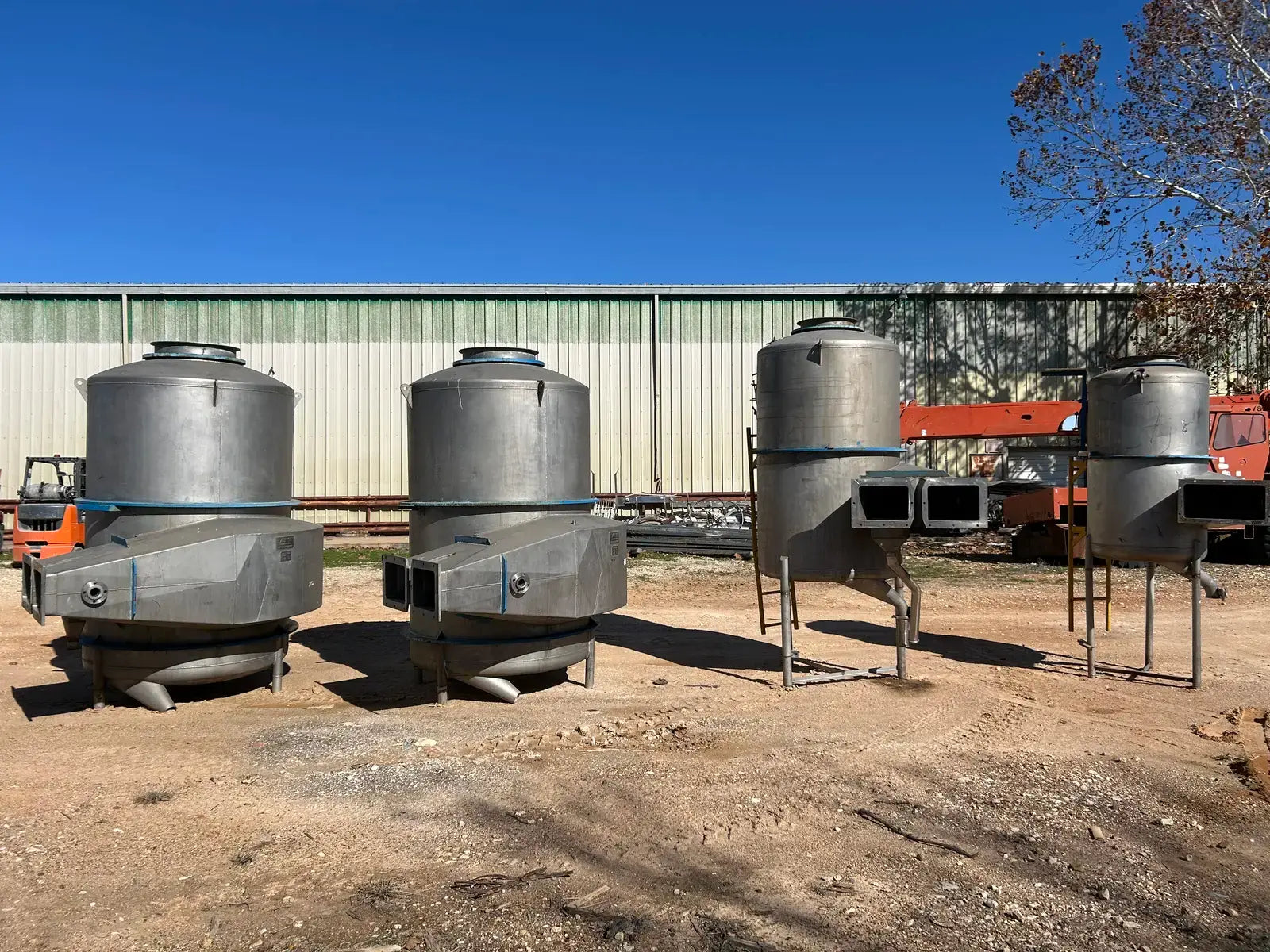

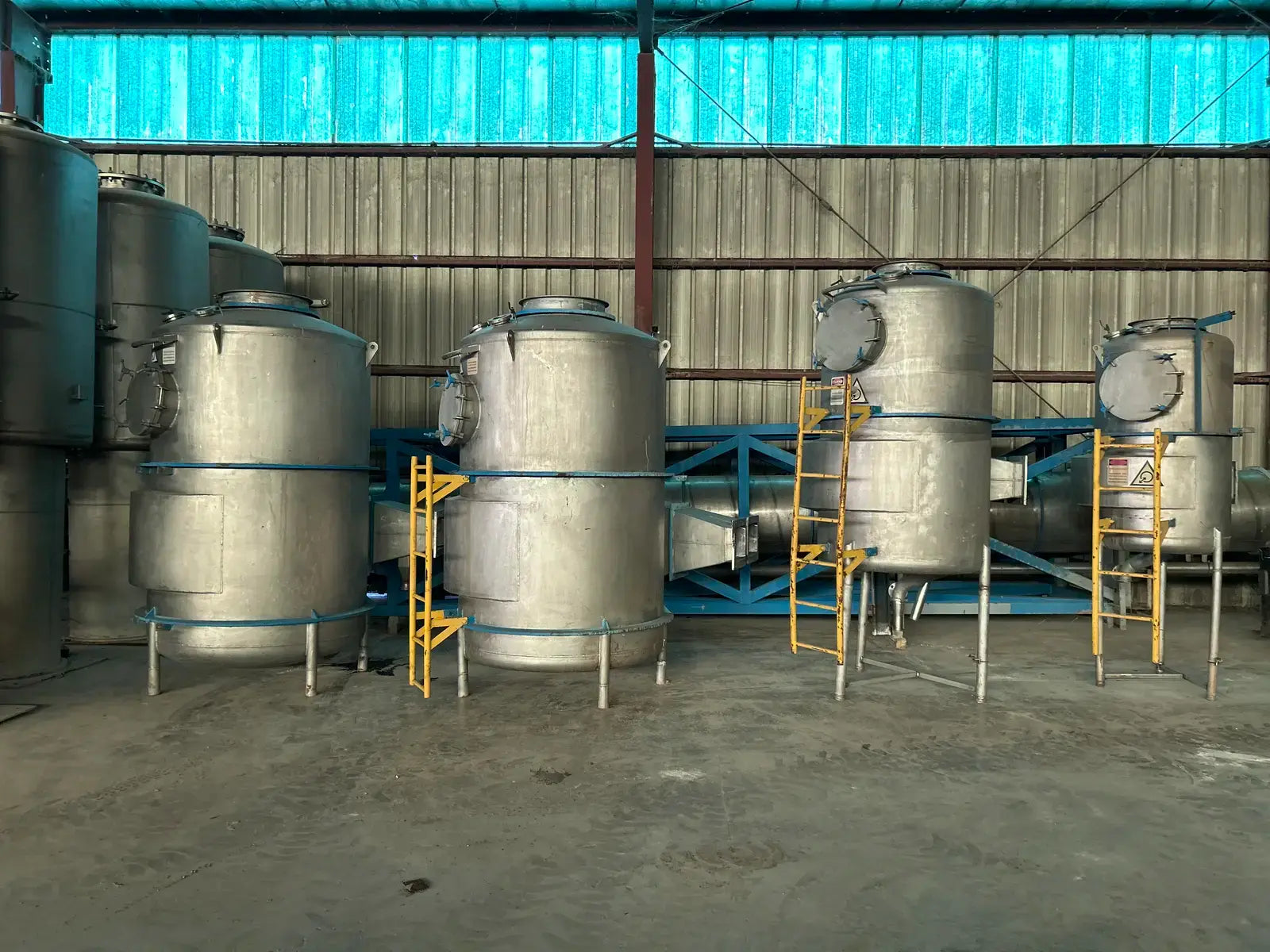

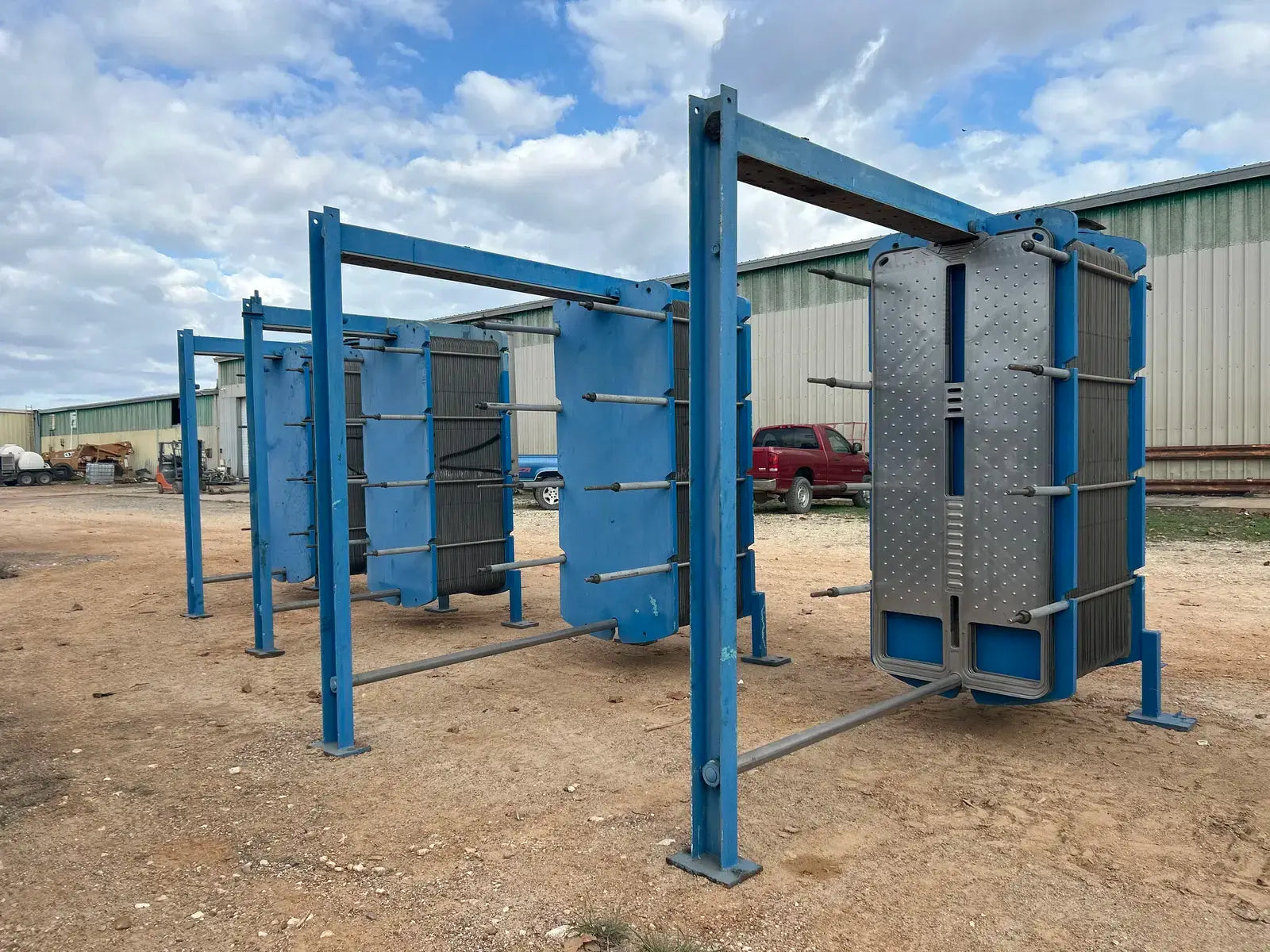

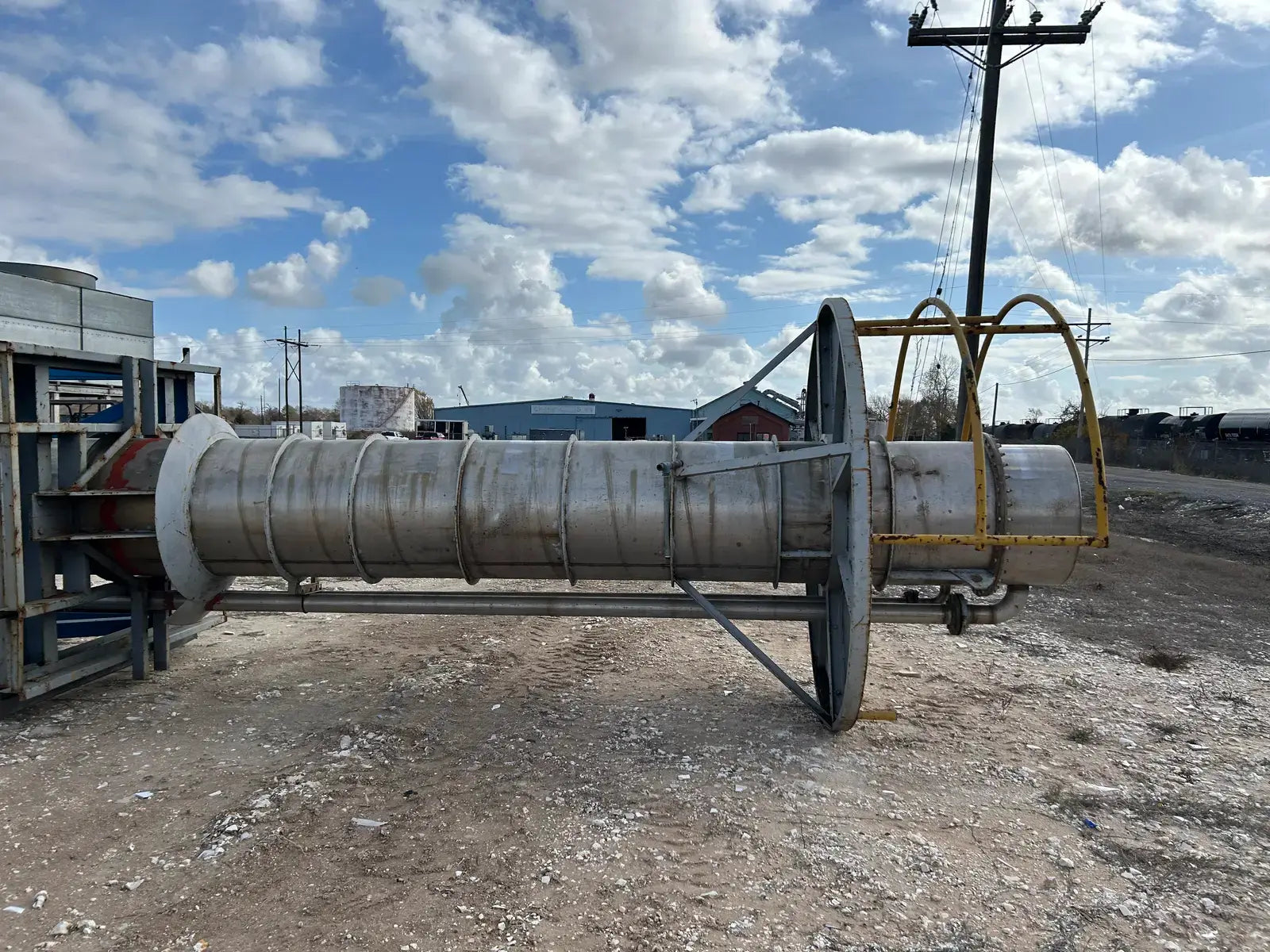

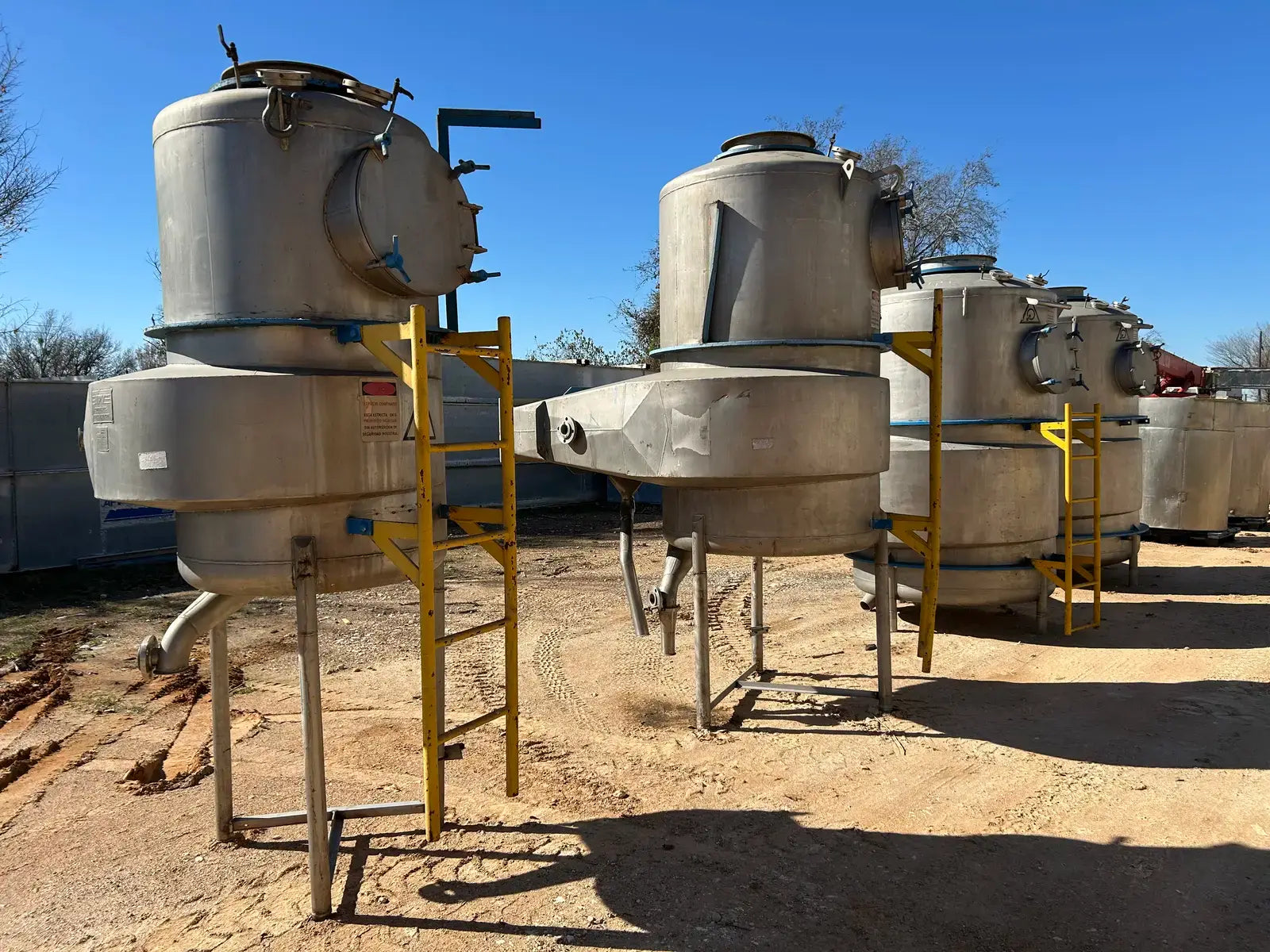

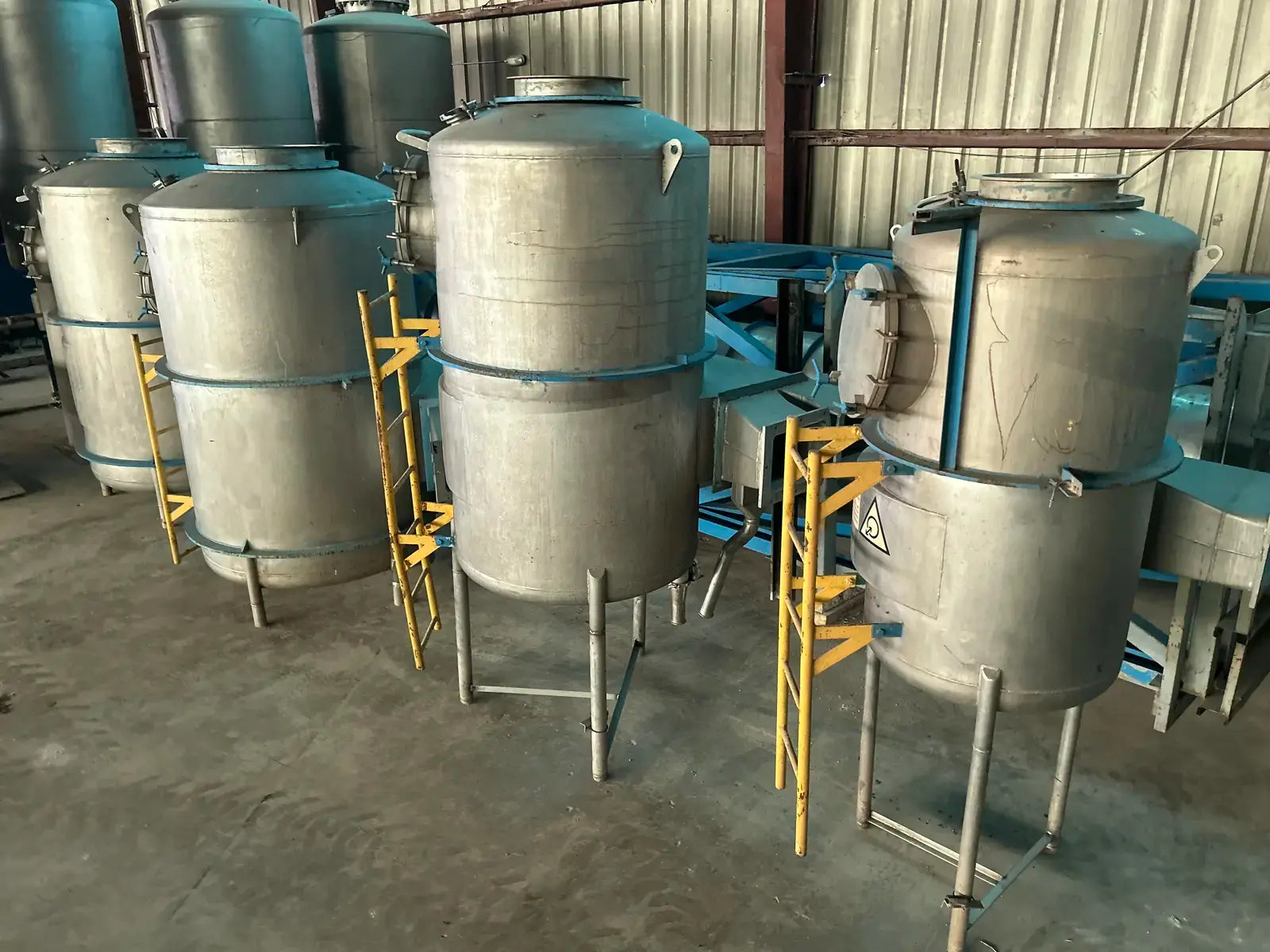

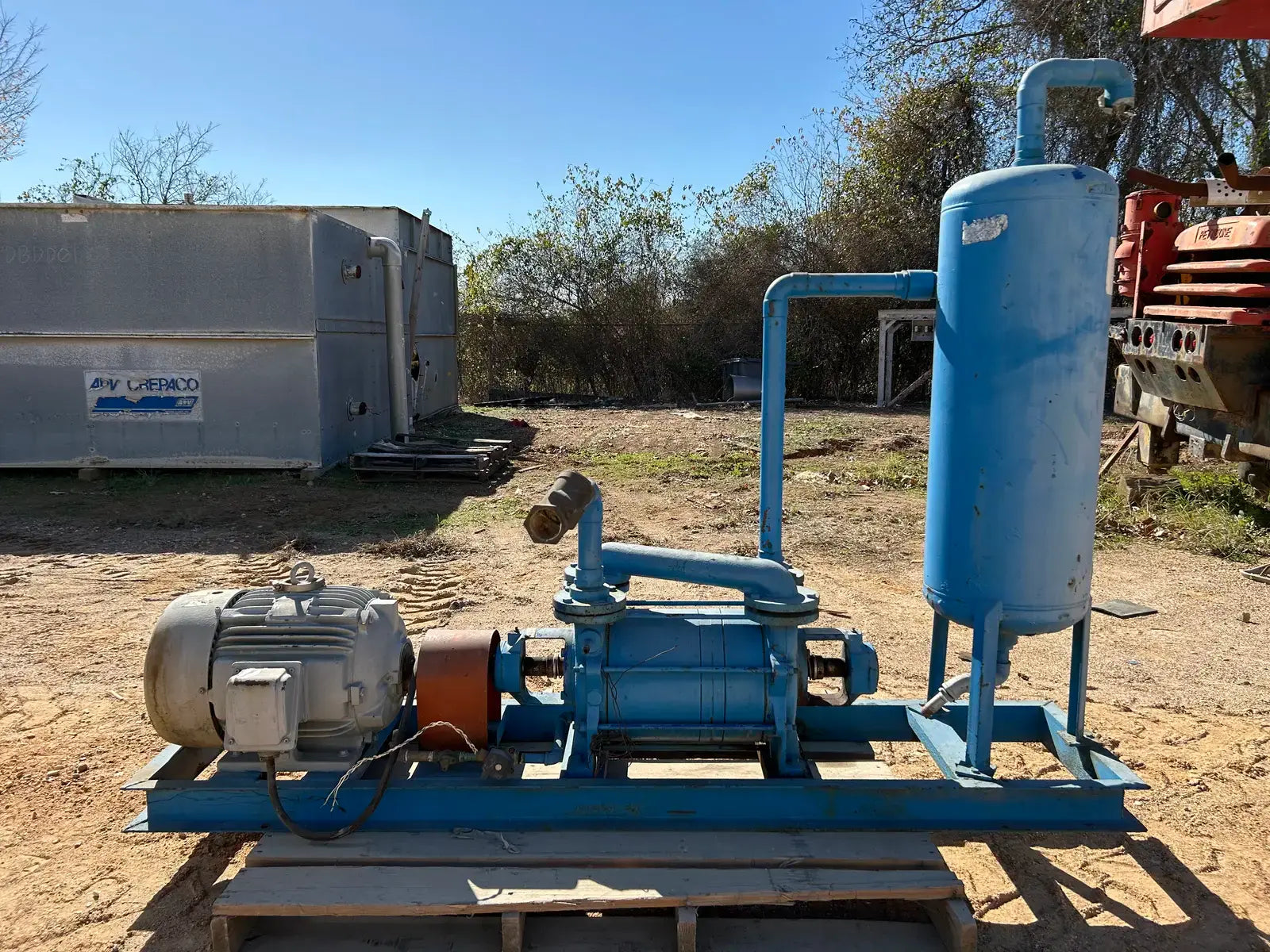

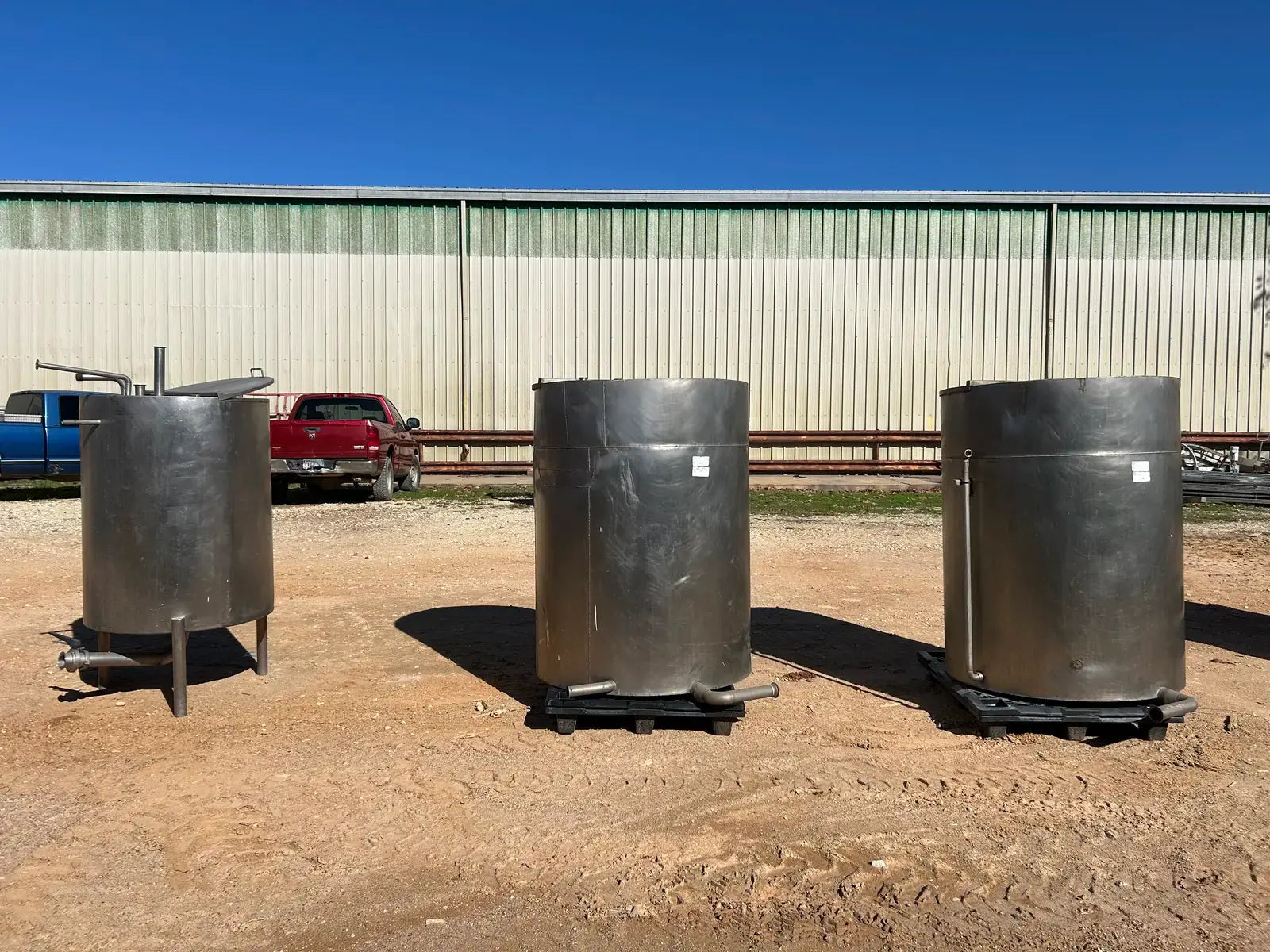

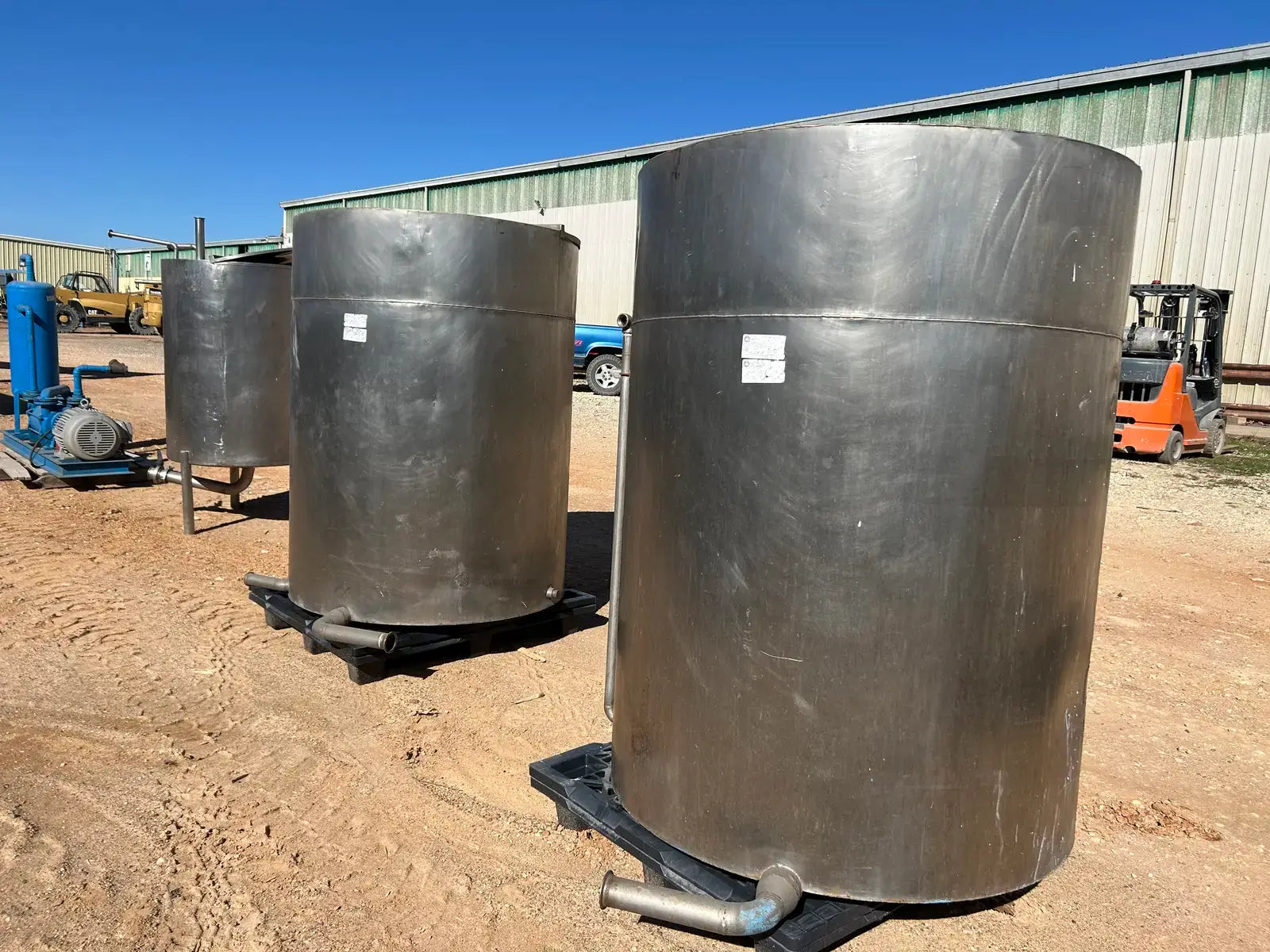

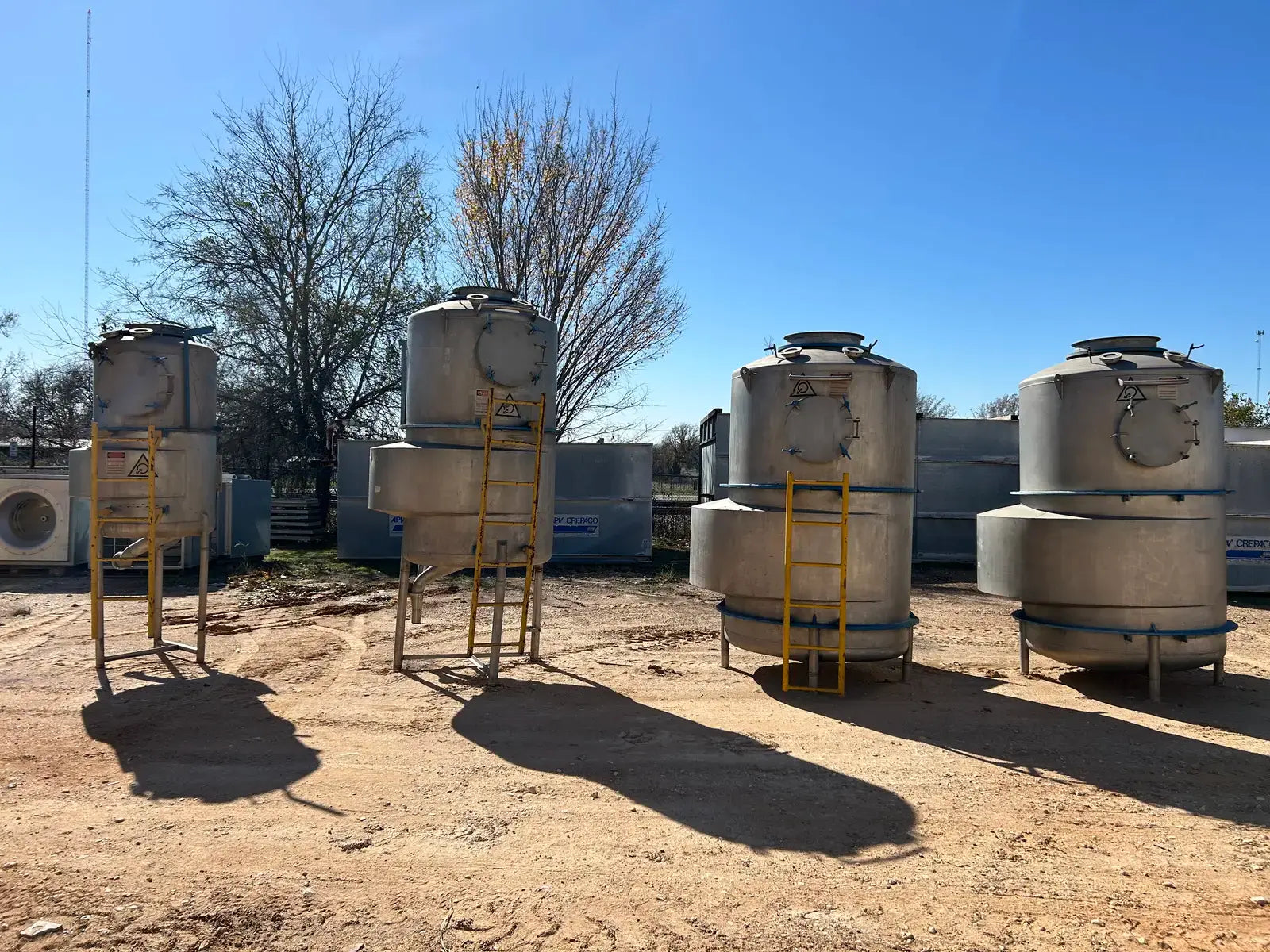

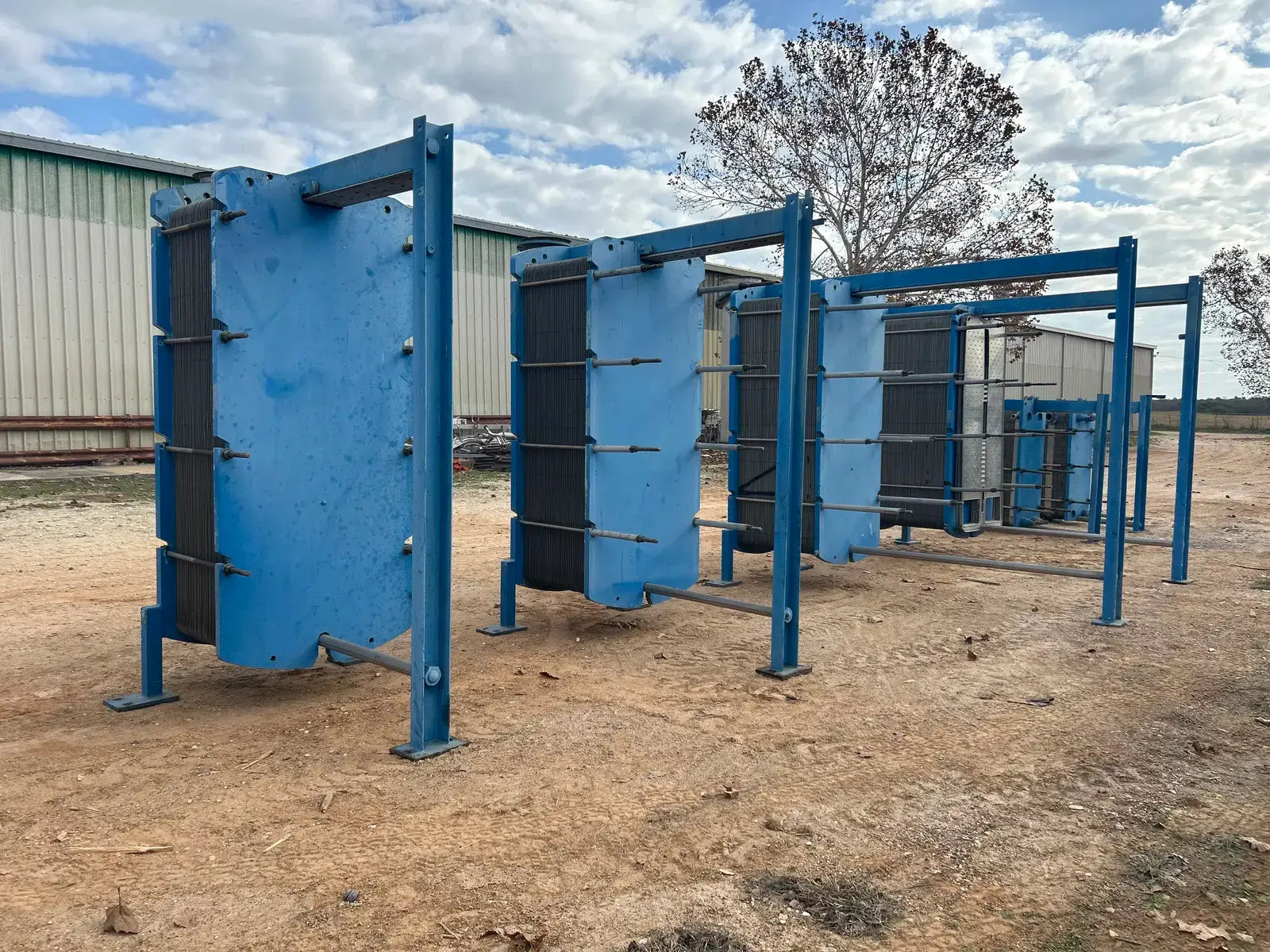

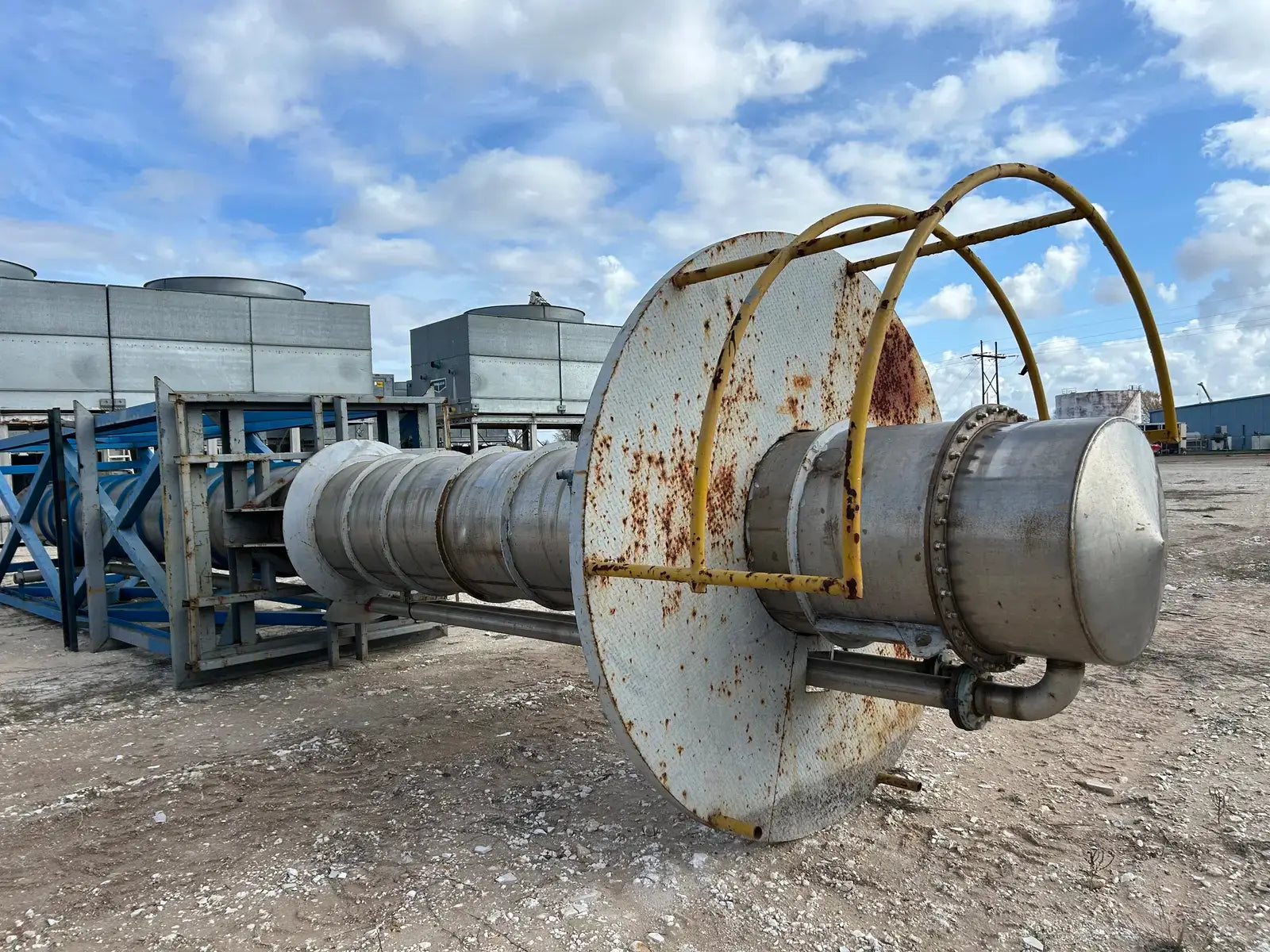

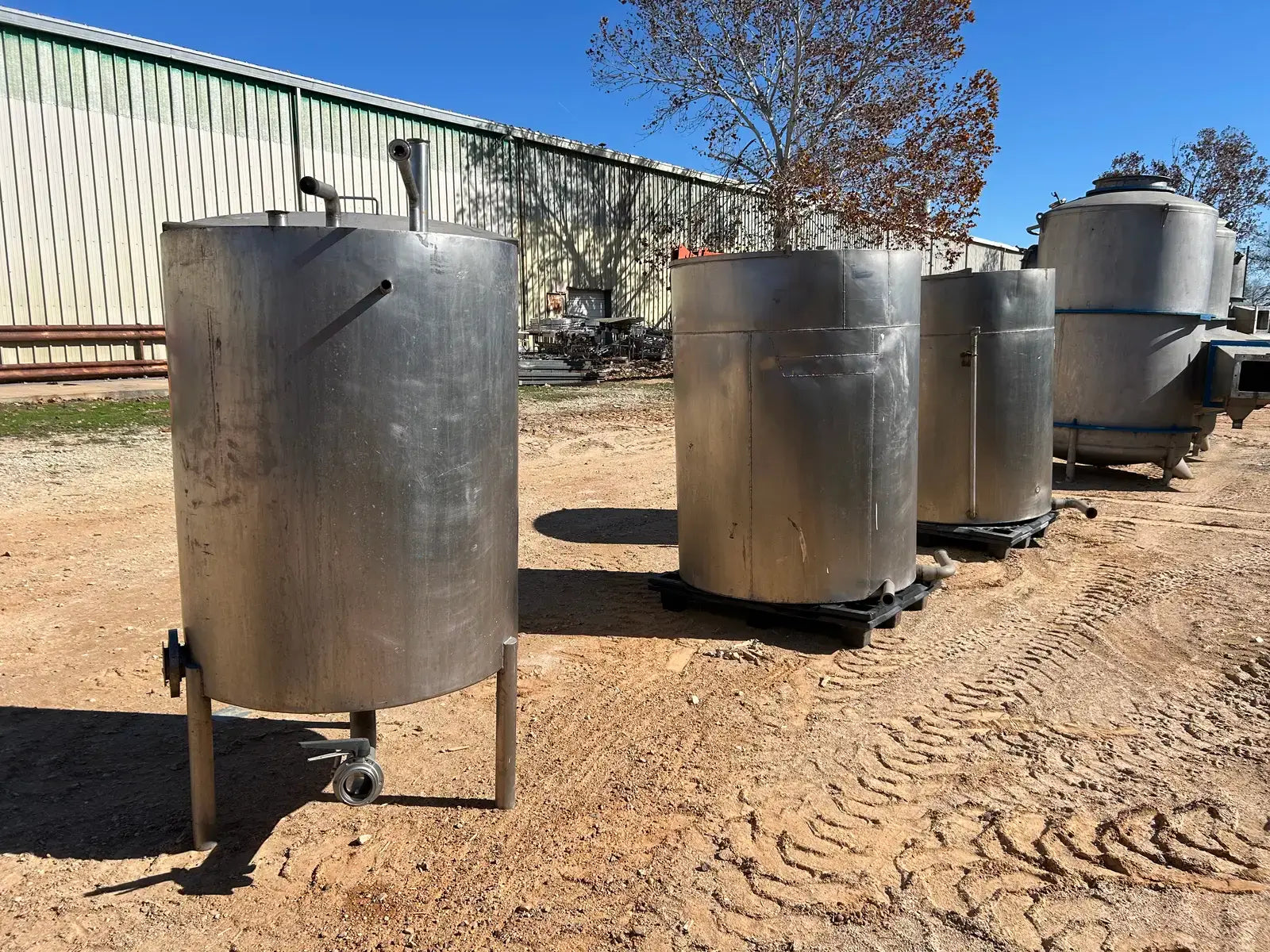

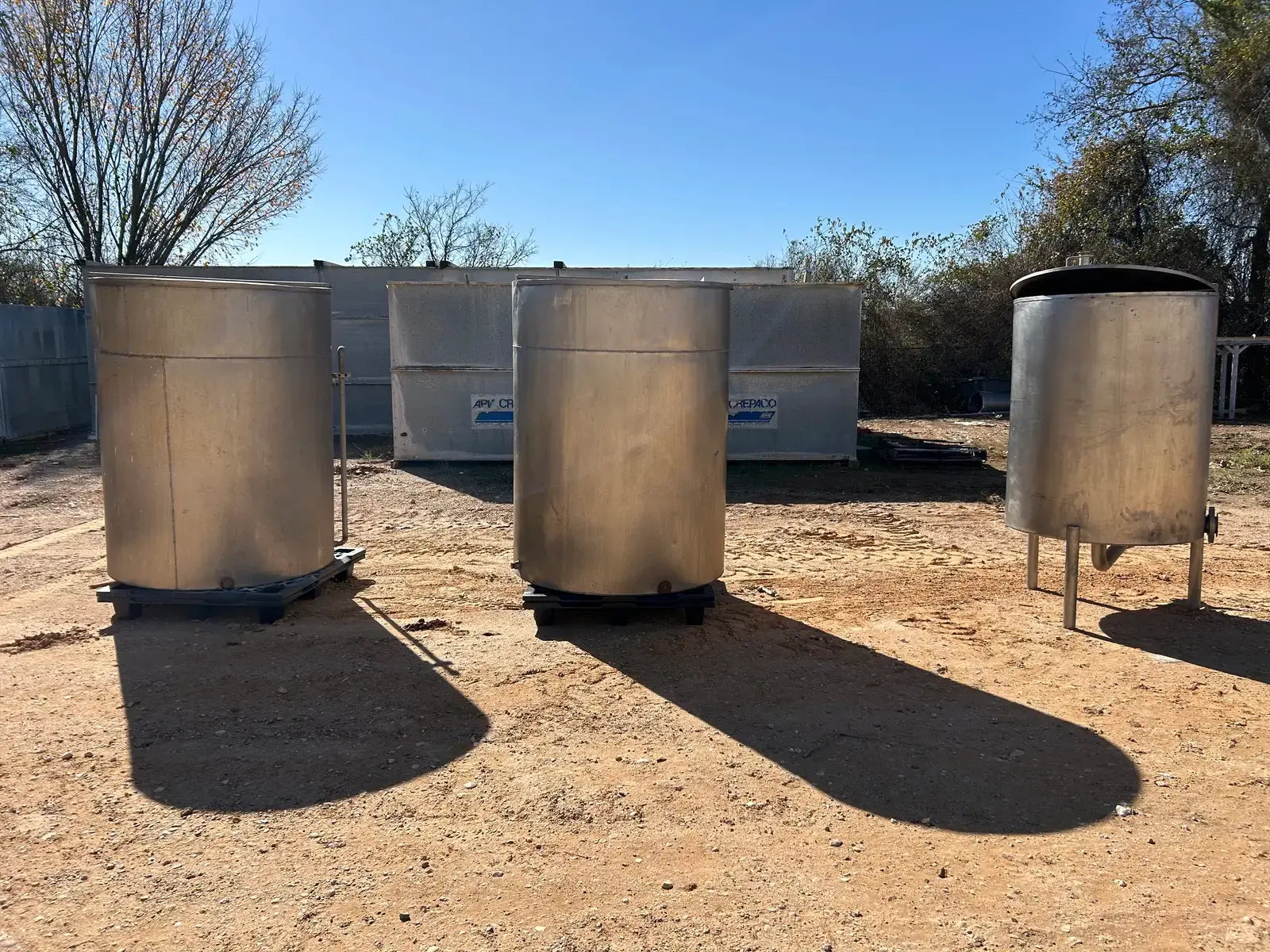

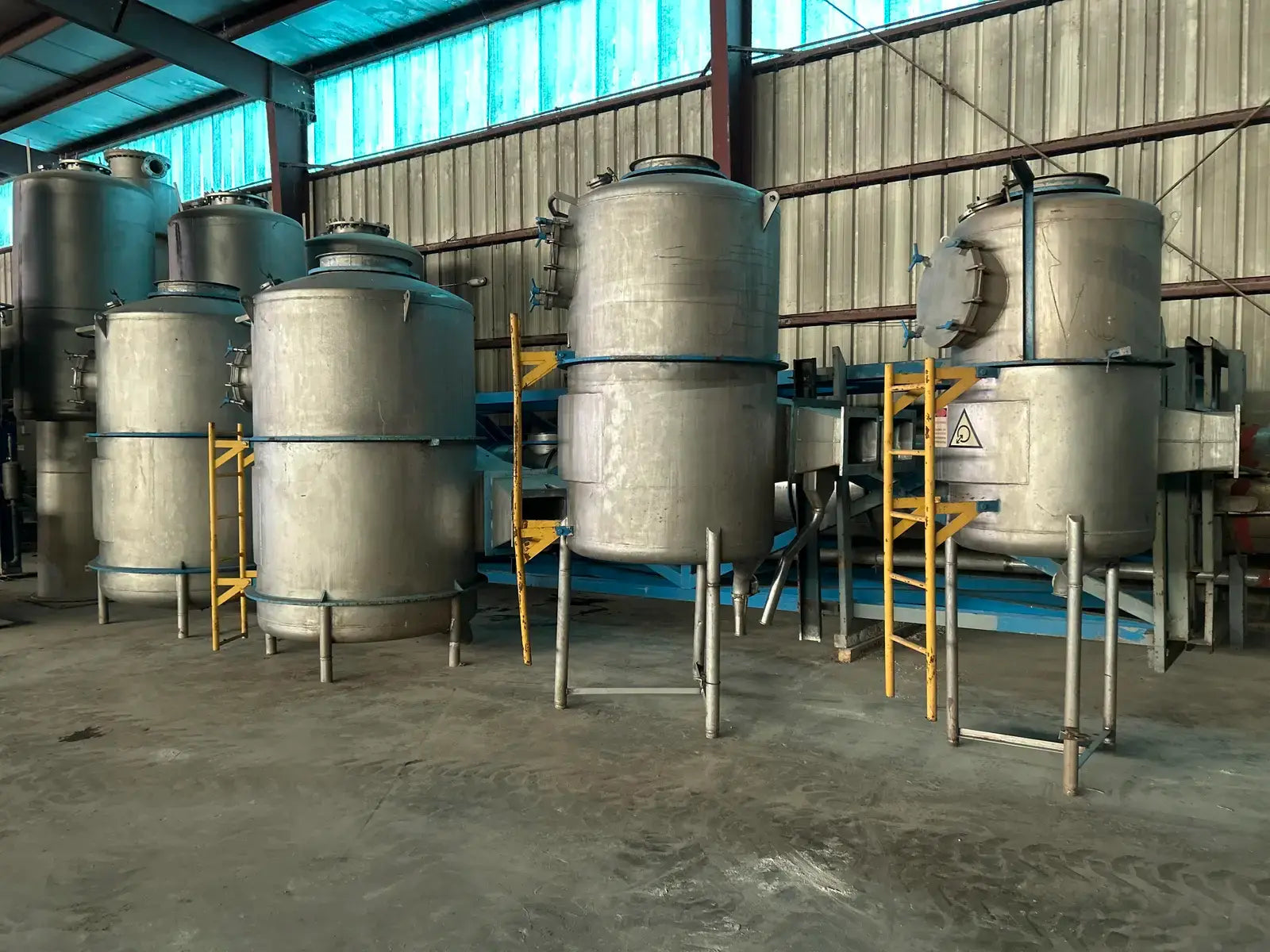

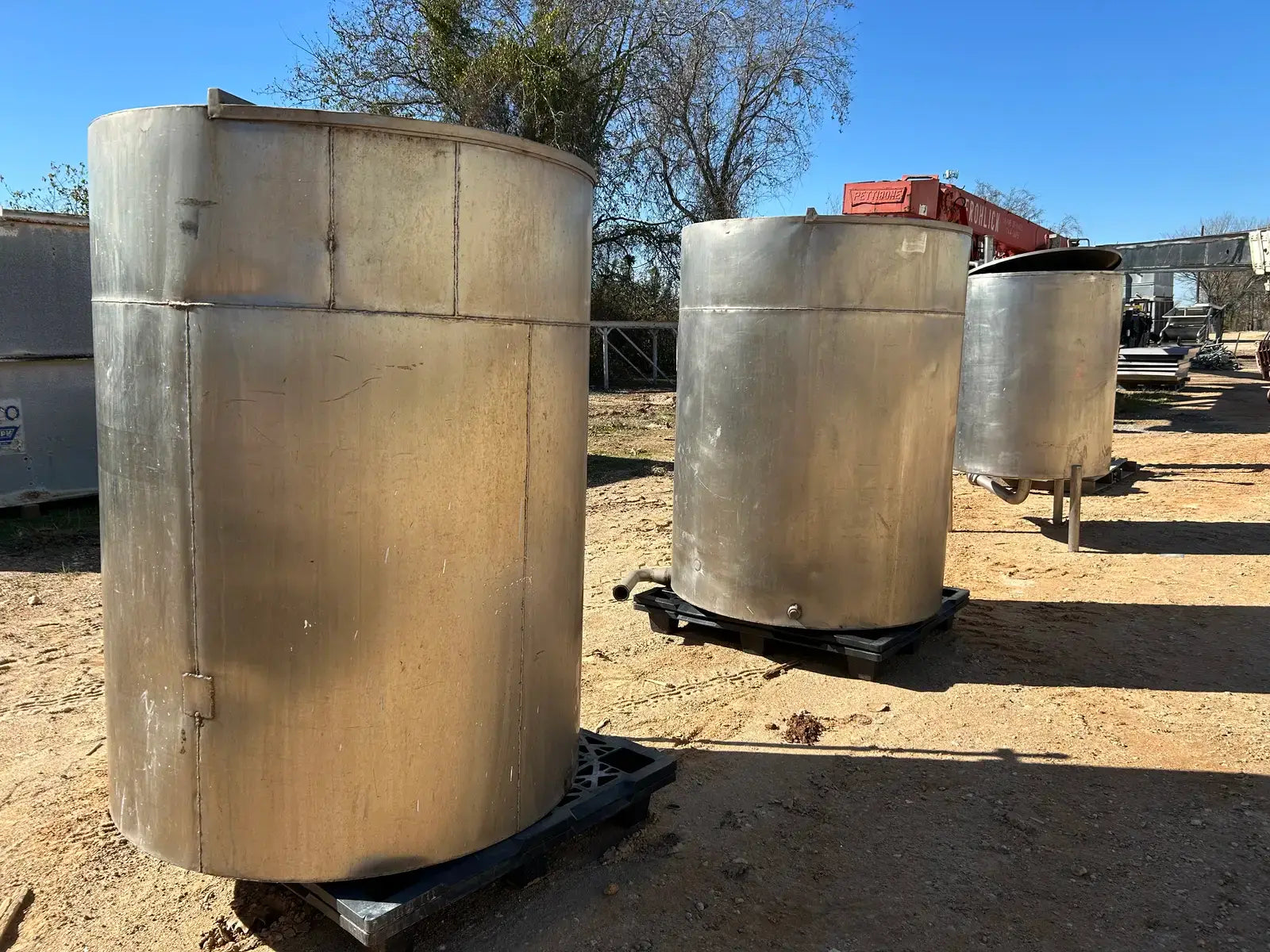

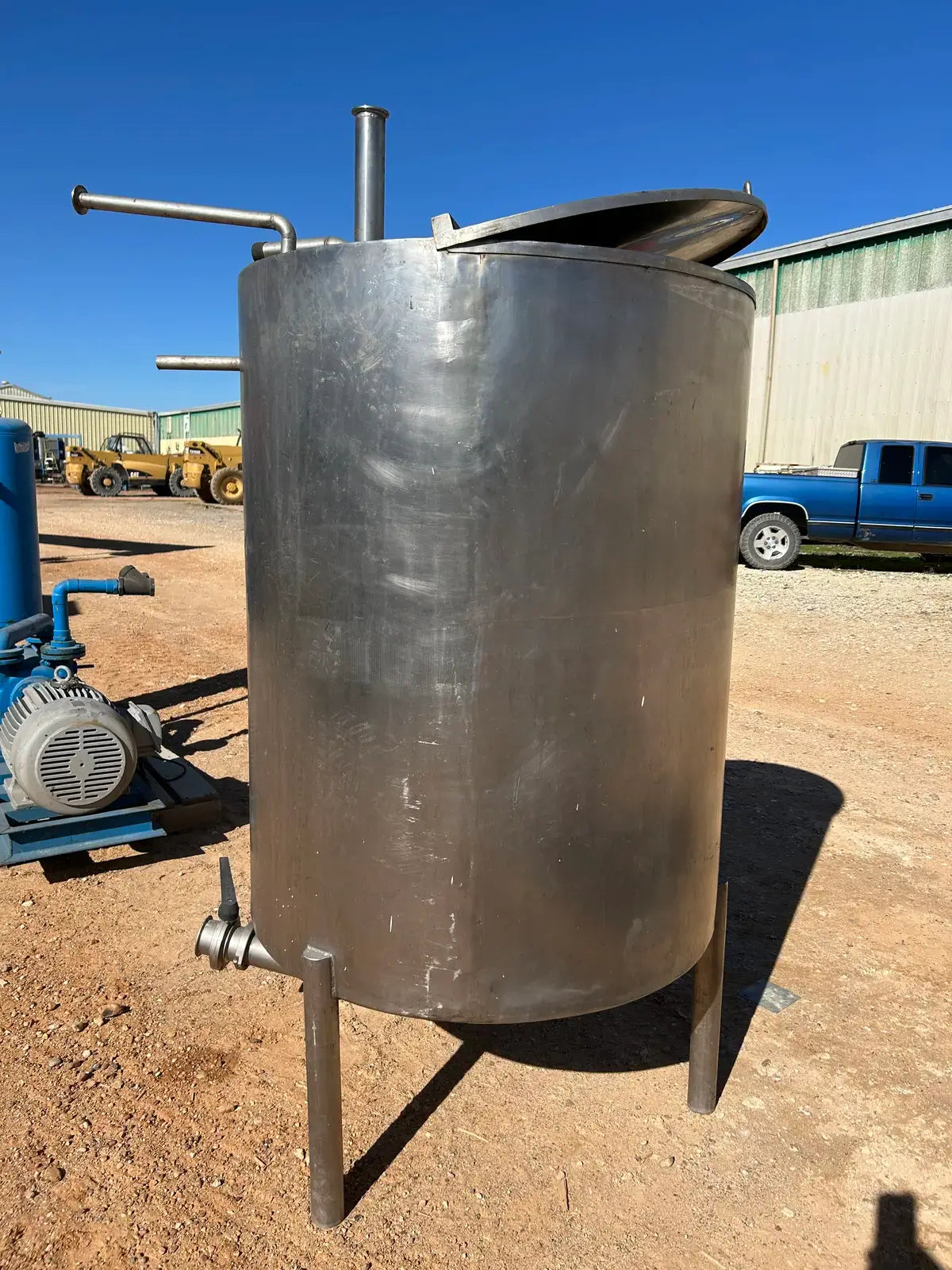

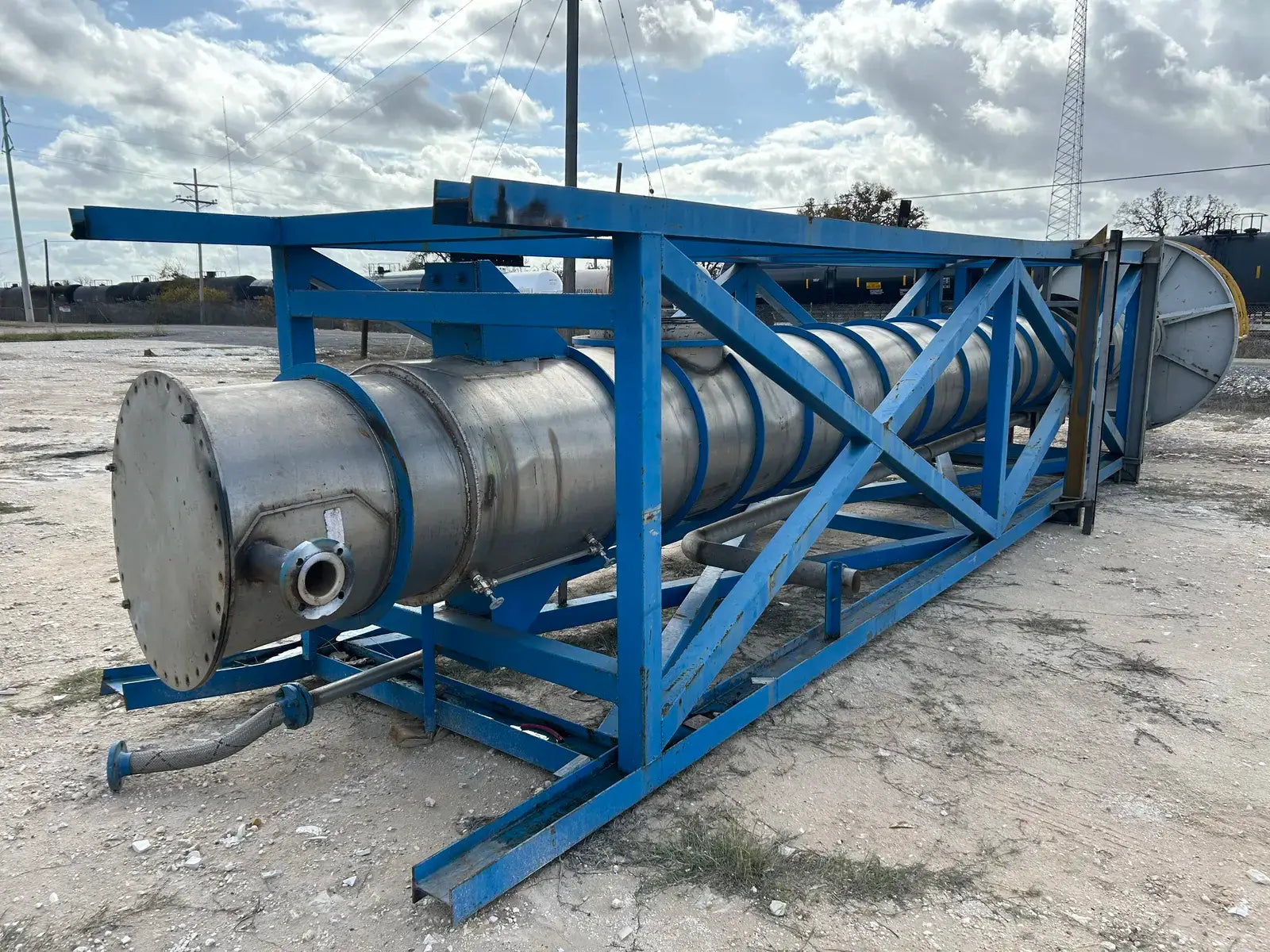

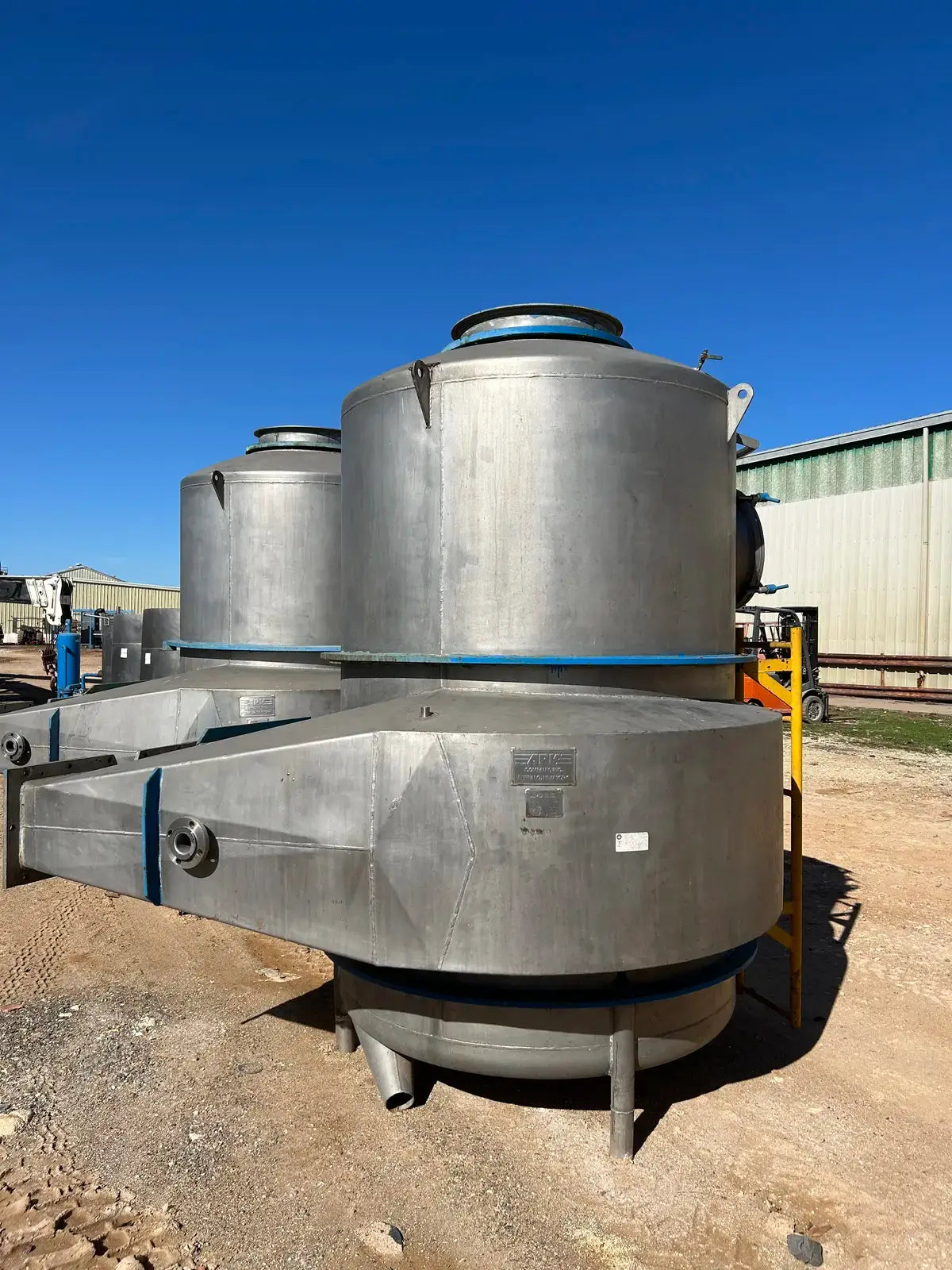

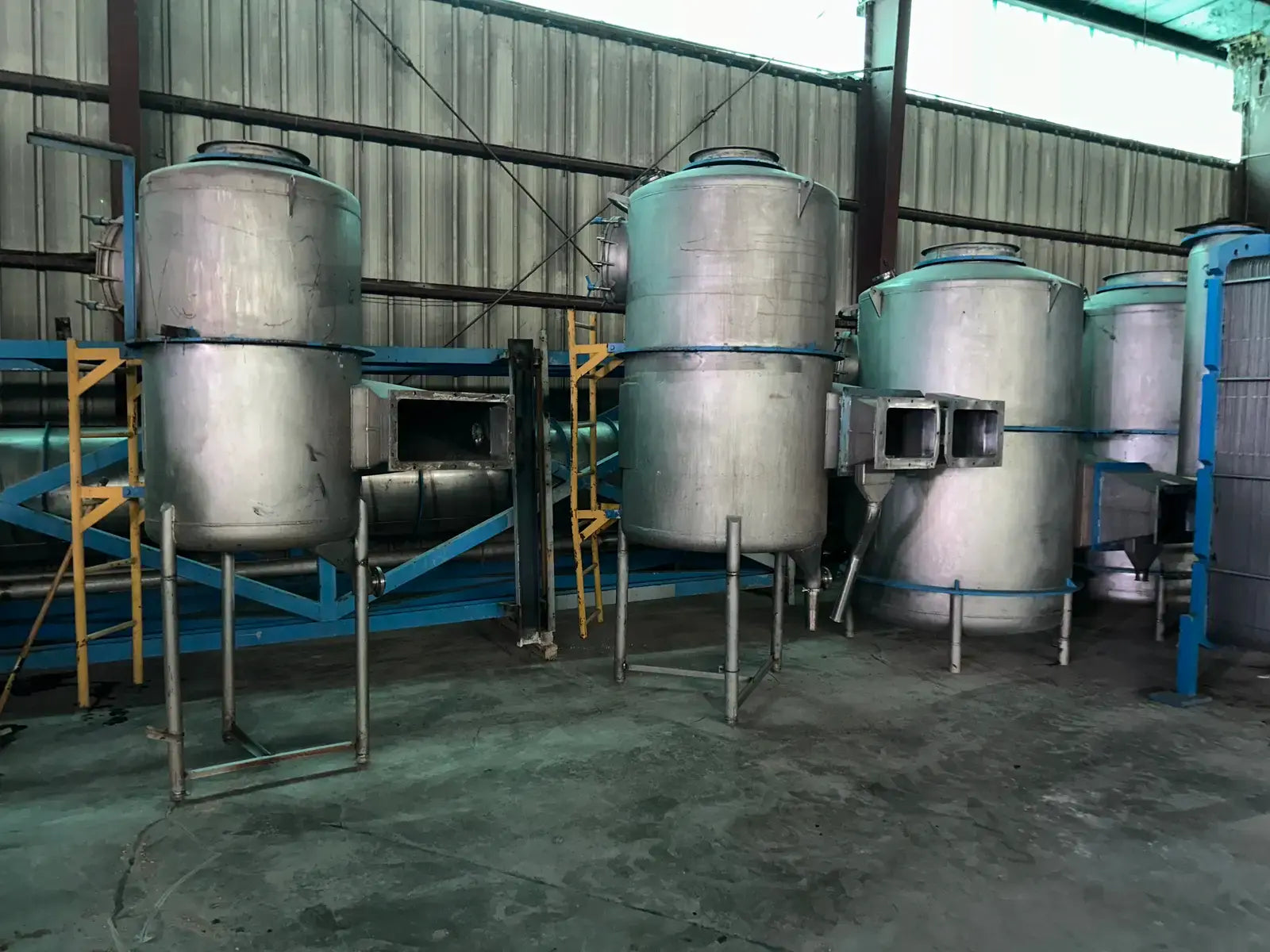

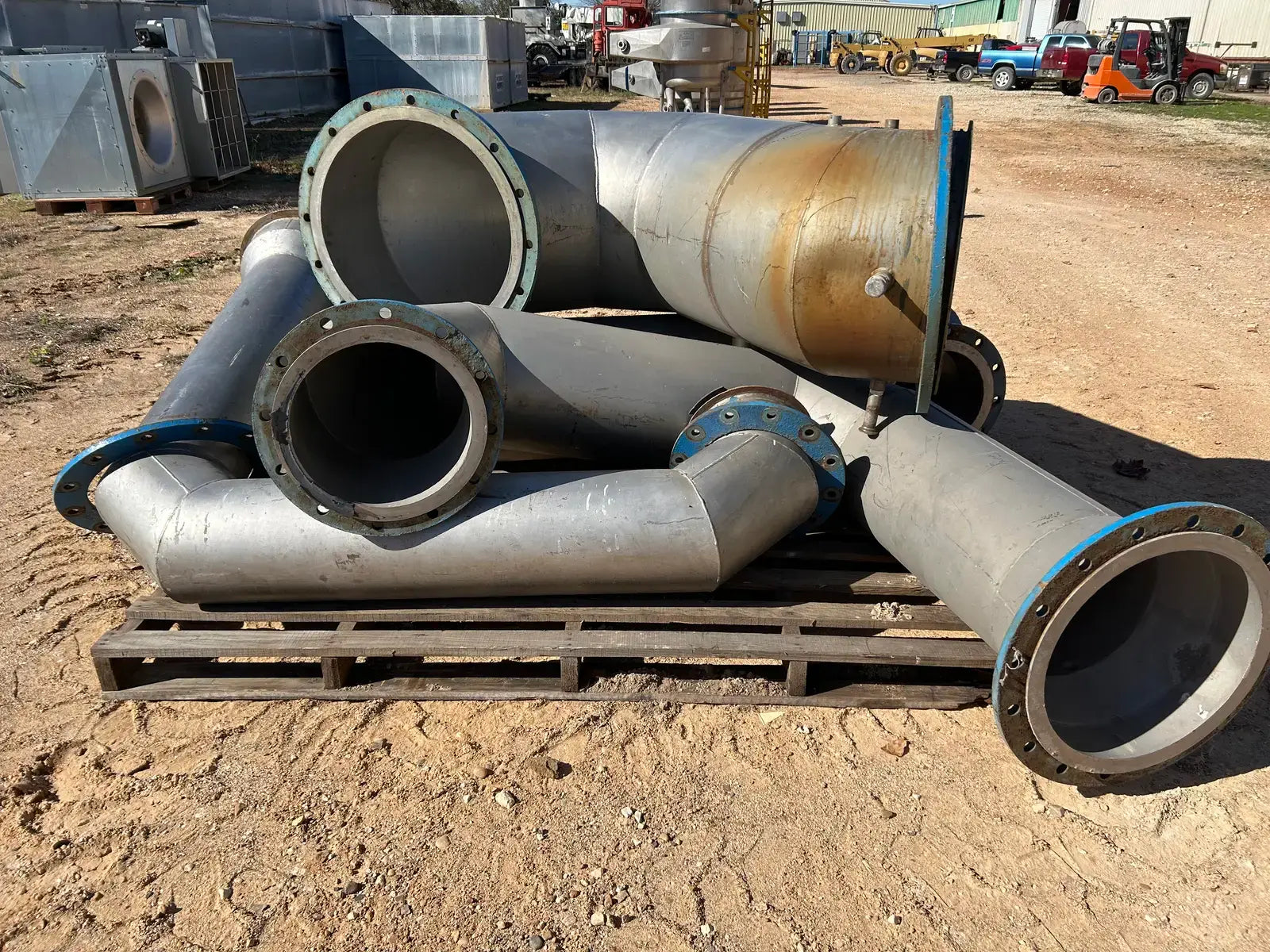

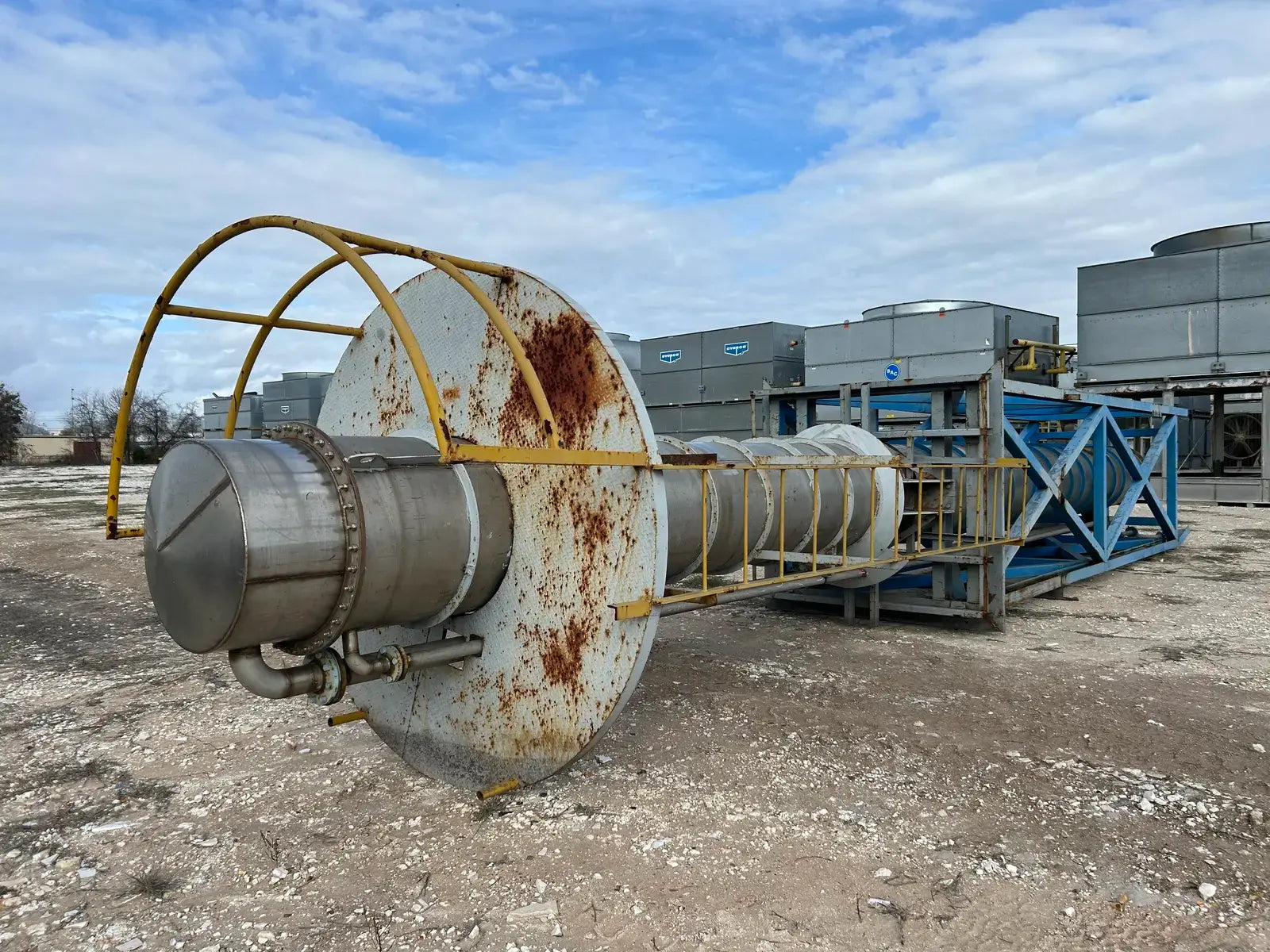

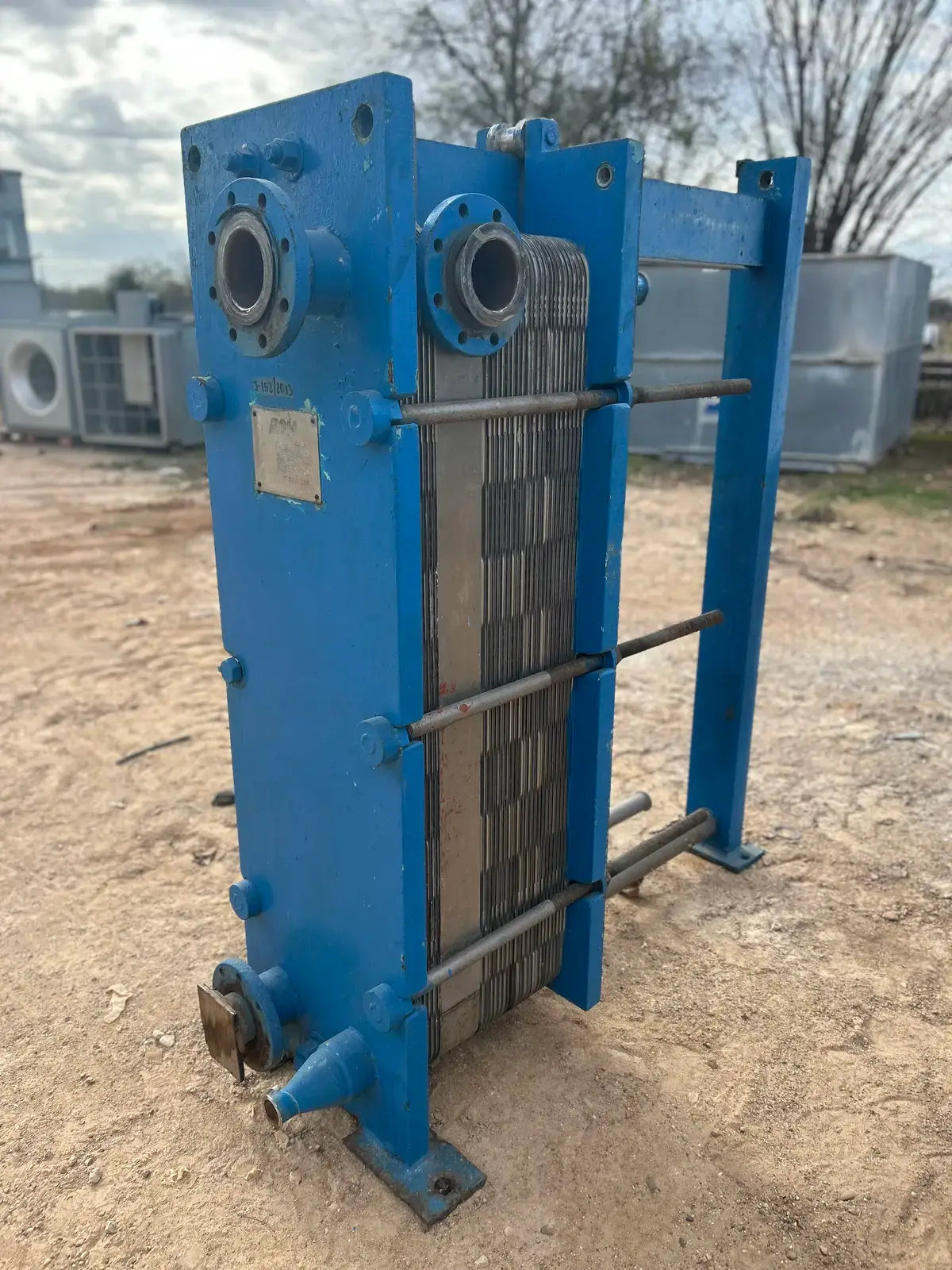

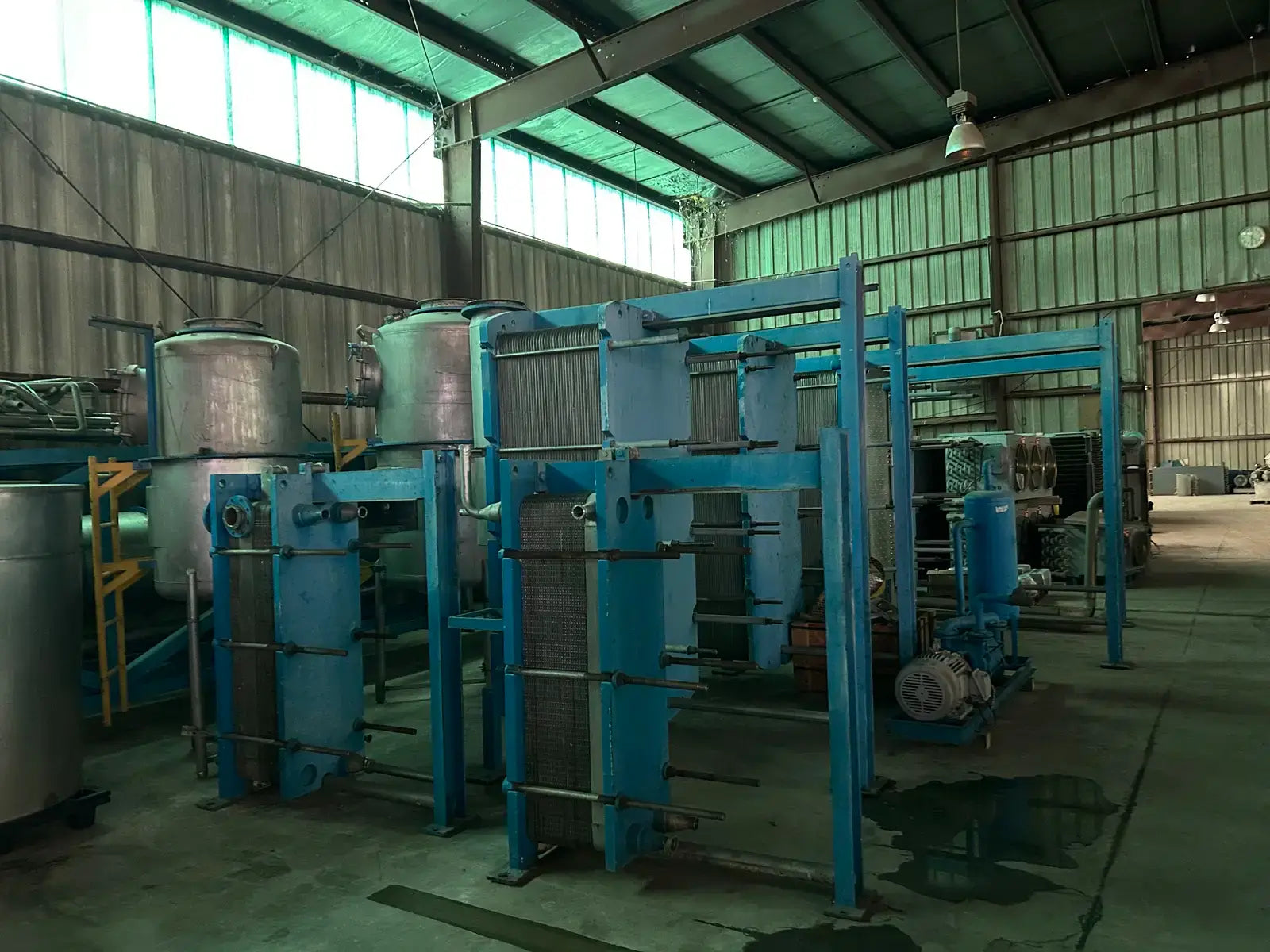

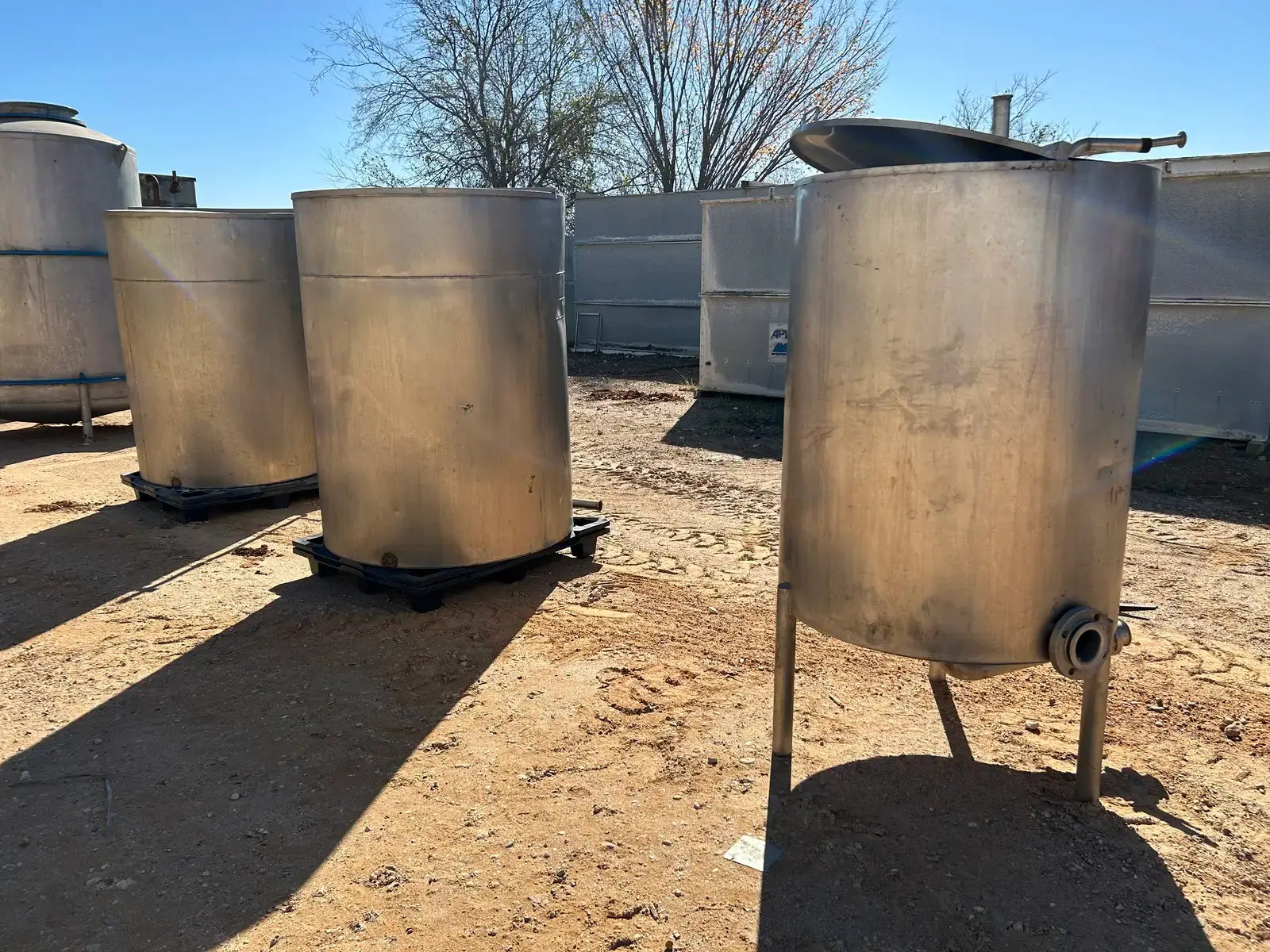

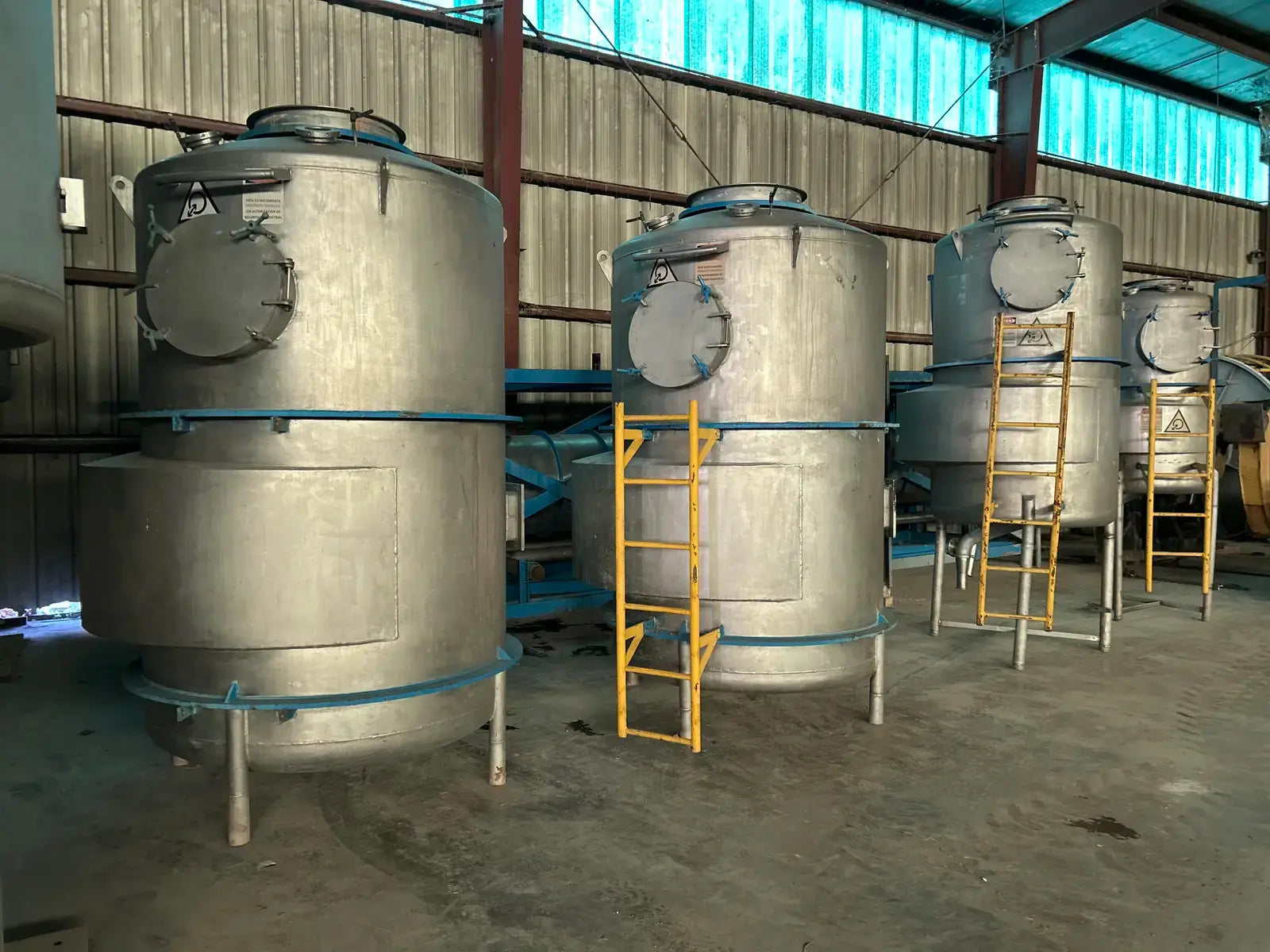

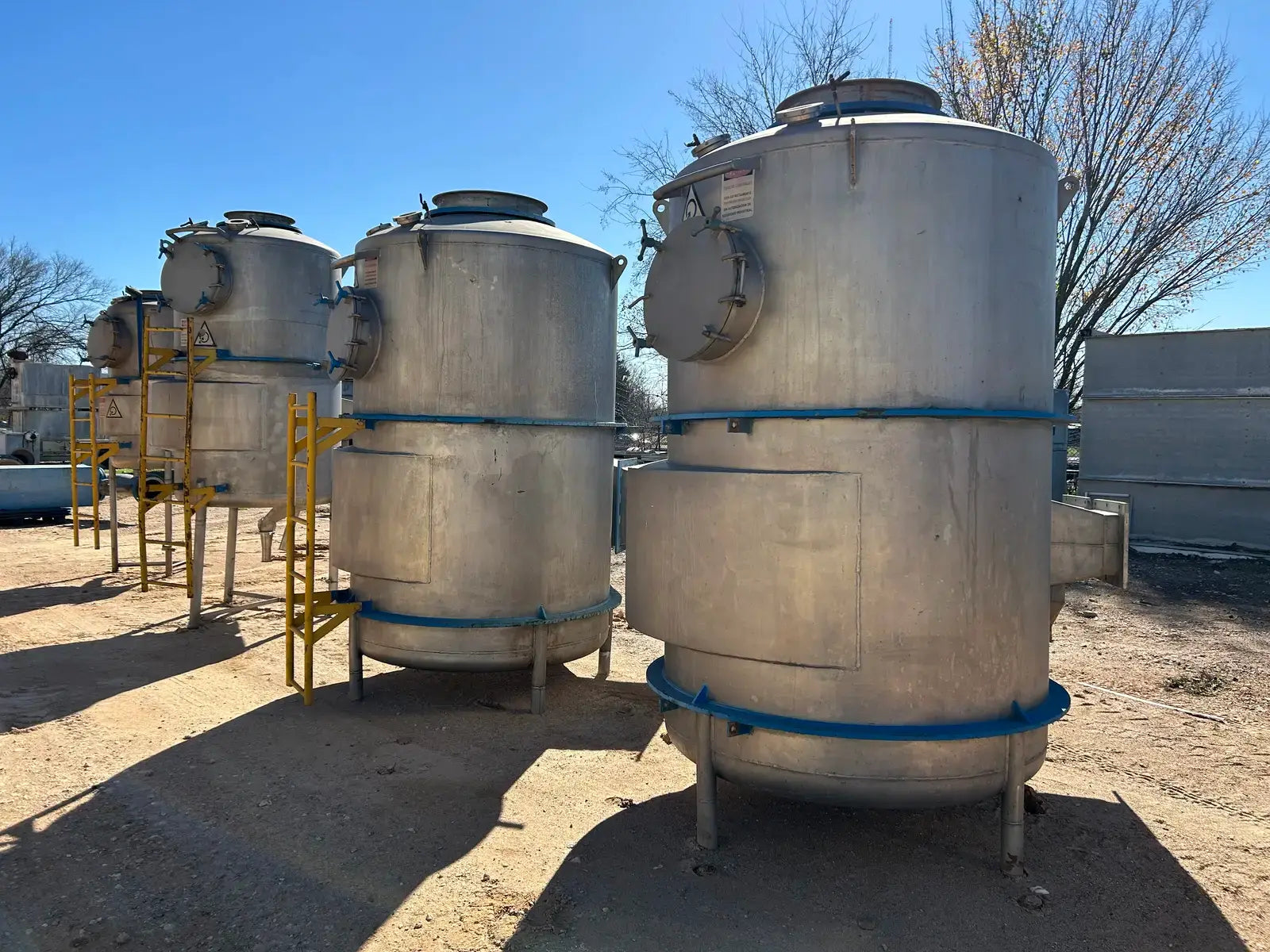

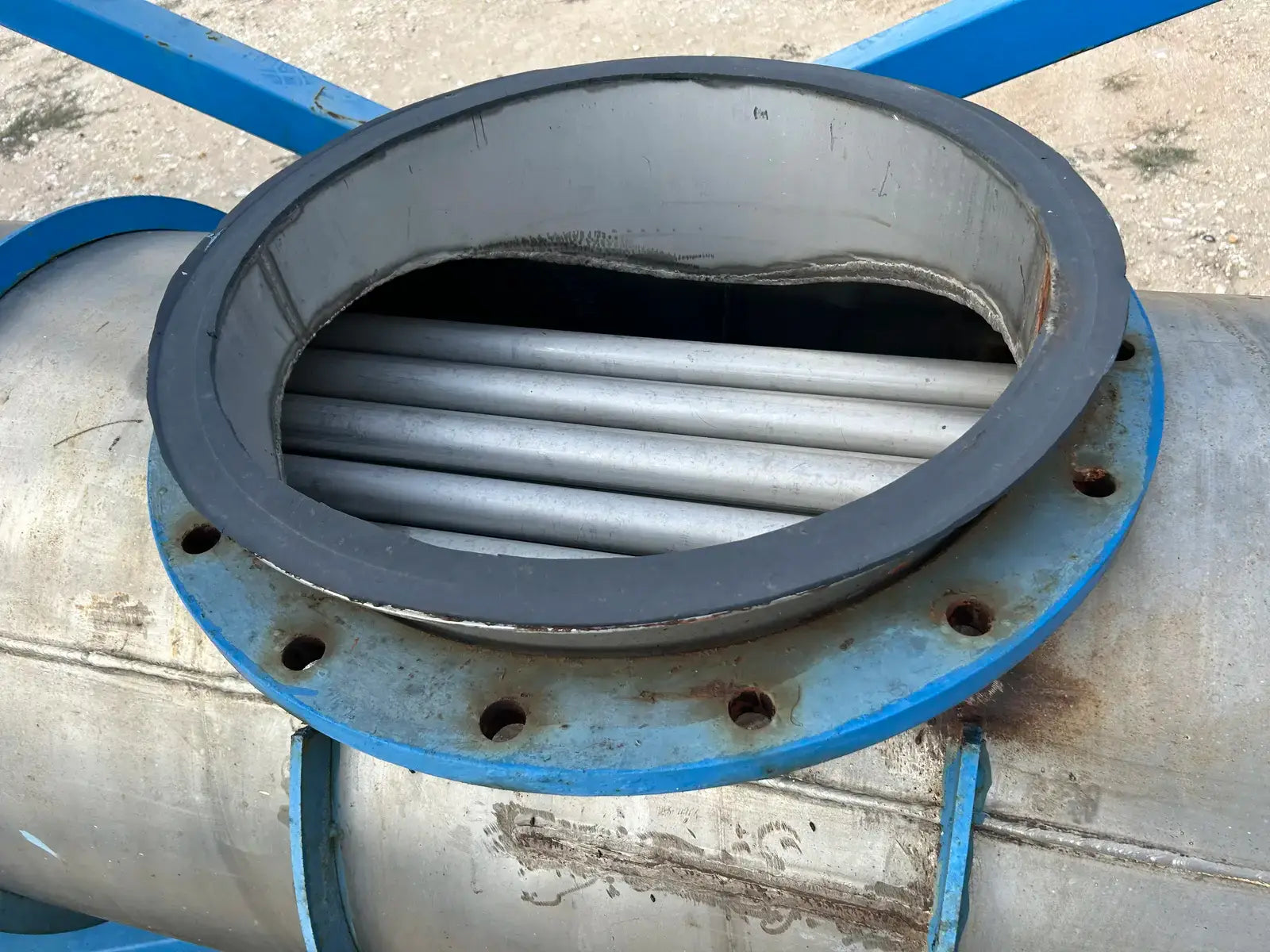

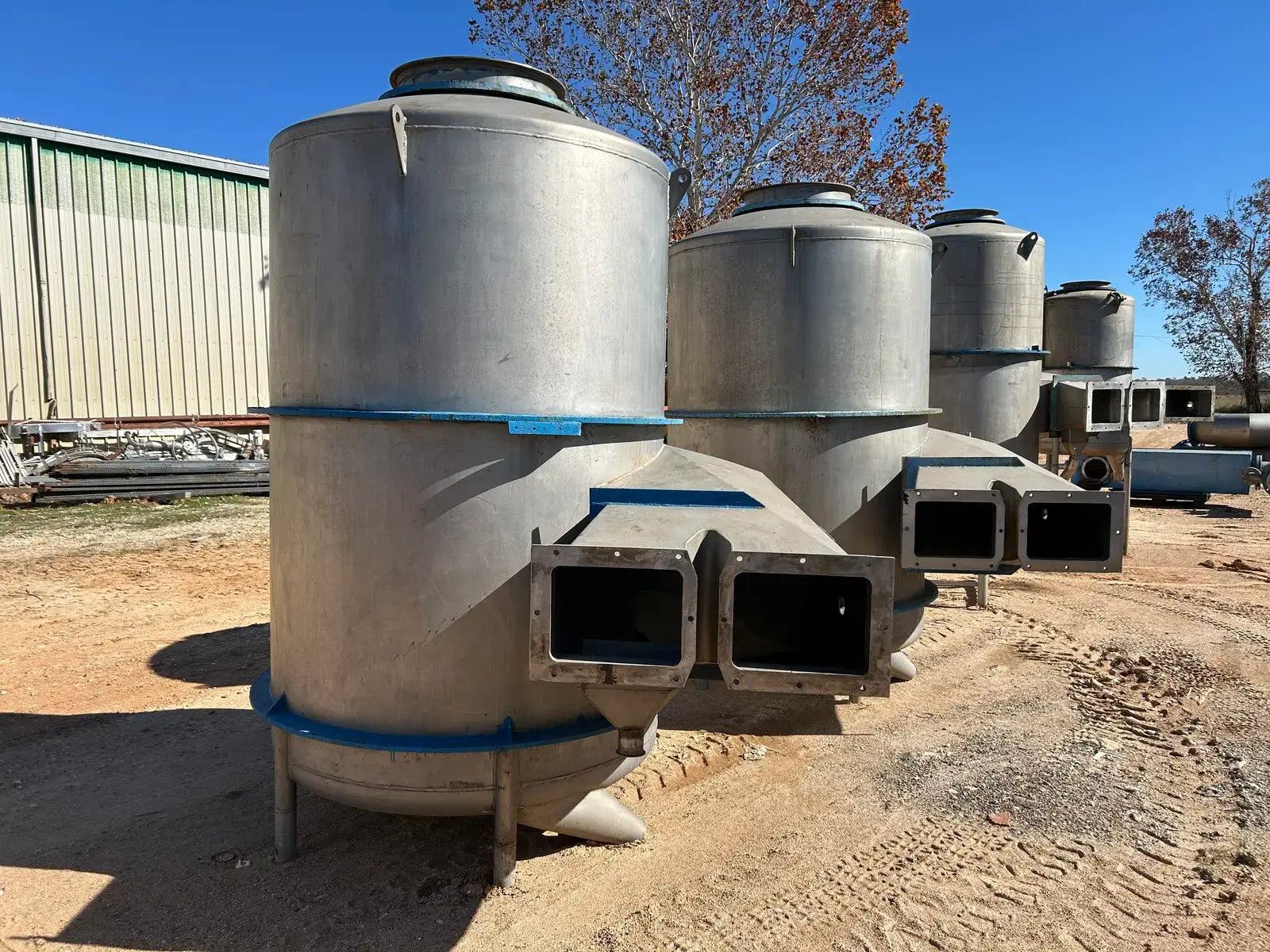

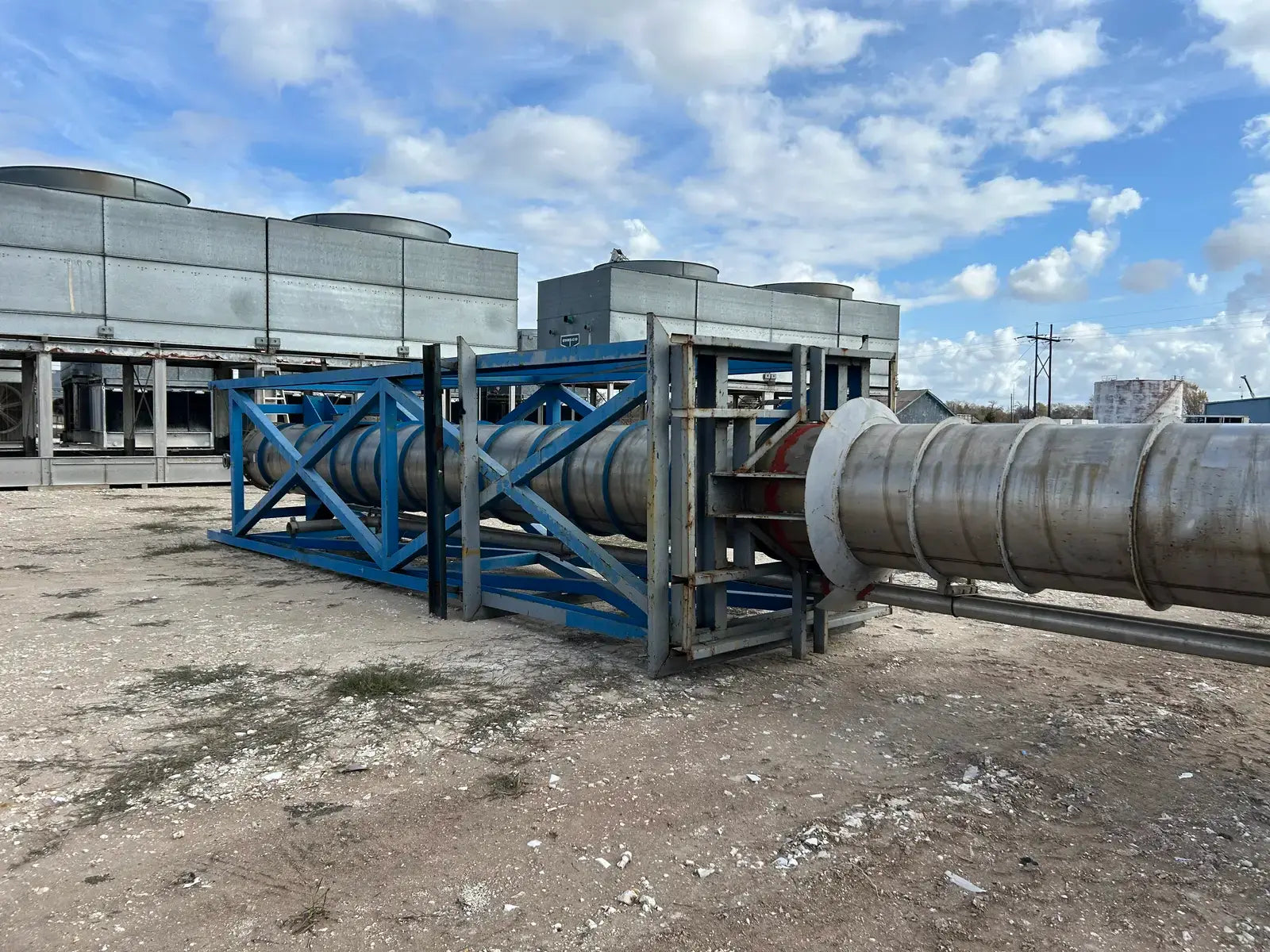

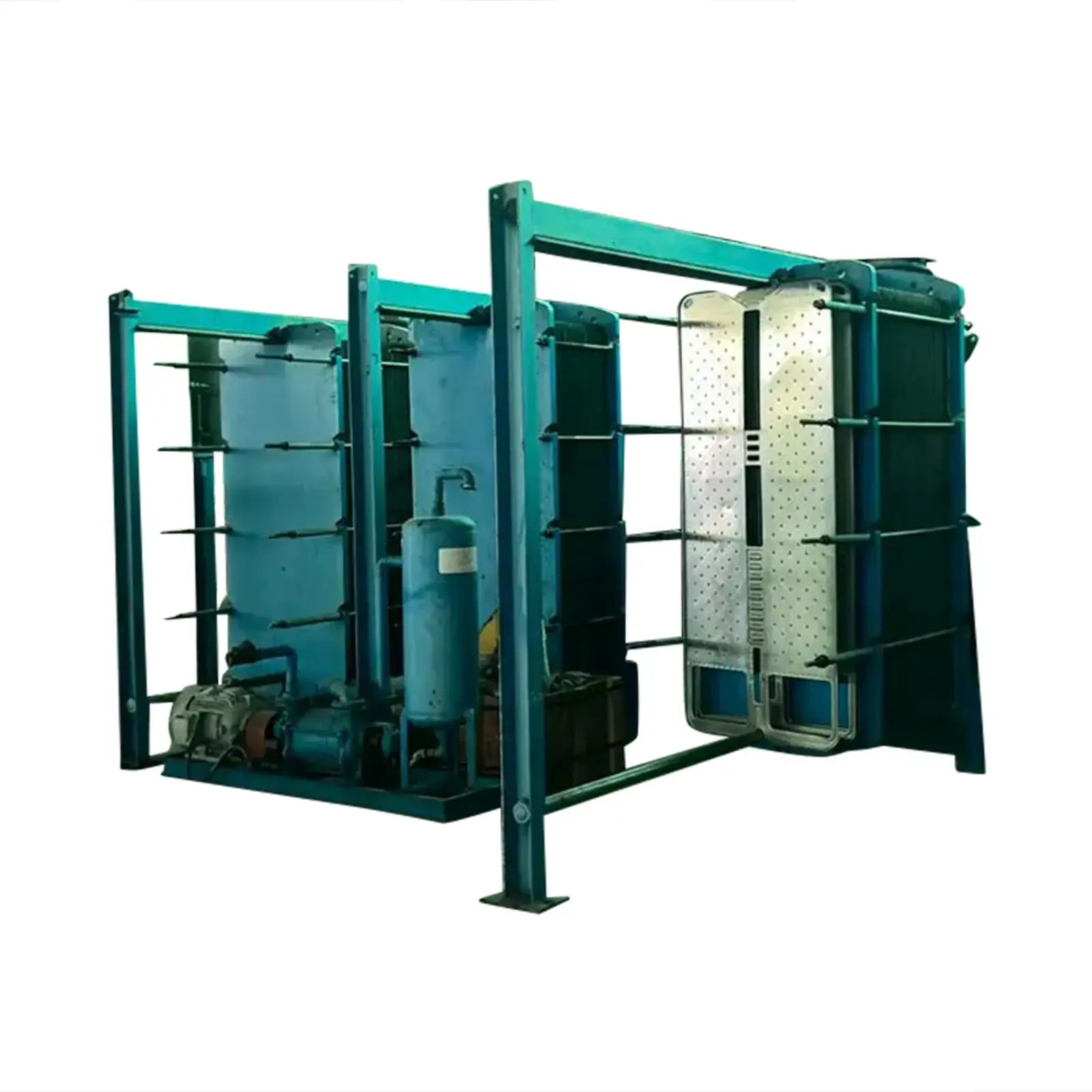

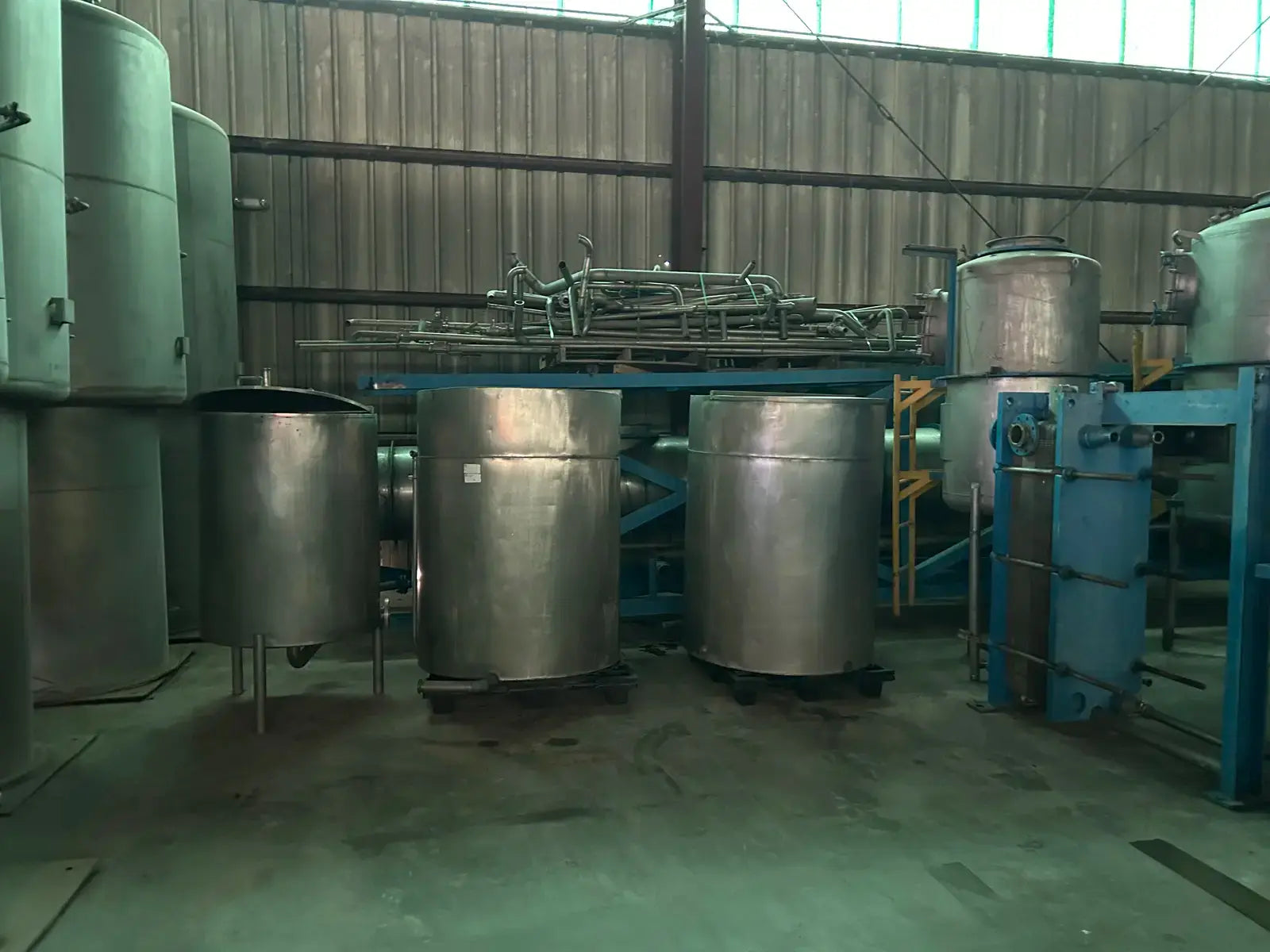

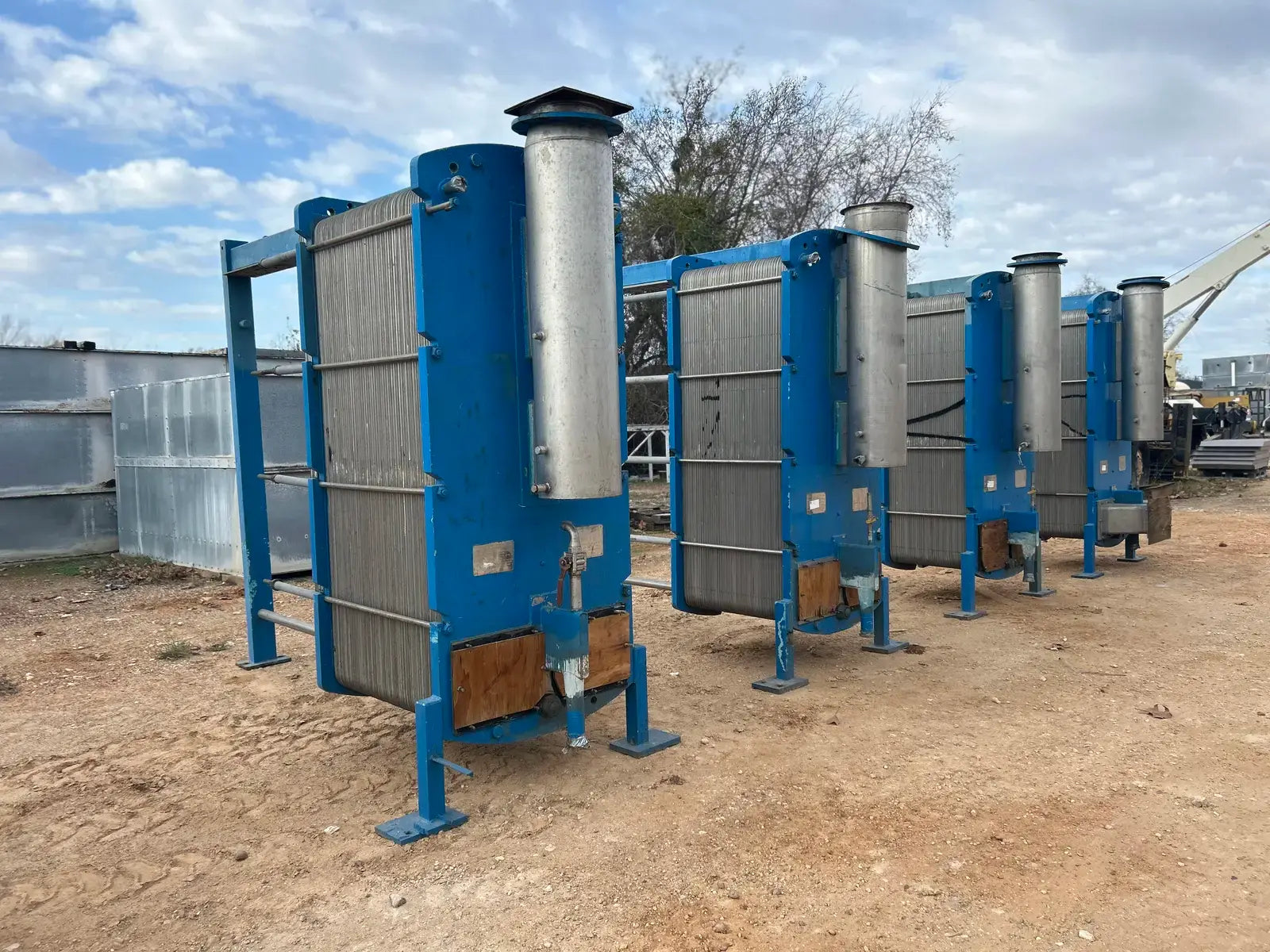

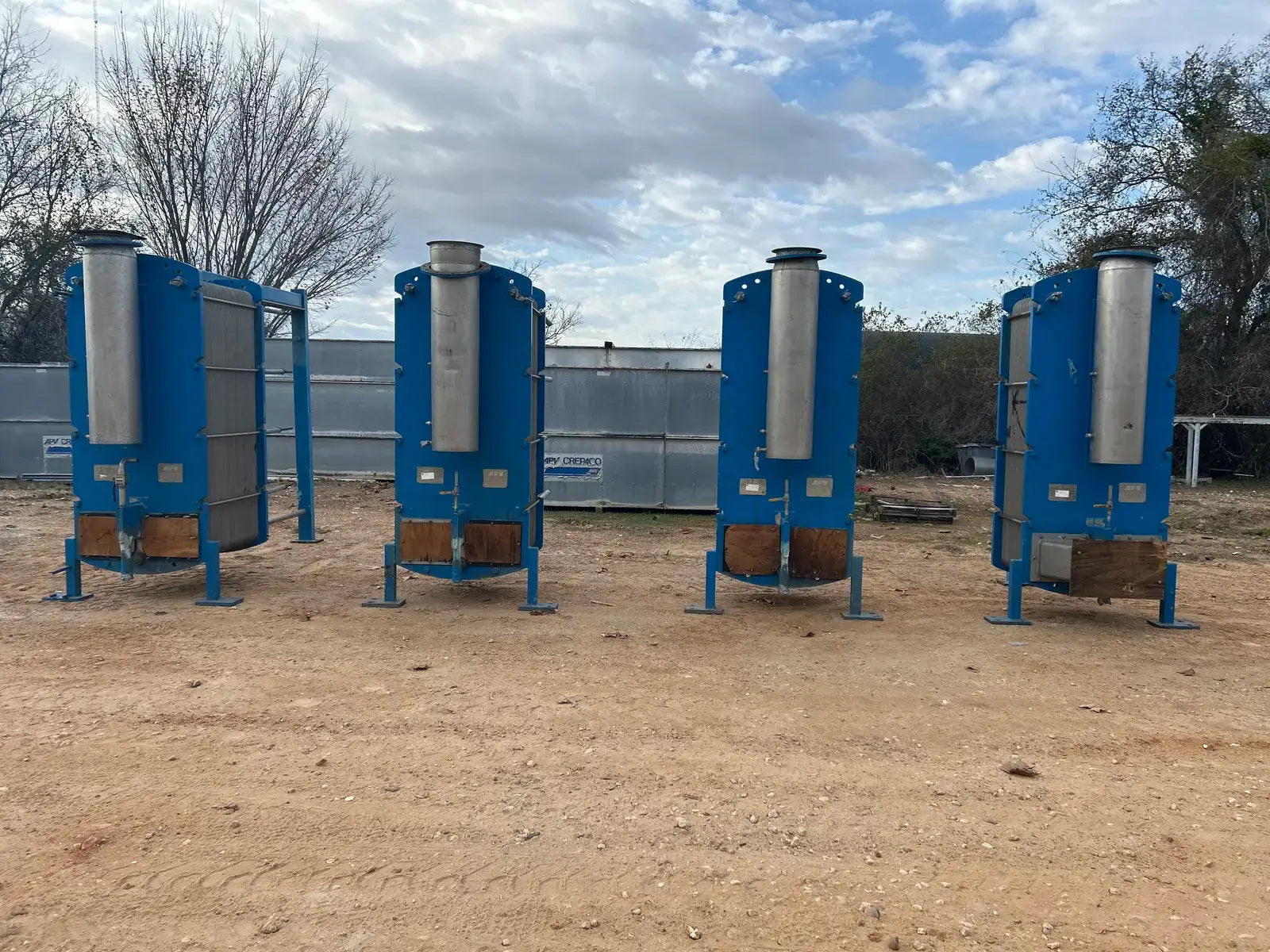

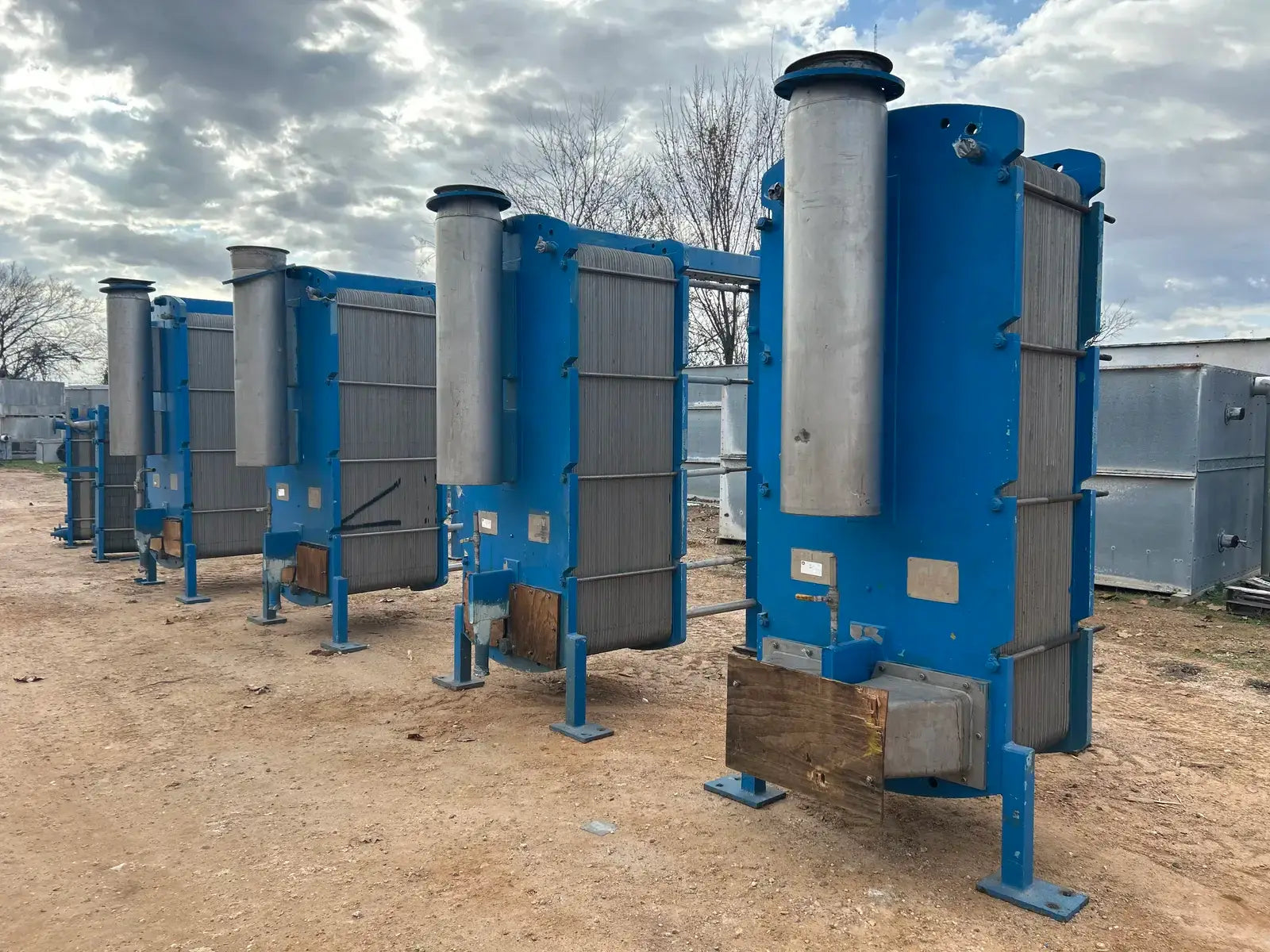

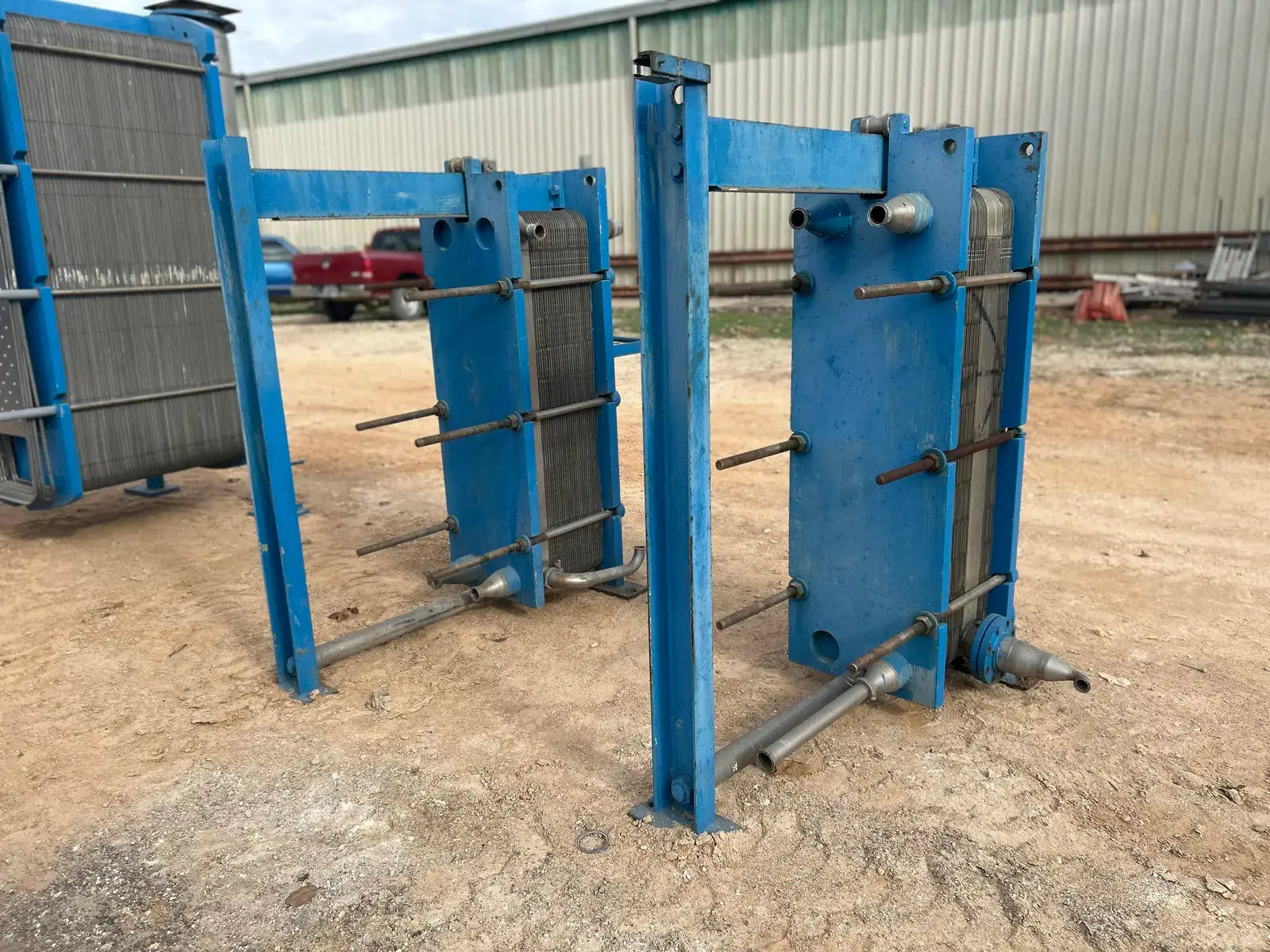

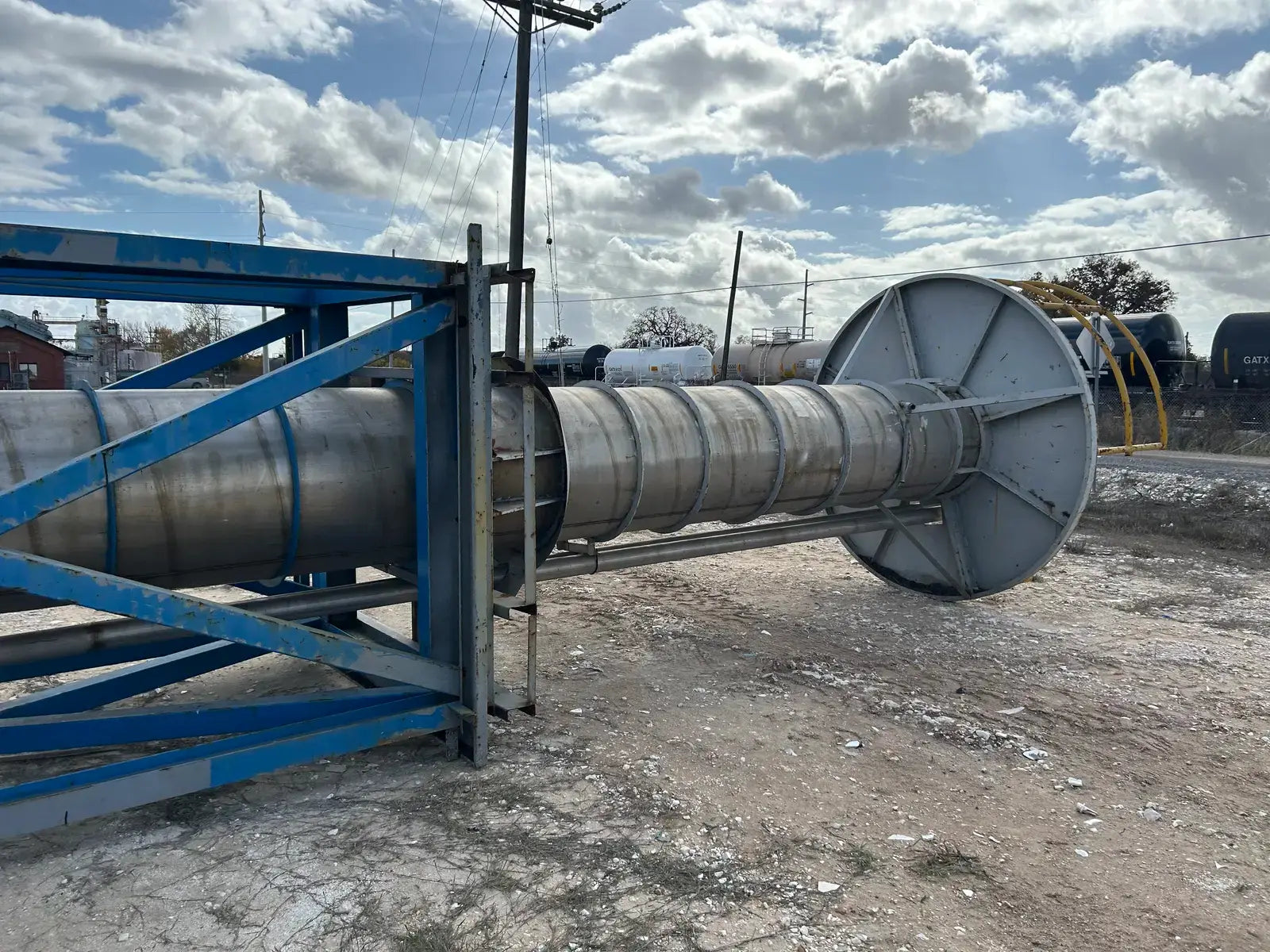

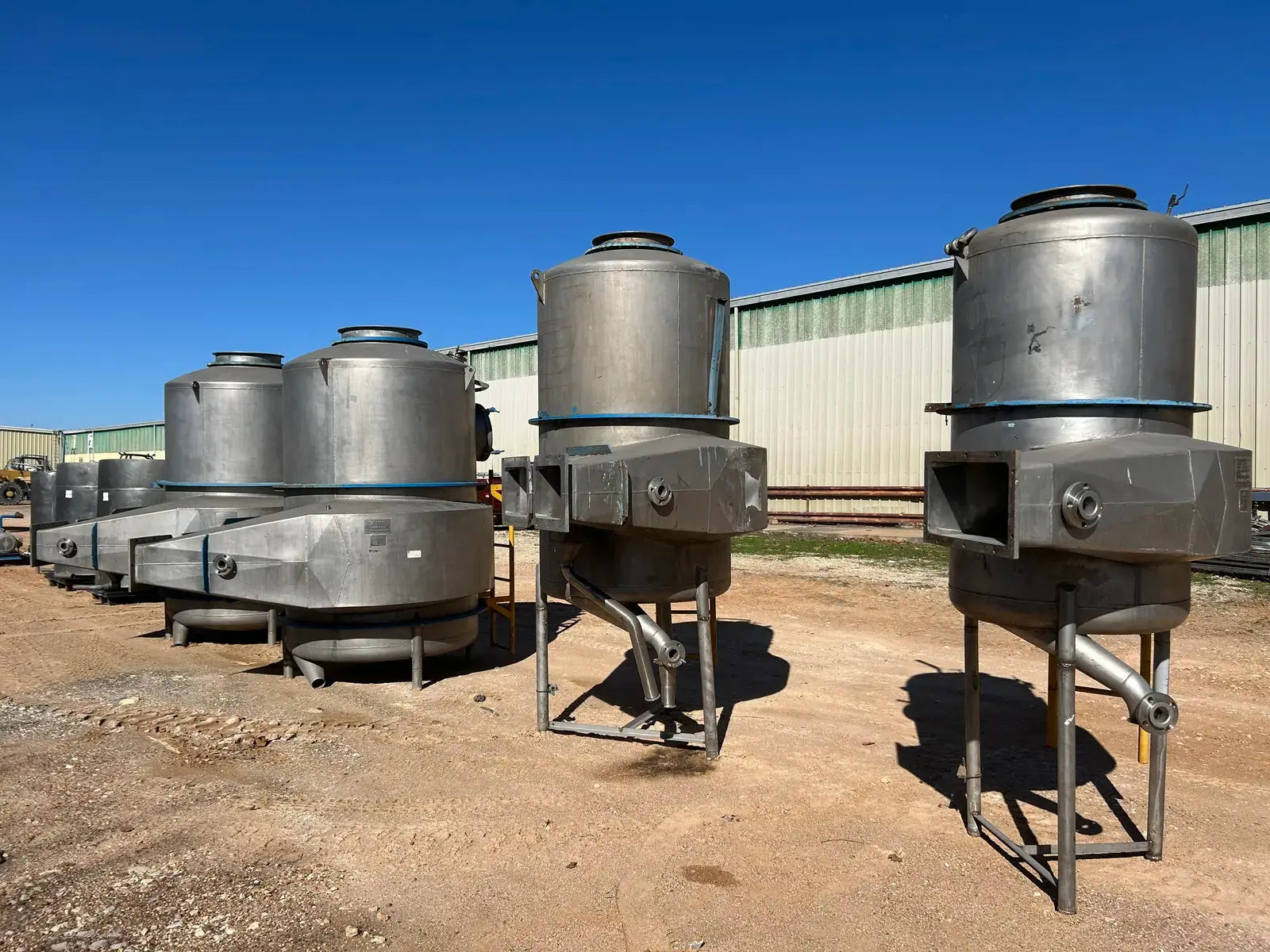

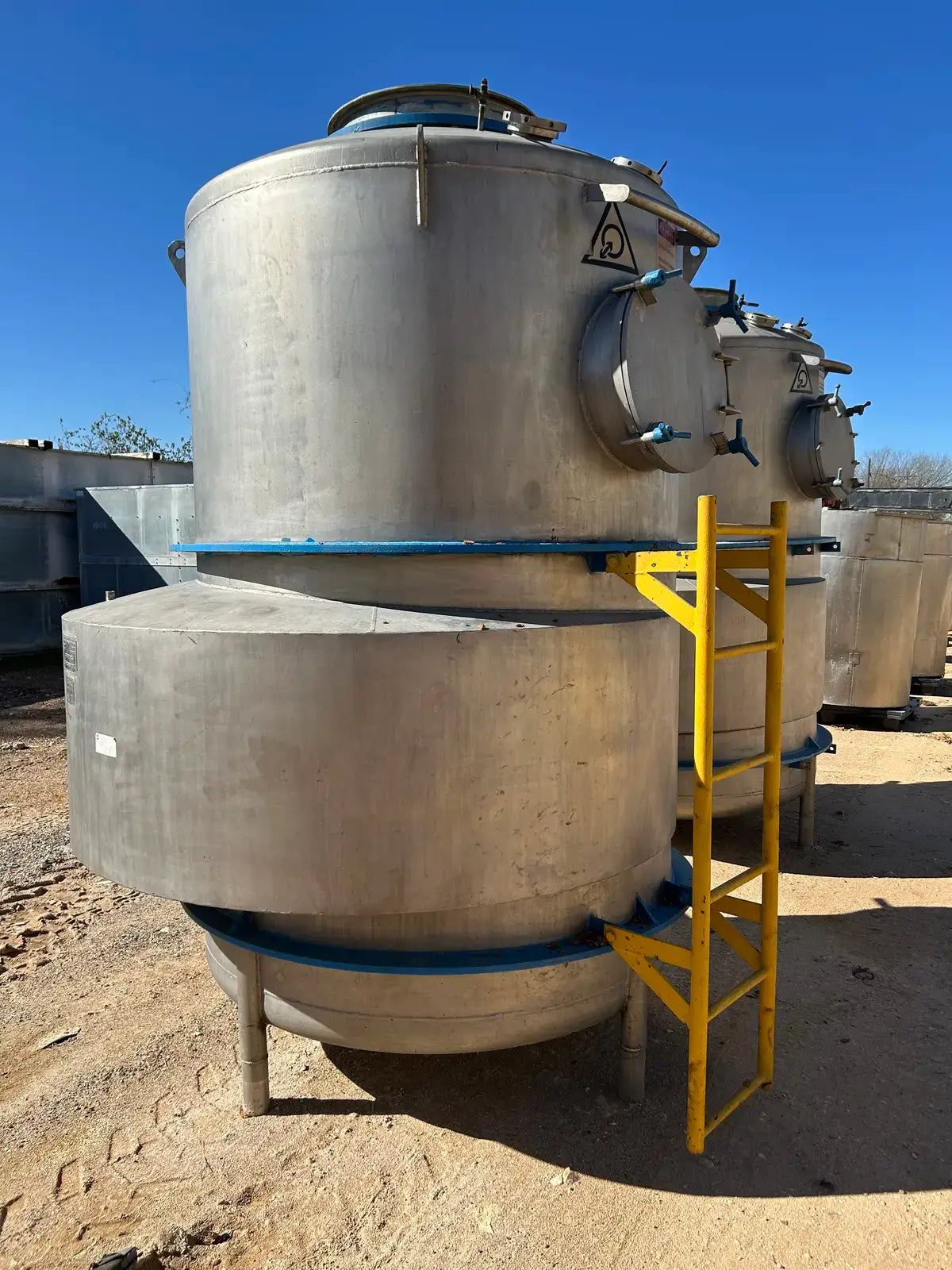

- Evaporator Components Included: (1) 1st Effect: Frame Size 3:1, 53 PU'S w/60" diameter reversed dish snail shell separator; (2) 2nd Effect: Frame Size 1:2, 28 PU'S w/36" diameter reversed dish snail shell separator; (3) 3rd Effect: 3A Stage and 3B Stage in Series flow w/common frame and separator: Frame Size 2:2, 44 PU'S w/48" diameter reversed dish snail shell separator; (4) 4th Effect: 4A Stage and 4B Stage in Series flow w/common frame and separator: Frame Size 3:1, 51 PU'S w/60" diameter reversed dish snail shell separator; (5) One R56 APV Pre-Heater Plate Heat Exchanger; (6) Barometric Condenser; (7) Feed Balance Tanks; (8) R56 APV Regen/Cooler Plate Heat Exchanger; (9) Pasteurizer; (10) Barometric Vacuum Pump; (11) Necessary Pumps, Piping, Vapor Ducts, etc.
Micro Panel Details

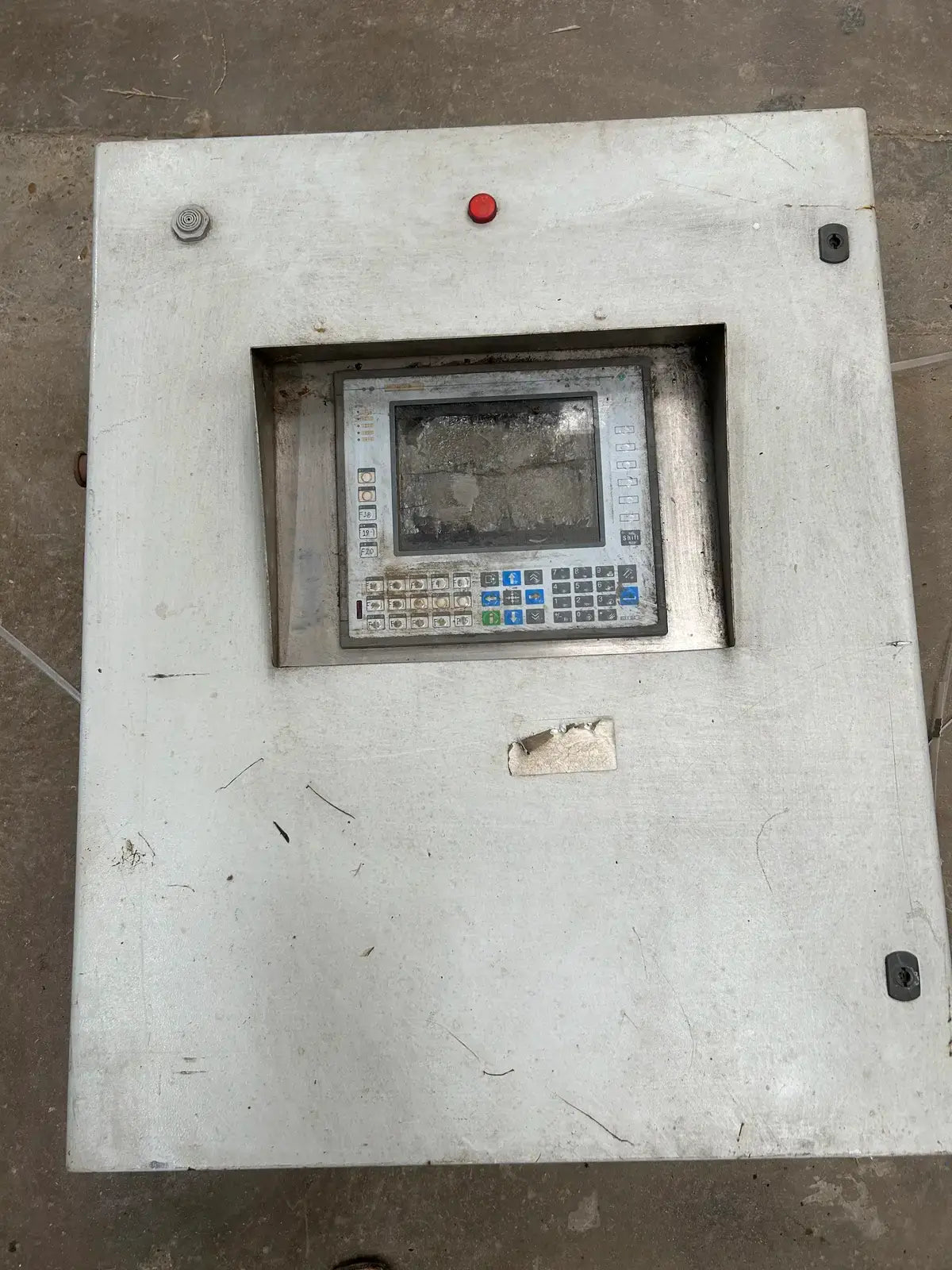

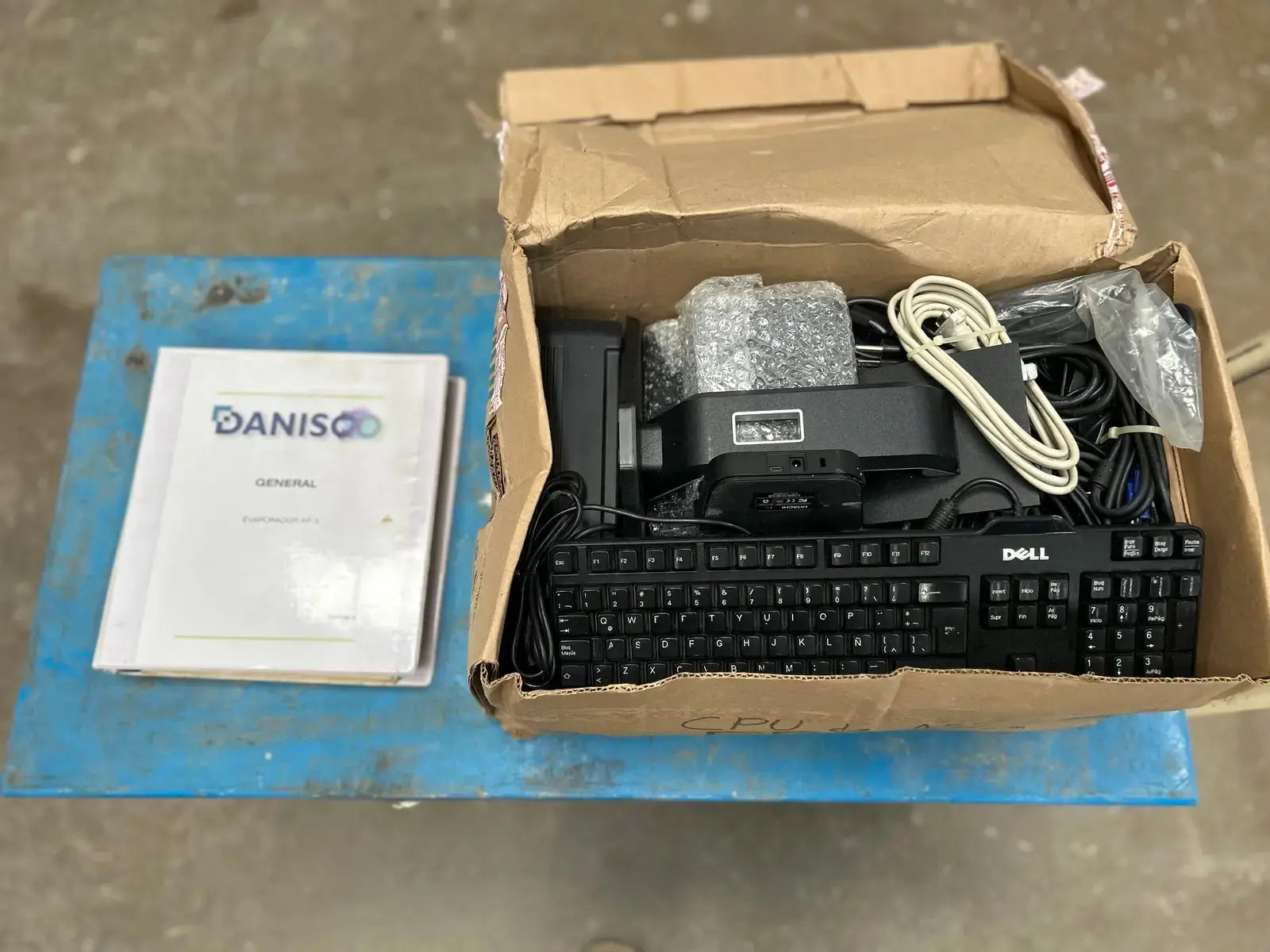

- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: UniOP
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 14

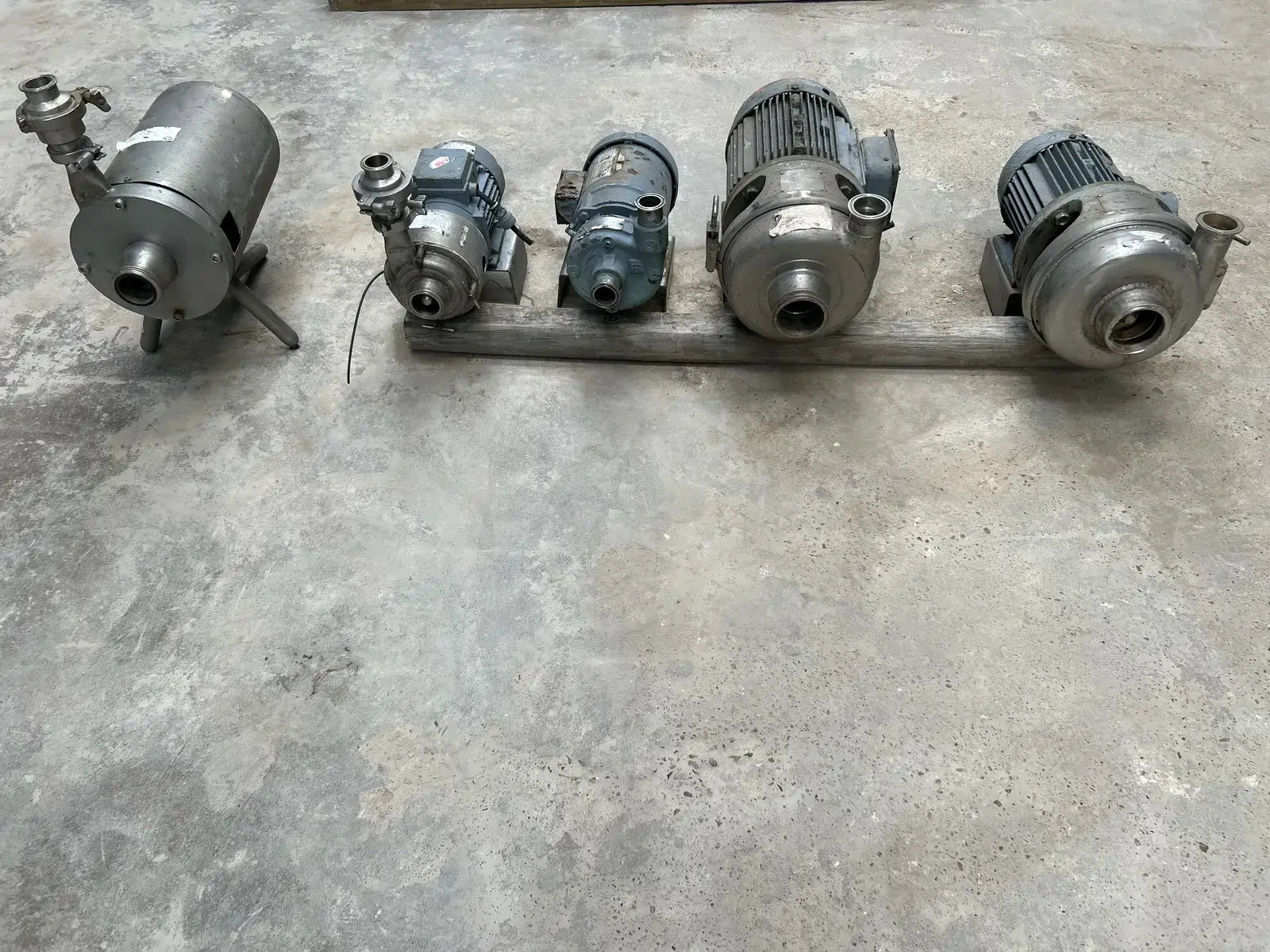

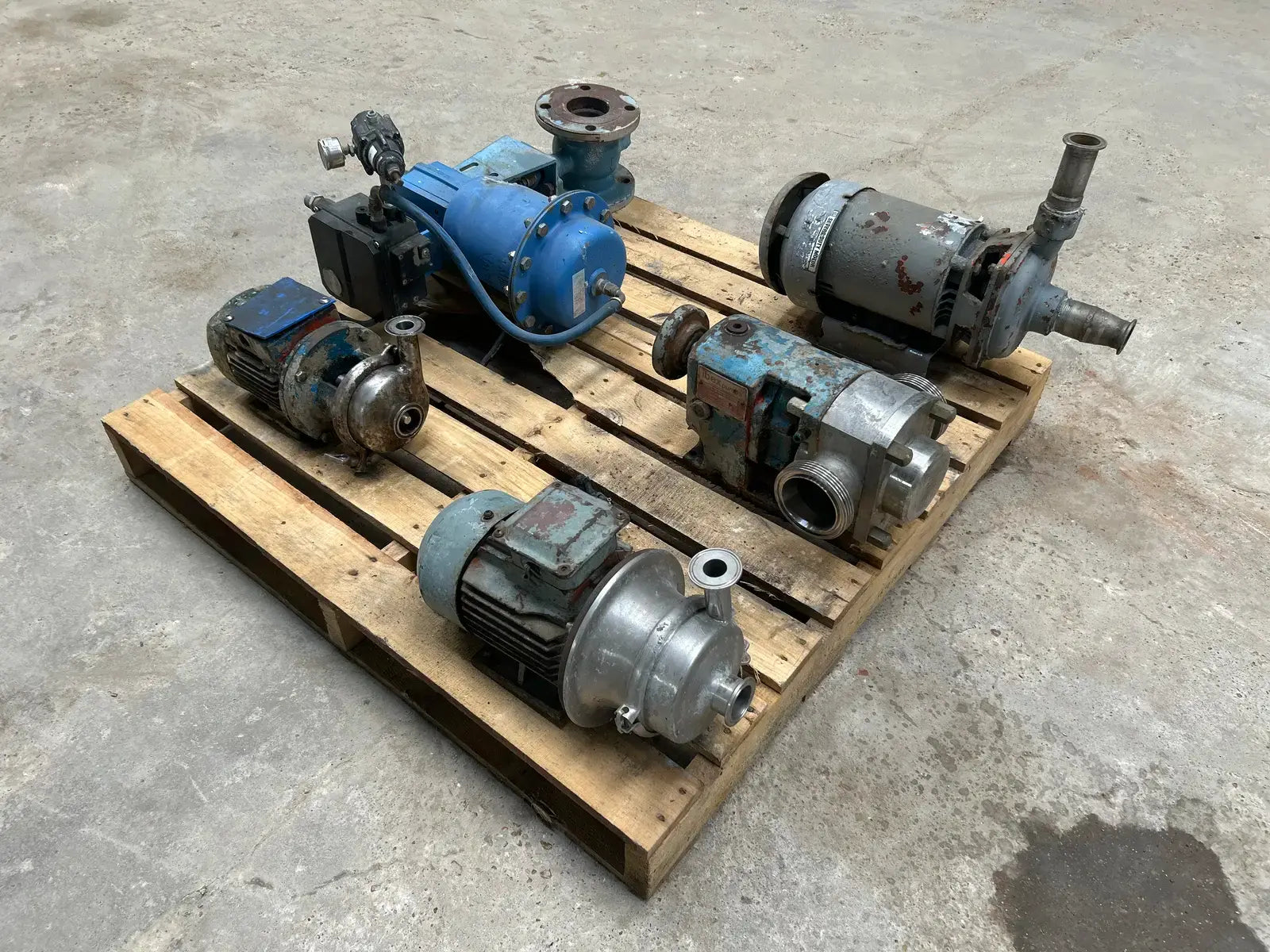

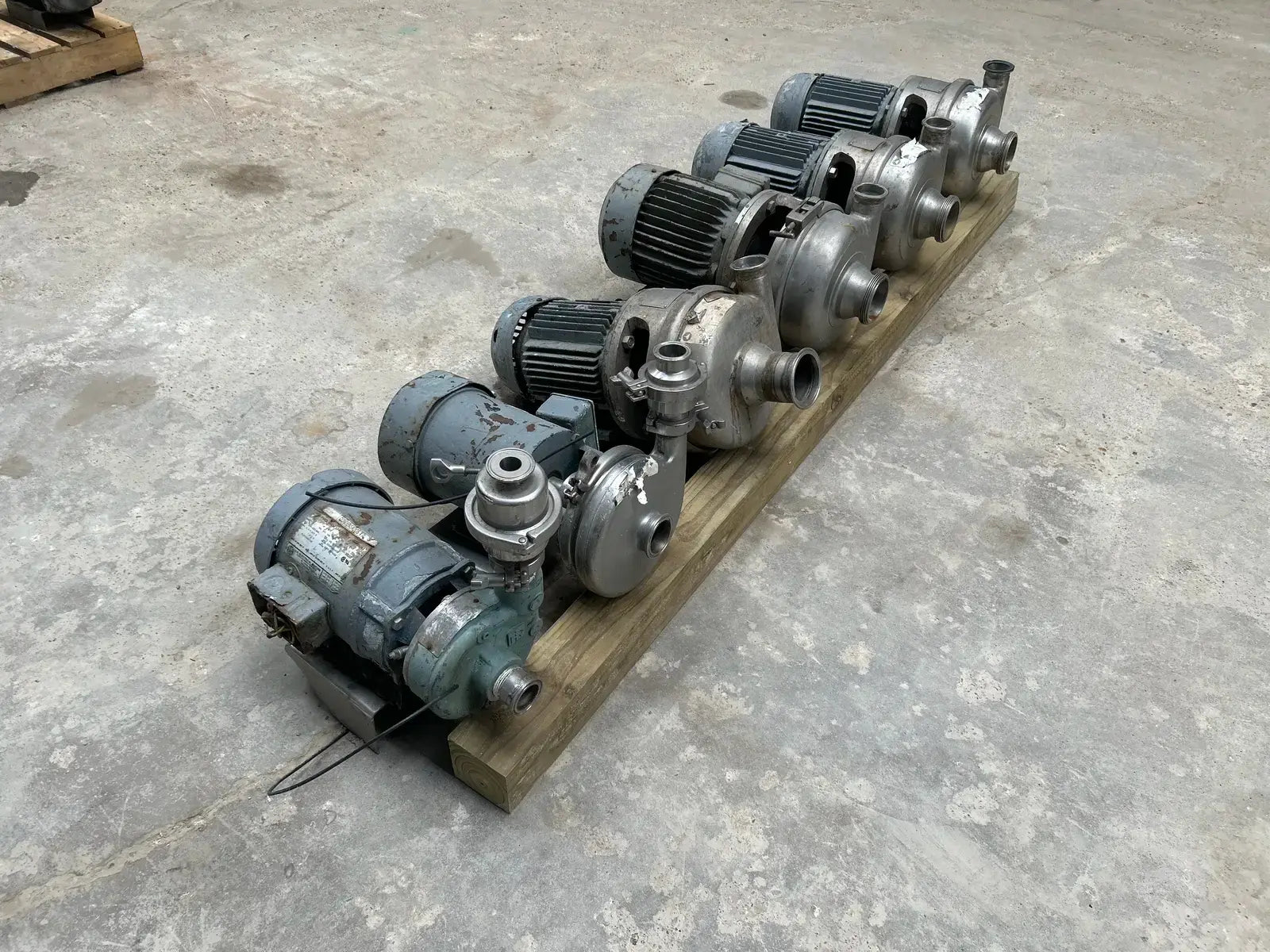

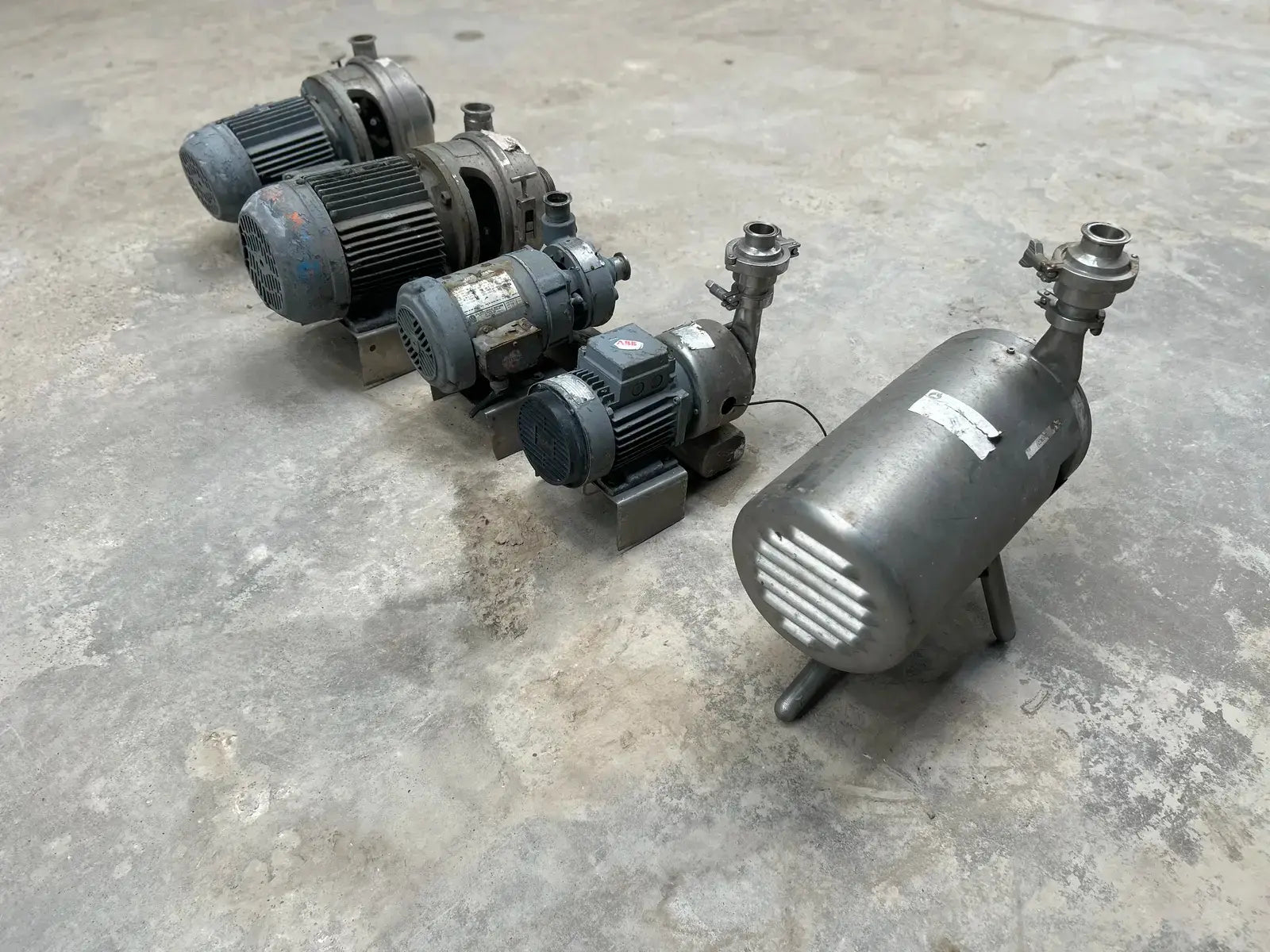

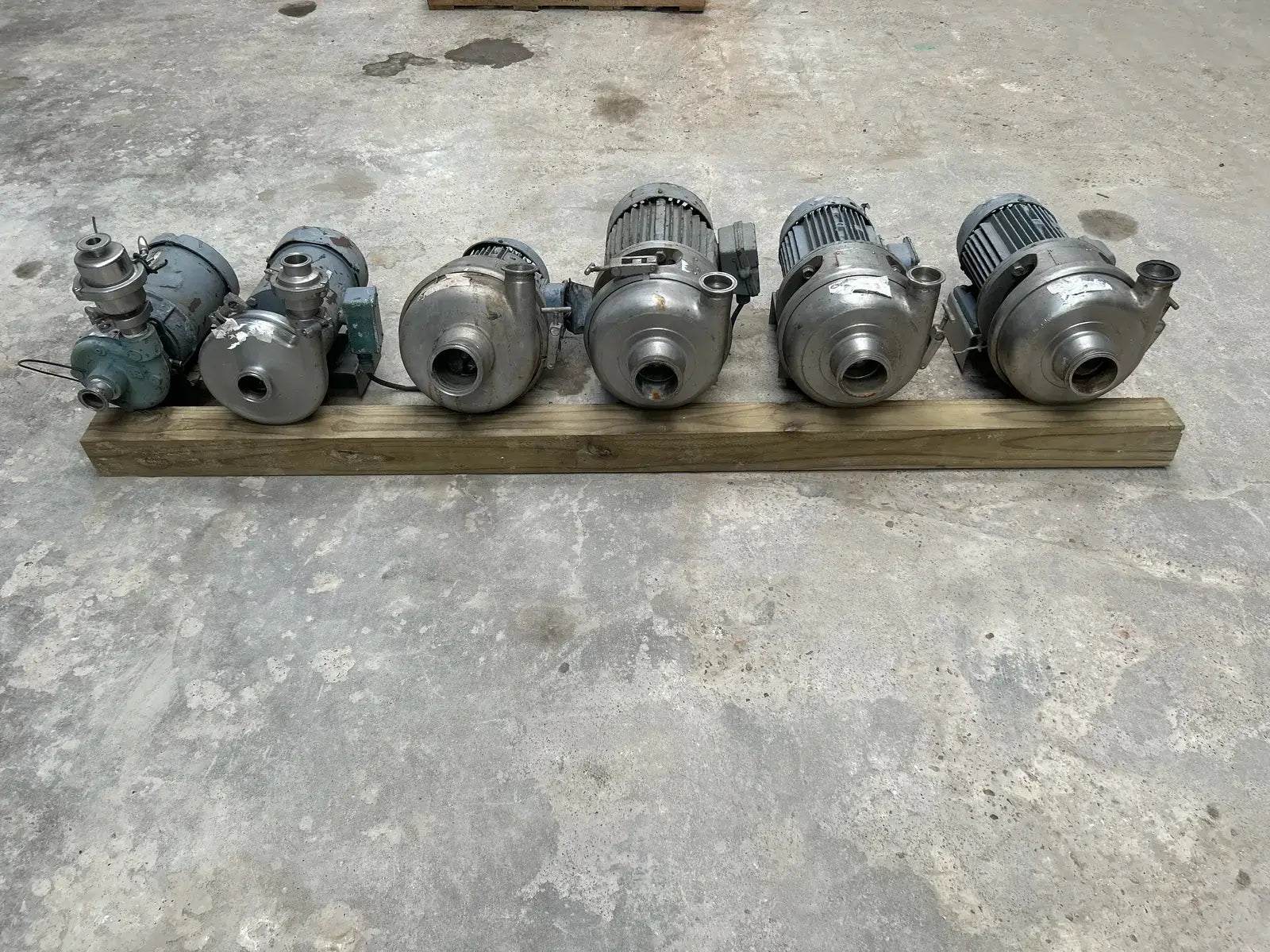

- If Multiple Motors, Motor Descriptions vs specs: (14) Pump Motors Range from 0.5 HP - 5 HP
Dimensions:
- Length (Inches): 100
- Width (Inches): 100
- Height (Inches): 100
- Weight (LBS): 35,000
- # of Pieces for Shipping: 20
Additional Product Details

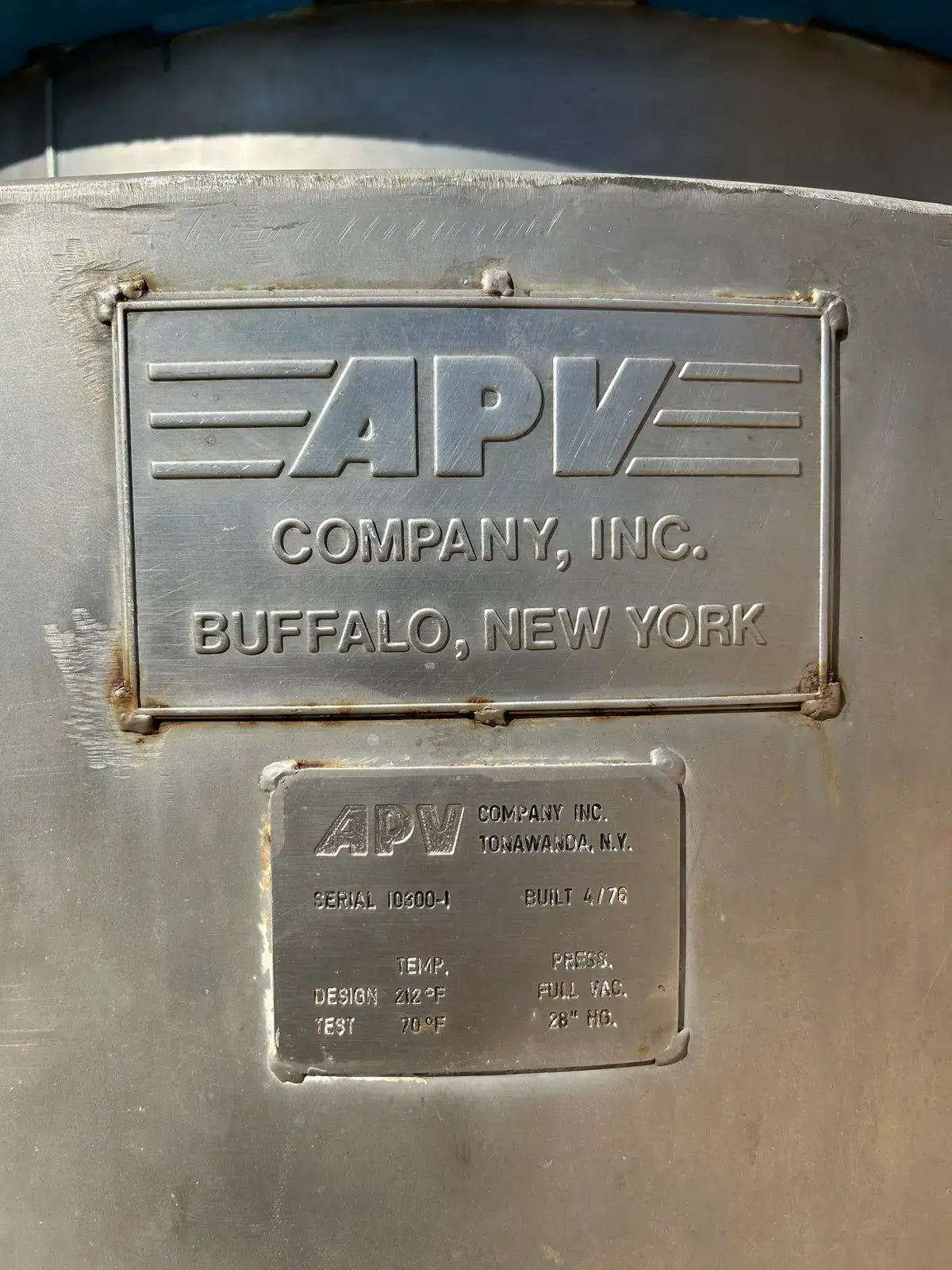

- Year of Manufacture: 1976
- Year Removed from Production: 2024
- Spec Sheet Available: Yes
- Previously Used With: Limon Pectin
