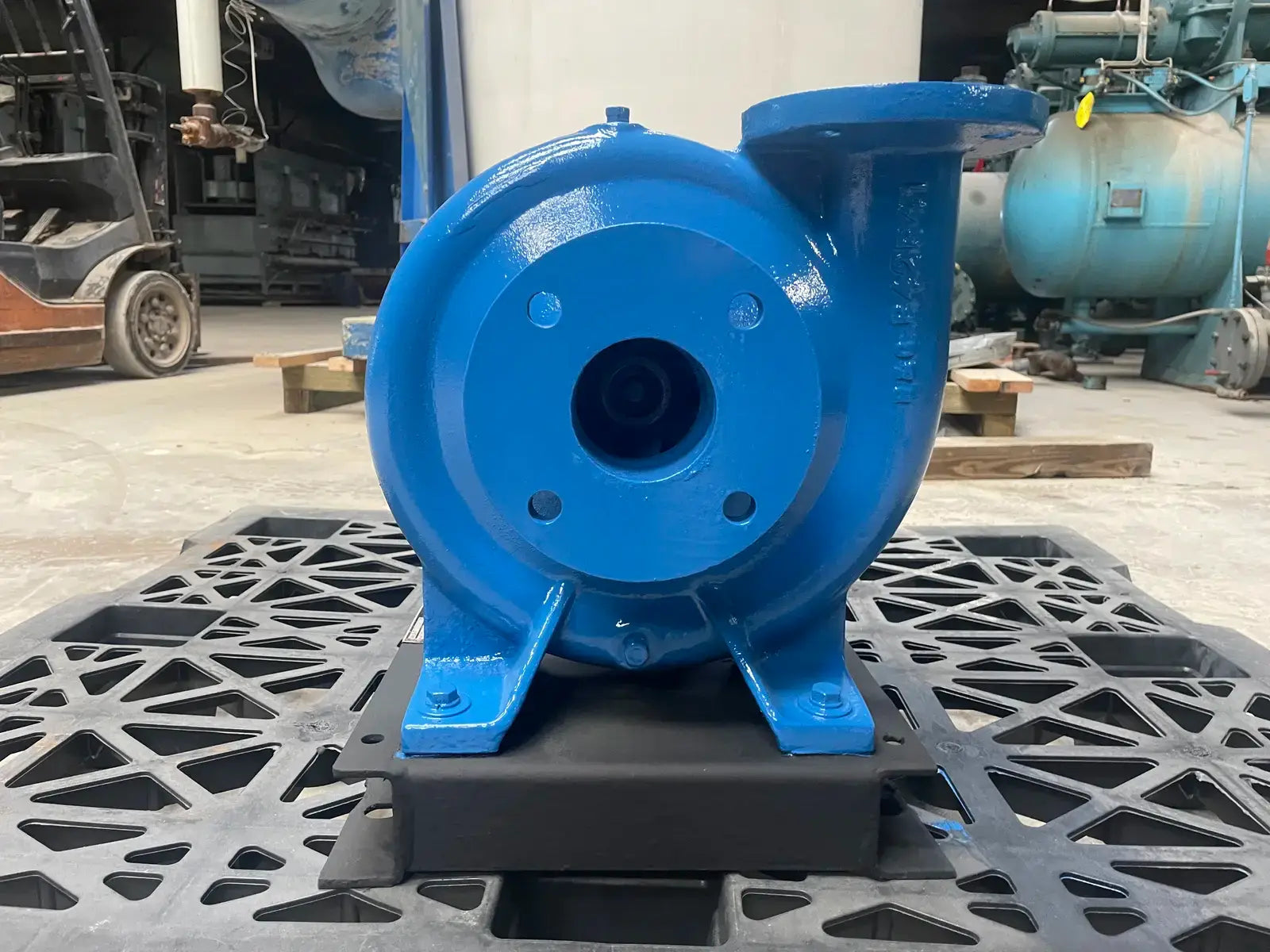

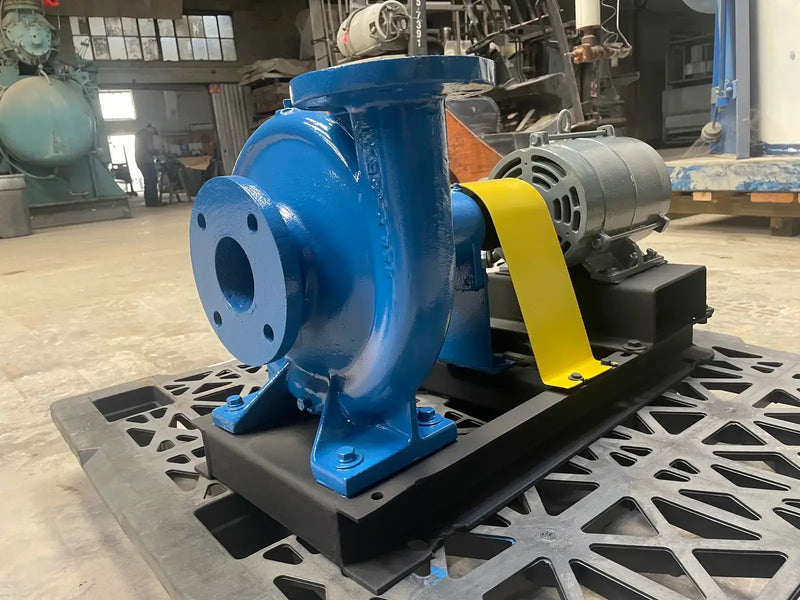

Bell & Gossett 1510 Series Centrifugal Pump (5 HP, 390 GPM Max)
Bell & Gossett 1510 Series Centrifugal Pump. Model: 2.5BB BF7.75 D69. Serial No: 2002962. Identification No: 1BF069. Max GPM: 240. Max at Working Pressure: 175 PSI. Minimum Temperature: -20. Max Temperature: 250 F.
Product Details
- Stock No: NIH23
- Manufacturer: Bell & Gossett
- Model: 2.5BB 1510
- Serial Number: 2002962
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 390
- Max Speed RPM: 1,750
- Minimum Temperature (F): -20
- Maximum Temperature (F): 250
- Maximum Pressure MAWP (PSI): 175
- Impeller Diameter (inches): 7.5
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 2.5
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet Flange Size (inches) 1: 6
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 2.5
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 4
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 5
- Motor RPM: 1,740
- Motor Voltage: 230/460
- Motor Amps: 13/6.5
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 184T
Dimensions:
- Length (Inches): 48
- Width (Inches): 24
- Height (Inches): 24
- Weight (LBS): 550
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2002
- Year Removed from Production: 2024
- Spec Sheet Available: Yes
