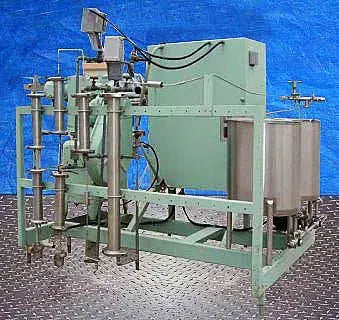

Cherry-Burrell No-Bac Unitherm IV Processing System

Cherry-Burrell No-Bac Unitherm IV Processing System

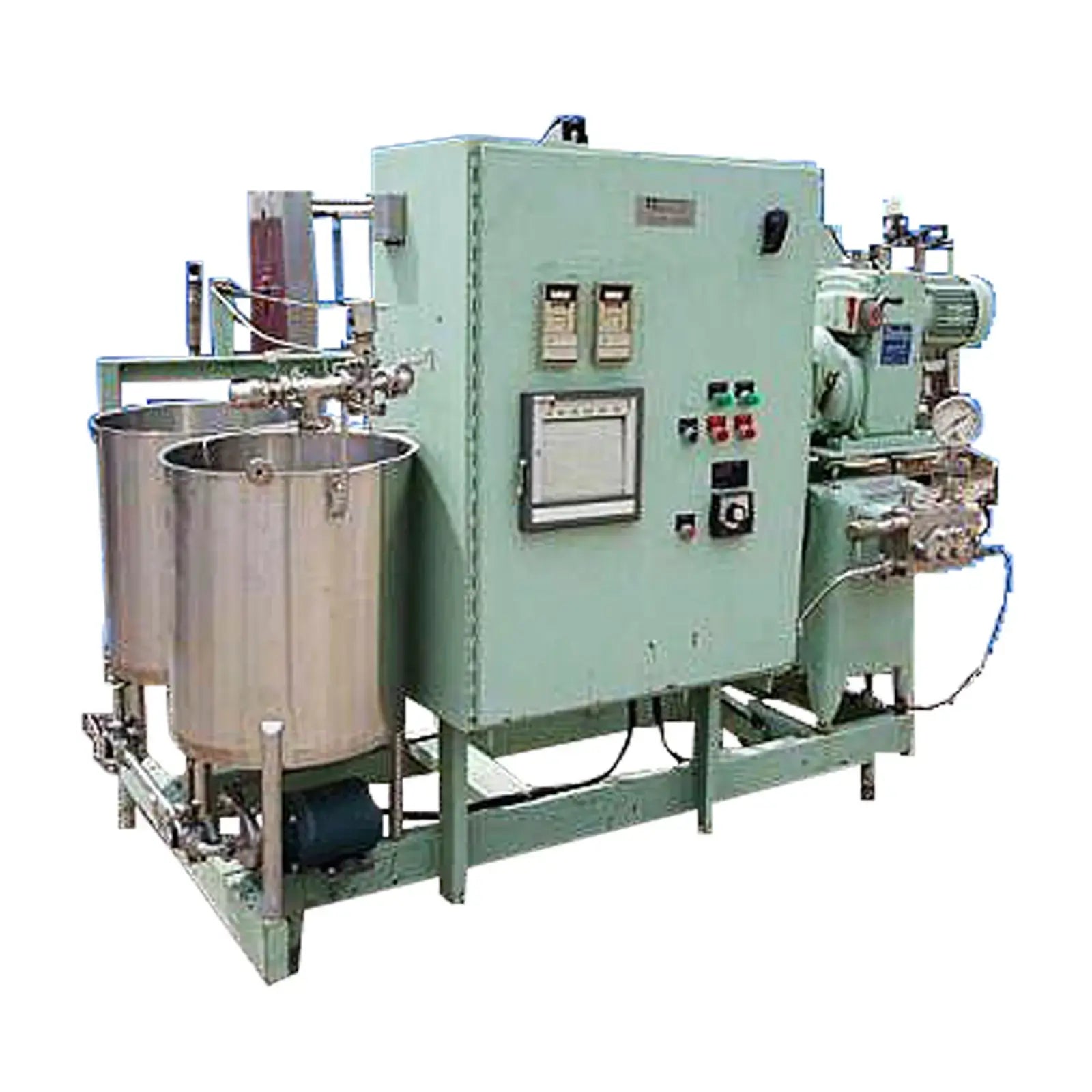

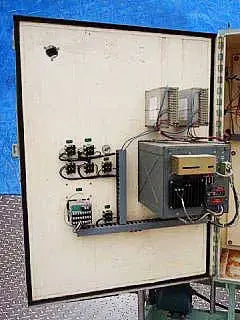

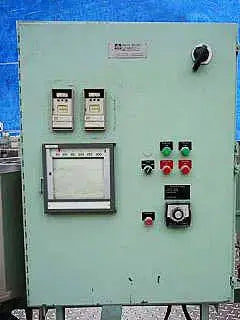

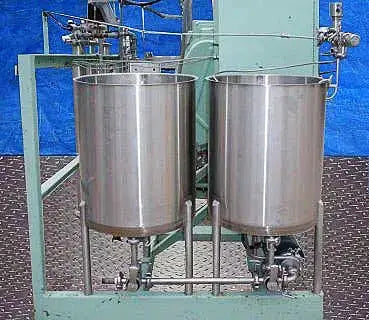

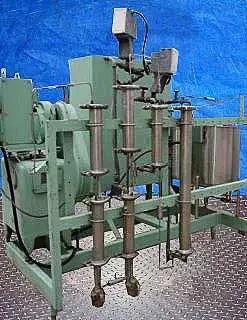

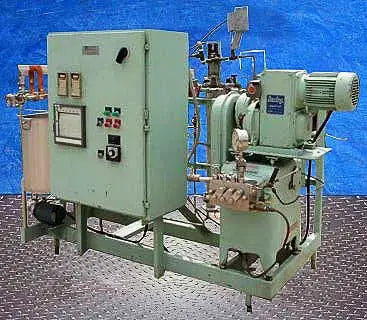

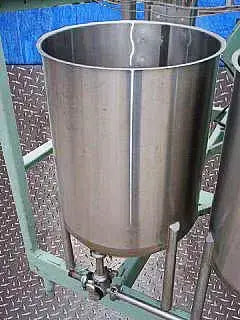

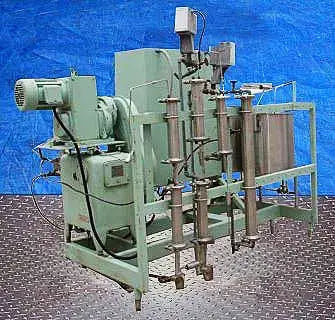

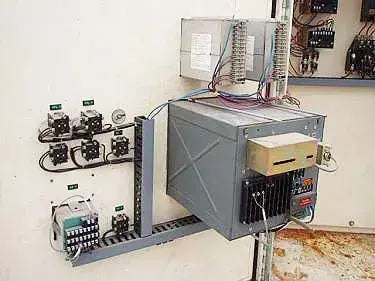

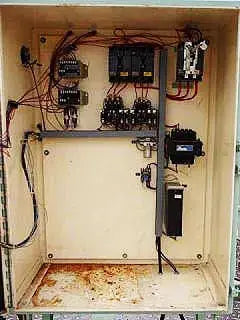

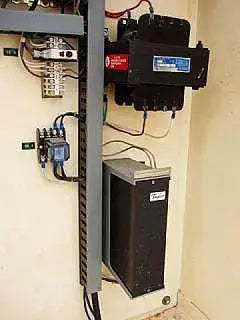

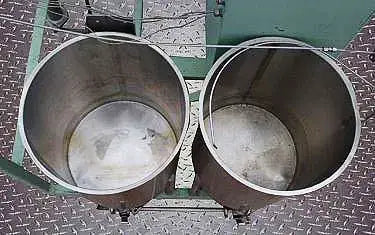

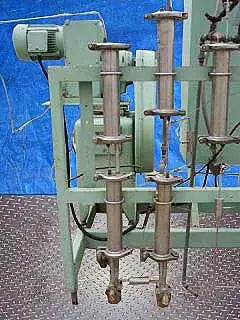

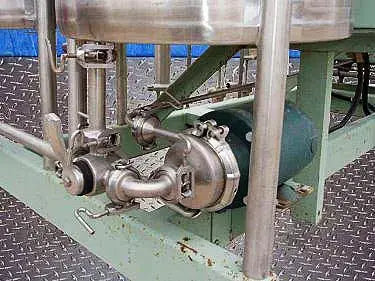

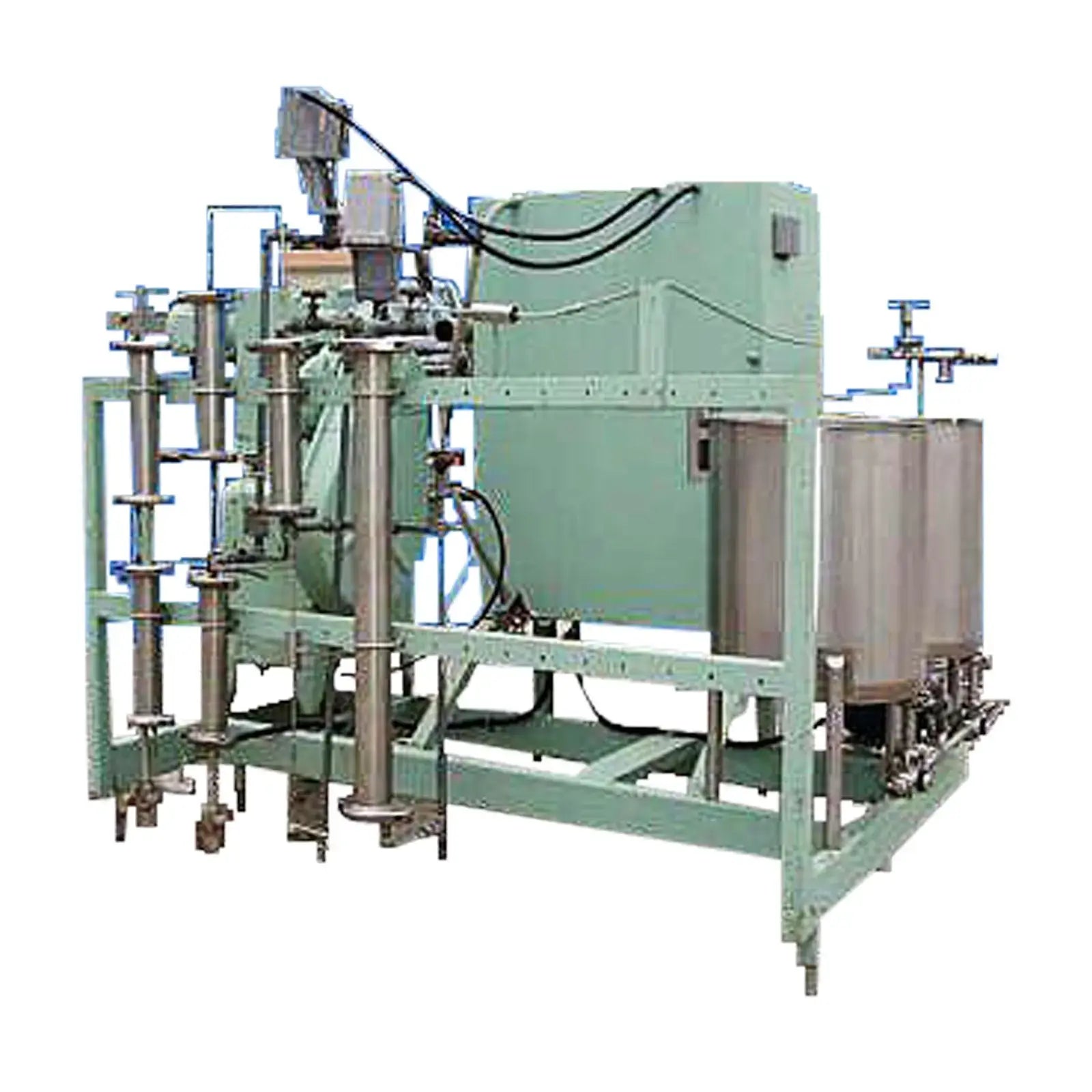

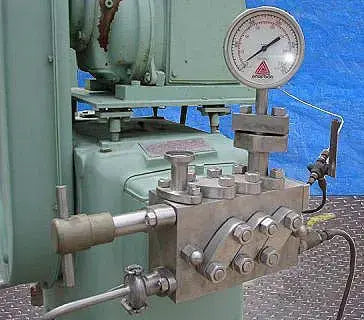

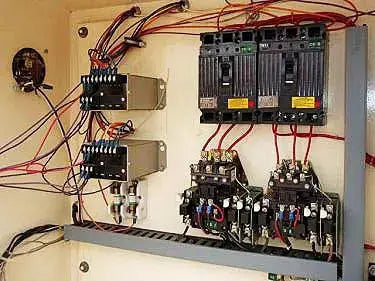

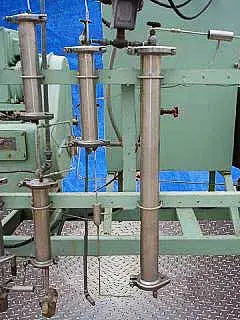

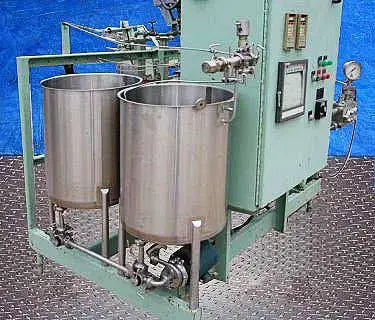

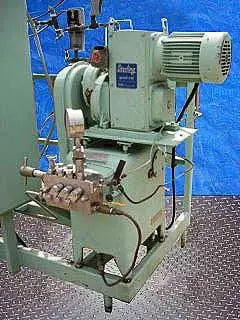

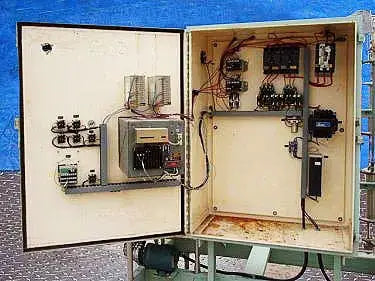

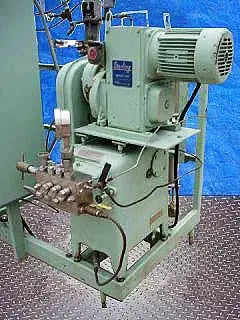

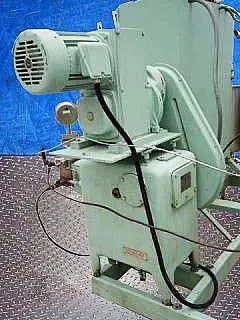

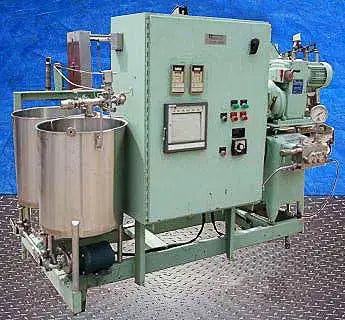

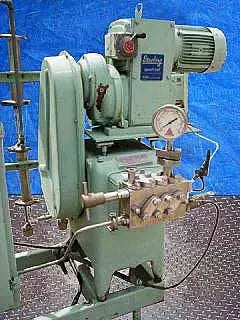

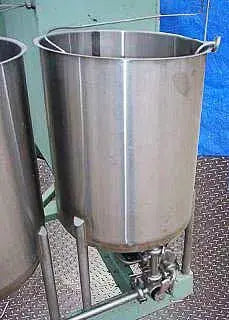

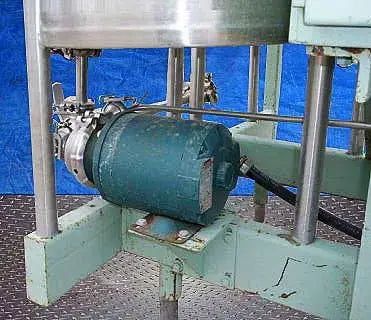

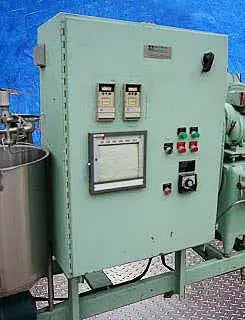

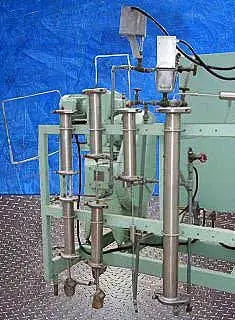

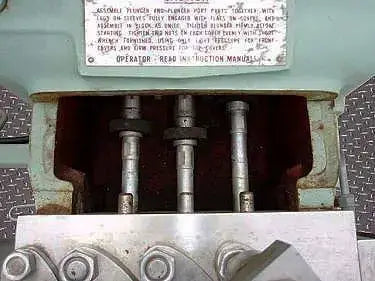

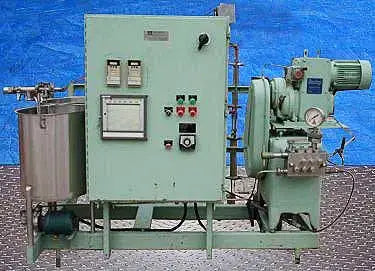

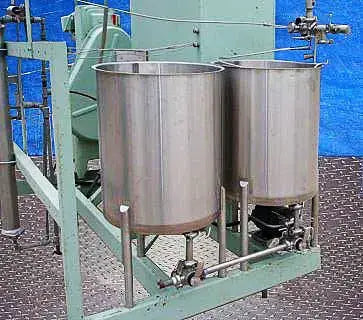

Cherry-Burrell No-Bac Unitherm IV Processing System. Model: No-Bac Unitherm IV. The No-Bac Unitherm IV is a complete unitized system for sterilizing fluid products at a rate of 20 to 40 gph. Products are heated up to 300°F and held for sterilization, then reduced then to 35°F after homogenization for packaging. It consists of two surge tanks, supply pump, high pressure pump, and Spiratherm heat exchangers. Cherry Burrell Stellar-Flo pump, model: SS-200, operating pressure: 300 psi, capacity: 45 gph. Sterling electric motor with Speed Trol variable speed drive, (1) 30 gallon stainless steel mix tank. (1) 30 gallon stainless steel balance tank. Cherry Burrell Flexflo centrifugal pump, model: OH-F, (1) Cherry Burrell 4 in. dia. x 40 in. L Spiraltherm. (5) Cherry Burrell 3 in. dia. x 14 in. L Spiraltherms. (2) Barber-Colman 520 series analog solid state set point temperature controllers. (2) Barber-Colman valve positioners. Inlets: open tank, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water). Outlets: (1) 3/8 in. dia. tube, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water). Overall dimensions: 8 ft. 9 in. L x 4 ft.10 in. W x 6 ft. 8 in. H.(ACN5000).

Product Details

  • Product ID: 8023
  • Stock No: MABE002
  • Manufacturer: Cherry-Burrell
  • Model: No-Bac Unitherm IV
  • Serial Number: 437
  • Motor Manufacturer: Sterling electric motor
  • Motor Horsepower(HP): 5
  • Motor RPM: 204/1430
  • Motor Voltage: 208
  • Motor Amps: 13
  • Motor Hertz (Hz): 60
  • Motor Phases: 3
  • Motor Frame Size:
  • Year of Manufacture:
  • Known Issues or Problems:
  • Previously Used With:
  • Year of Installation:
  • Year Removed from Production:
  • Product Purchased From:
  • Length (Inches): 105
  • Width (Inches): 58
  • Height (Inches): 80
  • Weight (LBS):
  • ACN: 5000

All fields

  • 24_inlets__outlets_description: Inlets: open tank, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water). Outlets: (1) 3/8 in. dia. tube, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water)
  • 24_nominal_flow_capacity_gallo: 40
  • 24_number_of_pumps_in_package: 2
  • 24_pump_descriptions: Cherry Burrell Stellar-Flo pump, model: SS-200, operating pressure: 300 psi, capacity: 45 gph. Cherry Burrell Flexflo centrifugal pump, model: OH-F.
  • 24_pump_horsepower_hp: 0.5
  • 24_pump_included: Yes
  • 24_pump_manufacturers: Cherry Burrell
  • acn: 5000
  • description: Cherry-Burrell No-Bac Unitherm IV Processing System. Model: No-Bac Unitherm IV. The No-Bac Unitherm IV is a complete unitized system for sterilizing fluid products at a rate of 20 to 40 gph. Products are heated up to 300°F and held for sterilization, then reduced then to 35°F after homogenization for packaging. It consists of two surge tanks, supply pump, high pressure pump, and Spiratherm heat exchangers. Cherry Burrell Stellar-Flo pump, model: SS-200, operating pressure: 300 psi, capacity: 45 gph. Sterling electric motor with Speed Trol variable speed drive, (1) 30 gallon stainless steel mix tank. (1) 30 gallon stainless steel balance tank. Cherry Burrell Flexflo centrifugal pump, model: OH-F, (1) Cherry Burrell 4 in. dia. x 40 in. L Spiraltherm. (5) Cherry Burrell 3 in. dia. x 14 in. L Spiraltherms. (2) Barber-Colman 520 series analog solid state set point temperature controllers. (2) Barber-Colman valve positioners. Inlets: open tank, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water). Outlets: (1) 3/8 in. dia. tube, (1) 1/2 in. dia. NPT (steam), (1) 1/2 in. dia. NPT (cold water). Overall dimensions: 8 ft. 9 in. L x 4 ft.10 in. W x 6 ft. 8 in. H.(ACN5000).
  • height_inches: 80
  • length_inches: 105
  • manufacturer: Cherry-Burrell
  • model: No-Bac Unitherm IV
  • motors: 1
  • motor_amps: 13
  • motor_hertz_hz: 60
  • motor_horsepower_hp: 5
  • motor_included_yesno: yes
  • motor_manufacturer: Sterling electric motor
  • motor_phases: 3
  • motor_rpm: 204/1430
  • motor_voltage: 208
  • name: Cherry-Burrell No-Bac Unitherm IV Processing System
  • product_id: 8023
  • serial_number: 437
  • stock_no: MABE002
  • width_inches: 58

Cherry-Burrell No-Bac Unitherm IV Processing System

Save 9%

Price:
$5,000 $5,500
