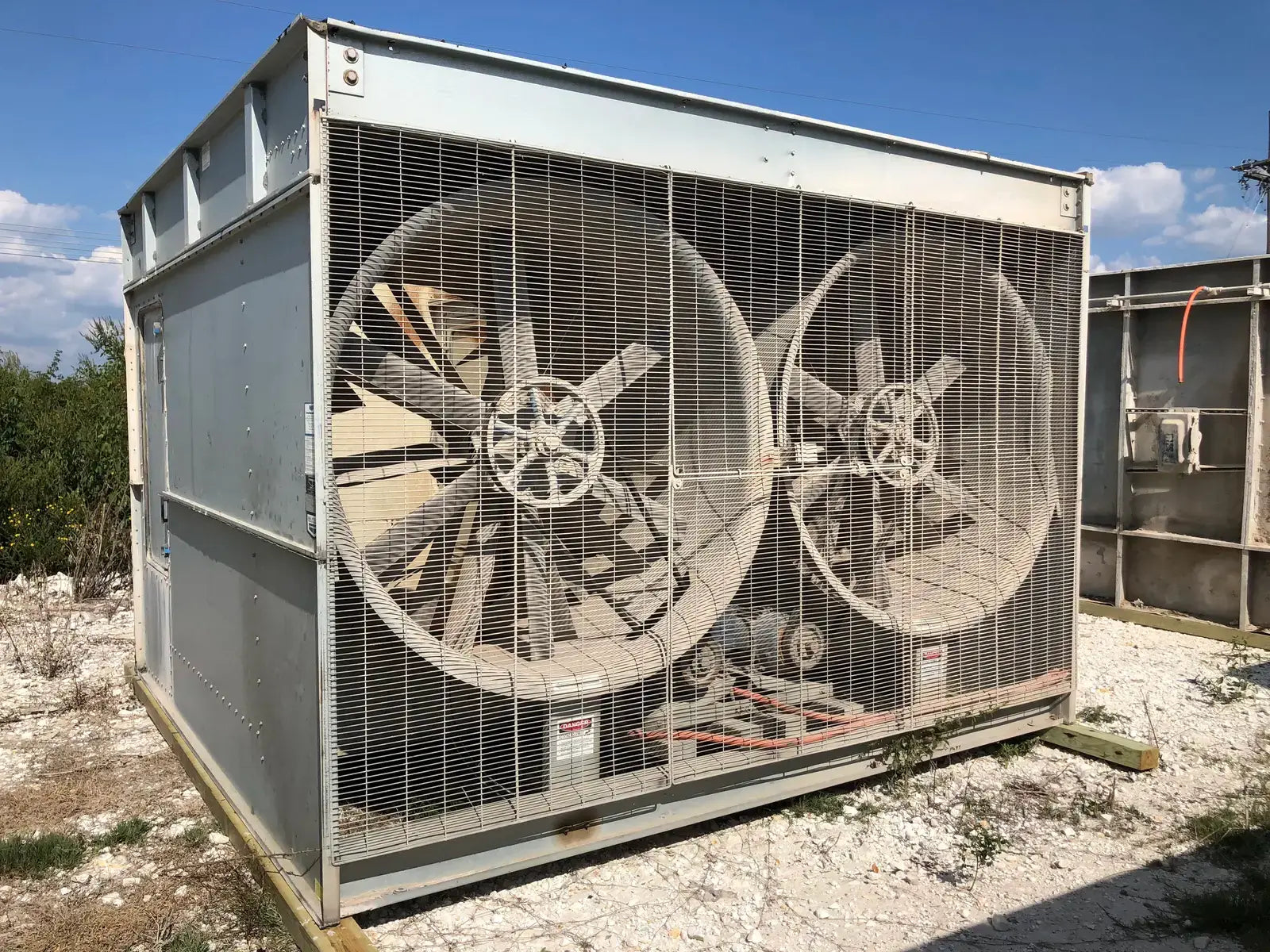

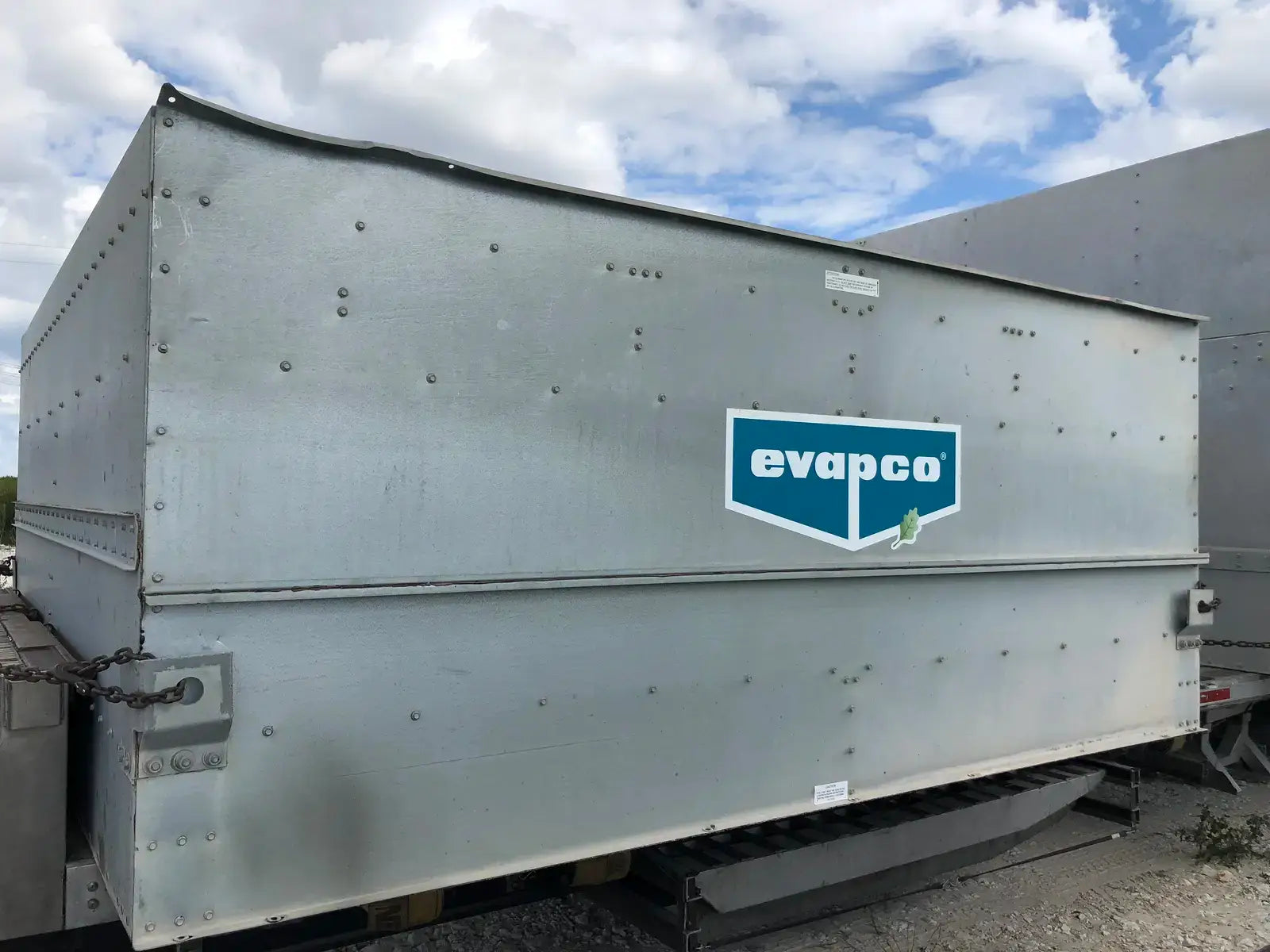

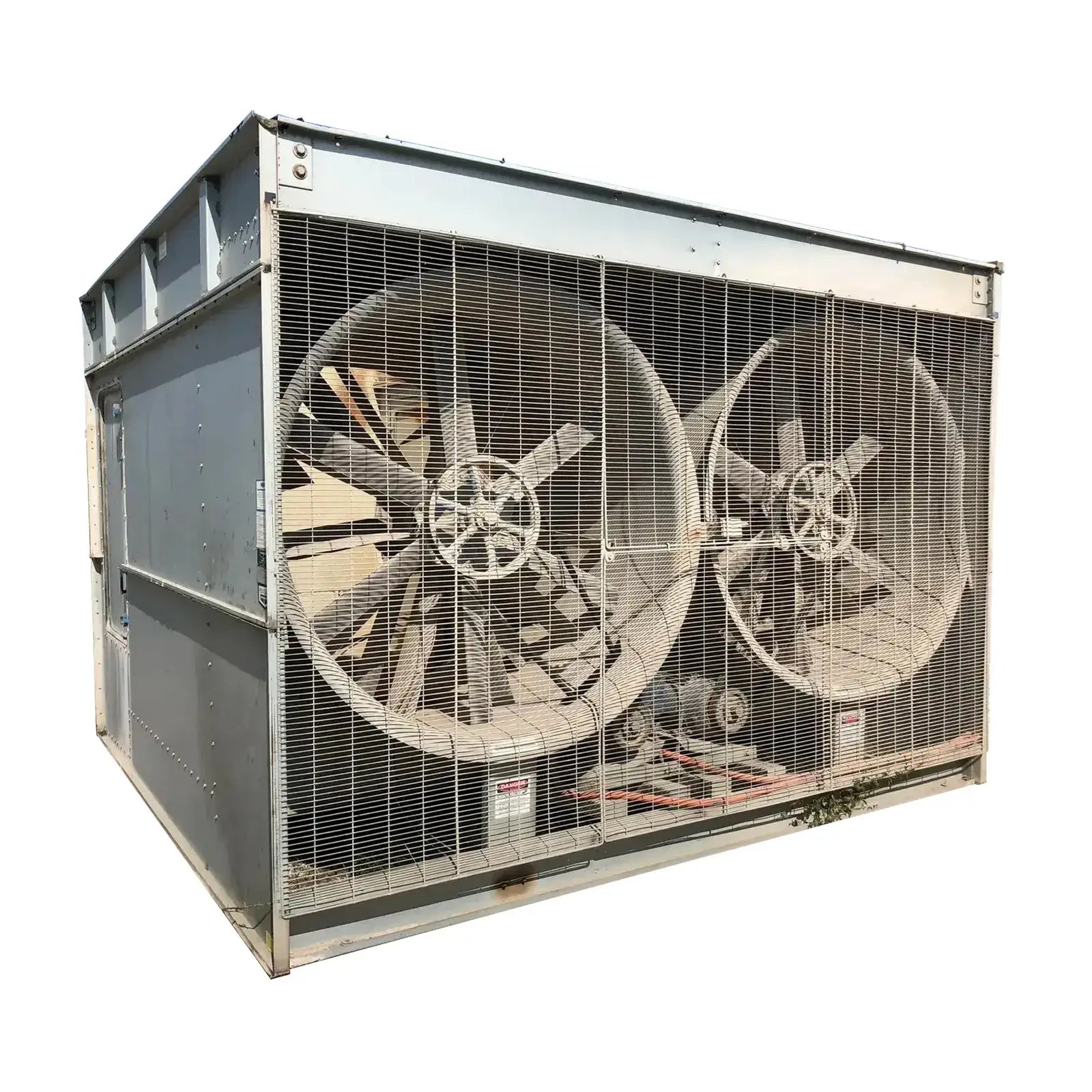

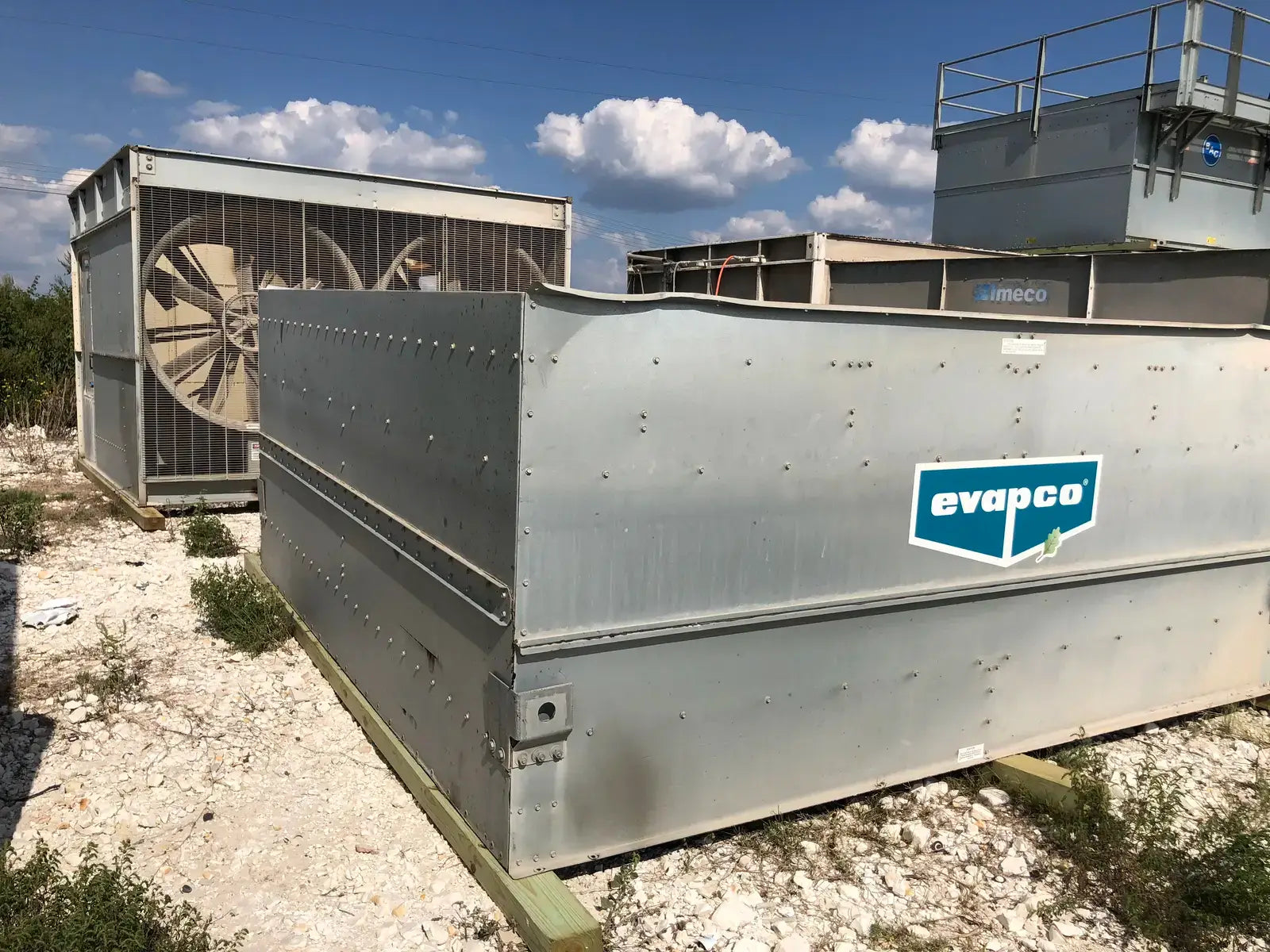

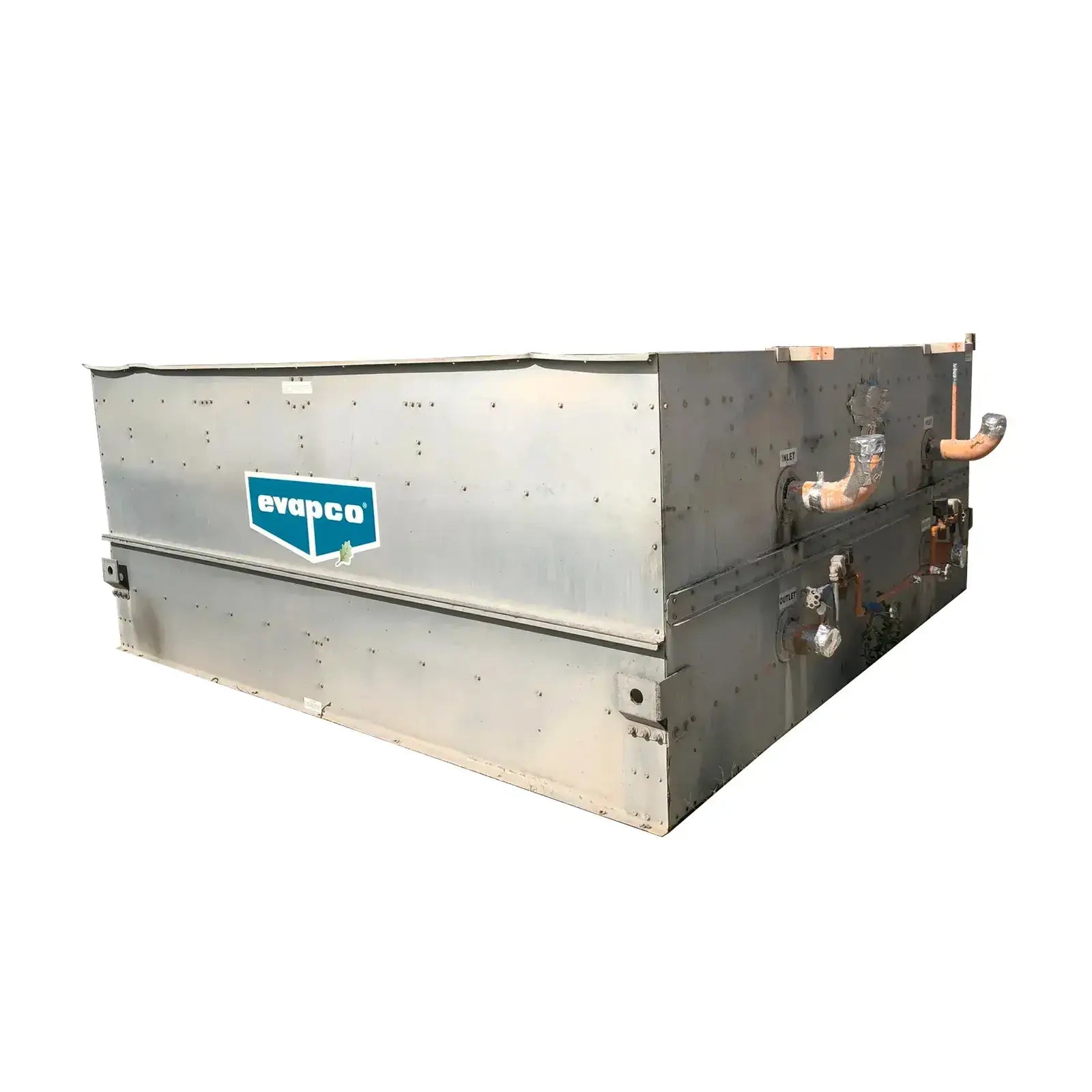

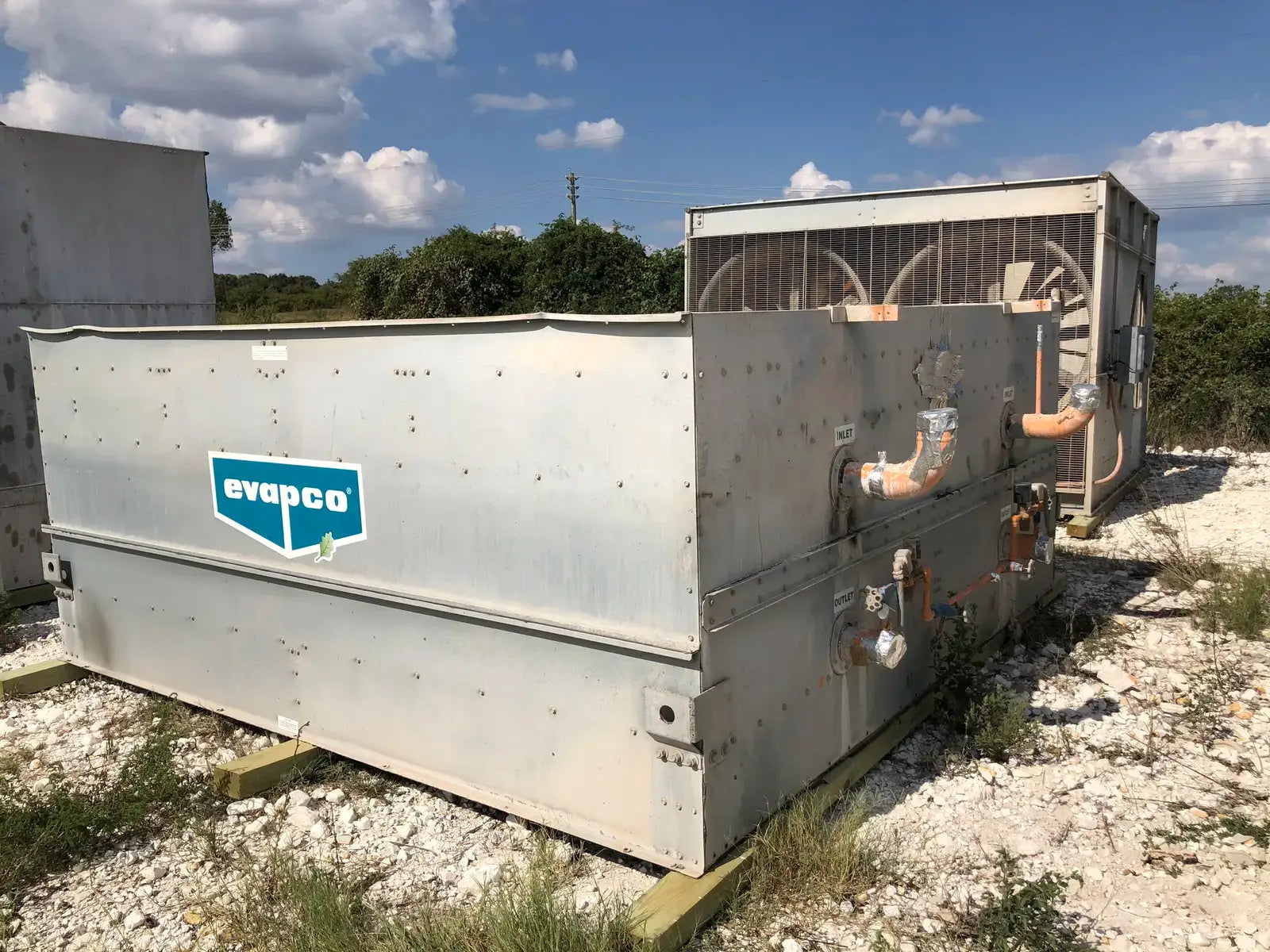

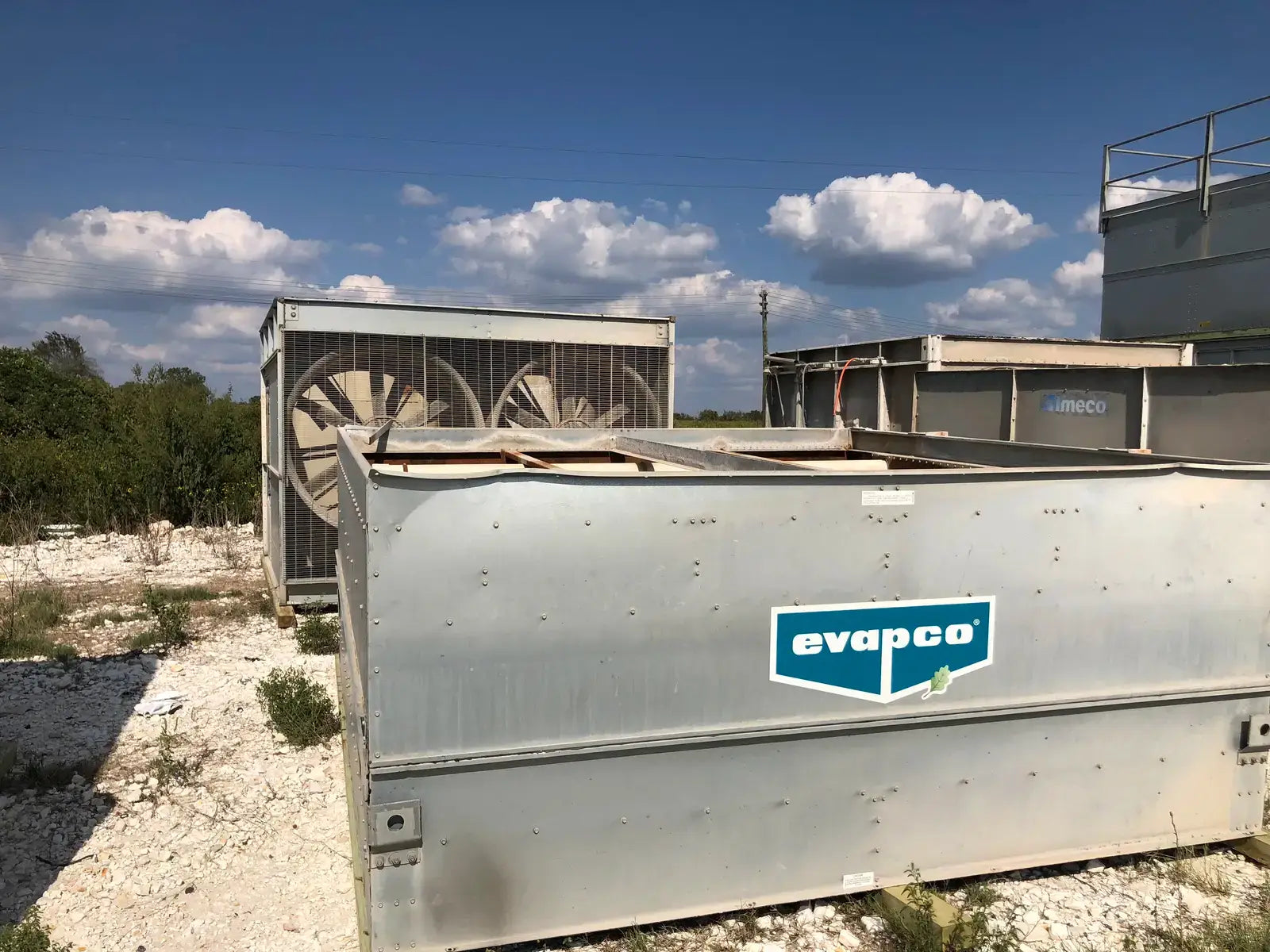

EVAPCO PMC-515E-1G Evaporative Condenser Tower (1 tower units, 515 Ton)
Year of Manufacture: 2013
Number Units in Package: 1
Nominal Tons (total): 515 TR*
Ammonia Tons (total): 365 TR*

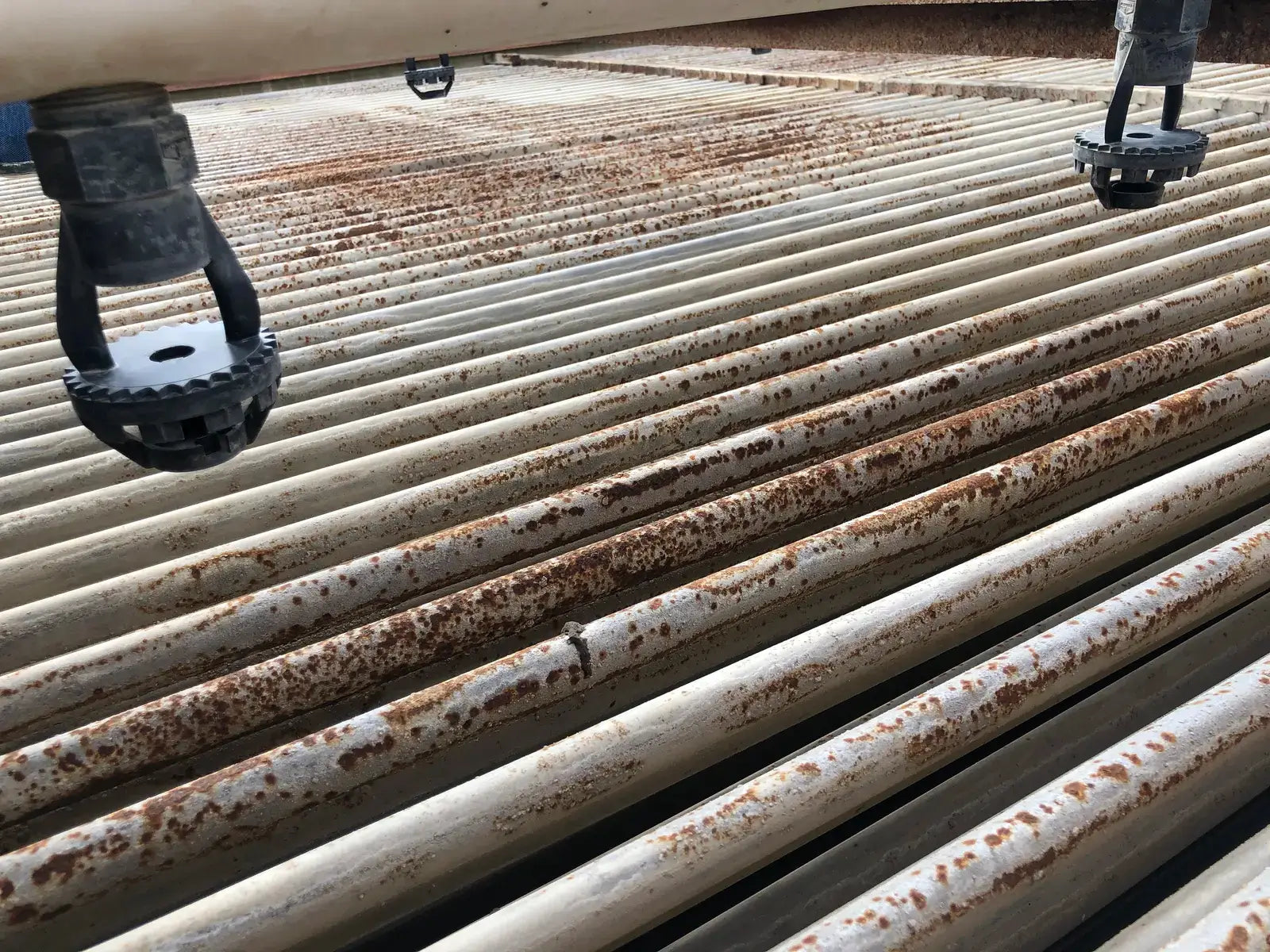

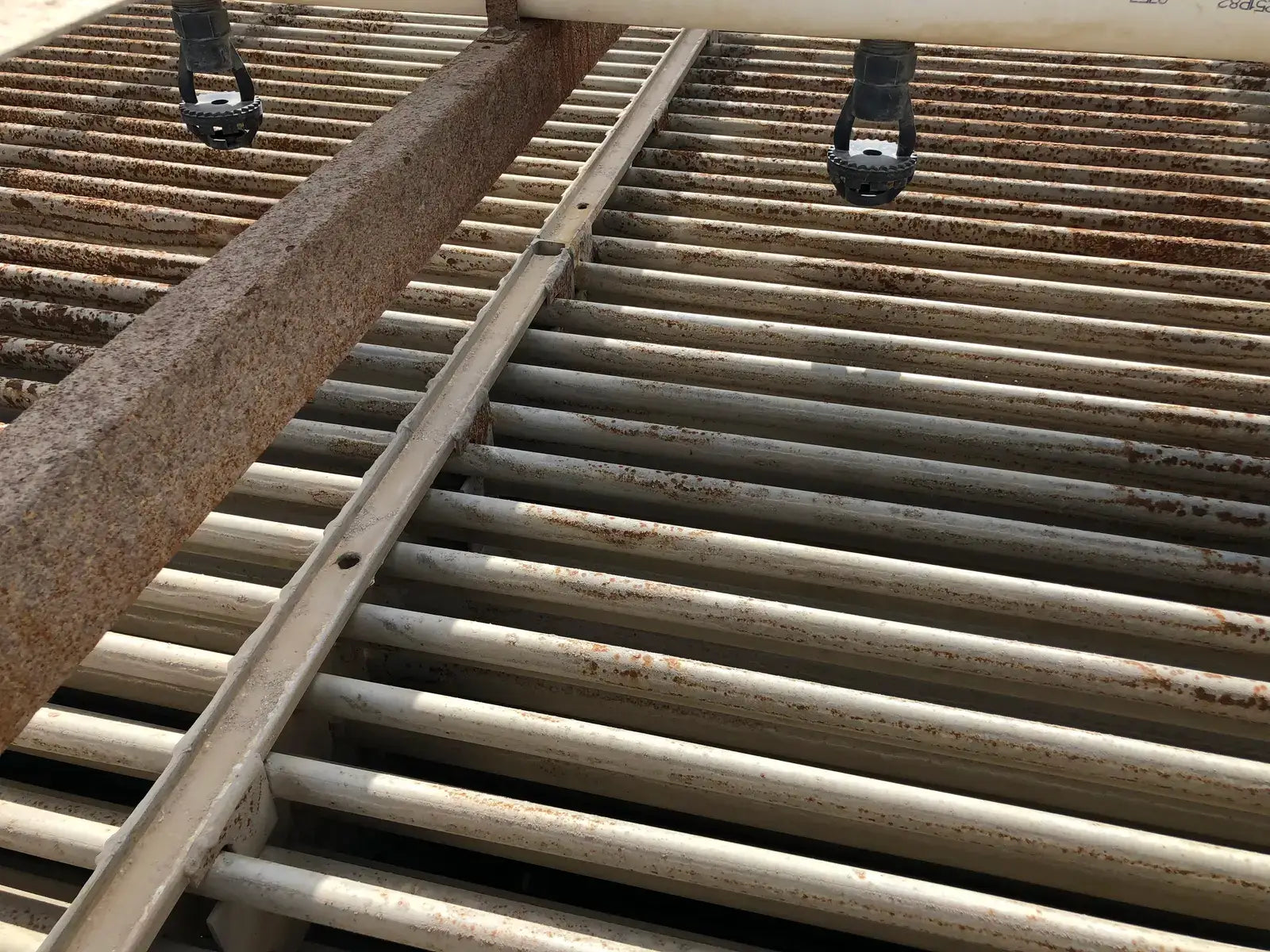

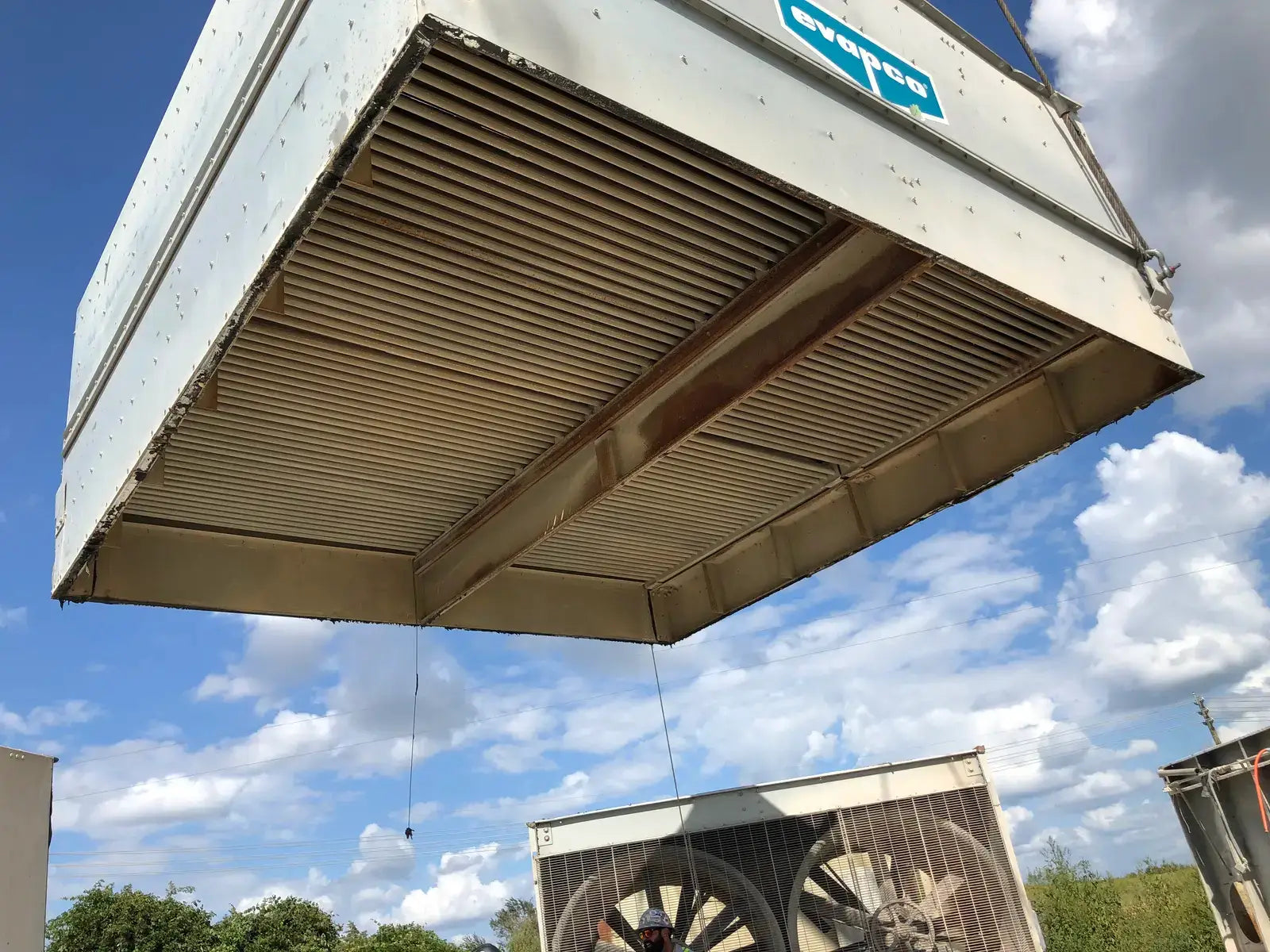

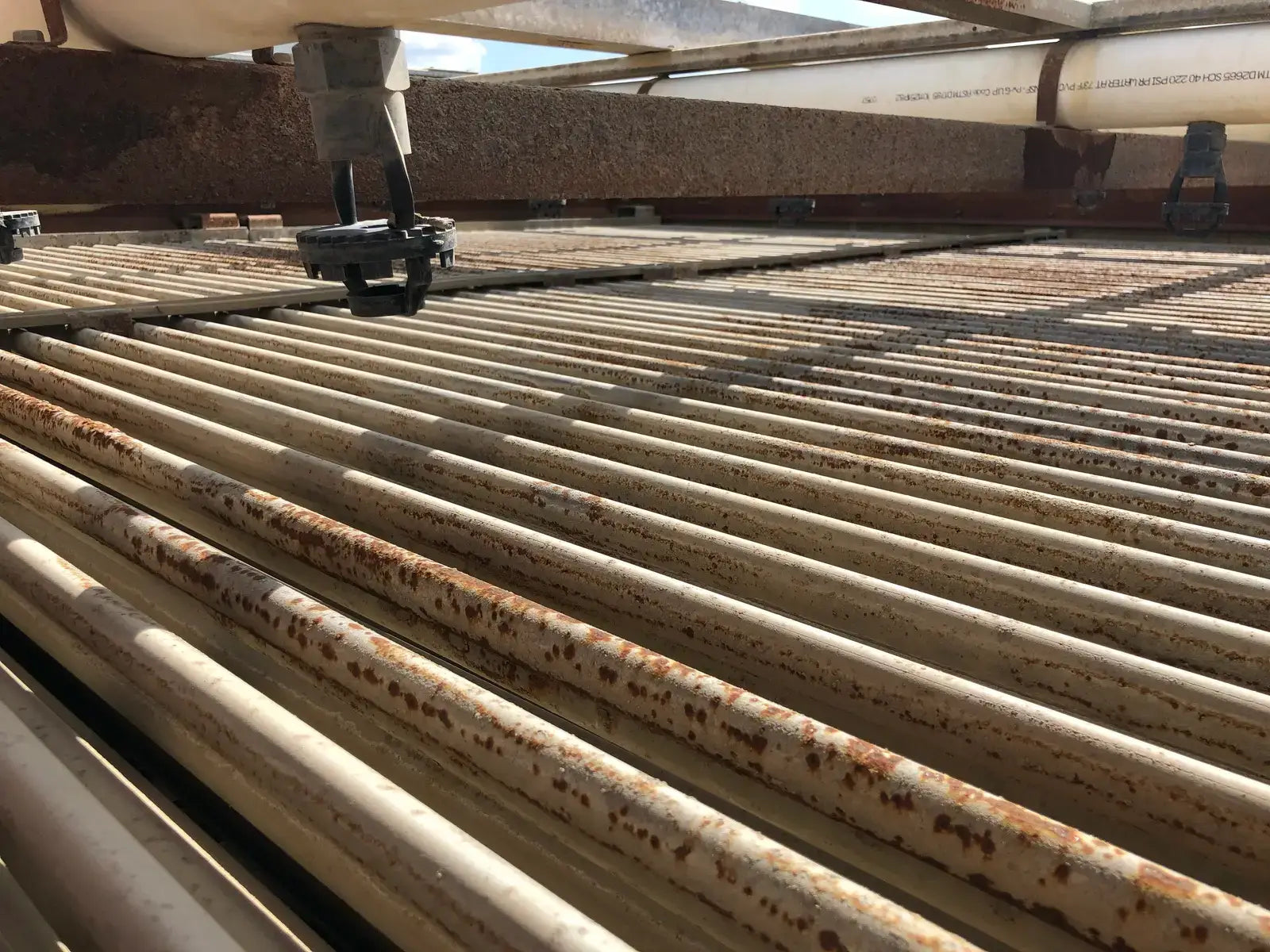

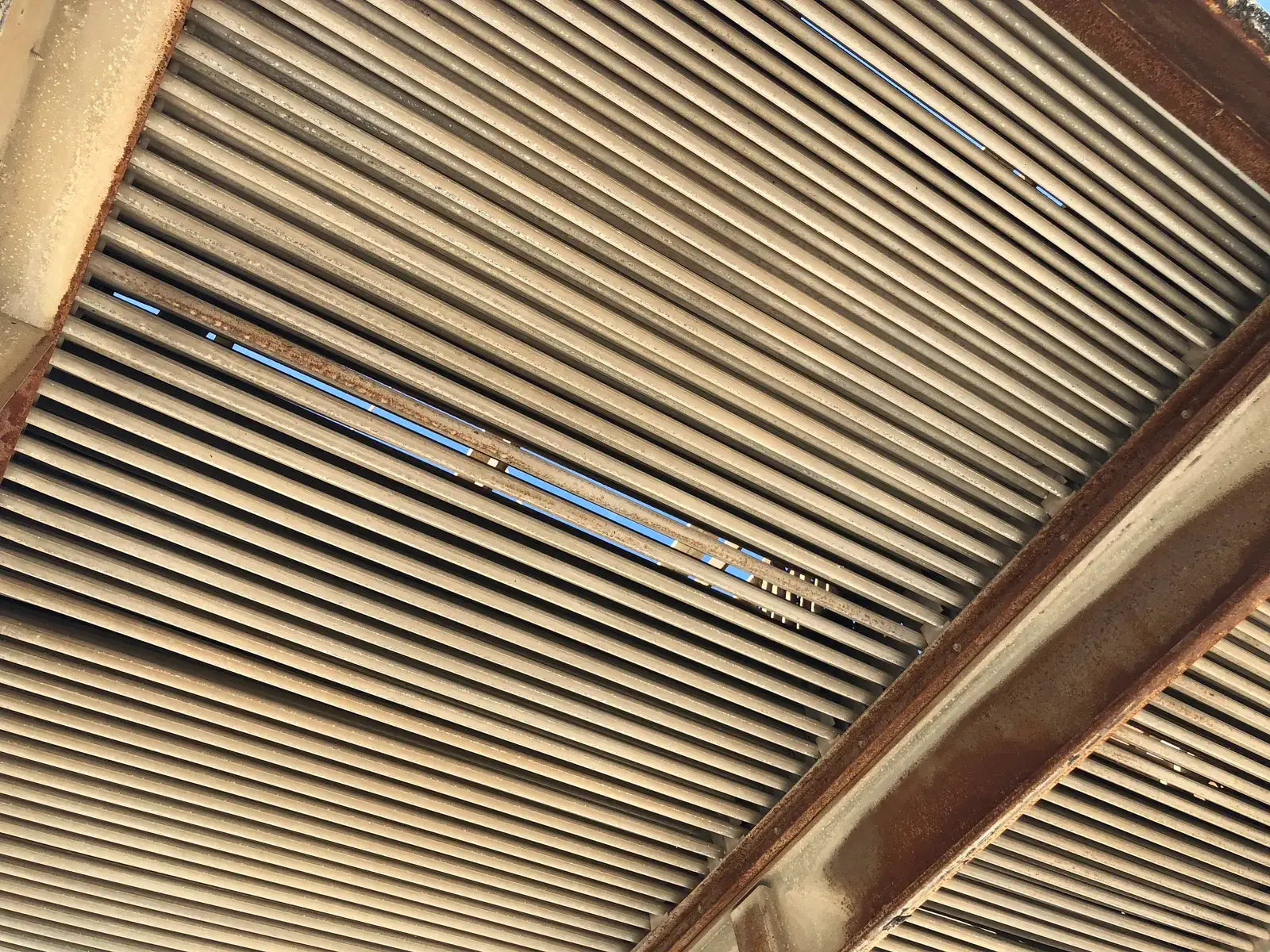

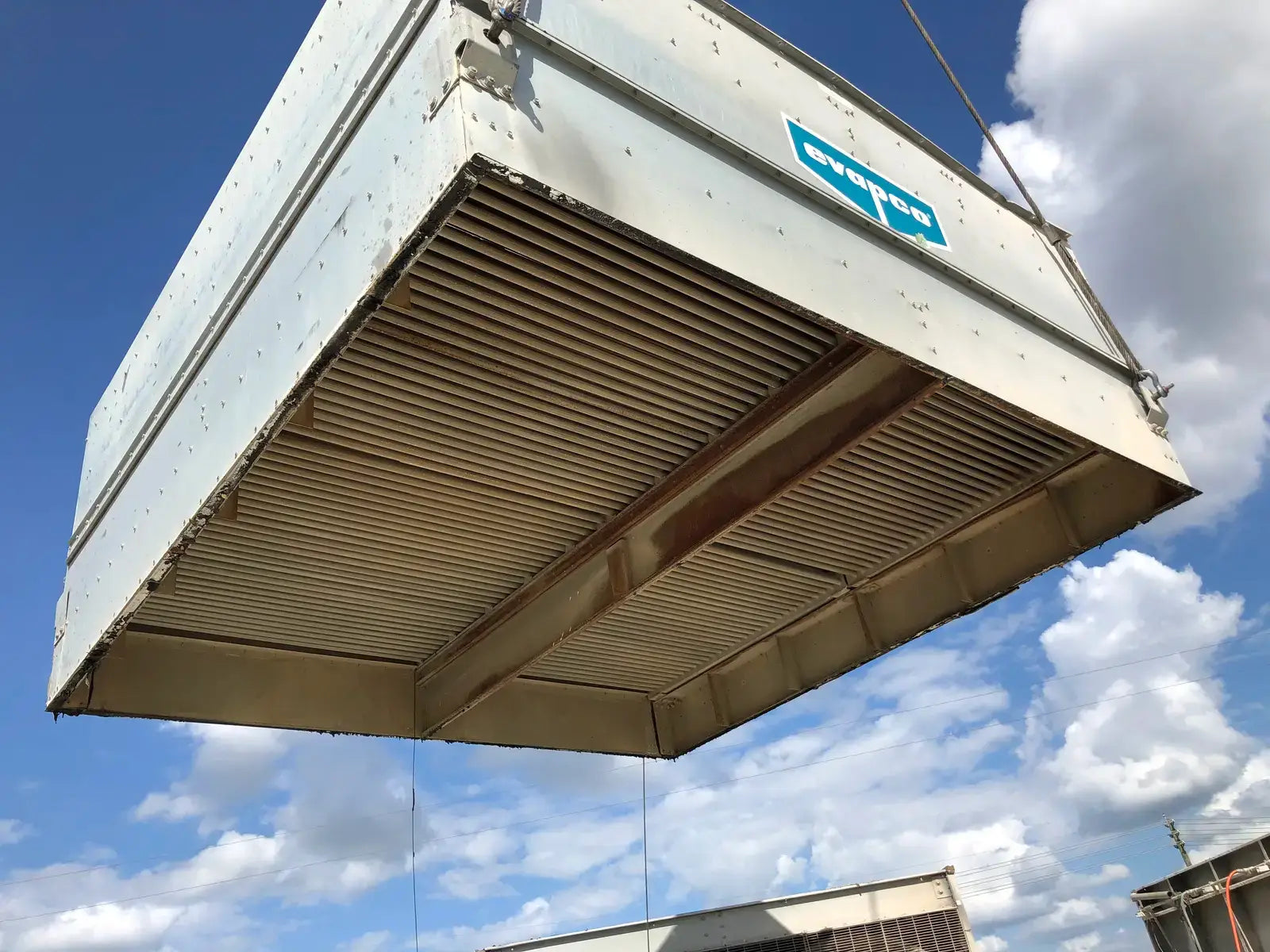

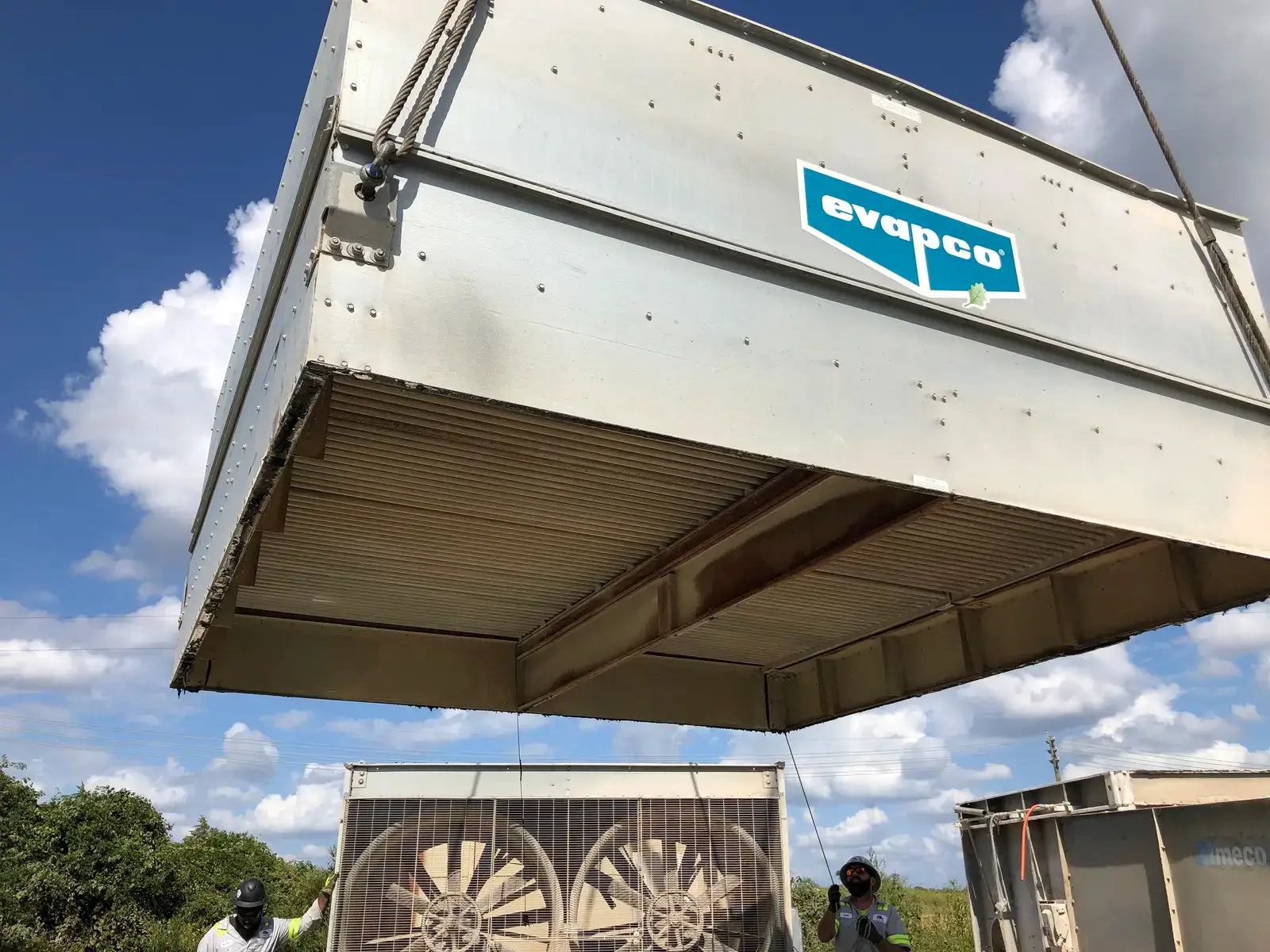

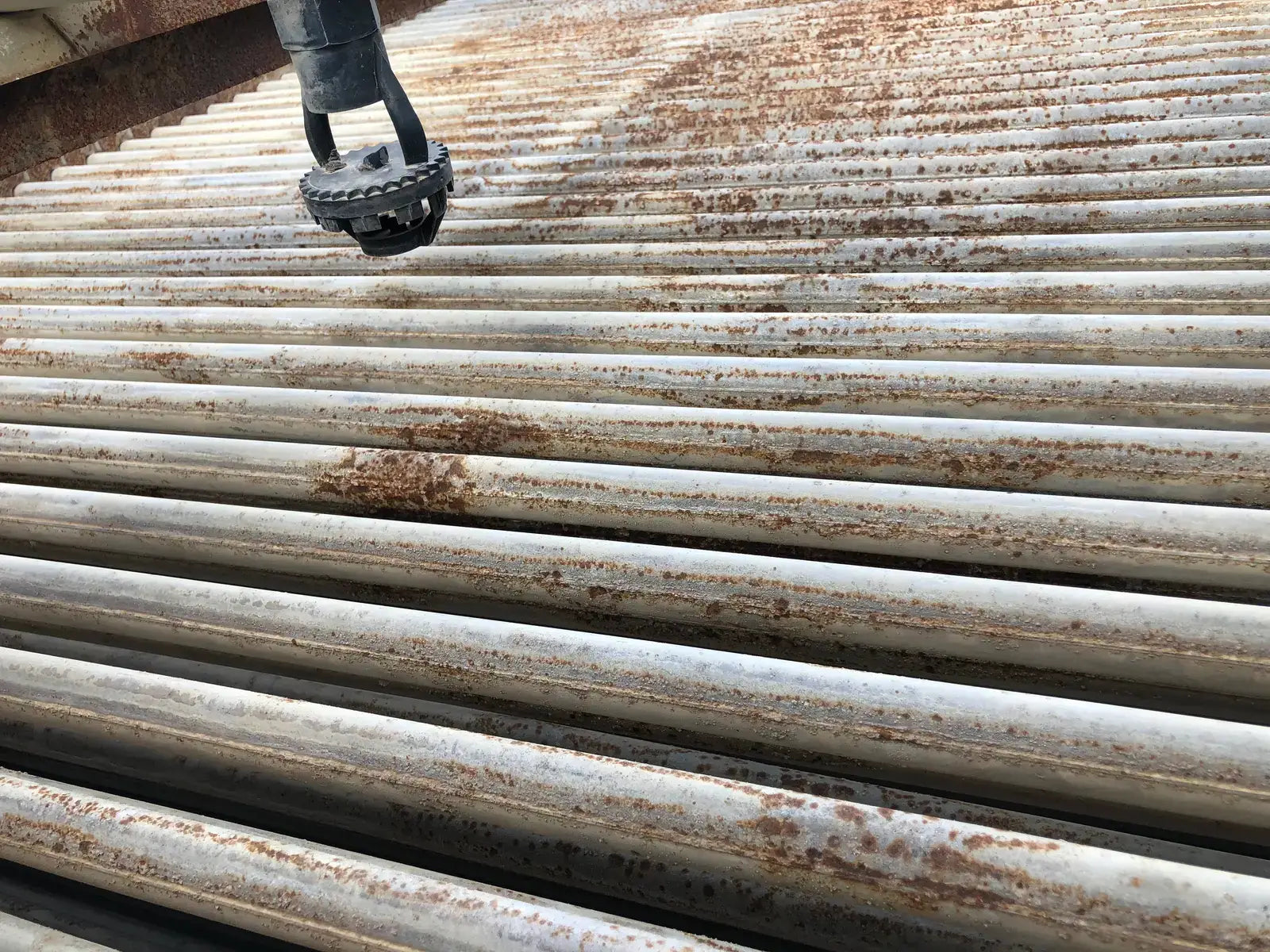

Coil Volume (total): 42 ft3
CFM (total): 100300 CFM
R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Design pressure: 400 PSIG
Pump Requirements (per unit): 10HP
Pump Included? Sump Pump - Aurora Pump Mod. 92-13276-1 Type 341A BF Size 4x59B Impeller size: 7 ¾” Head ft. 45 RPM 1750 Sump Motor - U.S. Motors Mod. RY25A 10HP Frame 215JM Volts 460 1725 RPM 215 JM

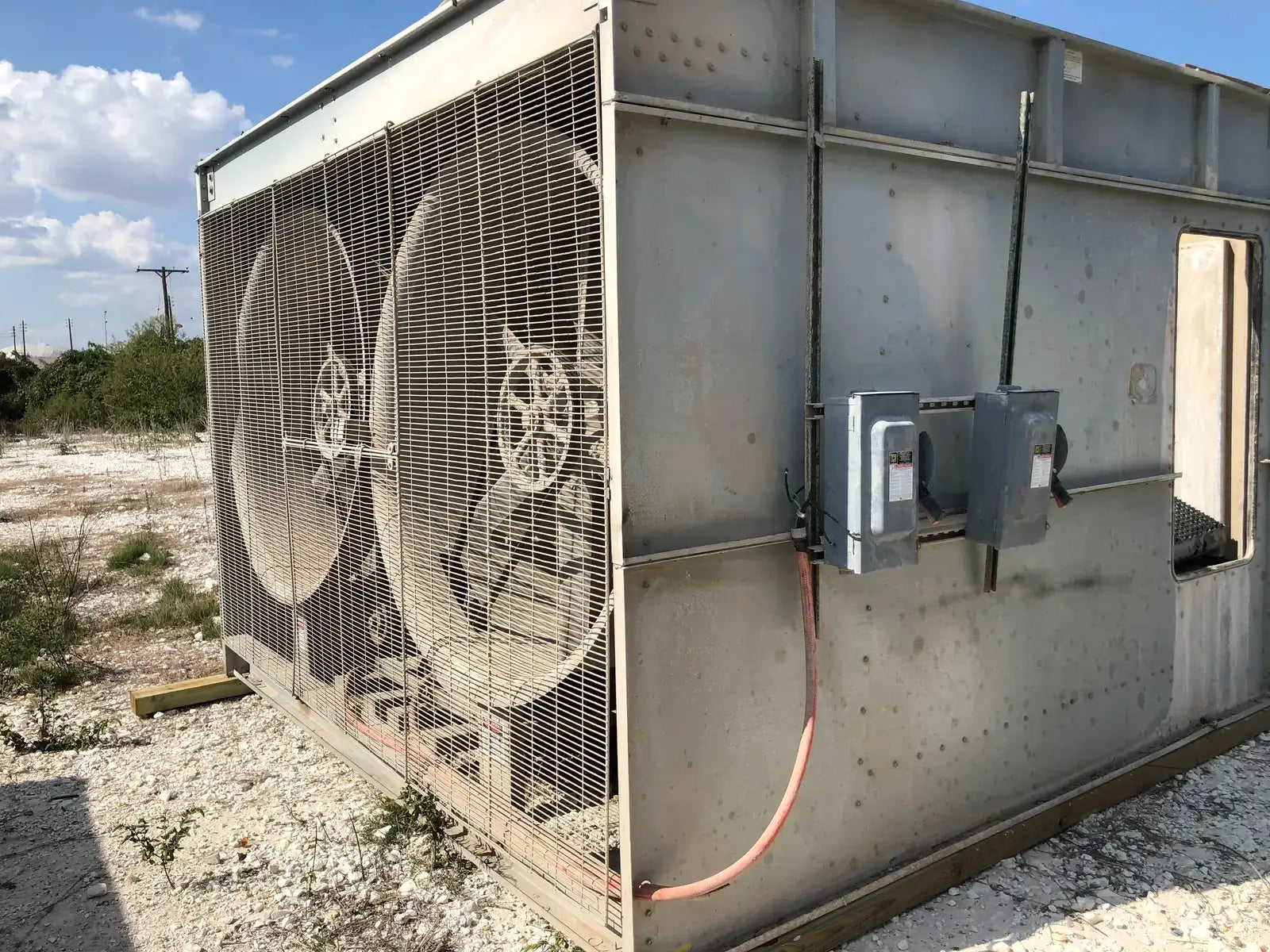

Fan Details (per unit): Fan Motor: (2) x 20 HP 1770 RPM 256T Frame FAN BELT B-123-2
Top Dimensions (per unit): 12’ L x 12' W x 5'1 H
Top Weight (per unit): 9,970 LBS

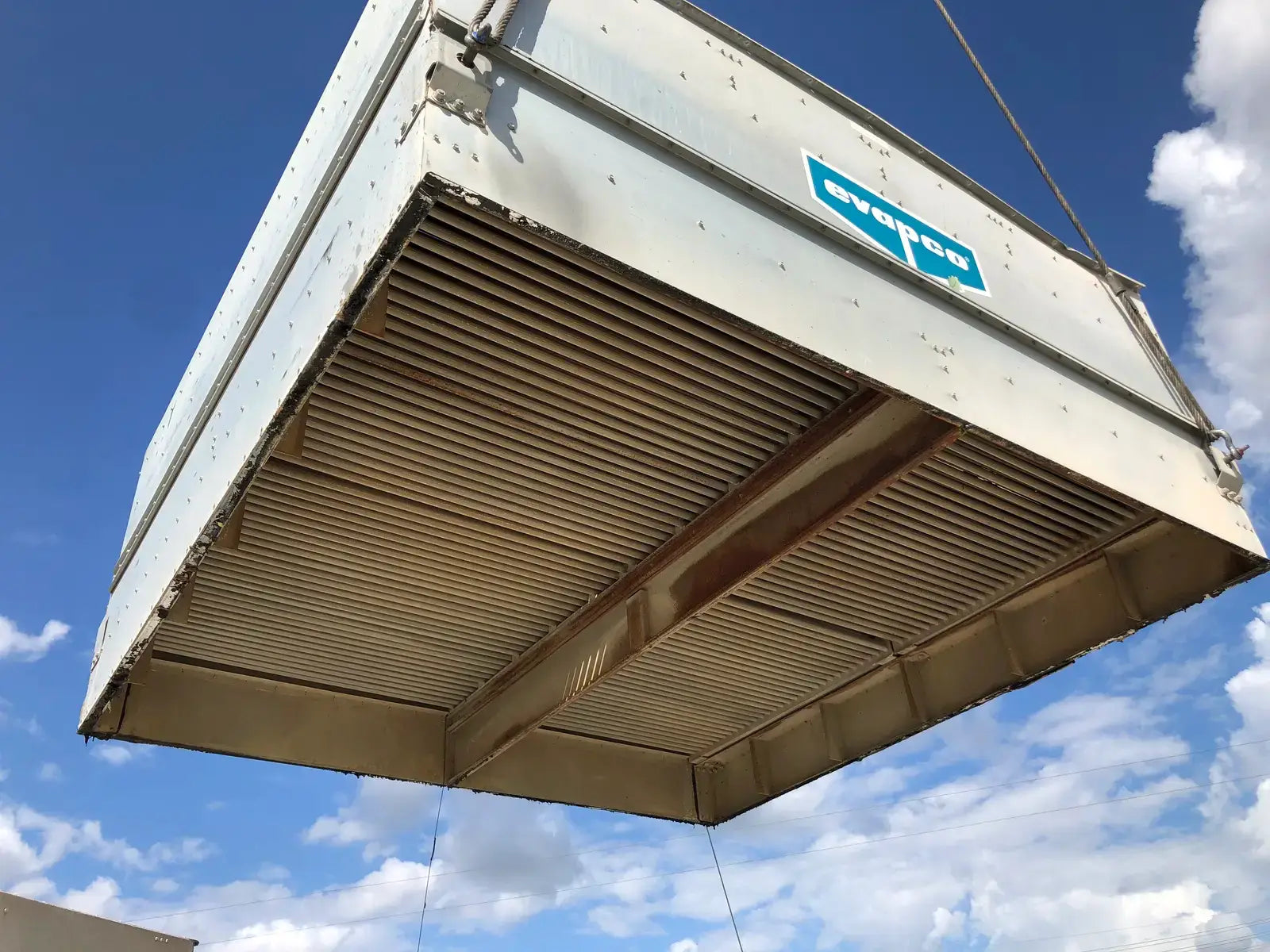

Bottom Dimensions (per unit): 12’ L x 12' W x 8'8 H
Bottom Weight (per unit): 5,500 LBS
Other Notes about machine: After Seaboard Foods built their new engine room, we purchased their entire original engine room in Oklahoma, USA.
*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb
Can sell one tower unit from a group upon request for a fee. Please request as needed.
Number Units in Package: 1
Nominal Tons (total): 515 TR*
Ammonia Tons (total): 365 TR*
Coil Volume (total): 42 ft3
CFM (total): 100300 CFM
R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Design pressure: 400 PSIG
Pump Requirements (per unit): 10HP
Pump Included? Sump Pump - Aurora Pump Mod. 92-13276-1 Type 341A BF Size 4x59B Impeller size: 7 ¾” Head ft. 45 RPM 1750 Sump Motor - U.S. Motors Mod. RY25A 10HP Frame 215JM Volts 460 1725 RPM 215 JM
Fan Details (per unit): Fan Motor: (2) x 20 HP 1770 RPM 256T Frame FAN BELT B-123-2
Top Dimensions (per unit): 12’ L x 12' W x 5'1 H
Top Weight (per unit): 9,970 LBS
Bottom Dimensions (per unit): 12’ L x 12' W x 8'8 H
Bottom Weight (per unit): 5,500 LBS
Other Notes about machine: After Seaboard Foods built their new engine room, we purchased their entire original engine room in Oklahoma, USA.
*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb
Can sell one tower unit from a group upon request for a fee. Please request as needed.
Product Details
- Stock No: SBOD08.30
- Manufacturer: Evapco
- Model: PMC-515E-1G

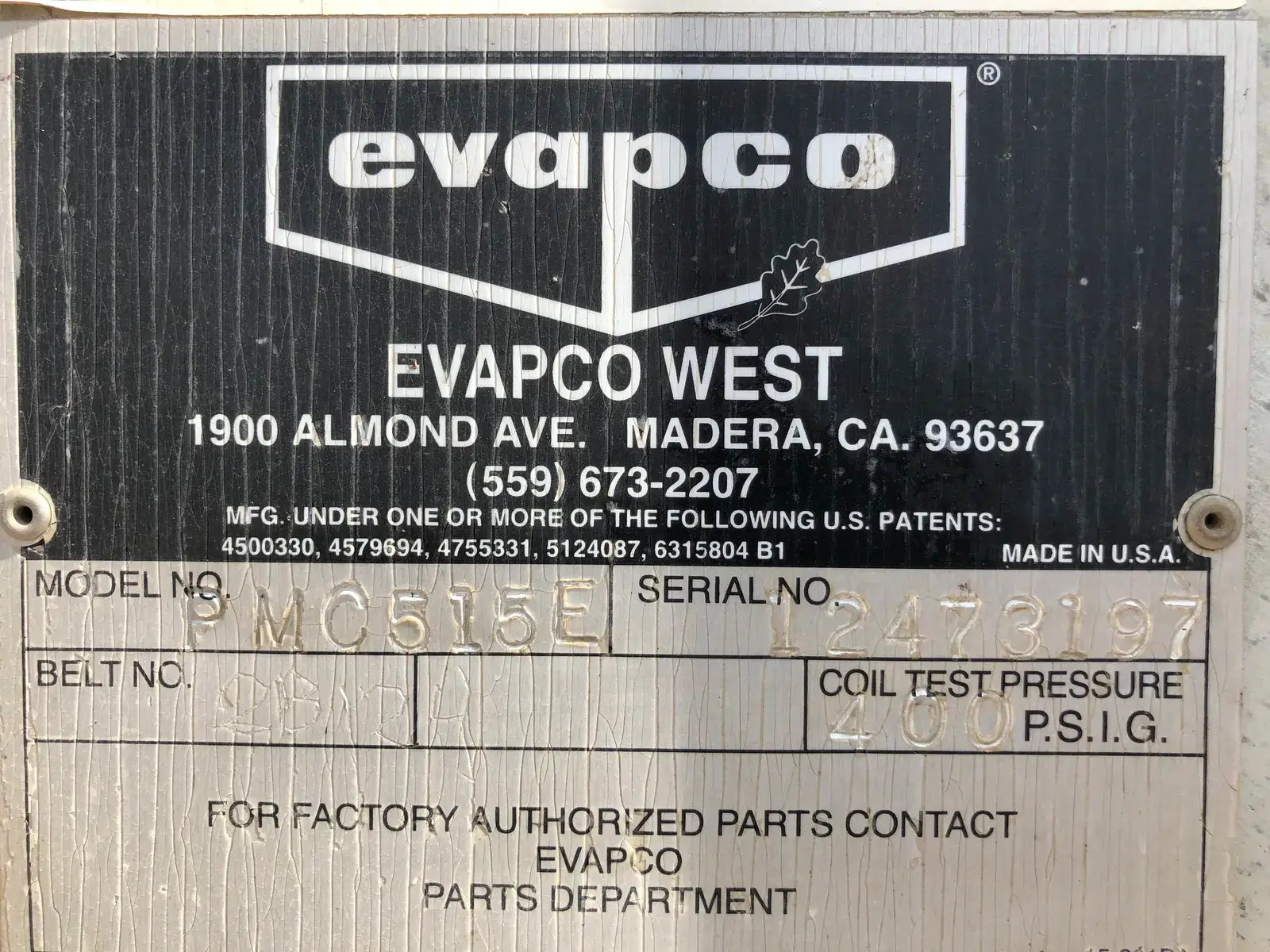

- Serial Number: 12-473197
Condenser Details
- Multiple Units Included in Package? No
- # Units included in Package: 1
- Unit Nominal Tons (TR): 515
- Unit Ammonia Tons (TR): 365
- Unit Coil Volume (ft3): 42
- Unit CFM (CFM): 100300
- Design Pressure (PSI): 400
Condenser Dimensions
- Top Length (Inches): 144
- Top Width (Inches): 144
- Top Height (Inches): 61
- Top Weight (LBS): 9970
- Bottom Length (Inches): 144
- Bottom Width (Inches): 144
- Bottom Height (Inches): 104
- Bottom Weight (LBS): 5500
Pump Details
- Pump Included? Yes
- Pump Recommended HP: 10
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- Motor Manufacturer: US Electrical Motor
- Motor Horsepower(HP): 10
- Motor RPM: 1725
- Motor Voltage: 460
- Motor Frame Size: 215JM
Dimensions:
Additional Product Details
- Year of Manufacture: 2013
