Evapco SSTD2-00700-3 Ammonia Evaporator Coil- 9 TR, 2 Fans (Low/Medium Temperature)

Evapco SSTD2-00700-3 Ammonia Evaporator Coil- 9 TR, 2 Fans (Low/Medium Temperature)

Evapco SSTD2-00700-3 Ammonia Evaporator Coil - 9.63 TR, 2 Fans (Low/Medium Temperature) This unit can be run with either Low or Medium temperature coils . A wet capacity of 7704 (BTUH / °F TD) and an estimated tonnage of 9.63 (TR) @15TD. A frosted capacity of 7003 (BTUH / °F TD) and an estimated tonnage of 9 (TR) @15TD. An air flow of 11400 CFM and a face velocity of 611 FPM. A coil volume of 1.4. Recirculated bottom fed coils with a electric defrost system. The precious refrigerant was Ammonia, but it can be ran with Freon.

Product Details

  • Stock No: HAIN208
  • Manufacturer: Evapco
  • Model: SSTD2-00700-3

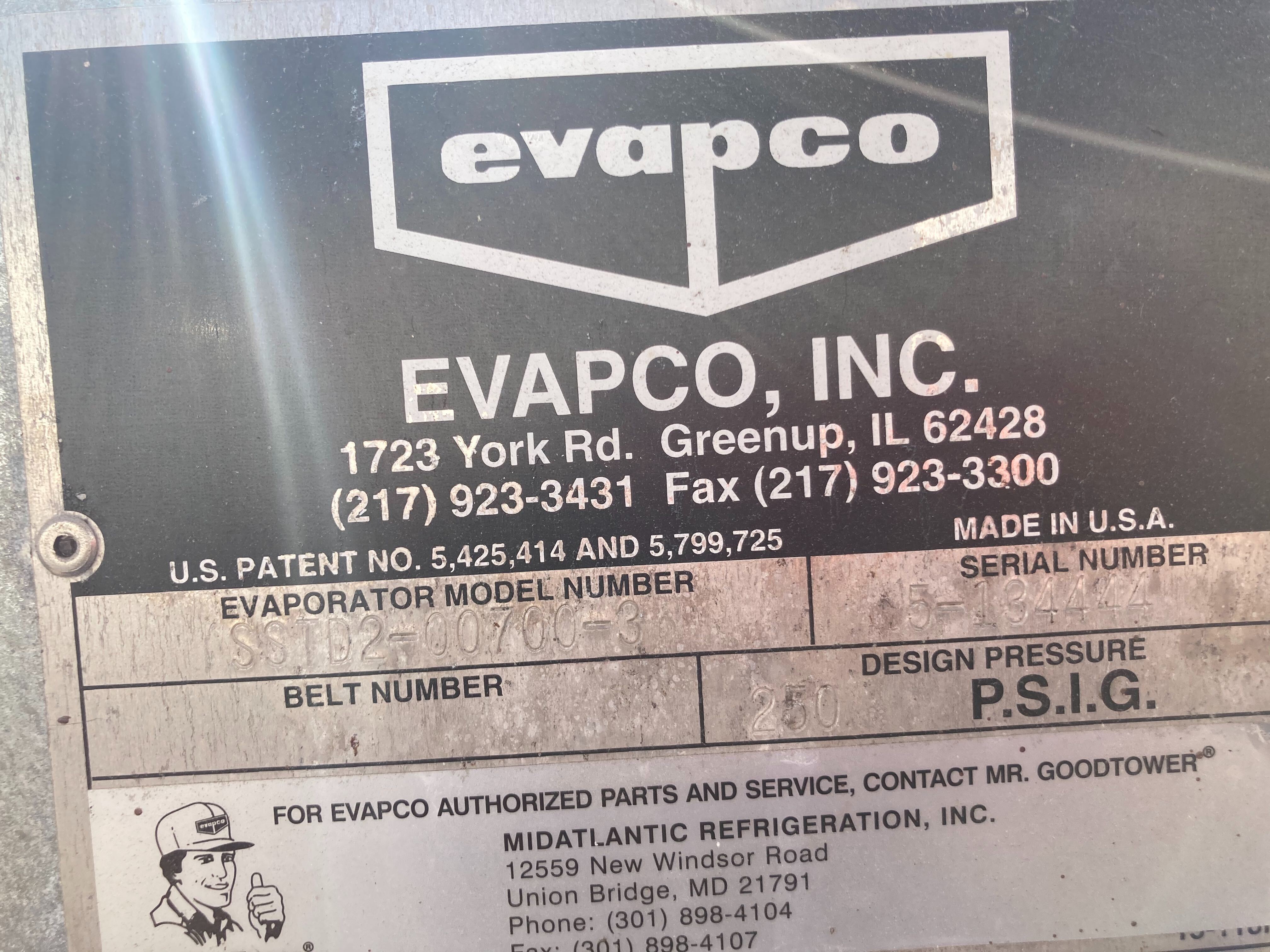

  • Serial Number: 5-134444

Evaporator Coil Details

  • Frosted or Wet Coil: Wet OR Frosted
  • Wet Capacity (BTUH/ °F TD): 7704
  • Est. Tons (TR) @15TD Wet: 9.63
  • Frosted Capacity (BTUH/ °F TD): 7003
  • Est. Tons (TR) @15TD Frosted: 9
  • Air Flow (CFM): 11400
  • Face Velocity (FPM): 611
  • Coil Volume (ft3): 1.4
  • Coil Type: Recirculated
  • Feed Type: Bottom
  • Coil Defrost: Electric

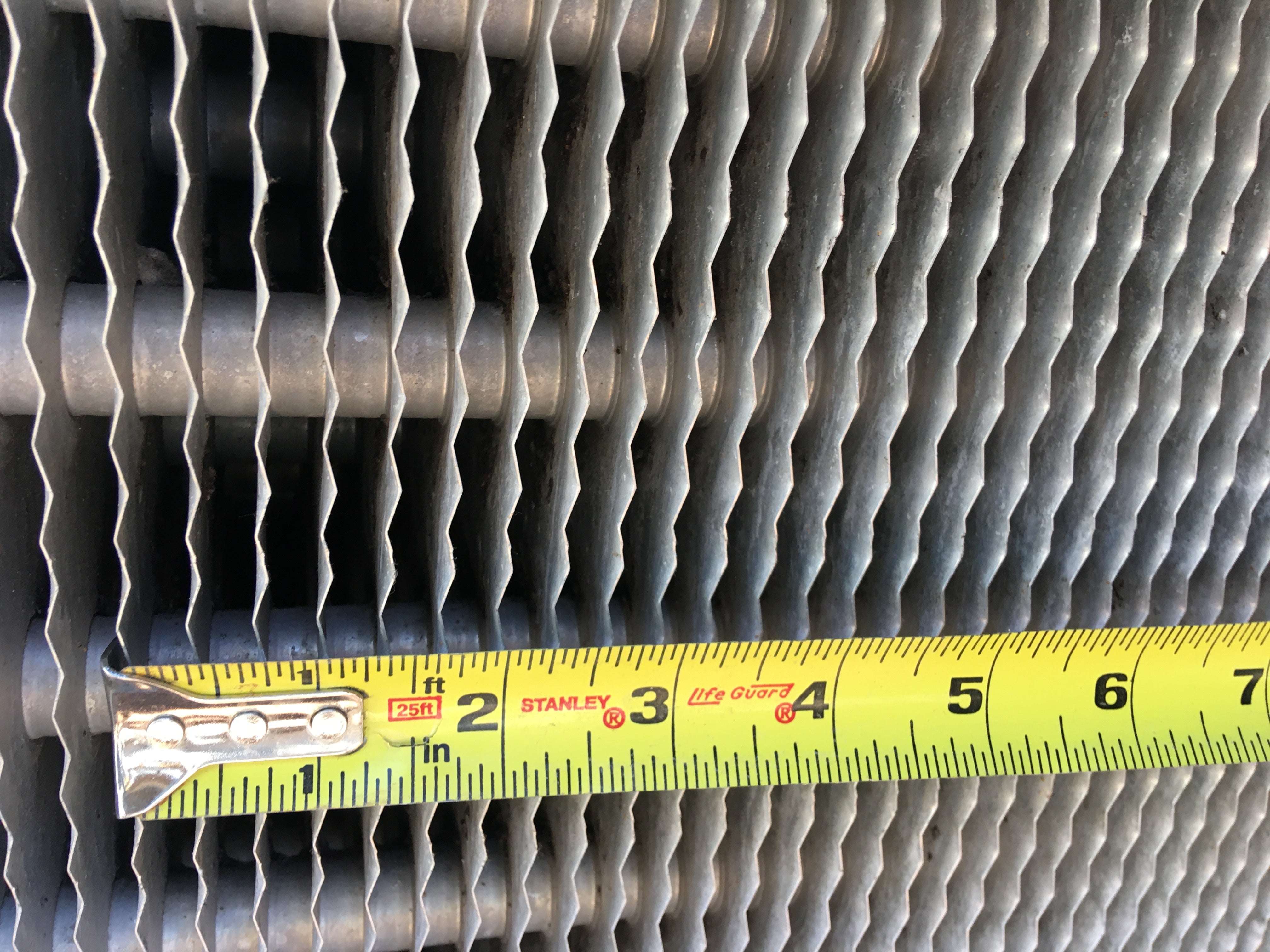

  • Fins Per Inch: 3
  • # Fans: 2
  • Left or Right Handed: Right
  • Spec Sheet Available: Yes

Previous Refrigerant

  • Previous Refrigerant: Ammonia (R-717)
  • Ammonia (R-717) Compatiable: Yes
  • Halocarbon (Freon) Compatible: Yes

Motor Details

  • Motor Included? Yes
  • # Motors: 2
  • Motor Horsepower(HP): 0.5
  • Motor RPM: 870
  • Motor Voltage: 230/460
  • Motor Hertz (Hz): 60
  • Motor Phases: 3

Dimensions:

  • Length (Inches): 116
  • Width (Inches): 86
  • Height (Inches): 26
  • Weight (LBS): 1065
  • # of Pieces for Shipping: 1

Additional Product Details

  • Spec Sheet Available: Yes

Evapco SSTD2-00700-3 Ammonia Evaporator Coil- 9 TR, 2 Fans (Low/Medium Temperature)


Price:
$5,000
