Feldmeier Skid Mounted UHT System - 20 GPM

Feldmeier Skid Mounted UHT System - 20 GPM

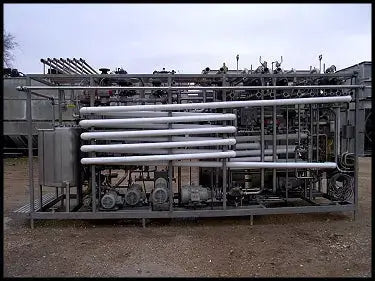

Feldmeier UHT System rated for 20 GPM maximum (1200 GPH). Product Specs: skim milk (48% cream) / 1.5 in. tri-clamp / 40ºF. Product fermentation temp: 75ºF. Flowrate (Low/High): 7 / 20 GPM. The system is designed for three functions: preheat 160ºF / return to batch tank, UHT processing of fermentation media as it is fed to fermentation tank, deactivate fermentation using standard HTST process condition (non-legal pasteurization step). The hold tube is set to run at 4 and 18 seconds at both flow rates. System is of sanitary design and made for ease of cleaning. General specifications: 304SS balance tank, 316SS stuffing pump, 316SS tubular pre-heater, 316SS timing pump, hot water set (saturated steam at 80 PSI), 316SS heating section (160ºF to 285ºF), insulated 316SS holding tubes, 316SS cooling section (285ºF to 75ºF / 185ºF to 40ºF), 316SS sterile water chiller, 316SS sanitary valves, media valves, Allen Bradley PLC controls. Air requirement: 80 PSI max. Electrical requirement: 460V, 60 Hz, 3-phase. Other features: (5) centrifugal pumps, (1) positive displacement pump, ITT tubular heat exchanger, holding tubes, stainless steel cabinets, Allen Bradley control panel, etc.

Click here to see a video of the equipment

Product Details

  • Product ID: 12808
  • Stock No: LKBA200
  • Manufacturer: Feldmeier
  • Model:
  • Serial Number:
  • Motor Manufacturer:
  • Motor Horsepower(HP):
  • Motor RPM:
  • Motor Voltage:
  • Motor Amps:
  • Motor Hertz (Hz):
  • Motor Phases:
  • Motor Frame Size:
  • Year of Manufacture:
  • Known Issues or Problems:
  • Previously Used With:
  • Year of Installation:
  • Year Removed from Production:
  • Product Purchased From:
  • Length (Inches):
  • Width (Inches):
  • Height (Inches):
  • Weight (LBS):
  • ACN:

All fields

  • description: Feldmeier UHT System rated for 20 GPM maximum (1200 GPH). Product Specs: skim milk (48% cream) / 1.5 in. tri-clamp / 40ºF. Product fermentation temp: 75ºF. Flowrate (Low/High): 7 / 20 GPM. The system is designed for three functions: preheat 160ºF / return to batch tank, UHT processing of fermentation media as it is fed to fermentation tank, deactivate fermentation using standard HTST process condition (non-legal pasteurization step). The hold tube is set to run at 4 and 18 seconds at both flow rates. System is of sanitary design and made for ease of cleaning. General specifications: 304SS balance tank, 316SS stuffing pump, 316SS tubular pre-heater, 316SS timing pump, hot water set (saturated steam at 80 PSI), 316SS heating section (160ºF to 285ºF), insulated 316SS holding tubes, 316SS cooling section (285ºF to 75ºF / 185ºF to 40ºF), 316SS sterile water chiller, 316SS sanitary valves, media valves, Allen Bradley PLC controls. Air requirement: 80 PSI max. Electrical requirement: 460V, 60 Hz, 3-phase. Other features: (5) centrifugal pumps, (1) positive displacement pump, ITT tubular heat exchanger, holding tubes, stainless steel cabinets, Allen Bradley control panel, etc.

    Click here to see a video of the equipment
  • manufacturer: Feldmeier
  • name: Feldmeier Skid Mounted UHT System - 20 GPM
  • product_id: 12808
  • stock_no: LKBA200

Feldmeier Skid Mounted UHT System - 20 GPM

Save 9%

Price:
$5,000 $5,500
