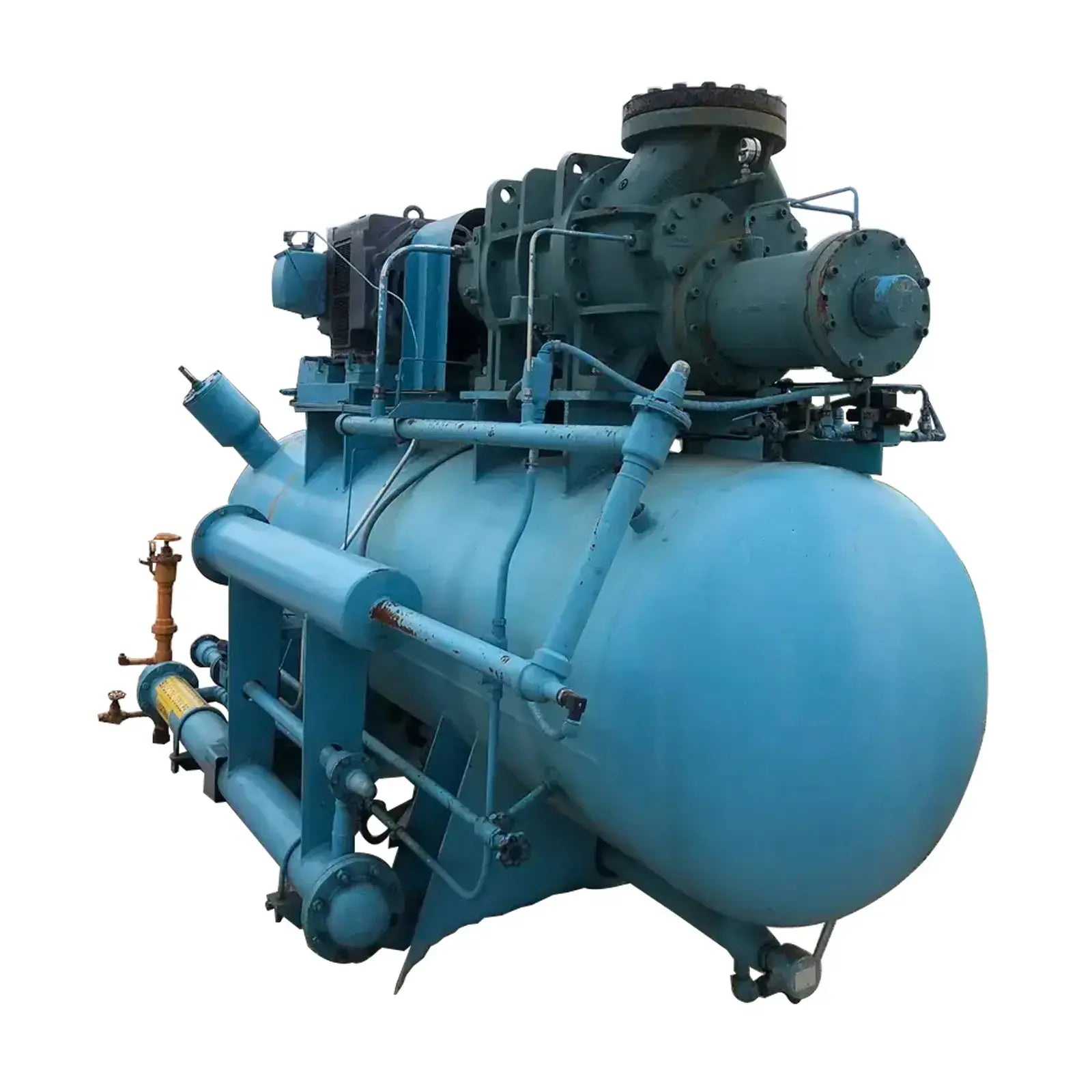

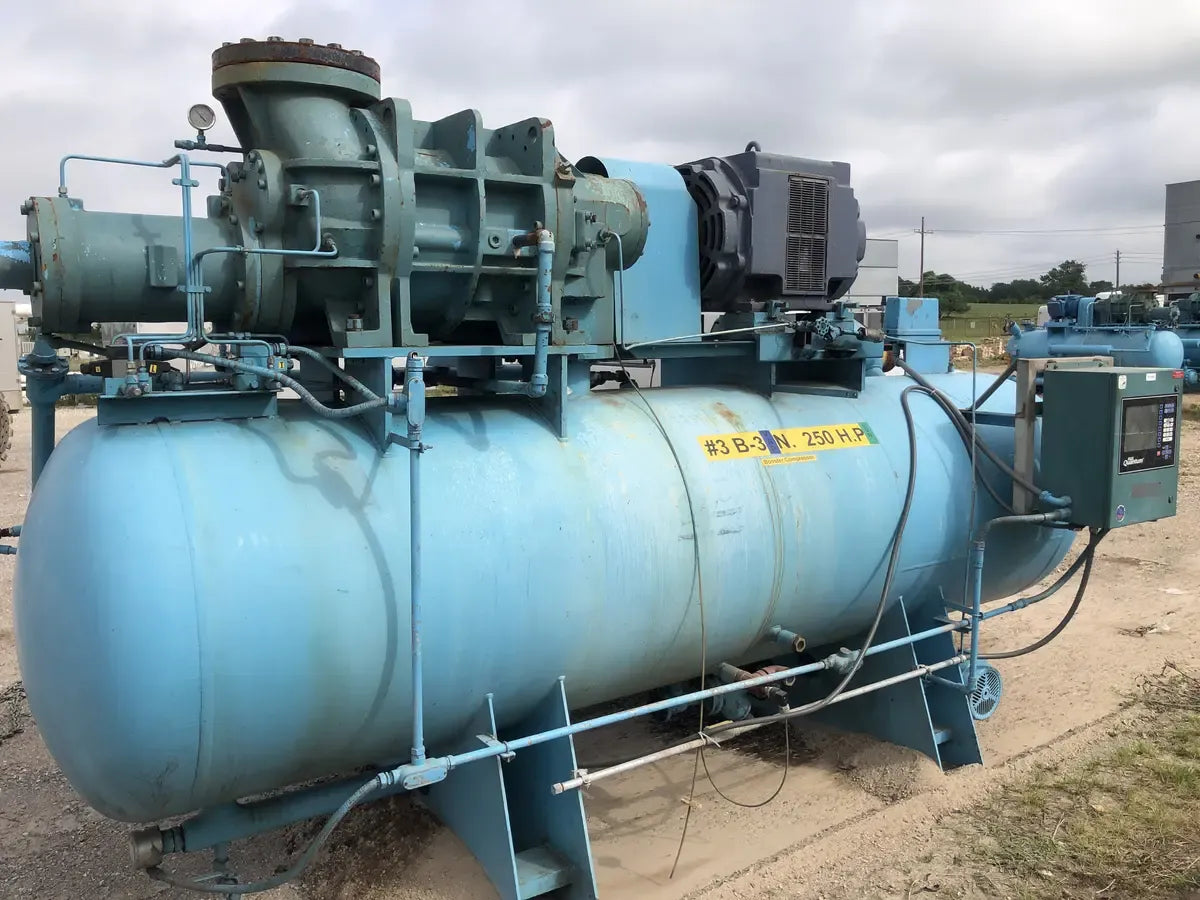

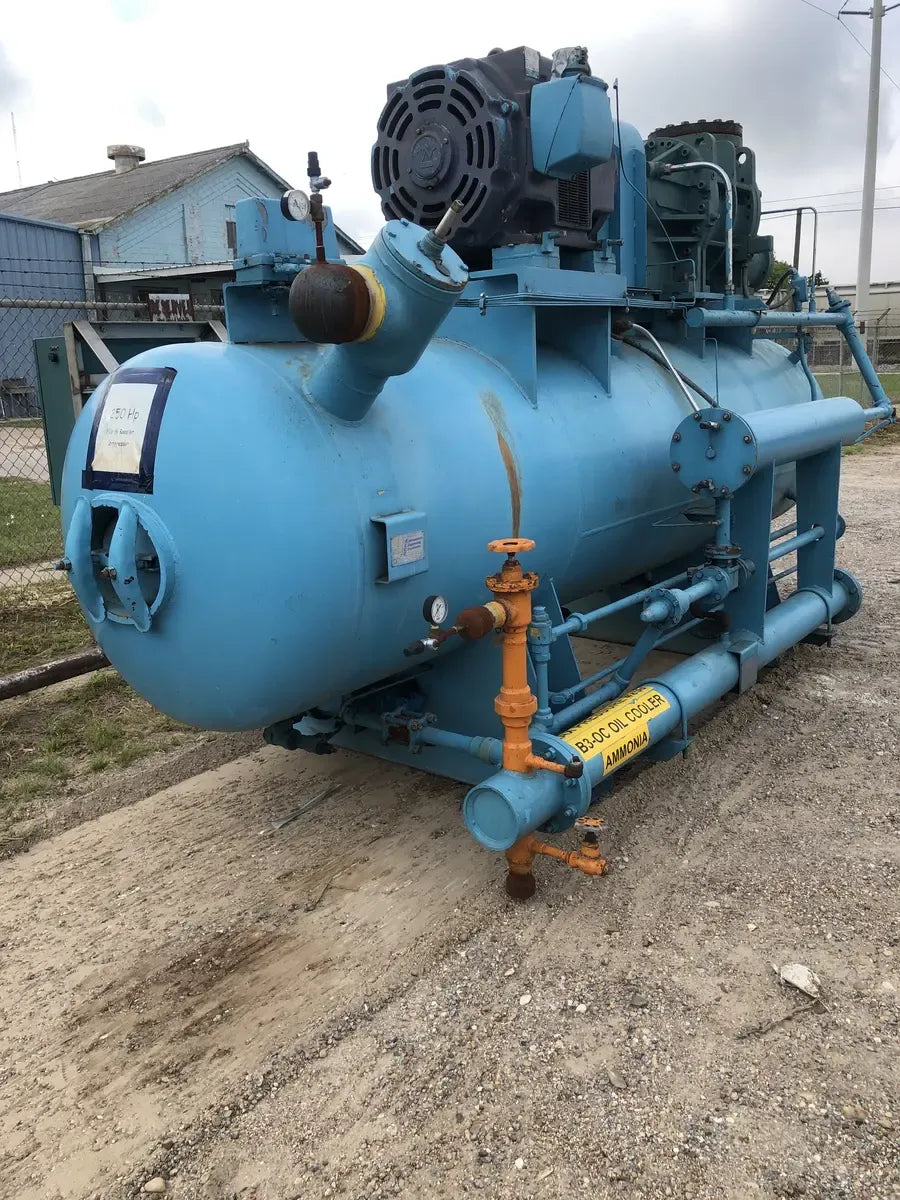

Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)
- Product Details

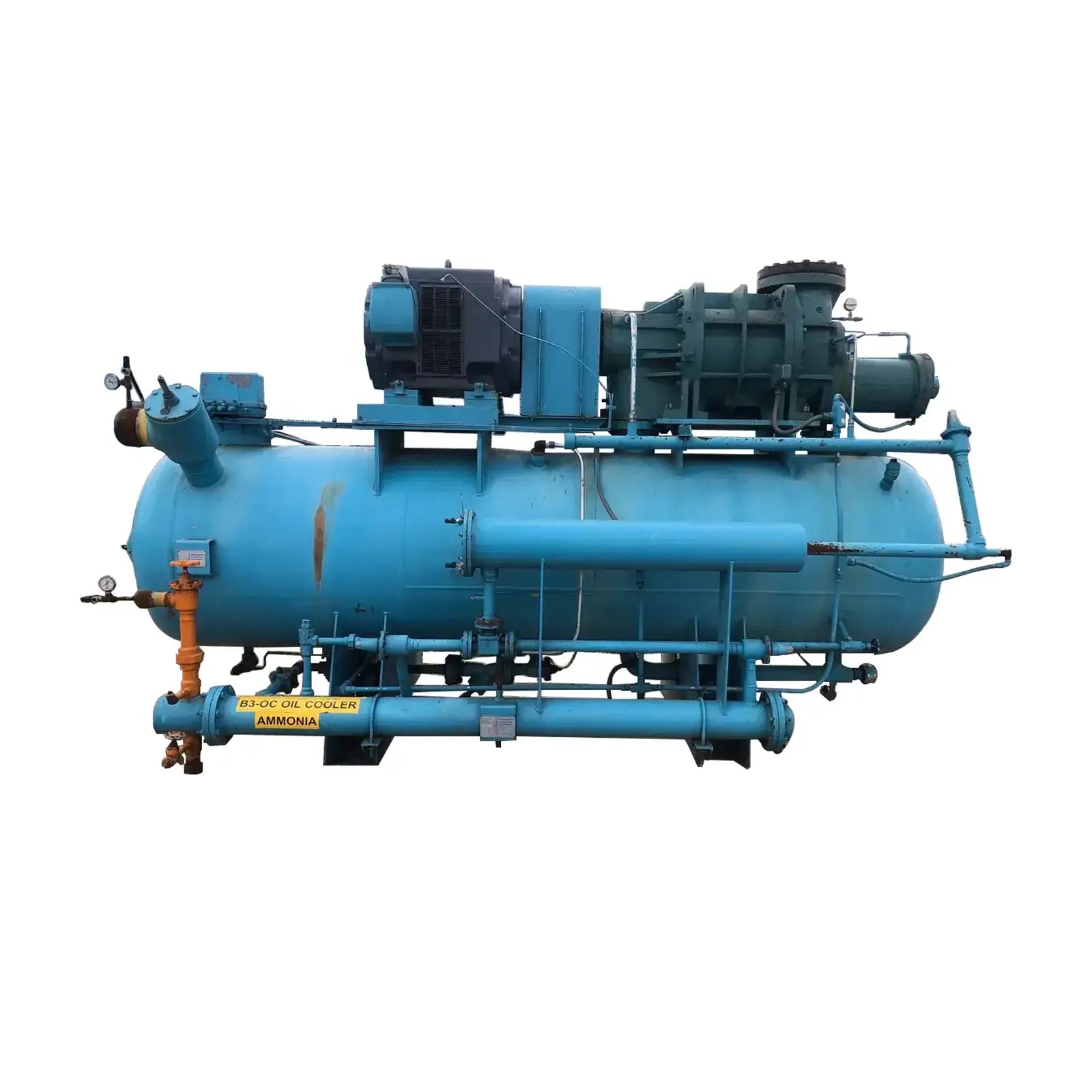

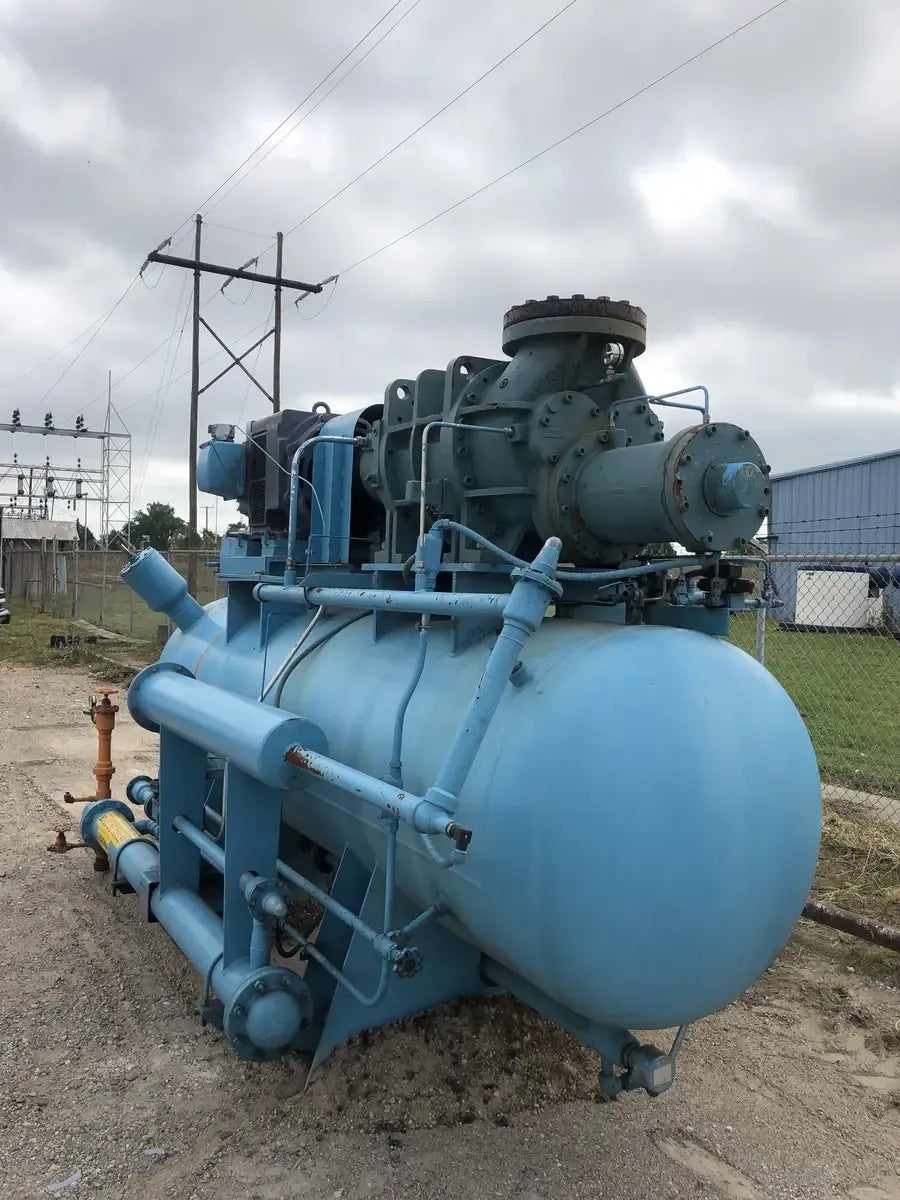

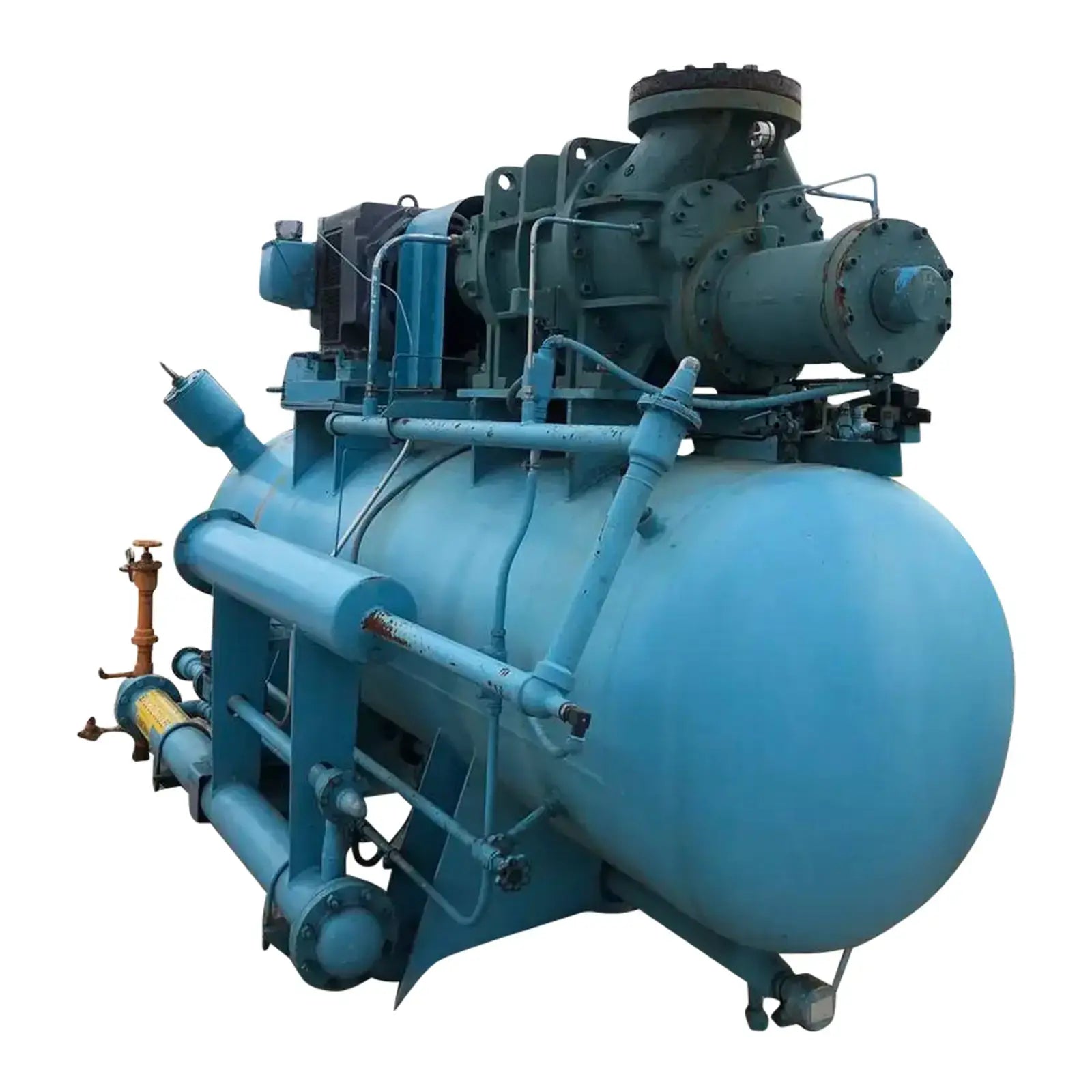

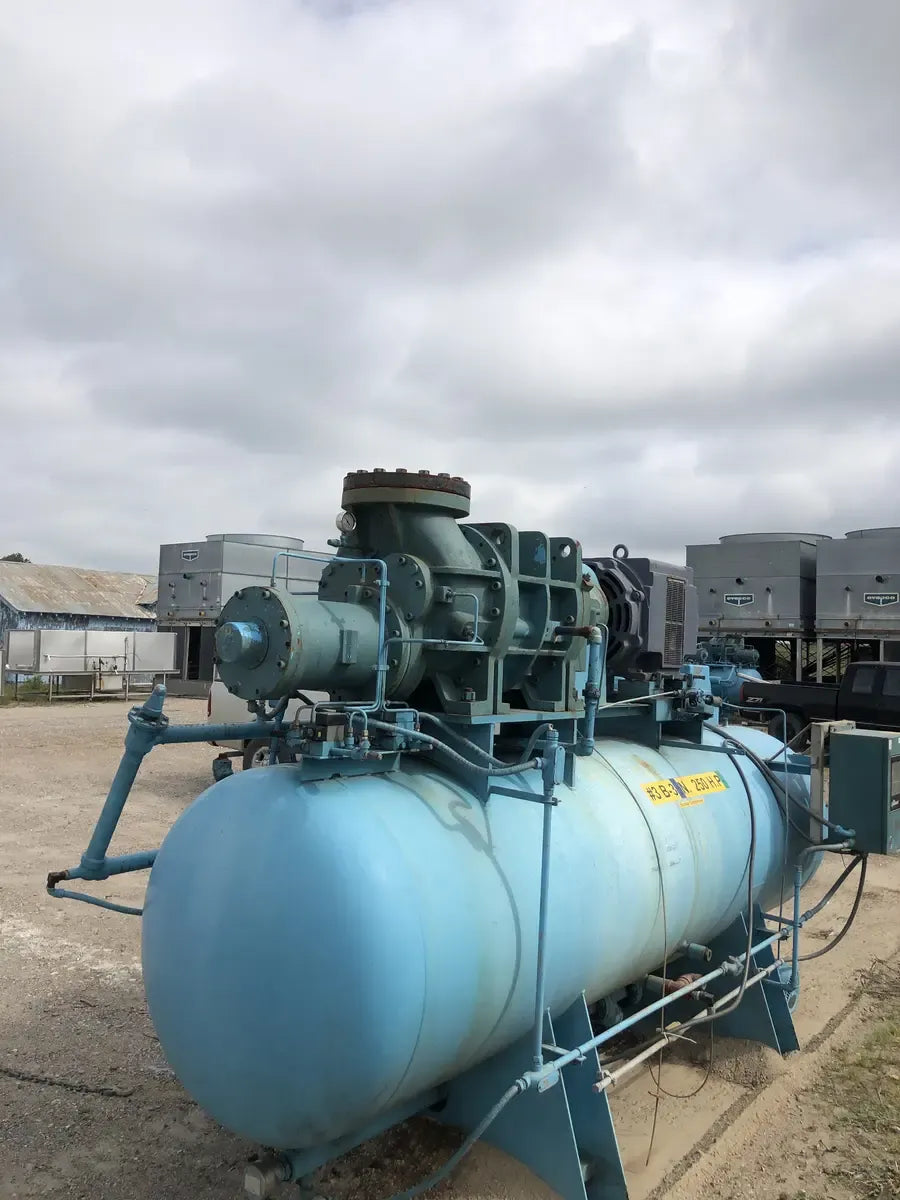

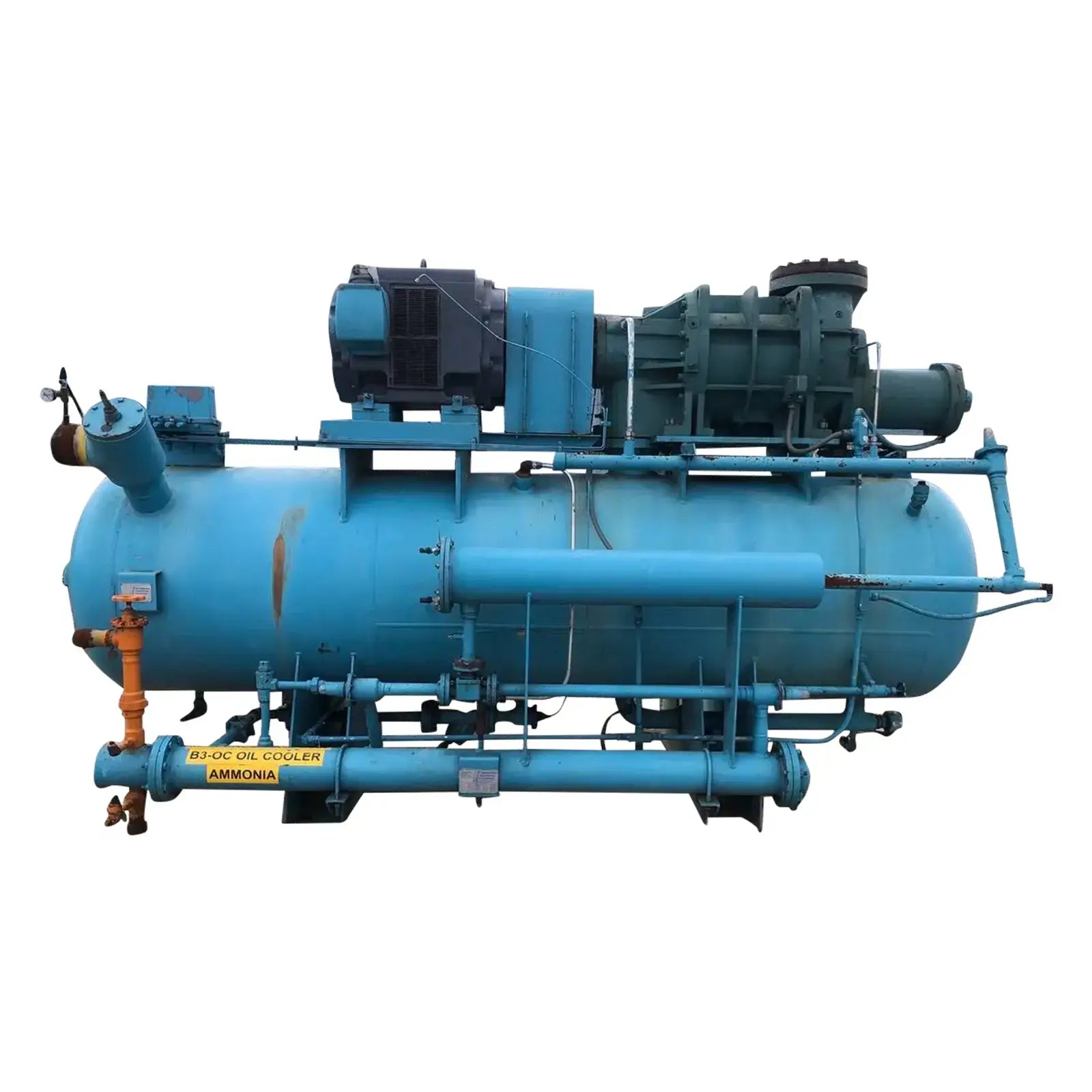

Frick Rotary Screw Compressor Package (Frick GDSH283L, 250 HP 460 V, Frick Micro Control Panel)

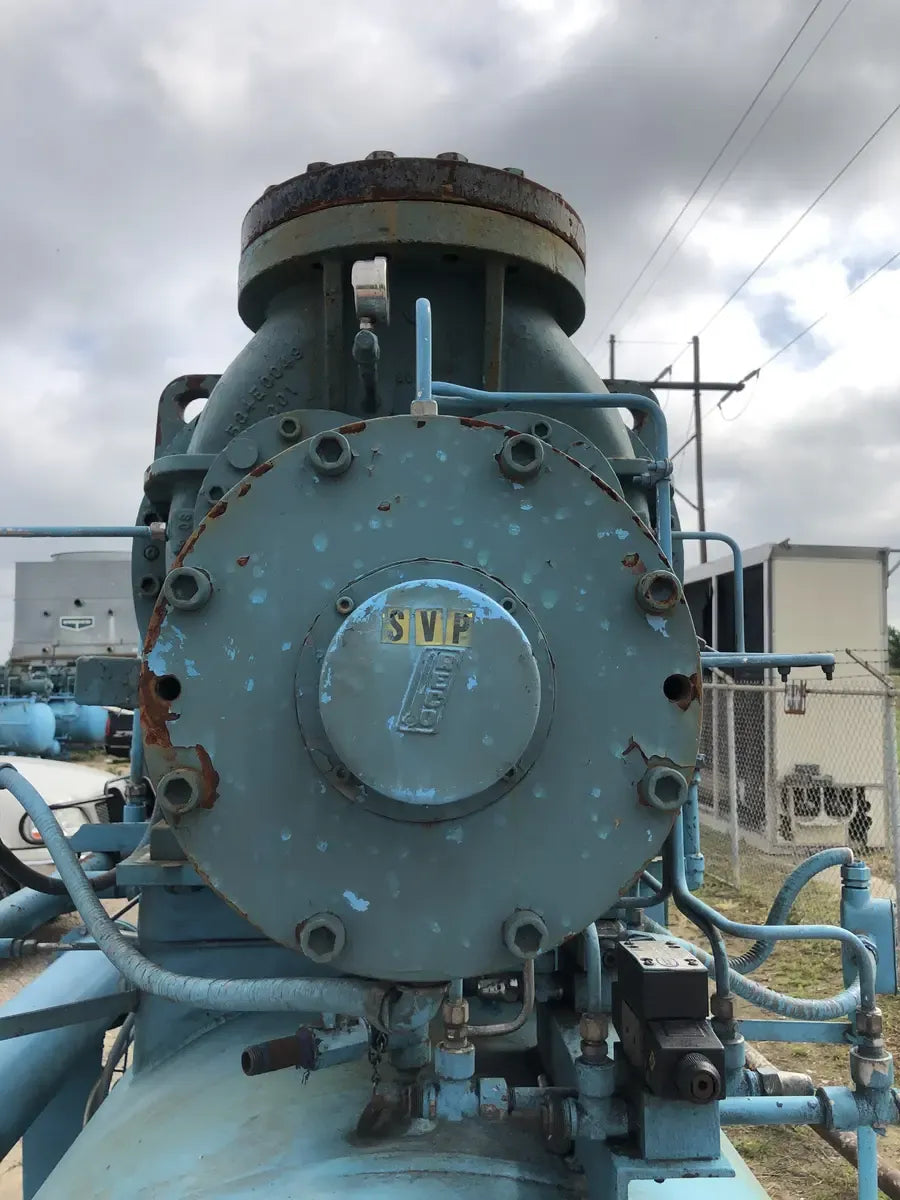

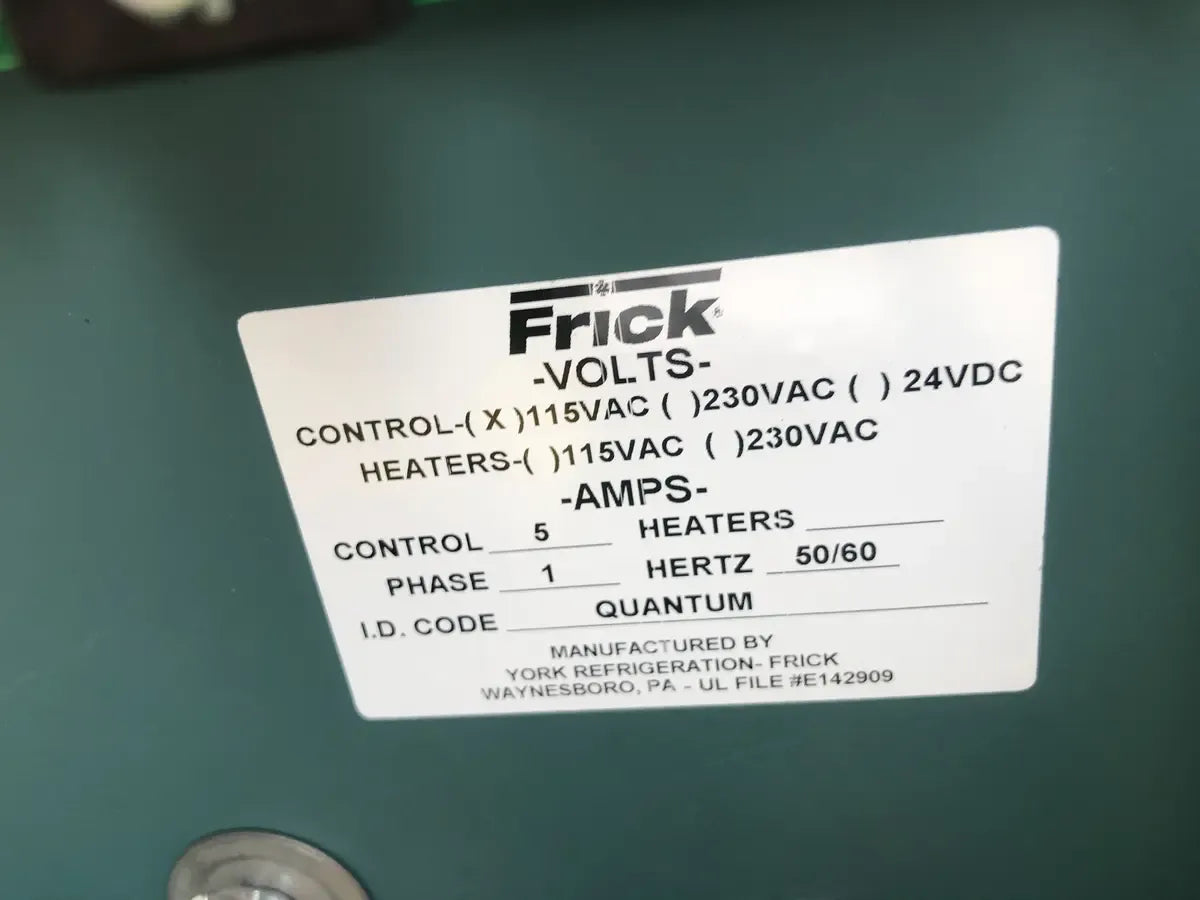

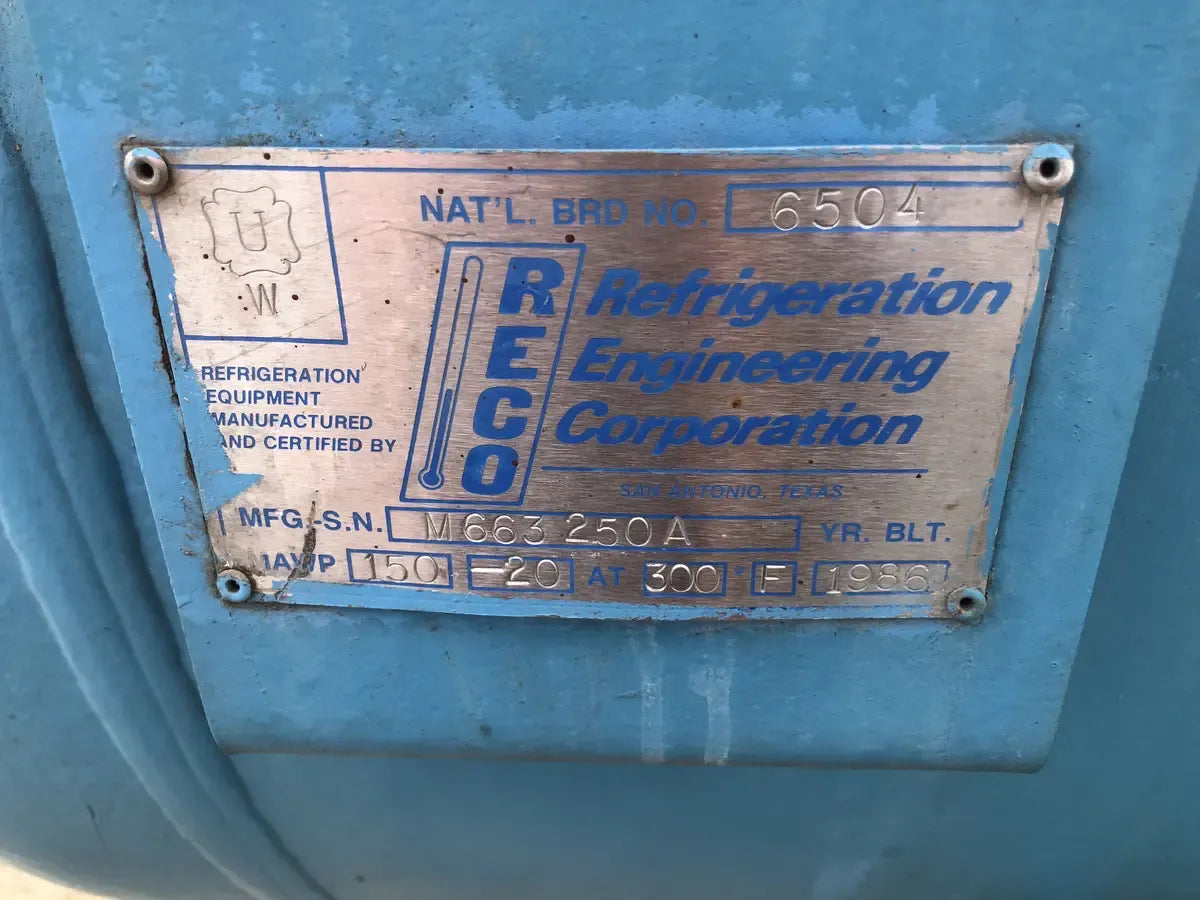

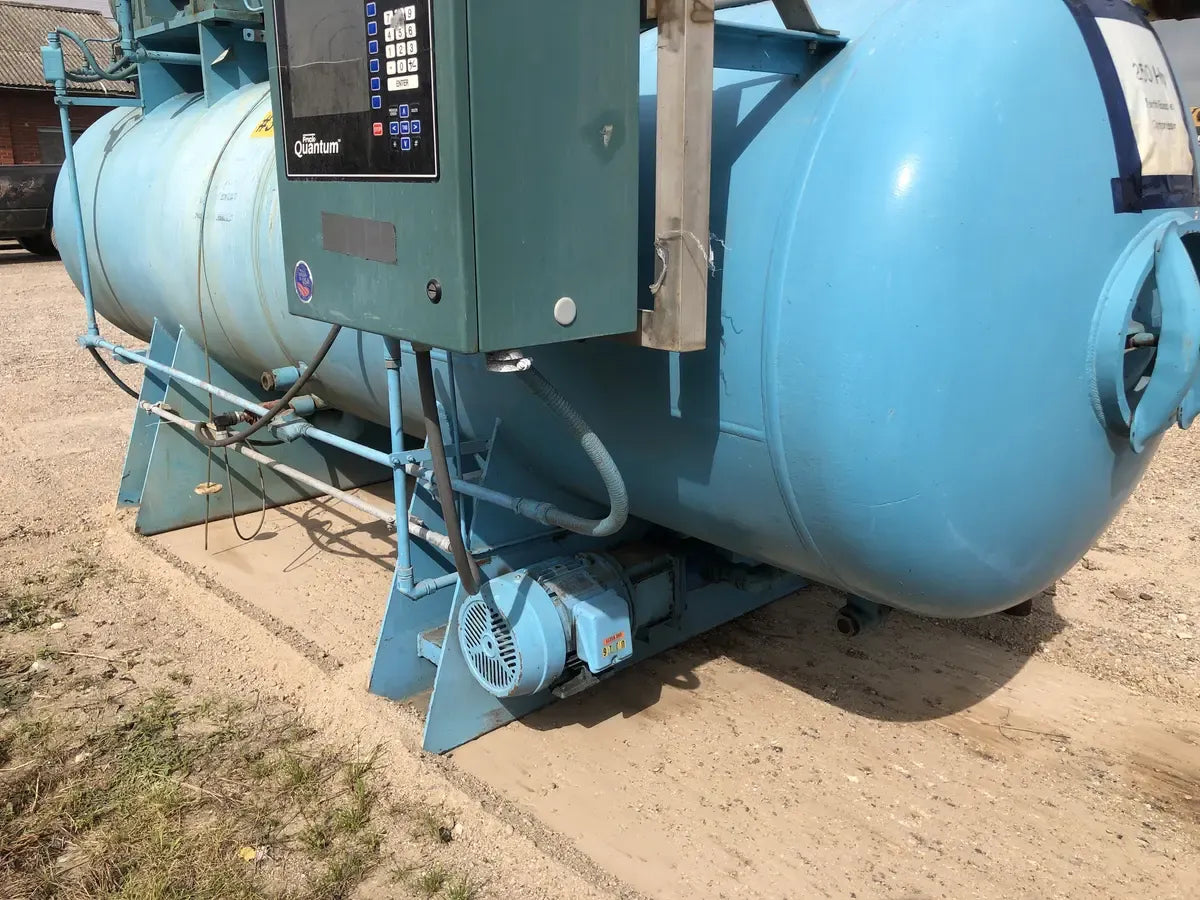

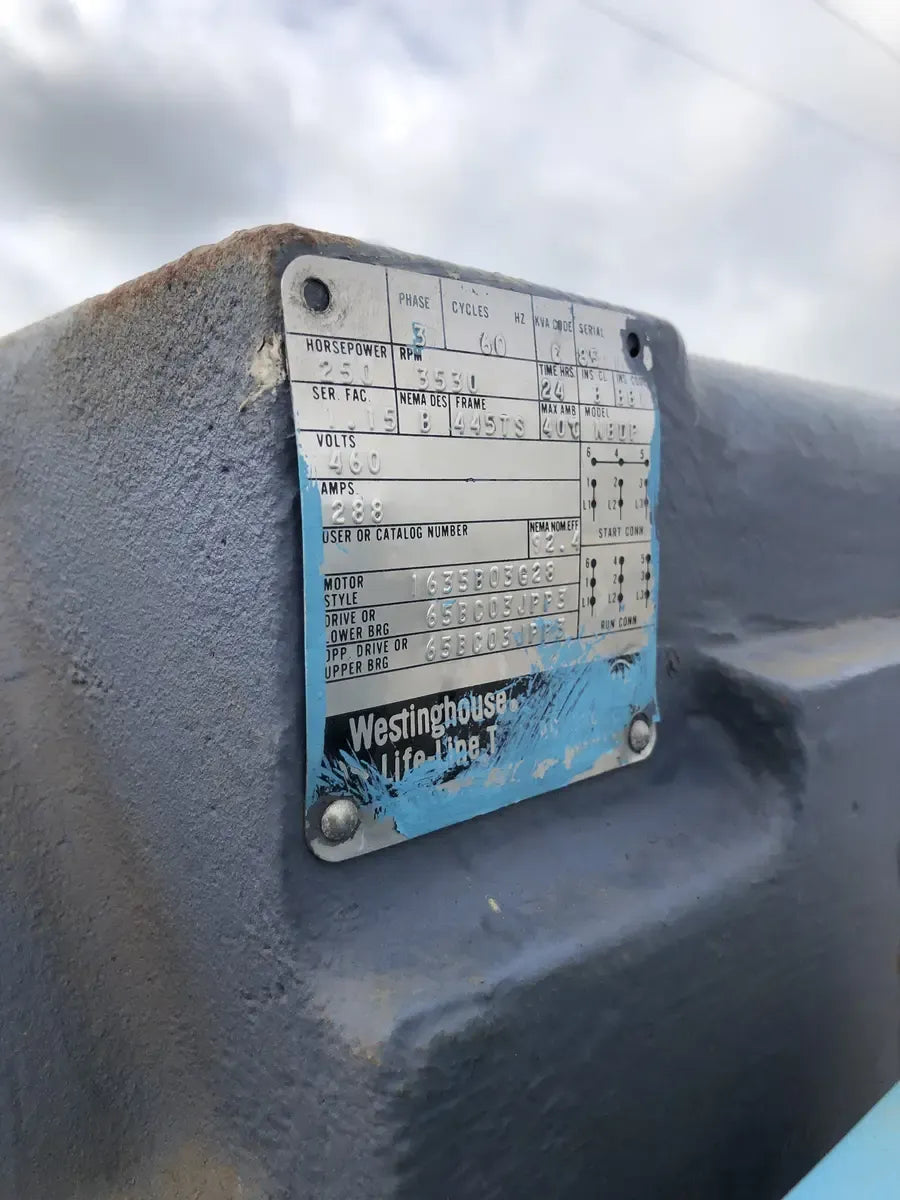

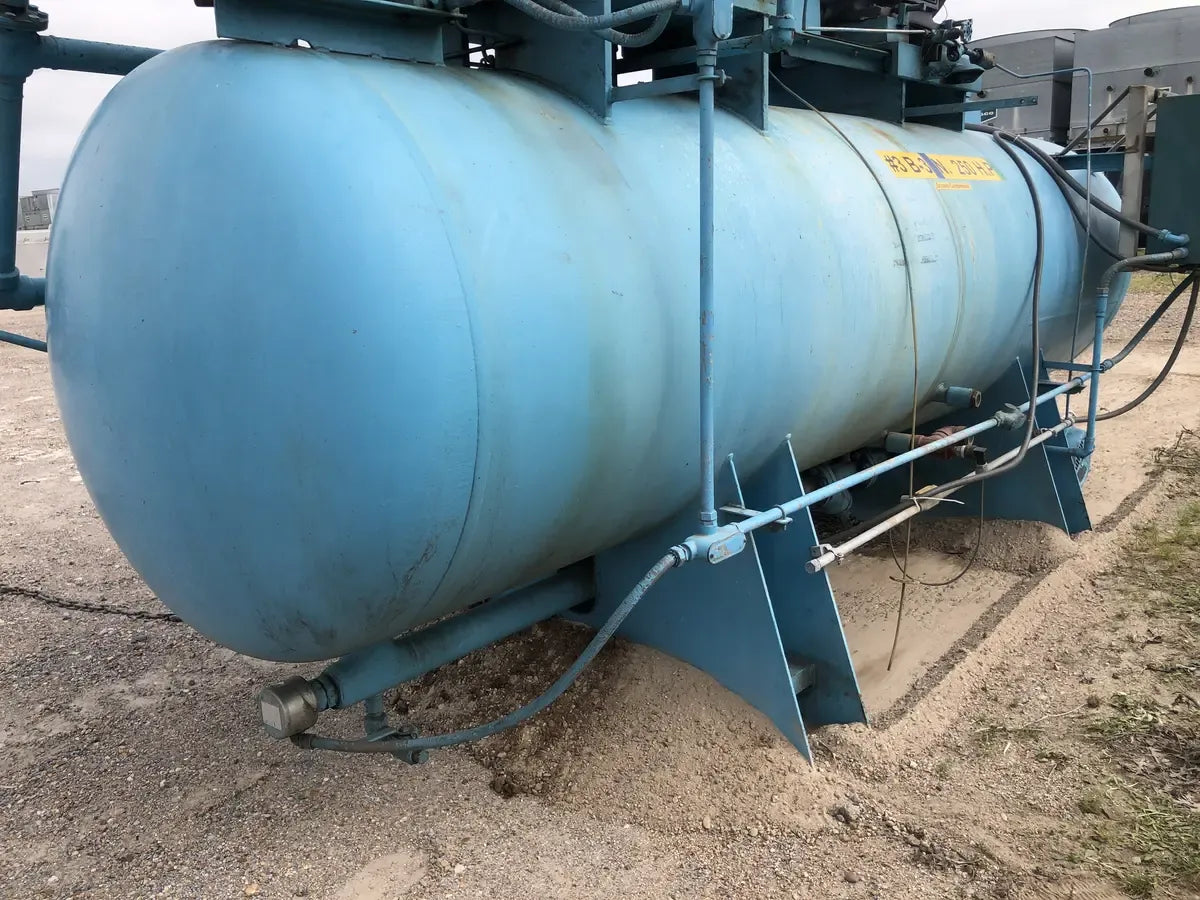

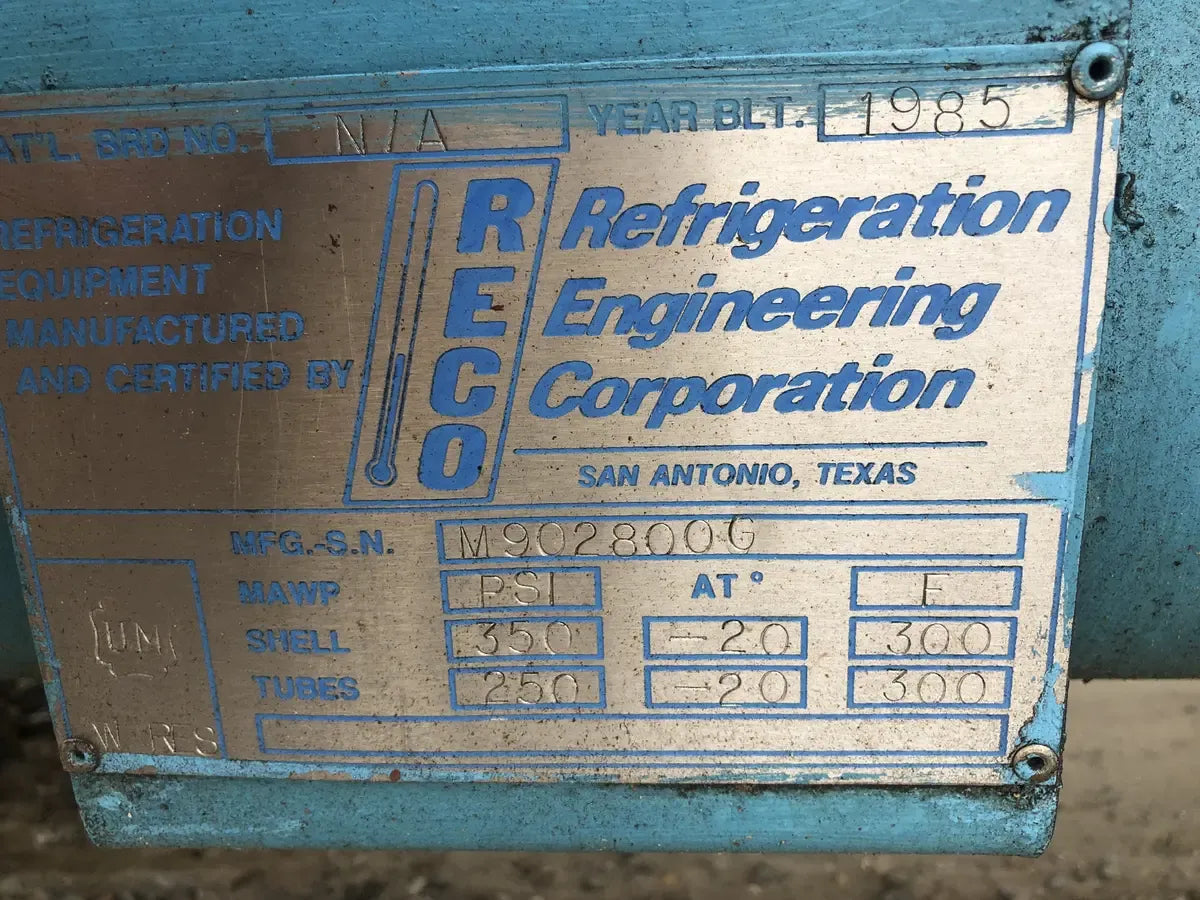

Frick Rotary Screw Compressor - Maximum Speed RPM: 3600, Ratio: 22-50, Max Design Psig: 362, Model No: GDSH283L Serial No:0003V. Westinghouse Motor - Phase: 3, Cycles: 60, Kva Code: C, Serial No: 8511, HP: 250, Rpm: 3530, Time Hrs: 24, Ins CL: B , Ser Fac: 1.15, Nema Des: B, Frame: 445TS Max. AMB: 40 C, Model: NBDP, Volts: 460, Amps: 288. Refrigeration Engineering Corporation Oil Separator - MFG-SN: M663 250A, Year Built: 1986, MAWP: 150 -20 @ 300. Refrigeration Engineering Corporation Oil Cooler - Mfg Sn: M902800G, MAWP: Shell 350 psi @-20 @ 300F, Tubes: 250 PSI @ -20 @ 300 F Mfg Date: 1985. Industrial Control Panel Enclosure - No.BL- 614680. Frick Volts: Control 115Vac. AMPS: Control 5, Phase: 1, Hertz: 50/60, I.D. Code: Quantum.
Product Details
- Stock No: SENCA04
- Manufacturer: Frick
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: Frick

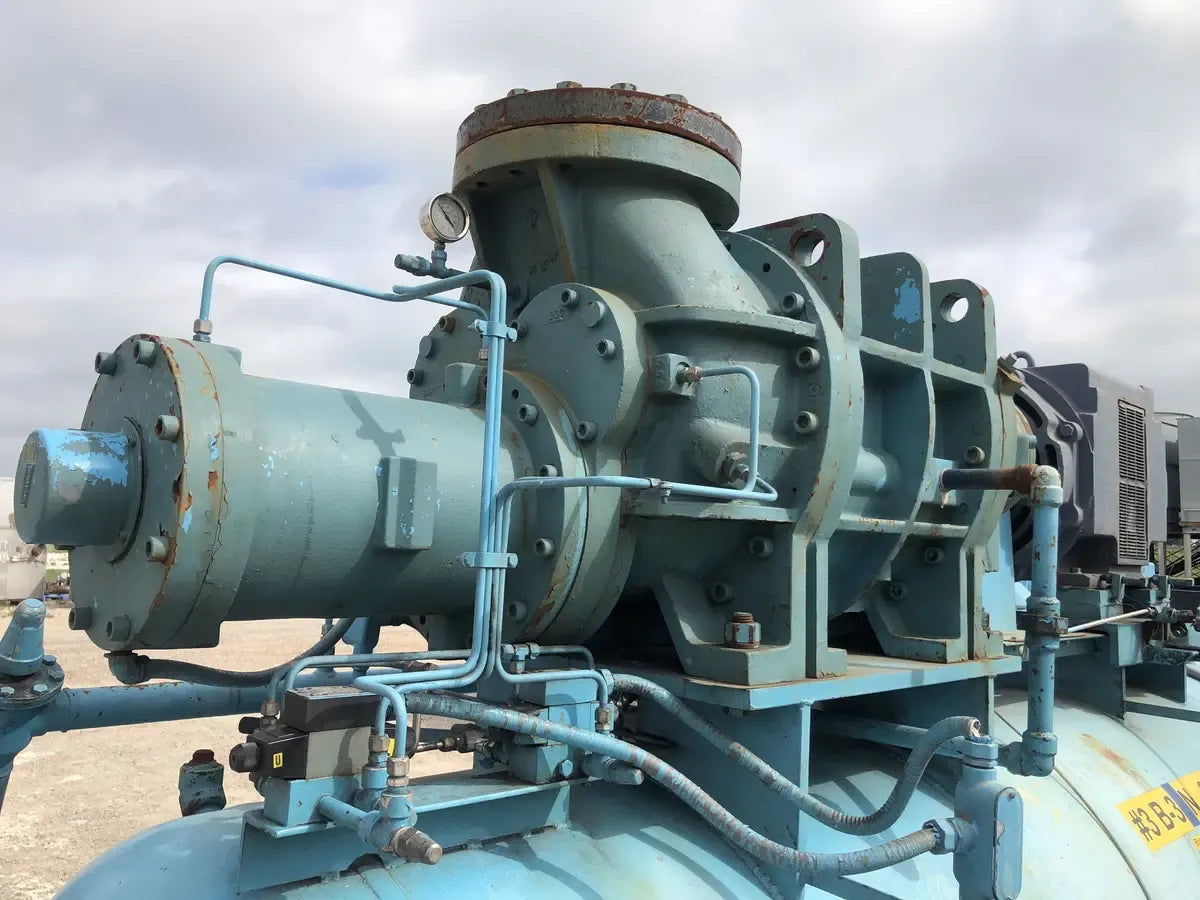

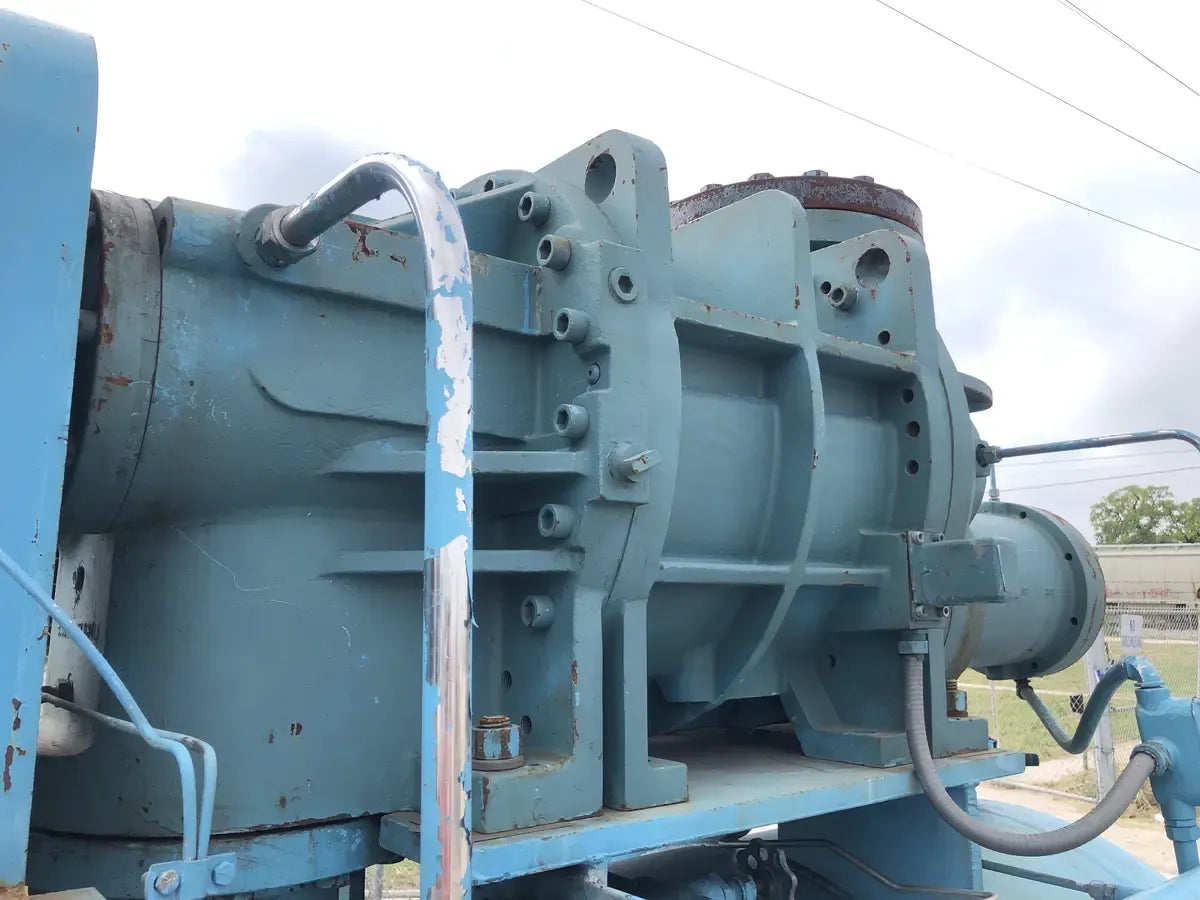

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: GDSH 283L
- Compressor SN: 0003V
- Compressor Max Speed (RPM): 3,600
- Compressor Design Pressure (PSIG): 362
- Compressor Volume Ratio: 2 2 - 5 0
- Oil Separator Included? Yes
- Oil Separator National Board #: 6504

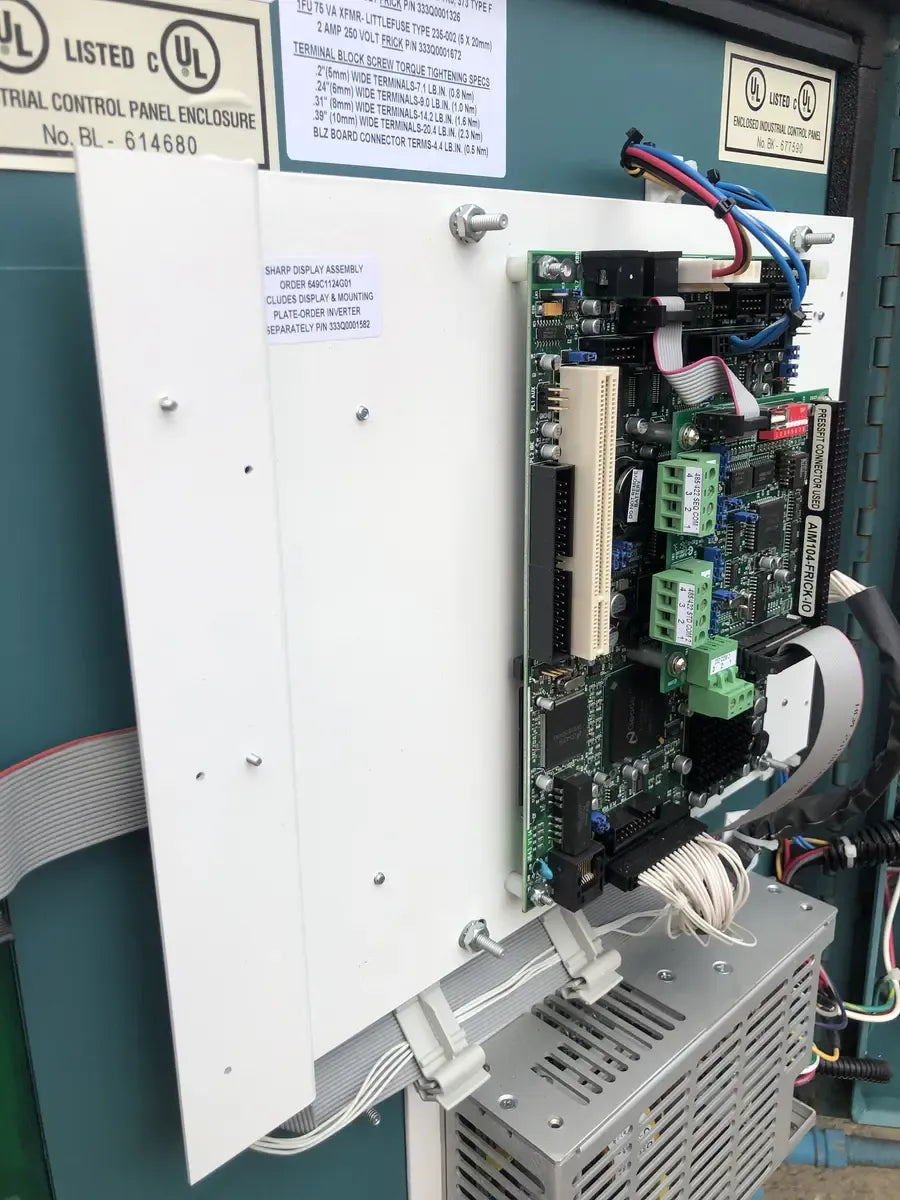

Micro Panel Details

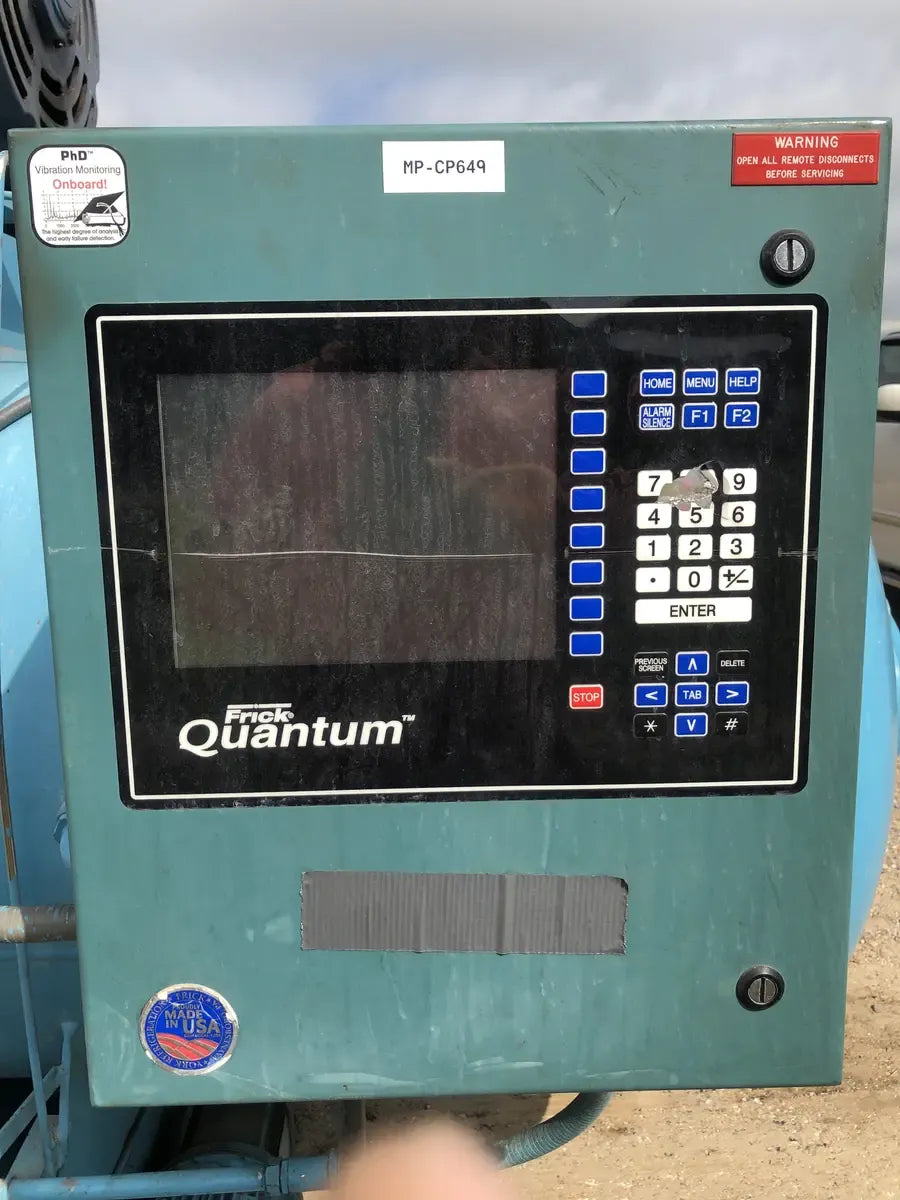

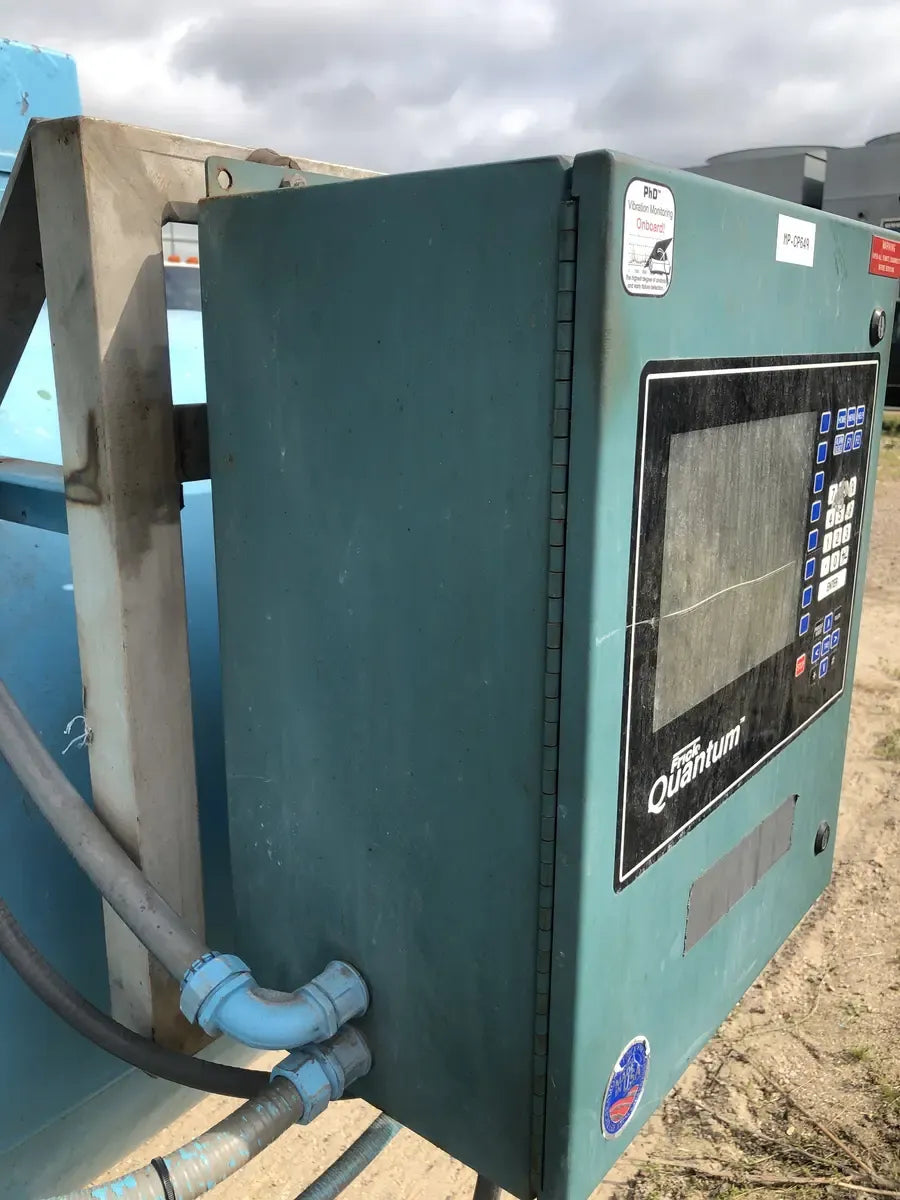

- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

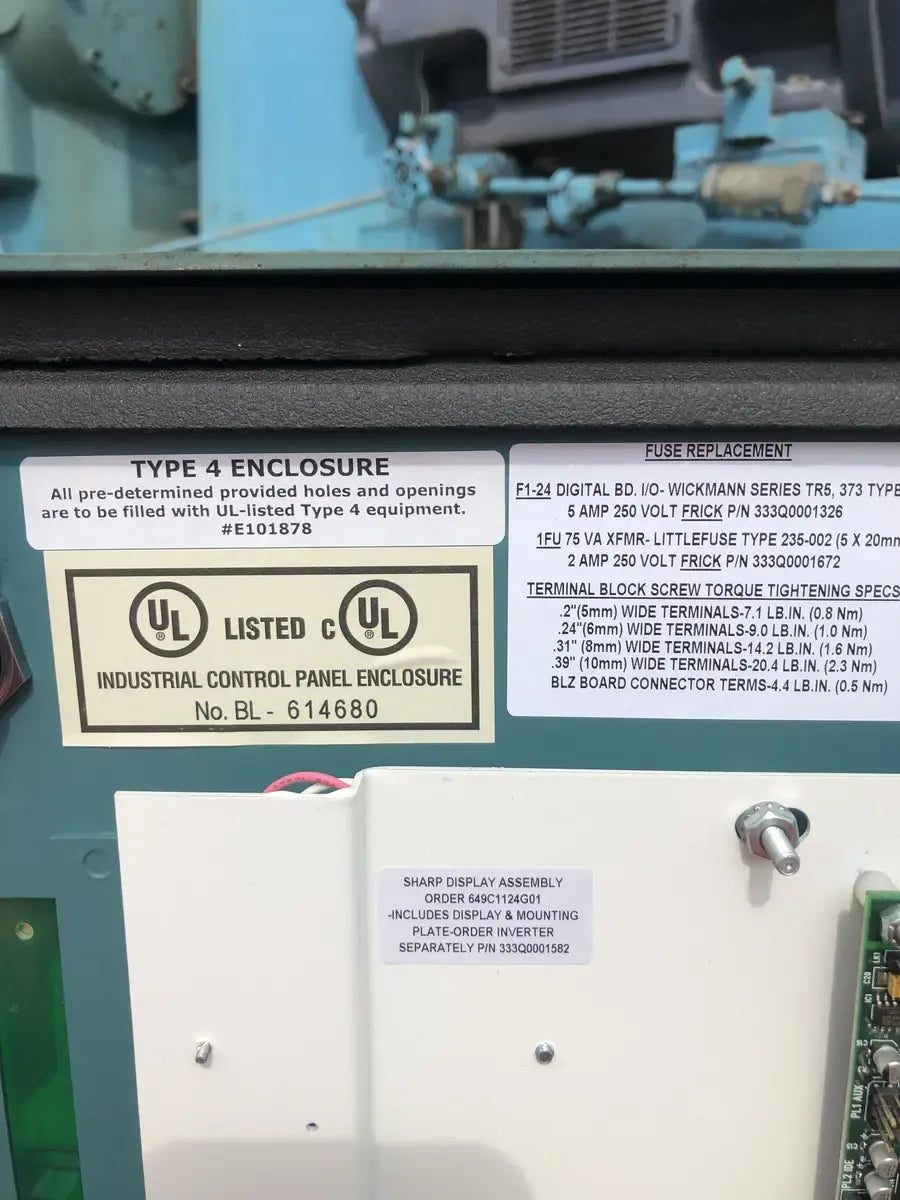

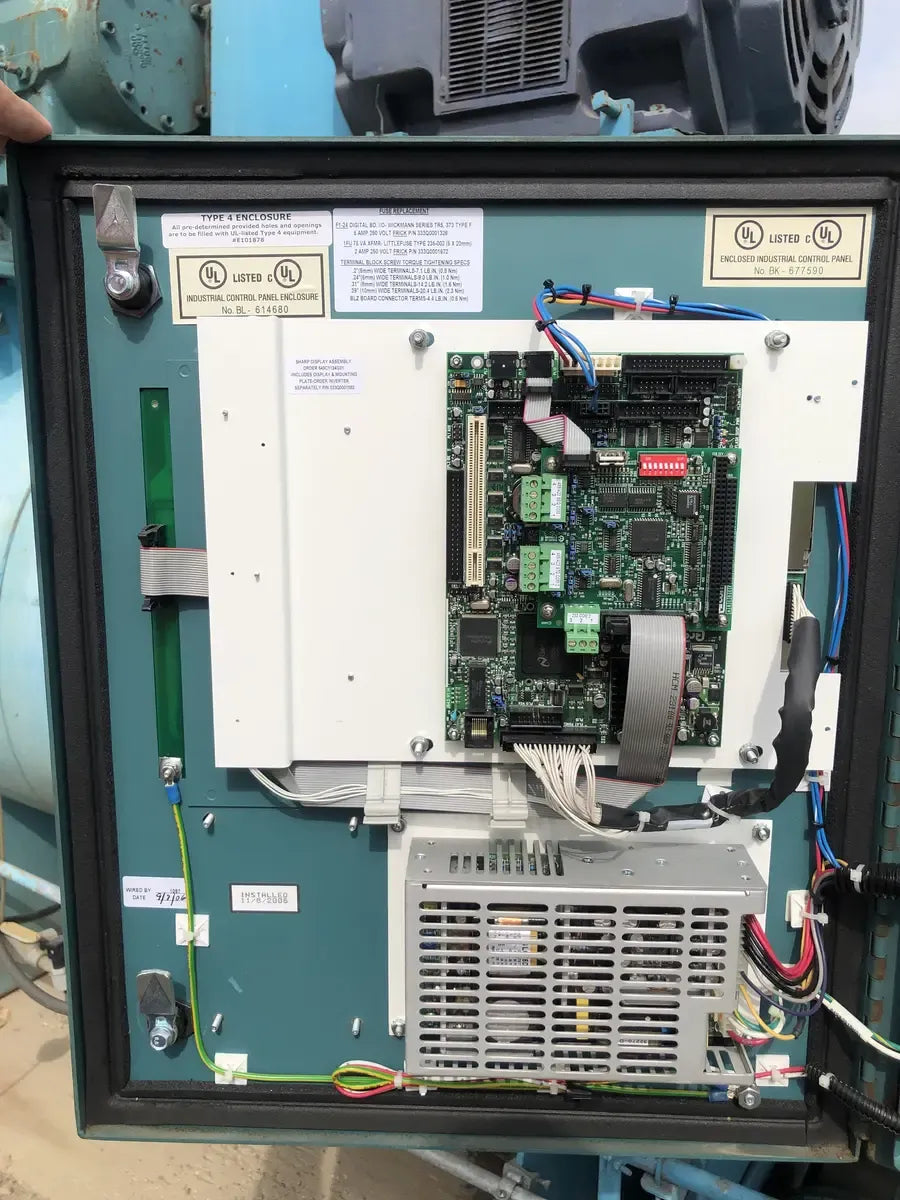

- Micro Control Panel Description: Industrial Control Panel Enclosure : No.BL- 614680.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

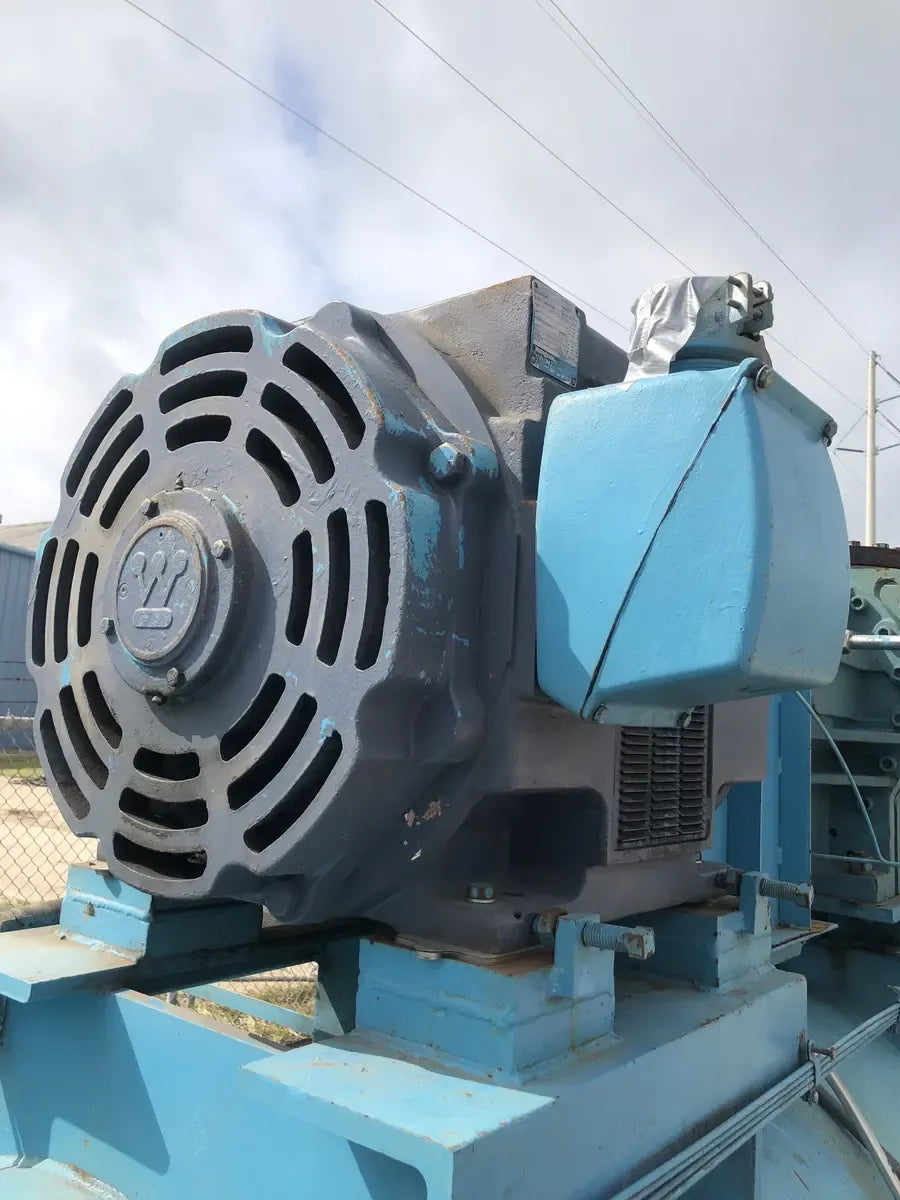

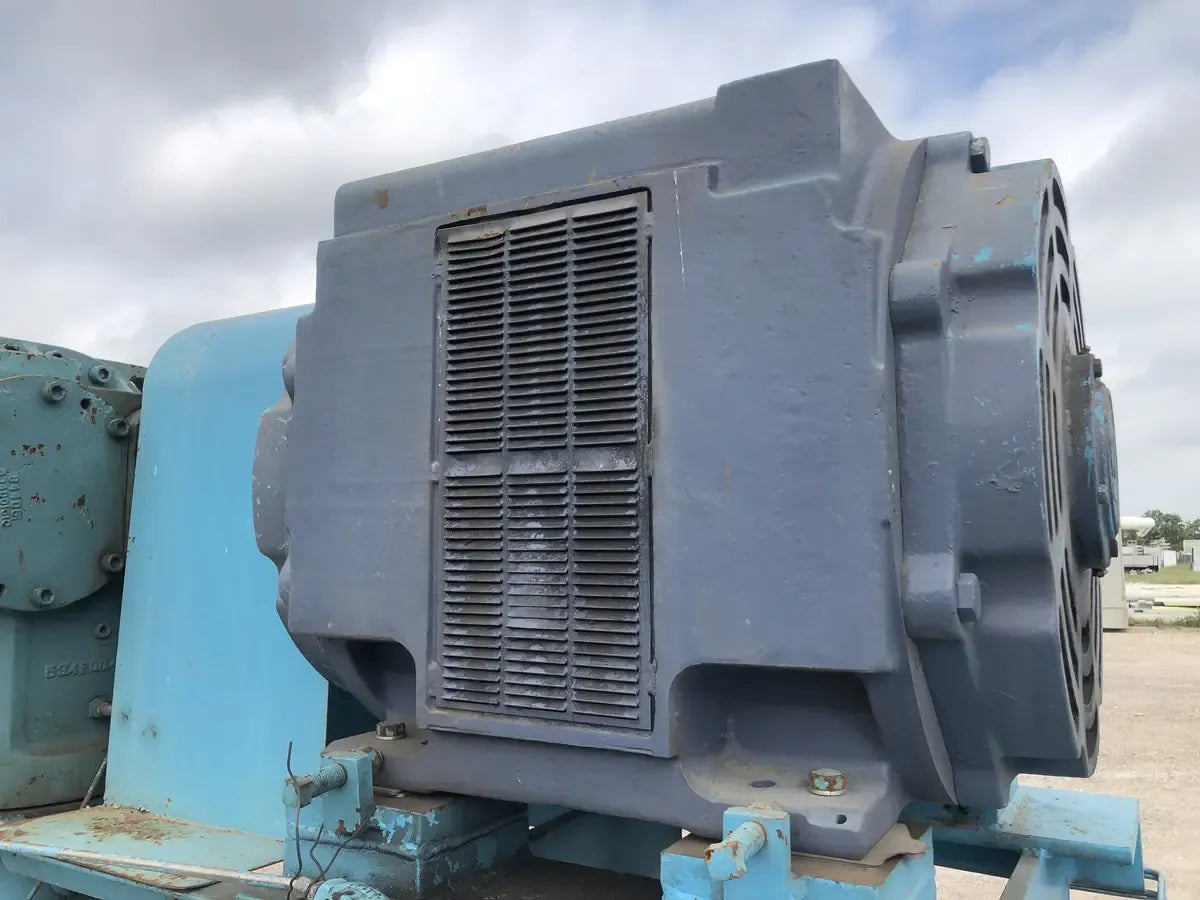

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Westinghouse
- Motor Horsepower(HP): 250
- Motor RPM: 3,530
- Motor Voltage: 460
- Motor Amps: 288
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 445TS
Dimensions:
- Length (Inches): 171
- Width (Inches): 80
- Height (Inches): 106
- Weight (LBS): 7,500
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
- Known Issues or Problems: Missing Package Data Plate
