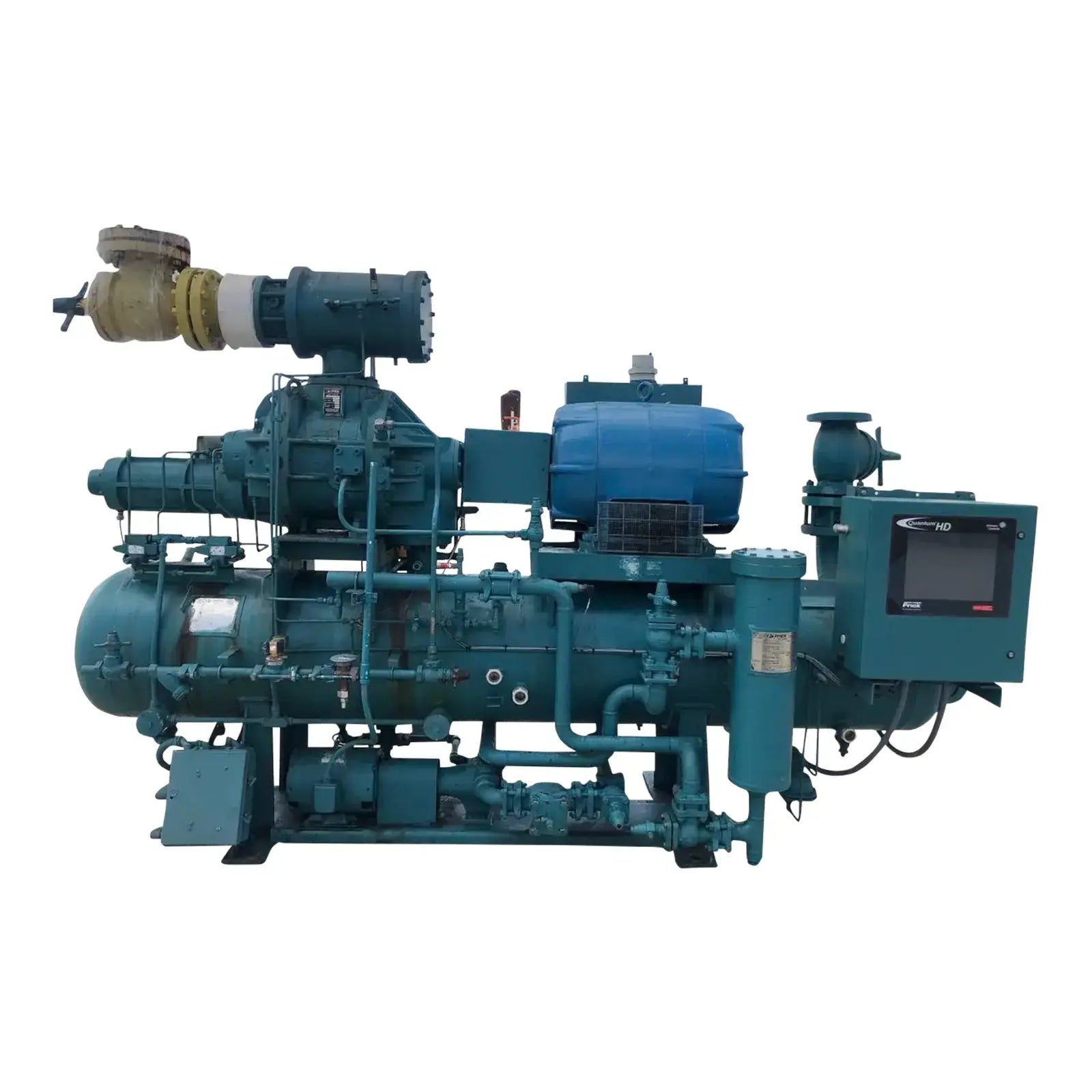

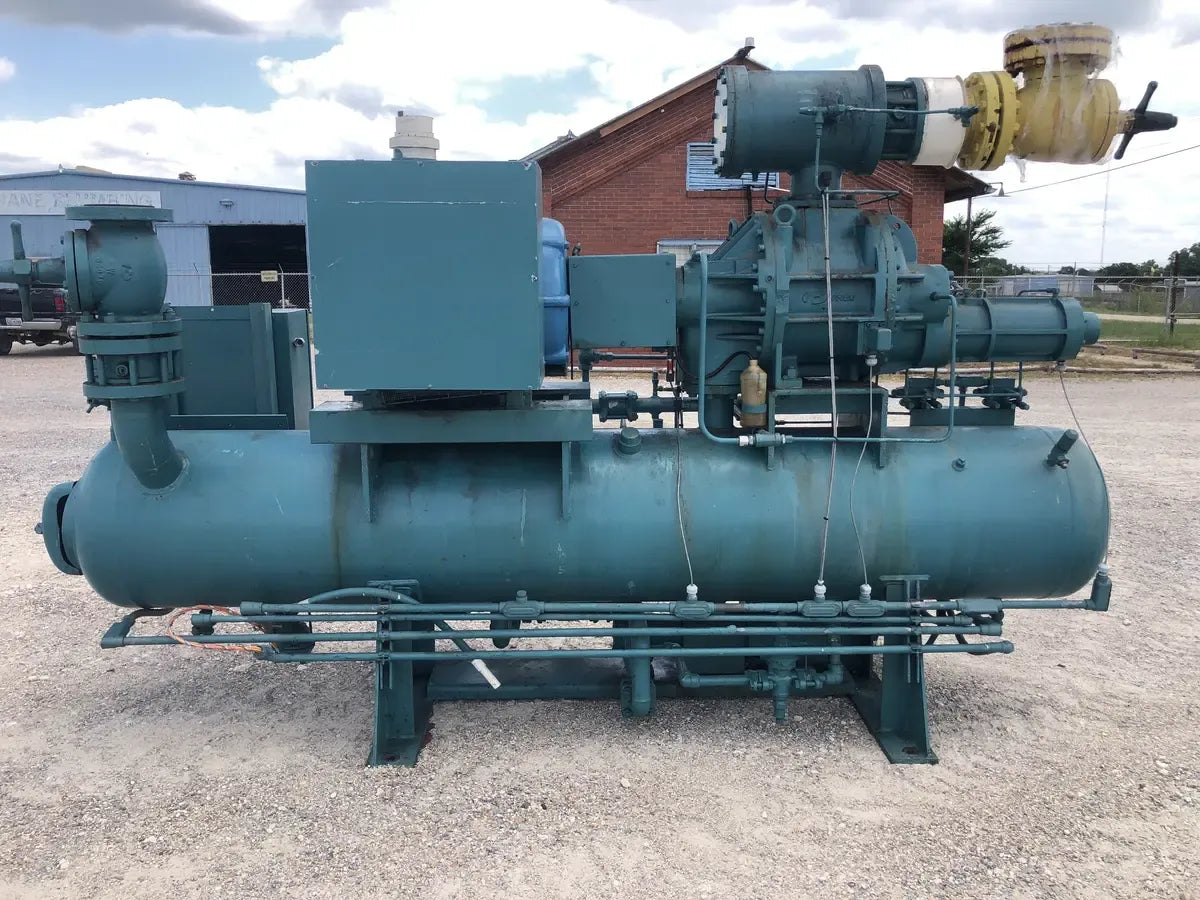

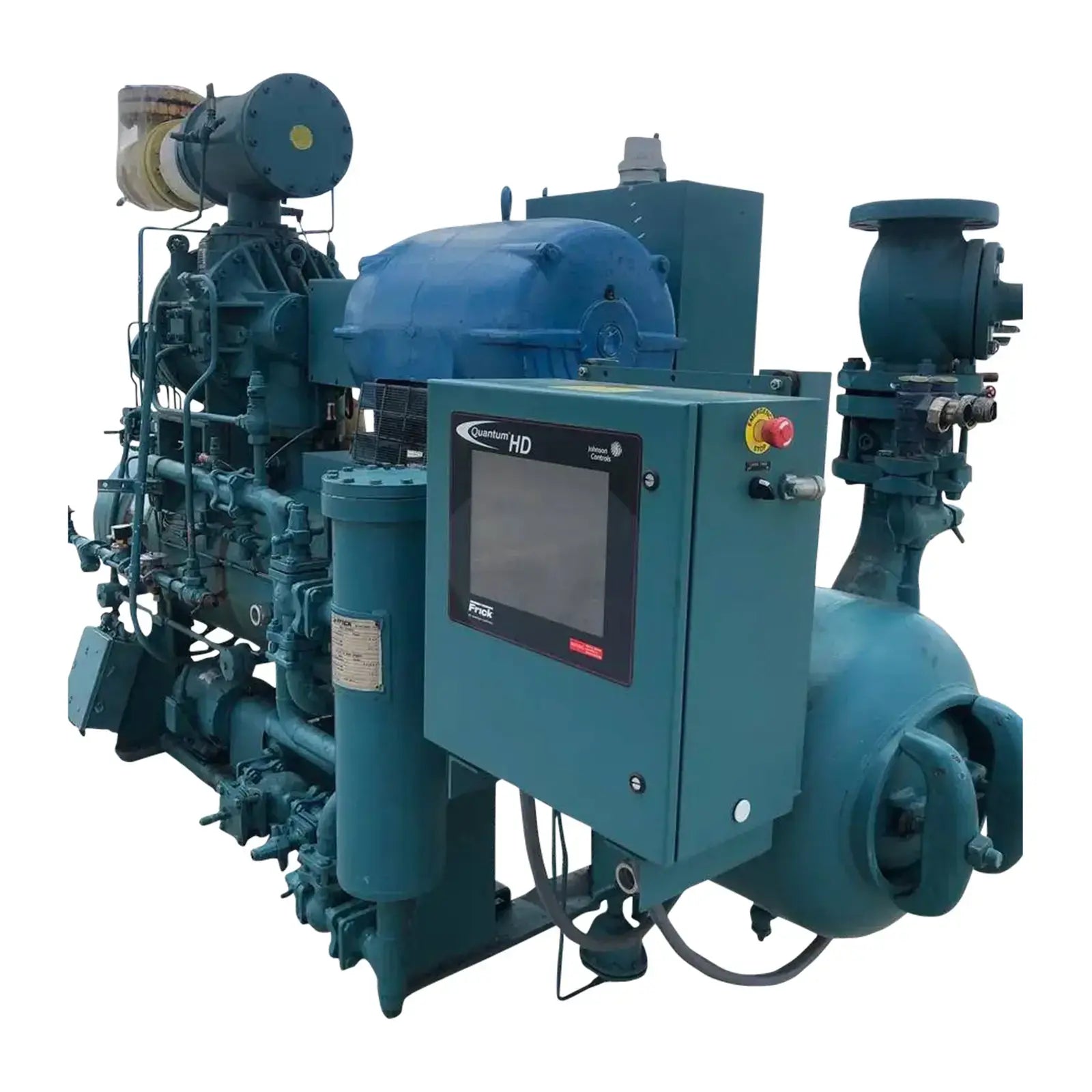

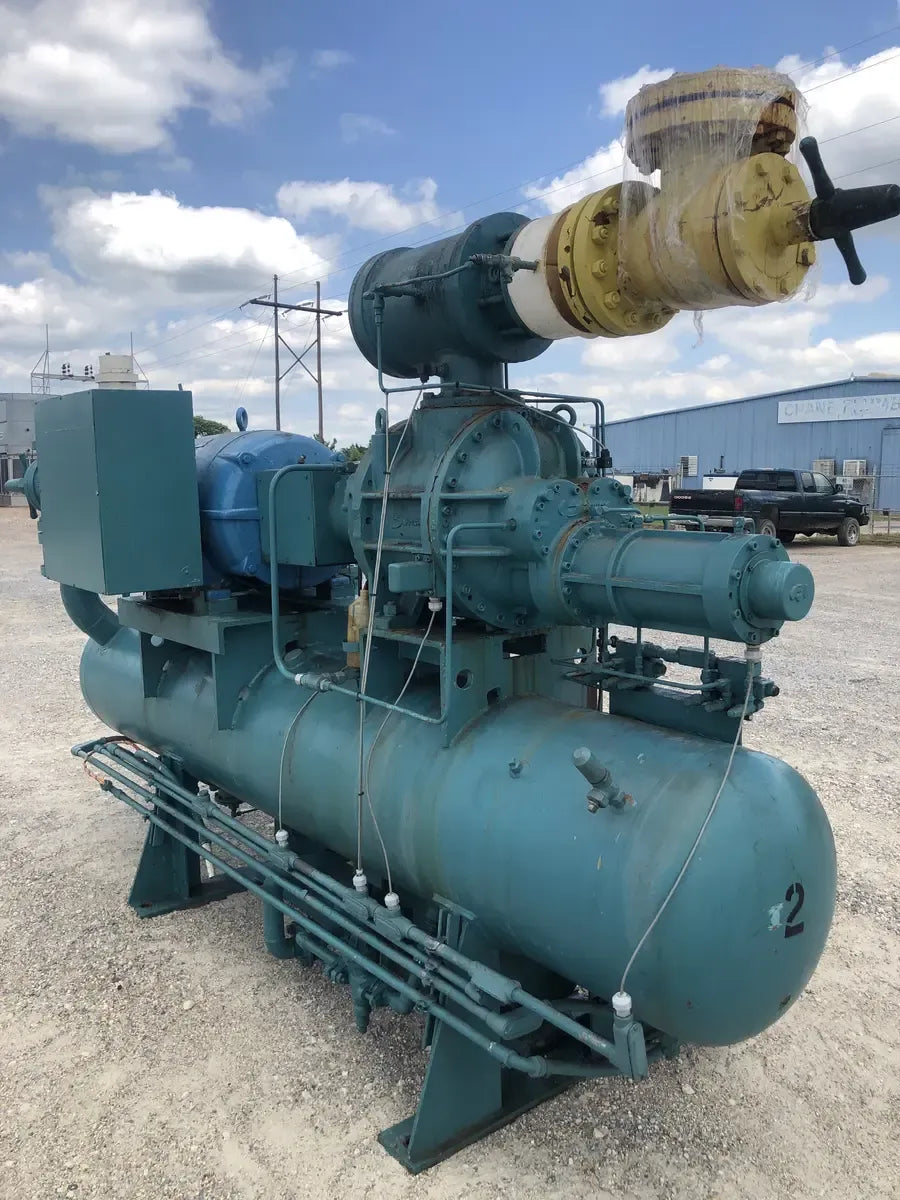

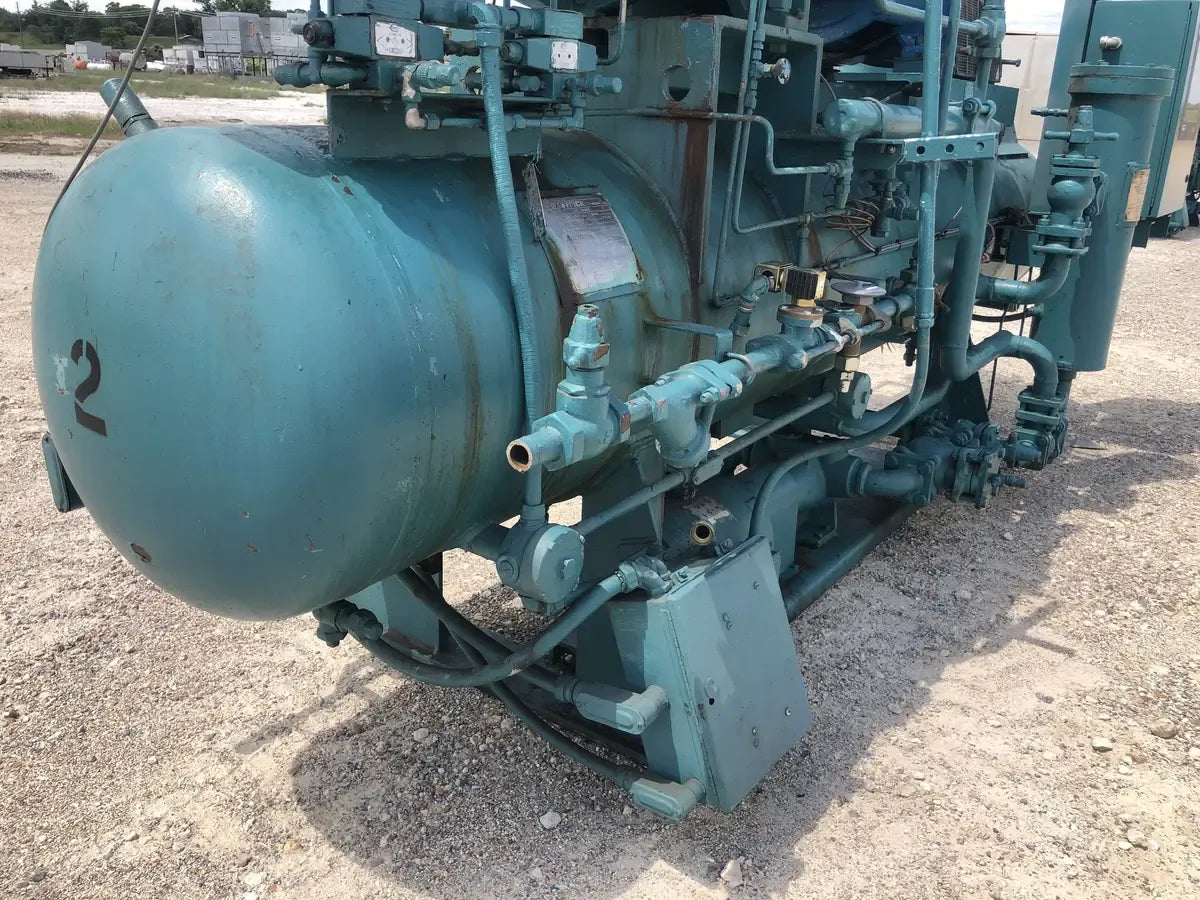

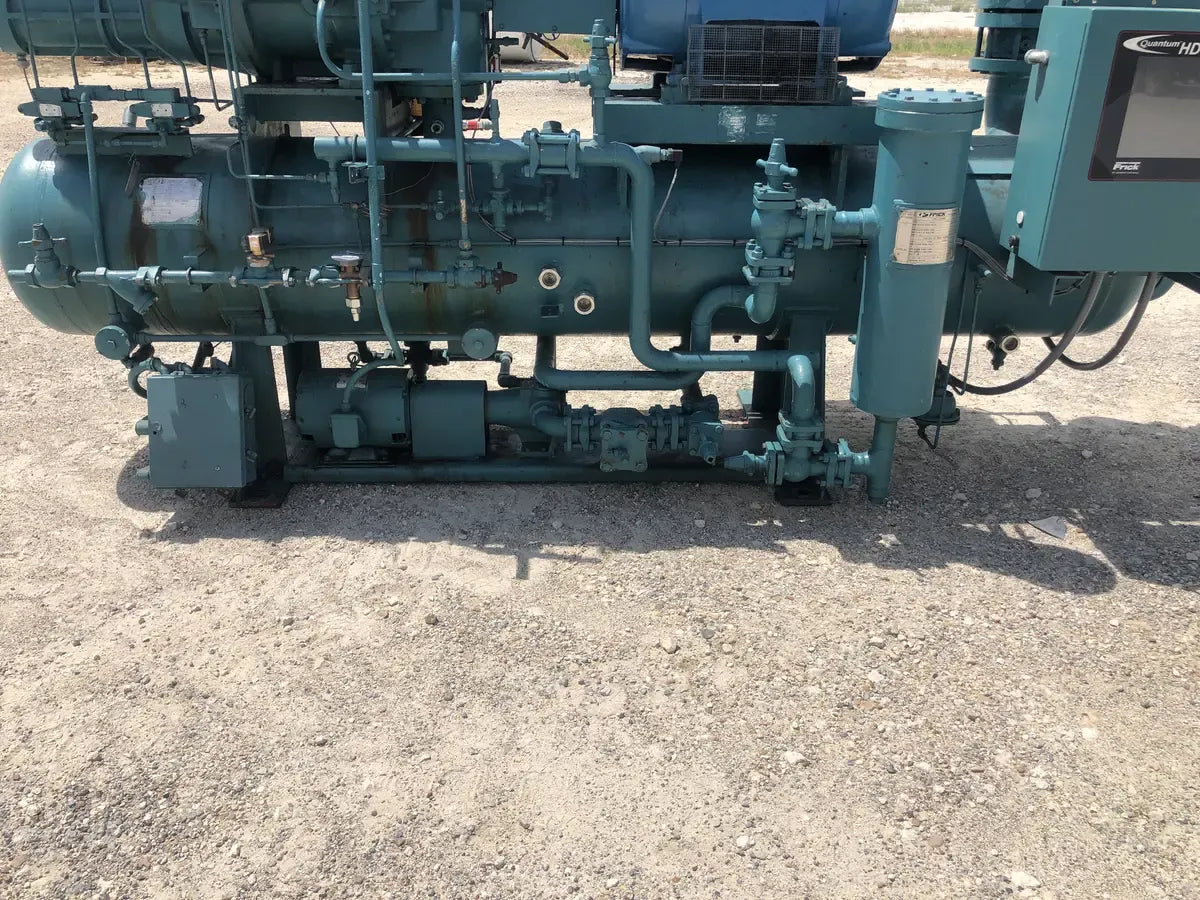

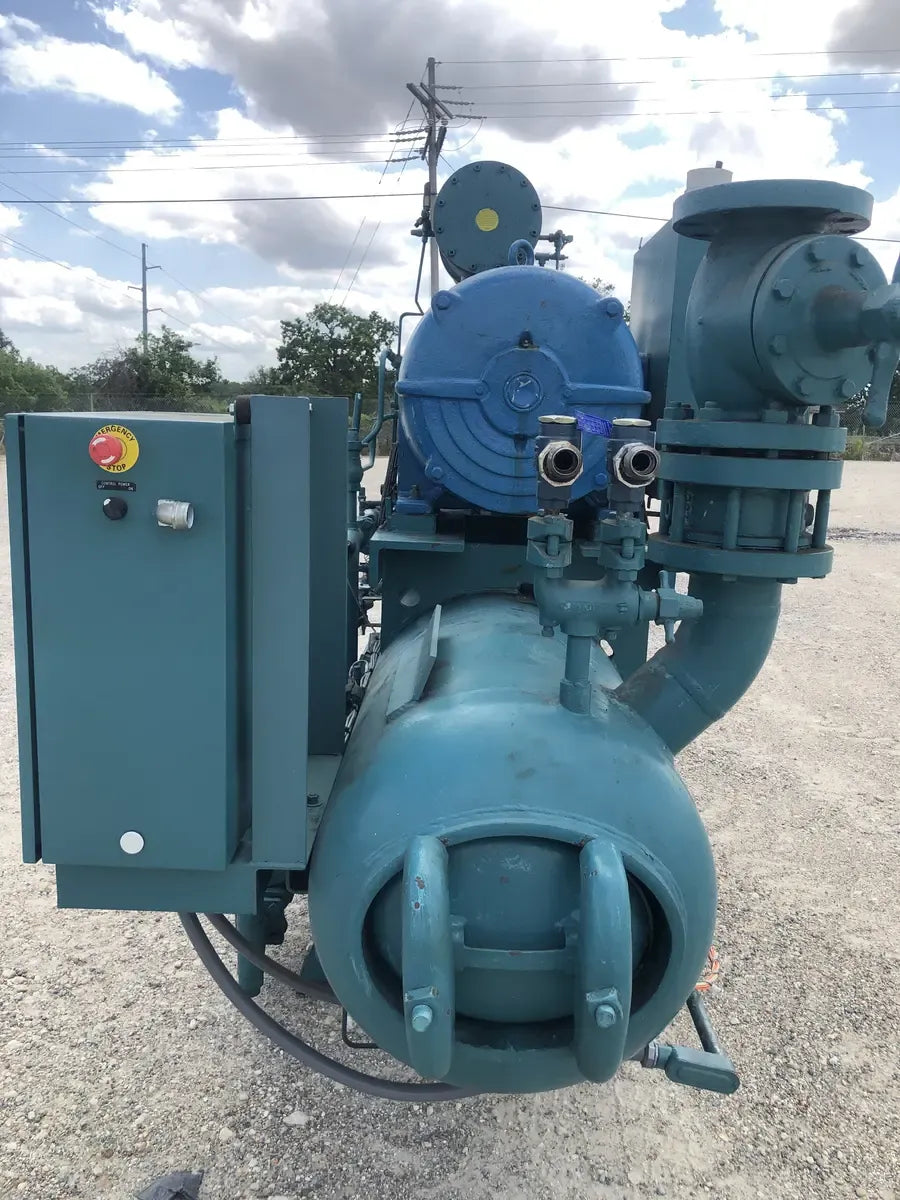

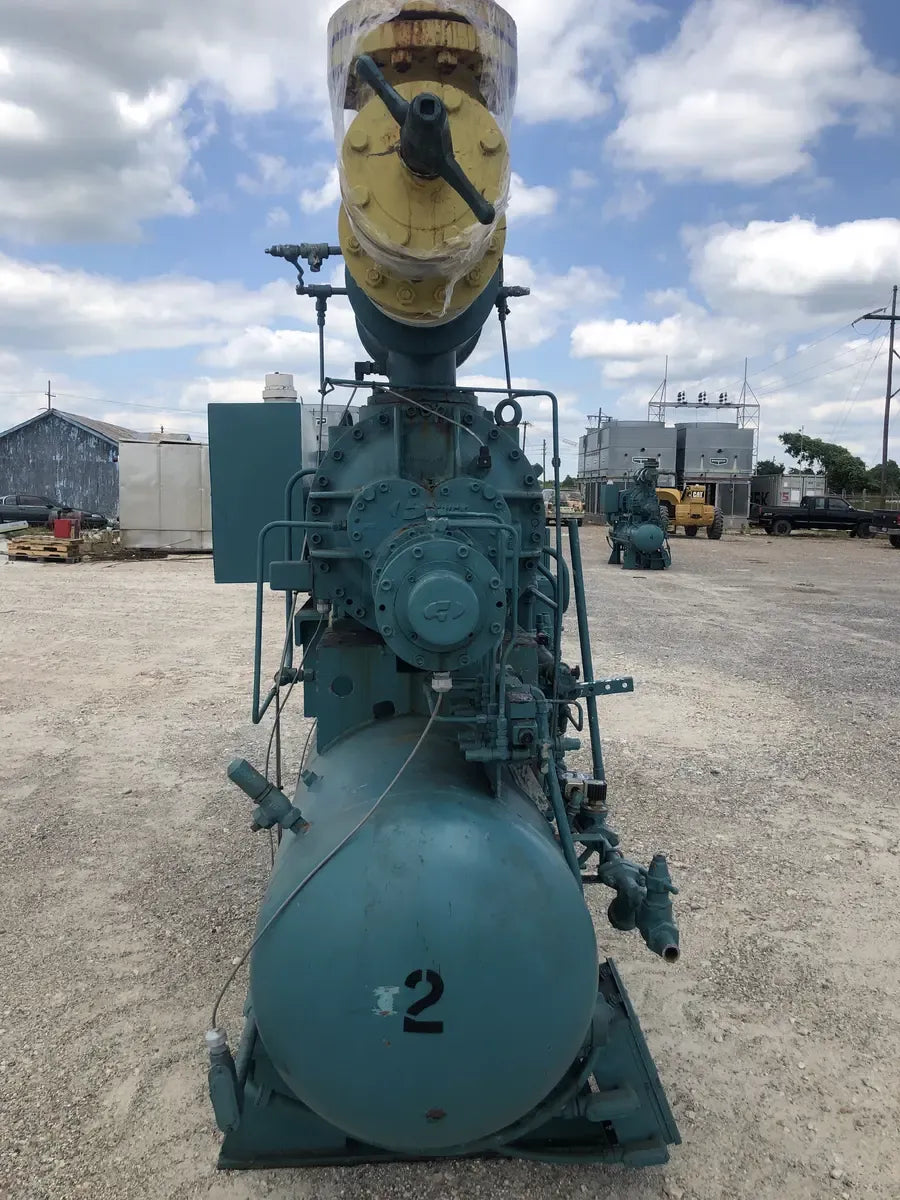

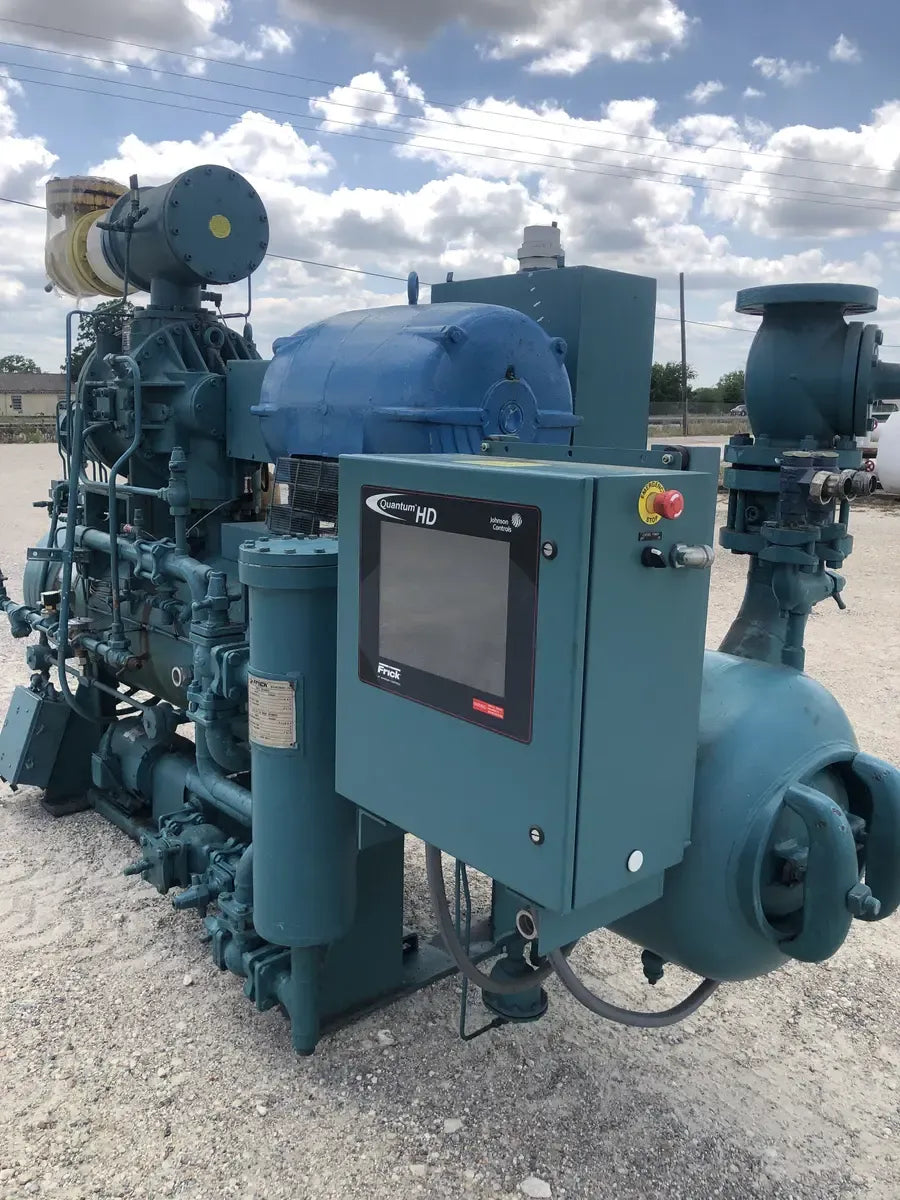

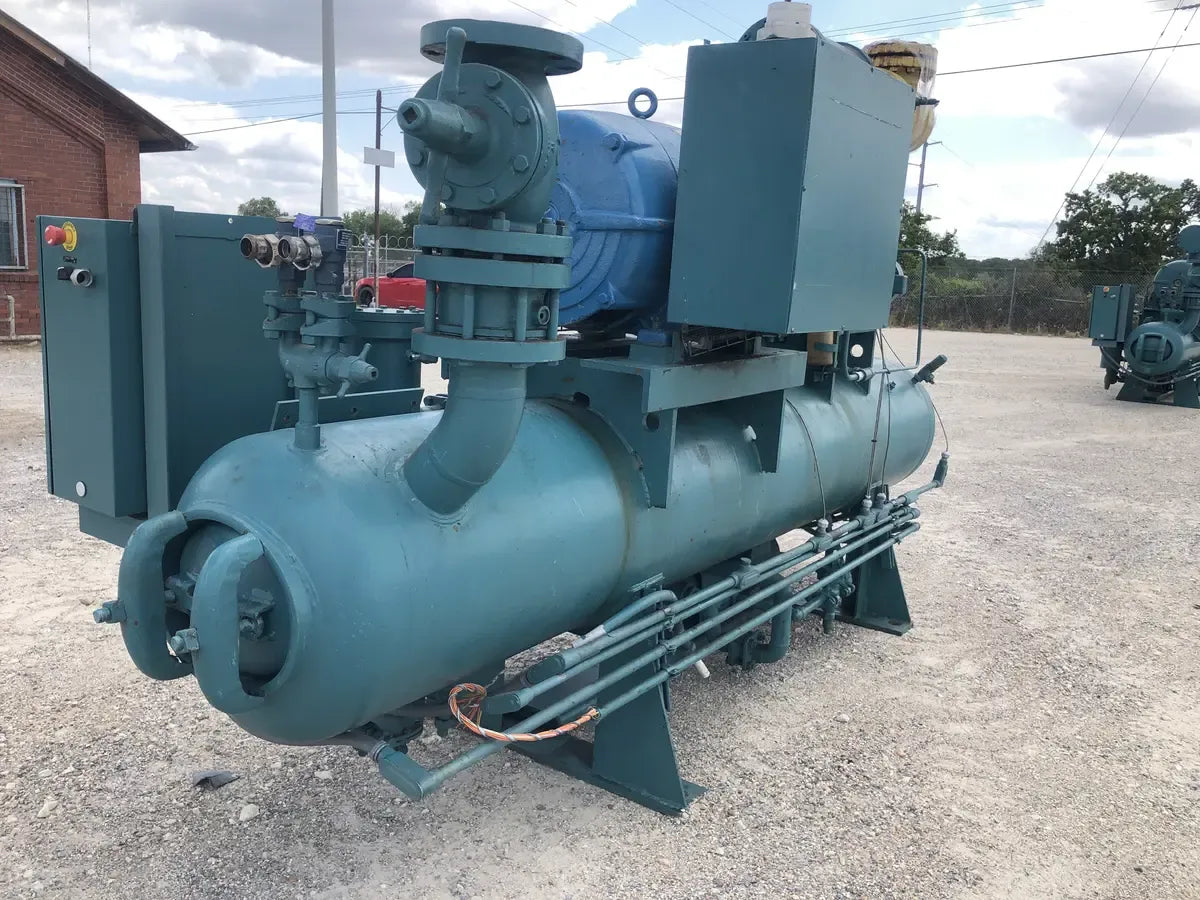

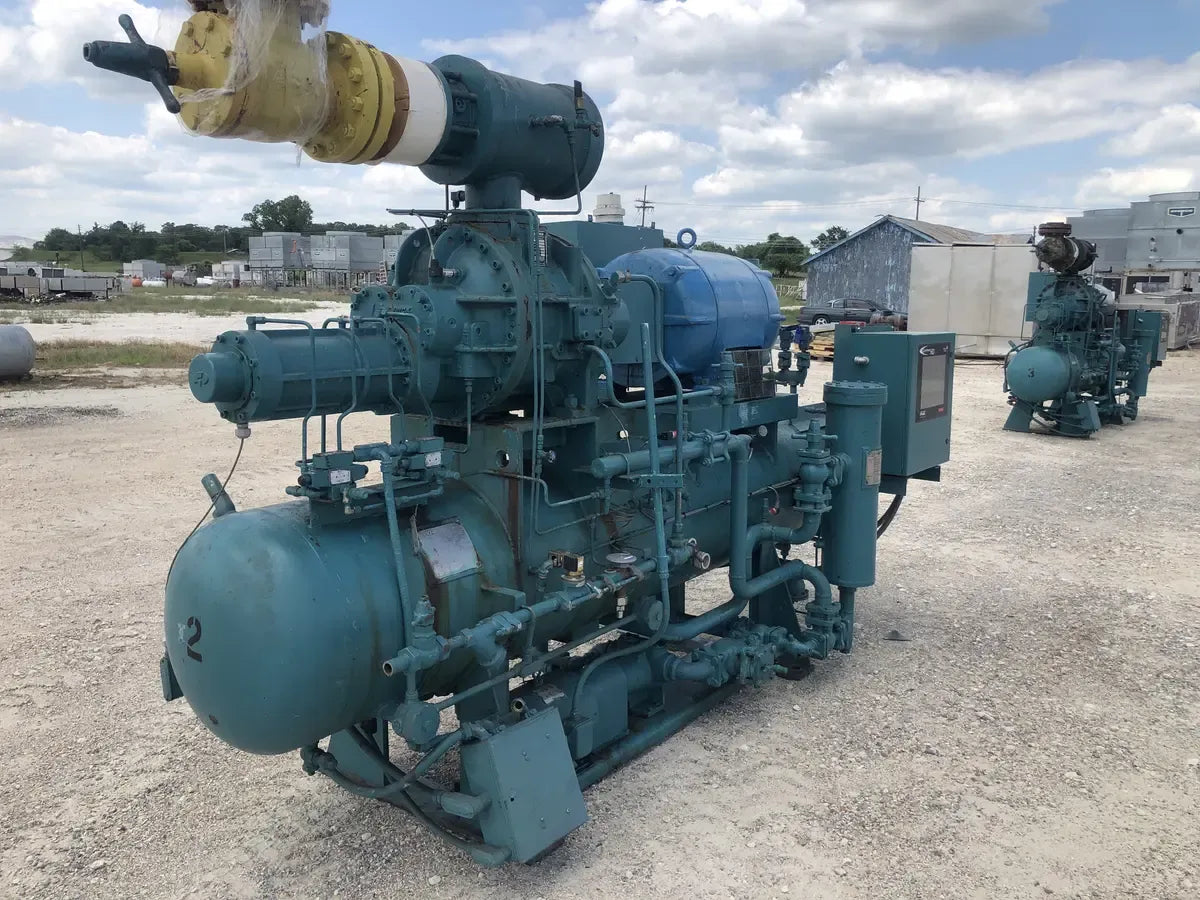

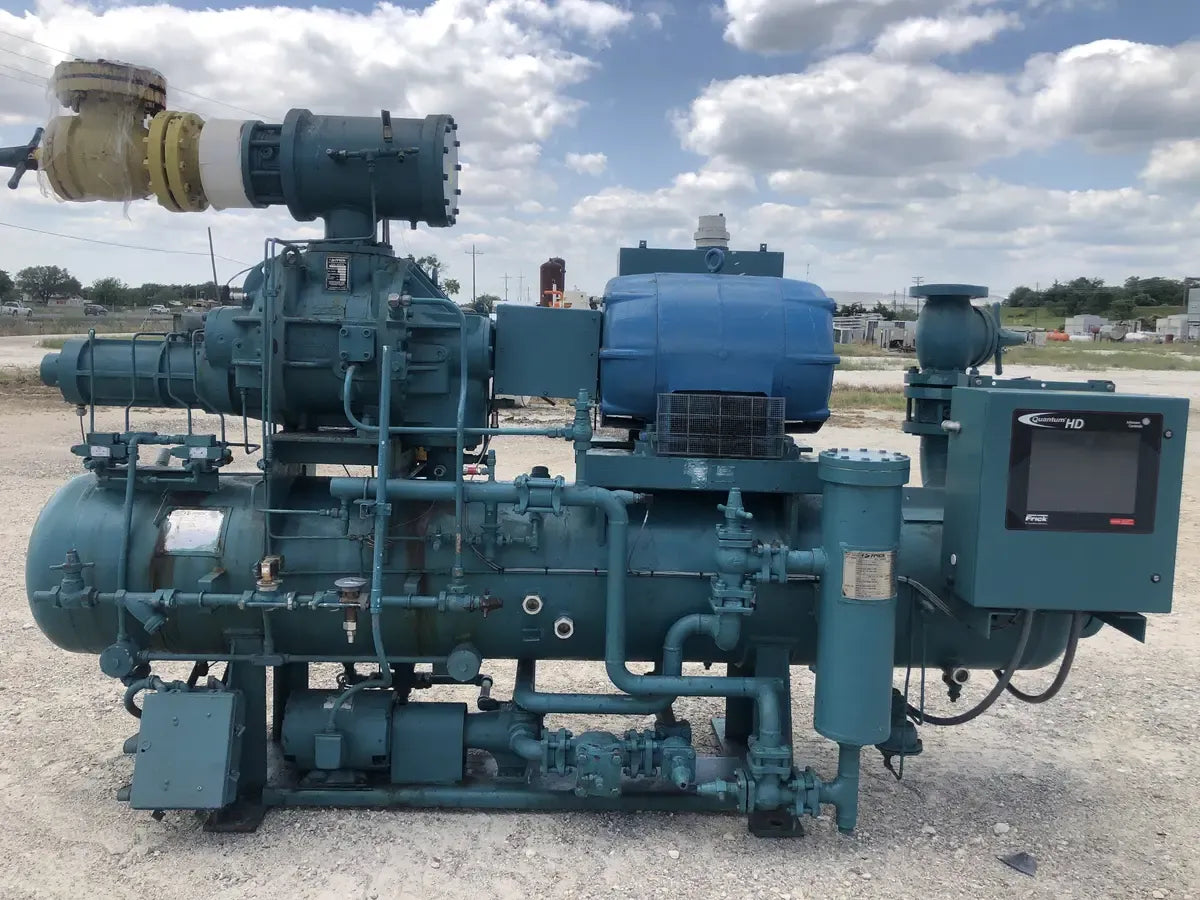

Frick RWB-11-134H Rotary Screw Compressor Package (TDSD193L, 300HP 460V, Frick Quantum HD Retrofit Panel)

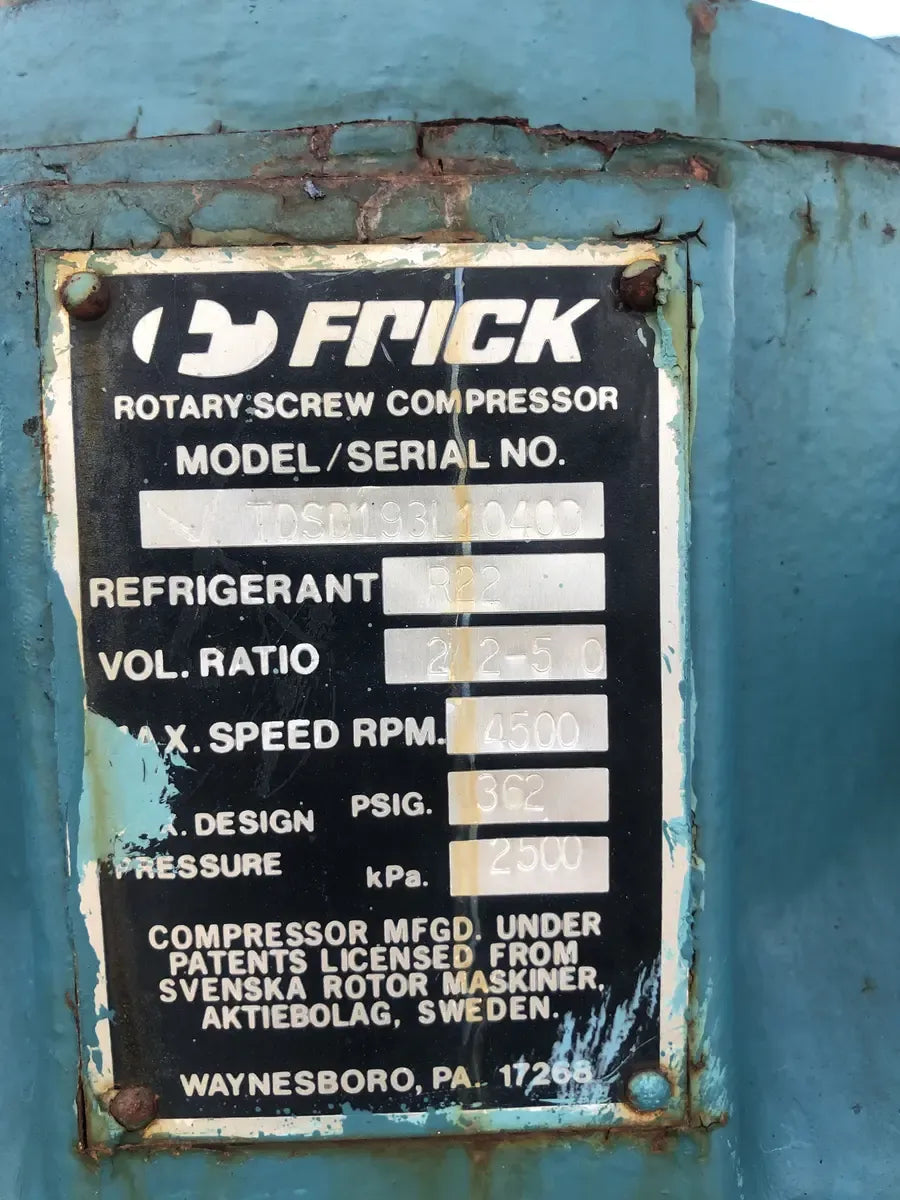

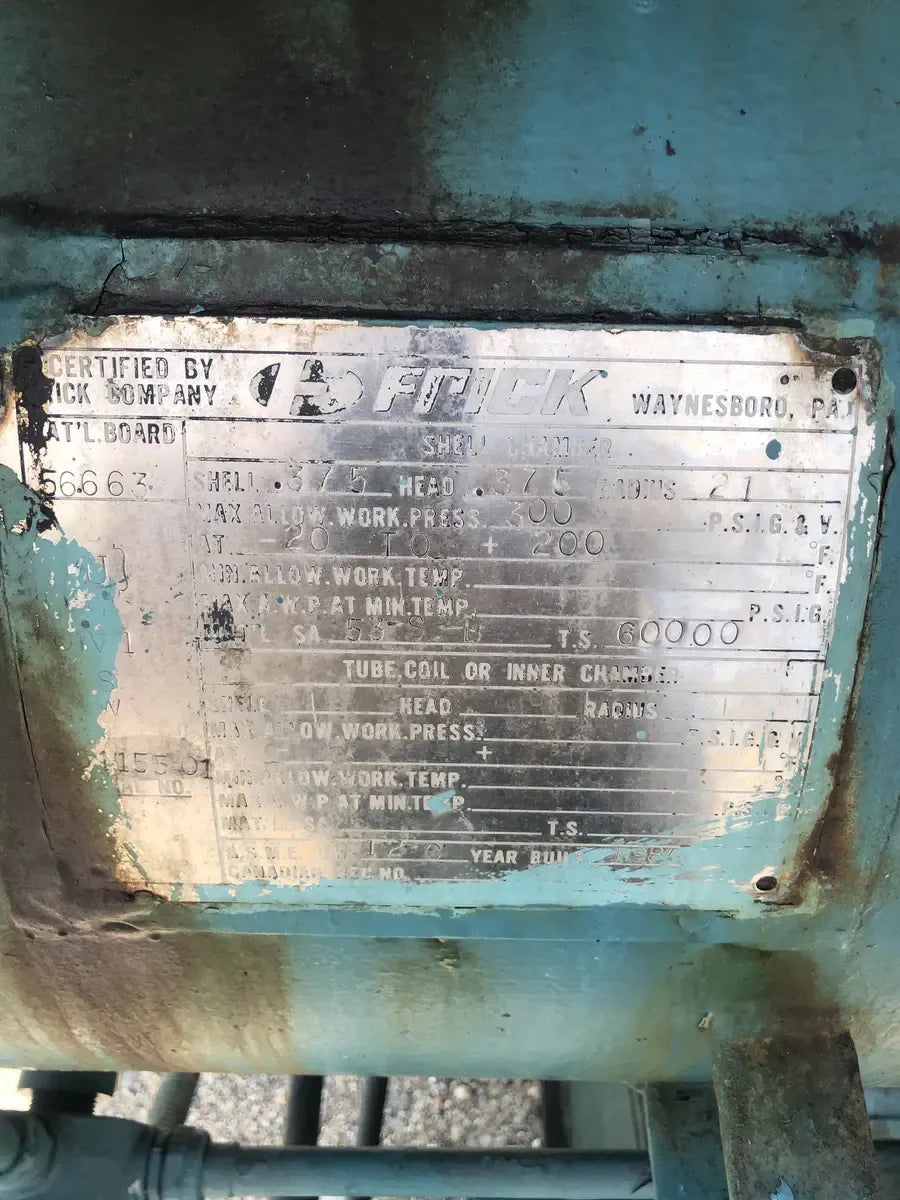

Frick Rotary Screw Compressor: Model: RWB II 134H, Serial No: S00296FMFLHBA3, Sales Ord: 261155-01, Refrigerant: R22, Speed Rpm: 3600, Psig: 300. Frick Rotary Screw Compressor: Model/Serial: TDSD193L1040D, Refrigerant: R22, Vol. Ratio: 2 2-5 0, Max Speed Rpm: 4500, Max Design Pressure: Psig: 362, KPA: 2500. Louis Allis Motor - Type: COG58, Fr: 405TS, HP: 300, Volts: 460, AMP: 334, Cy: 60, RPM: 3560, Ph: 3. Frick Oil Separator: Natl Brd: 56663, Shell Chamber: Shell.375, Head .375,Radius: 21, Max Allow Work Press: 300 Psig, @ -20 to 200 Year Built: 1984.
Product Details
- Stock No: RJR02
- Manufacturer: Frick
- Model: RWB-II-134H
- Serial Number: S00296FMFLHBA3
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: Frick
- Package Model: RWB II 134H
- Package SN: S00296FMFLHBA3
- Package Order: 261155-01
- Package Max Speed (RPM): 3,600
- Package Max Design Pressure (PSIG): 300

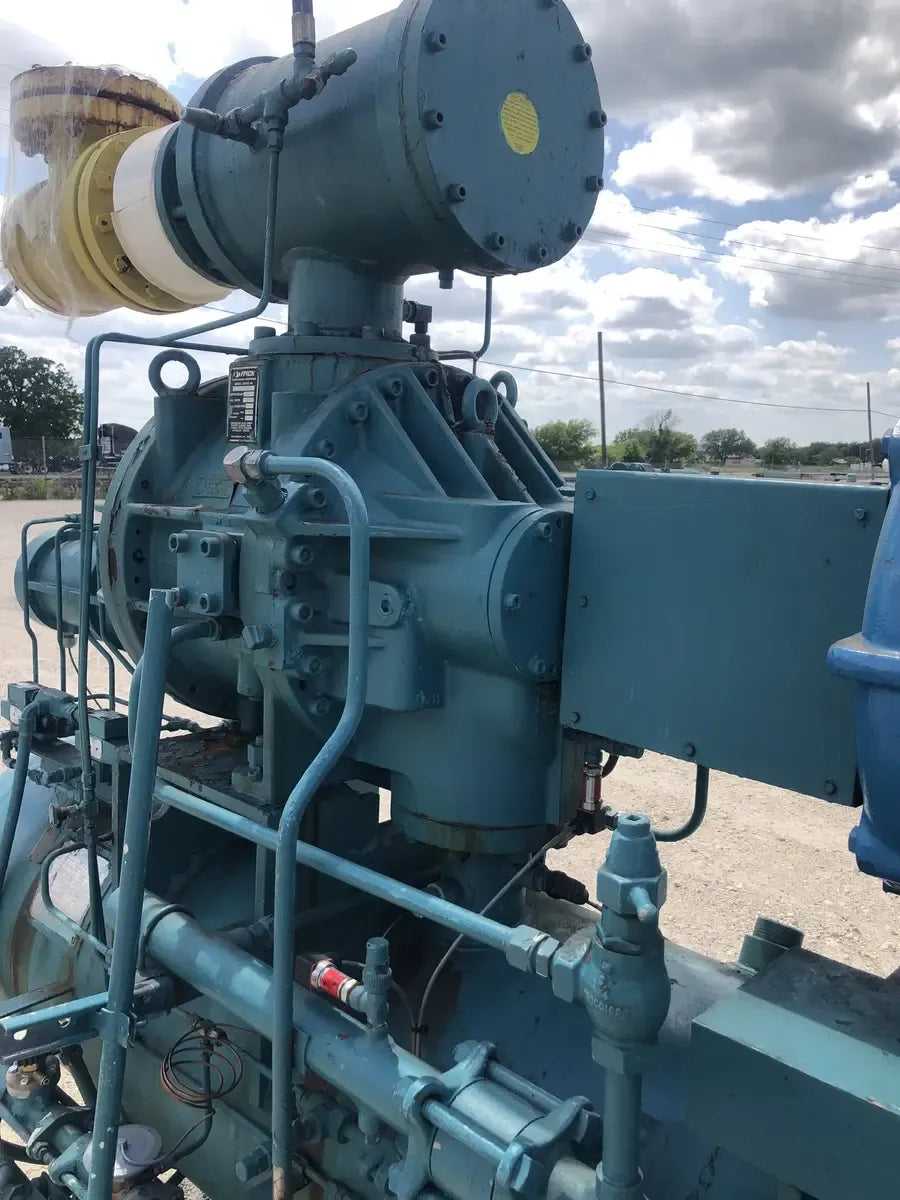

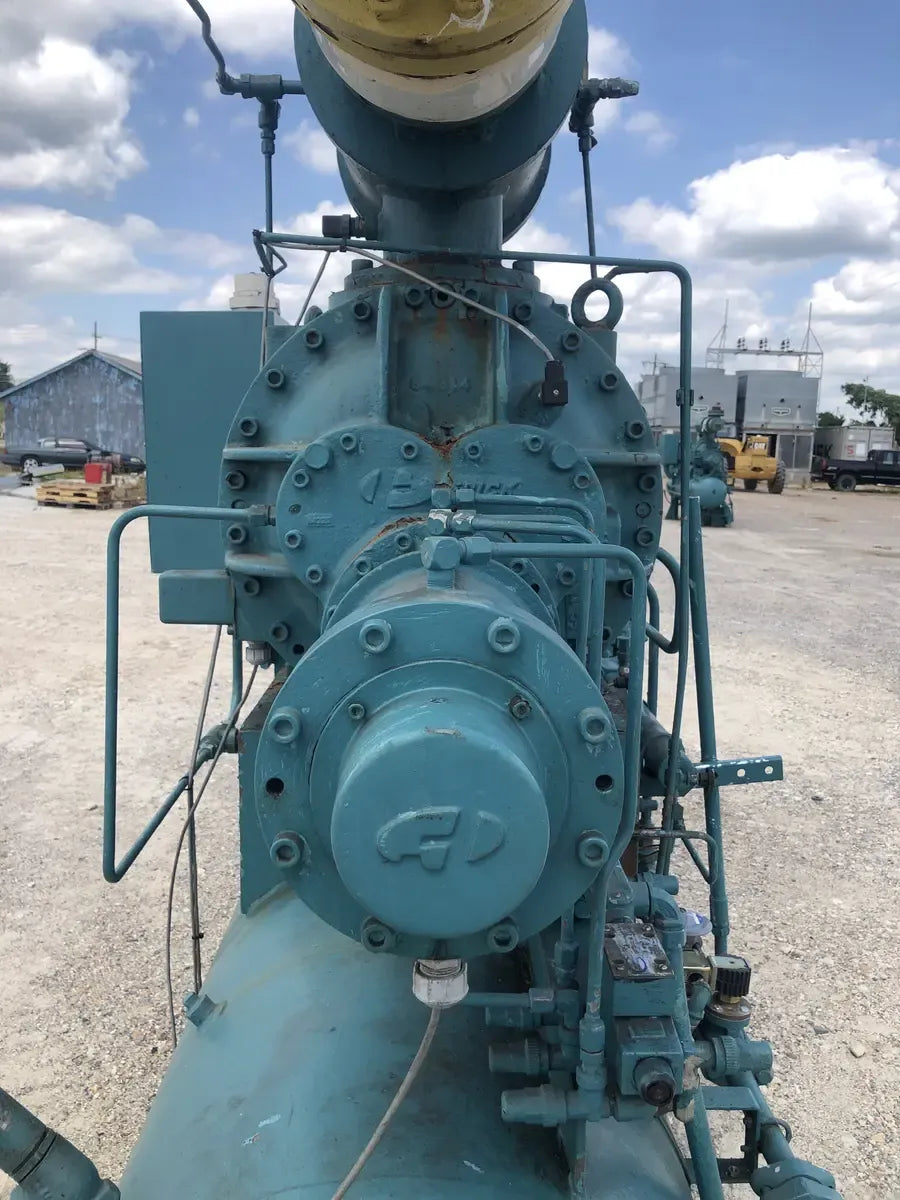

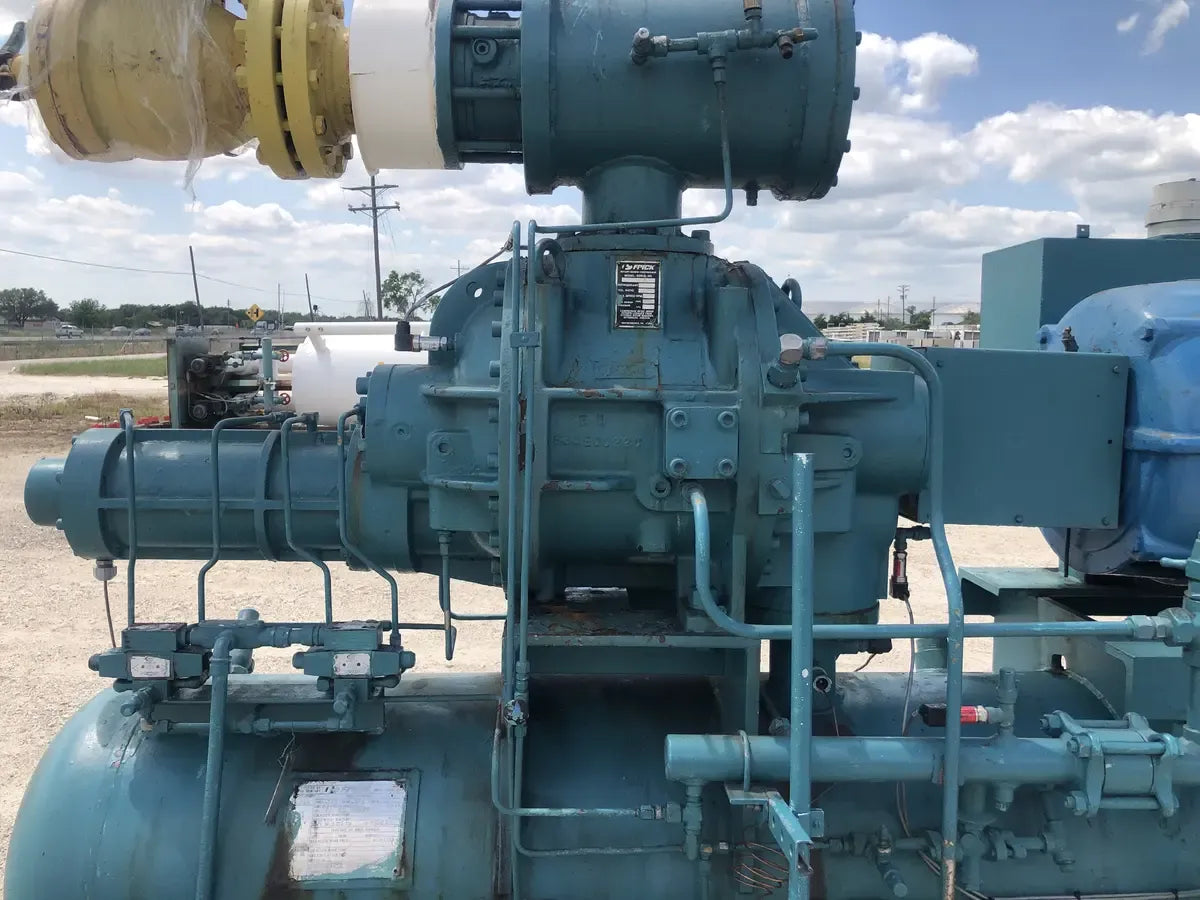

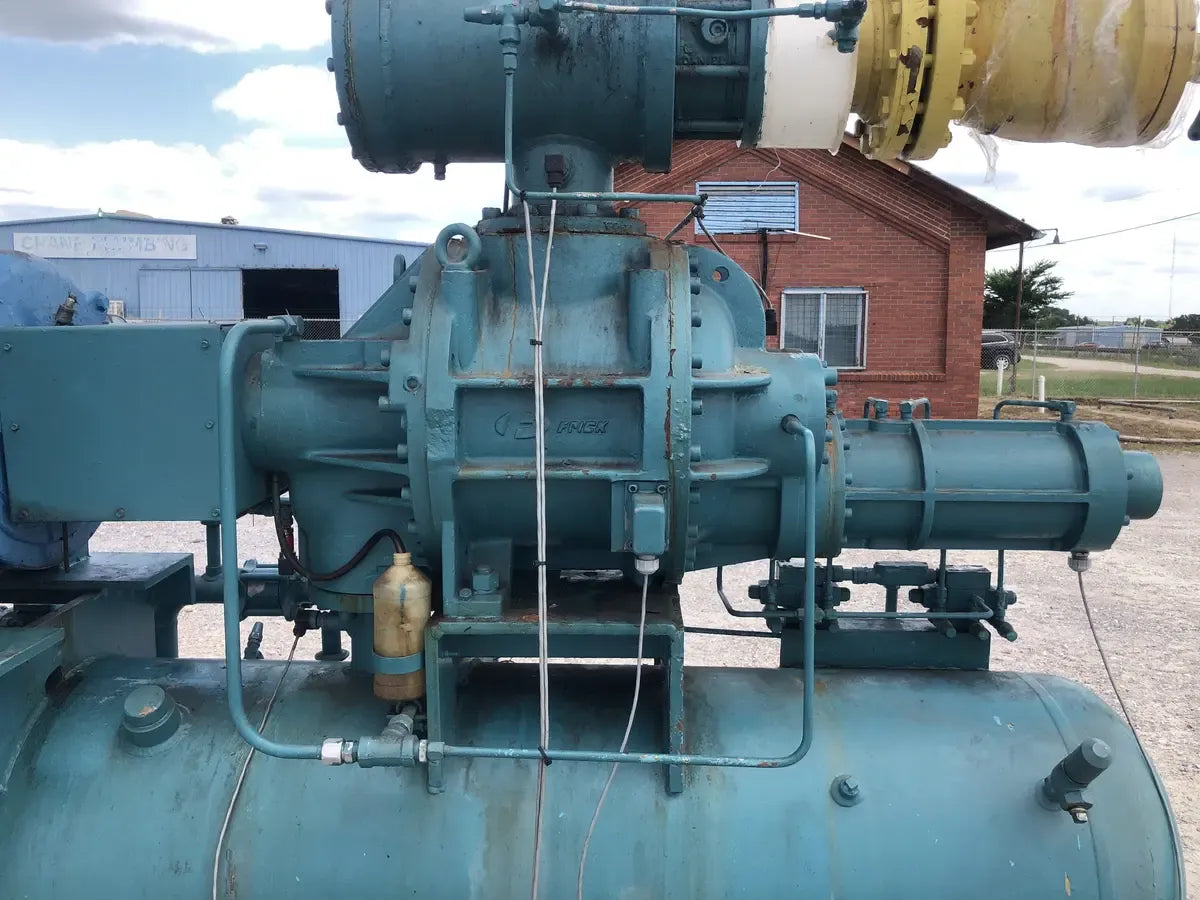

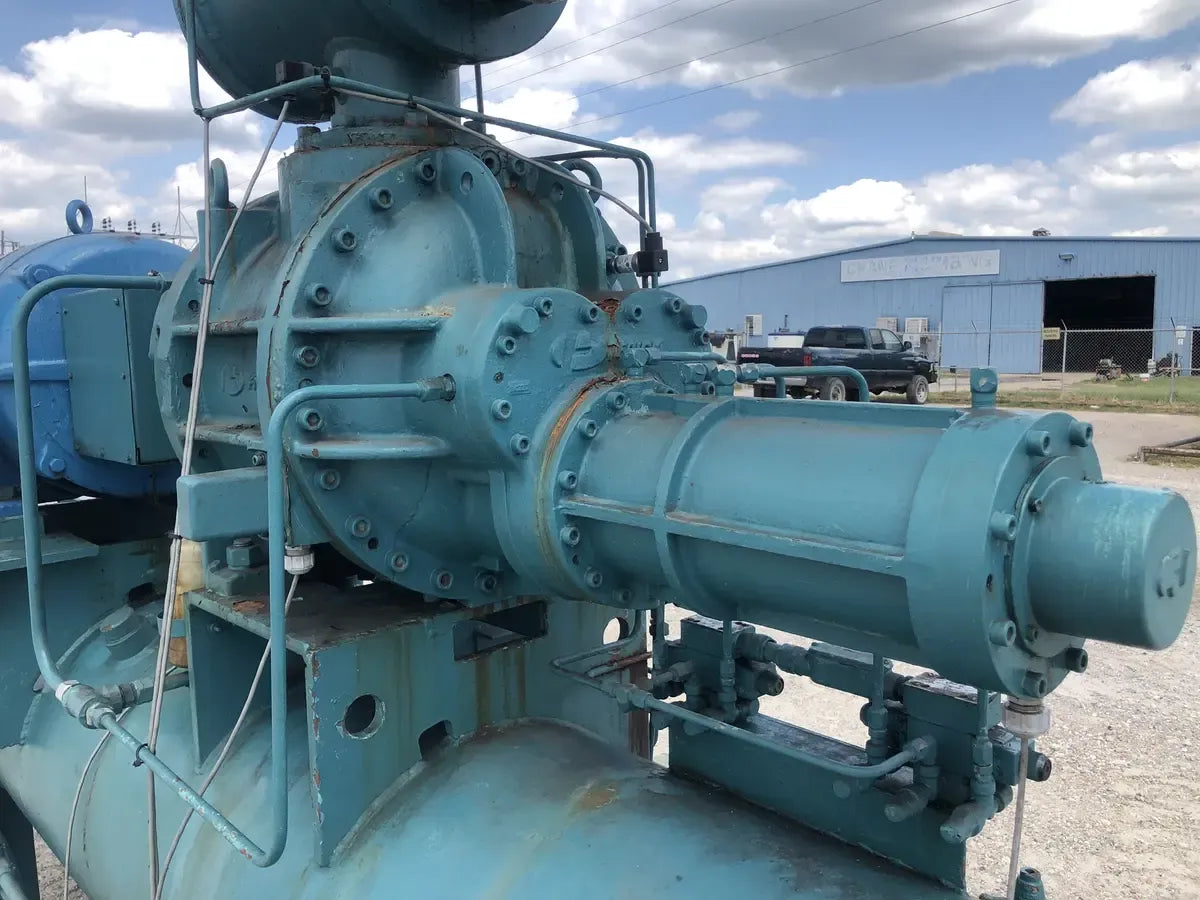

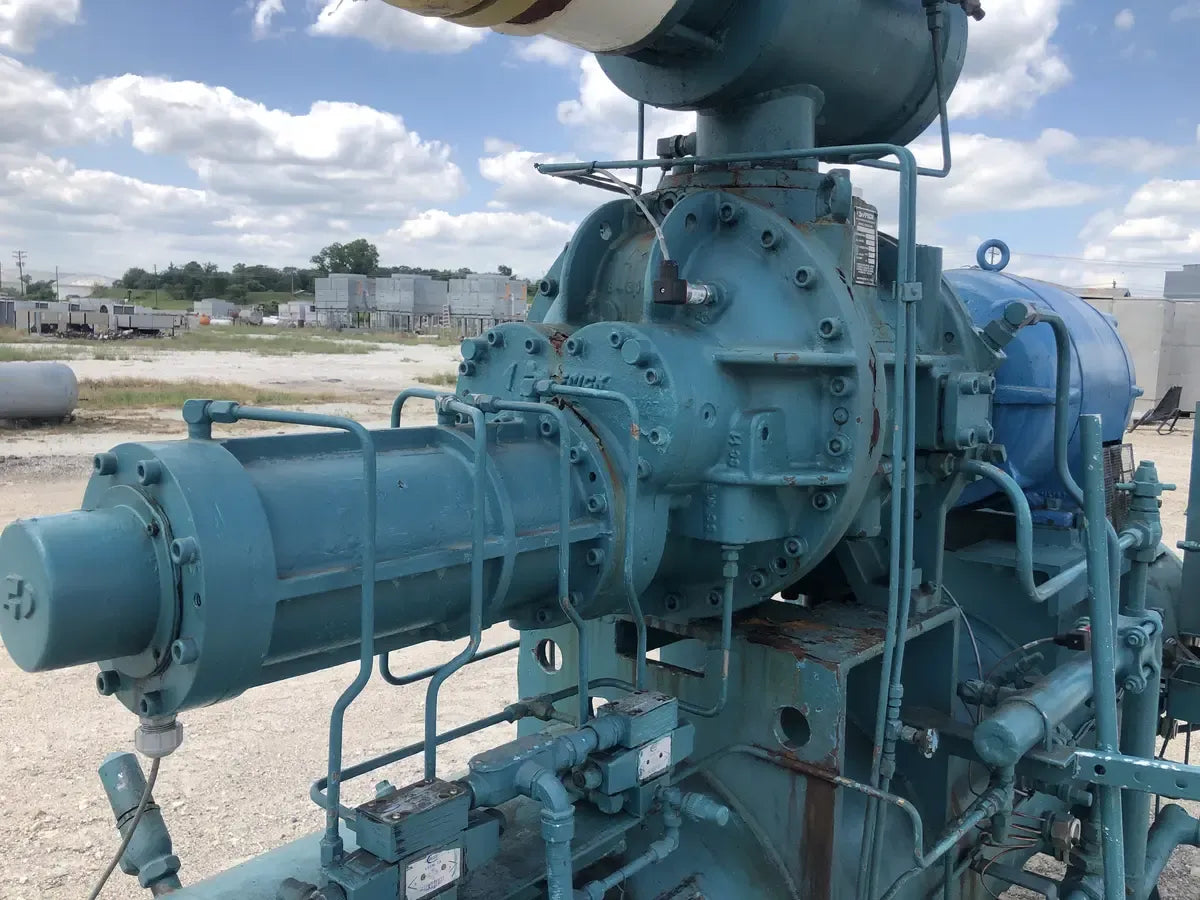

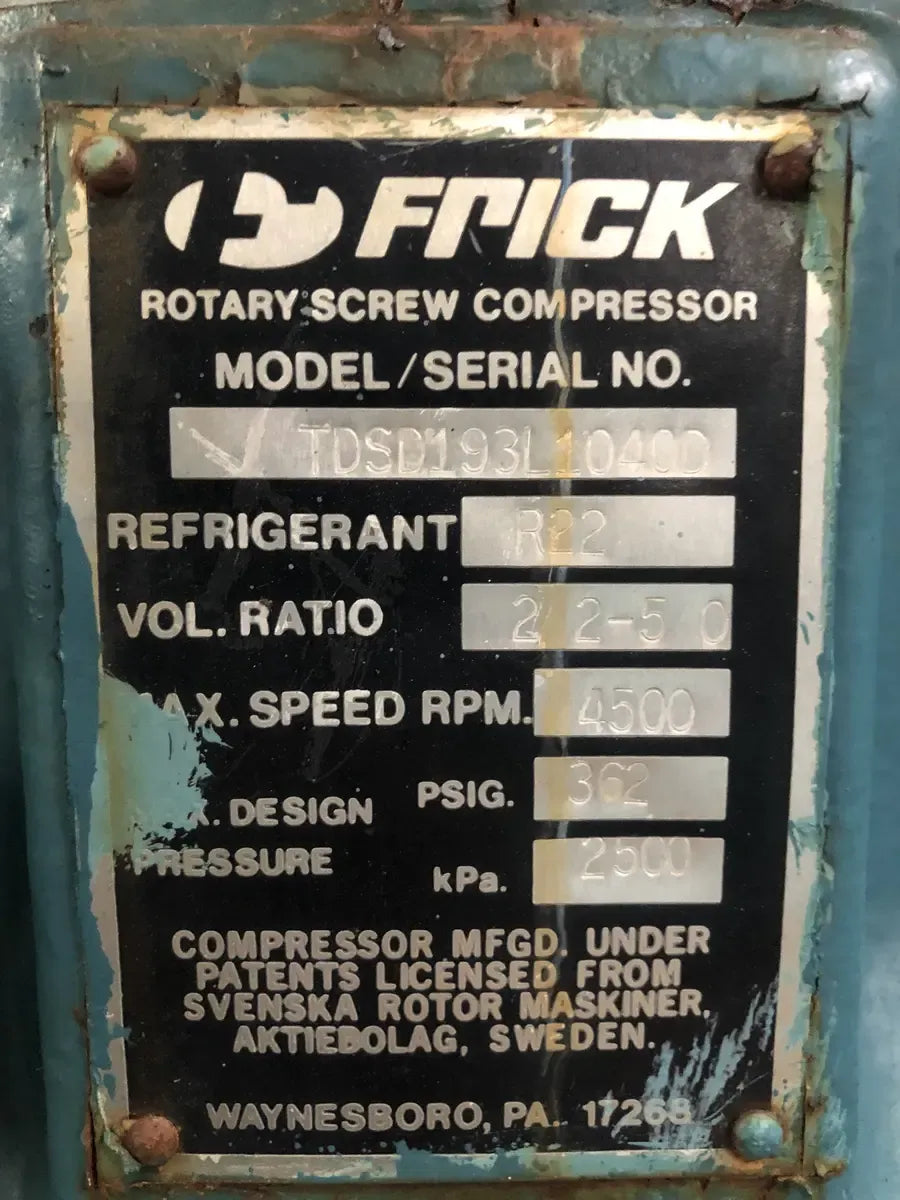

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: TDSD193L
- Compressor SN: 10400
- Compressor Max Speed (RPM): 4,500
- Compressor Design Pressure (PSIG): 362
- Compressor Volume Ratio: 2 2-5 0

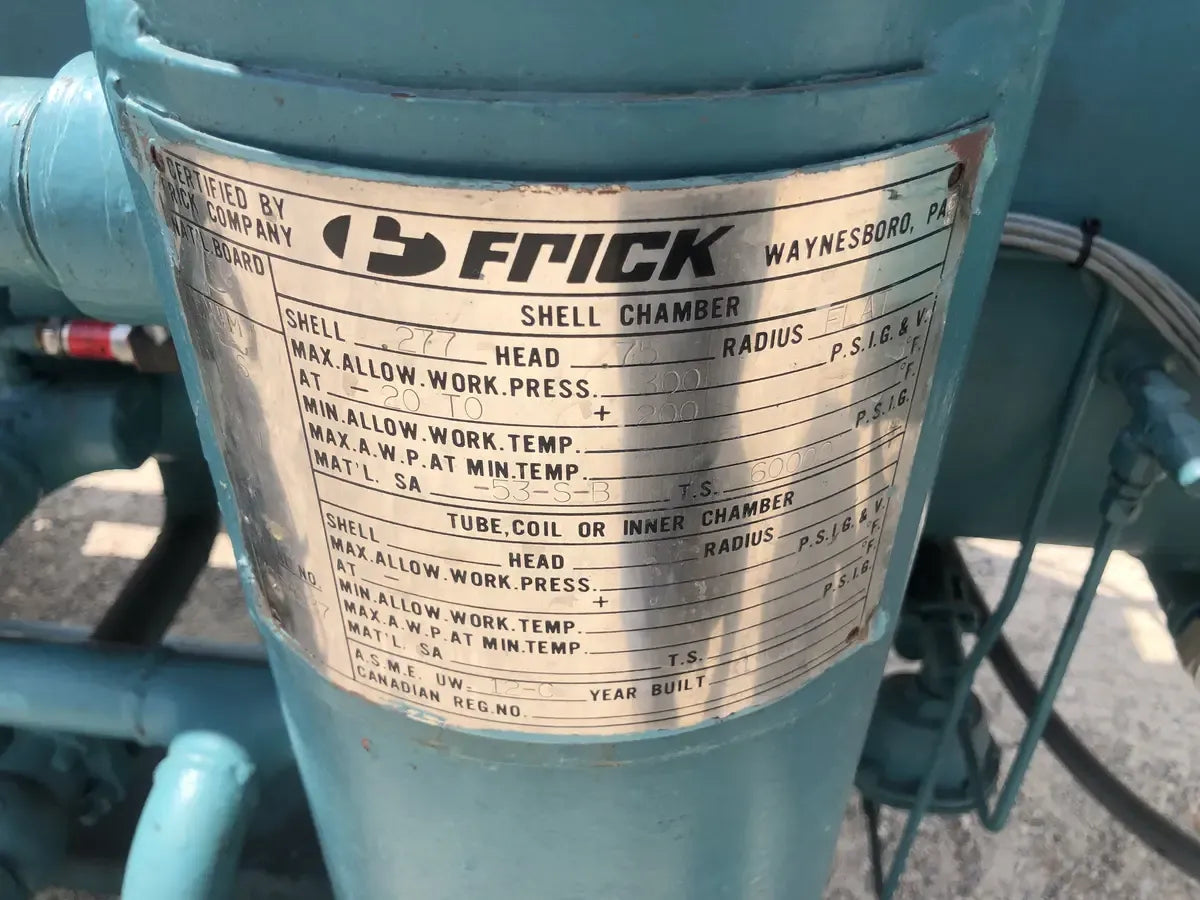

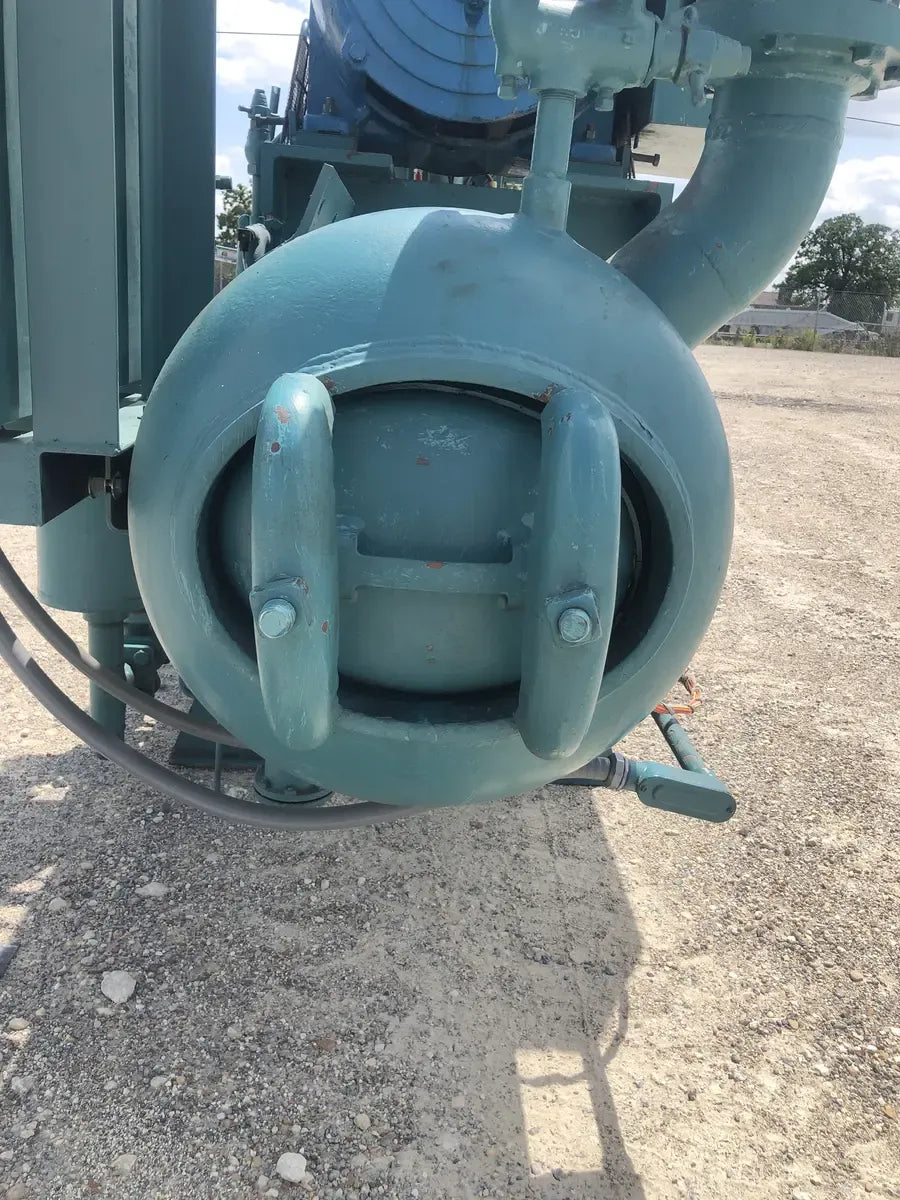

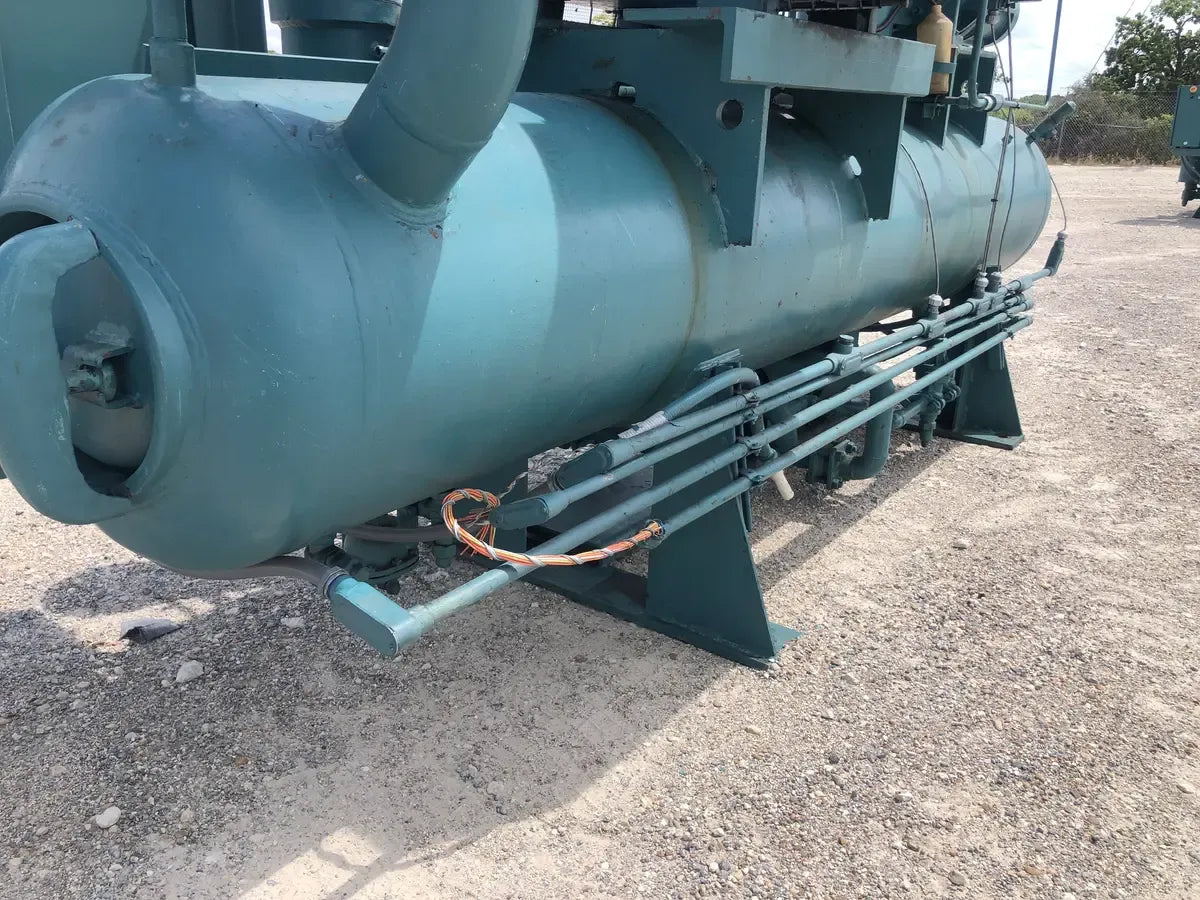

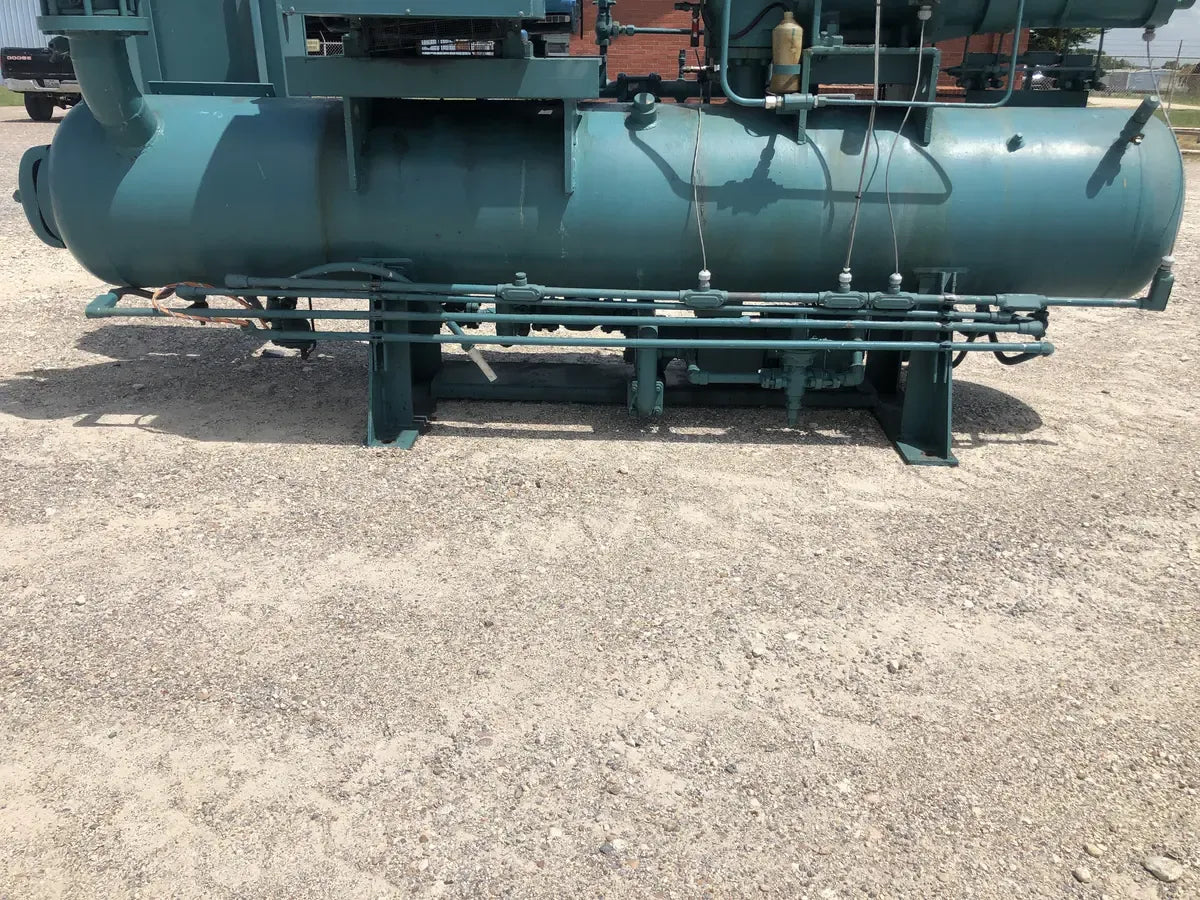

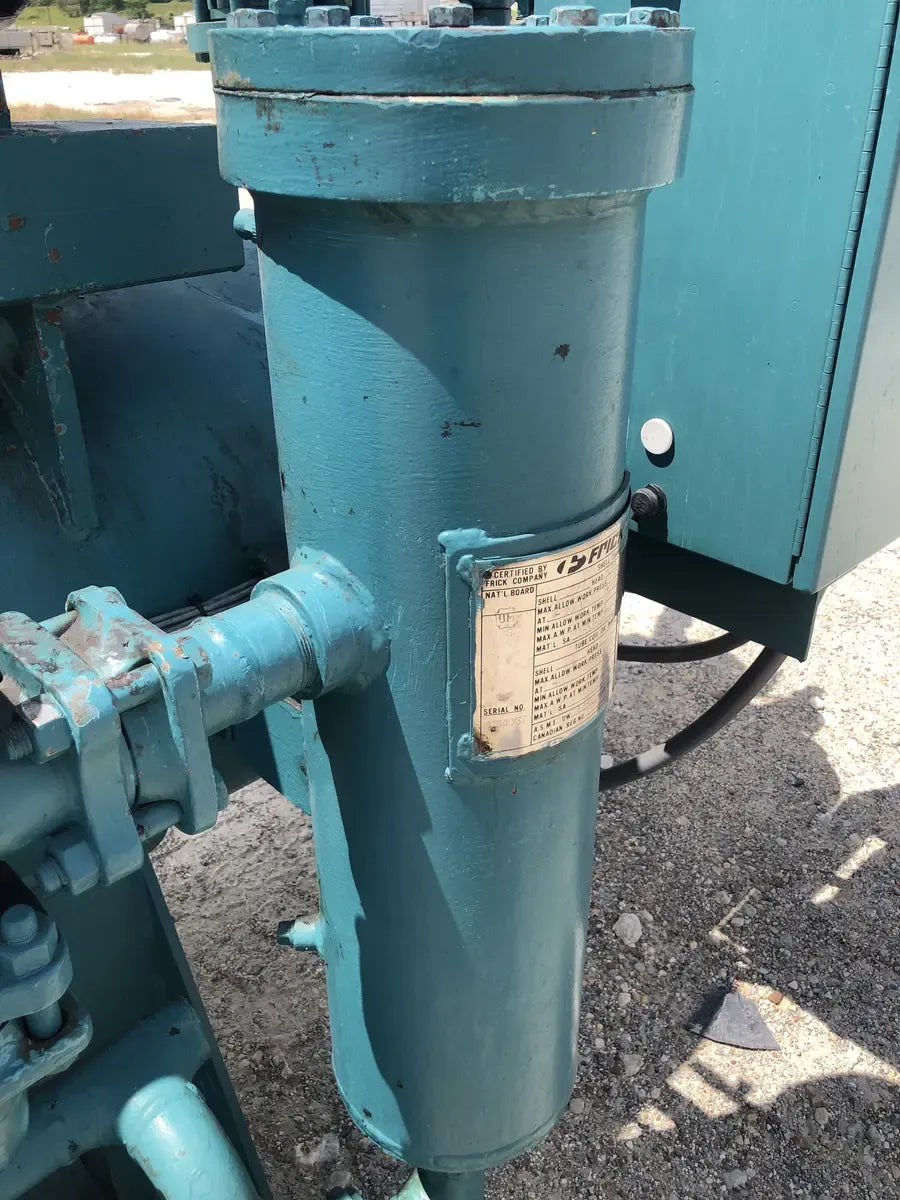

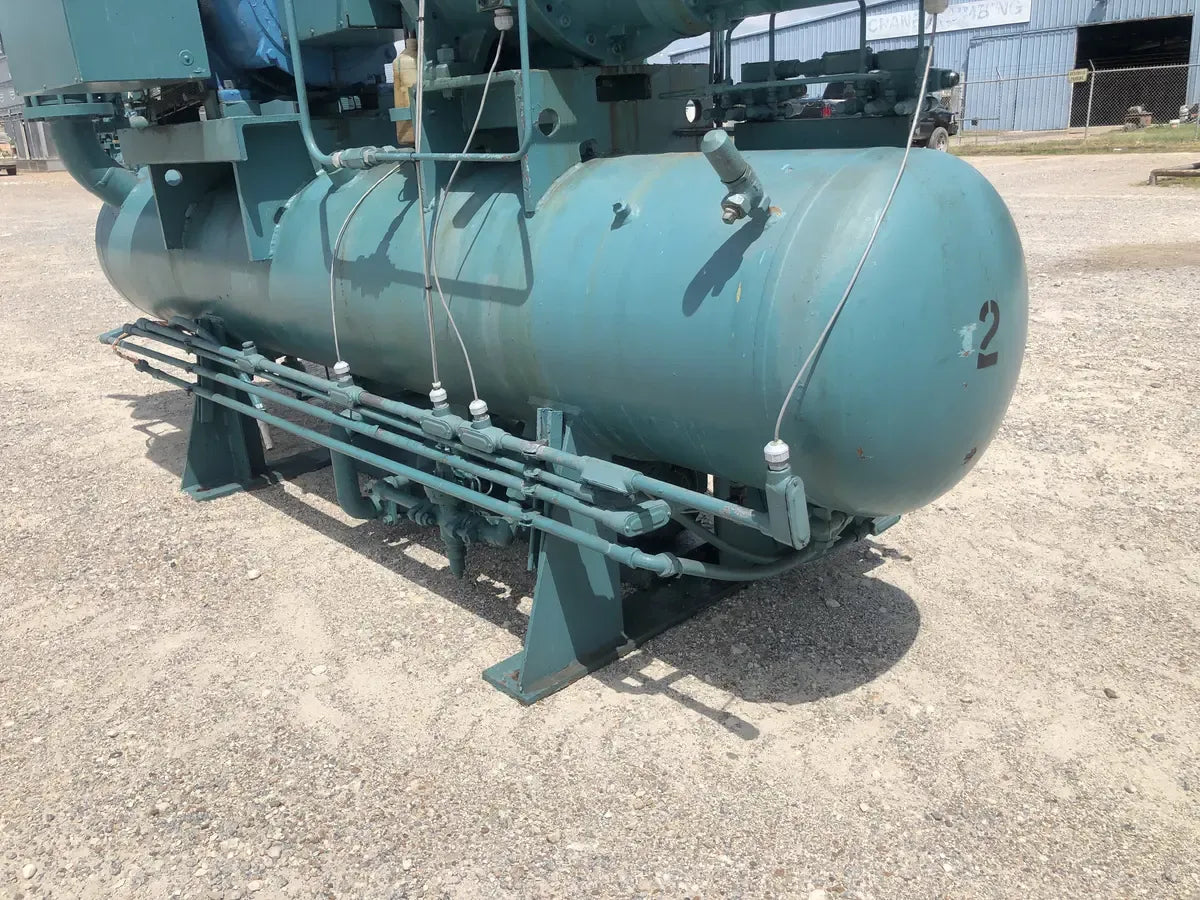

- Oil Separator Included? Yes
- Oil Separator National Board #: 56663

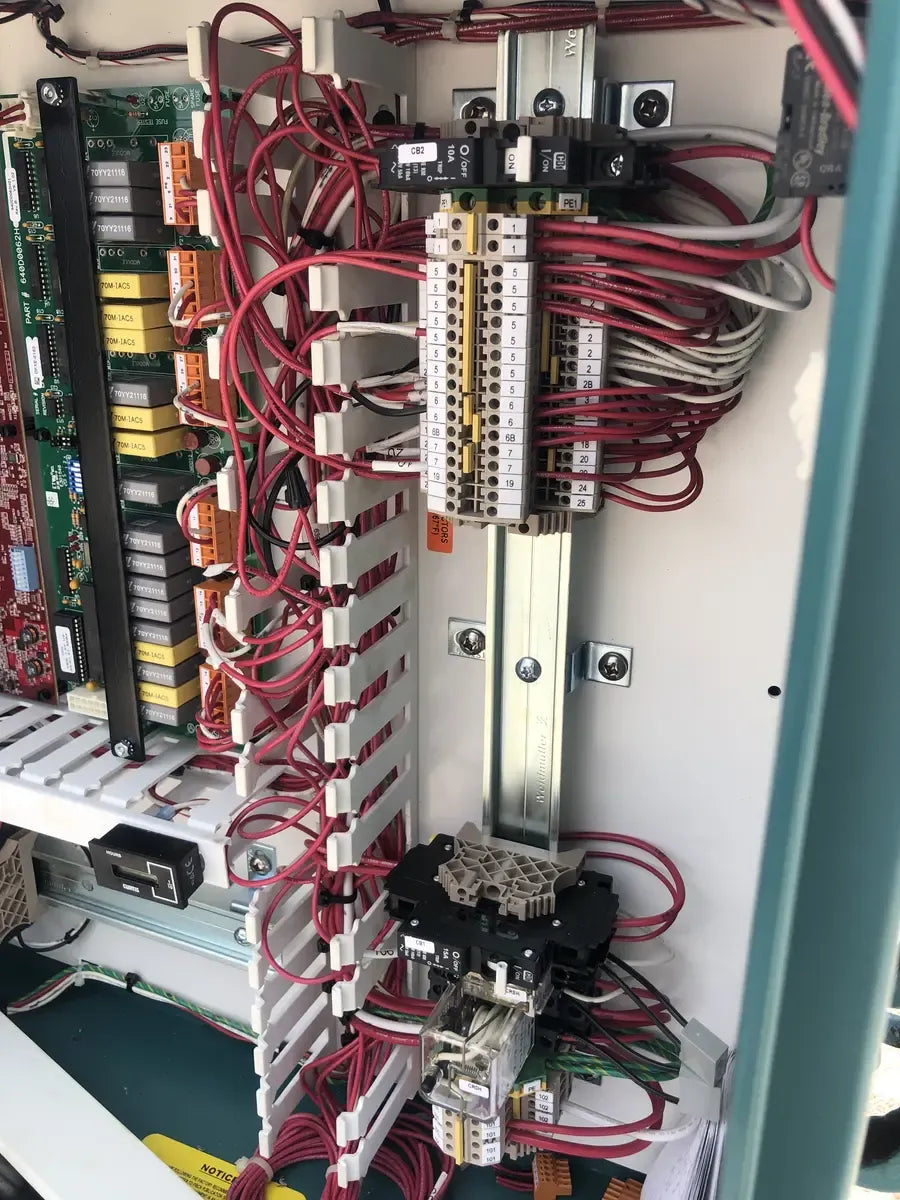

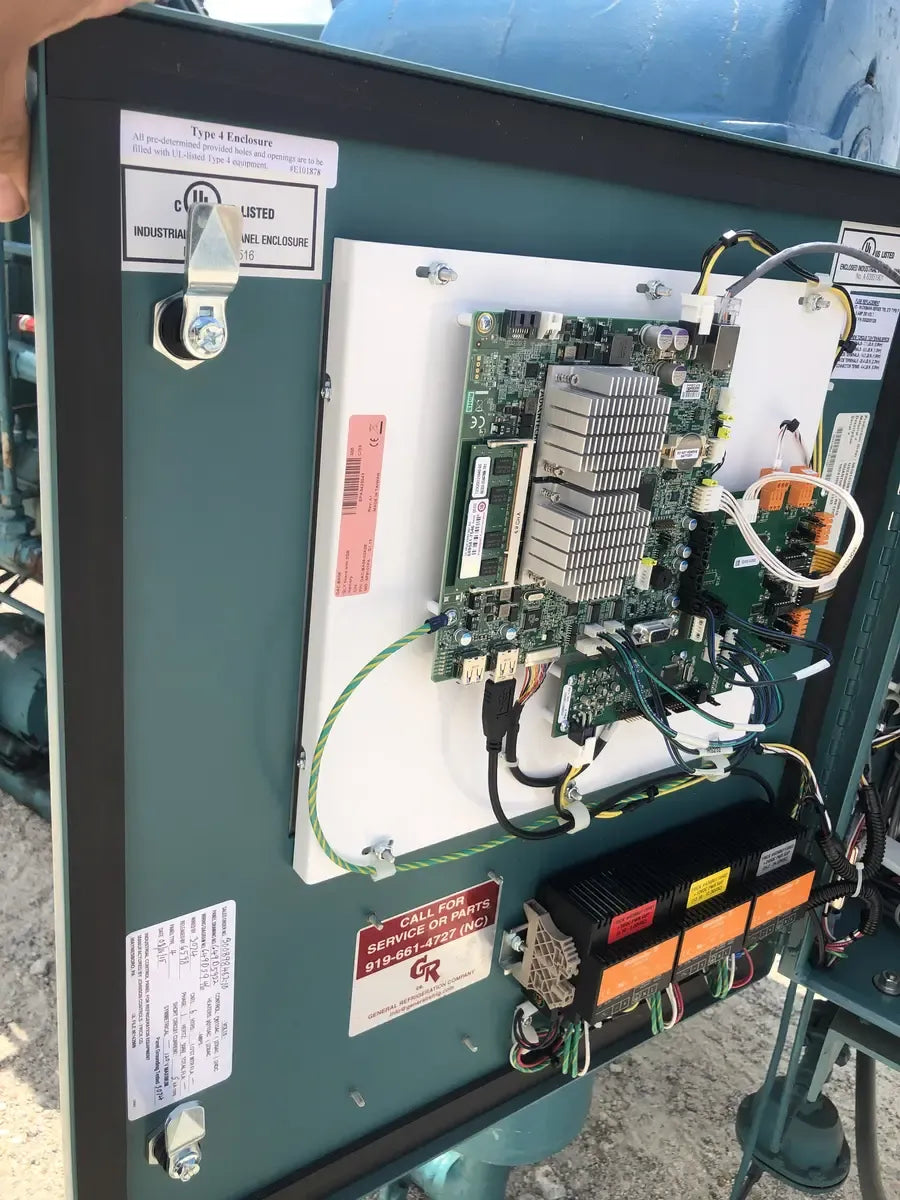

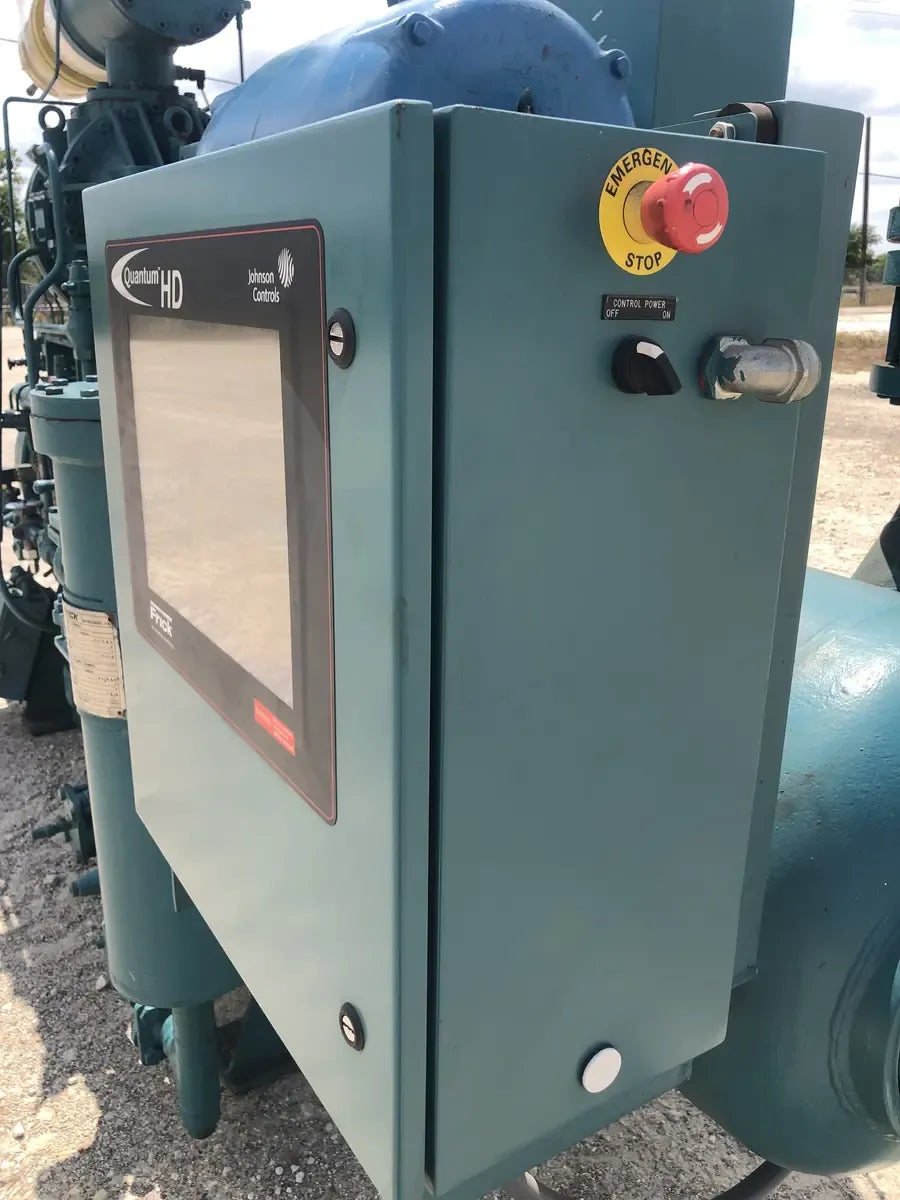

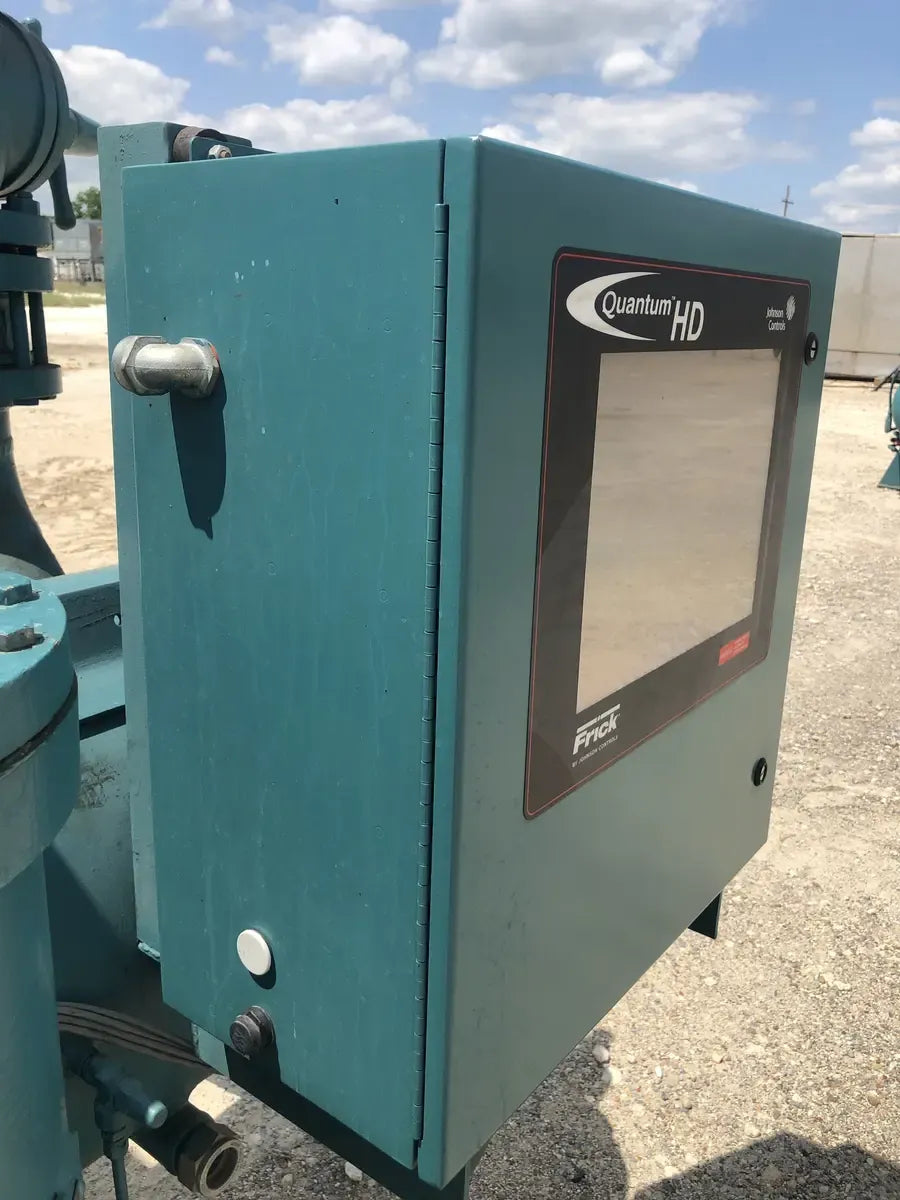

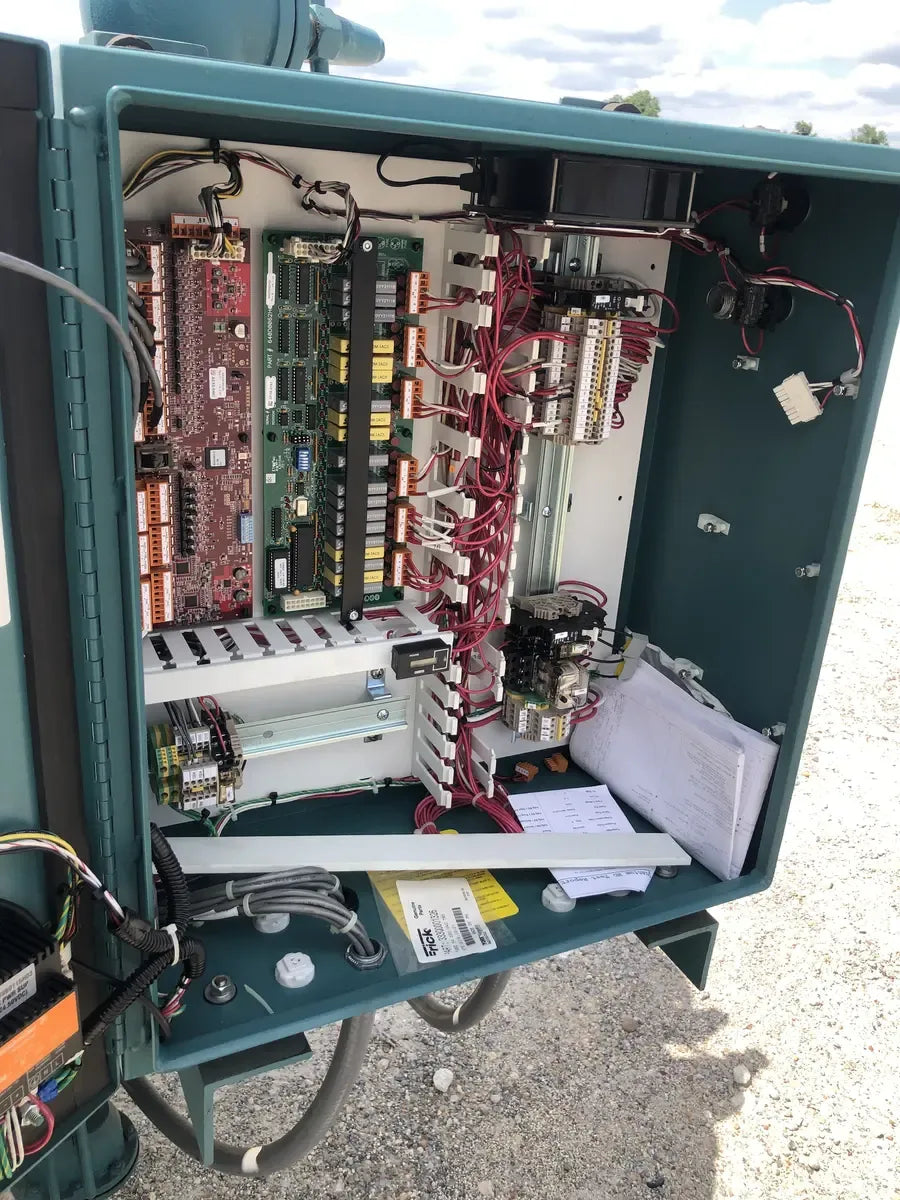

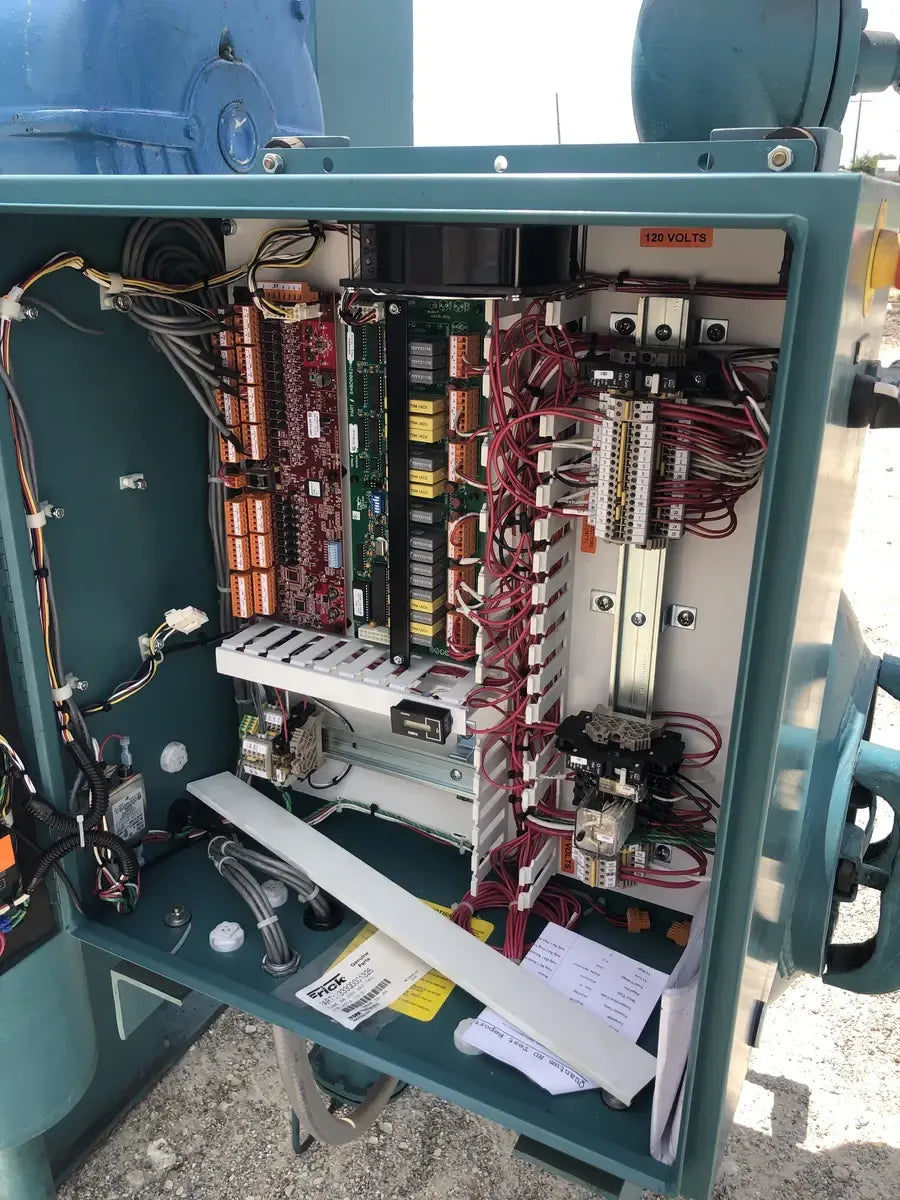

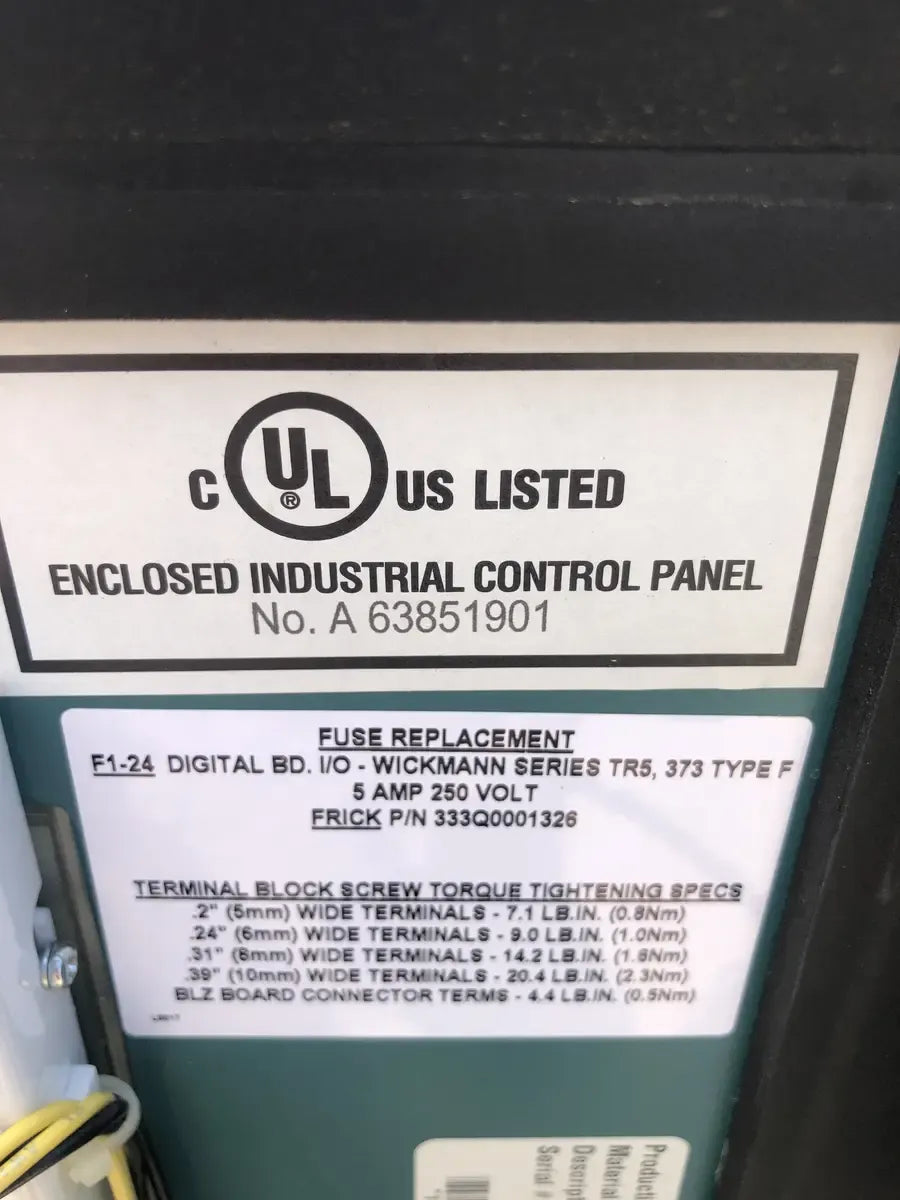

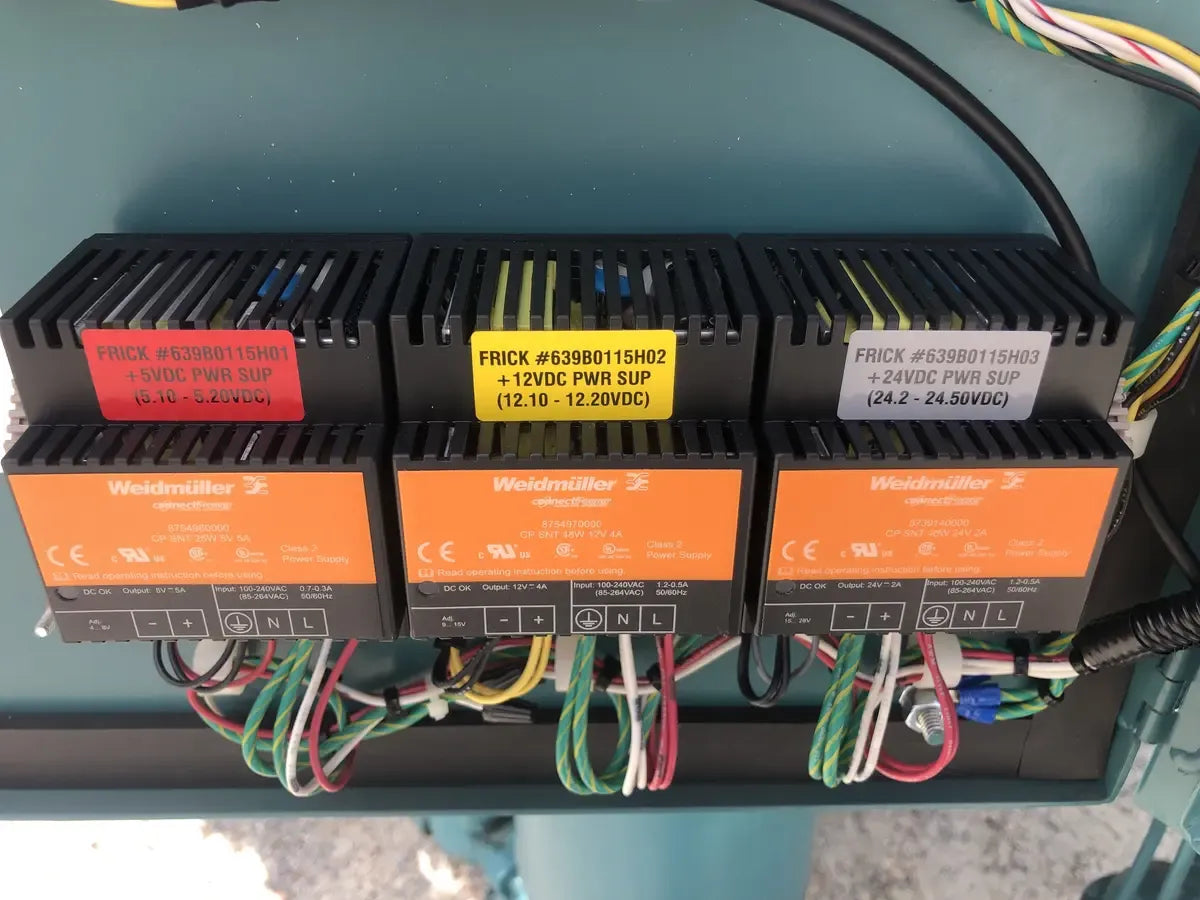

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

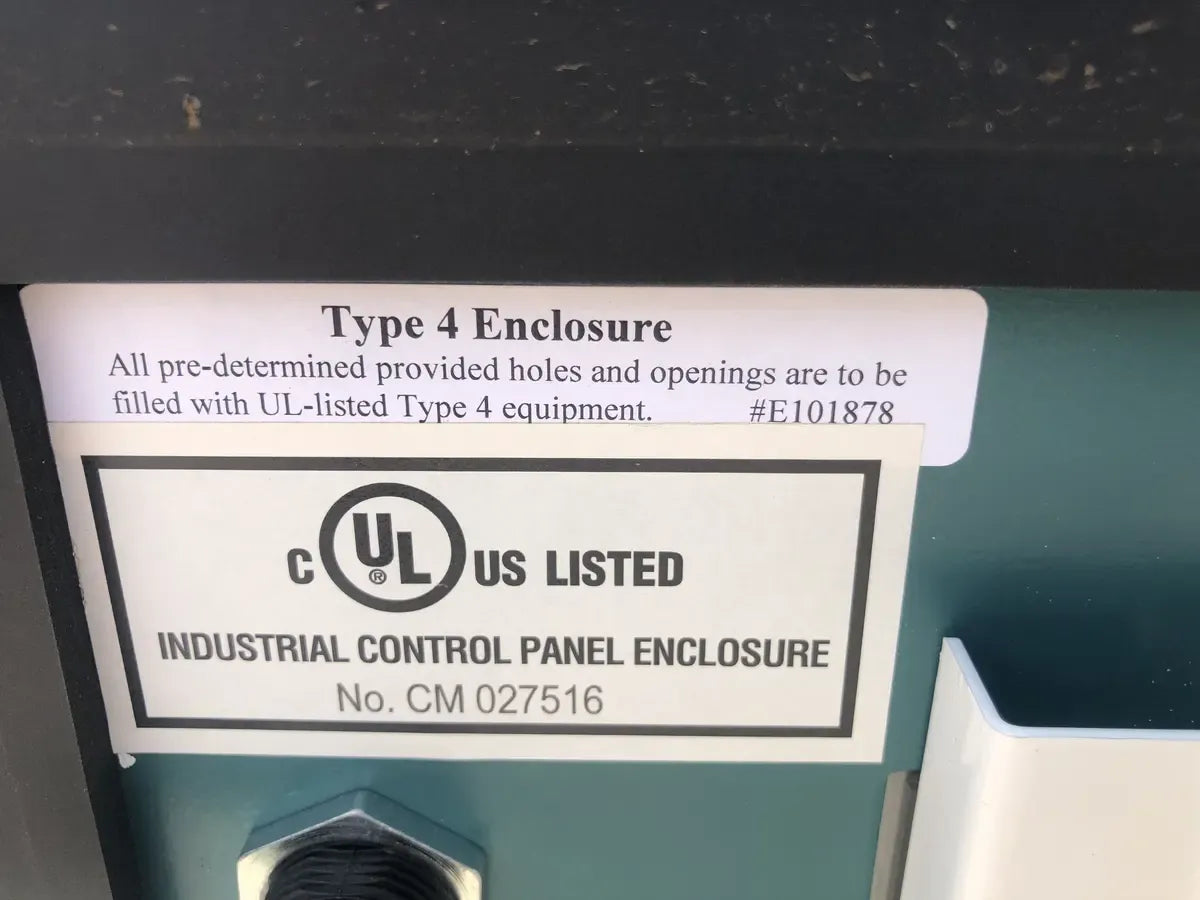

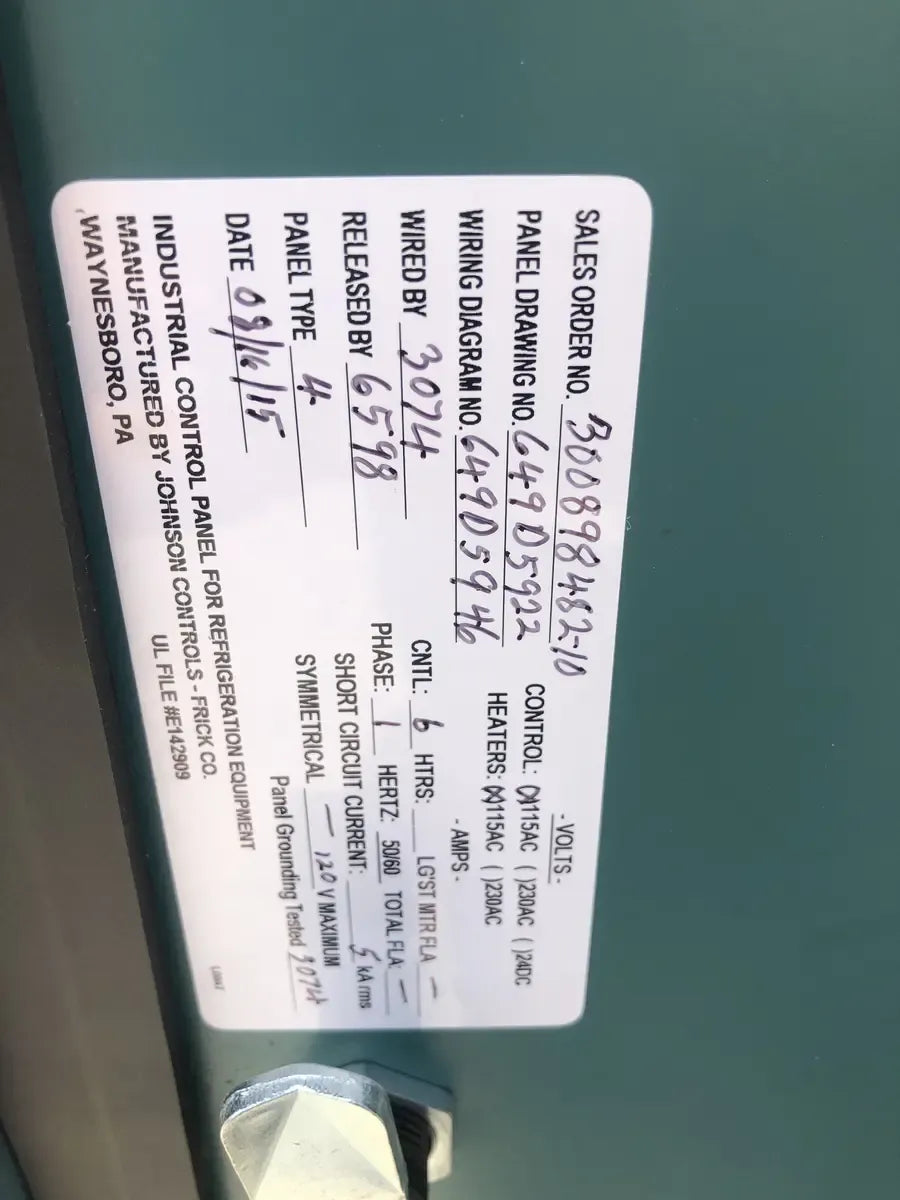

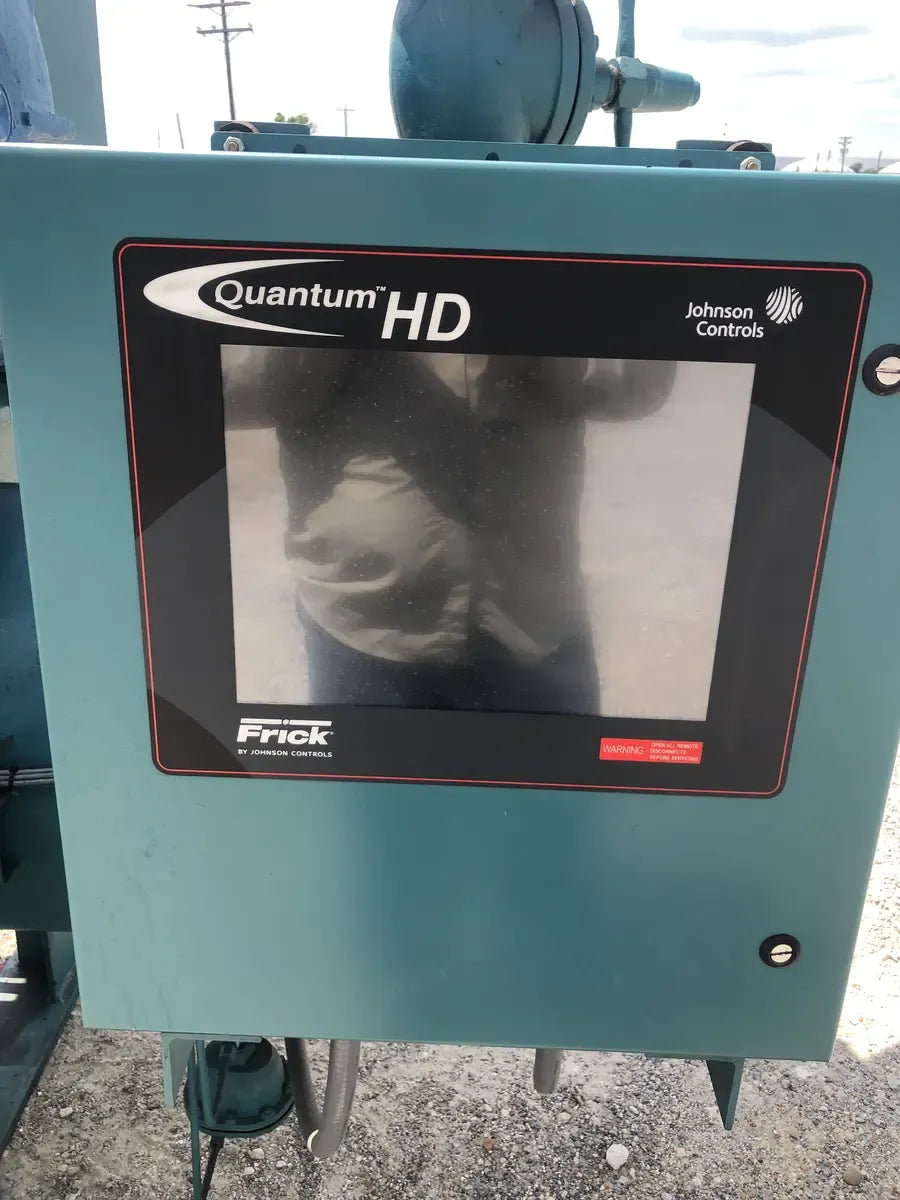

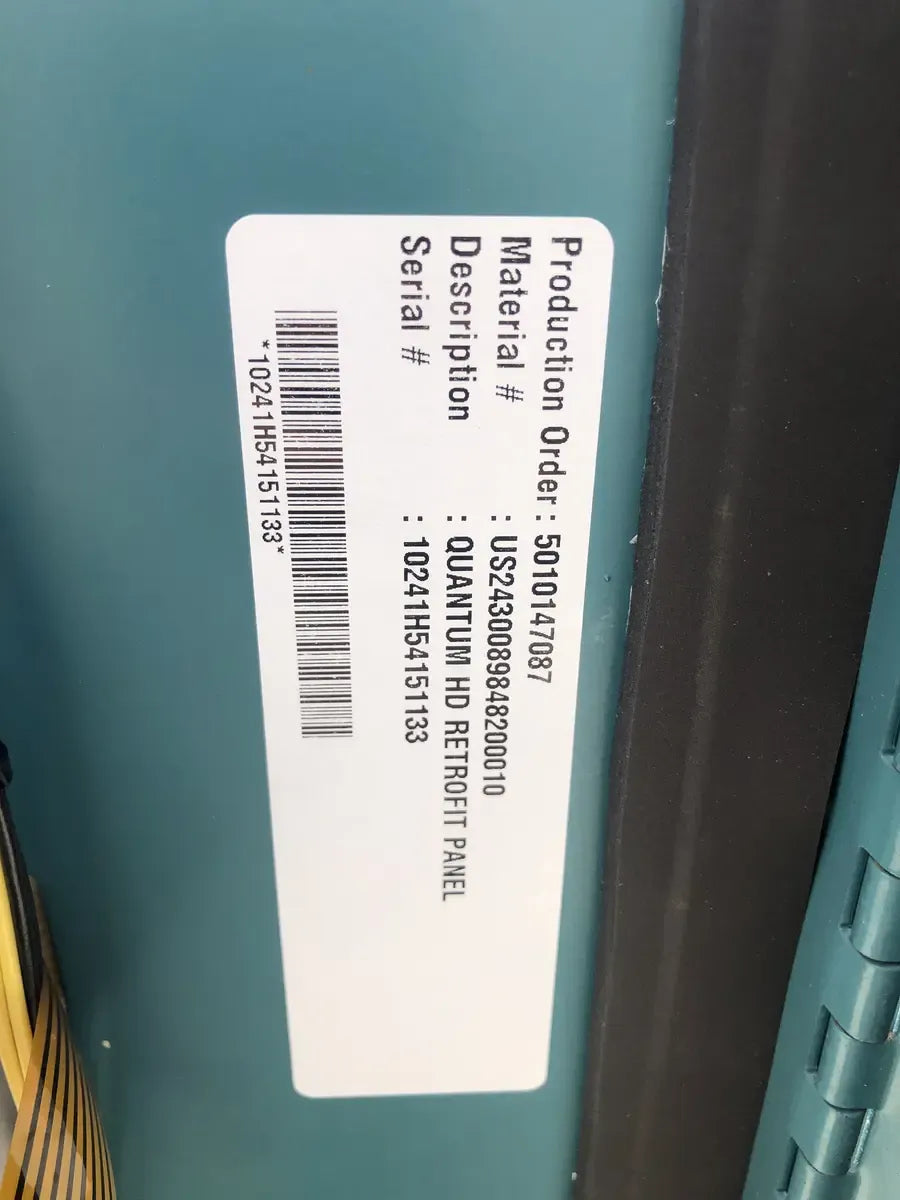

- Micro Control Panel Description: Frick Quantum Hd Retrofit Panel: Production Order: 5010147087, Material #: US2430089848200010, Dsecription: Quantum Hd Retrofit Panel, Serial: 10241H54151133.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

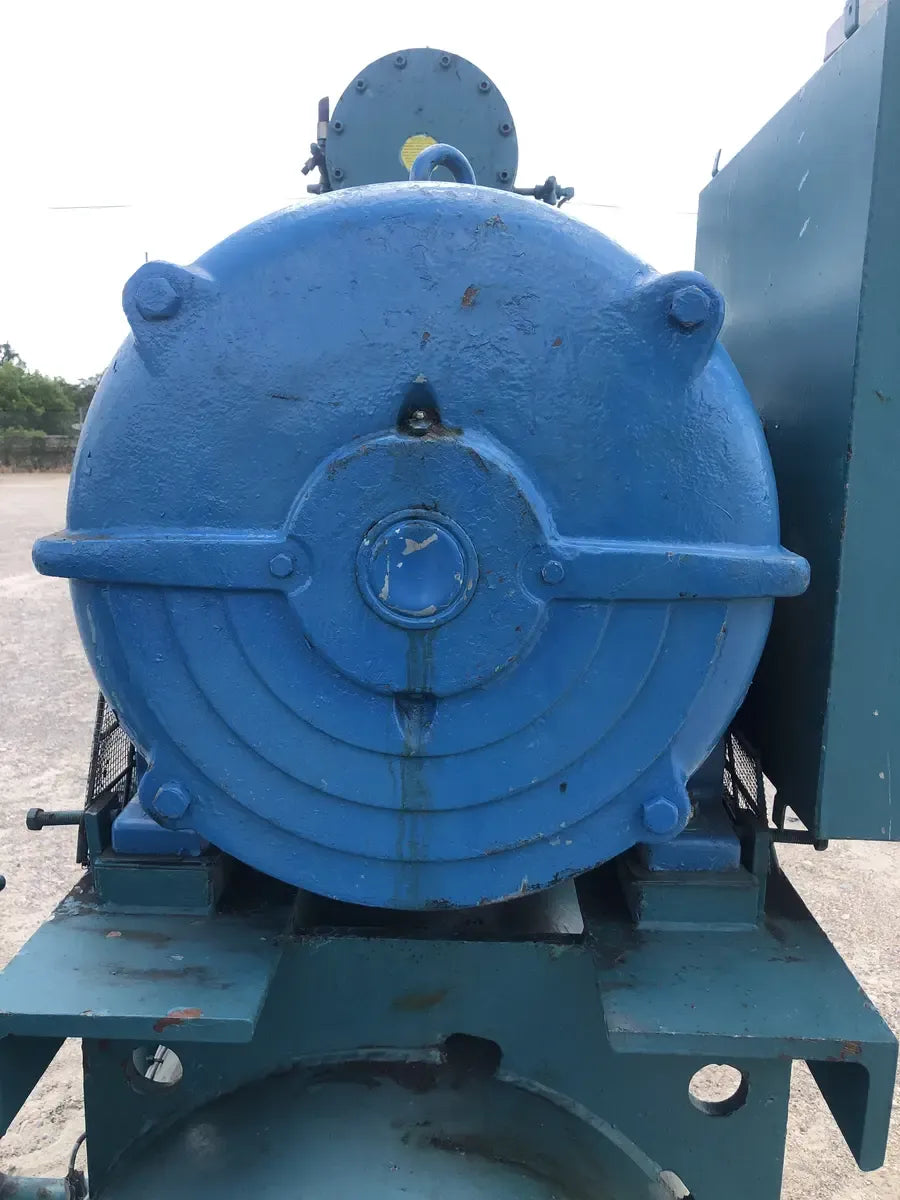

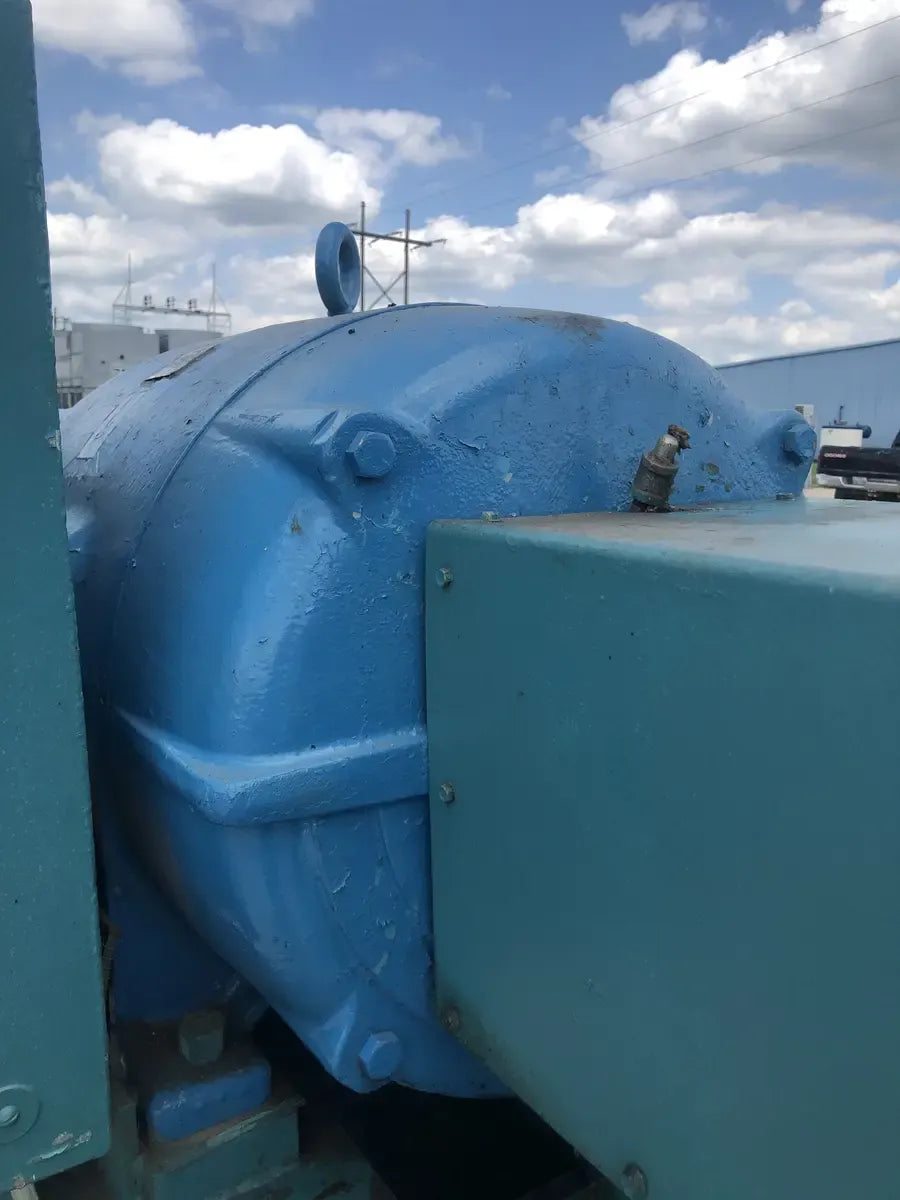

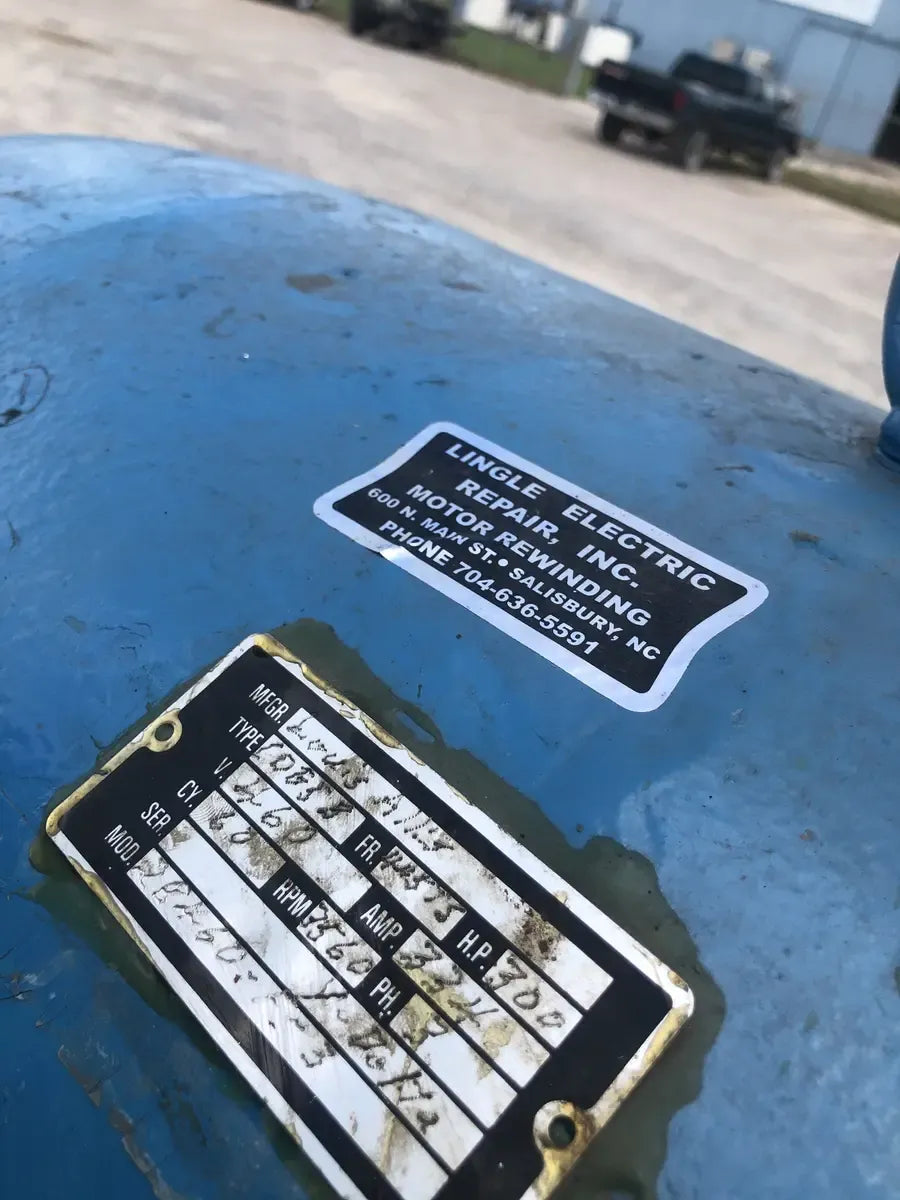

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Louis-Allis
- Motor Horsepower(HP): 300
- Motor RPM: 3,560
- Motor Voltage: 460
- Motor Amps: 334
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 405TS
Dimensions:
- Length (Inches): 176
- Width (Inches): 78
- Height (Inches): 90
- Weight (LBS): 8,000
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
- Known Issues or Problems: Pakcage Plate Has Damage
