Product Details

• Stock No: BRZB36
• Manufacturer: Frick
• Model: RWB-II-100
• Serial Number: S0556LFMCTHAA3

• Compressor Type: Screw
• Package Included? Yes
• Stage Type: High Stage

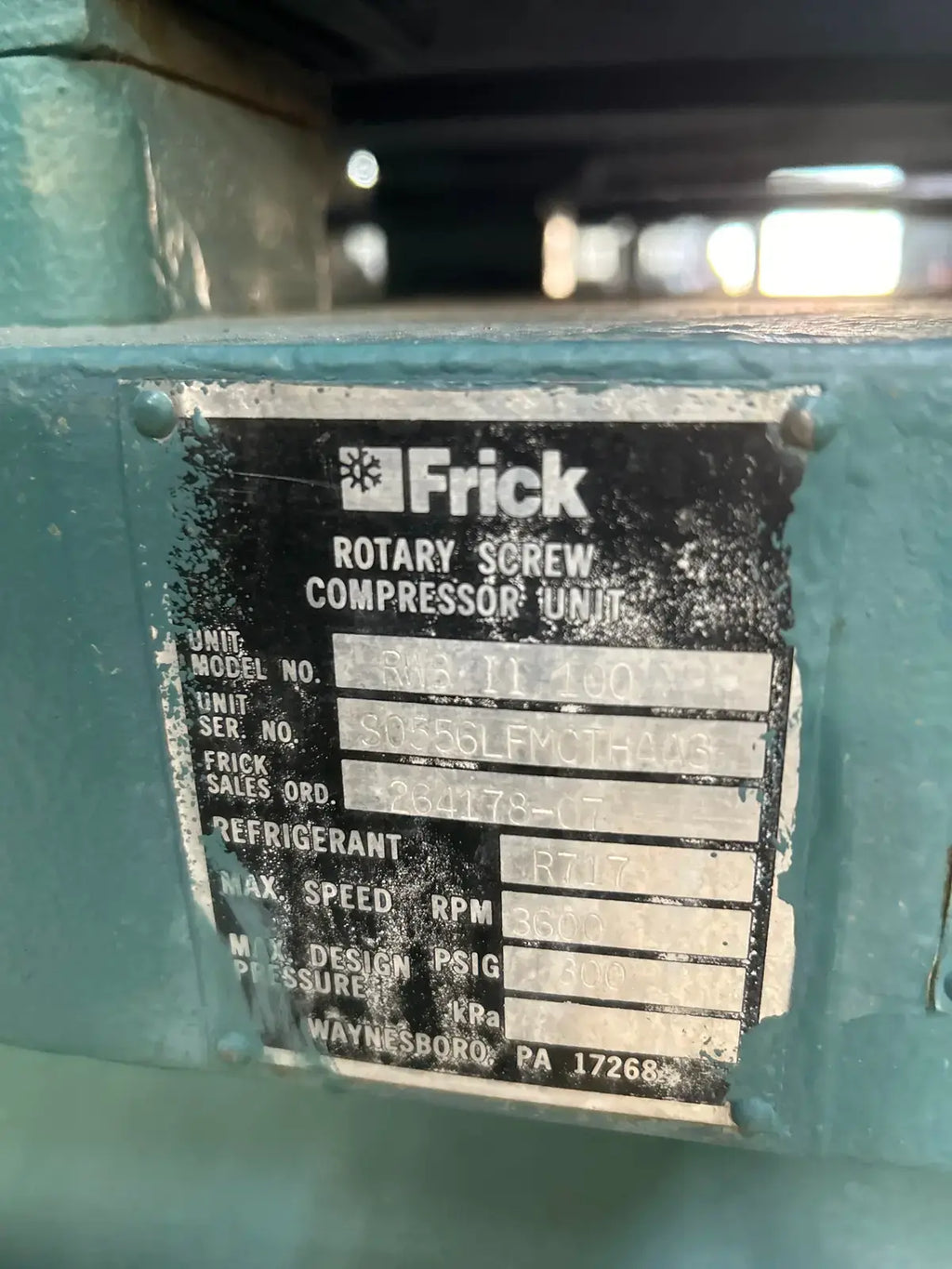

Package Details

• Package Manufacturer: Frick
• Package Model: RWB-II-100
• Package SN: S0556LFMCTHAA3
• Package Order: 264178-07
• Package Max Speed (RPM): 3,600
• Package Max Design Pressure (PSIG): 300

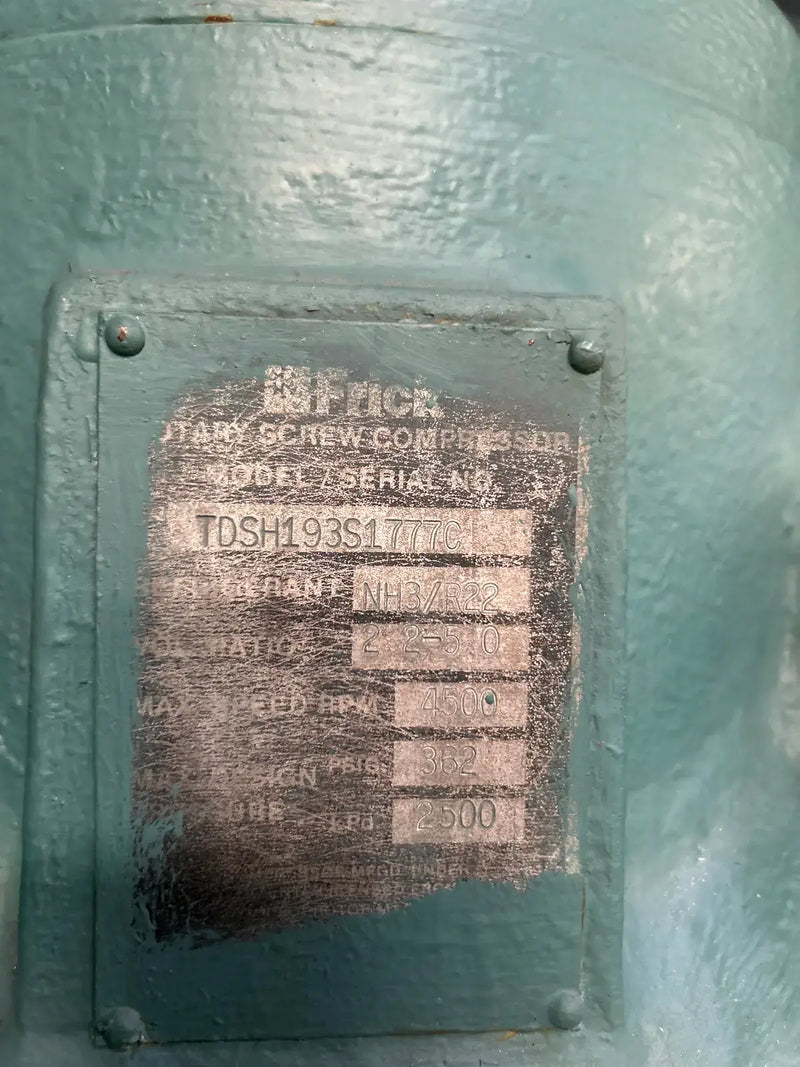

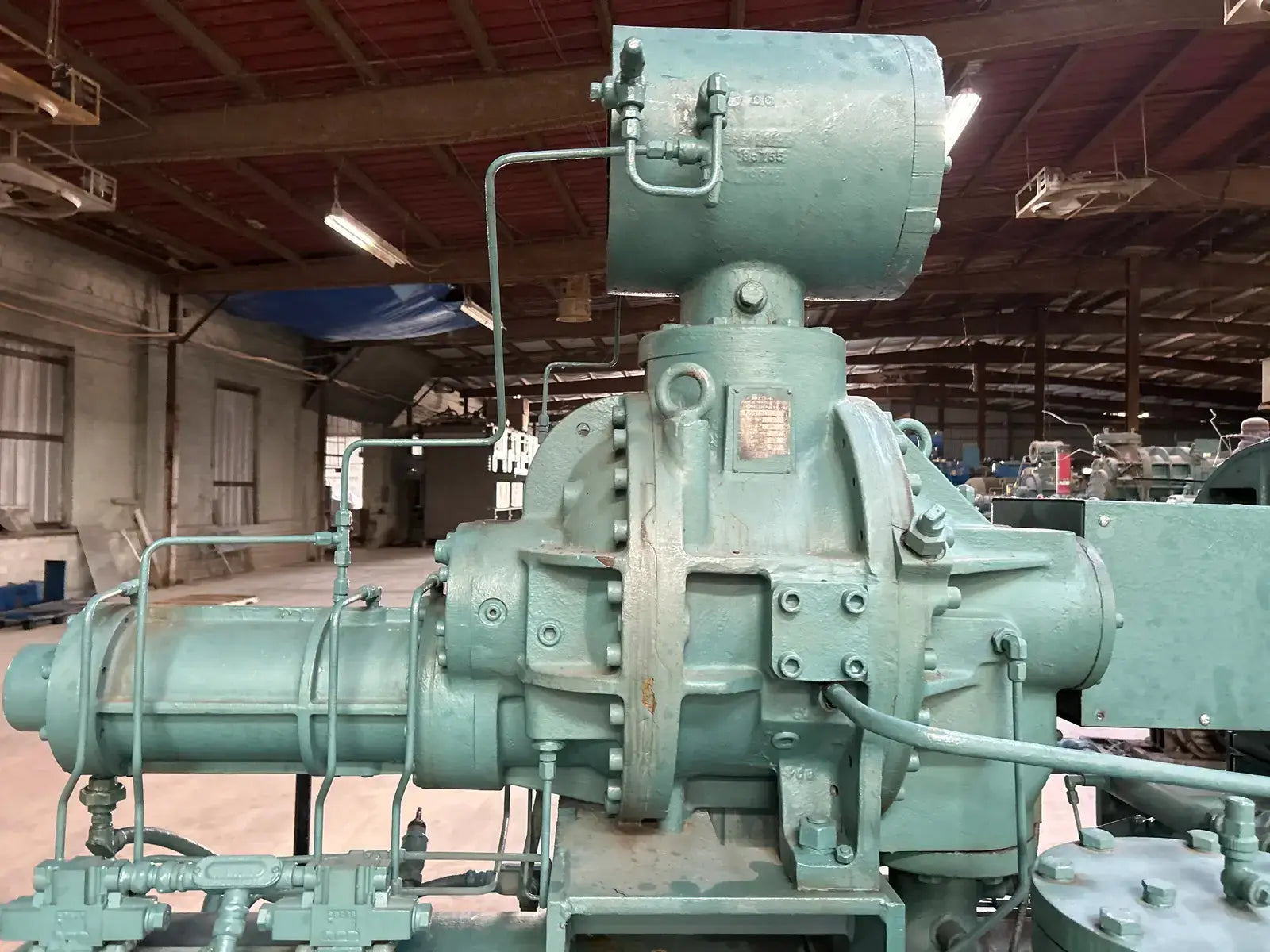

Screw Compressor Details

• Compressor Included? Yes
• Compressor Manufacturer: Frick
• # Compressors in Package: 1
• Compressor Model: TDSH193S
• Compressor SN: 1777C
• Compressor Max Speed (RPM): 4,500
• Compressor Design Pressure (PSIG): 362
• Compressor Run Time Hours: 36,892
• Compressor Volume Ratio: 2.2-5.0

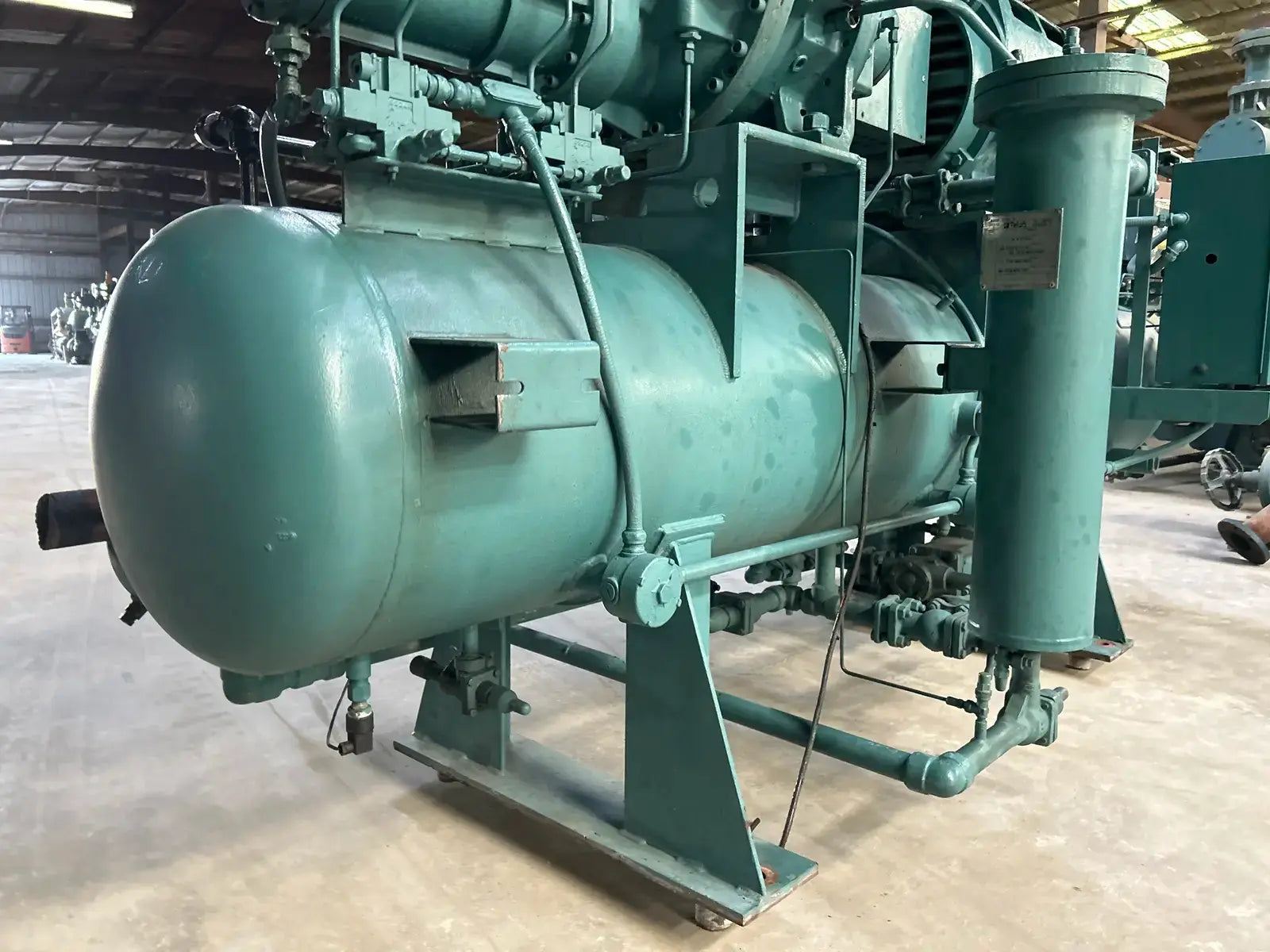

• Oil Separator Included? Yes

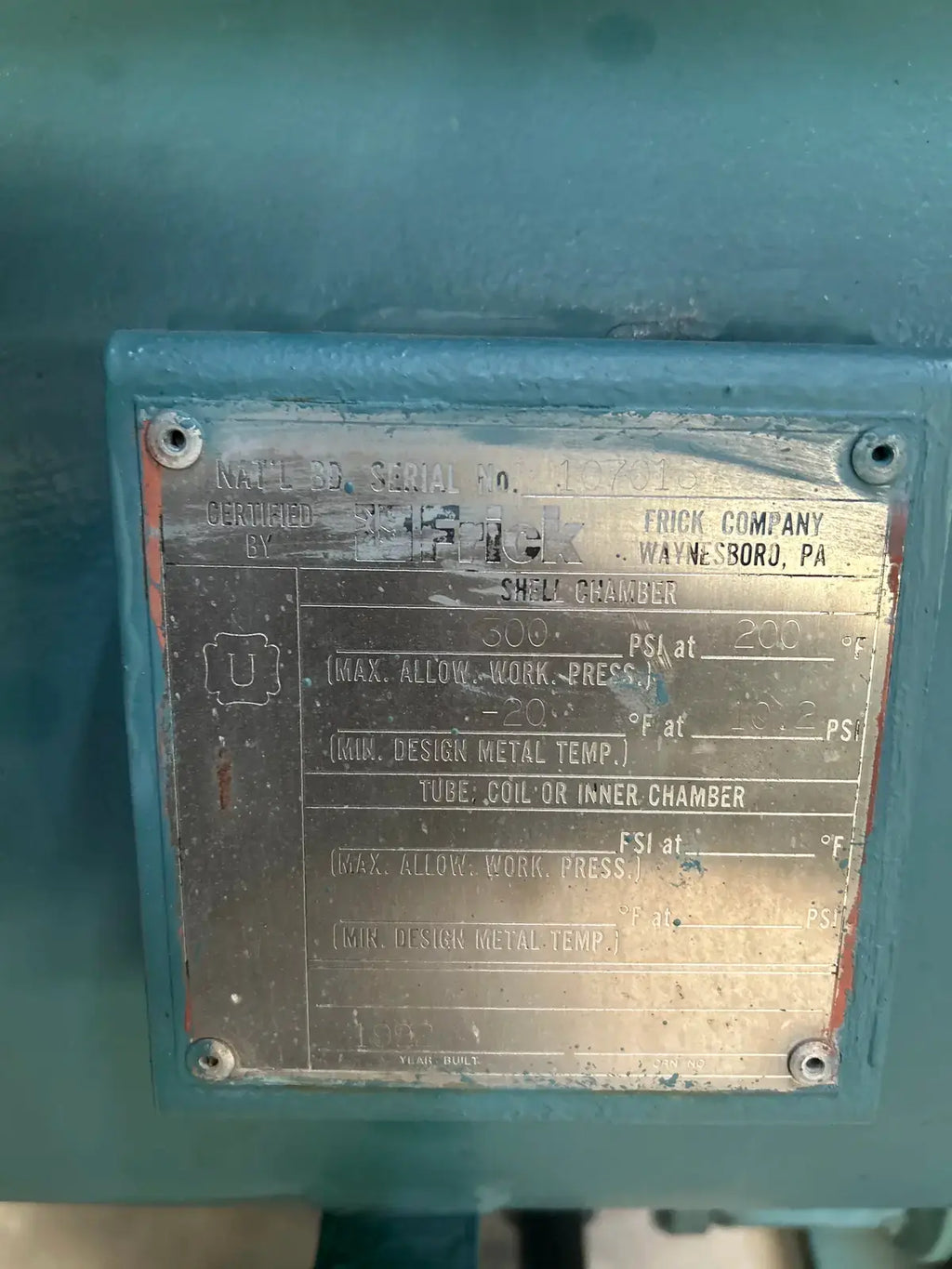

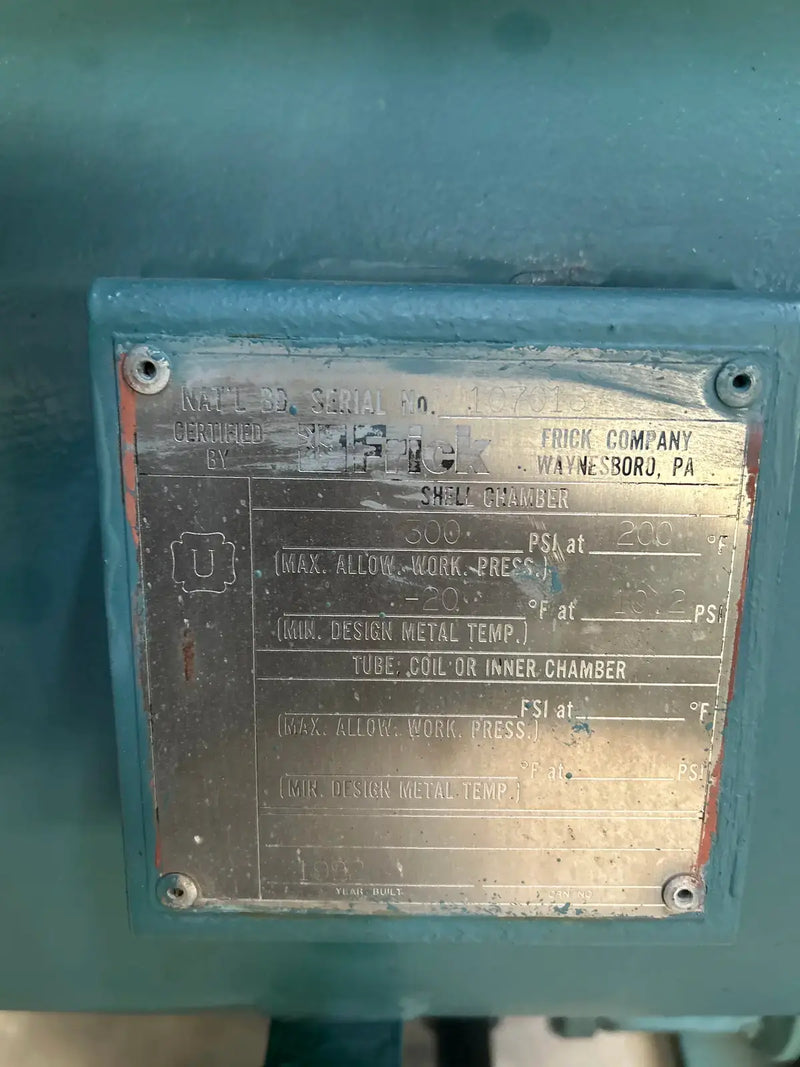

• Oil Separator National Board #: 107016

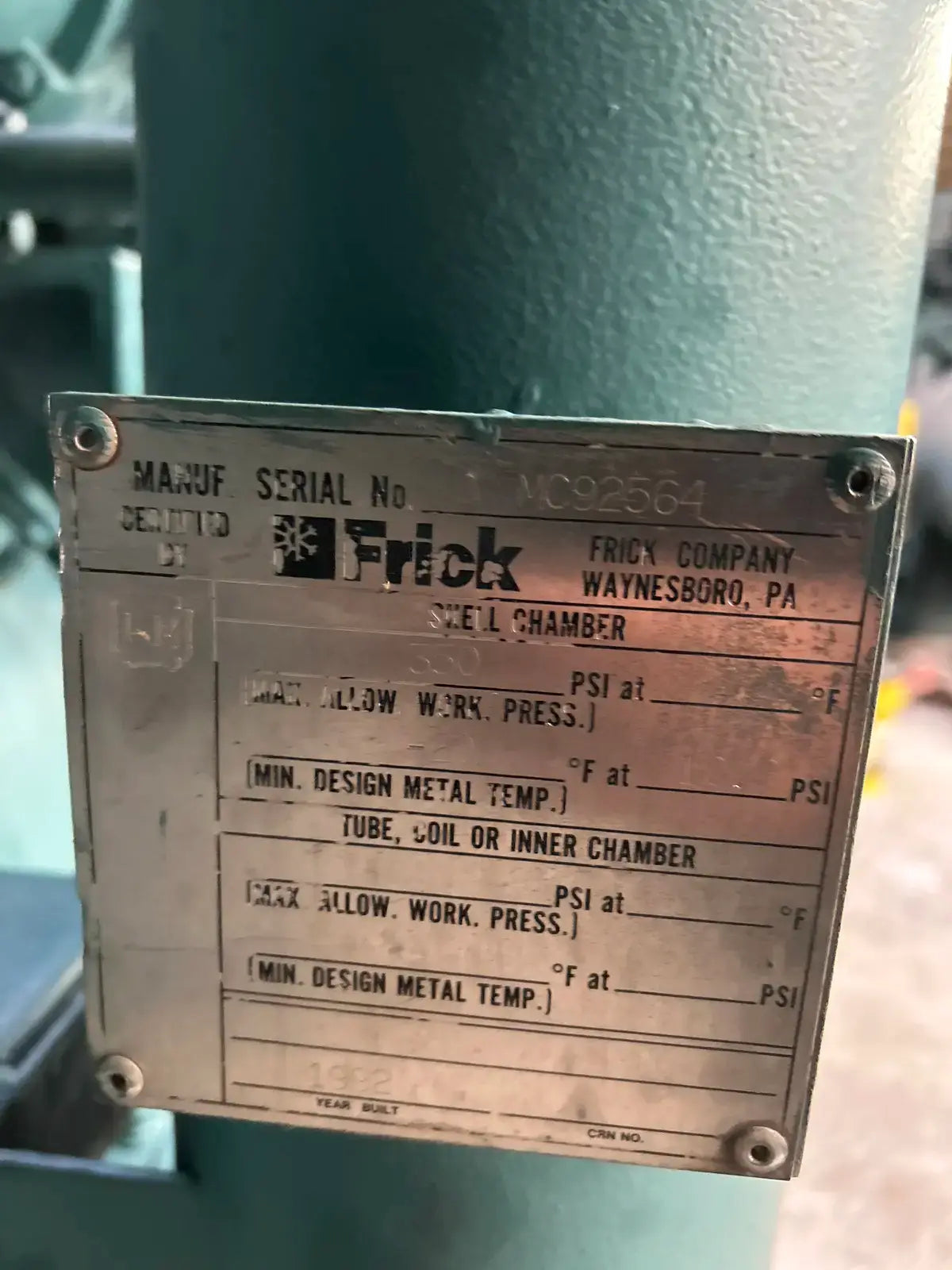

• Oil Cooler National Board #: MC92564

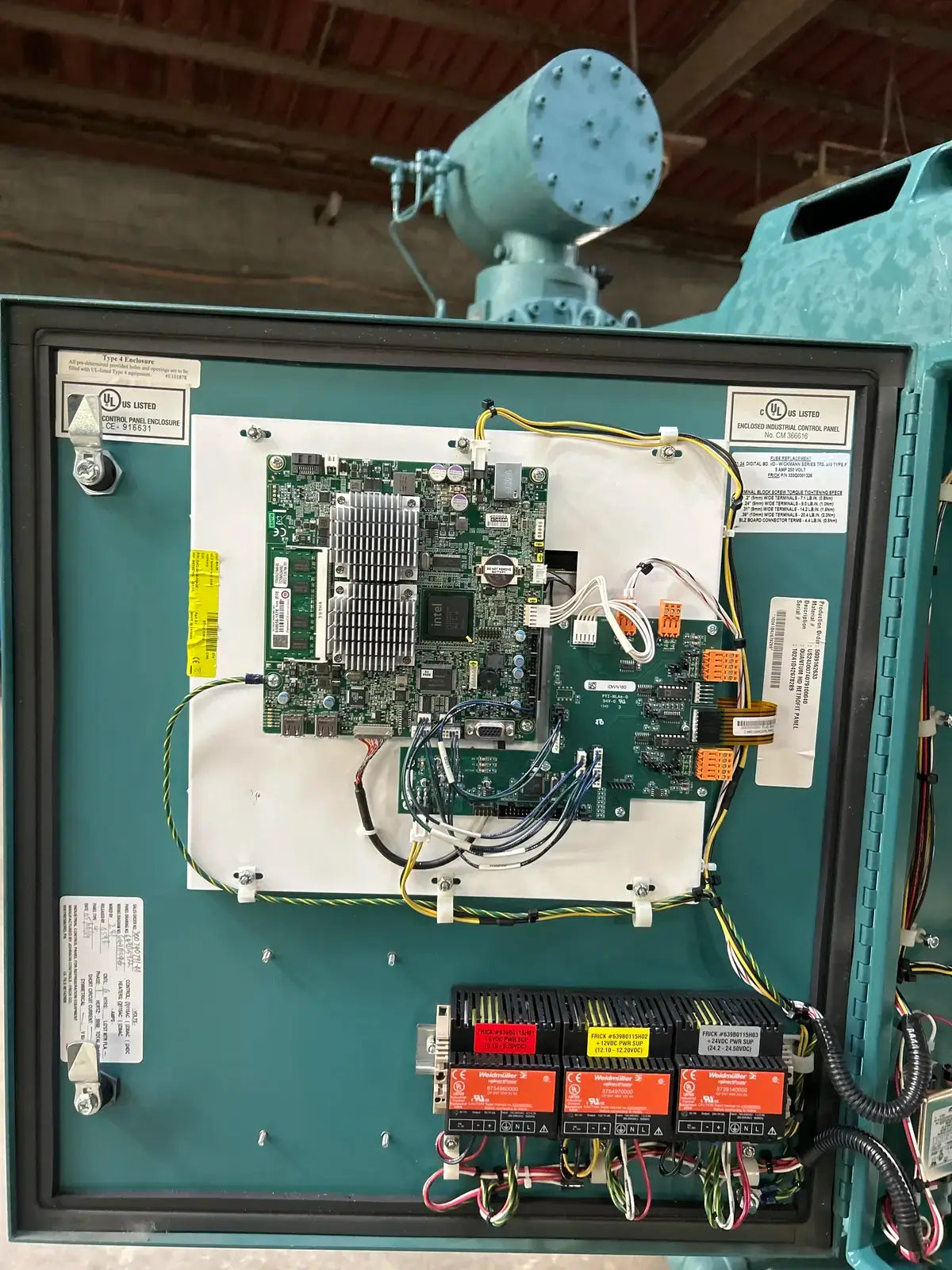

Micro Panel Details

• Micro Control Panel Included? Yes
• Micro Control Panel Manufacturer: Frick
• Micro Control Panel Description: Frick Quantum HD Control Panel.

Motor Starter Details

• Motor Starter Included? No

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes
• Halocarbon (Freon) Compatible: Yes

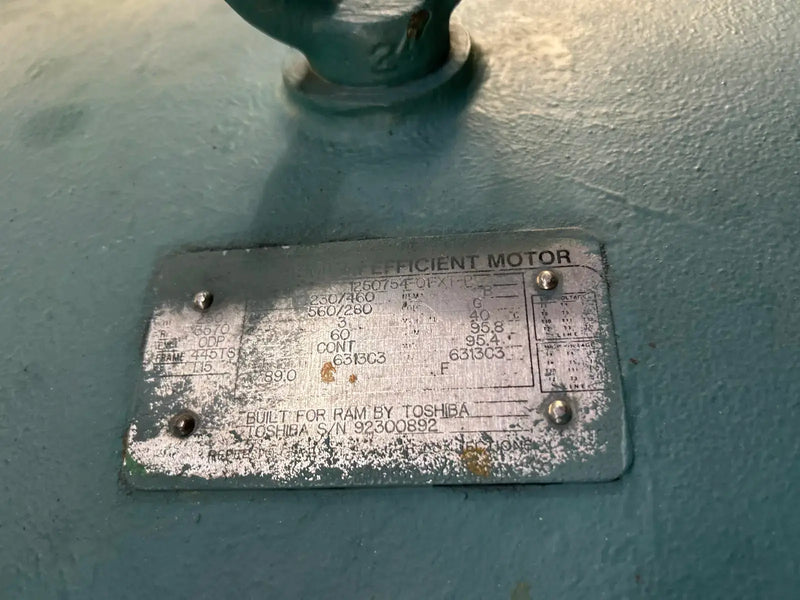

Motor Details

• Motor Included? Yes
• # Motors: 1
• Motor Manufacturer: RAM Industries
• Motor Horsepower(HP): 250
• Motor RPM: 3,570
• Motor Voltage: 230/460
• Motor Amps: 560/280
• Motor Hertz (Hz): 60
• Motor Phases: 3
• Motor Frame Size: 445TS

Dimensions:

• Length (Inches): 144
• Width (Inches): 55
• Height (Inches): 95
• Weight (LBS): 7,500
• # of Pieces for Shipping: 1

Additional Product Details

• Year of Manufacture: 2007
• Year Removed from Production: 2024
• Spec Sheet Available: Yes
