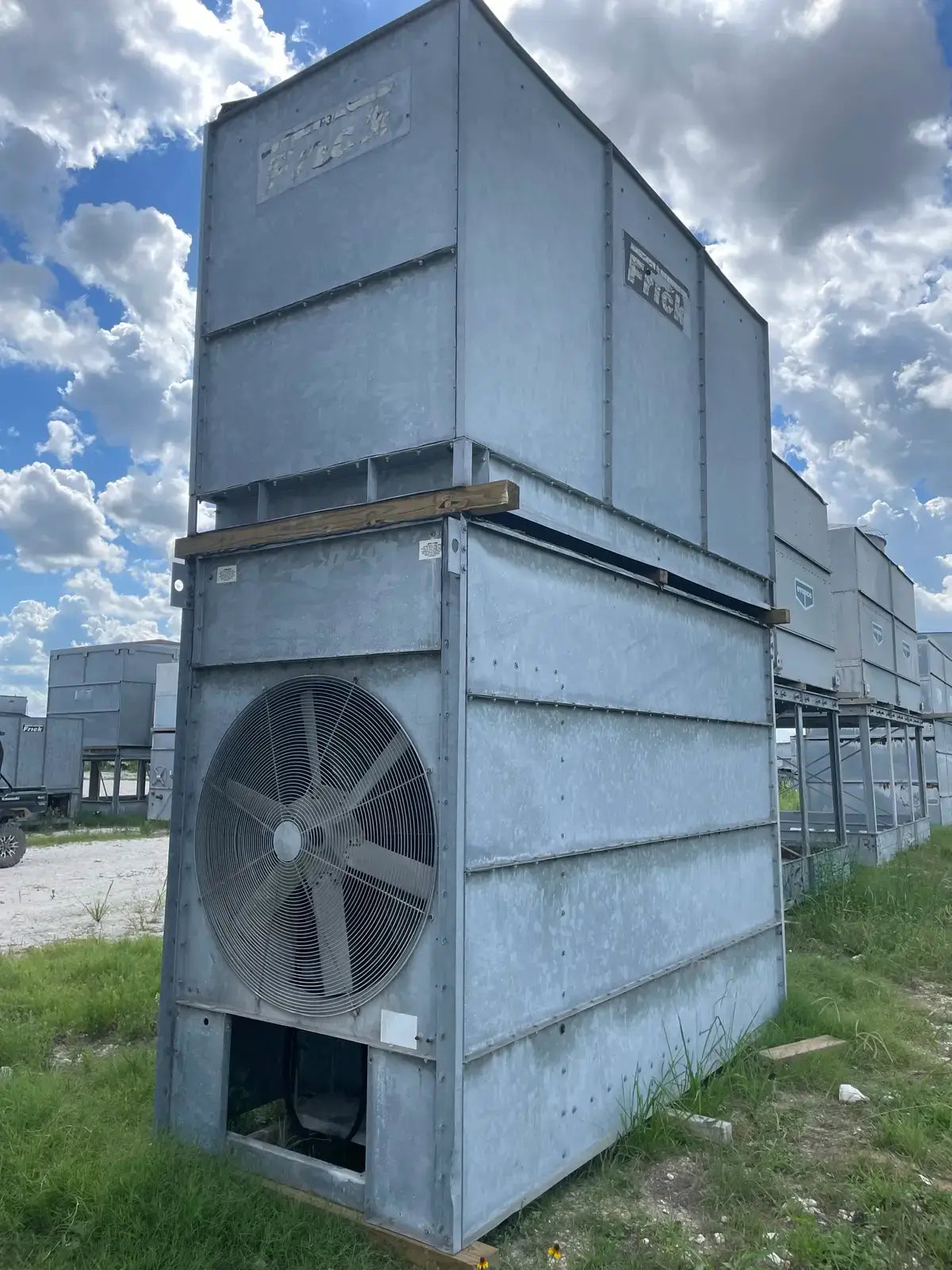

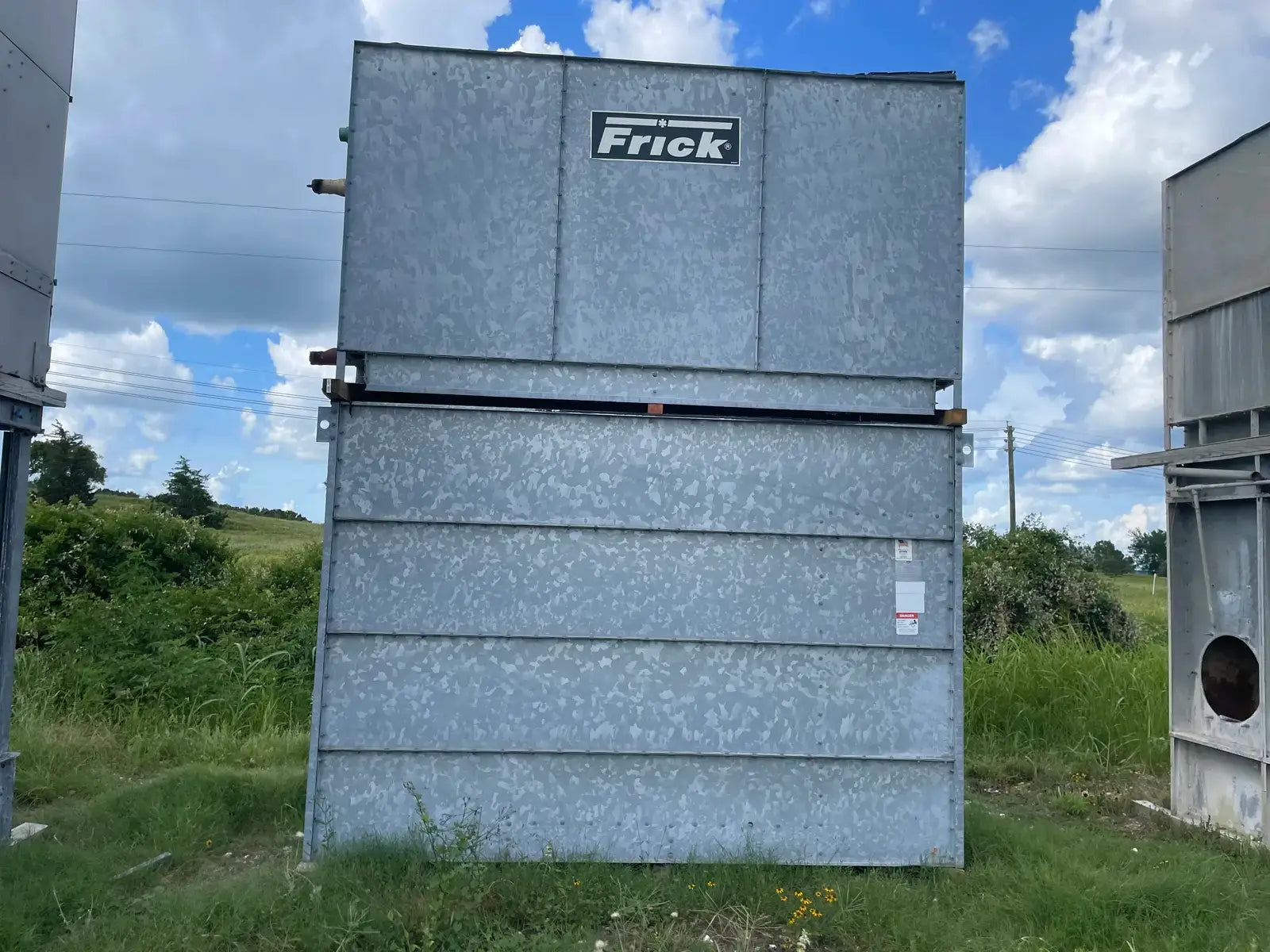

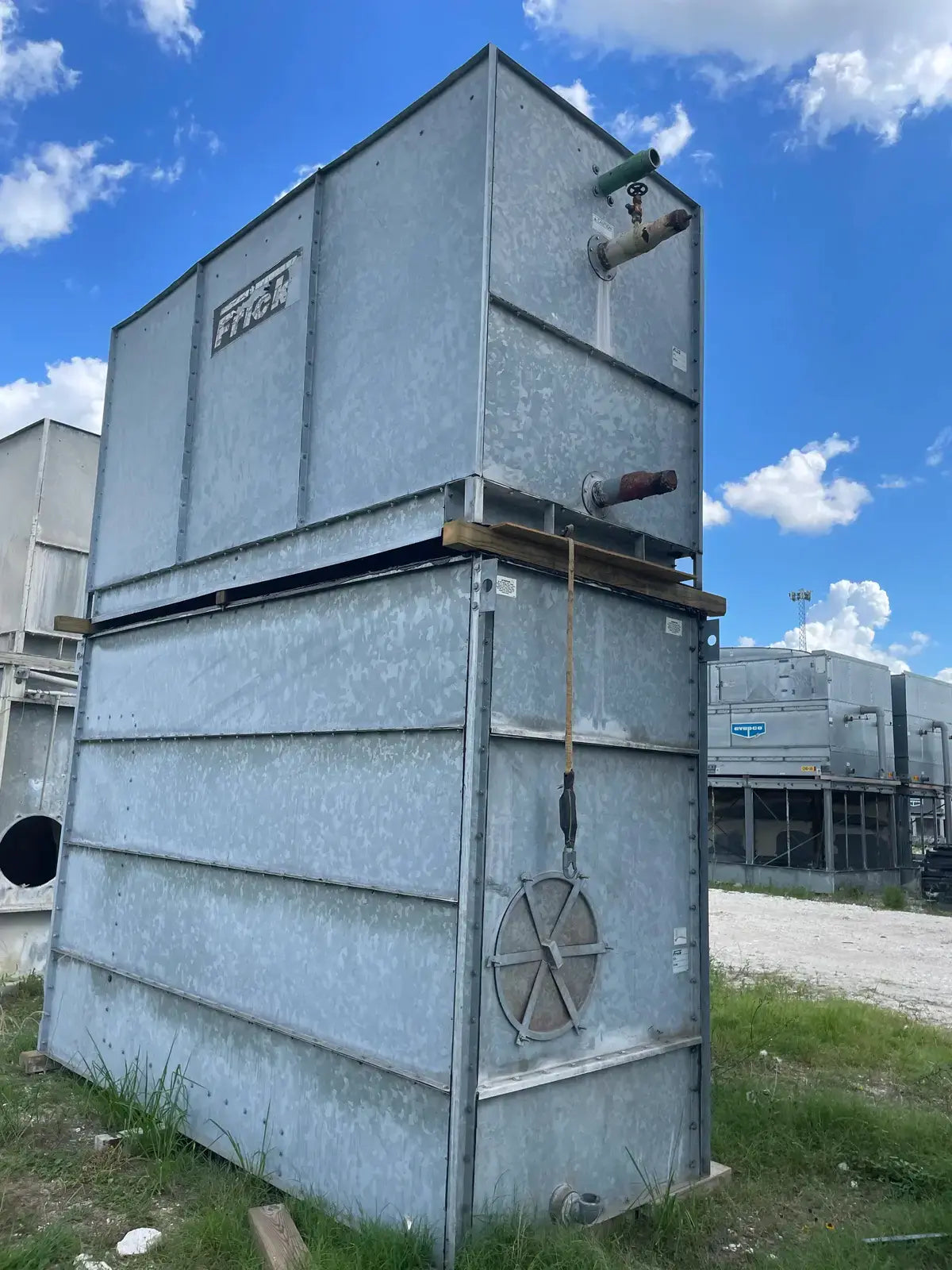

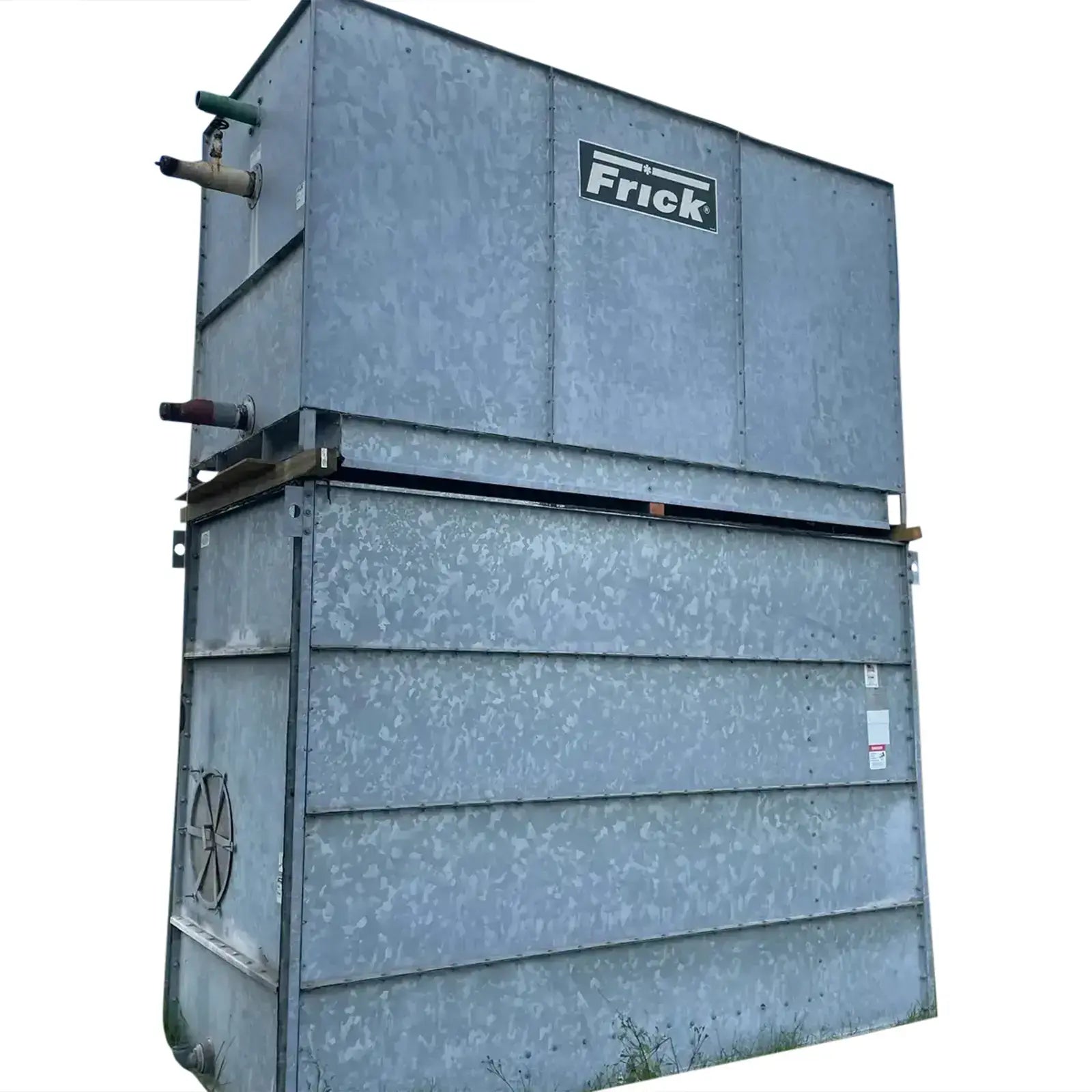

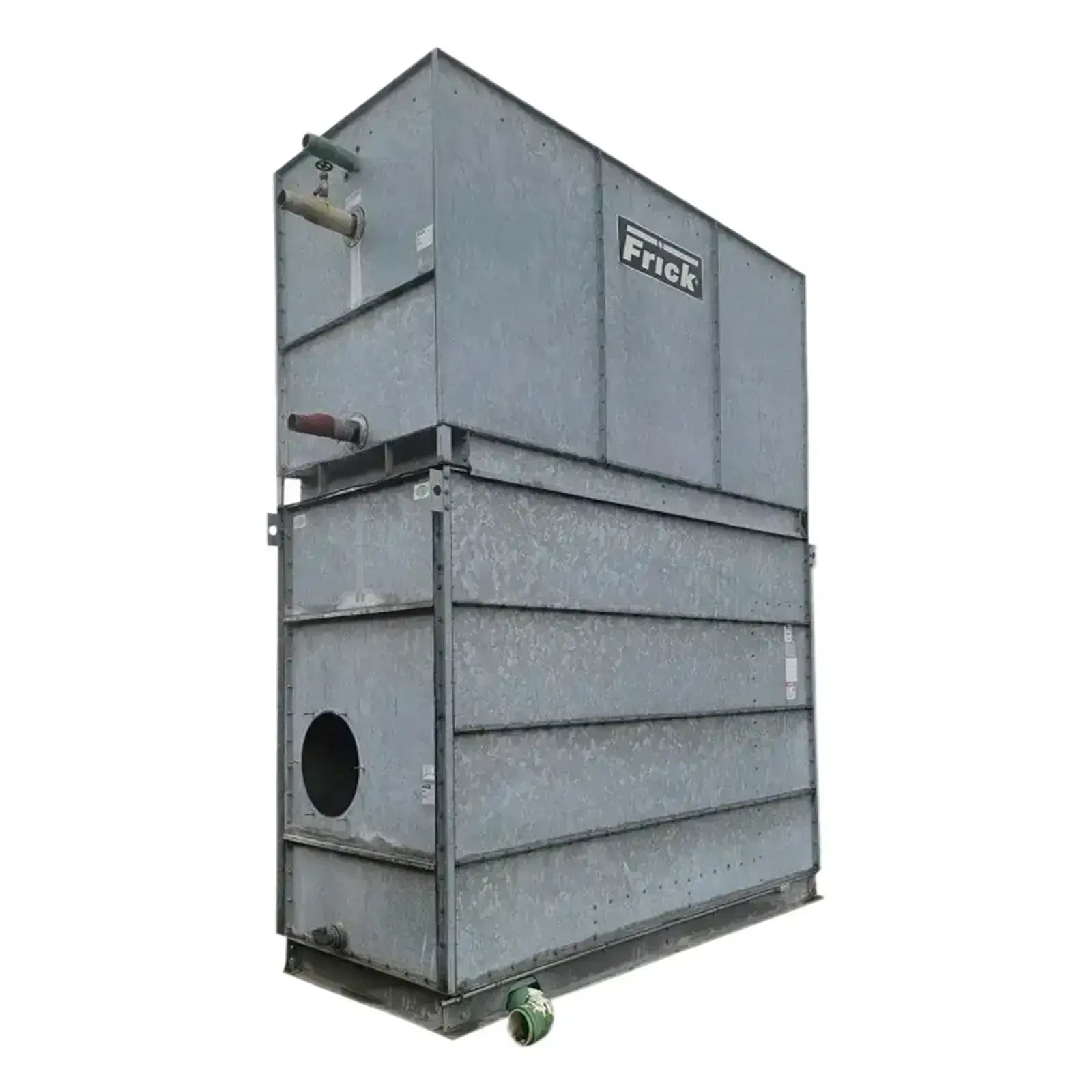

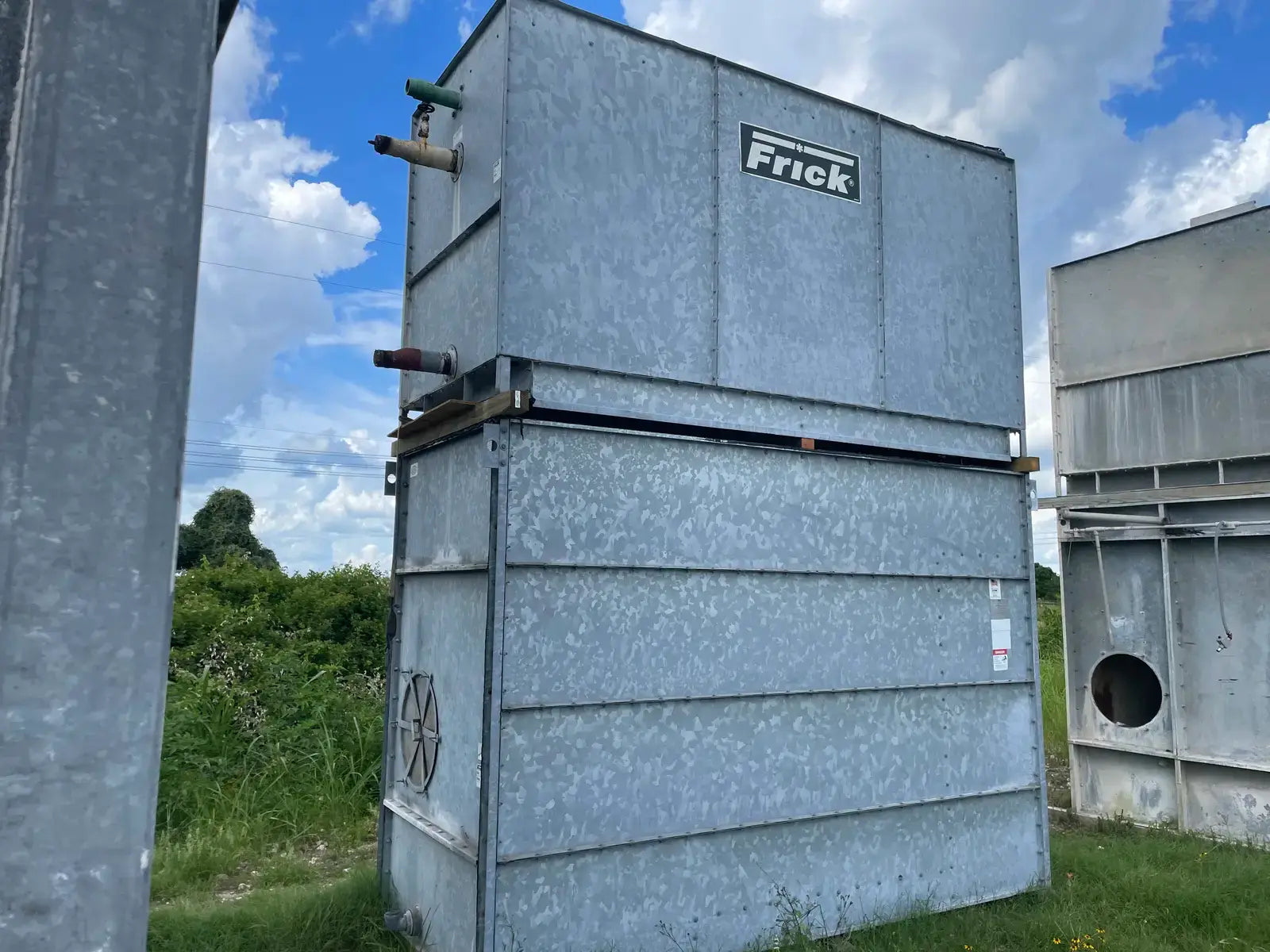

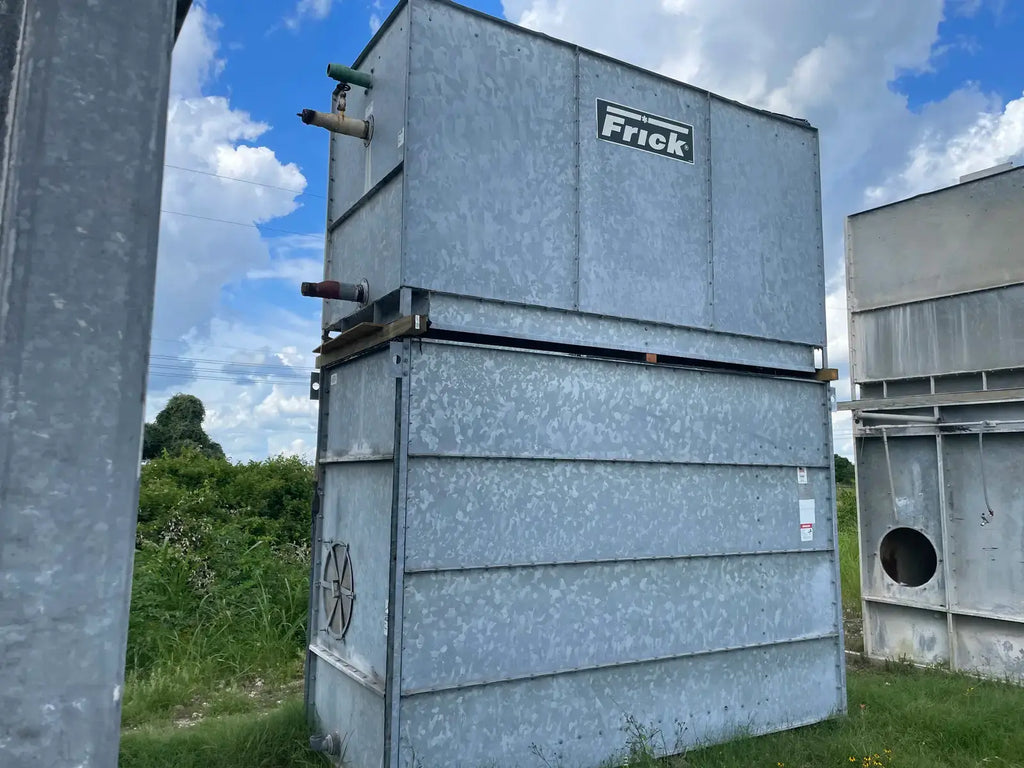

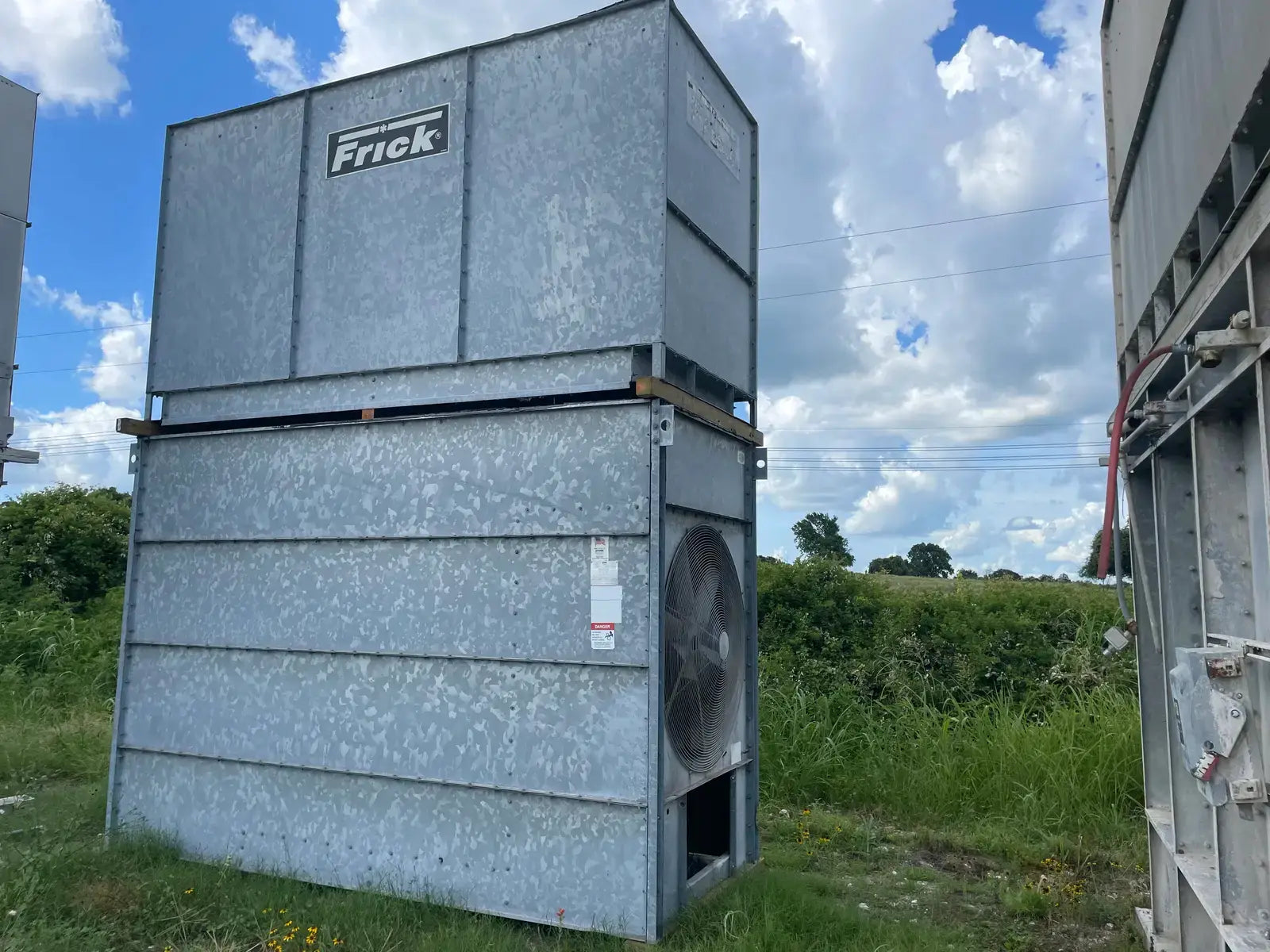

Frick XLP-S205 S Evaporative Condenser ( 205 Nominal Tons, 1 Tower Unit)
Frick XLP Series Evaporative Condenser. Model: XLP-S205 S. Serial No: 51427-100. Mfg Date: 1/26/07. This package contains 1 Tower Unit. 205 Nominal Tons. 145.5 Ammonia Tons. Previously Ran with Ammonia(R-717)
Product Details

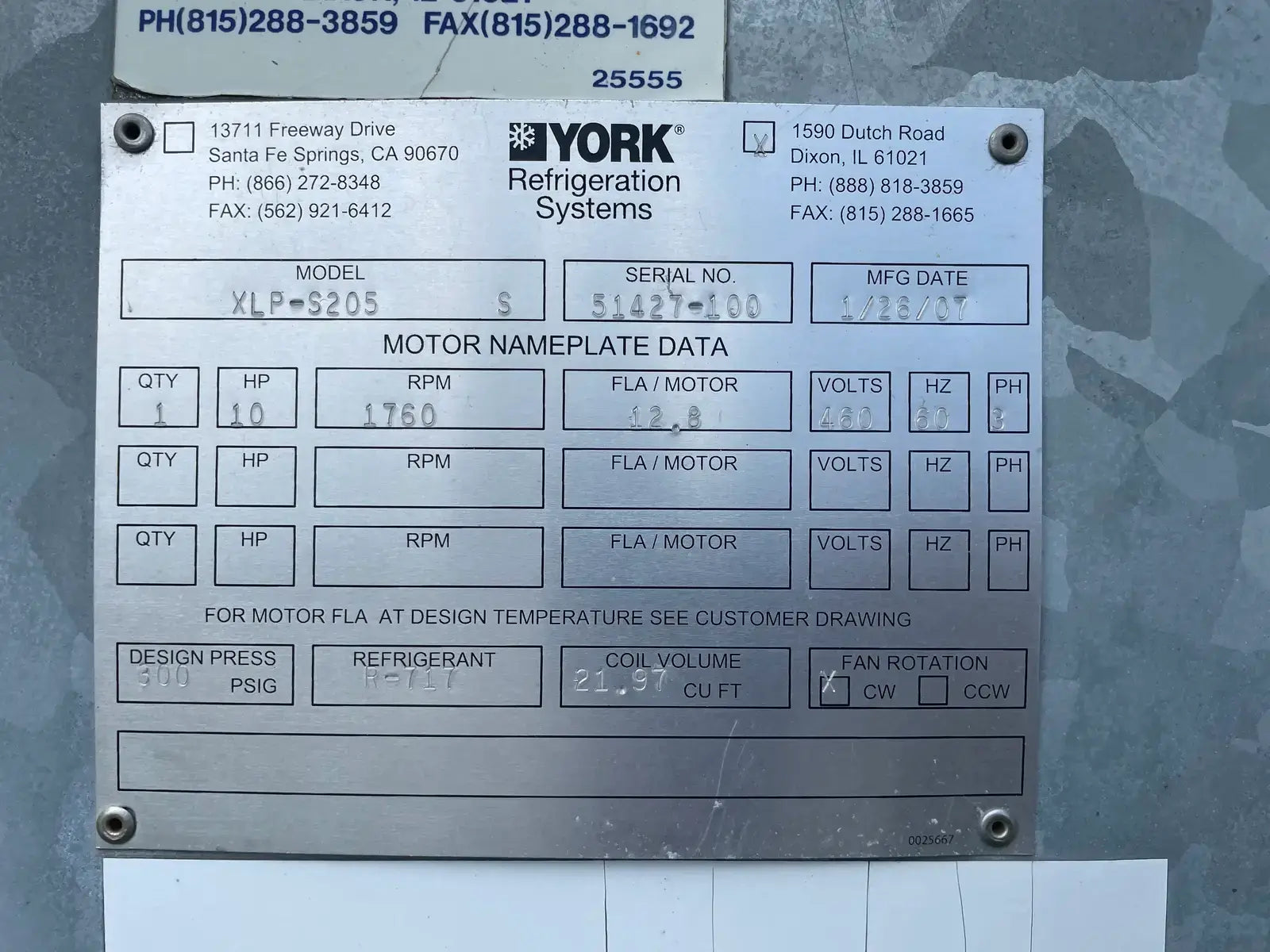

- Stock No: HCIC01
- Manufacturer: Frick
- Model: XLP-S205 S
- Serial Number: 51427-100
Condenser Details
- Multiple Units Included in Package? No
- Unit Nominal Tons (TR): 205
- Unit Ammonia Tons (TR): 145.4
- Unit Coil Volume (ft3): 21.97
- Unit CFM (CFM): 33,000
- Design Pressure (PSI): 300

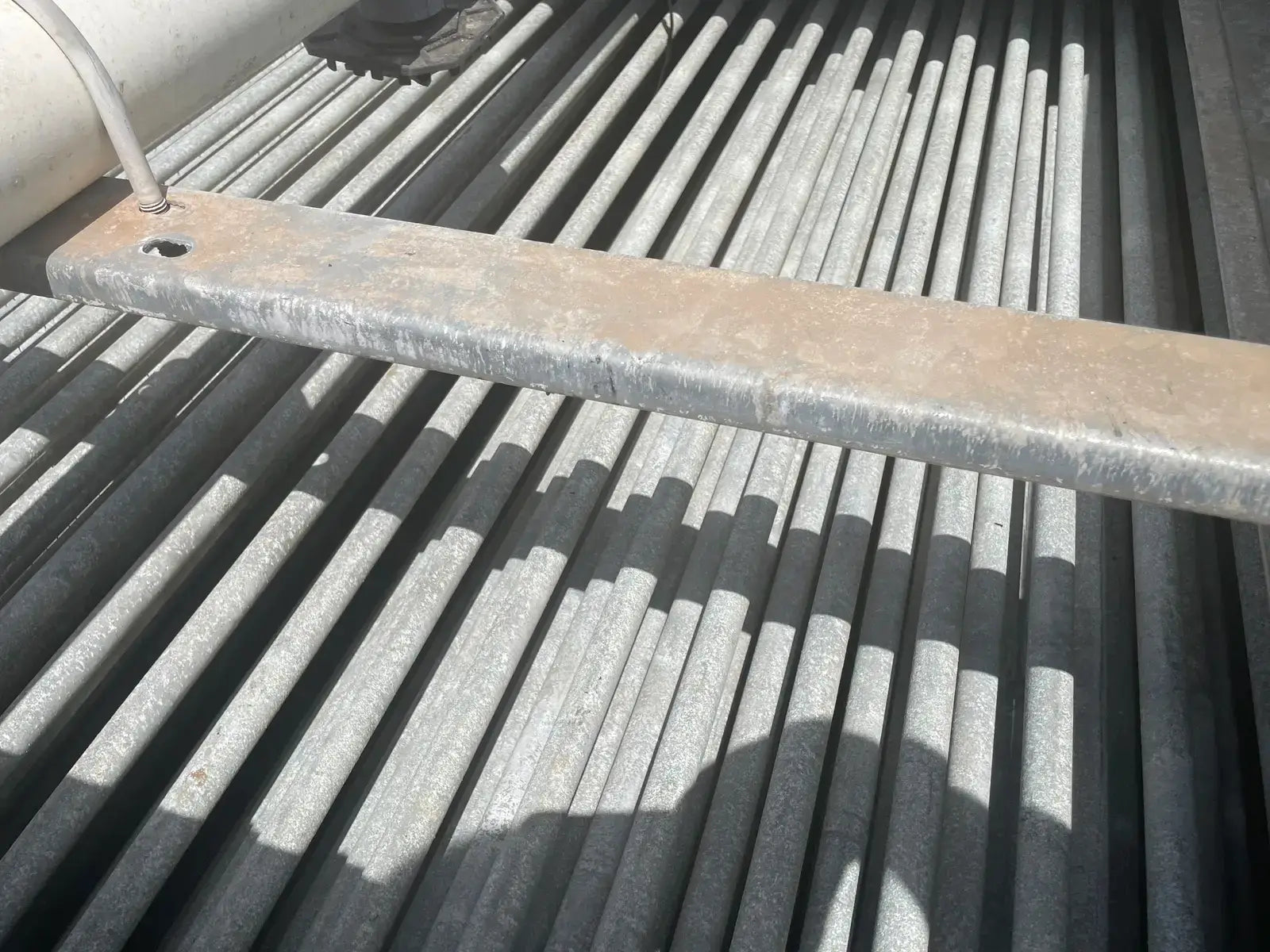

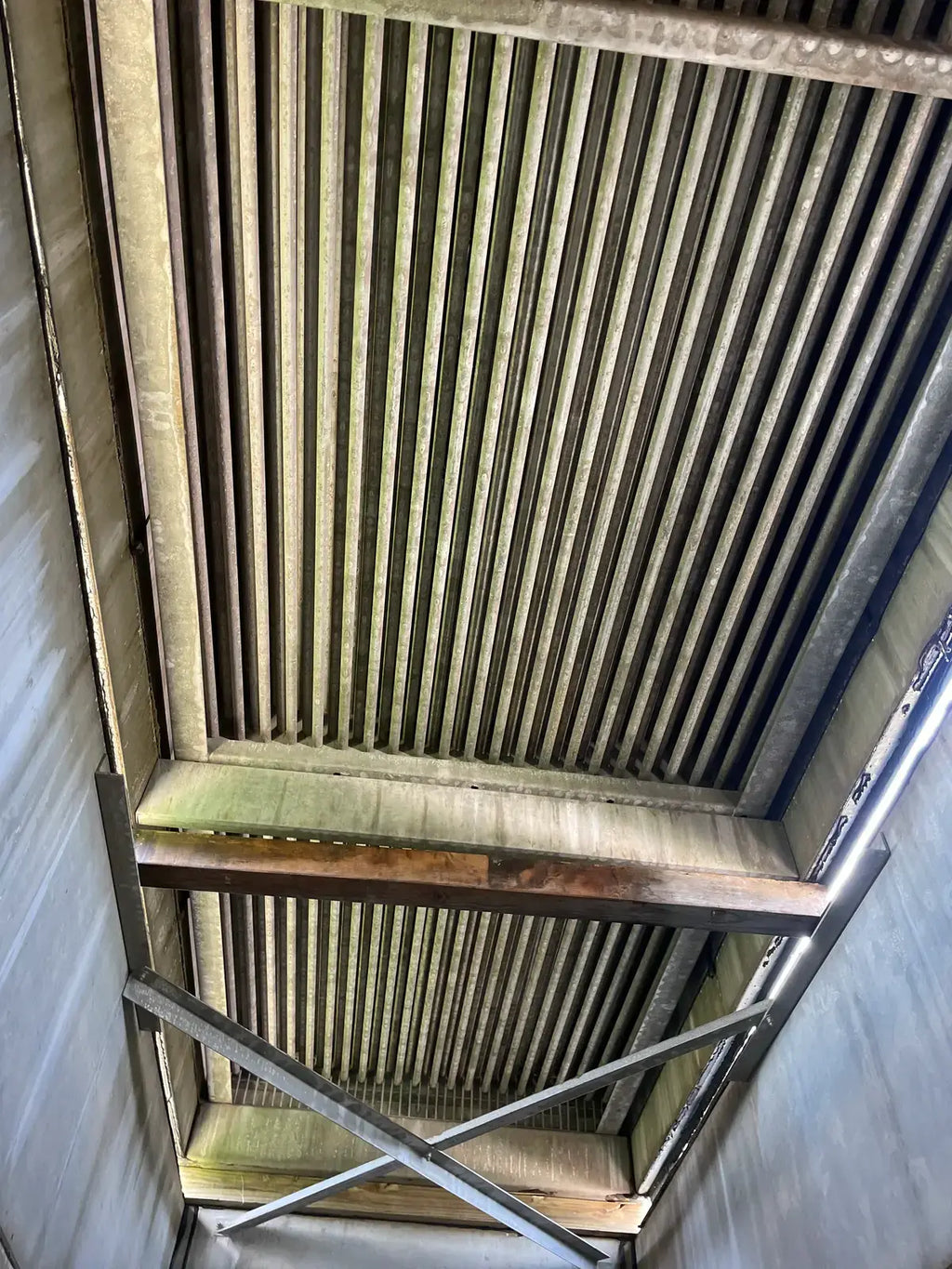

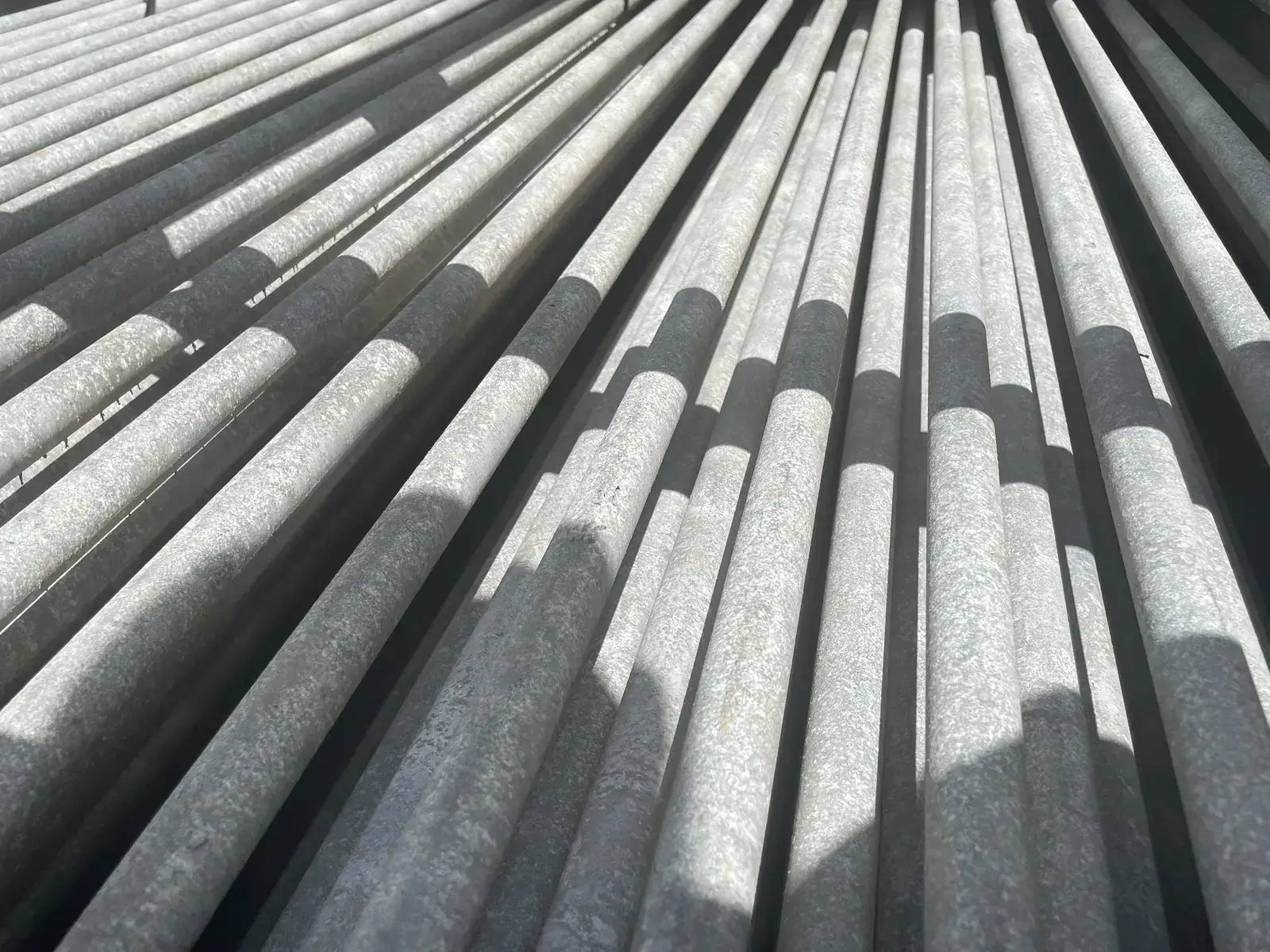

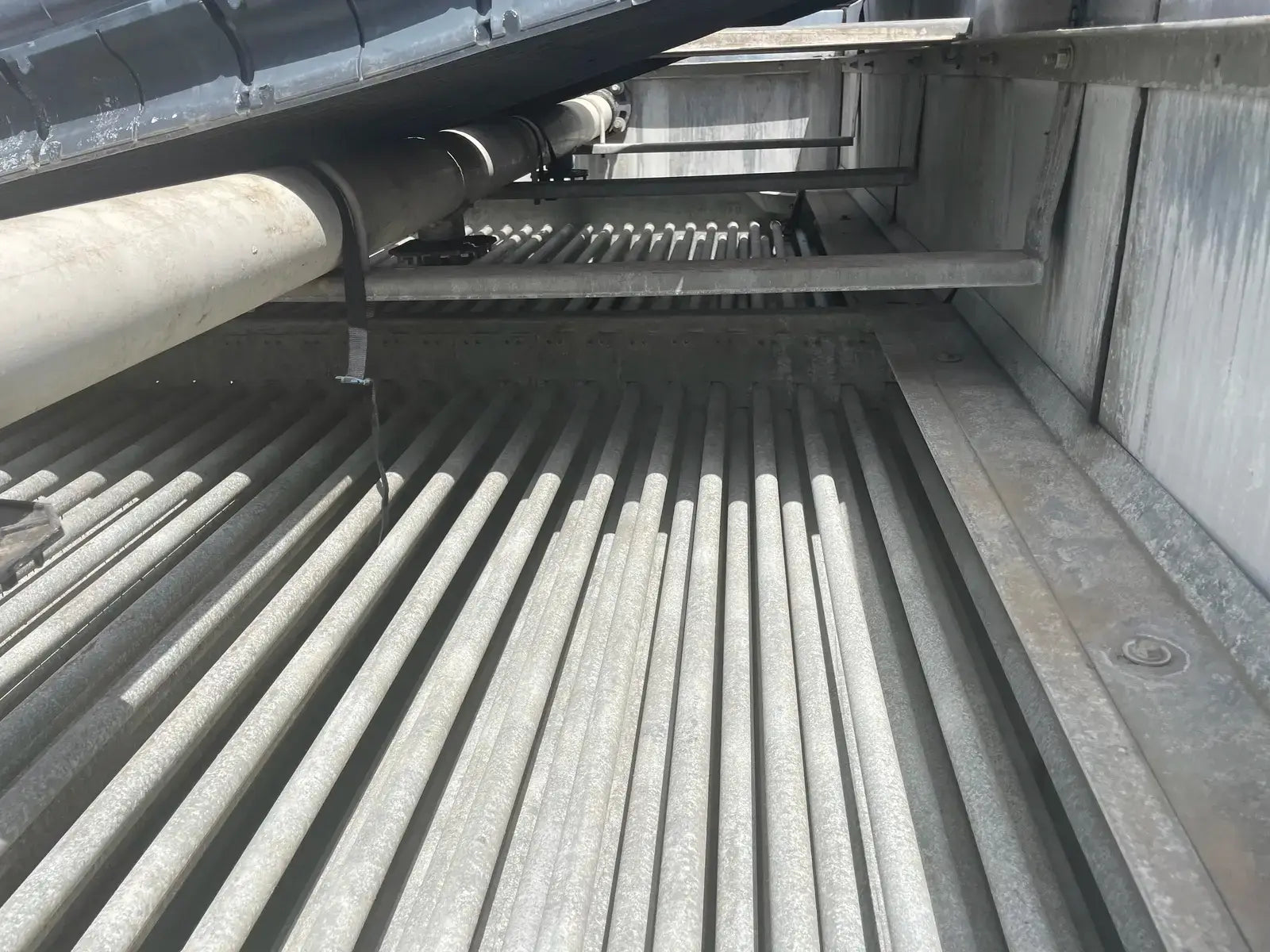

- Top Coil Condition Rating: Platinum - Almost Zero Scale- Zero Rust

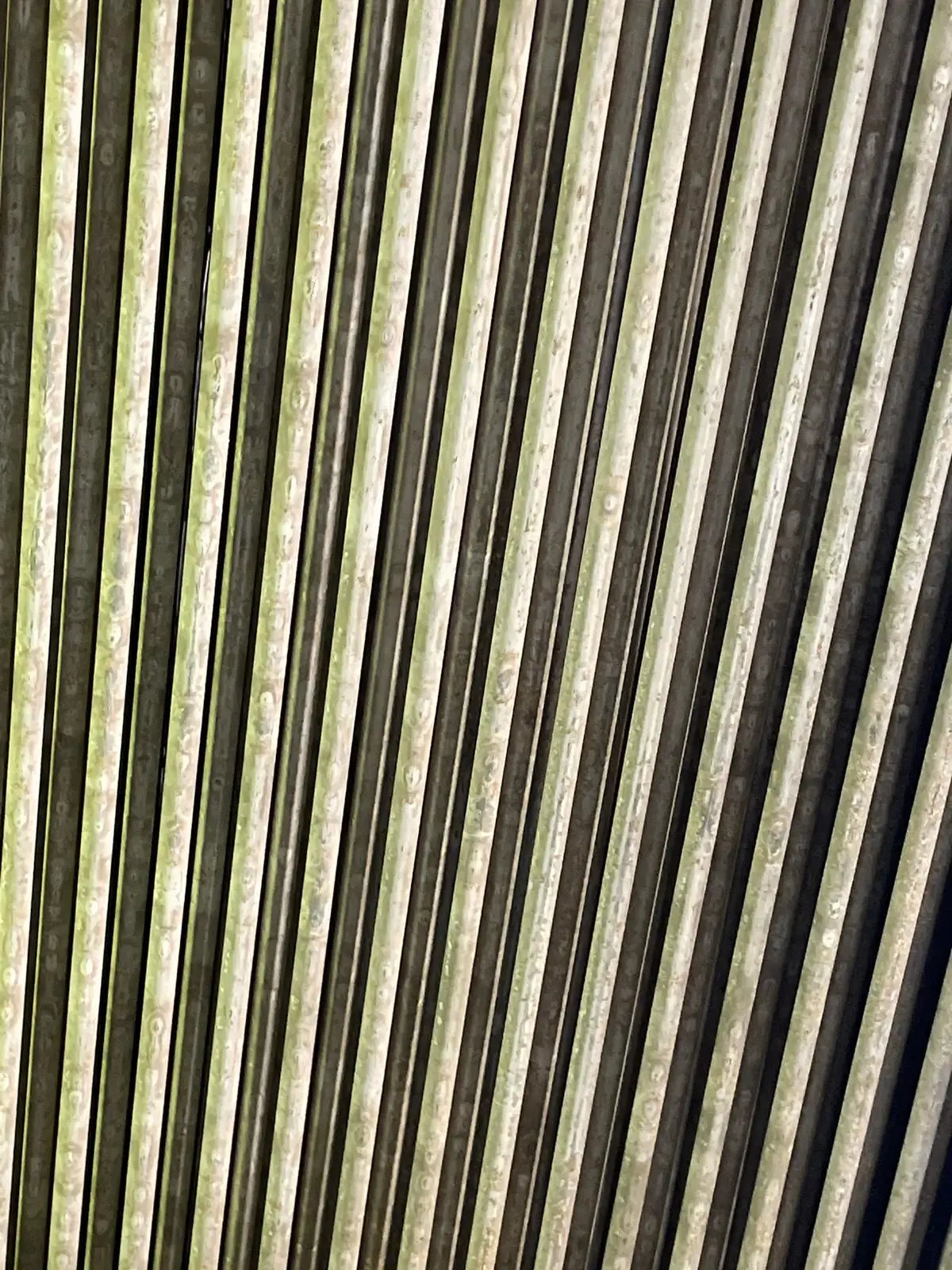

- Bottom Coil Condition Rating: Platinum - Almost Zero Scale- Zero Rust
- Circuit 1 Pressure Rating: Pending Test
- Circuit 2 Pressure Rating: Pending Test
Condenser Dimensions
- Top Length (Inches): 142
- Top Width (Inches): 48
- Top Height (Inches): 97
- Top Weight (LBS): 10,110
- Bottom Length (Inches): 142
- Bottom Width (Inches): 48
- Bottom Height (Inches): 97
- Bottom Weight (LBS): 2,000
Pump Details
- Pump Included? No
- Pump Recommended HP: 1.5
- Pump Recommended Gallons per Minute (GPM): 140
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

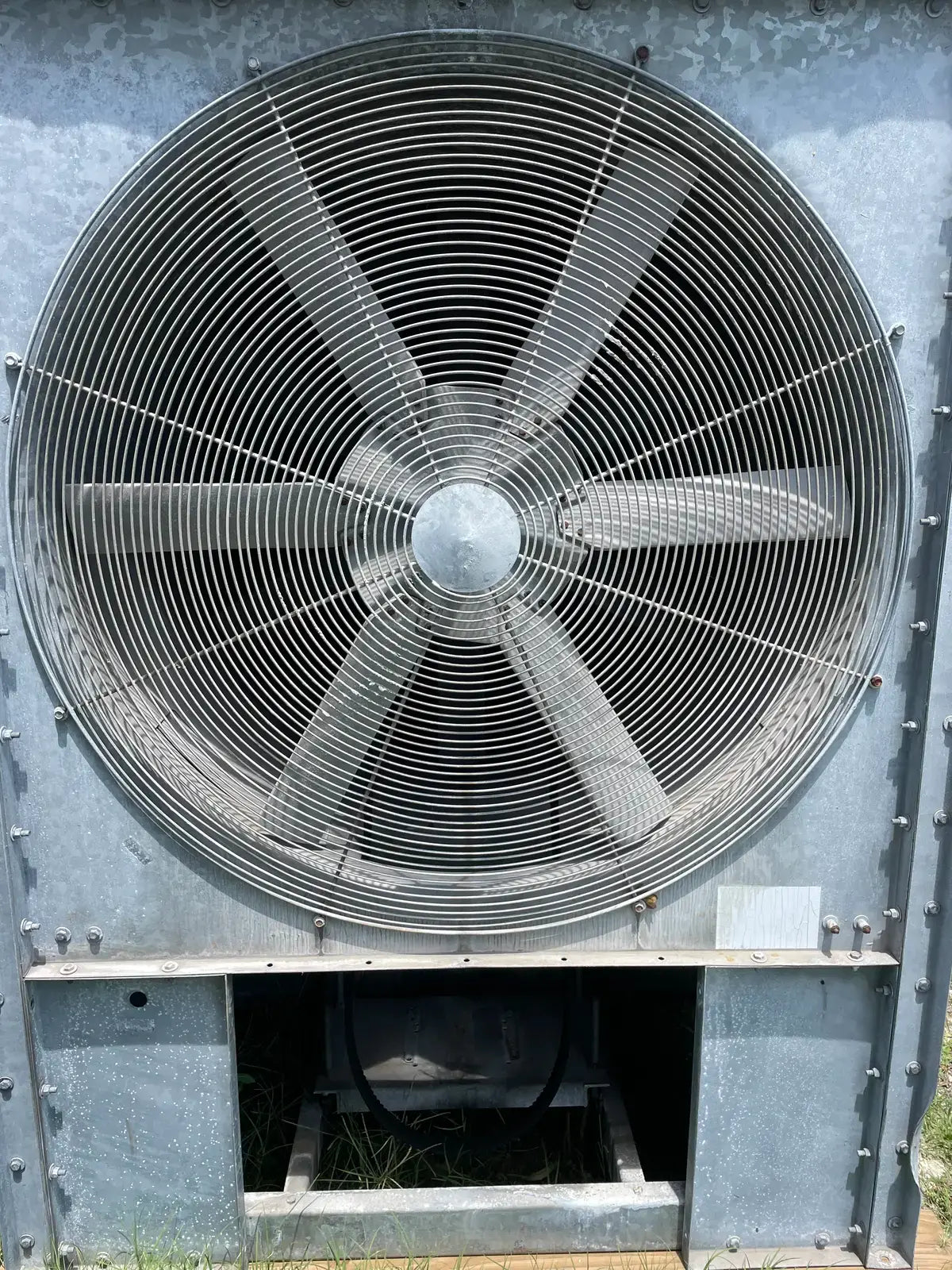

Motor Details
- Motor Included? No
- Motor Horsepower(HP): 10
- Motor RPM: 1,760
- Motor Voltage: 460
- Motor Amps: 12.8
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 142
- Width (Inches): 86
- Height (Inches): 164
- Weight (LBS): 11,330
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2007
- Year Removed from Production: 2024
- Spec Sheet Available: Yes

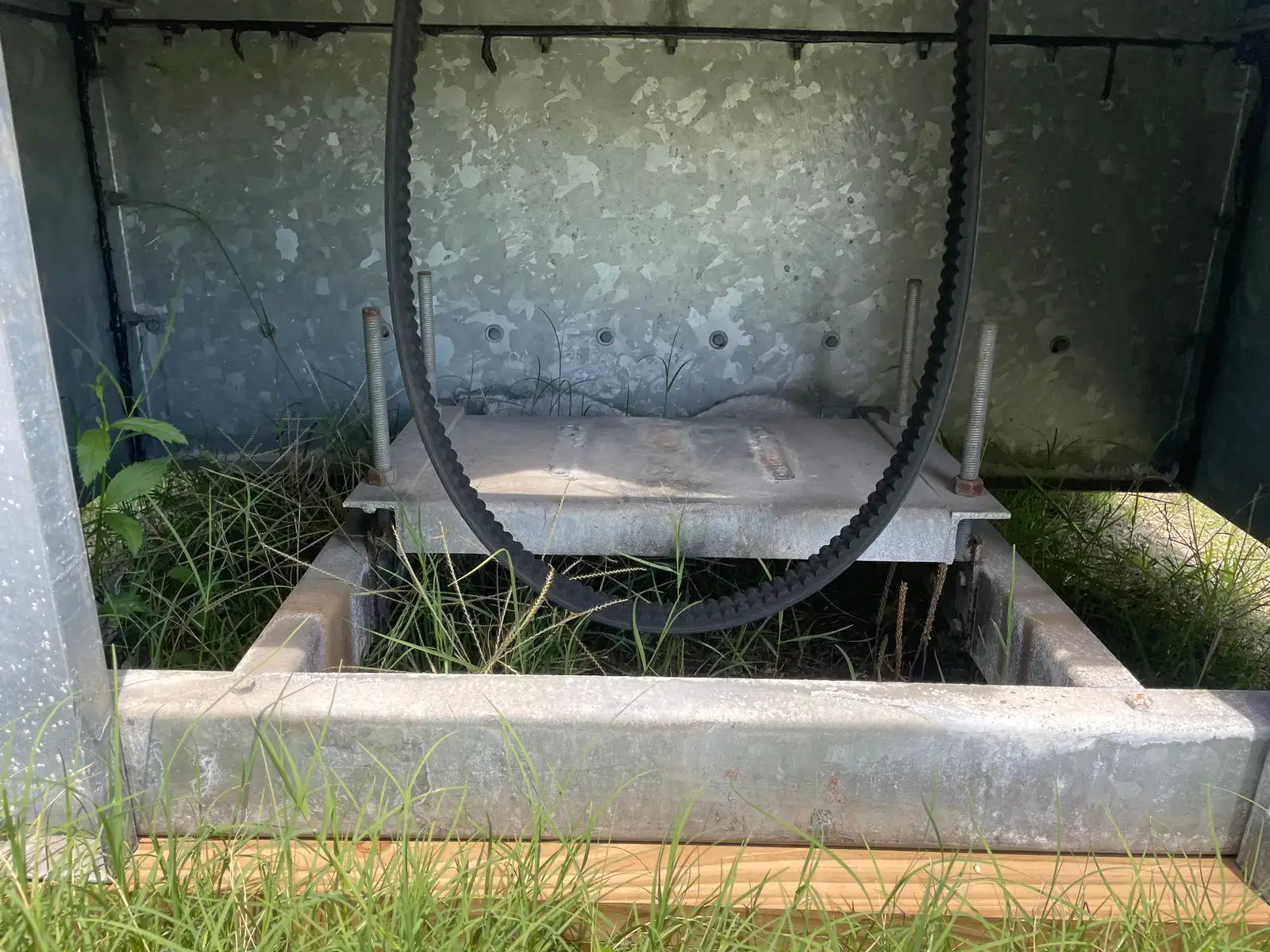

- Known Issues or Problems: Missing Fan Motor and Water Pump.
