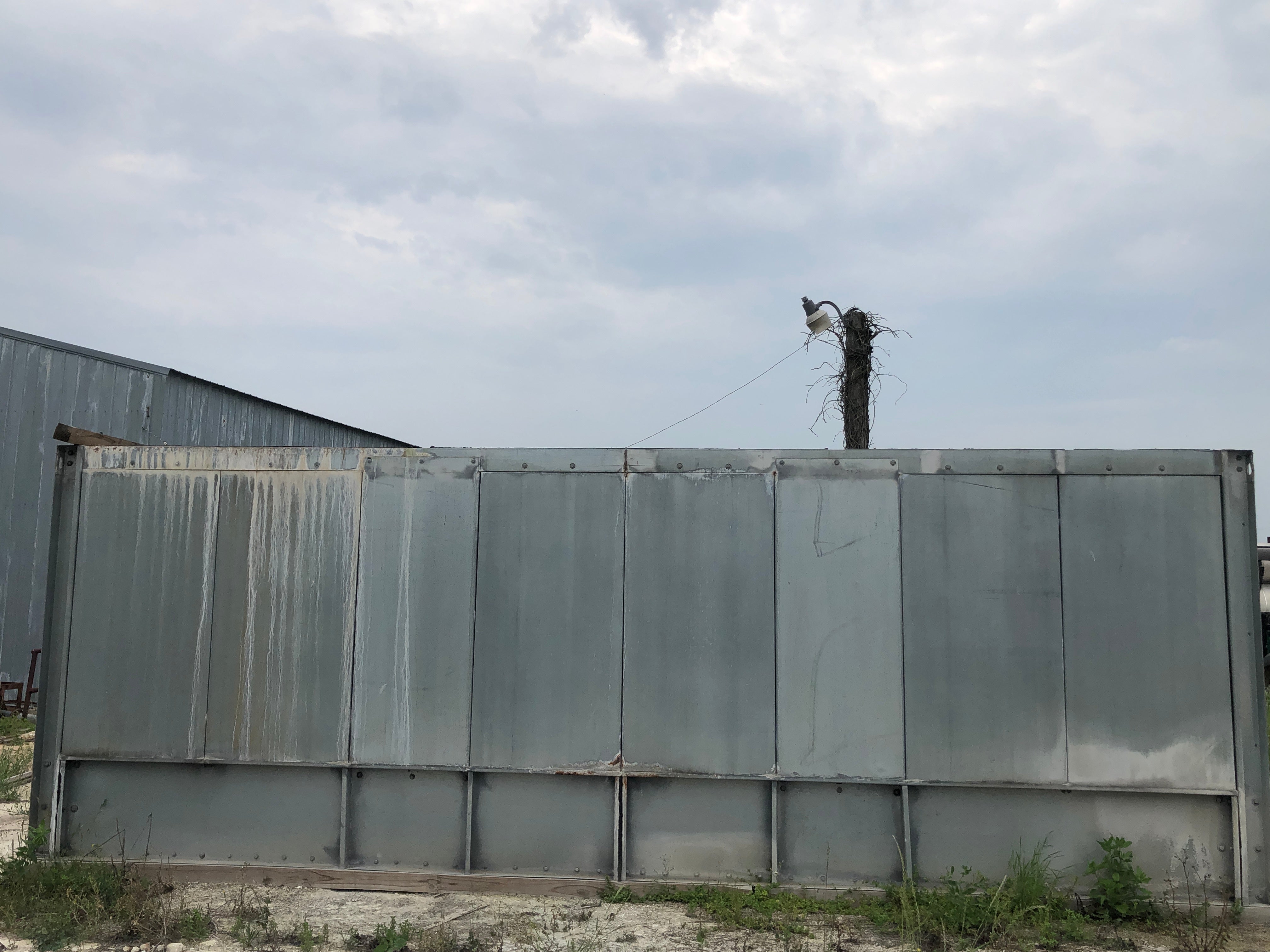

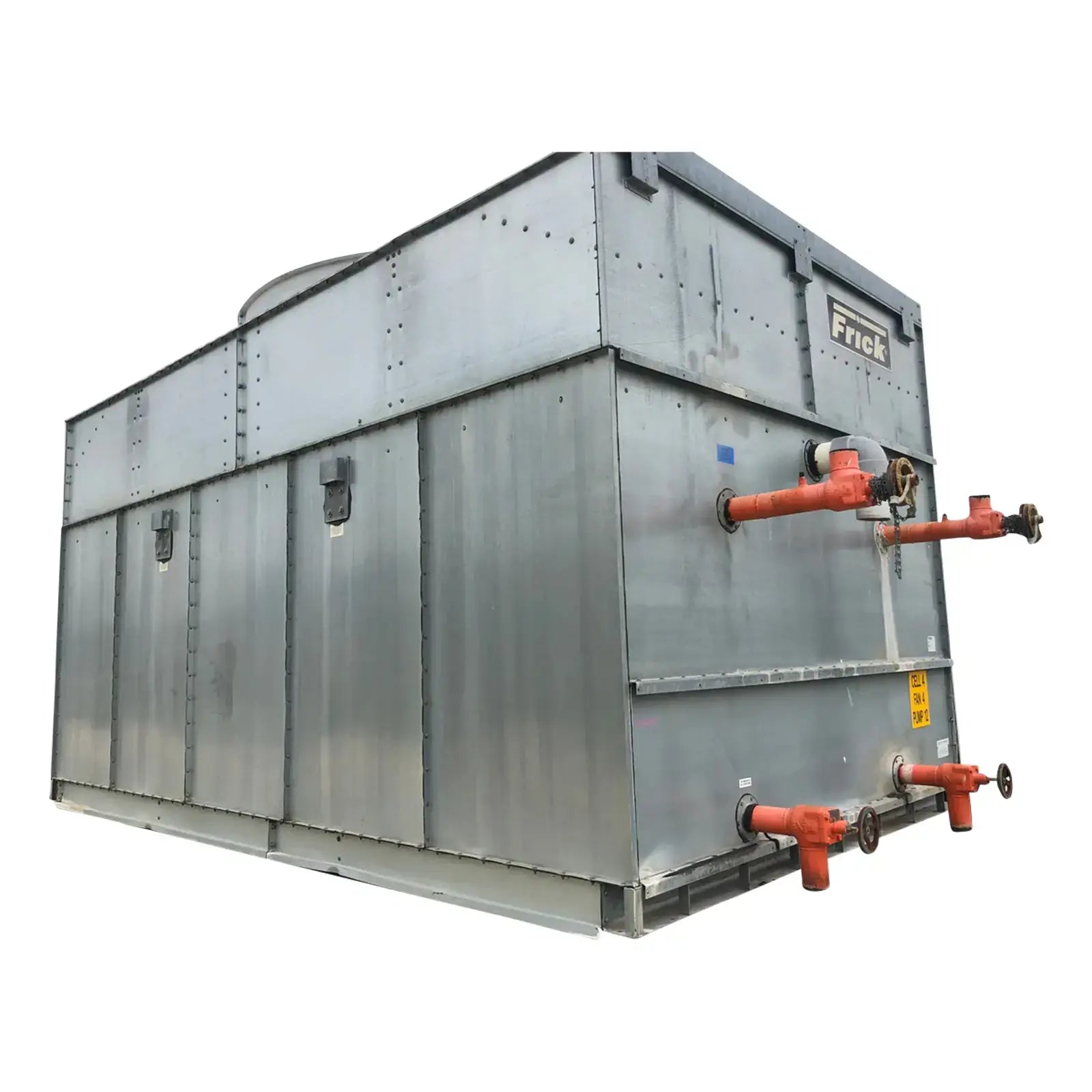

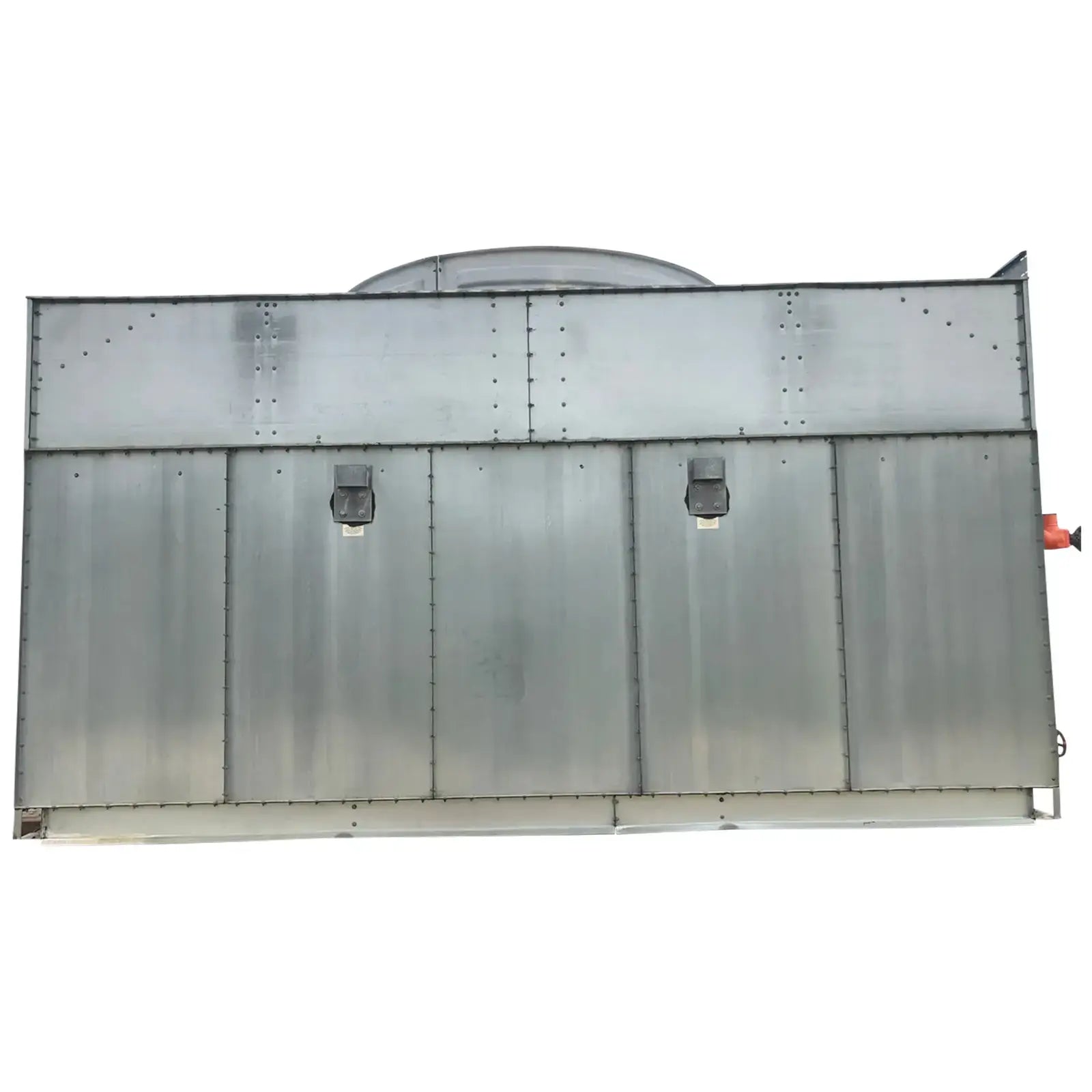

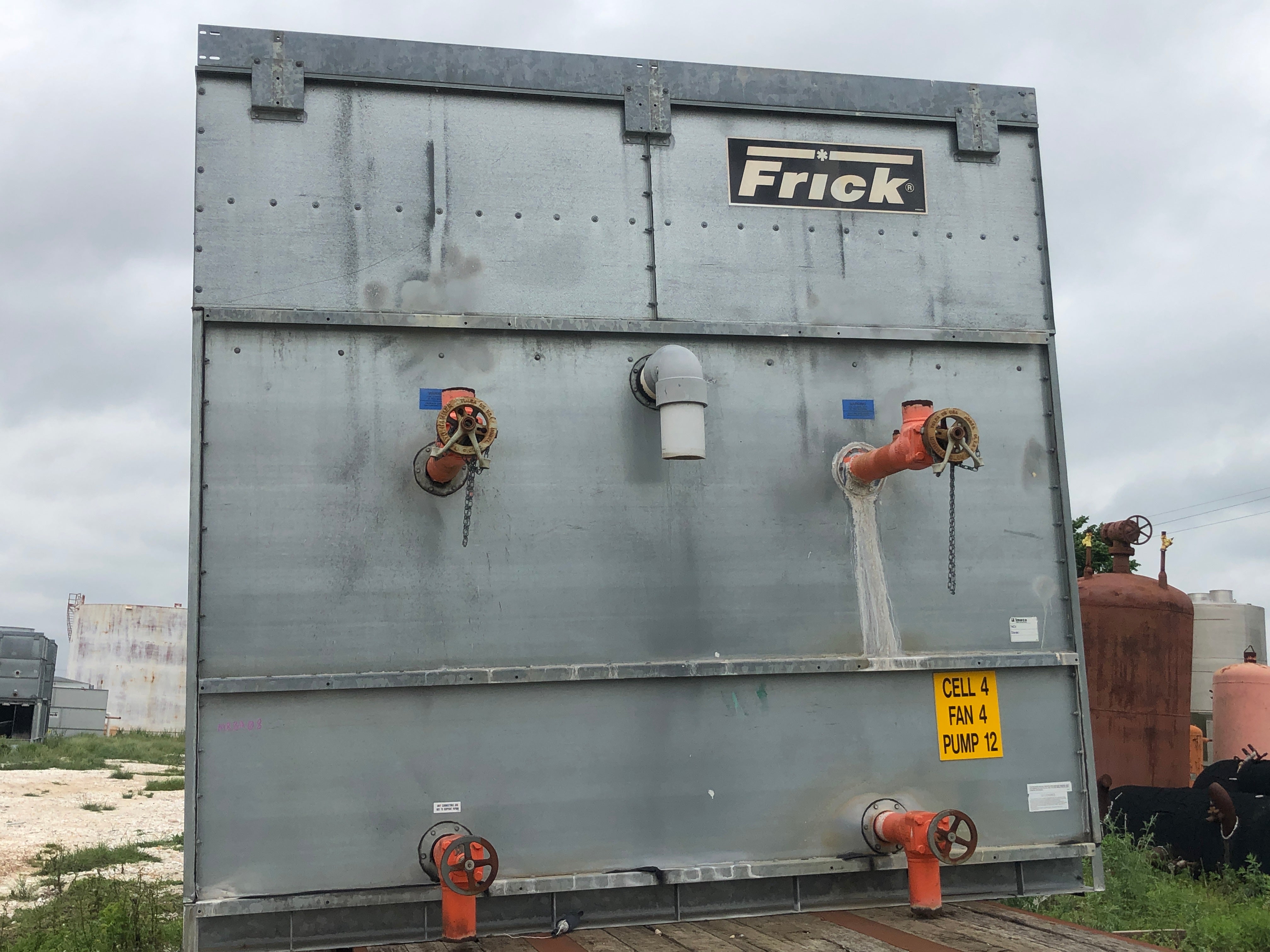

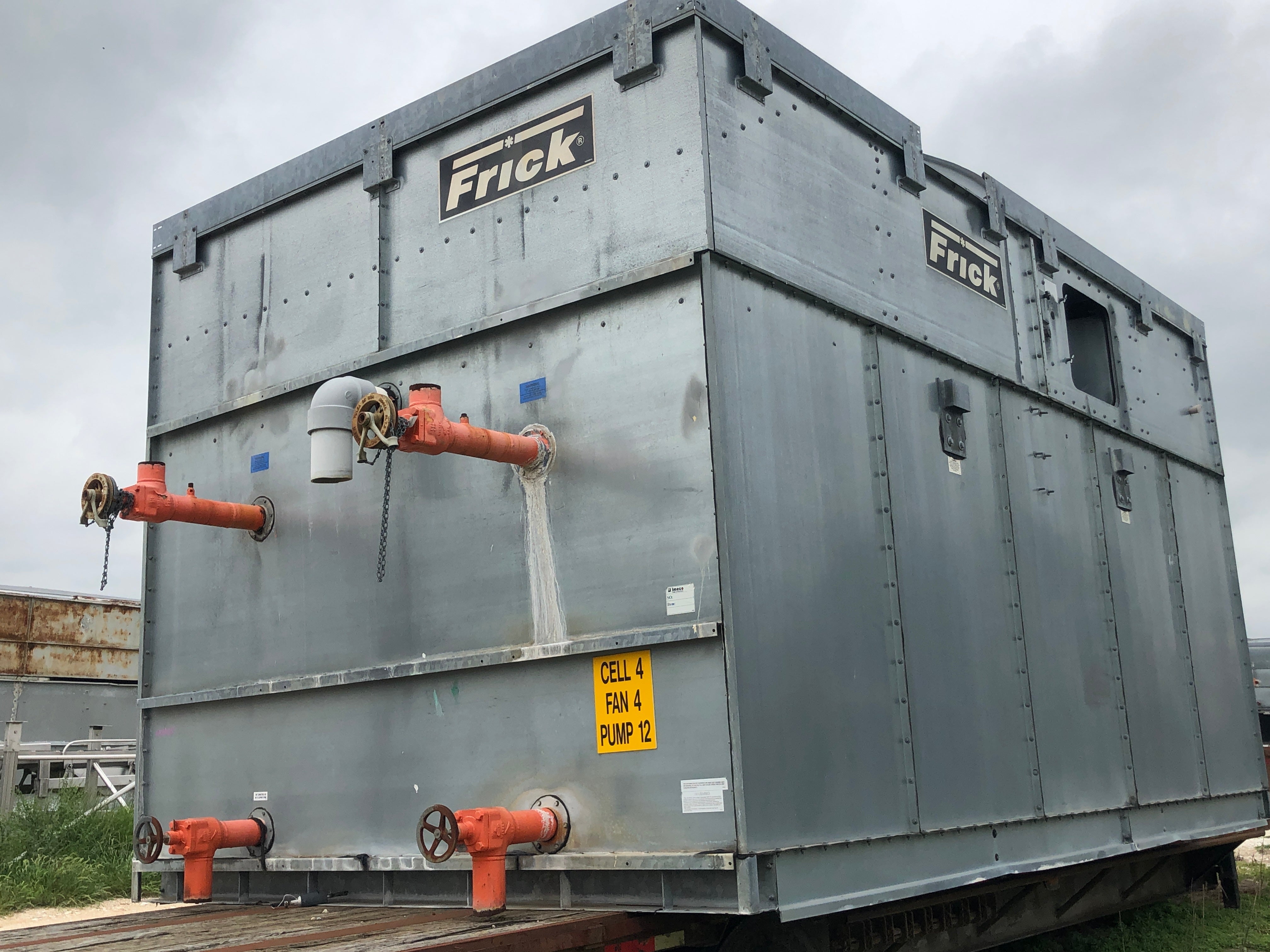

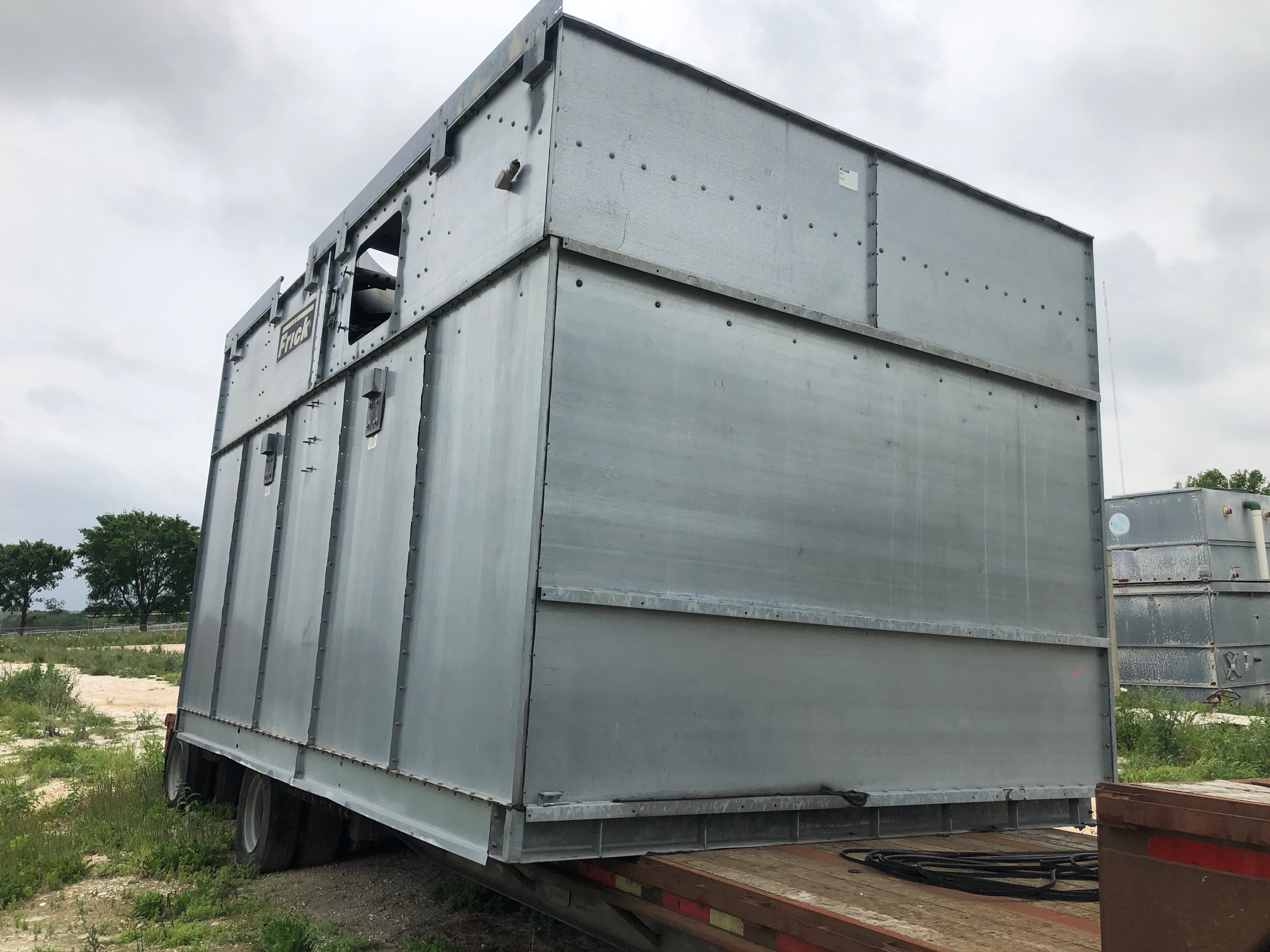

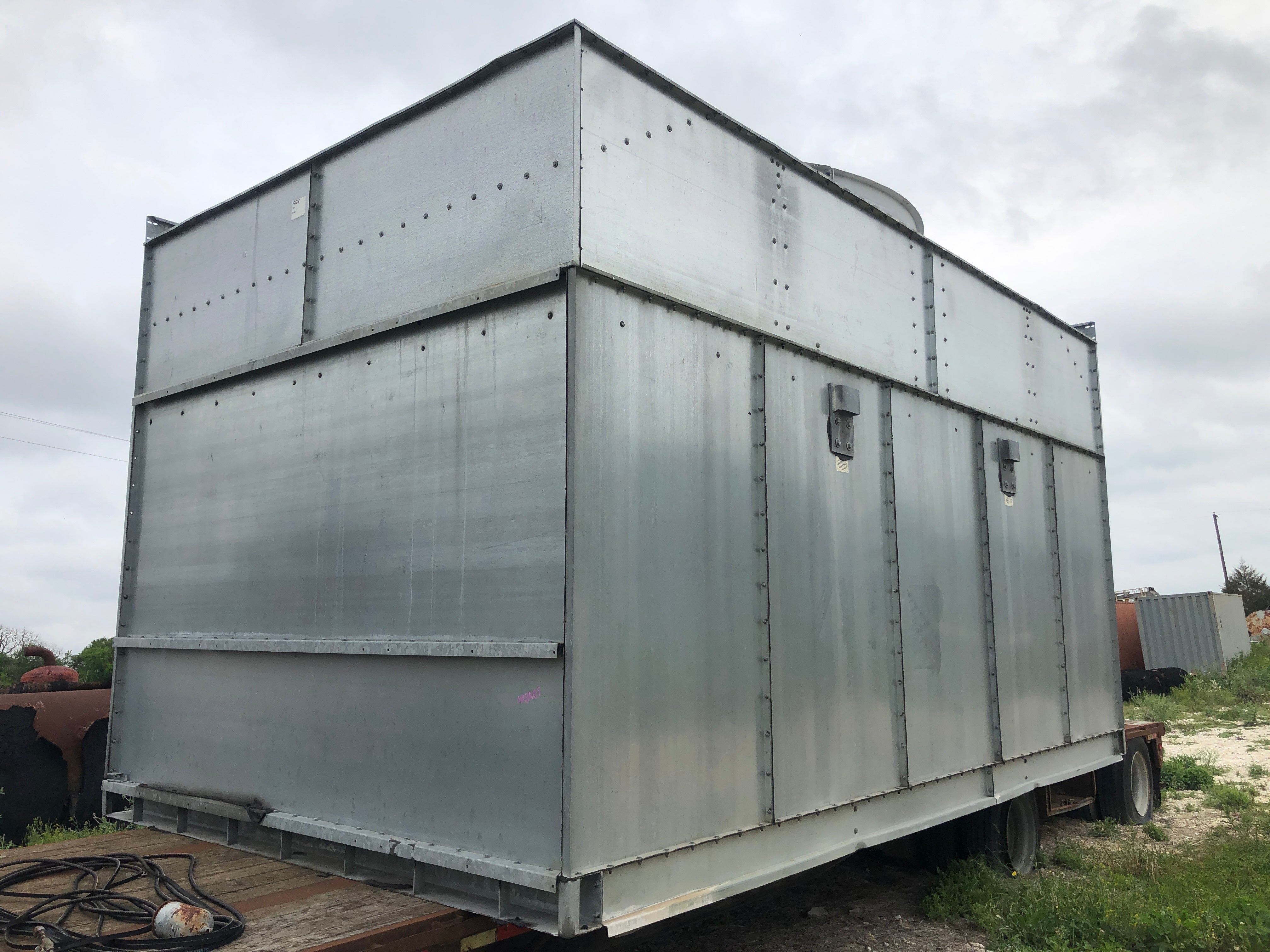

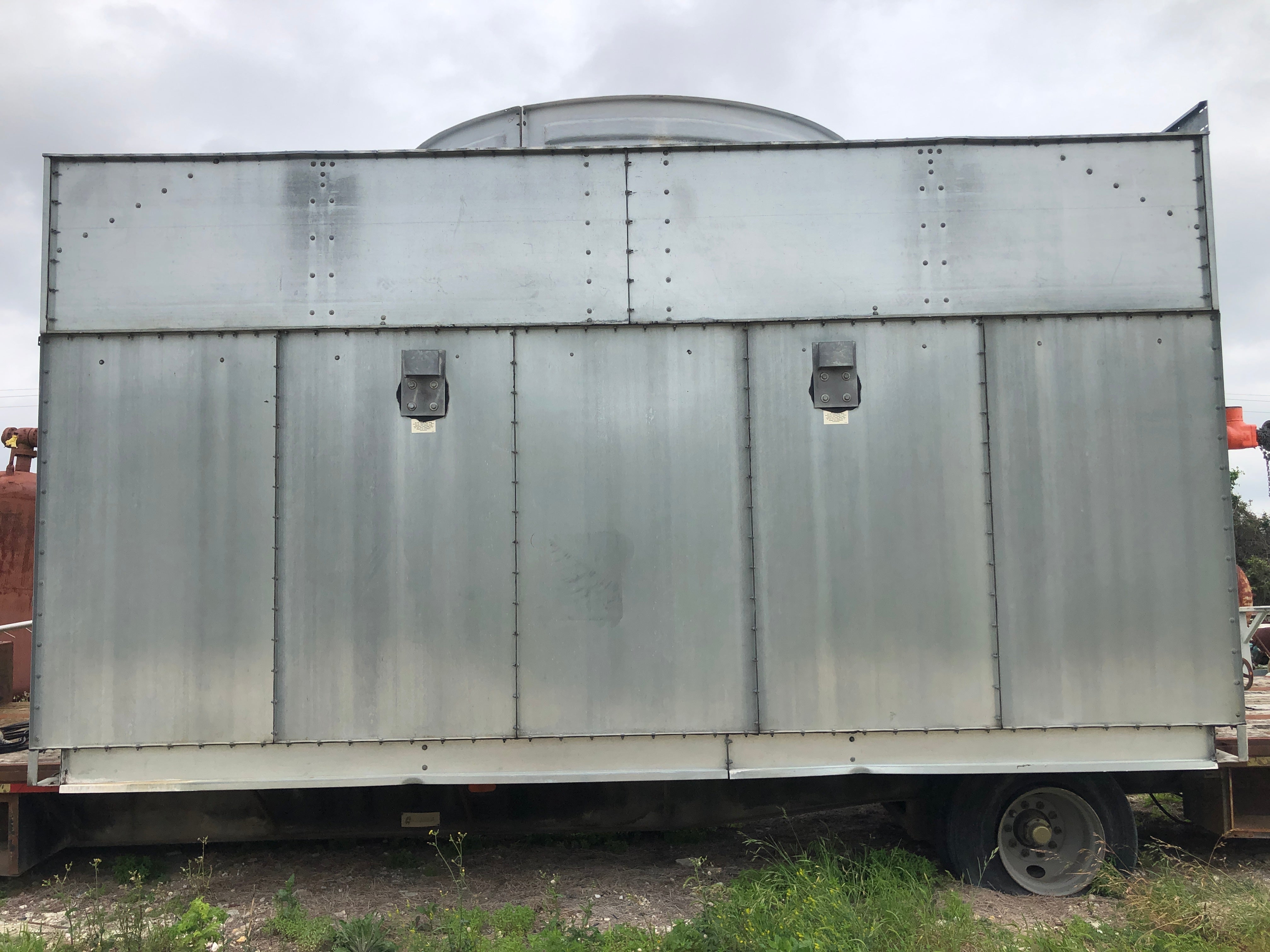

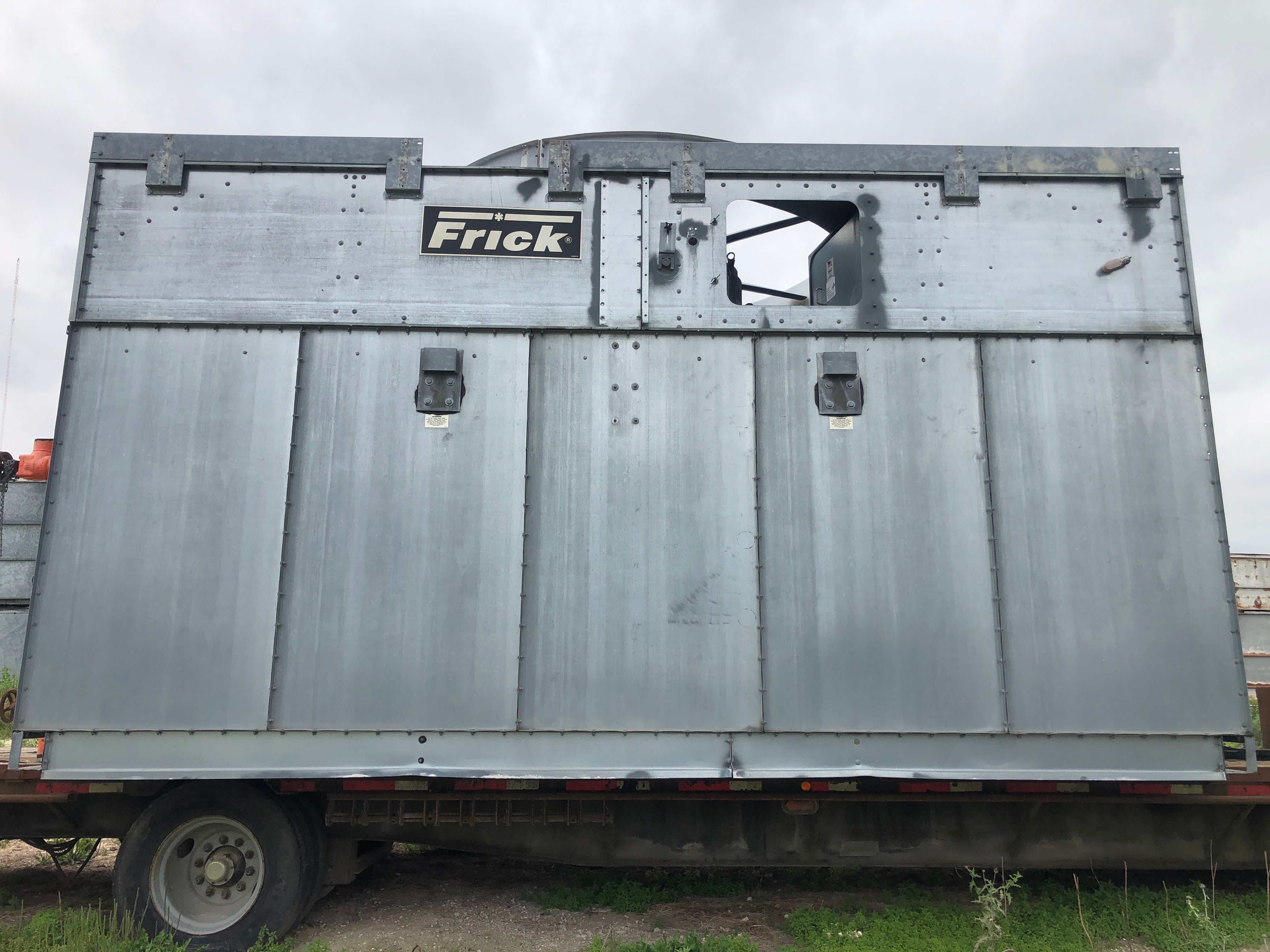

Frick (York) IDC 3610-4Q Evaporative Condenser Tower (1 tower units, 900 Ton)
Year of Manufacture: 2005
Number Units in Package: 1 (only 1 of the 4 pictured remaining)
Nominal Tons (total): 900 TR*
Ammonia Tons (total): 638 TR*
CFM (total): 155125 CFM
R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Design pressure: 300 PSIG
Pump Requirements (per unit): 7.5HP 715 GPM
Pump Included? No, can purchase separately
Fan Details (per unit): 50 HP, 460V, 57 FLA, 60 Hz, 3-phase

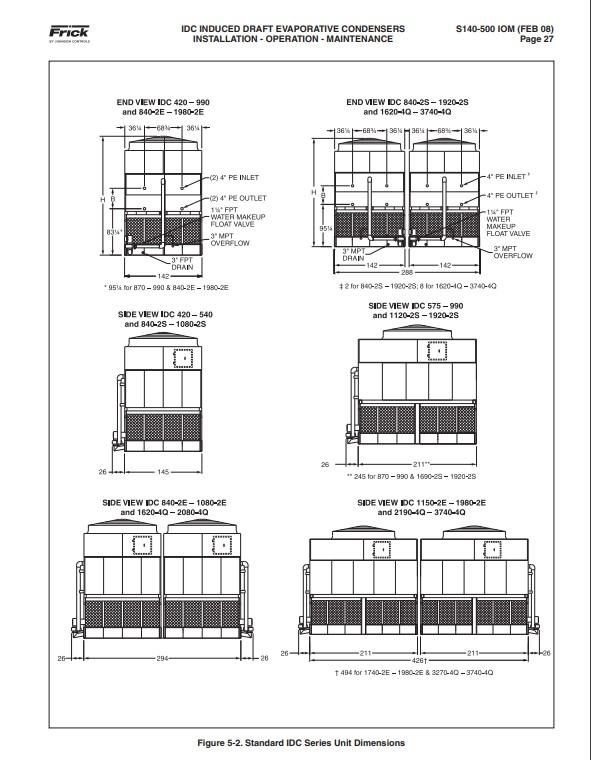

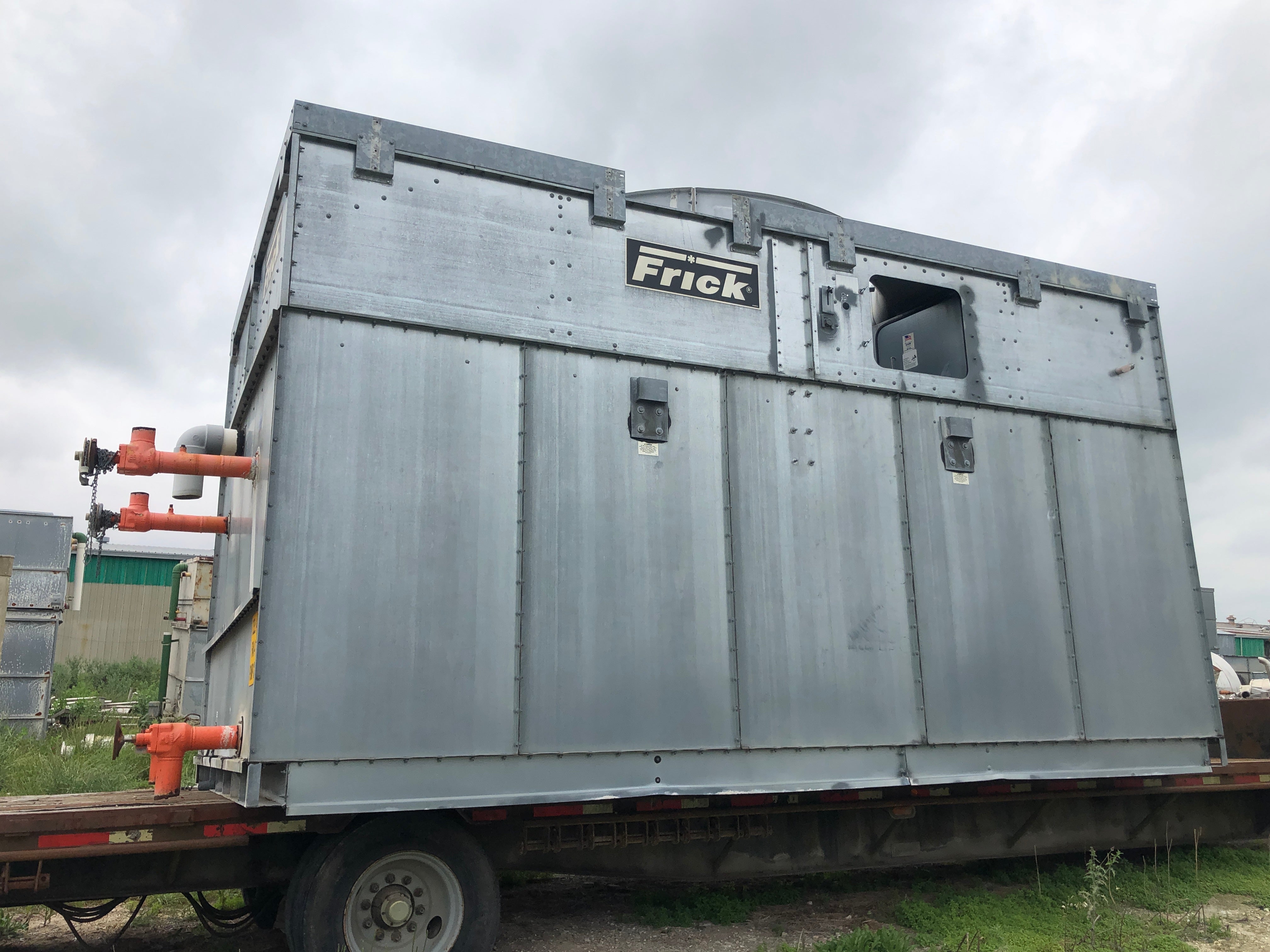

Top Dimensions (per unit): 22'8 L x 12' W x 9'8 H
Top Weight (per unit): 28,013 LBS

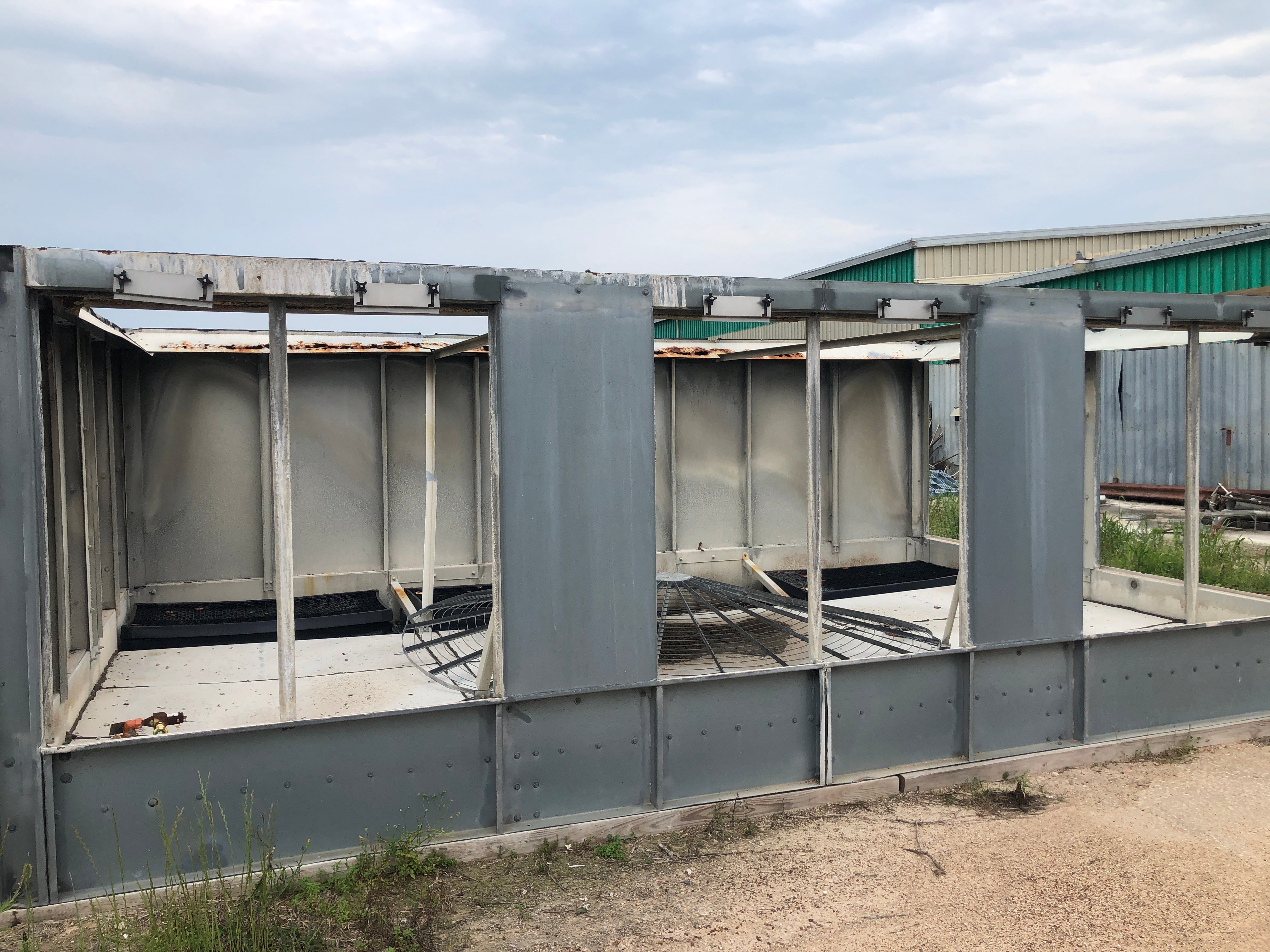

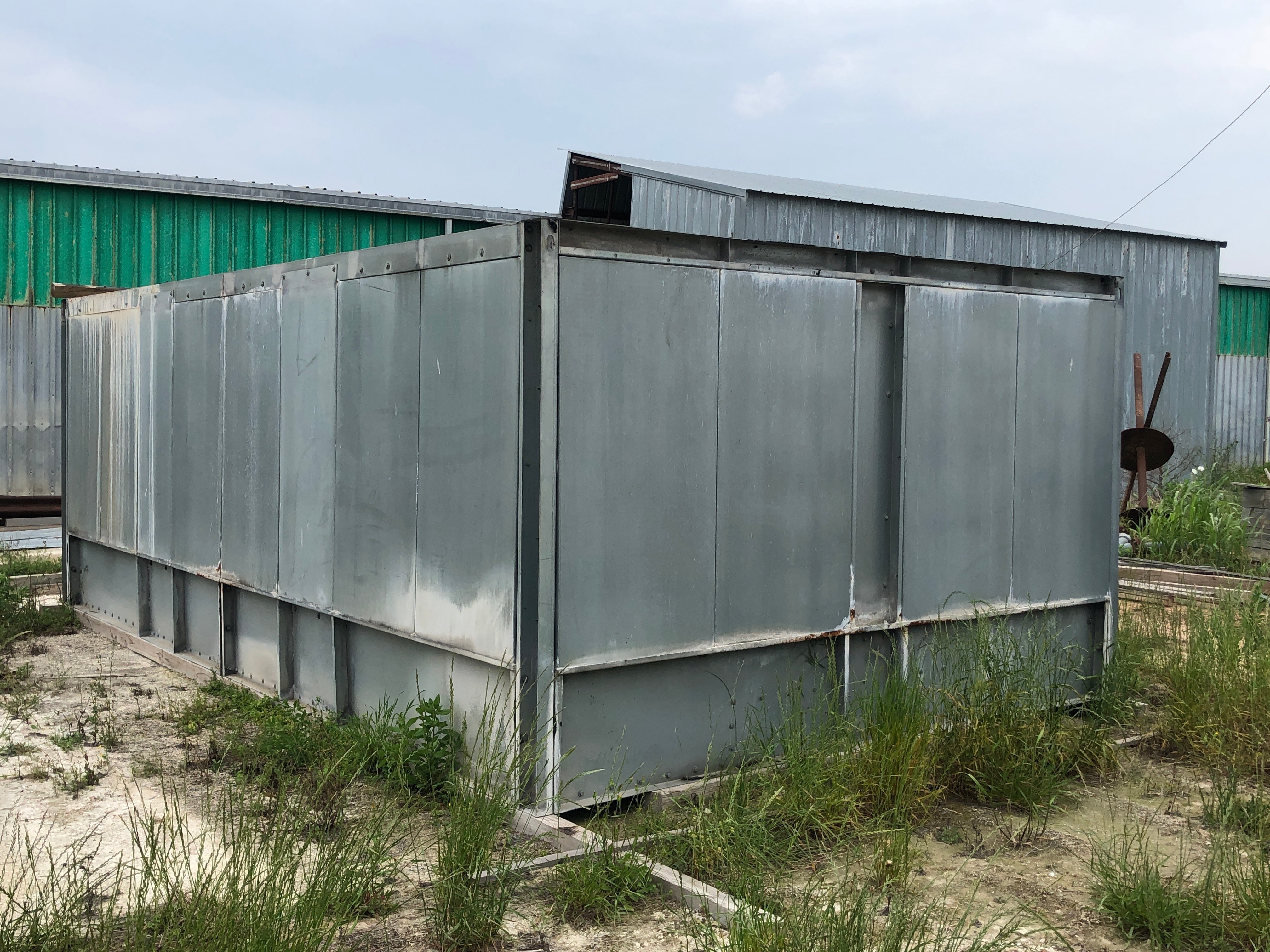

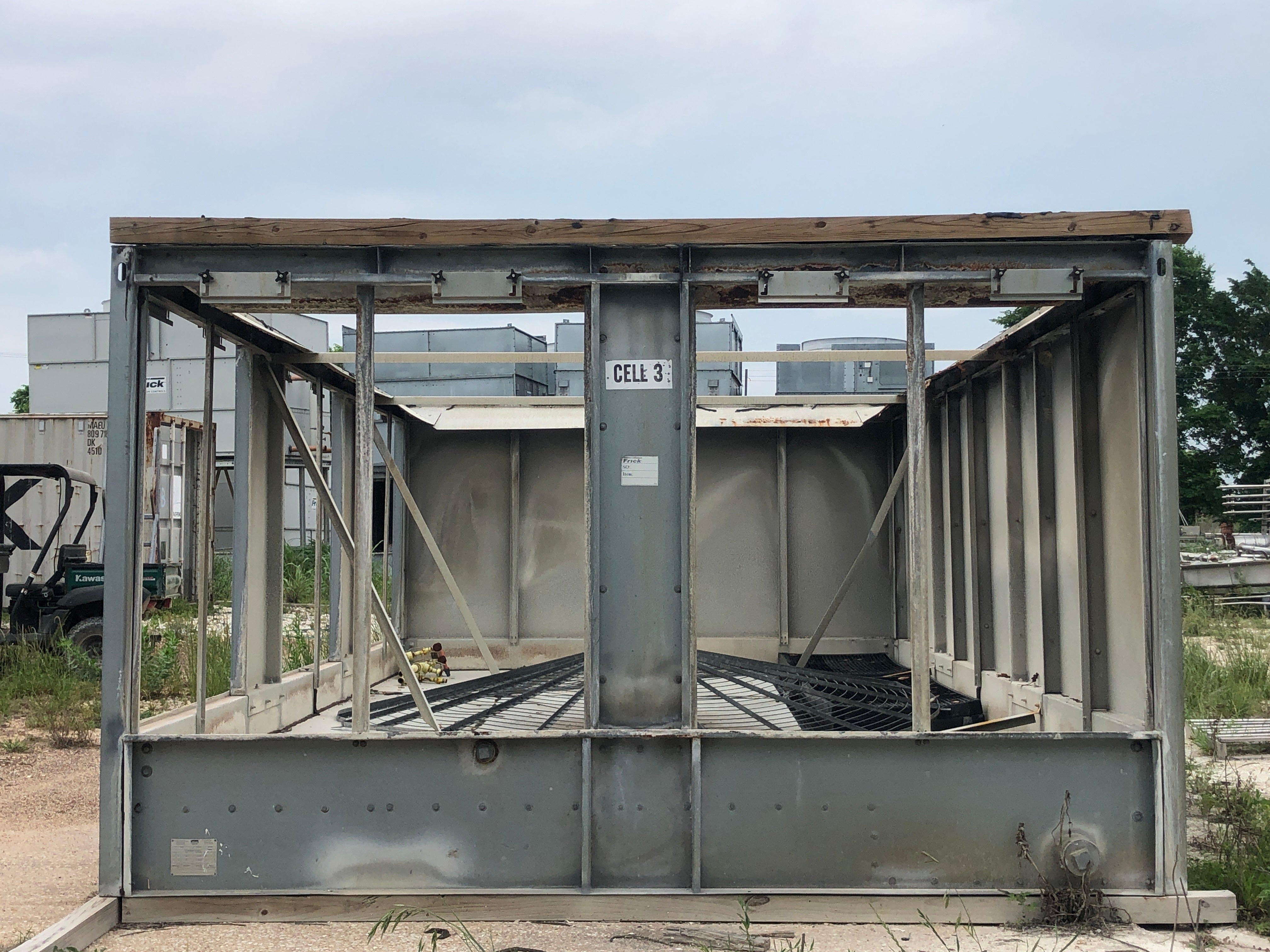

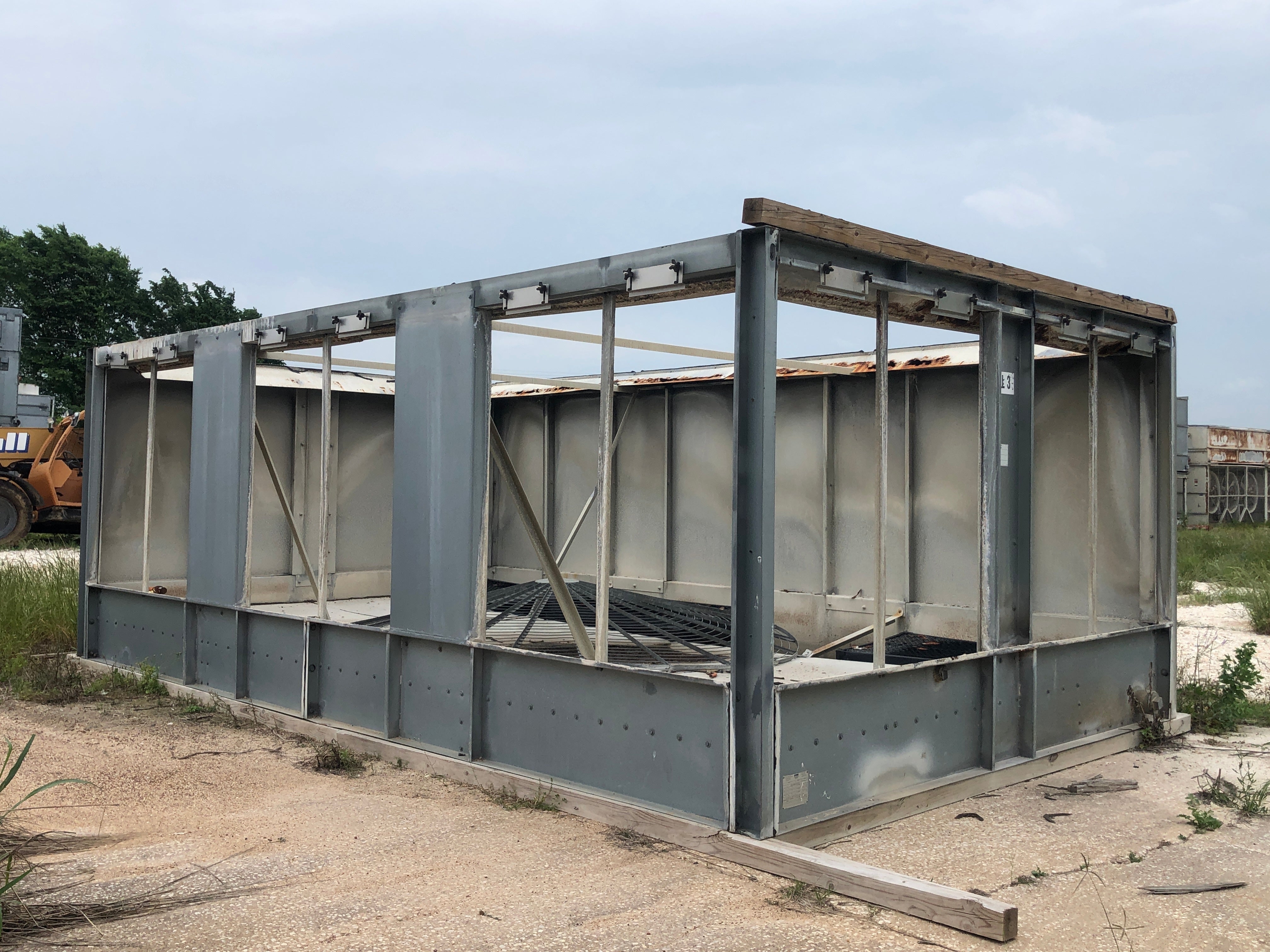

Bottom Dimensions (per unit): 22'8 L x 12' W x 8' H
Bottom Weight (per unit): 7,320 LBS
*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb
Can sell one tower unit from a group upon request for a fee. Please request as needed.
Number Units in Package: 1 (only 1 of the 4 pictured remaining)
Nominal Tons (total): 900 TR*
Ammonia Tons (total): 638 TR*
CFM (total): 155125 CFM
R-717 (ammonia) or R22 (freon). Last run with Ammonia.
Design pressure: 300 PSIG
Pump Requirements (per unit): 7.5HP 715 GPM
Pump Included? No, can purchase separately
Fan Details (per unit): 50 HP, 460V, 57 FLA, 60 Hz, 3-phase
Top Dimensions (per unit): 22'8 L x 12' W x 9'8 H
Top Weight (per unit): 28,013 LBS
Bottom Dimensions (per unit): 22'8 L x 12' W x 8' H
Bottom Weight (per unit): 7,320 LBS
*Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb
Can sell one tower unit from a group upon request for a fee. Please request as needed.
Product Details
- Stock No: MRBA08
- Manufacturer: Frick
- Model: IDC 3610-4Q
- Serial Number: 41724-100
Condenser Details
- Multiple Units Included in Package? No
- # Units included in Package: 1
- Unit Nominal Tons (TR): 900
- Unit Ammonia Tons (TR): 638
- Unit CFM (CFM): 155125
- Design Pressure (PSI): 300
Condenser Dimensions
- Top Length (Inches): 272
- Top Width (Inches): 144
- Top Height (Inches): 116
- Top Weight (LBS): 28013
- Bottom Length (Inches): 272
- Bottom Width (Inches): 144
- Bottom Height (Inches): 96
- Bottom Weight (LBS): 7320
Pump Details
- Pump Included? No
- Pump Recommended HP: 7.5
- Pump Recommended Gallons per Minute (GPM): 715
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

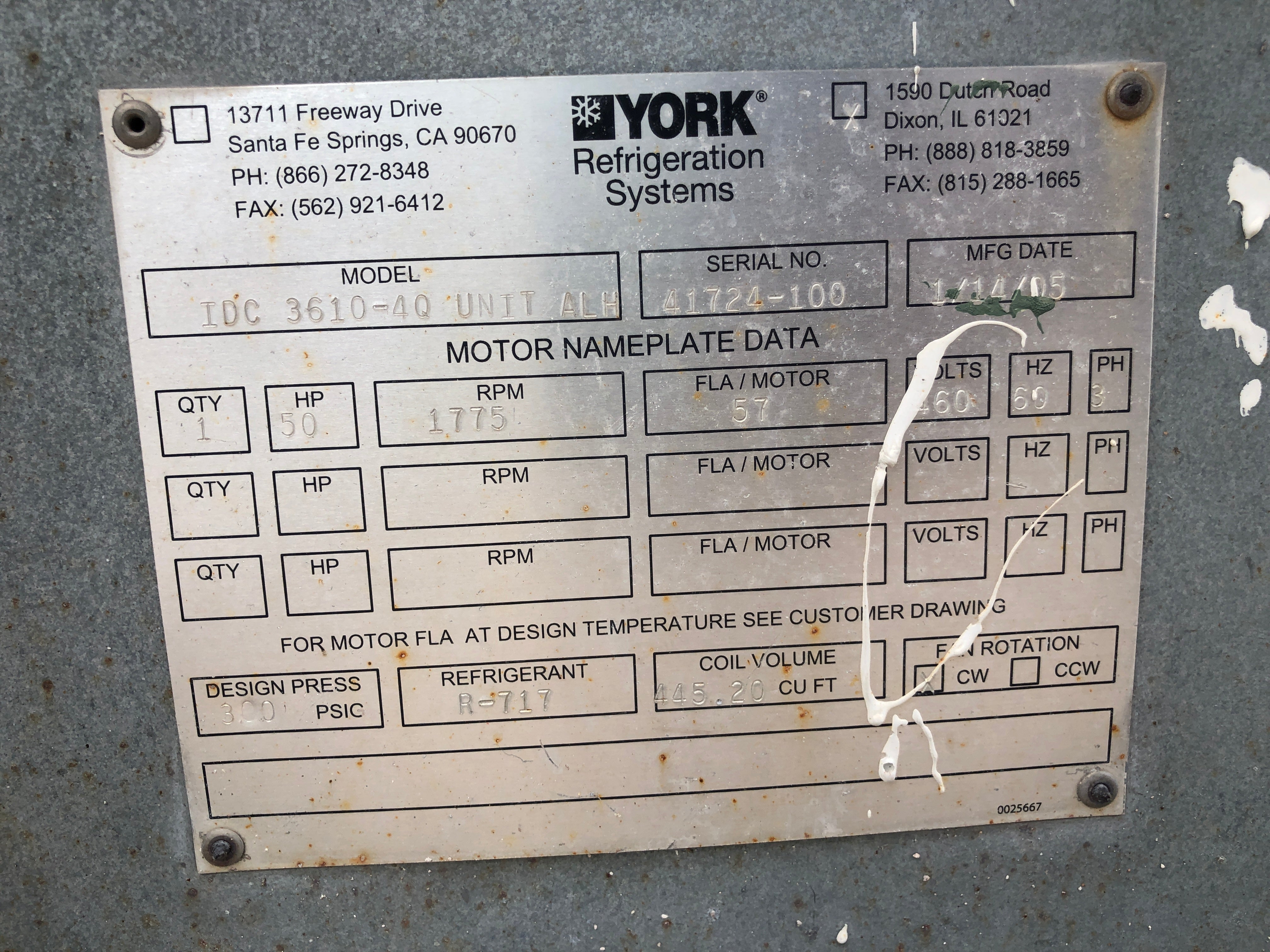

Motor Details
- Motor Included? Yes
- Motor Horsepower(HP): 50
- Motor RPM: 1775
- Motor Voltage: 460
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
Additional Product Details
- Year of Manufacture: 2005
