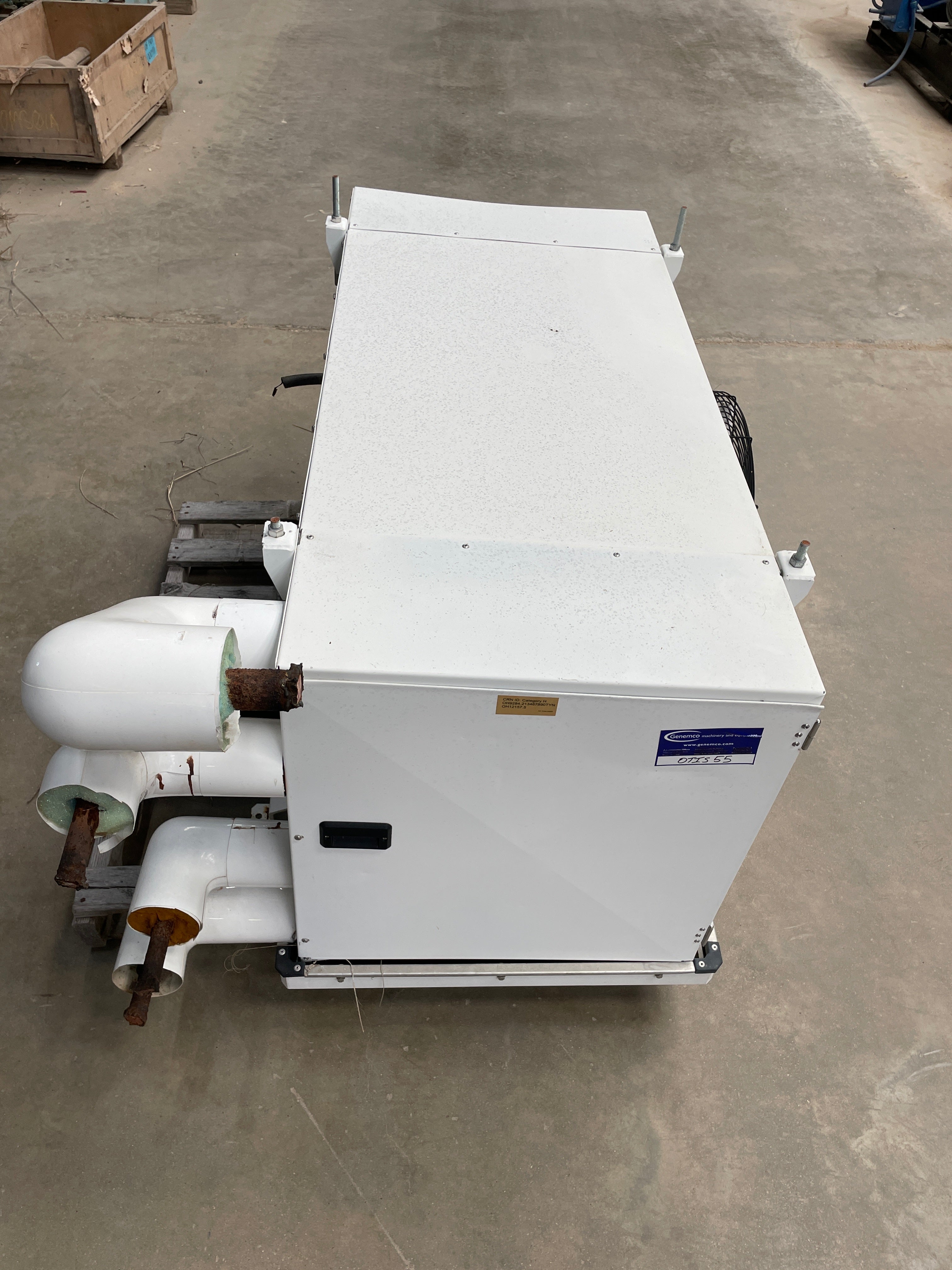

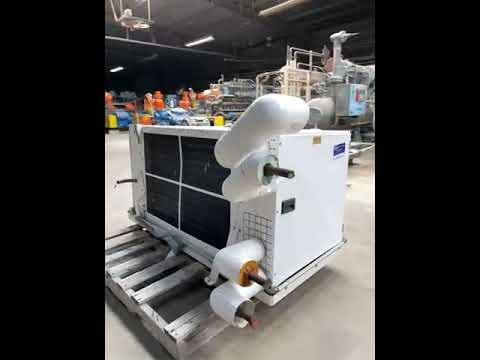

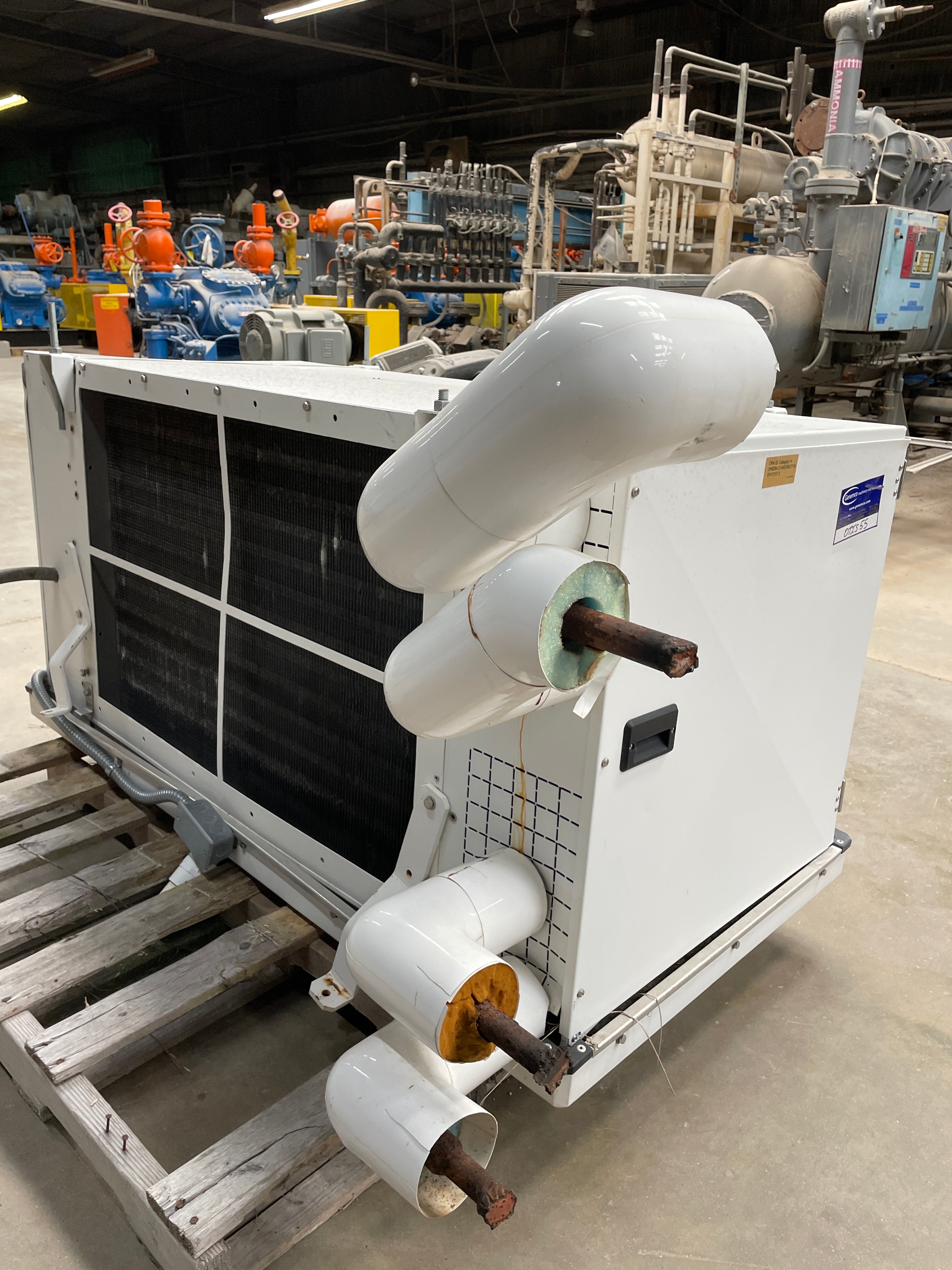

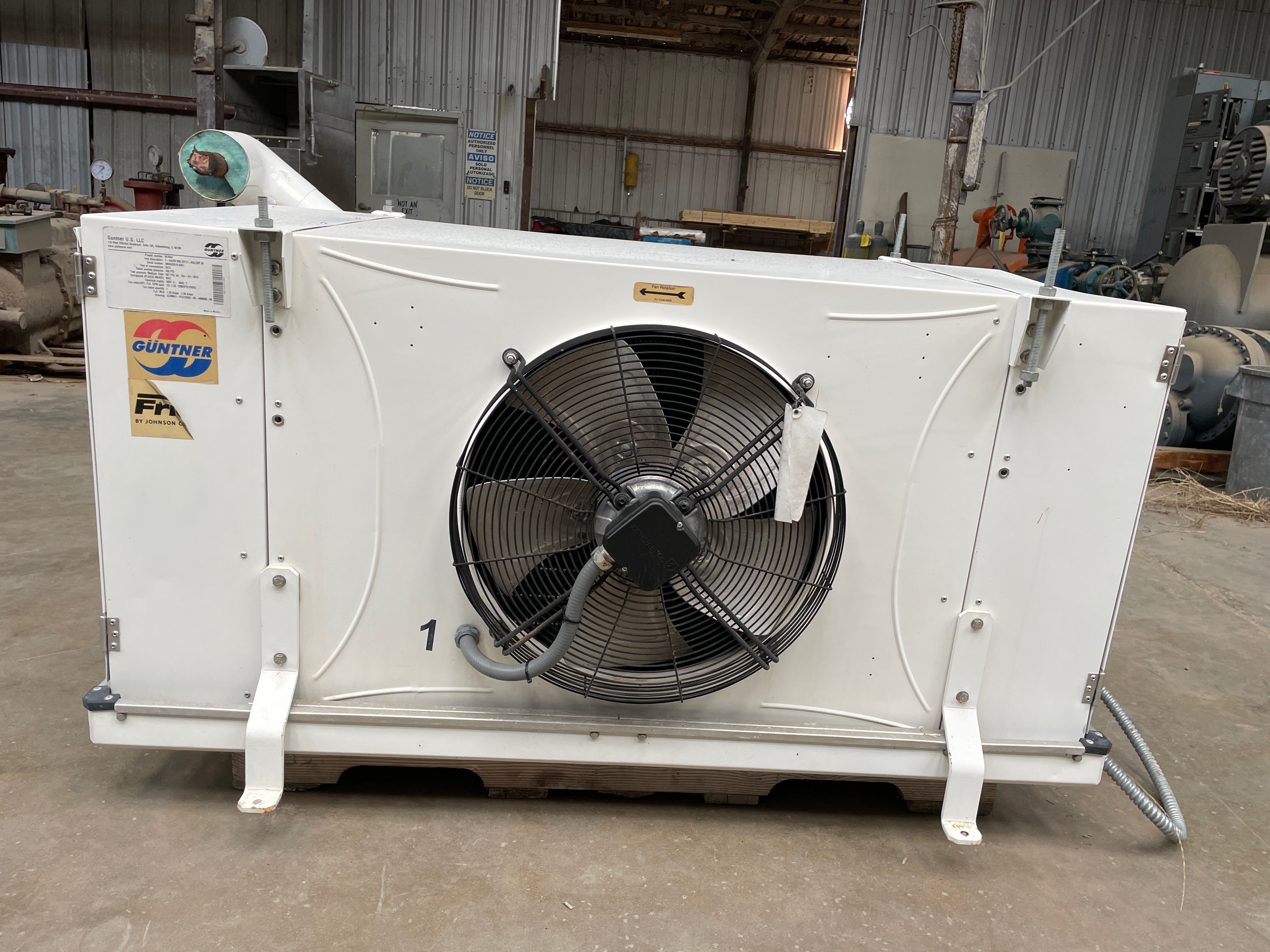

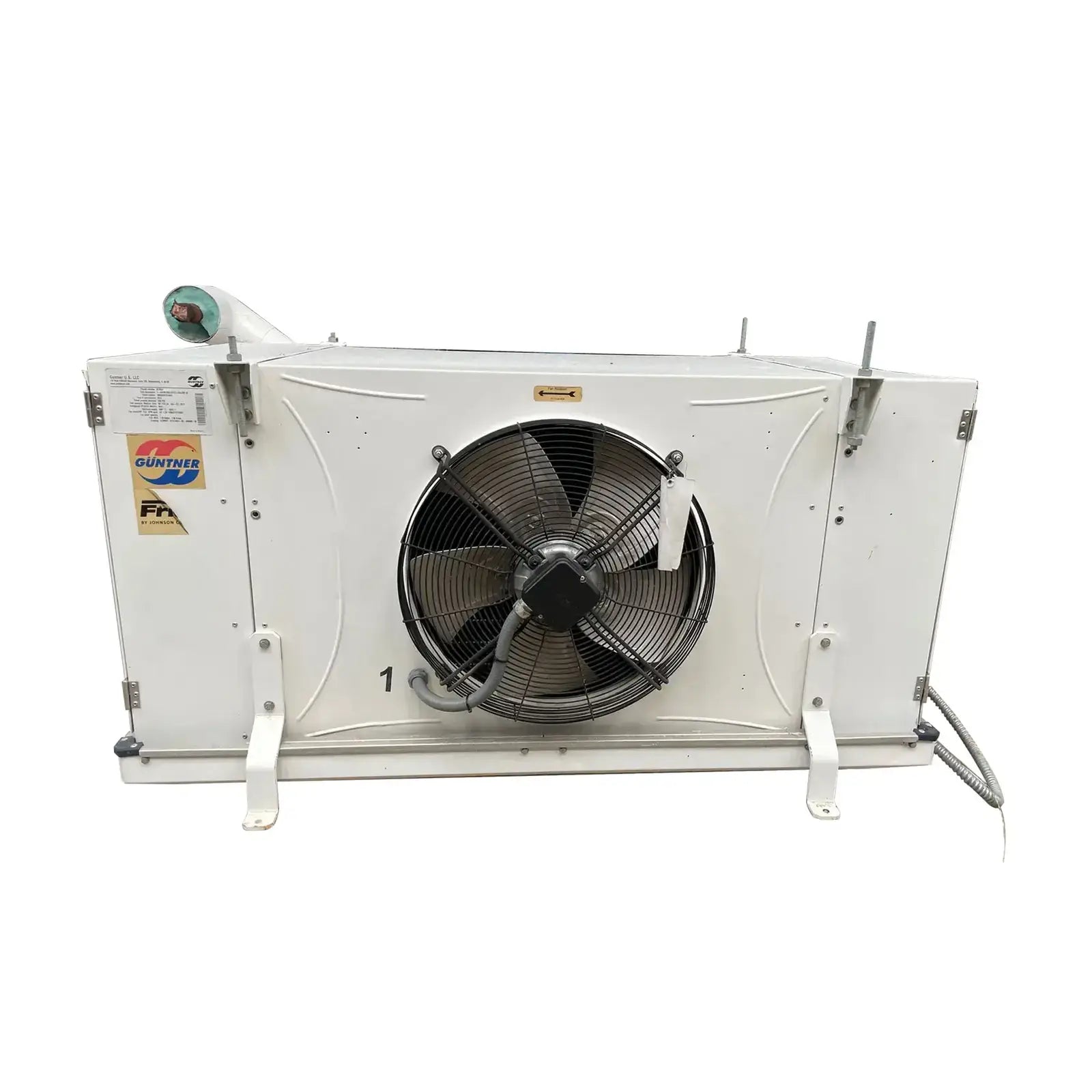

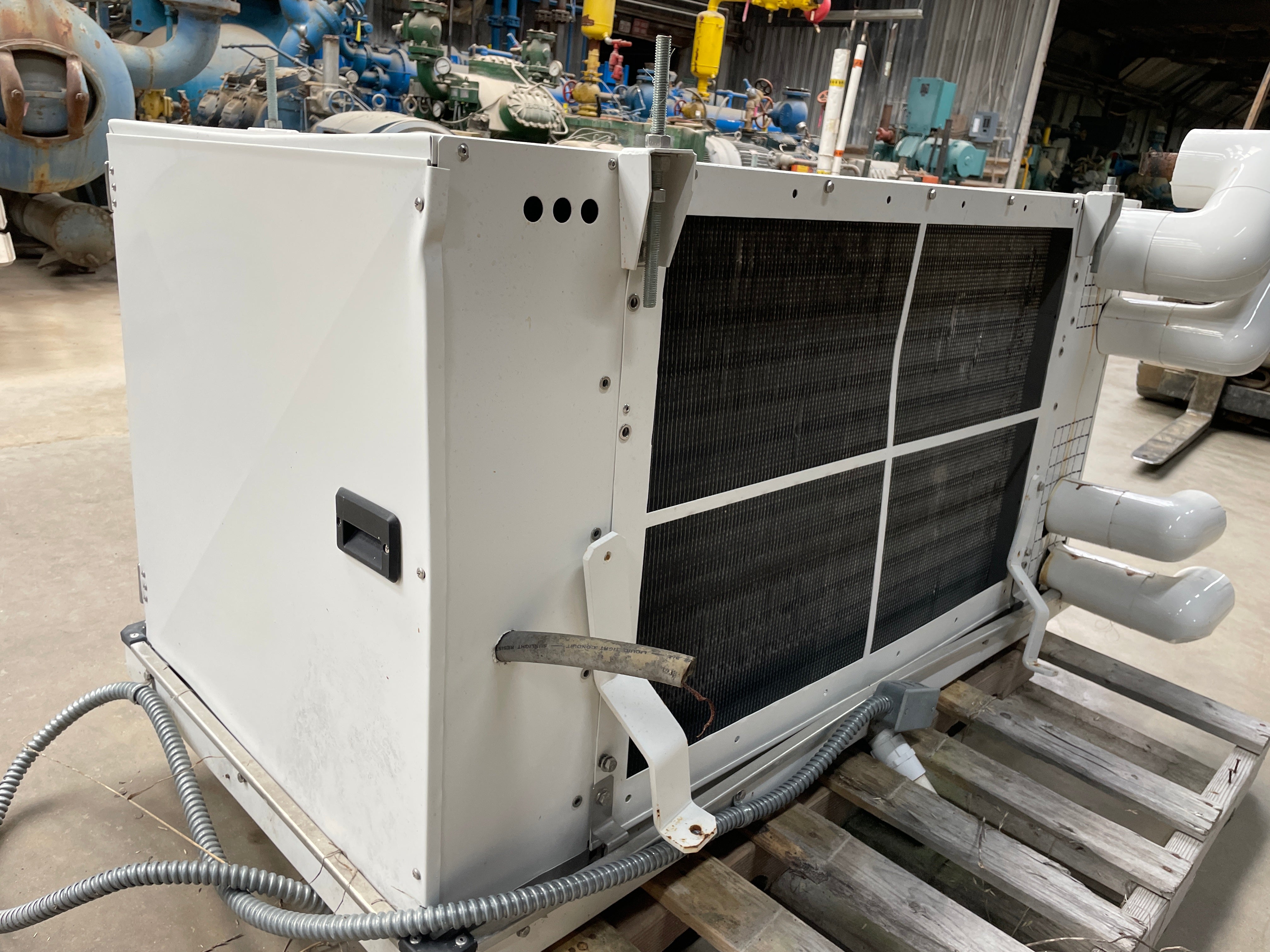

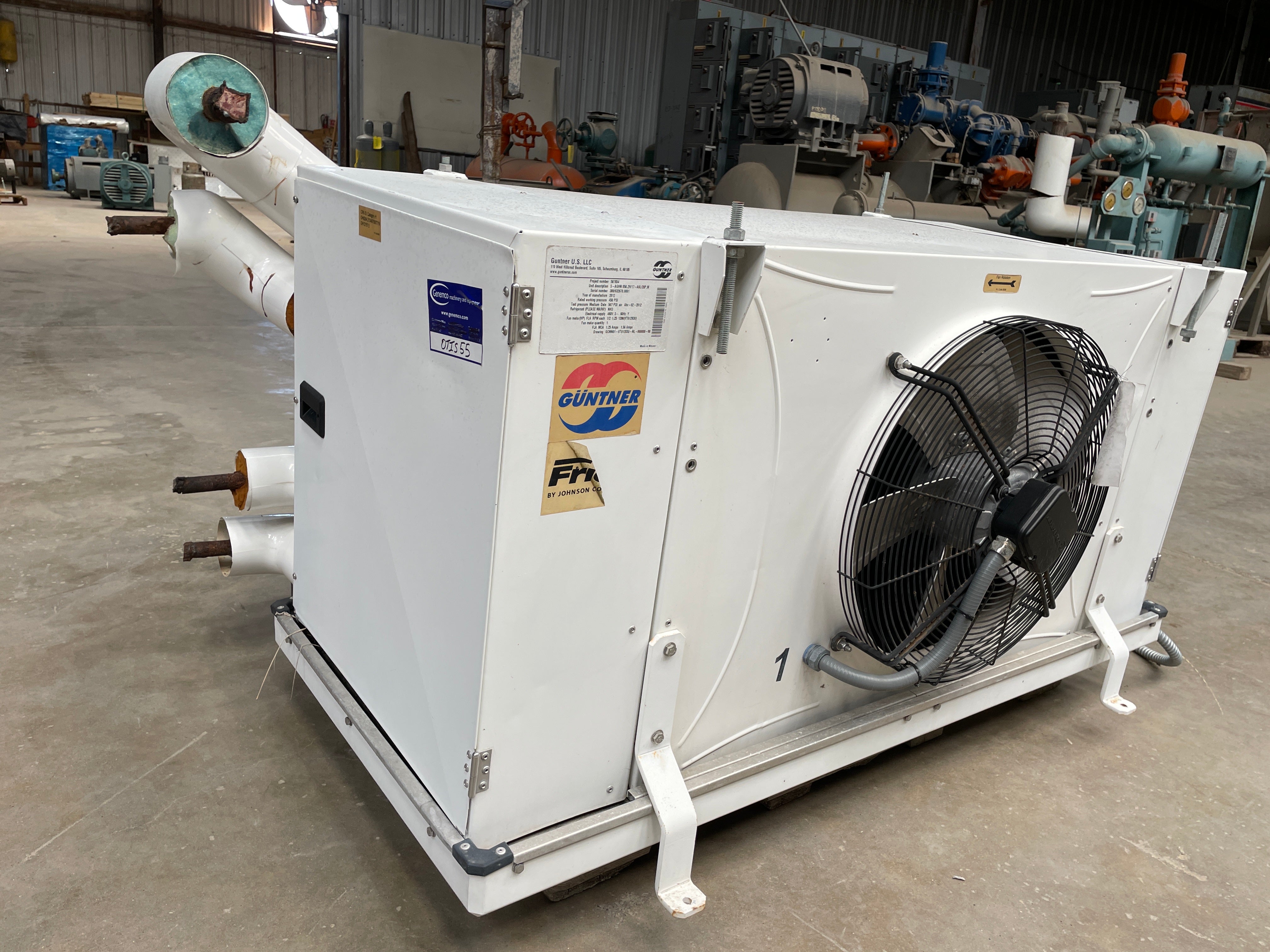

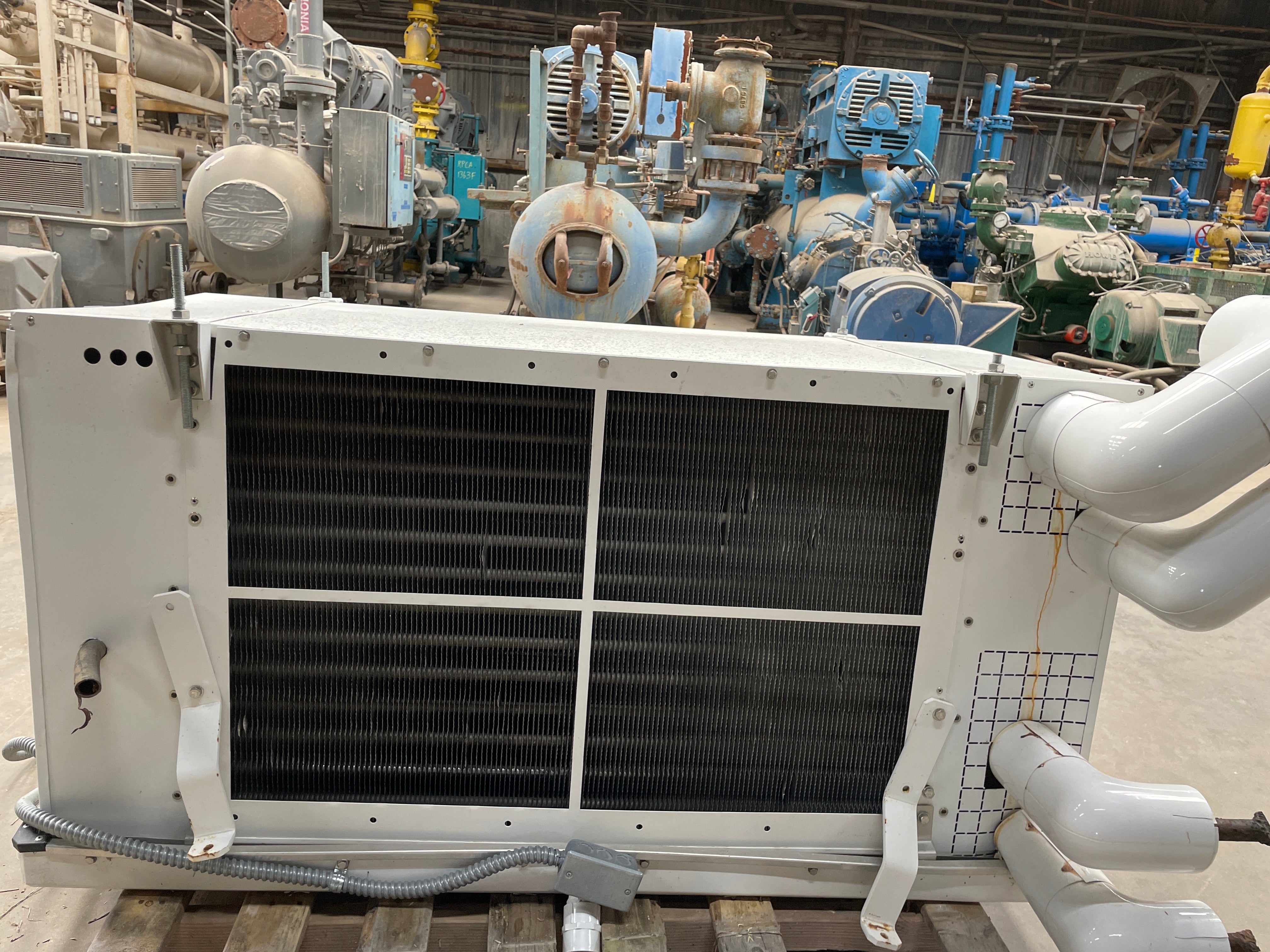

Guntner AGHN050.2F 507654 Ammonia Evaporator Coil- 4 TR, 1 Fans (Low/Medium Temperature)
Guntner AGHN 050.2F/16-A0L/28P.M Ammonia Evaporator Coil- 4TR, 1 Fan (Low/Medium Temperature) This evaporator can be used with Low or Medium temperature coils. A wet capacity of 2911 (BTUH / °F TD) with an estimated tonnage of 3.64(TR) @15TD. A frosted capacity of 2825 (BTUH / °F TD) with an estimated tonnage of 4(TR) @15TD. An Airflow of 3974CFM, with a face velocity of 3974 Fpm. Top fed recirculated air defrosted coils.
Product Details
- Stock No: OTIS55
- Manufacturer: Guntner
- Model: AGHN050.2F 507654

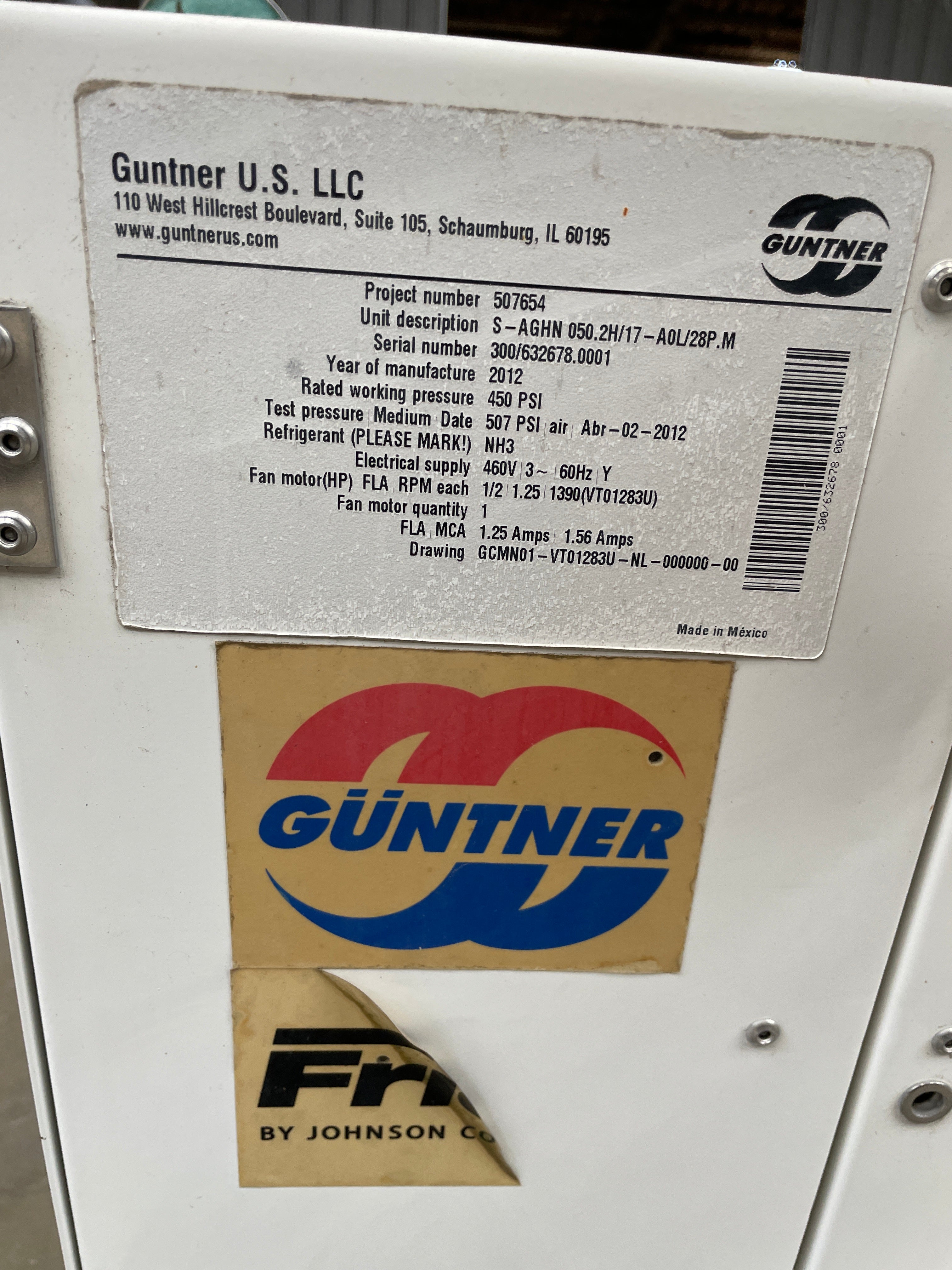

- Serial Number: 300/632678.0001

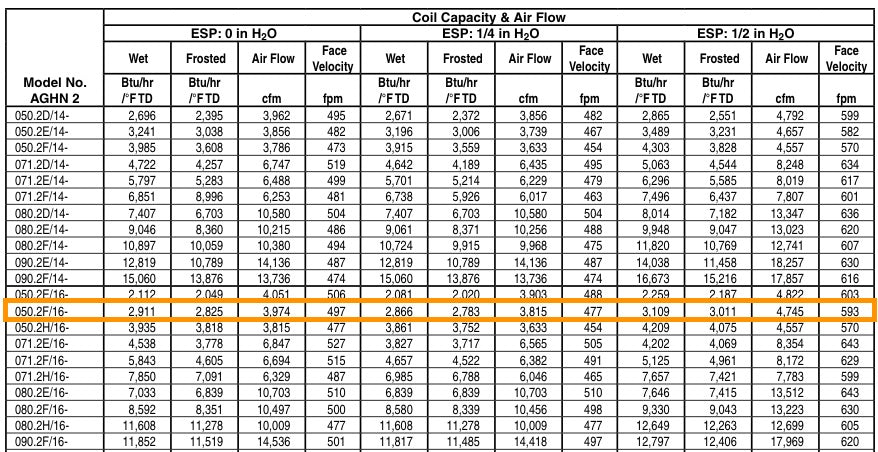

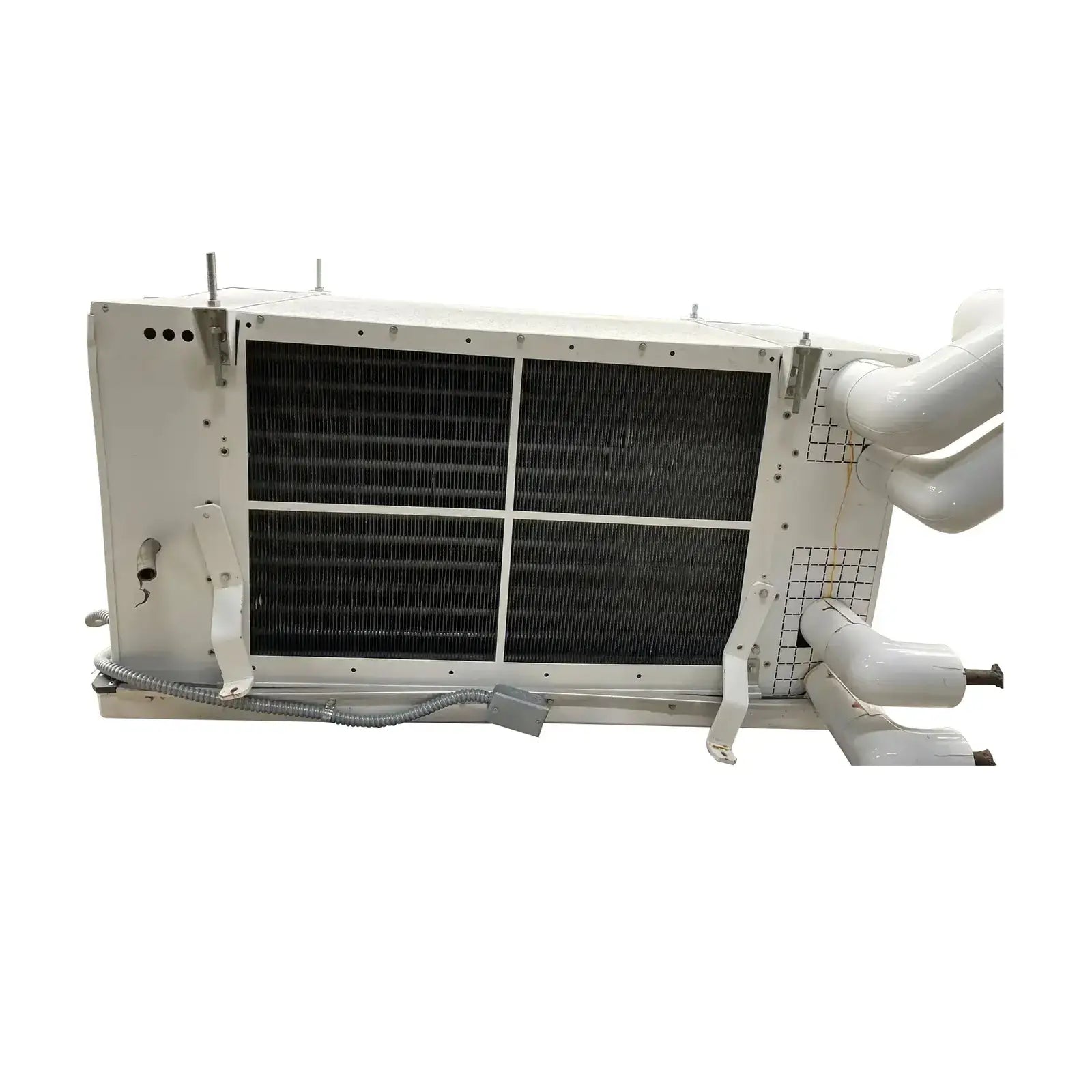

Evaporator Coil Details
- Frosted or Wet Coil: Wet OR Frosted
- Wet Capacity (BTUH/ °F TD): 2911
- Est. Tons (TR) @15TD Wet: 3.6388
- Frosted Capacity (BTUH/ °F TD): 2825
- Est. Tons (TR) @15TD Frosted: 4
- Air Flow (CFM): 3974
- Face Velocity (FPM): 497

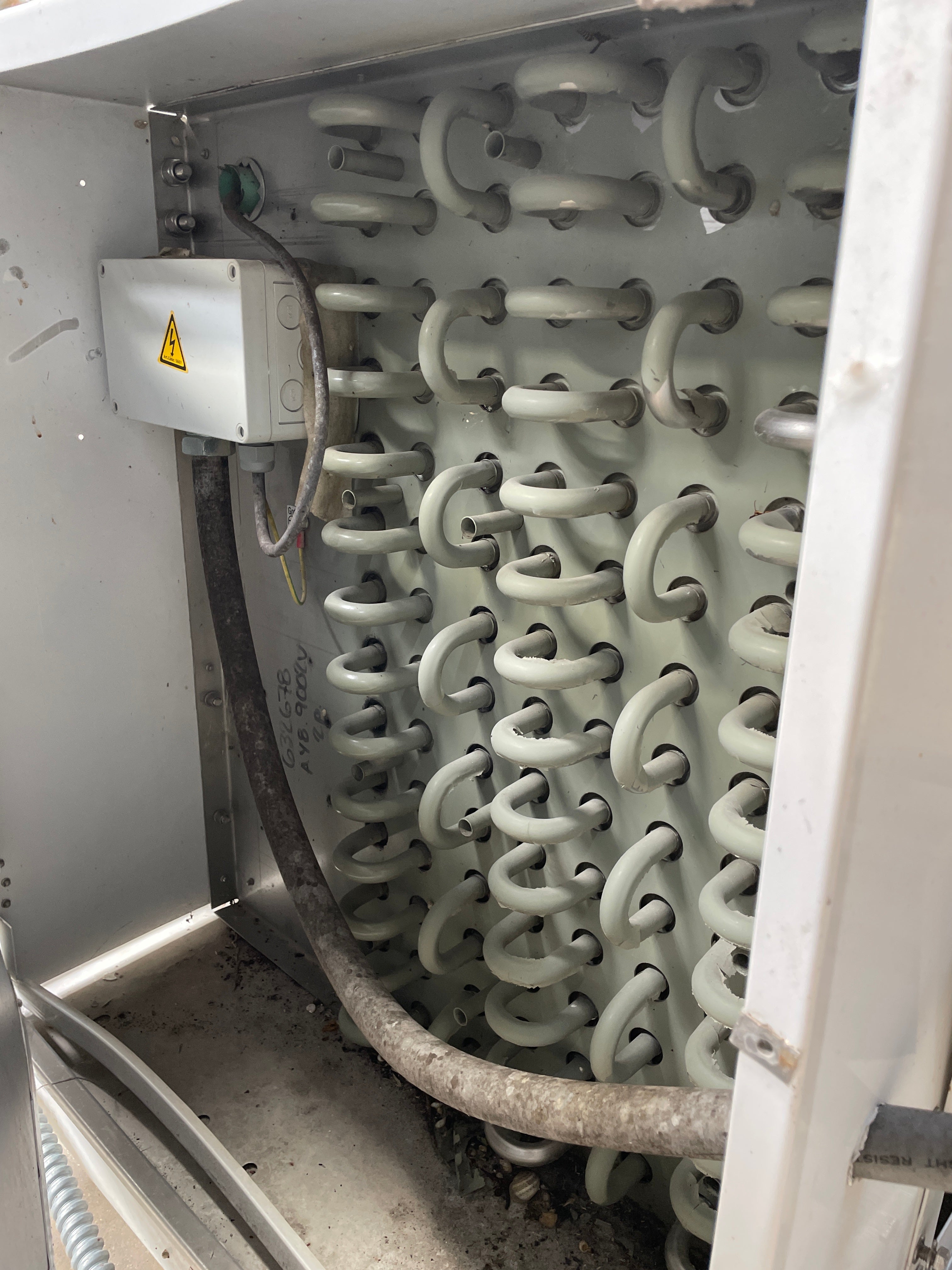

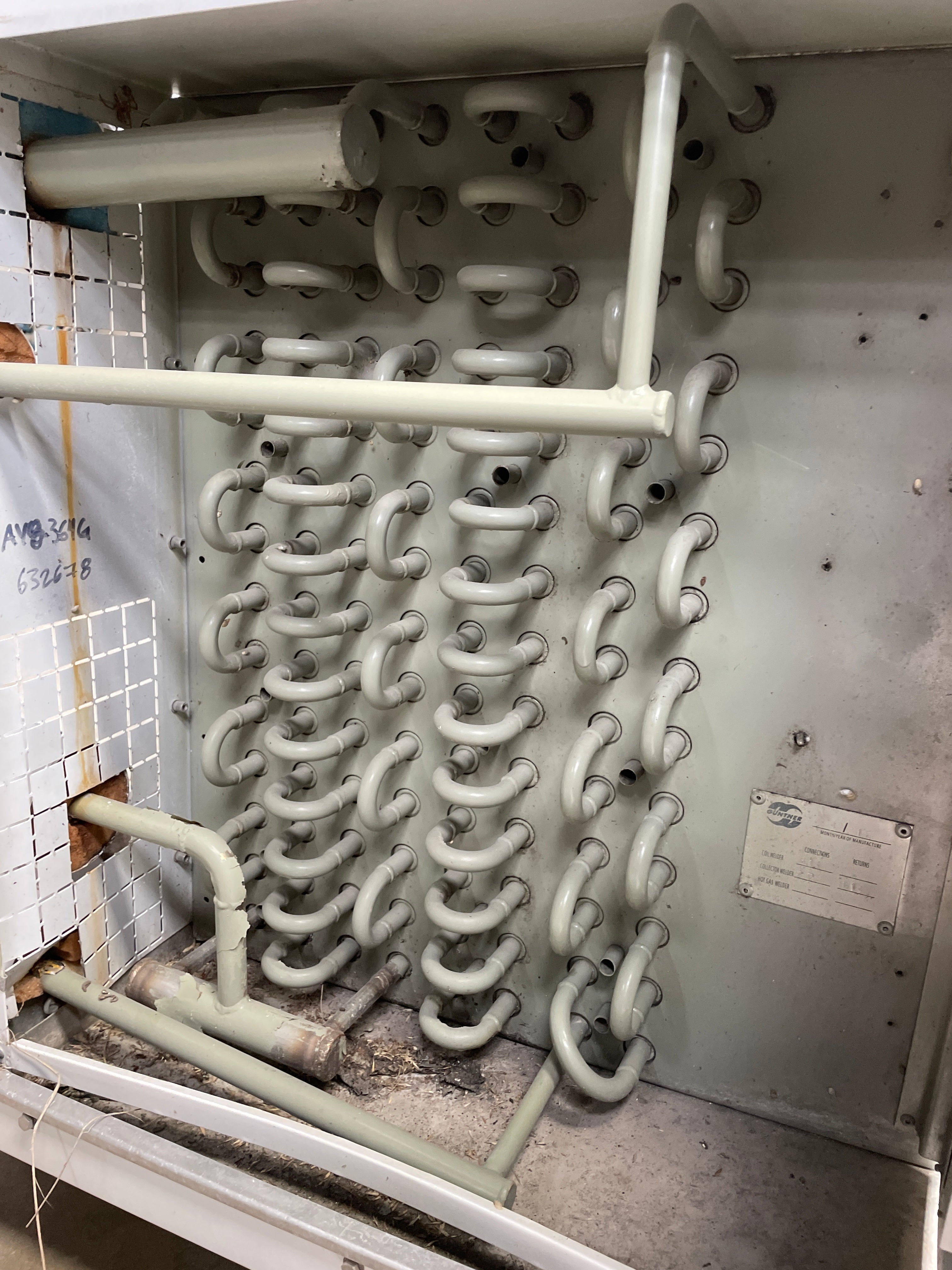

- Coil Type: Recirculated
- Feed Type: Top
- Coil Defrost: Air

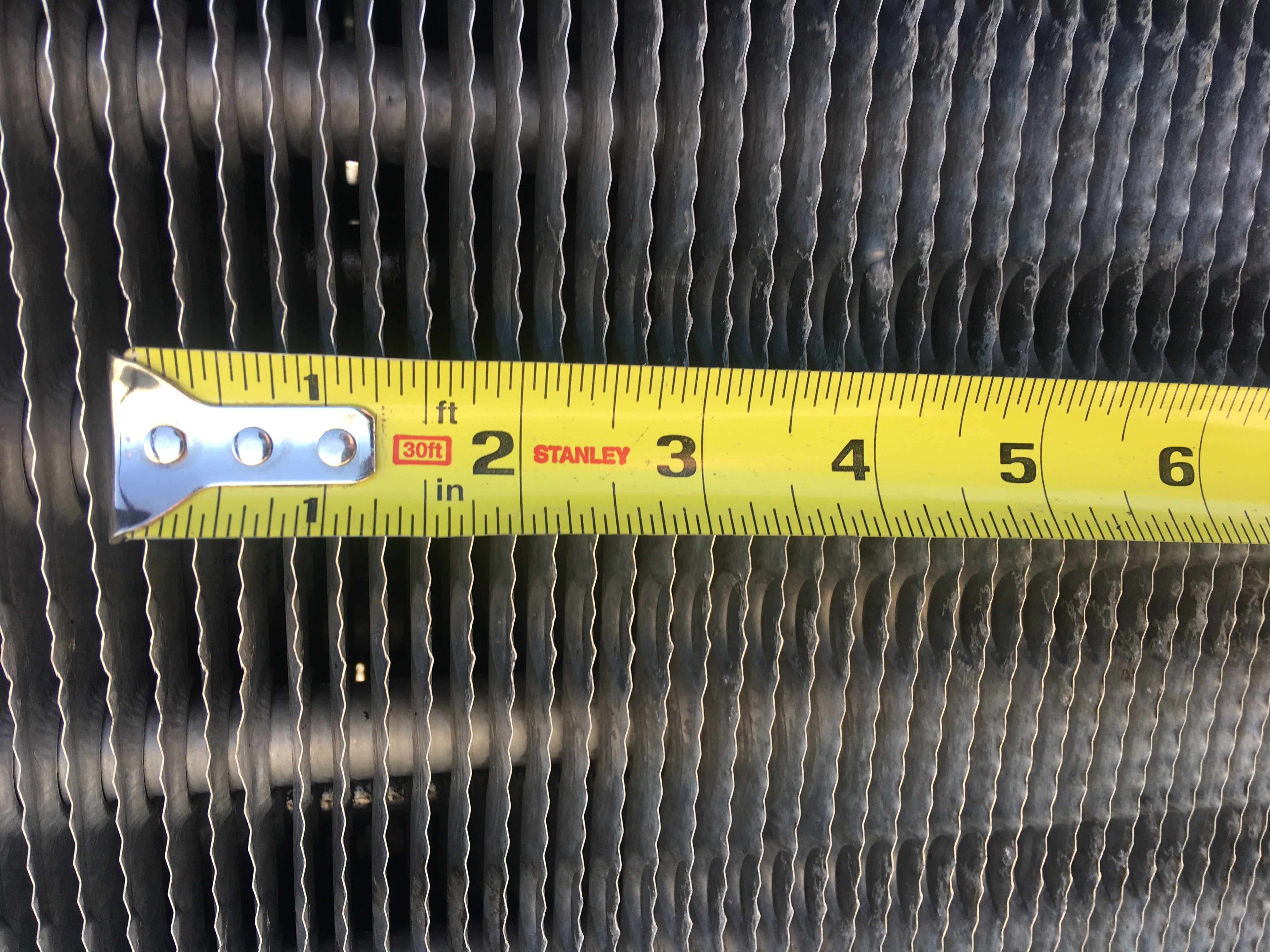

- Fins Per Inch: 4

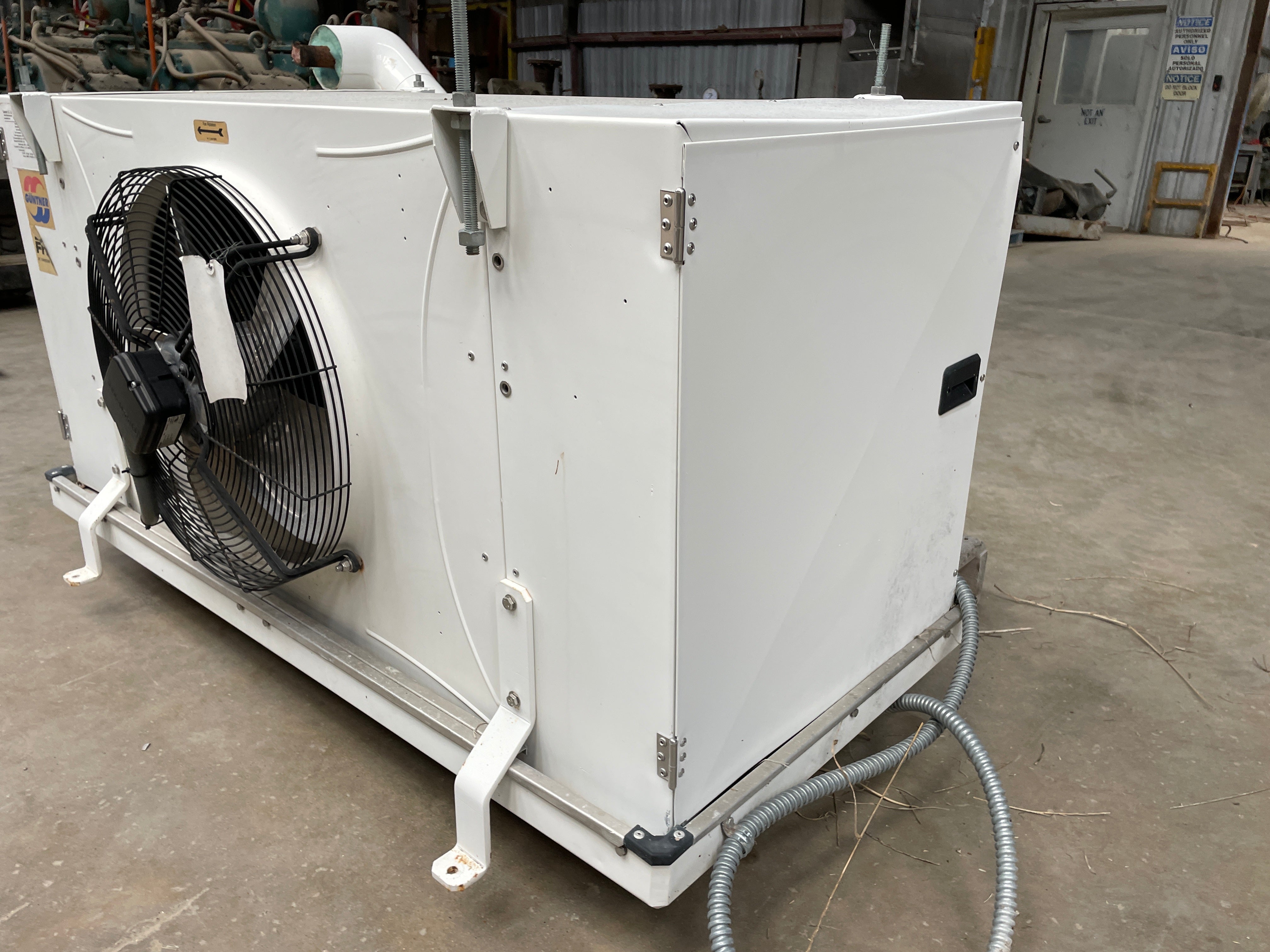

- # Fans: 1
- Left or Right Handed: Left
- Spec Sheet Available: Yes
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

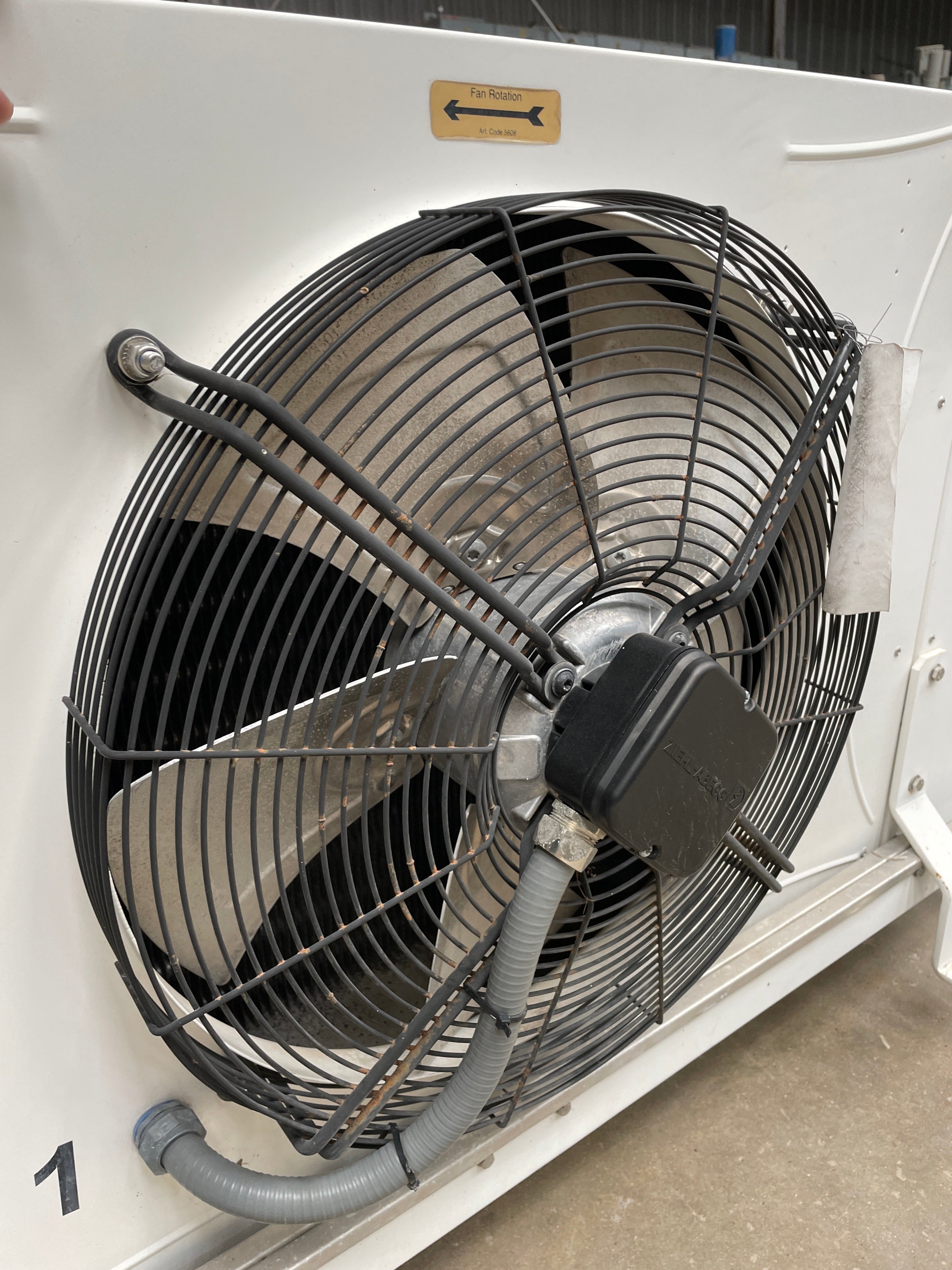

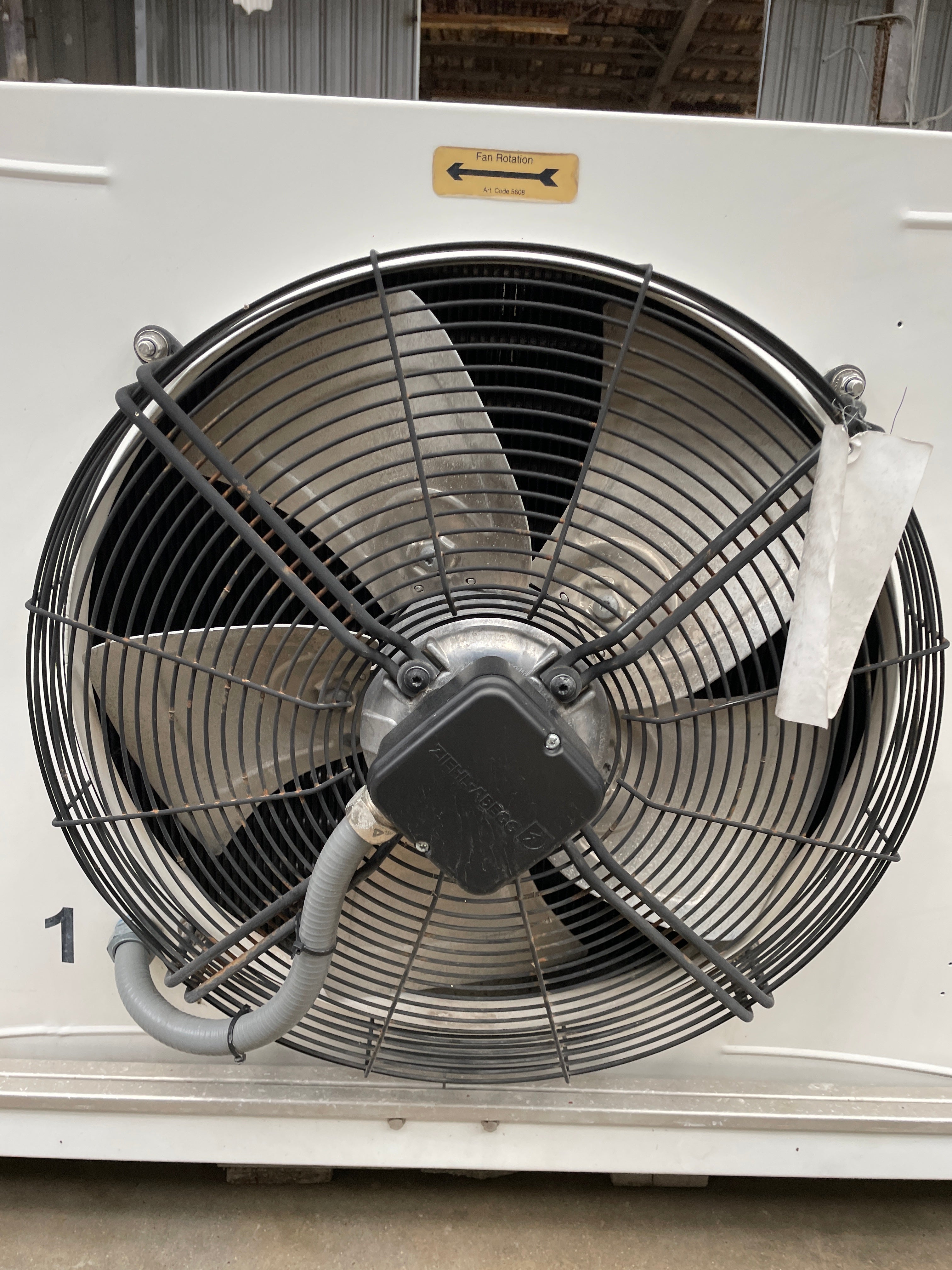

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Horsepower(HP): 0.5
- Motor RPM: 1390
- Motor Voltage: 460
- Motor Amps: 1.25
- Motor Hertz (Hz): 60
- Motor Phases: 3

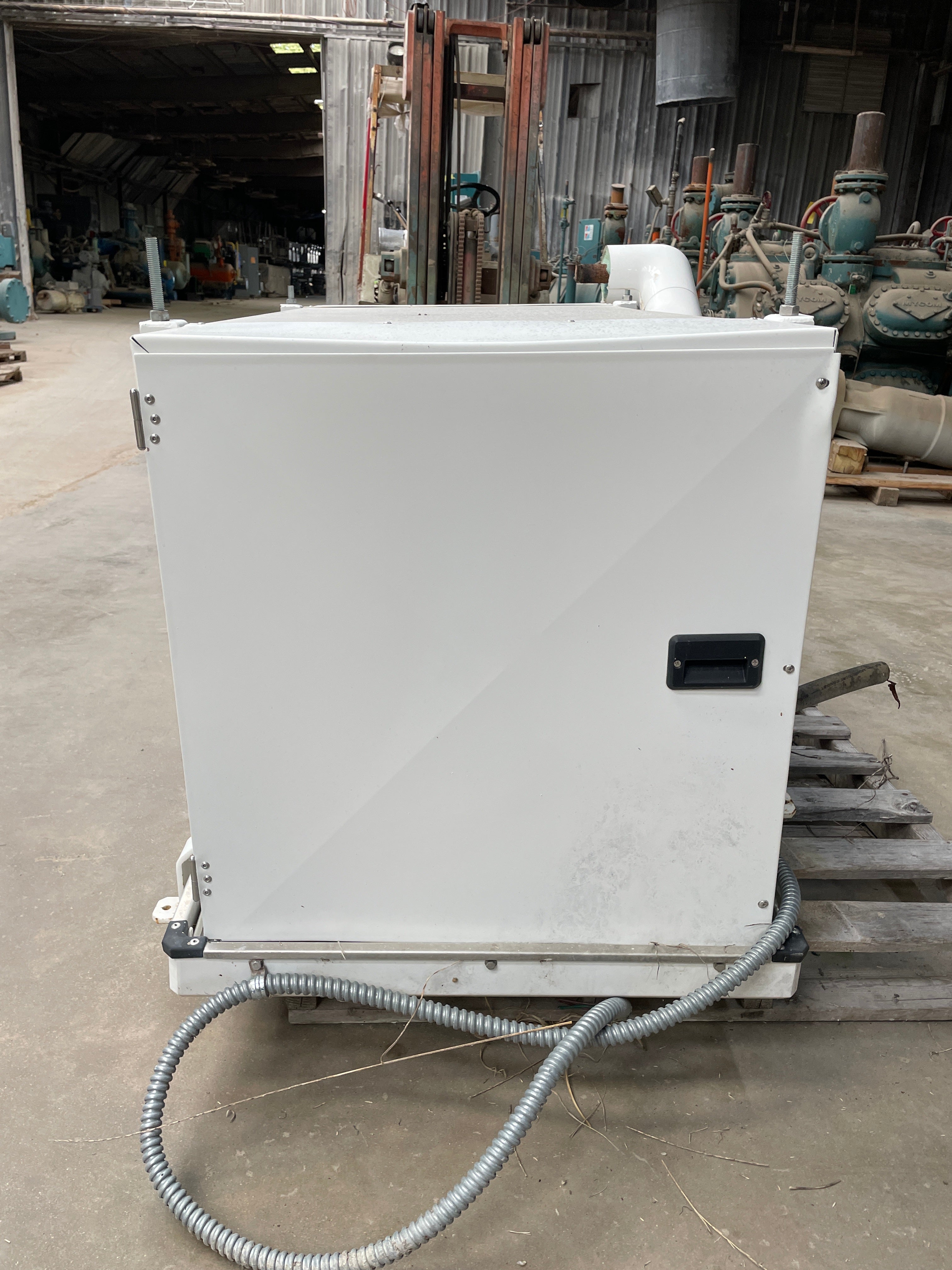

Dimensions:
- Length (Inches): 63
- Width (Inches): 43
- Height (Inches): 37
- Weight (LBS): 231
- # of Pieces for Shipping: 1
Additional Product Details

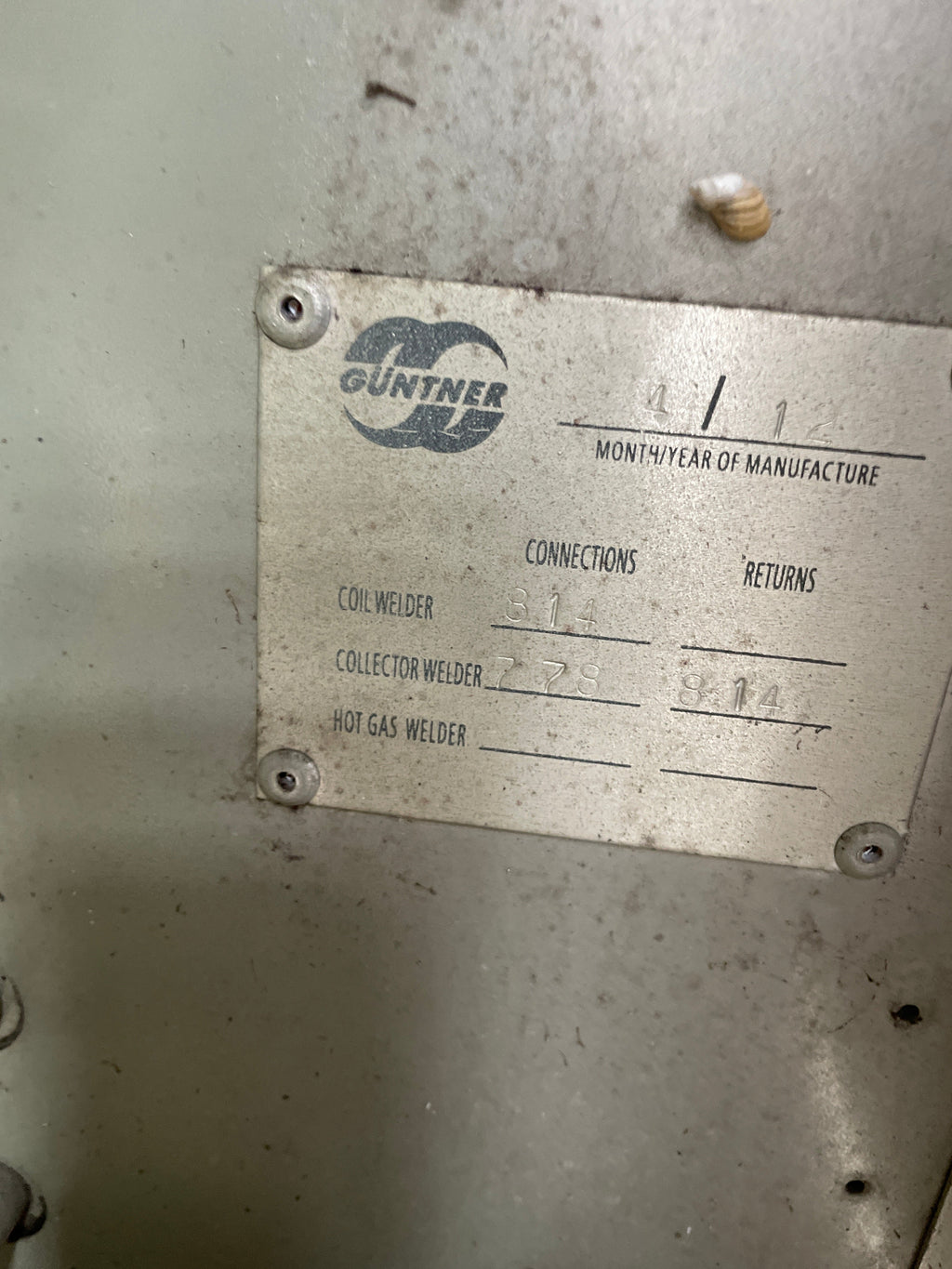

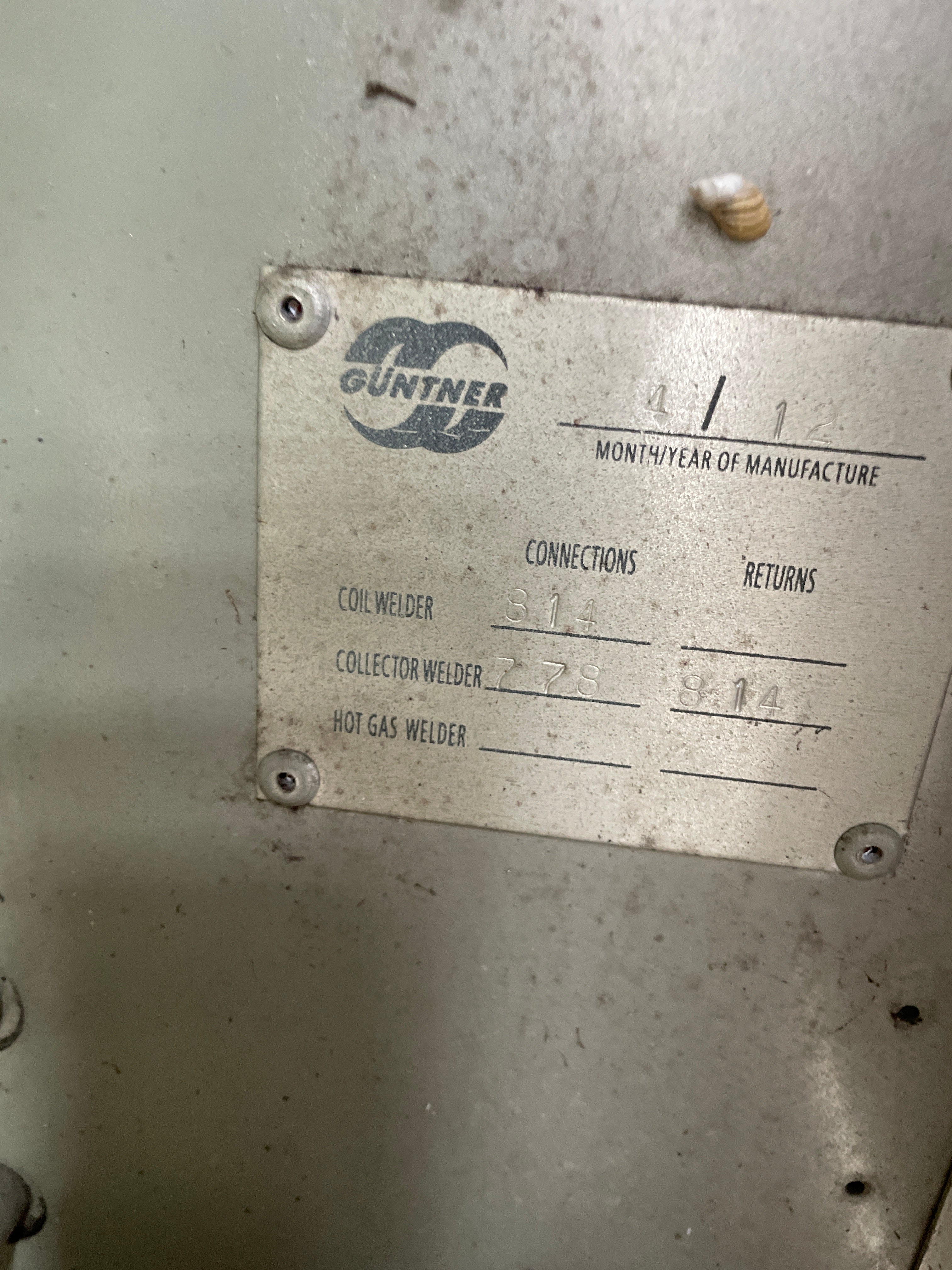

- Year of Manufacture: 2012
- Spec Sheet Available: Yes
