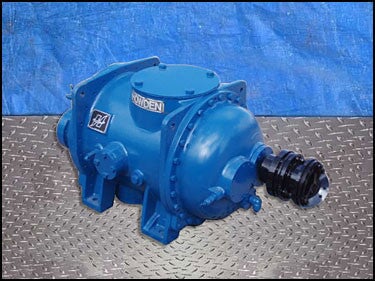

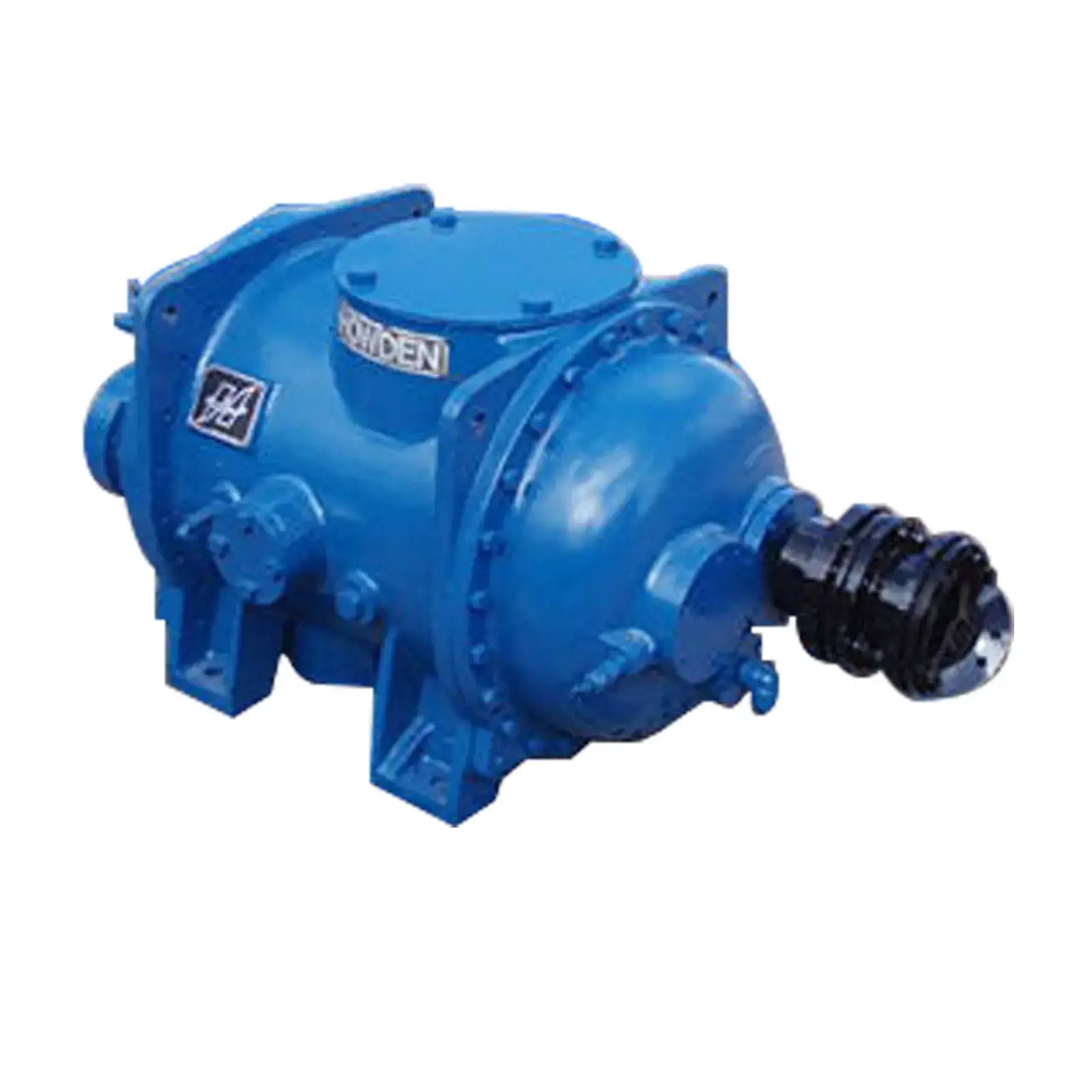

Howden WRV 204/165 Rotary Screw Compressor
Howden WRV 204/165 Rotary Screw Compressor. Model: MK4B/WRV204/16526/1400. Vi setting: 2.6. Displacement: 853 cfm. Rotor diameter: 204 mm. Rotor speed: 4,500 rpm maximum, 1,500 minimum. Maximum inlet pressure: 75 psi. Maximum outlet pressure: 260 psi. Connections: 8 in. suction and 5 in. discharge. Approximate weight: 1,874 lbs. Overall dimensions: 4 ft. 9 in. L x 2 ft. 2 in. W x 2 ft. 3 in. H.
Product Details
- Stock No: PMI454.a7a
- Manufacturer: Howden
- Model: MK4B/WRV204/16526/1400
- Serial Number: JH1839
Package Details
Screw Compressor Details
Micro Panel Details
Motor Starter Details
Previous Refrigerant
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
Dimensions:
Additional Product Details
