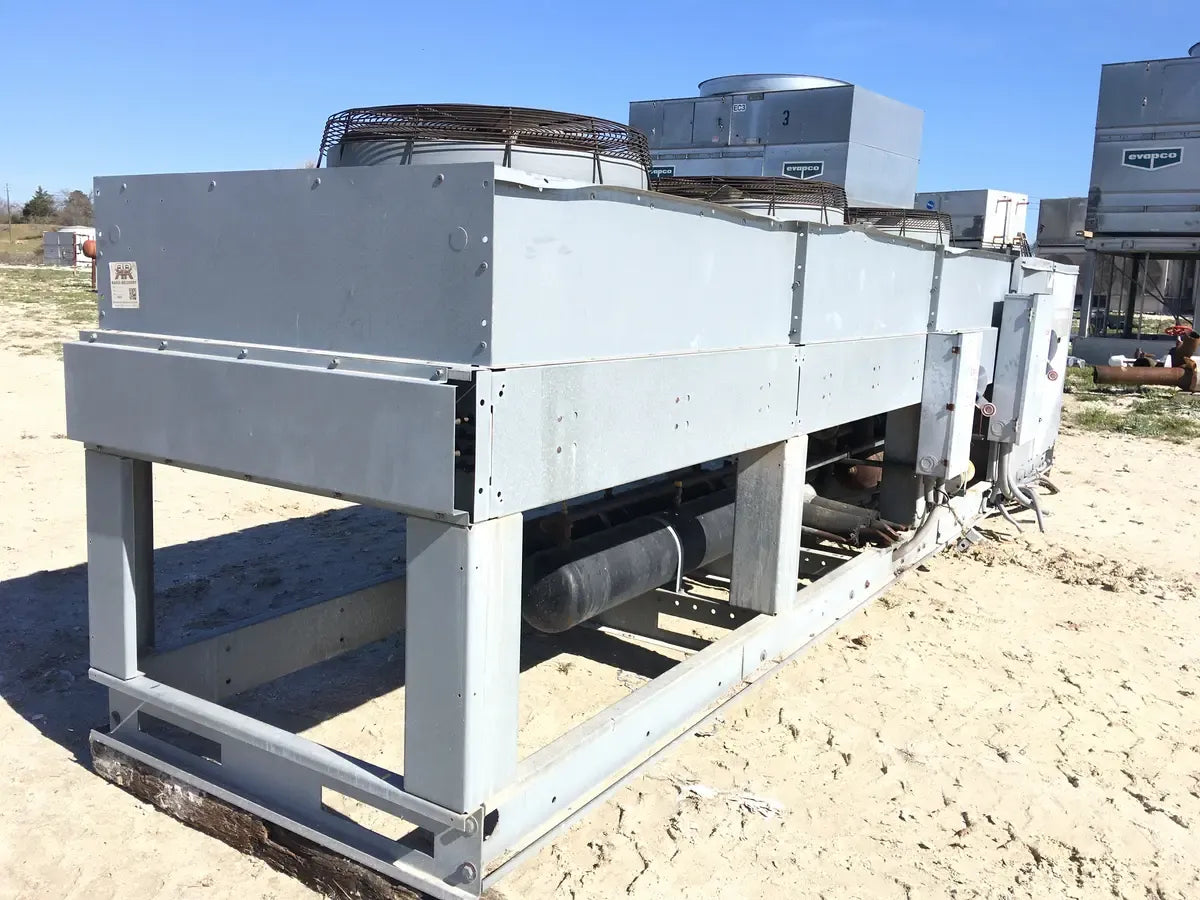

Hussmann DLD0540L4M134CC Air Cooled Condenser

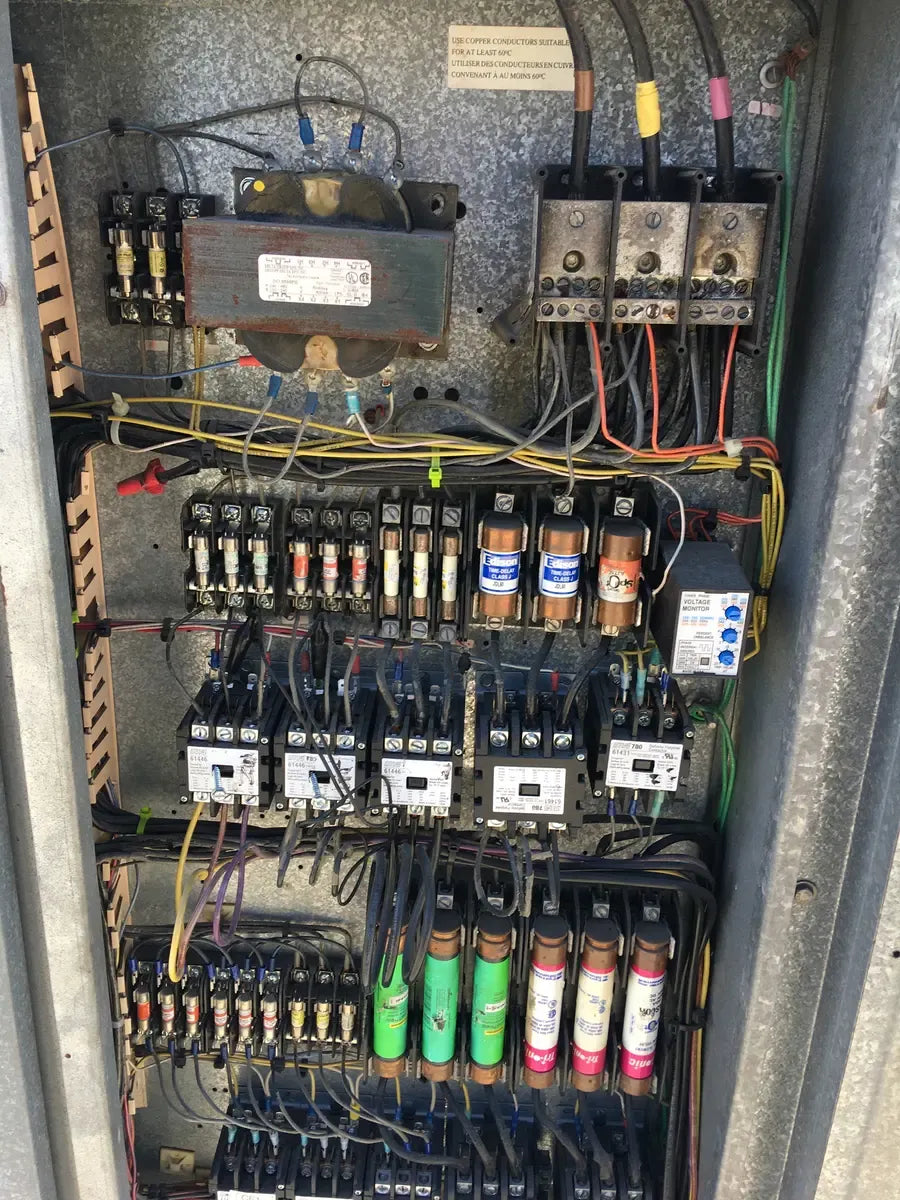

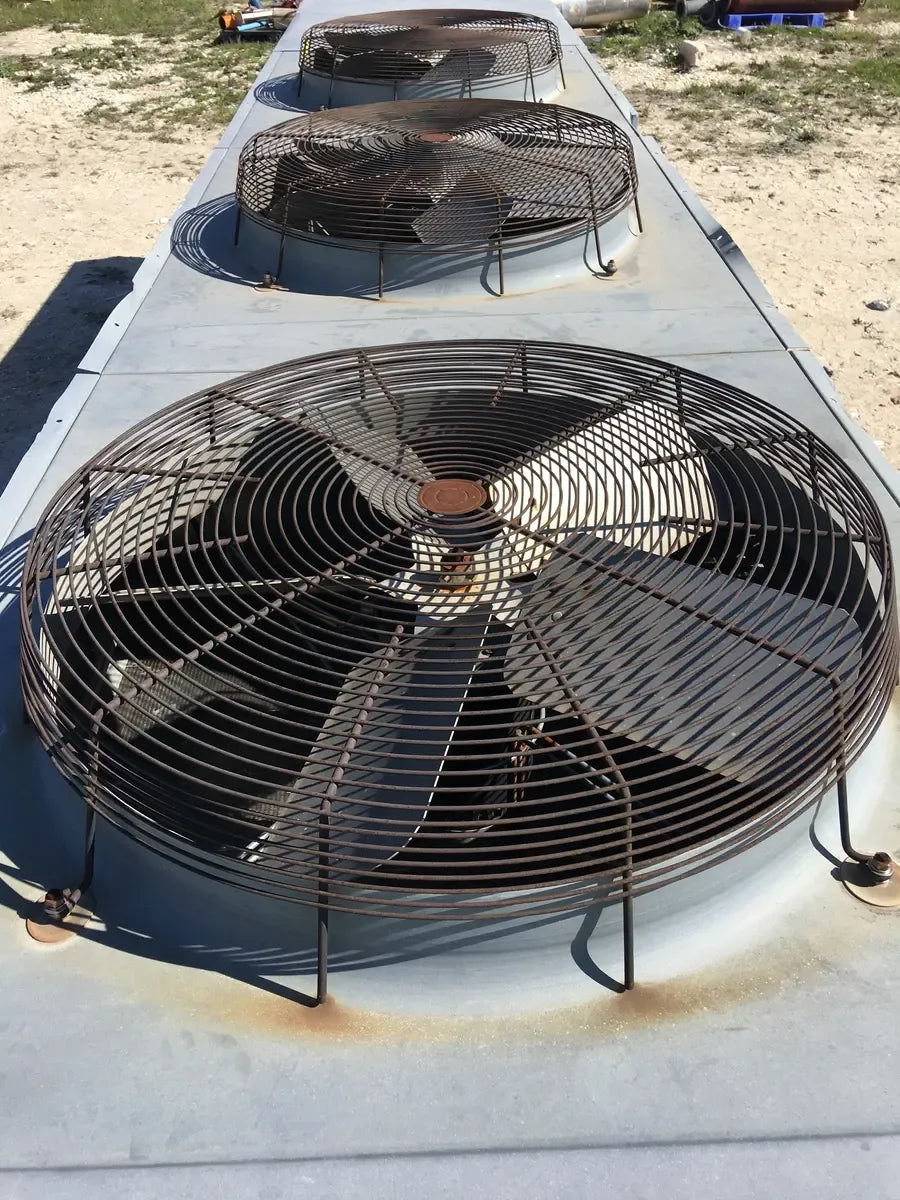

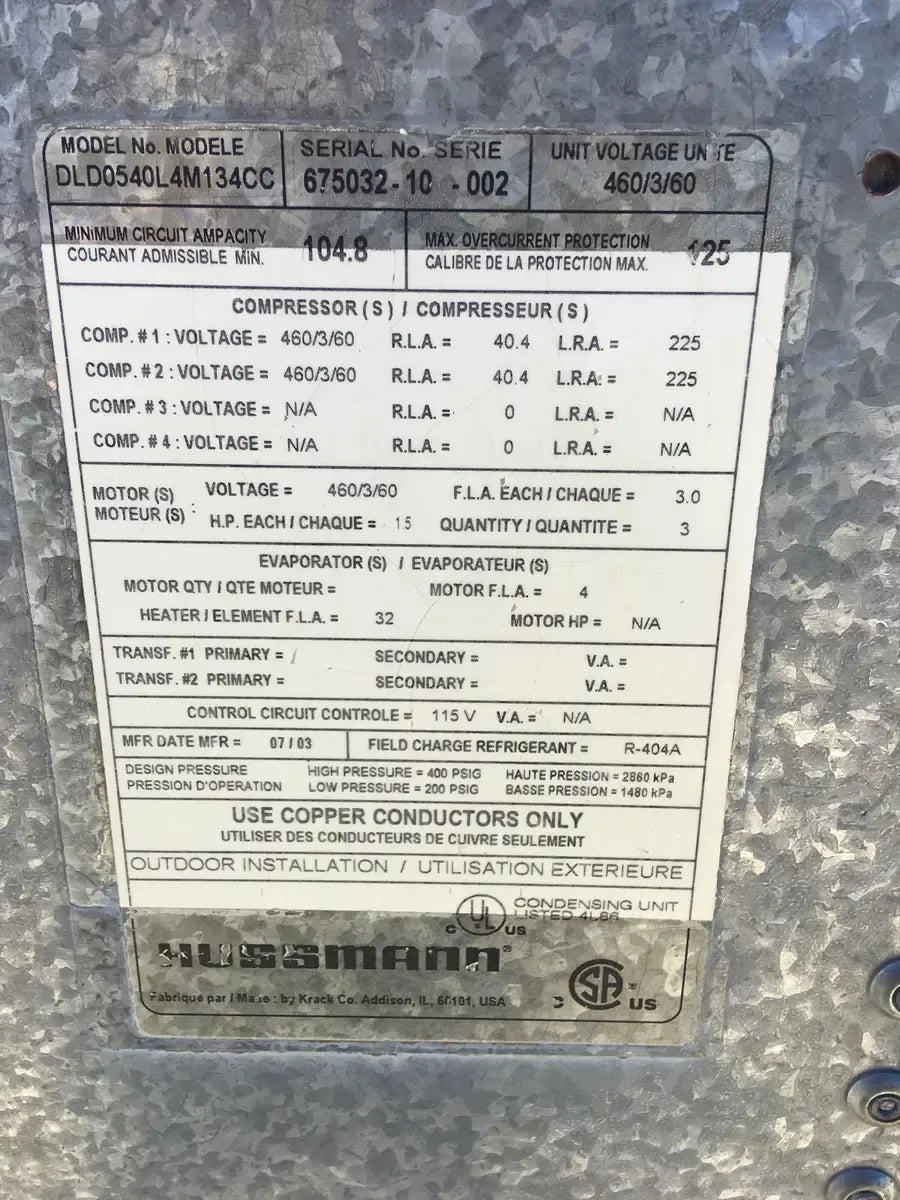

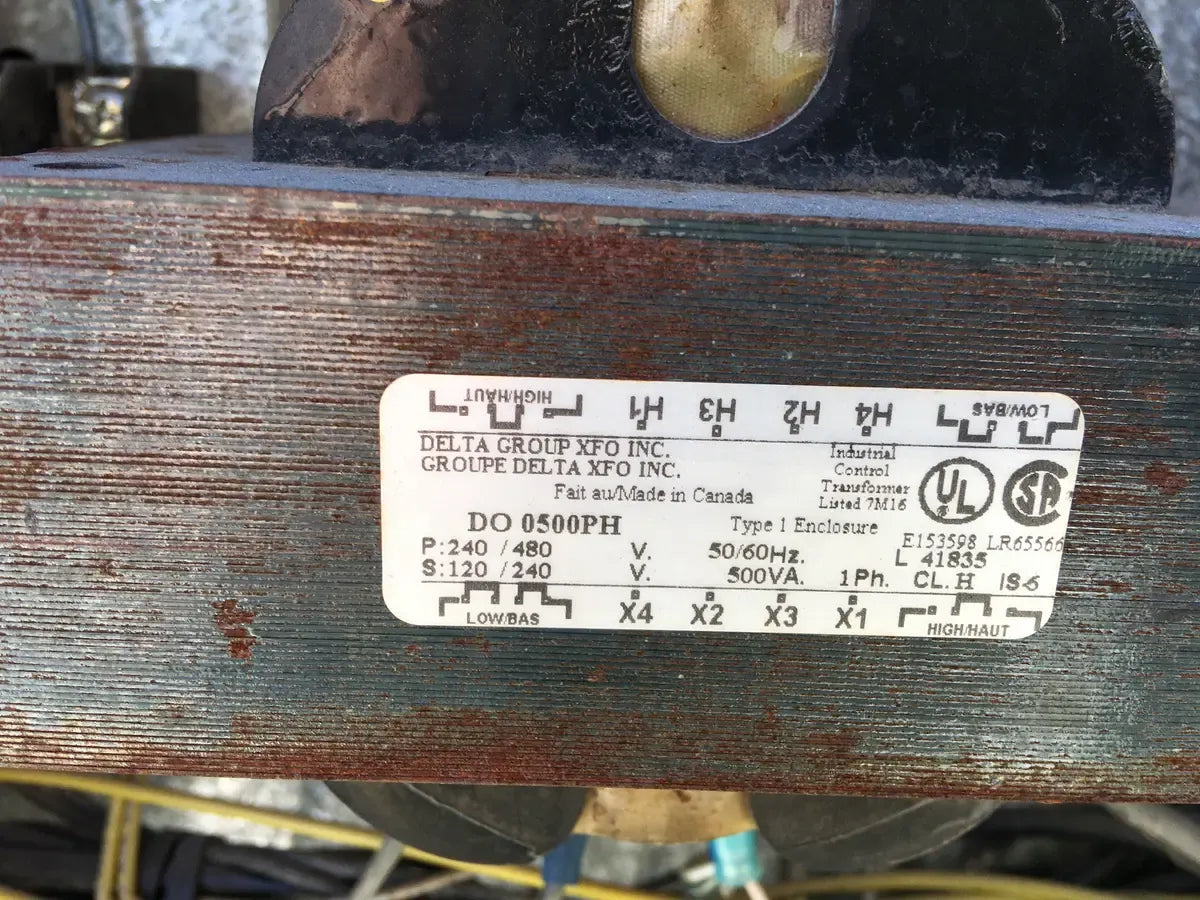

Hussmann Air Cooled Condenser. Model: DLD0540L4M134CC, Serial No: 675032-10-002. Previous Refrigerant: R404A. Manufactured date: 07/03. Design Pressure 400 PSIG, Low 200 PSIG. Min Circuit AMP: 104.8. Max overcurrent protection: 125. Compressor Data(2): Compressor Voltage(1): 460/3/60, RLA: 40.4, LRA: 225. Compressor Voltage (2): 460/3/60, RLA:40.4, LRA:225. Fan Motor(3): Voltage: 460/3/60, FLA Each: 3.0, HP: 3. Control Circuit: 115v.
Product Details
- Stock No: OTIS24
- Manufacturer: Hussmann
- Model: DLD0540L4M134CC
- Serial Number: 675032-10-002
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: No
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? No
- If Multiple Motors, Motor Descriptions vs specs: (2) 35 HP w/standard comp
- Motor Horsepower(HP): 70
- Motor Voltage: 460
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 235
- Width (Inches): 45
- Height (Inches): 58
- Weight (LBS): 3,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2003
- Spec Sheet Available: No
