ITT Bell & Gossett 60 Centrifugal Pump (4 HP, 10 GPM Max)

ITT Bell & Gossett 60 Centrifugal Pump (4 HP, 10 GPM Max)

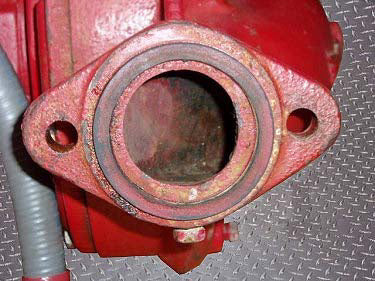

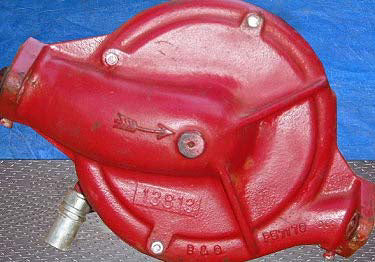

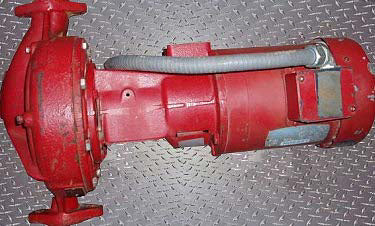

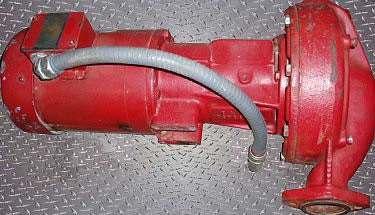

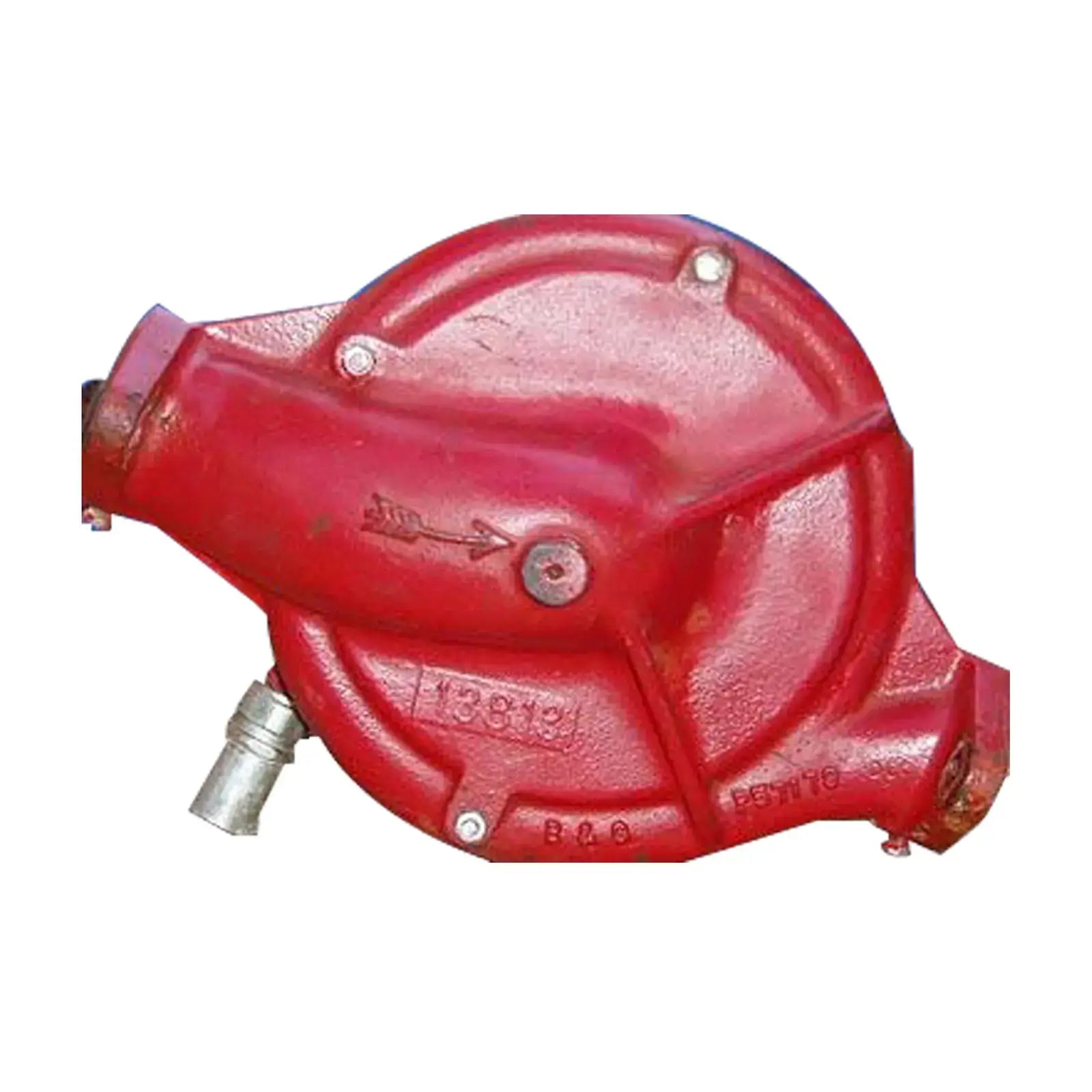

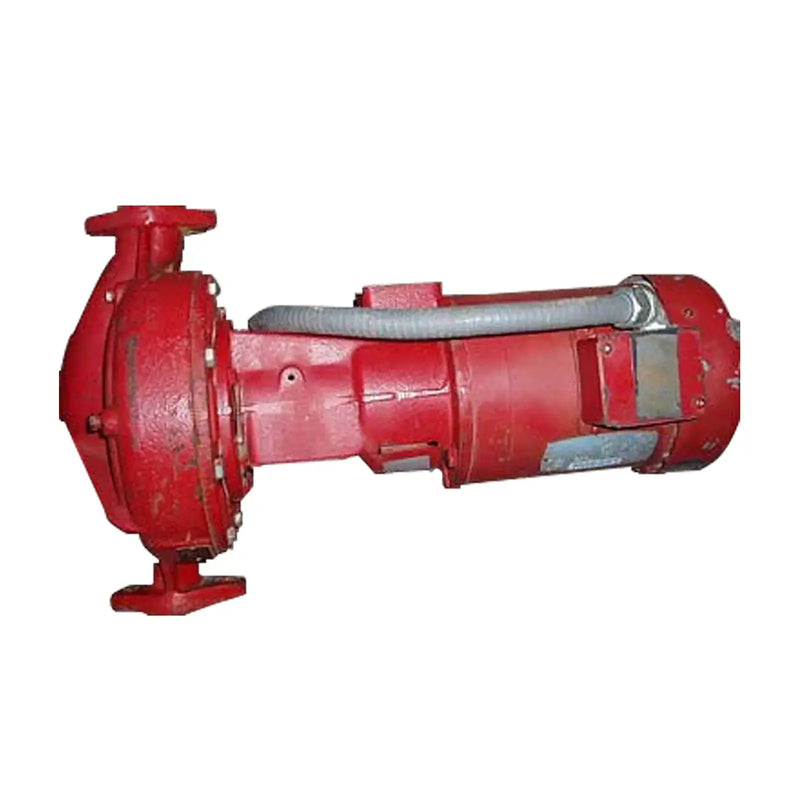

Bell & Gossett 60 Pump. S/N: 931151RF. Lesson motor: 3 - 4 hp, 1750 - 1425 rpm, 208-230/460 V, 2.8/3.0 - 1.4/1.5 FLA, 3 phase. Pump capacity: 10 gpm at 43 ft. head. Flange diameter: 4-1/2 in. with (2) holes, center to center: 3-1/2 in. Inlets/outlets: 2 in. Overall dimensions: 24 in. L x 10 in. W x 23 in. H.

Product Details

  • Product ID: 2549
  • Stock No: DBHK008.
  • Manufacturer: ITT Bell & Gossett
  • Model: 60
  • Serial Number: 931151RF

Pump Details

  • Pump Type: Centrifugal
  • Max Gallons Per Minute GPM: 10
  • Displacement per Revolution (Gallons): 0.01
  • Max Speed RPM: 1,425
  • # Inlets/Outlets: 2
  • Inlet/Outlet 1: Inlet/Outlet
  • Inlet/Outlet 1 Size (Inches): 2
  • Inlet/Outlet 1 Type: Flange
  • Inlet/Outlet 1 Flange Size (inches): 4.5
  • Inlet/Outlet 1 # Flange Holes: 2
  • Inlet/Outlet 2: Inlet/Outlet
  • Inlet/Outlet 2 Size (inches): 2
  • Inlet/Outlet 2 Type: Flange
  • Inlet/Outlet 2 Flange Size (inches): 4.5
  • Inlet/Outlet 2 # Flange Holes: 2

Previous Refrigerant

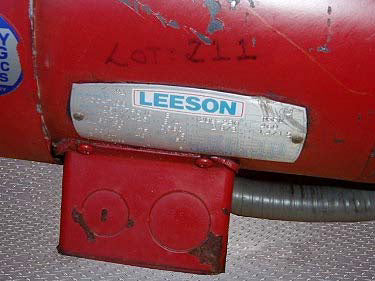

Motor Details

  • Motor Included? Yes
  • Motor Manufacturer: Leeson
  • Motor Horsepower(HP): 4
  • Motor RPM: 1,750
  • Motor Voltage: 208-230/460
  • Motor Amps: 2.8/3.0 - 1.4/1.5
  • Motor Hertz (Hz): 60
  • Motor Phases: 3

Dimensions:

  • Length (Inches): 24
  • Width (Inches): 10
  • Height (Inches): 23

Additional Product Details

ITT Bell & Gossett 60 Centrifugal Pump (4 HP, 10 GPM Max)

Save 9%

Price:
$5,000 $5,500
