Krack DTX-4S-960-RBA-A-LH Ammonia Evaporator Coil (Low Temperature)

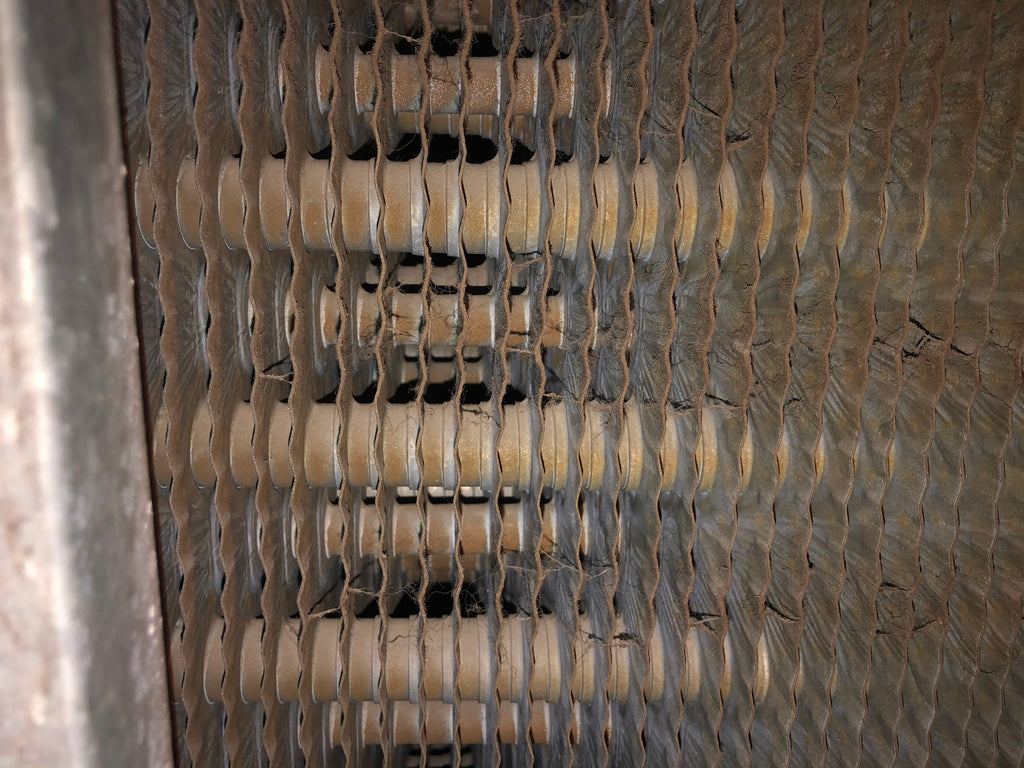

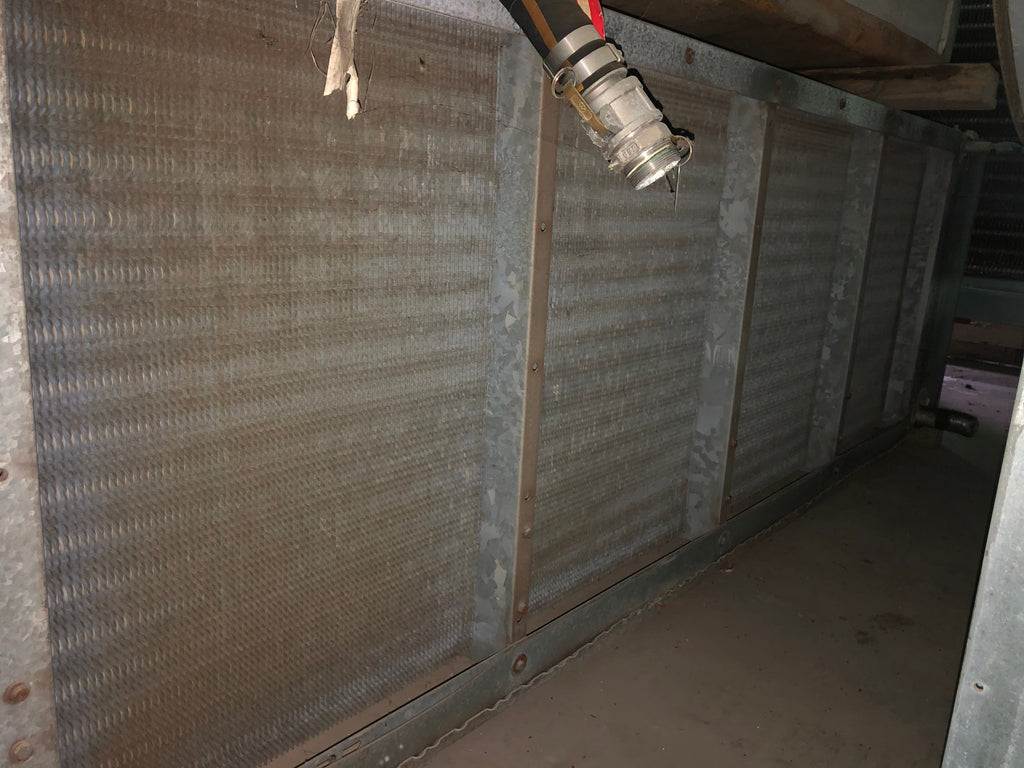

Krack 4-Fan Recirculated Top Feed Ammonia Evaporator. Steel Tube/Fin. 3 fins/inch. Krack Model DTX-4S-960-RBA-A-LH, Left hand. Low Temp 4-Fan Draw-Thru. Recirculated bottom feed Evaporator. Air Flow 18,400, Capacity @ 10ºF, TD:5.98T.R, ID:AU12. Fan Motors: 1/3 HP 620 RPM 460 Volts 60 Hz.3 Ph. Overall Dimensions: 132" L x 35" W x 41" H.
Product Details
- Stock No: ASCA221.5
- Manufacturer: Krack
- Model: DTX-4S-960-RBA-A-LH
- Serial Number: 446268-14A
Evaporator Coil Details
- Frosted or Wet Coil: Frosted
- Est. Tons (TR) @15TD Wet: 6.6
- Est. Tons (TR) @15TD Frosted: 6.6
- Air Flow (CFM): 18400
- Coil Type: Recirculated
- Feed Type: Bottom
- Coil Defrost: Hot Gas
- Fins Per Inch: 3
- Left or Right Handed: Left
- Spec Sheet Available: Yes
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 4
- Motor Horsepower(HP): 1/3
- Motor RPM: 620
- Motor Voltage: 460
- Motor Amps: 0.5
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 132
- Width (Inches): 35
- Height (Inches): 41
- # of Pieces for Shipping: 1
Additional Product Details
- Spec Sheet Available: Yes
