Precision Heat Exchanger Co. Shell and Tube Heat Exchanger - 1,947 total sq. ft.

Precision Heat Exchanger Co. Shell and Tube Heat Exchanger - 1,947 total sq. ft.

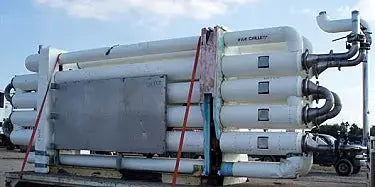

(8) Precision Heat Exchanger Co. Shell and Tube Heat Exchangers. Approximate surface area (heat exchanger group): 1,947 sq. ft. Tube and u-bend material of constructions: 304 stainless steel. Shell material of construction: carbon steel. Number of passes (through exchanger group): 4. Number of tubes: 186. Tube dimensions: 1/4 in. dia. x 20 ft. L. Heat transfer surface area: approx. 243 sq. ft. Tube volume: 9.5 gal. Shell side MAWP: 150 psi @ 200 °F. Shell side MDMT: -20°F at 150 PSI. Inlets: (1) 4 in. dia. port (product), (1) 4 in. dia. port (media). Outlets: (1) 4 in. dia. port (product), (2) 4 in. dia. ports (media). Overall dimensions: 23 ft. 10 in. L x 5 ft. W x 8 ft. 11 in. H.

Product Details

  • Product ID: 8415
  • Stock No: DTTC2022.
  • Manufacturer: Precision Heat Exchanger Co.
  • Model:
  • Serial Number:

Additional Product Details:

  • Year of Manufacture:
  • Year of Installation:
  • Year Removed from Production:
  • Previously Used With:
  • Product Purchased From:
  • Known Issues or Problems:

All fields

  • description: (8) Precision Heat Exchanger Co. Shell and Tube Heat Exchangers. Approximate surface area (heat exchanger group): 1,947 sq. ft. Tube and u-bend material of constructions: 304 stainless steel. Shell material of construction: carbon steel. Number of passes (through exchanger group): 4. Number of tubes: 186. Tube dimensions: 1/4 in. dia. x 20 ft. L. Heat transfer surface area: approx. 243 sq. ft. Tube volume: 9.5 gal. Shell side MAWP: 150 psi @ 200 °F. Shell side MDMT: -20°F at 150 PSI. Inlets: (1) 4 in. dia. port (product), (1) 4 in. dia. port (media). Outlets: (1) 4 in. dia. port (product), (2) 4 in. dia. ports (media). Overall dimensions: 23 ft. 10 in. L x 5 ft. W x 8 ft. 11 in. H.
  • manufacturer: Precision Heat Exchanger Co.
  • name: Precision Heat Exchanger Co. Shell and Tube Heat Exchanger - 1,947 total sq. ft.
  • product_id: 8415
  • stock_no: DTTC2022.

Precision Heat Exchanger Co. Shell and Tube Heat Exchanger - 1,947 total sq. ft.

Save 9%

Price:
$5,000 $5,500
Sell Similar Items

How to get a Quote: Add all items of interest to your Cart. Push the "Checkout" button to generate a quote on the items in your cart. Genemco will call/email you ASAP to discuss your quote. Create an account with us to keep all of your equipment quotes organized and easily compare equipment.
