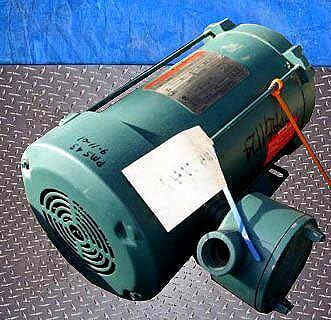

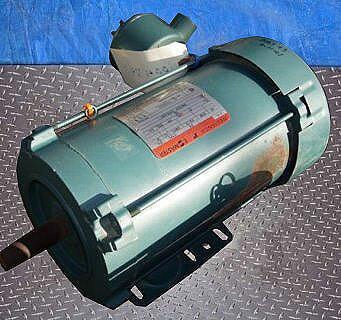

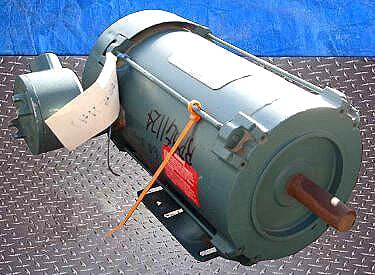

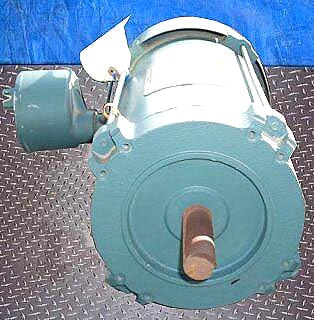

Reliance Electric E-Master Duty Master A-C Motor- 1 HP
Reliance Electric E-Master Duty Master A-C Motor- 1 HP. ID: P14X3967N-DC. Explosion proof. Motor specifications: 1 hp, 1725 rpm, 230/460 V, 2.8-1.4 amps, 60 Hz, 3 phase. Frame: HD143T. Type: P. Insulation class: F. Design: B. Code: J. UL Listed No: SAF114144. Class I Group D. Class II Groups F & G. Shaft diameter: 7/8 in. Overall dimensions: 15-1/2 in. L x 12 in. W x 8 in. H.
Product Details
- Stock No: RPAG1124Q.
- Manufacturer: Reliance
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Reliance
- Motor Horsepower(HP): 1
- Motor RPM: 1725
- Motor Voltage: 230/460
- Motor Amps: 2.8-1.4
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: HD143T
Dimensions:
- Length (Inches): 15.5
- Width (Inches): 12
- Height (Inches): 8
