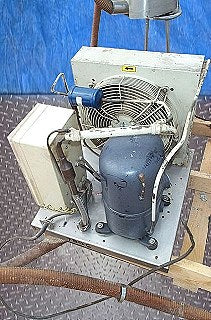

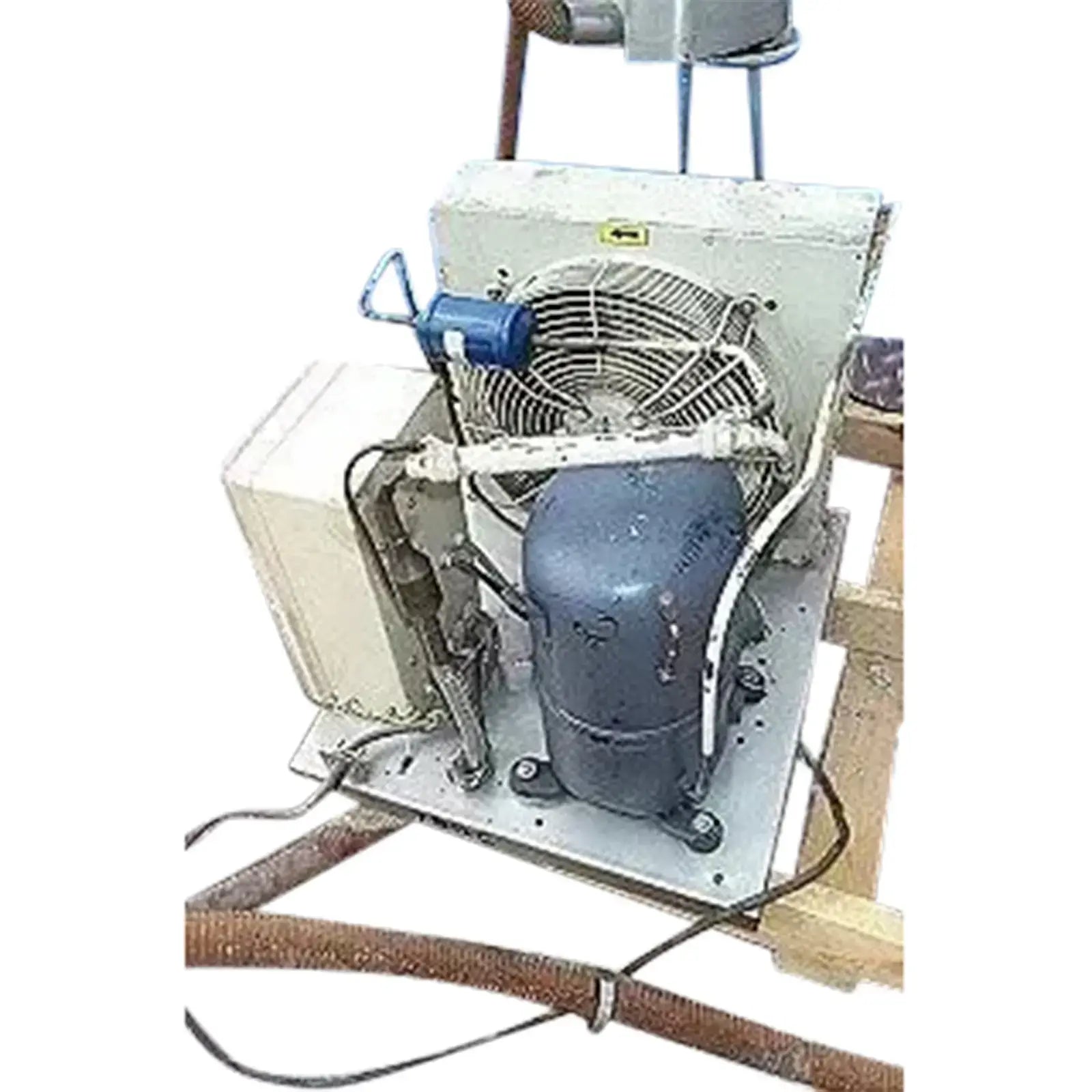

Schroder Brine Chiller
Schroder Brine Chillers. Type: LK200. S/N: S980201. Capacity: approx. 2 ton. Refrigerant: R-22. MAWP: 377.09 psi. (26 Bar), 2 hp (1.5 Kw), 3 x 440 V, 60 Hz, 5.7 amps. Evaporator: 18 in. L x 4-3/4 in. W x 17 in. H. (9) Fins per inch. Fan diameter: 14 in. Unit is for liquid refrigeration systems. Stainless steel submersible tube: 8-1/2 in. diameter x 35 in. H. Overall system dimensions: 23-1/2 in. L x 21 in. W x 22 in. H.
Product Details
- Stock No: EKTF7806.1
- Manufacturer: Schroder
- Serial Number: S980201
Chiller Details
- Air Cooled or Liquid Cooled: Air Cooled
Previous Refrigerant
Motor Details
Dimensions:
Additional Product Details
