Walker Stainless Jacketed Process Tank- 200 Gallon

Walker Stainless Jacketed Process Tank- 200 Gallon

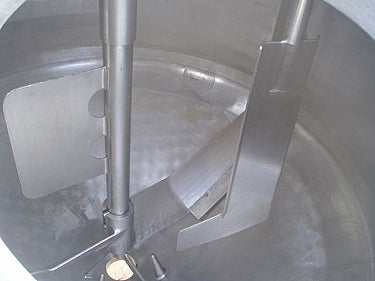

Walker Stainless Jacketed Process Tank- 200 Gallon. Model: PZ-CB. S/N: 2443. Nat'l Bd: 647. 304 stainless steel construction. Bottom dimpled jacket with spiral steam coil sidewall. Jacket MAWP @ 325 °F: 75 psig. Shell MAWP @ 325 °F: atm. Cone bottom. Sew-Eurodrive Motor, 1.21 hp, 1700 rpm, 208 V, 5.86 amps, 60 Hz, 3 phase. Sew-Eurodrive Gear Reducer, 25 rpm final, 3025 lb-in. Applications include: heating, cooling, mixing, blending, storing and batch processing. Inlets: (2) 1/2 in. dia. thermowell fittings, (1) 1-1/4 in. dia. FNPT (coil), (1) 1-1/4 in. dia. FNPT (dimple), (2) 3 in. dia. S-line fittings, (1) 10 in. dia. S-line fitting. Outlets: (1) 1/2 in. dia. port (sample), (1) 1-1/4 in. dia. FNPT (coil), (1) 1-1/4 in. dia. FNPT (dimple), (1) 4 in. dia. I-line fitting (discharge). Overall dimensions: 71 in. L x 58-1/2 in. W x 92 in. H.

Product Details

  • Product ID: 7217
  • Stock No: EECA003.
  • Manufacturer: Walker
  • Model: PZ-CB
  • Serial Number: 2443
  • Motor Manufacturer:
  • Motor Horsepower(HP):
  • Motor RPM:
  • Motor Voltage:
  • Motor Amps:
  • Motor Hertz (Hz):
  • Motor Phases:
  • Motor Frame Size:
  • Year of Manufacture:
  • Known Issues or Problems:
  • Previously Used With:
  • Year of Installation:
  • Year Removed from Production:
  • Product Purchased From:
  • Length (Inches):
  • Width (Inches):
  • Height (Inches):
  • Weight (LBS):
  • ACN:

All fields

  • description: Walker Stainless Jacketed Process Tank- 200 Gallon. Model: PZ-CB. S/N: 2443. Nat'l Bd: 647. 304 stainless steel construction. Bottom dimpled jacket with spiral steam coil sidewall. Jacket MAWP @ 325 °F: 75 psig. Shell MAWP @ 325 °F: atm. Cone bottom. Sew-Eurodrive Motor, 1.21 hp, 1700 rpm, 208 V, 5.86 amps, 60 Hz, 3 phase. Sew-Eurodrive Gear Reducer, 25 rpm final, 3025 lb-in. Applications include: heating, cooling, mixing, blending, storing and batch processing. Inlets: (2) 1/2 in. dia. thermowell fittings, (1) 1-1/4 in. dia. FNPT (coil), (1) 1-1/4 in. dia. FNPT (dimple), (2) 3 in. dia. S-line fittings, (1) 10 in. dia. S-line fitting. Outlets: (1) 1/2 in. dia. port (sample), (1) 1-1/4 in. dia. FNPT (coil), (1) 1-1/4 in. dia. FNPT (dimple), (1) 4 in. dia. I-line fitting (discharge). Overall dimensions: 71 in. L x 58-1/2 in. W x 92 in. H.
  • manufacturer: Walker
  • model: PZ-CB
  • name: Walker Stainless Jacketed Process Tank- 200 Gallon
  • product_id: 7217
  • serial_number: 2443
  • stock_no: EECA003.

Walker Stainless Jacketed Process Tank- 200 Gallon

Save 9%

Price:
$5,000 $5,500
