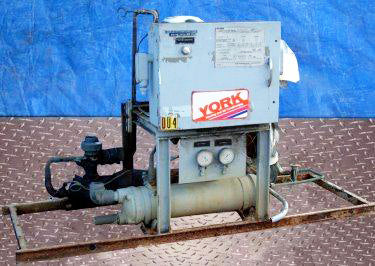

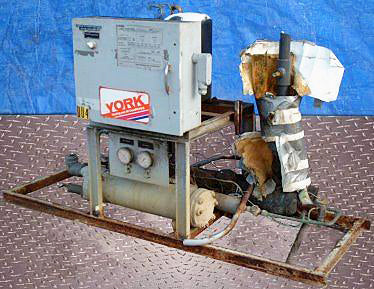

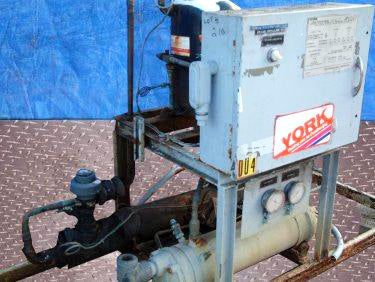

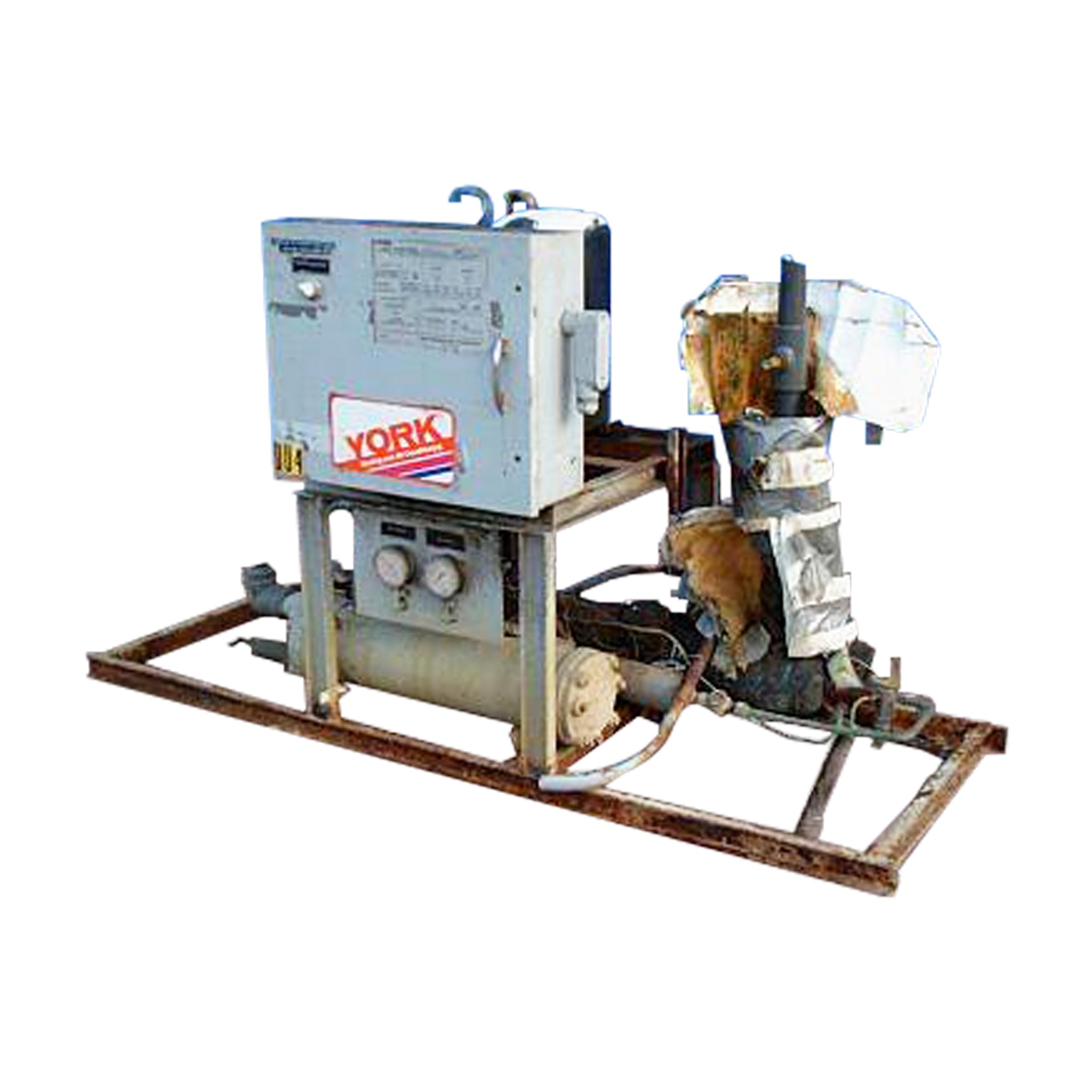

York Water-Cooled Liquid Chiller - 5 Ton

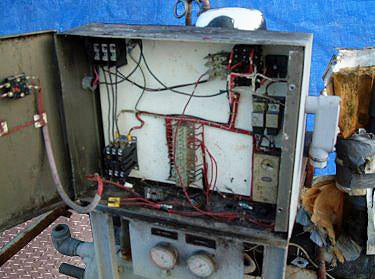

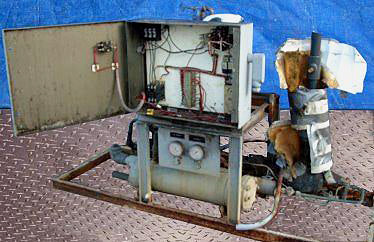

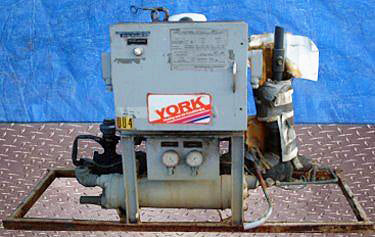

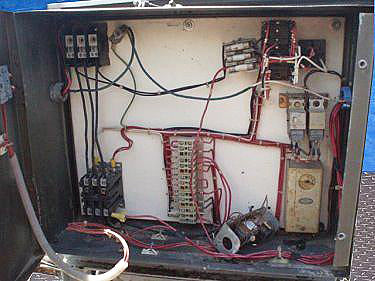

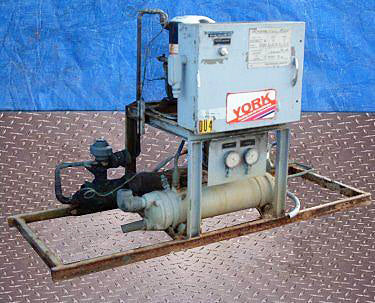

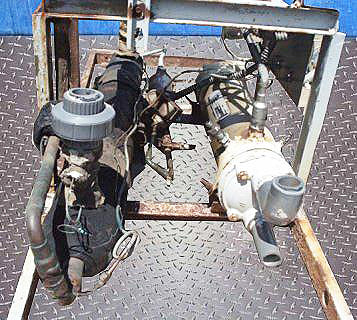

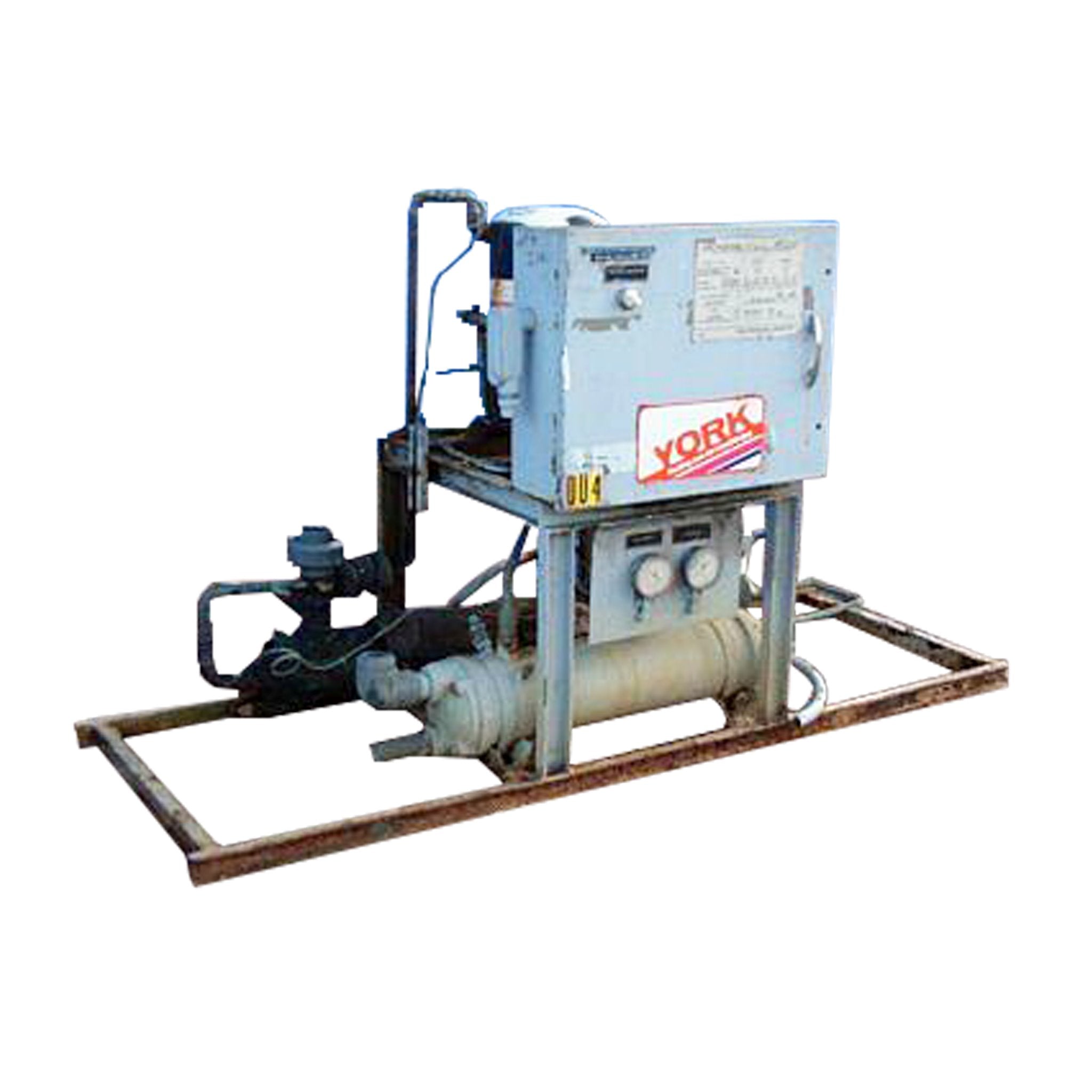

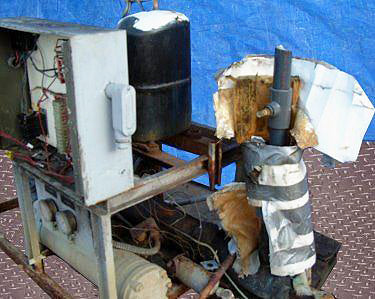

York Water-Cooled Liquid Chiller. Model: LCHWC5-25. S/N: 110651-032089. Nominal Capacity: 5 tons. Refrigerant: R-22. Test pressure (hi/lo): 450/300 psig. Power supply: 208/460 V, 3 phase, 60 Hz. Scroll Compressor, S/N: ET89B17727H, power supply: 208/230V, 21.4 RLA, 115 LRA, 60 Hz, 3 phase, min. ckt ampacity: 27 amps, max. dual element fuse: 45 amps. Control power supply: 120 V, 60 Hz, single phase. Oil heater: 120 V, 60 Hz, single phase. York Chiller Barrel, Model: CDR00621A2L, S/N: HBC-3820-10-88, refrigerant: R-12, R-22, R-502, shell side maximum design pressure: 406 psig, tube side maximum design pressure: 300 psig. Inlets/outlets: (4) 1-1/2 in dia. ports. Overall dimensions: 66 in. L x 26 in. W x 38 in. H.
Product Details
- Stock No: 37a.DBHK210.a
- Manufacturer: York
- Model: LCHWC5-25
- Serial Number: 110651-032089
Chiller Details
- Air Cooled or Liquid Cooled: Liquid Cooled
- Unit Nominal Tons (TR): 5
- Number of Compressors: 1
- Compressor Descriptions: Scroll Compressor, S/N: ET89B17727H, power supply: 208/230V, 21.4 RLA, 115 LRA, 60 Hz, 3 phase, min. ckt ampacity: 27 amps, max. dual element fuse: 45 amps.
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: No
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? No
Dimensions:
- Length (Inches): 66
- Width (Inches): 26
- Height (Inches): 38
Additional Product Details
