In industrial cooling, air-cooled helical rotary liquid chillers provide efficient temperature regulation for diverse applications. This article explores the details of these chillers, explaining their components, operation, and advantages.
What is an Industrial Air-Cooled Helical Rotary Liquid Chiller?
An industrial air-cooled helical rotary liquid chiller is a robust cooling system designed to remove heat from a liquid via a vapor-compression refrigeration cycle. These chillers are particularly suited for large-scale industrial applications where precise temperature control is essential.

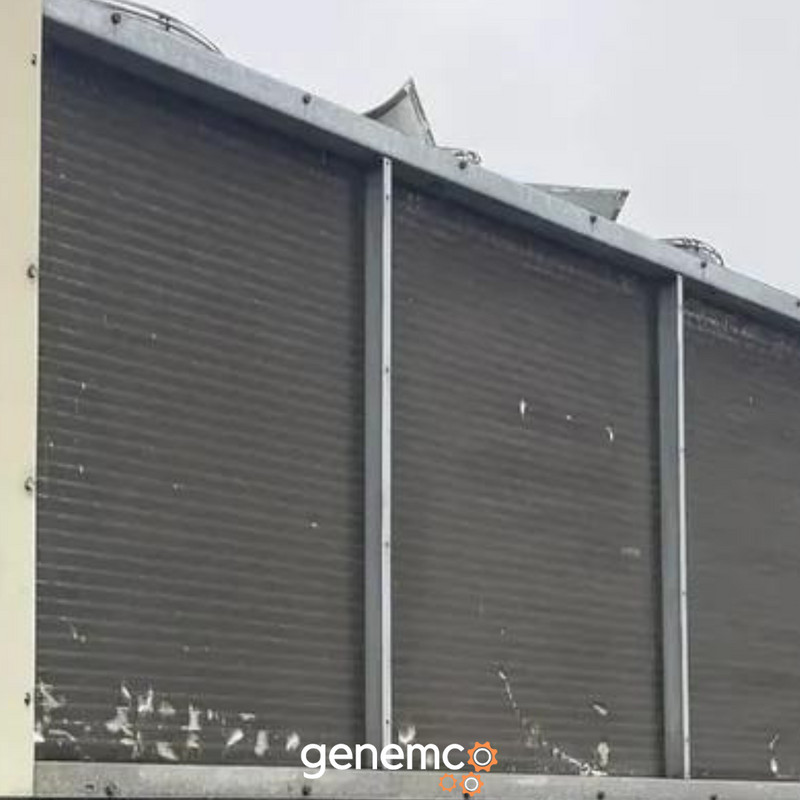

Image from Genemco.com
Link to Air Cooled Chillers
Key Components and Working Mechanism
-
Helical Rotary Compressors: The heart of the chiller, helical rotary compressors, are renowned for their reliability and efficiency. They operate using two helical screws that compress the refrigerant gas, significantly increasing its pressure and temperature.
-
Air-Cooled Condenser: Unlike water-cooled systems, air-cooled chillers dissipate heat into the atmosphere using ambient air. The condenser, equipped with fans, facilitates this heat rejection process, making the system simpler and more adaptable to various environments.
-
Evaporator: The evaporator is where the actual cooling occurs. The high-pressure refrigerant is expanded, causing it to absorb heat from the liquid to be cooled, thus lowering its temperature.
-
Expansion Valve: This component regulates the flow of refrigerant into the evaporator, ensuring optimal cooling performance and efficiency.
Functionality
The operational cycle of an air-cooled helical rotary liquid chiller can be summarized in the following steps:
-
Compression: The helical rotary compressors draw in the low-pressure refrigerant gas and compress it to a high-pressure, high-temperature state.
-
Condensation: The high-pressure refrigerant gas flows to the air-cooled condenser, where ambient air absorbs its heat, causing the refrigerant to condense into a high-pressure liquid.
-
Expansion: The high-pressure liquid refrigerant passes through the expansion valve, where its pressure drops, causing a significant reduction in temperature.
-
Evaporation: The low-pressure, low-temperature refrigerant then enters the evaporator. Here, it absorbs heat from the liquid that needs to be cooled, effectively lowering the temperature of the liquid.
-
Return to Compressor: The refrigerant, now in a gaseous state, returns to the compressor, and the cycle repeats.
Applications
Industrial air-cooled helical rotary liquid chillers are utilized across a variety of sectors, including:
- Manufacturing: For cooling machinery and processes to maintain optimal operating conditions.
- HVAC Systems: Providing climate control in large buildings, ensuring a comfortable environment.
- Food and Beverage: Maintaining proper storage temperatures and process cooling.
- Pharmaceuticals: Ensuring precise temperature regulation for production and storage of sensitive pharmaceutical products.
Advantages
-
Efficiency: Helical rotary compressors are known for their high efficiency, reducing energy consumption and operating costs.
-
Reliability: These systems are designed for continuous operation, with minimal maintenance requirements, ensuring consistent performance.
-
Flexibility: Air-cooled systems do not require a water source, making them suitable for locations where water availability is a concern.
-
Environmentally Friendly: Modern chillers use refrigerants with low global warming potential (GWP), aligning with environmental regulations and sustainability goals.
Conclusion
Industrial air-cooled helical rotary liquid chillers represent a sophisticated solution for large-scale cooling needs. Their robust design, coupled with efficient and reliable performance, makes them indispensable in various industrial applications. By understanding their components and functionality, industries can better appreciate their role in maintaining optimal operational conditions.
