In the world of industrial processes where efficient heat transfer is paramount, the choice of heat exchanger design plays a pivotal role. Among the diverse array of heat exchangers available, two prominent types stand out: the industrial shell and tube heat exchanger and the industrial tube-in-tube heat exchanger. While both serve the fundamental purpose of transferring heat between two fluids, they differ significantly in their design, application, and performance characteristics.

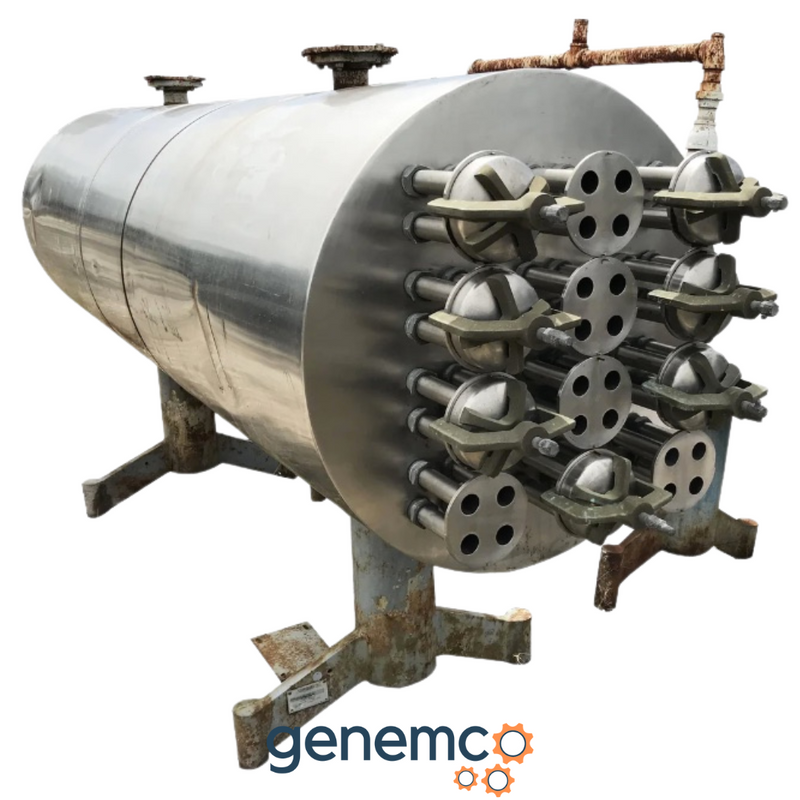

Industrial Shell and Tube Heat Exchangers
The shell and tube heat exchanger represents a classic and widely used design in industrial applications. As the name suggests, it comprises a shell, typically cylindrical in shape, encompassing an array of tubes. These tubes, often arranged in a bundle configuration, facilitate the flow of one fluid through the tubes (the tube side), while another fluid circulates around the outside of the tubes within the shell (the shell side). The fluids can be in counterflow, parallel flow, or crossflow arrangements, depending on the specific requirements of the application.
One of the primary advantages of shell and tube heat exchangers lies in their versatility and robustness. They can handle high pressures and temperatures, making them suitable for a wide range of industrial processes across various sectors, including petrochemical, chemical, power generation, and HVAC systems. Additionally, their design allows for easy maintenance and cleaning, with options for tube bundle removal to facilitate inspection or repair.
However, despite their widespread use and reliability, shell and tube heat exchangers do have some limitations. They tend to be bulkier and heavier compared to alternative designs, requiring more space for installation. Additionally, their efficiency can be impacted by issues such as fouling, which occurs when deposits accumulate on the tube surfaces over time, reducing heat transfer rates and necessitating periodic cleaning or maintenance.
Industrial Tube-in-Tube Heat Exchangers
In contrast, the tube-in-tube heat exchanger represents a more compact and specialized alternative. As the name implies, this design features an inner tube nested within an outer tube, creating concentric flow paths for the two fluids involved in the heat exchange process. The inner tube typically carries one fluid, while the outer tube accommodates the other, enabling efficient heat transfer between them.
The tube-in-tube configuration offers several distinct advantages over traditional shell and tube heat exchangers, particularly in applications where space is limited or where precise temperature control is critical. Its compact design makes it well-suited for installations where footprint constraints exist, allowing for integration into systems with restricted space availability. Furthermore, the concentric flow paths promote efficient heat transfer, contributing to higher thermal performance compared to some larger and more complex heat exchanger designs.
However, despite these advantages, tube-in-tube heat exchangers may not be suitable for all applications. They typically have lower heat transfer rates compared to their larger counterparts, limiting their applicability in high-capacity or high-temperature processes. Additionally, their compact design may pose challenges in terms of maintenance and cleaning, especially if access to the inner tubes is limited.
In summary, the choice between industrial shell and tube heat exchangers and industrial tube-in-tube heat exchangers depends on various factors, including the specific requirements of the application, space constraints, thermal performance considerations, and maintenance considerations. While shell and tube heat exchangers offer versatility and reliability in a wide range of industrial settings, tube-in-tube heat exchangers provide a more compact and space-efficient solution for certain applications. Understanding the distinctions between these two types of equipment is crucial for selecting the most suitable option to optimize performance and efficiency in industrial processes.
